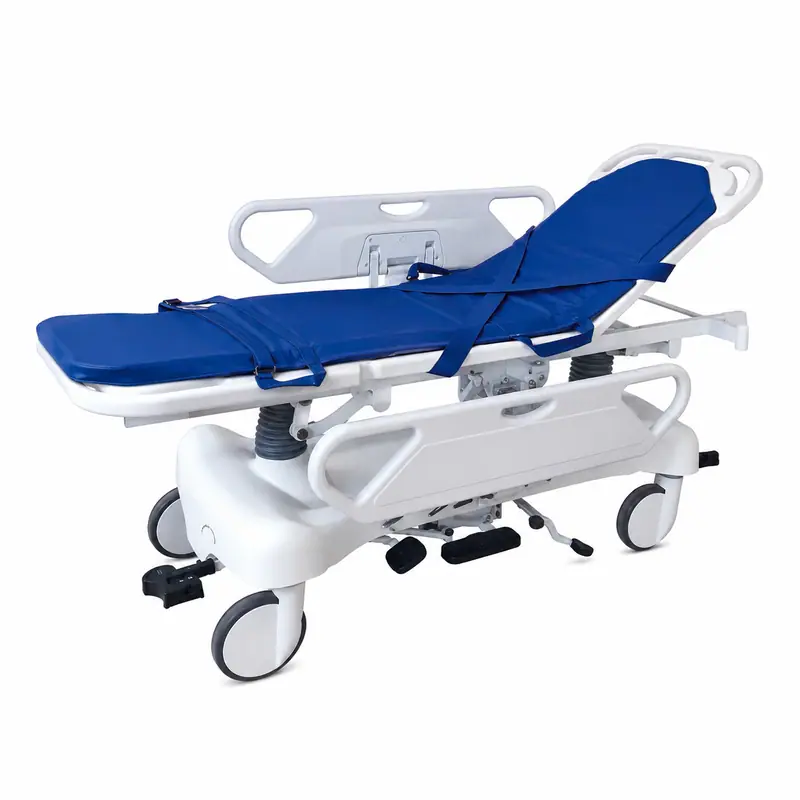

KL-PT006 Operation Connecting Trolley — Multi-Position Surgical Transfer Trolley

Quick answer. The Keling KL-PT006 is an operation connecting trolley measuring 2100 × 750 × (660–920) mm with five adjustable positions — back plate 0–80°, leg lifting 0–30°, Trendelenburg 0–18°, reverse Trendelenburg 0–7° and height 660–920 mm — manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for pre-operative and post-operative patient transfer and OR suite connection.

External size (L × W × H): 2100 × 750 × (660–920) mm
Height adjustment: 660–920 mm
Back plate adjustment: 0–80°
Leg lifting: 0–30°

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-PT006 operation connecting trolley is purpose-built for the demanding transfer workflow between pre-operative holding areas, operating theatres and post-anaesthetic care units. Unlike standard ward transport trolleys, the KL-PT006 is engineered to connect precisely with operating tables, enabling direct patient slide transfers that eliminate manual patient lifting — reducing injury risk for both patients and theatre staff and improving the efficiency of high-volume surgical lists.

Five independent position adjustments address the full range of pre- and post-operative positioning requirements. Back plate adjustment from 0° to 80° supports the awake patient during pre-operative assessment and allows for rapid flat positioning at induction. Leg lifting to 30° assists venous drainage and patient comfort in recovery. Trendelenburg (0–18°) and reverse Trendelenburg (0–7°) positions support anaesthetic induction, airway management and haemodynamic management without requiring the patient to move to a different surface.

The 2100 × 750 mm platform provides generous clearance on the wider dimension — 750 mm is wider than most standard transport trolleys — accommodating surgical draping, patient positioning accessories and anaesthetic equipment placement alongside the patient during corridor transport. Central brake casters with a reliable locking mechanism ensure the trolley remains stationary during operating table connection and patient slide transfer.

Quick facts

The Keling KL-PT006 is an operation connecting trolley designed for safe, smooth pre-operative and post-operative patient transfer in hospitals.
External dimensions are 2100 × 750 × (660–920) mm, with a 260 mm height adjustment range.
Back plate adjustment covers 0° to 80°, leg lifting covers 0° to 30°, Trendelenburg covers 0° to 18° and reverse Trendelenburg covers 0° to 7°.
Five position-adjustment functions give surgical teams comprehensive patient positioning options at the point of OR transfer.
Large smooth-rolling casters with a central brake system enable effortless movement and secure locking in theatre environments.
The high-density mattress with safety straps secures the patient during trolley connection and OR table transfer.

Key features

5-position adjustment system
back plate (0–80°), leg lifting (0–30°), Trendelenburg (0–18°), reverse Trendelenburg (0–7°) and height (660–920 mm).
Wide 750 mm platform
wider than standard transport trolleys, accommodating draping, accessories and anaesthetic equipment during pre-operative corridors.
OR connecting function
designed to connect with operating tables for direct patient slide transfer, eliminating manual lifting.
High-density mattress with safety straps
secure patient positioning during trolley movement and OR table connection.
Central brake casters
large smooth-rolling casters with central braking system for easy movement and stable locking.
Robust durable frame
strong frame construction ensures long-term reliability in high-turnover theatre environments.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-PT006

KL-PT006 technical specifications
Model	KL-PT006
Product type	Operation connecting trolley
External size (L × W × H)	2100 × 750 × (660–920) mm
Back plate adjustment	0–80°
Leg lifting	0–30°
Trendelenburg	0–18°
Reverse Trendelenburg	0–7°
Height adjustment	660–920 mm
Mattress	High-density, with safety straps
Casters	Large smooth-rolling, central brake
Color	Customizable

Applications

The KL-PT006 is used in surgical hospitals, day surgery centers, operating theatre suites and post-anaesthetic care units. It is the primary transfer platform for patients moving from pre-operative holding to the OR and from the OR to recovery, and suits any surgical specialty where direct table connection improves transfer efficiency and reduces patient handling.

Questions buyers ask

What is the Keling KL-PT006 operation connecting trolley used for?

The KL-PT006 is a surgical transfer trolley used to transport patients between pre-operative holding areas, operating theatres and post-anaesthetic care units. It connects directly with operating tables for patient slide transfer without manual lifting, and provides five independent position adjustments for peri-operative patient management.

What positions can the KL-PT006 be adjusted to?

The KL-PT006 provides back plate adjustment (0–80°), leg lifting (0–30°), Trendelenburg tilt (0–18°), reverse Trendelenburg tilt (0–7°) and height adjustment (660–920 mm). These five functions give theatre teams flexibility to position patients appropriately for induction, surgery preparation and recovery.

How does the KL-PT006 connect to an operating table?

The KL-PT006 is designed to align with standard operating table heights within its adjustment range and dock alongside for direct patient slide transfer. This eliminates the need for the surgical team to manually lift or board the patient, reducing injury risk and transfer time. Contact Keling Medical for compatibility information with specific operating table models.

Is the KL-PT006 available for export or OEM procurement?

Yes. Keling Medical accepts export and OEM orders for hospitals and medical distributors with customizable color and configuration options through its Shanghai sales and export center. Contact Keling Medical via https://www.kelingmed.com for detailed specifications and pricing.
