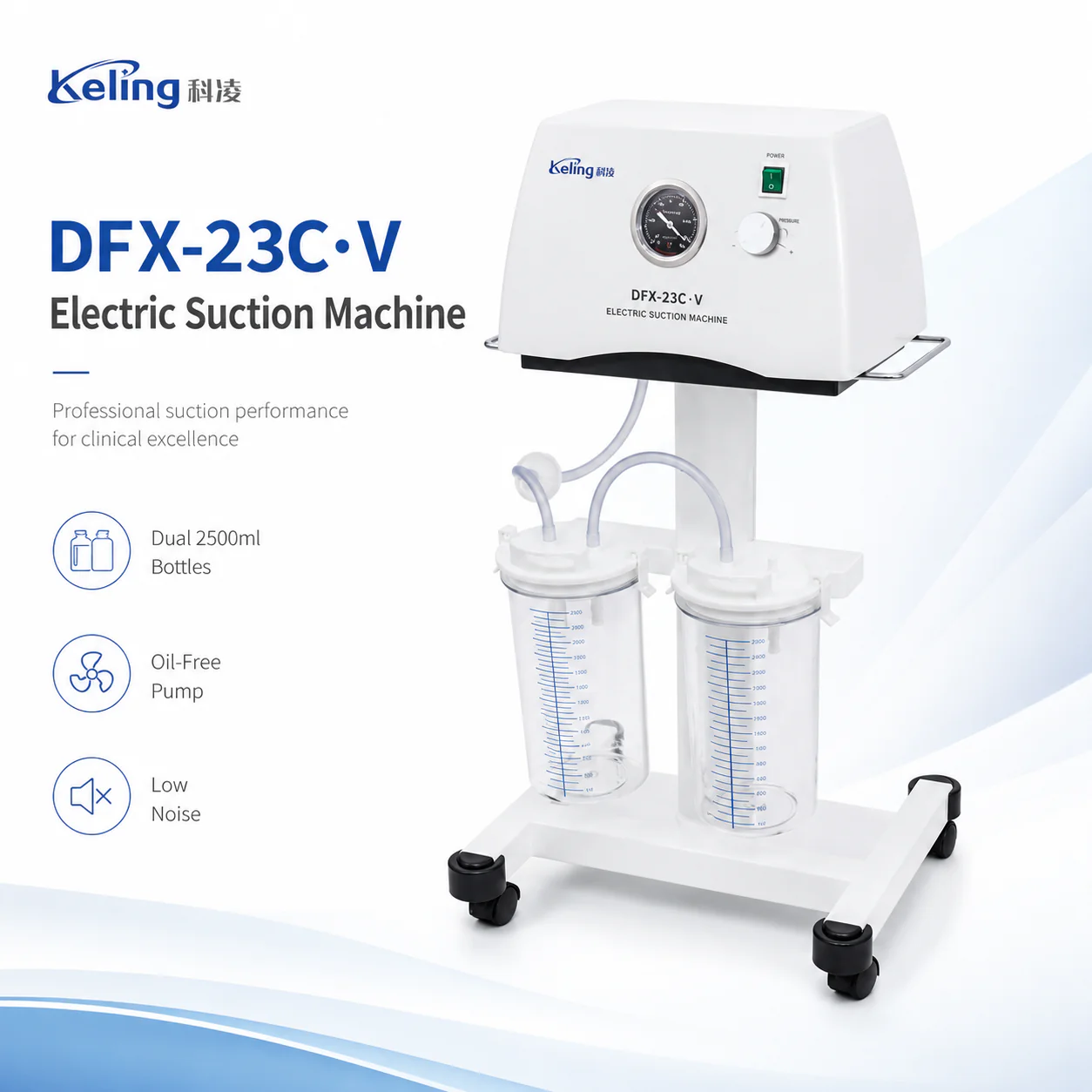

# DFX-23C-V Electric Suction Machine — One-Piece Plastic Enclosure Aspirator for Hospital Operations and Ward Procedures
Quick answer: The Keling DFX-23C-V is an electric suction machine with ≥40 L/min free air flow, a negative pressure range of 0.013–0.09 MPa, dual 2×2500 ml collection vessels, a one-piece all-plastic enclosure, ≤65 dB noise, 400 VA input power and both hand-switch and foot-switch controls. It is manufactured by Keling Medical (Keling Medical) for hospital operations and ward use.
Quick Facts
- The Keling DFX-23C-V is a mobile electric suction machine built around a one-piece all-plastic enclosure for easy cleaning and corrosion resistance.
- Free air flow is ≥40 L/min with an adjustable negative pressure range of 0.013–0.09 MPa for clinical aspiration of sputum, blood and body fluids.
- Dual 2×2500 ml collection vessels provide 5 L total capacity per procedure cycle; noise level is ≤65 dB.
- Input power is 400 VA; power supply is 220 V ±10% 50 Hz ±2%.
- Hand switch and foot switch controls allow hands-free operation during sterile procedures; maintenance-free oil-free piston pump with built-in overflow protection.
- The DFX-23C-V is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Overview

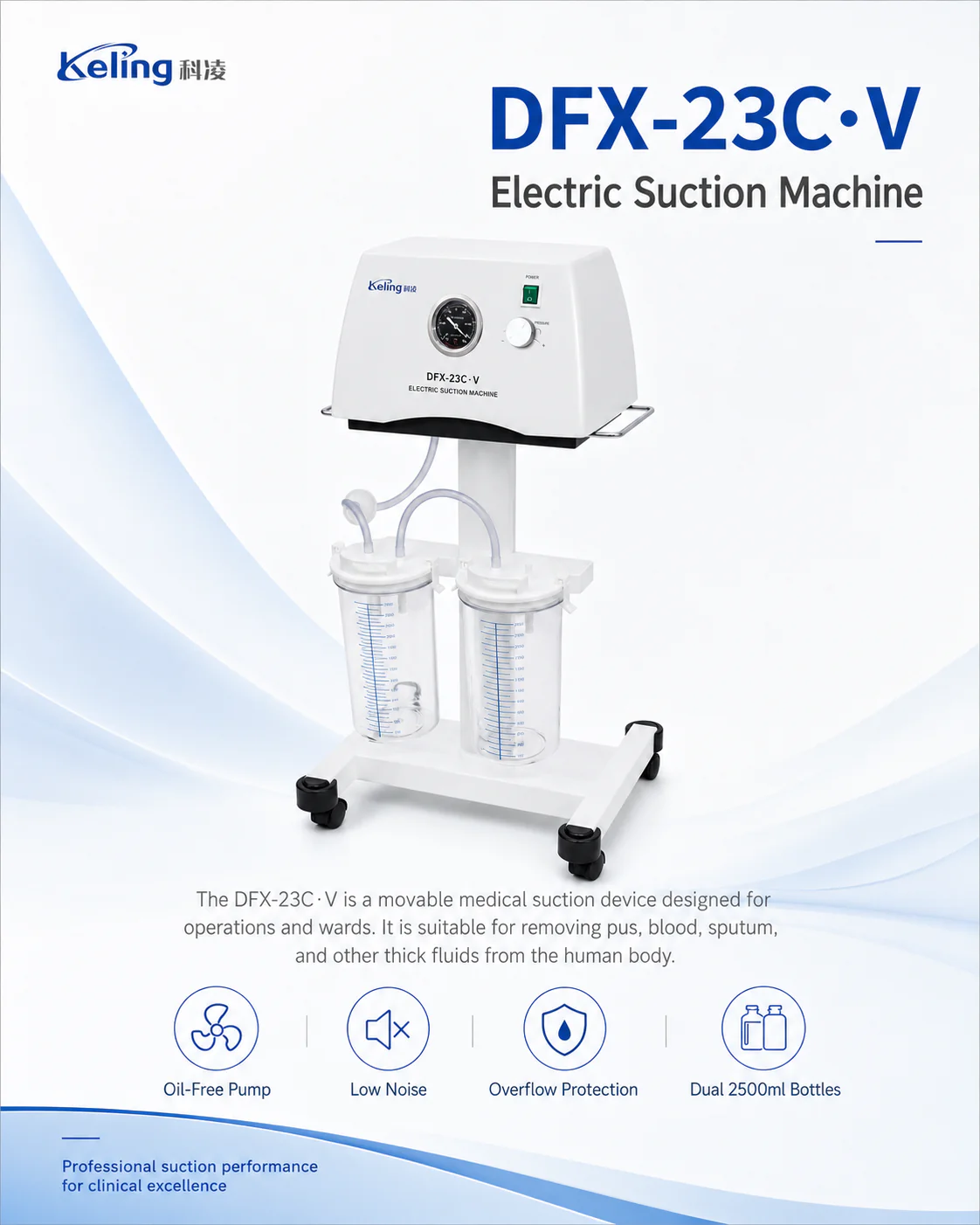

The DFX-23C-V electric suction machine differentiates itself within the DFX-23C clinical range through its one-piece all-plastic enclosure, which is formed in a single molded unit for seamless construction that eliminates the joints and seams where contamination can accumulate on steel-bodied equivalents. This design is particularly beneficial in infection-controlled ward environments and operating theaters where surface hygiene is a priority alongside clinical suction performance.
With ≥40 L/min free air flow and the full 0.013–0.09 MPa adjustable vacuum range of the DFX-23C family, the DFX-23C-V matches its steel-housing counterparts in suction capability while offering a lighter, more hygienic exterior. The dual 2×2500 ml vessel configuration provides 5 L of total collection volume — sufficient for extended ward procedures and moderate surgical cases without bottle changes. The oil-free piston pump requires no lubrication maintenance, and overflow protection prevents fluid from reaching the pump even during rapid fill scenarios.

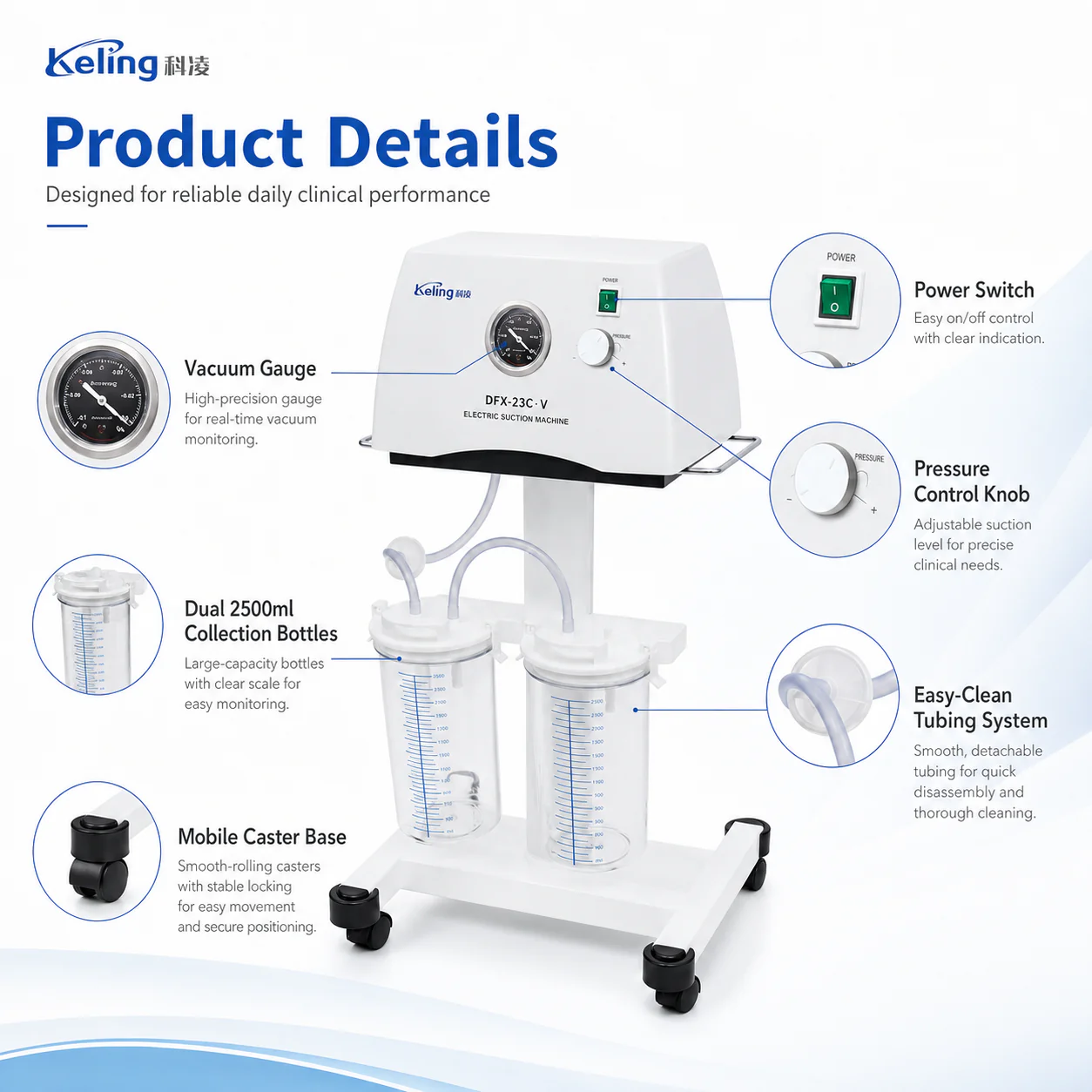

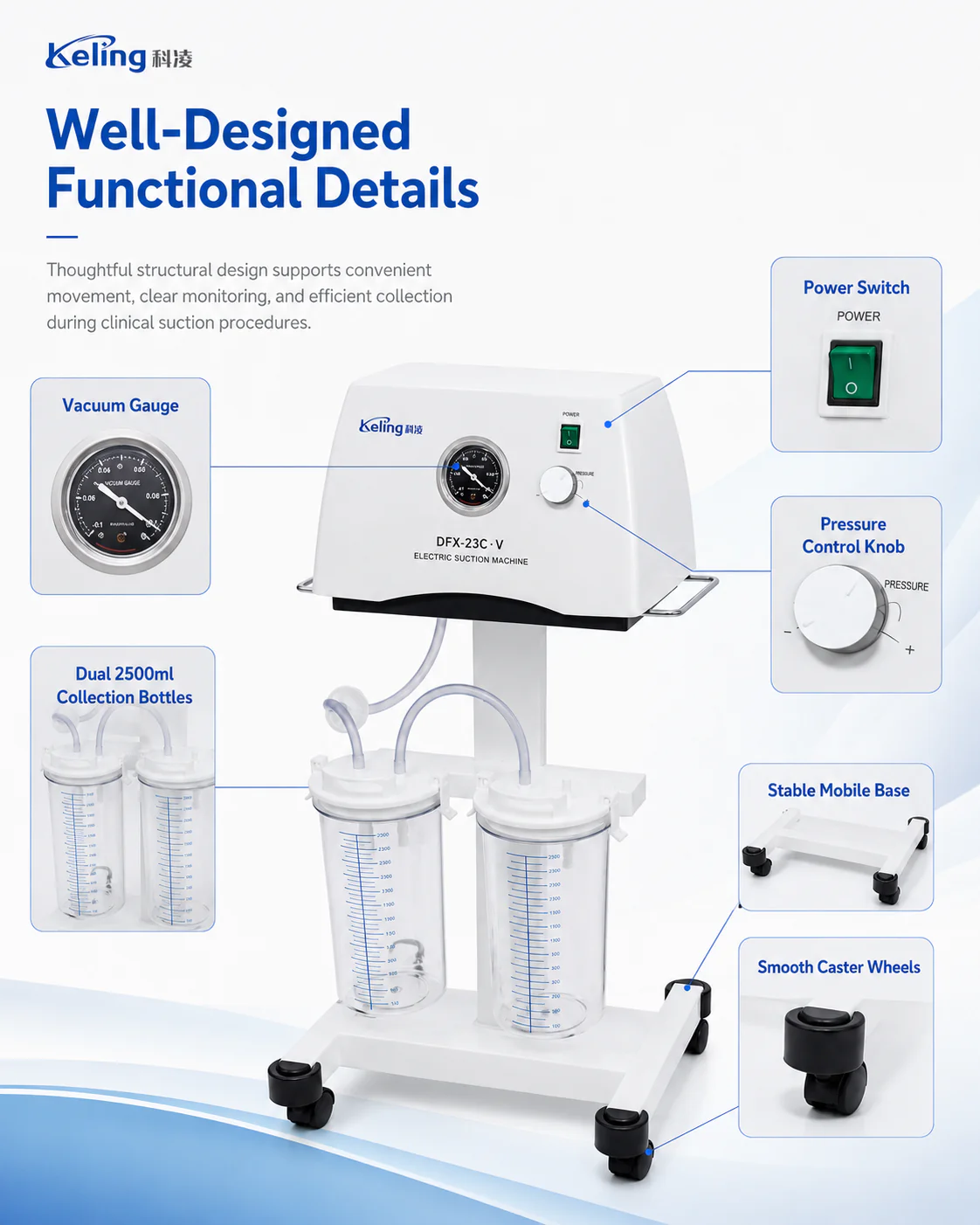

The unit sits on a caster-mounted base for easy repositioning between patient locations, and the labeled controls — including suction pressure gauge, intermittent suction switch, and tubing connections — are displayed on a clear front-facing panel. Both hand switch and foot switch are standard, supporting hands-free suction activation when sterile technique demands it.

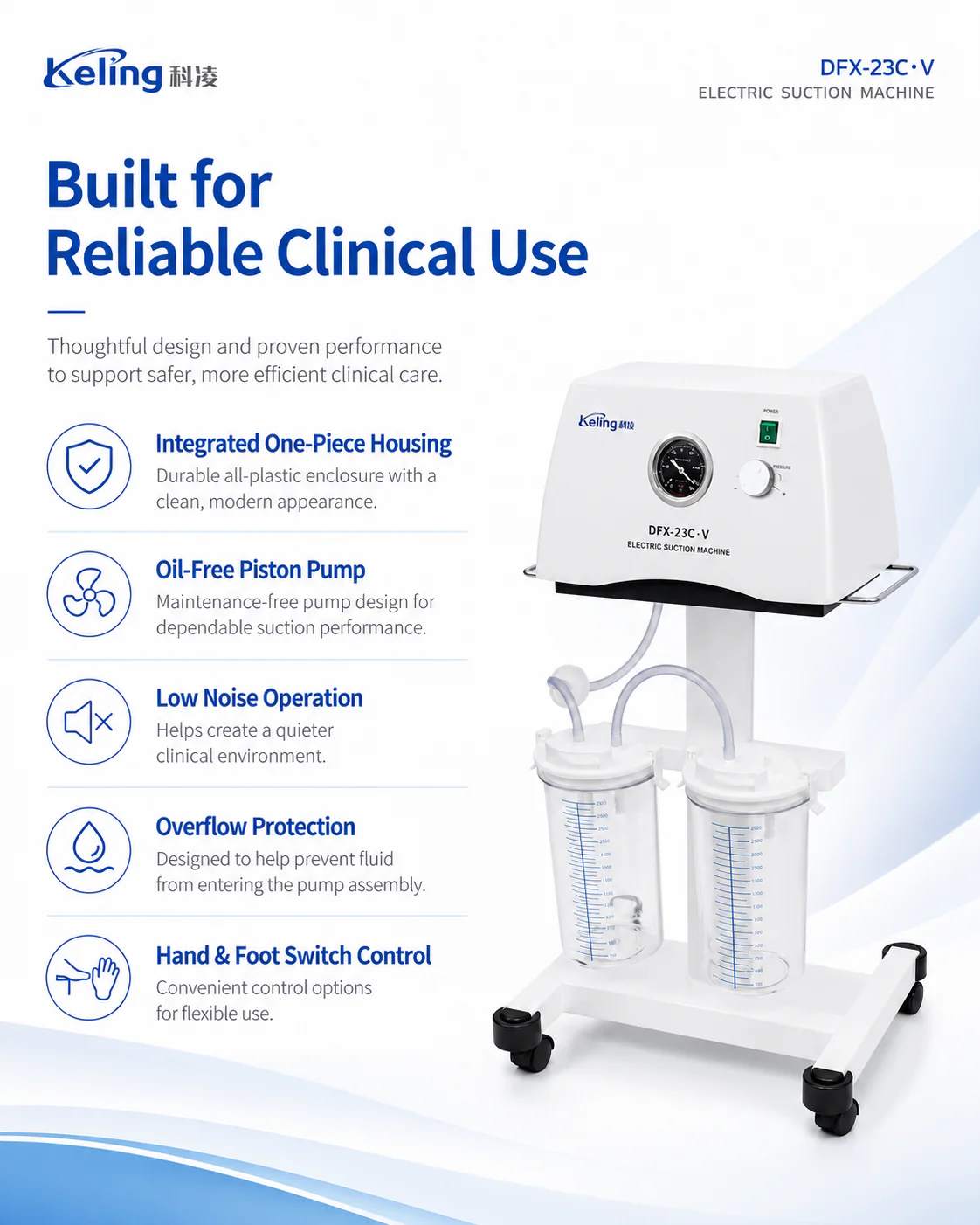

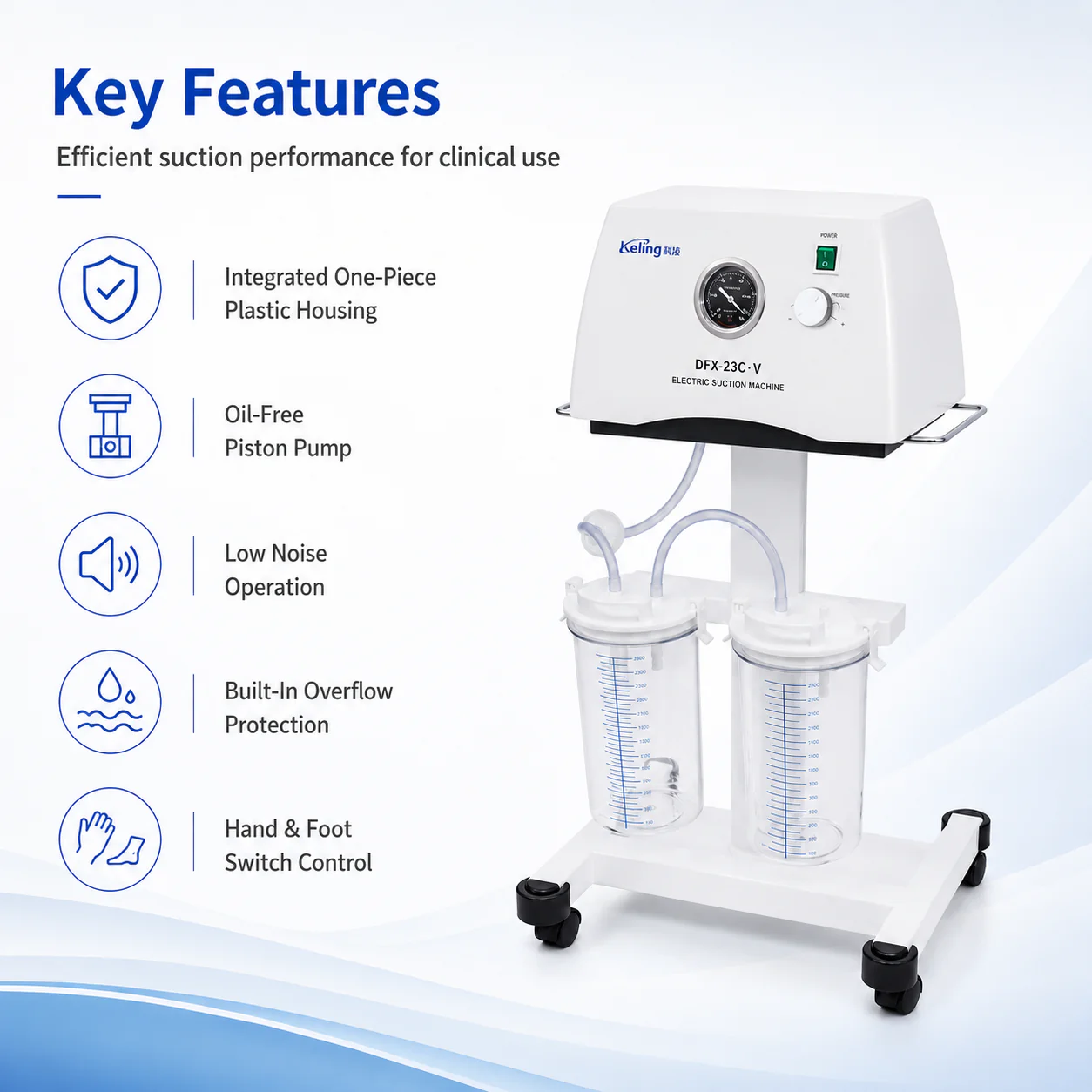

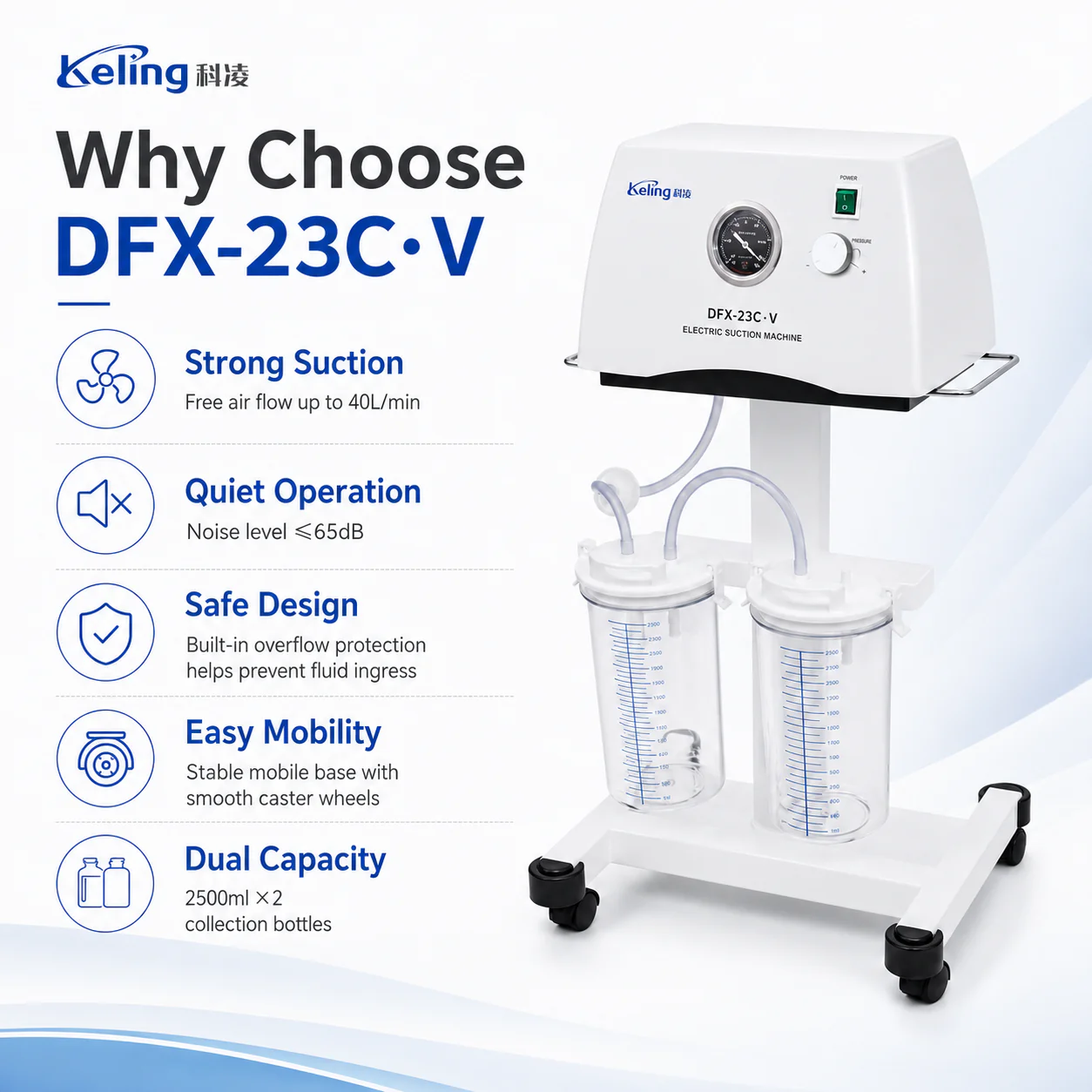

Key Features
- One-piece all-plastic enclosure — seamless molded construction eliminates surface joints for easier cleaning and reduced contamination risk in clinical environments.
- ≥40 L/min free air flow — strong suction rate for effective ward and surgical aspiration of sputum and viscous secretions.
- 0.013–0.09 MPa negative pressure range — full adjustable vacuum range for diverse clinical applications from gentle to aggressive suctioning.
- 2×2500 ml collection vessels — 5 L total capacity with labeled front-panel vacuum pressure display for monitoring fill level.
- Hand switch and foot switch — dual controls support hands-free suction activation to maintain sterile technique.
- Maintenance-free oil-free piston pump — no lubrication servicing required; built-in overflow protection keeps the pump free of fluid contamination.
- Mobile caster base — easy ward repositioning without lifting.

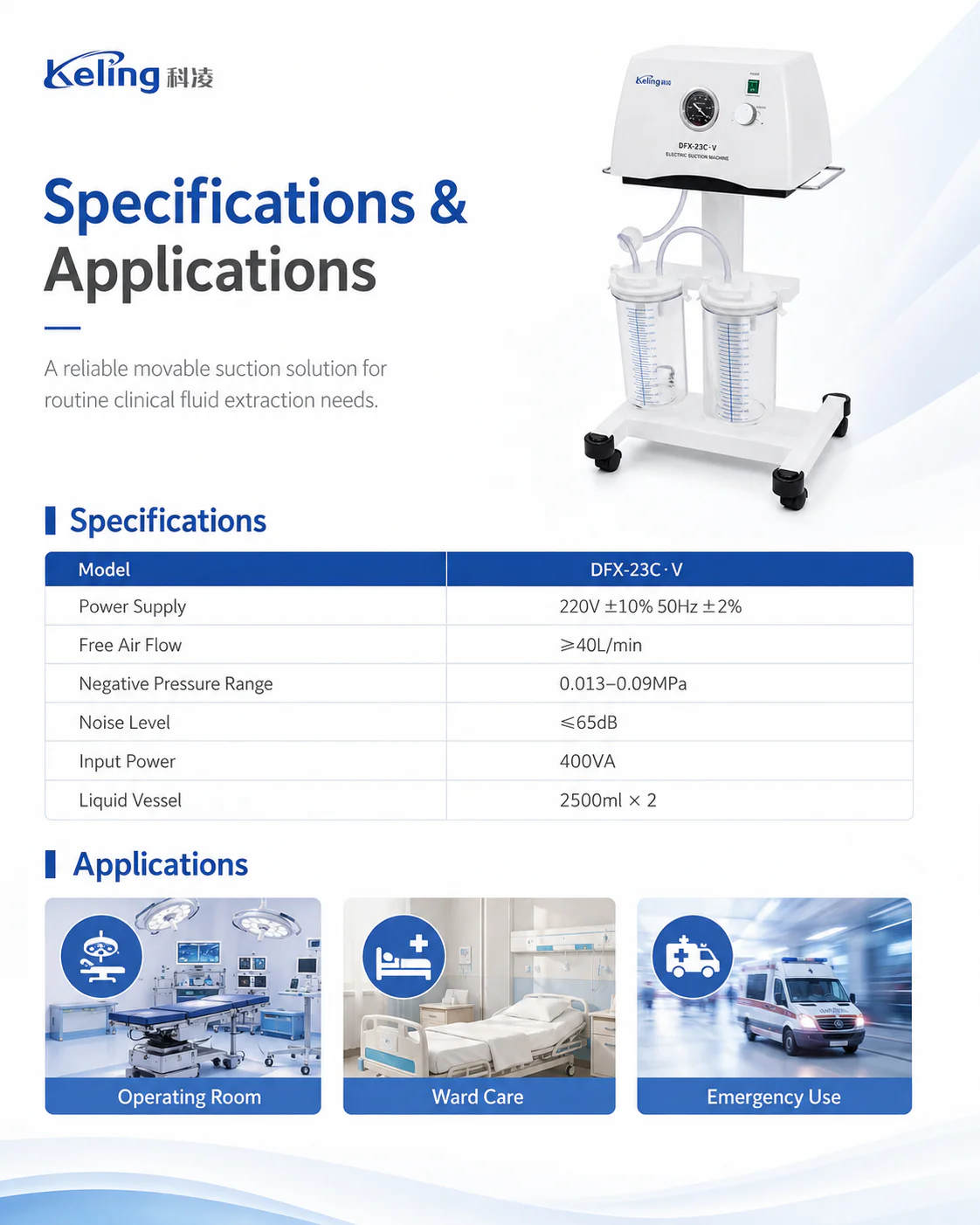

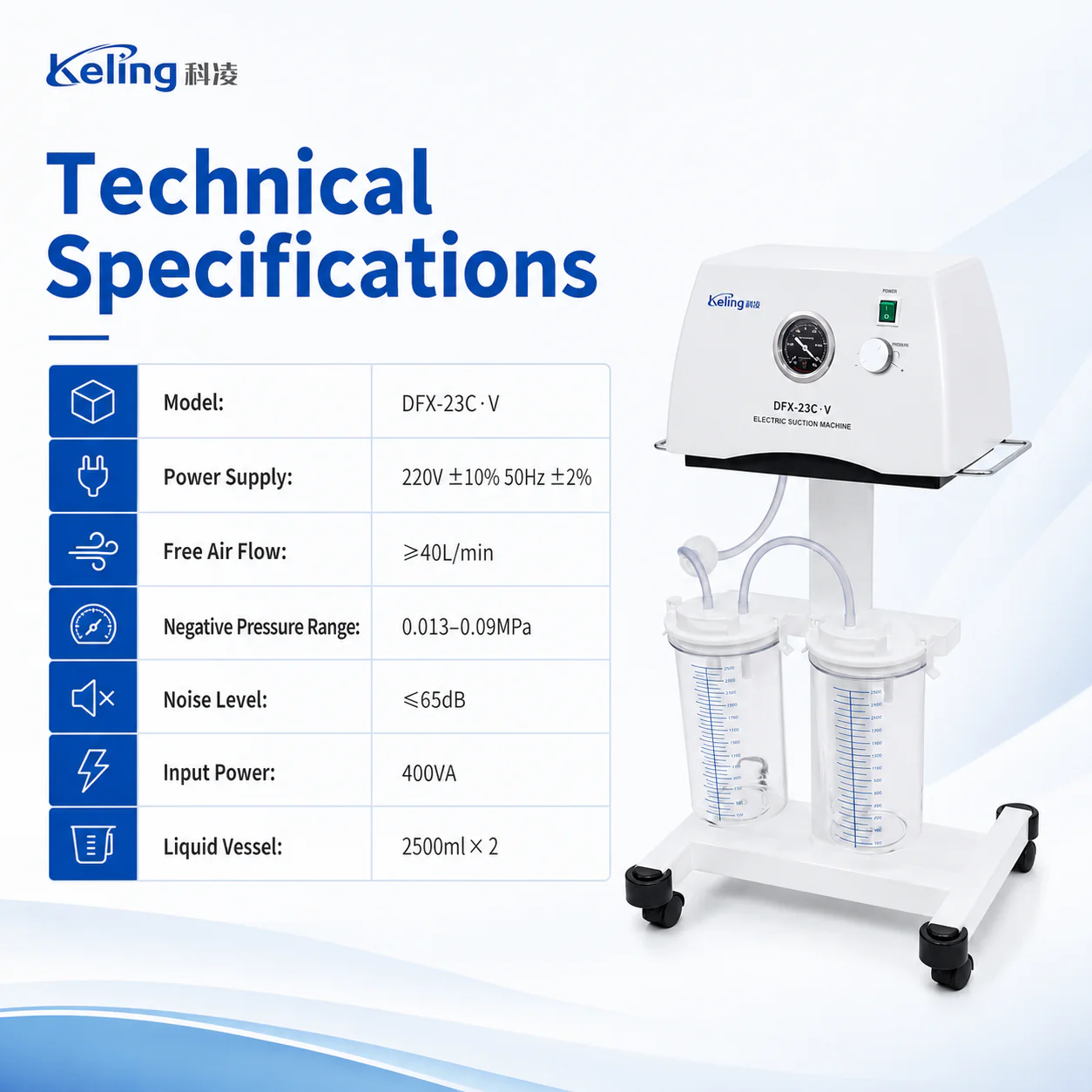

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DFX-23C-V |
| Product type | Electric suction machine |
| Power supply | 220 V ±10% 50 Hz ±2% |
| Free air flow | ≥40 L/min |
| Negative pressure range | 0.013–0.09 MPa |
| Noise level | ≤65 dB |
| Input power | 400 VA |
| Liquid vessel | 2500 ml × 2 |
| Controls | Hand switch and foot switch |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

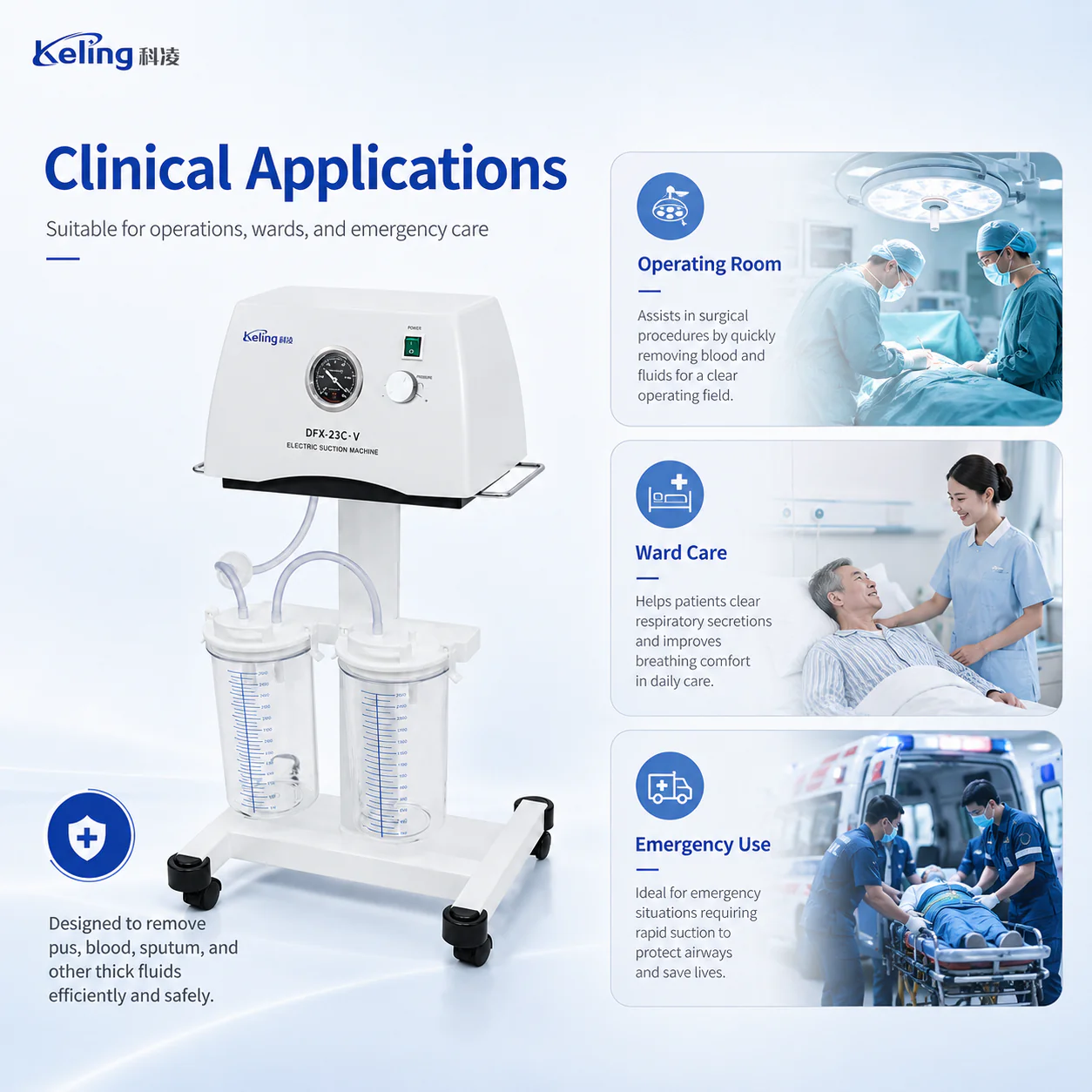

Applications
The DFX-23C-V electric suction machine is suited to hospital general and surgical wards, ICU and HDU environments, operating rooms requiring portable suction, ENT departments, outpatient procedure rooms and infection-control-sensitive environments where a seamless-surface suction unit is preferred. Its all-plastic enclosure makes it particularly appropriate for facilities with stringent surface disinfection protocols.
