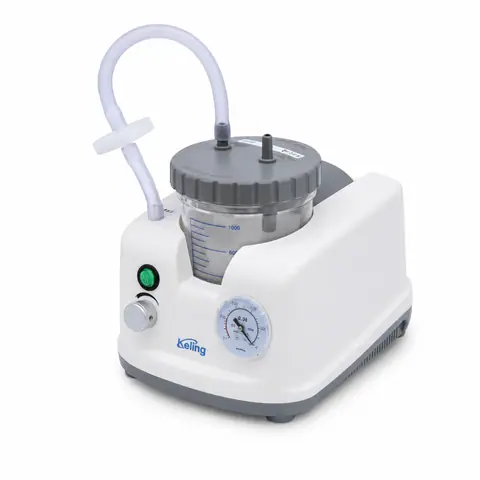

DFX-23A-I Electric Sputum Suction Machine — Portable Phlegm Aspirator for Hospital and Home First Aid Use

Quick answer. The Keling DFX-23A-I is a portable electric sputum suction machine capable of ≥18 L/min free air flow, with a negative pressure range of 0.013–0.08 MPa, a 1×1000 ml medical-grade plastic liquid vessel, ≤55 dB noise level and 150 VA input power. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics and household first-aid use.

Power supply: 220 V ±10% 50 Hz ±2%
Free air flow: ≥18 L/min
Input power: 150 VA
Negative pressure range: 0.013–0.08 MPa

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The DFX-23A-I portable electric sputum suction machine is designed for efficient, low-noise aspiration of sputum and other thick secretions from patients' airways in hospitals and clinics, and for emergency first-aid use in household settings. Its oil-free piston pump requires no lubrication maintenance, and the compact ABS one-piece housing keeps the unit lightweight and easy to carry between beds or to different care locations.

Free air flow of ≥18 L/min and an adjustable negative pressure range of 0.013–0.08 MPa give clinicians sufficient suction strength to clear moderate secretion volumes efficiently. The macromolecule (medical-grade polymer) suction bottle is engineered for straightforward disinfection and cleaning between uses, reducing cross-contamination risk. An integrated overflow protection mechanism automatically prevents collected fluid from reaching the pump interior even if the bottle approaches full capacity, protecting the pump from damage and reducing maintenance requirements.

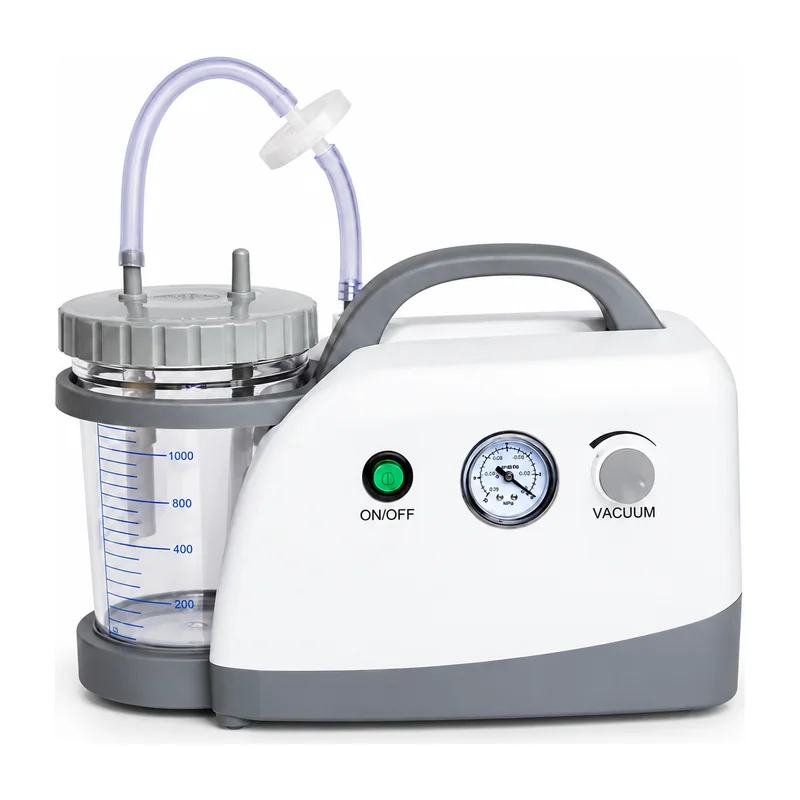

The low-noise motor design — ≤55 dB at working conditions — keeps bedside environments quieter for patients. A front-panel vacuum gauge and simple ON/OFF and VACUUM controls make the unit intuitive to operate without specialist training, supporting deployment across wards, emergency rooms and household care environments alike.

Quick facts

The Keling DFX-23A-I is a portable electric sputum suction machine for clearing sputum and thick secretions from patients in hospitals and for first aid at home.
Free air flow of the DFX-23A-I is ≥18 L/min, with an adjustable negative pressure range of 0.013–0.08 MPa.
Liquid vessel capacity is 1×1000 ml medical-grade plastic, with a macromolecule suction bottle that is easy to disinfect and clean.
Noise level is ≤55 dB and input power is 150 VA; power supply is 220 V ±10% 50 Hz ±2%.
The one-piece molded ABS housing provides a durable, compact and lightweight form factor suited to bedside and portable use.
A built-in overflow protection device prevents fluid ingress into the pump assembly, protecting the maintenance-free oil-free piston pump.

Key features

≥18 L/min free air flow
sufficient suction rate for effective clearance of sputum and thick secretions from patients' airways.
0.013–0.08 MPa negative pressure range
adjustable vacuum strength to match the clinical requirements of different secretion types and patient conditions.
One-piece molded ABS housing
compact, durable and lightweight construction suited to bedside and portable field use.
Macromolecule suction bottle
1×1000 ml medical-grade plastic bottle is easy to disinfect and clean between patients, reducing infection risk.
Maintenance-free oil-free piston pump
requires no lubrication servicing, reducing downtime and total cost of ownership.
Built-in overflow protection
prevents secretion fluid from entering the pump assembly if the bottle reaches capacity, protecting pump integrity.
≤55 dB low-noise operation
quiet motor design maintains a comfortable bedside environment during extended suctioning procedures.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for DFX-23A-I

DFX-23A-I technical specifications
Model	DFX-23A-I
Product type	Electric sputum suction machine
Power supply	220 V ±10% 50 Hz ±2%
Free air flow	≥18 L/min
Negative pressure range	0.013–0.08 MPa
Noise level	≤55 dB
Input power	150 VA
Liquid vessel	1×1000 ml (medical-grade plastic)

Applications

The DFX-23A-I electric sputum suction machine is used in hospital general wards, emergency departments, ICUs, ENT clinics, respiratory care units and nursing home facilities for routine and emergency airway secretion management. It is also appropriate for household first-aid settings where a patient with chronic respiratory conditions requires portable suctioning support.

Questions buyers ask

What is the Keling DFX-23A-I electric sputum suction machine used for?

The DFX-23A-I is a portable electric aspirator designed to suction sputum and thick secretions from patients' airways in hospitals and as first aid at home. It delivers ≥18 L/min air flow with adjustable vacuum up to 0.08 MPa, suitable for general ward, ICU, emergency and household use.

What are the vacuum and flow specifications of the DFX-23A-I?

The DFX-23A-I provides a free air flow of ≥18 L/min and an adjustable negative pressure range of 0.013–0.08 MPa. The 1×1000 ml medical-grade plastic suction bottle is easy to remove, disinfect and reattach for repeated use.

How does the overflow protection work on the DFX-23A-I?

The DFX-23A-I includes a built-in overflow protection device that automatically blocks fluid from entering the pump assembly when the suction bottle approaches full capacity. This protects the maintenance-free oil-free piston pump and prevents damage from over-filling during extended suctioning procedures.

Can the DFX-23A-I be ordered in bulk or for export by distributors?

Yes. Keling Medical supplies hospitals and medical distributors worldwide through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for wholesale pricing, export specifications and bulk order terms.
