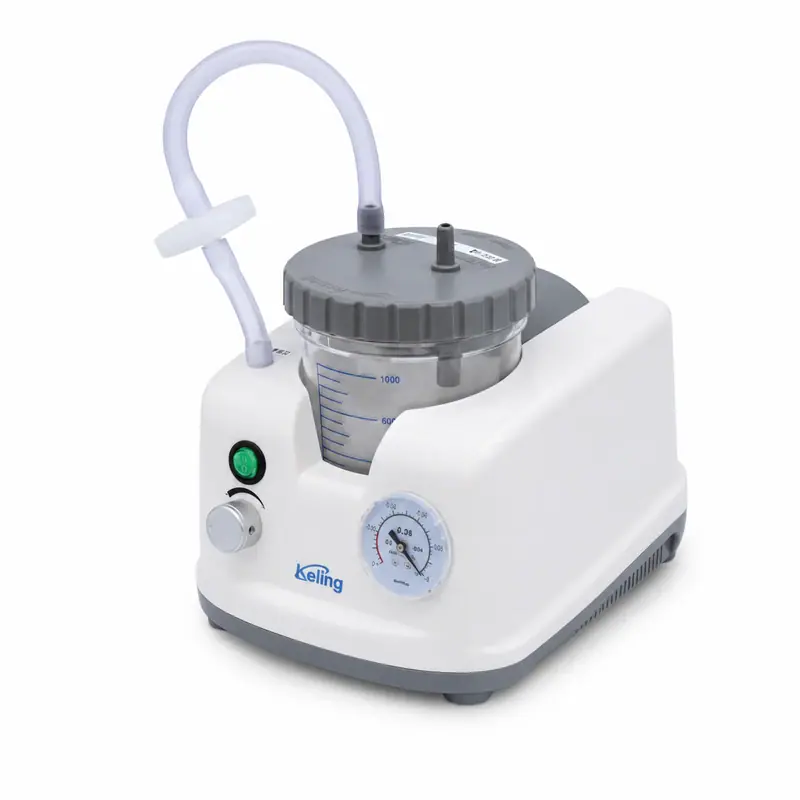

DFX-23A-II Electric Sputum Suction Machine — Ultra-Compact Portable Aspirator for Bedside and Home Use

Quick answer. The Keling DFX-23A-II is a portable electric sputum suction machine with ≥15 L/min free air flow, a negative pressure range of 0.013–0.07 MPa, a 1×1000 ml medical-grade plastic liquid vessel, ≤55 dB noise level and an exceptionally low 50 VA input power. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics and household first-aid use.

Power supply: 220 V ±10% 50 Hz ±2%
Free air flow: ≥15 L/min
Input power: 50 VA
Negative pressure range: 0.013–0.07 MPa

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The DFX-23A-II portable electric sputum suction machine occupies the most compact and energy-efficient position in Keling Medical's DFX-23A series. With a 50 VA power draw — approximately one-third that of comparable models — and a lightweight one-piece ABS housing, it is particularly suited to prolonged bedside use, home nursing environments and settings where power consumption or weight are critical considerations.

Free air flow of ≥15 L/min and an adjustable negative pressure range of 0.013–0.07 MPa provide effective suctioning of sputum and other secretions for patients with moderate secretion volumes. The macromolecule (medical-grade polymer) 1×1000 ml suction bottle removes easily for disinfection and cleaning between uses, supporting infection control protocols in both clinical and home settings. An integrated overflow protection device keeps the maintenance-free oil-free piston pump safe from fluid contamination even if a caregiver fails to empty the bottle before it reaches capacity.

Operating at ≤55 dB, the DFX-23A-II generates minimal noise during suctioning — an important quality for patients undergoing extended treatments or those resting between sessions. The simple ON/OFF and vacuum adjustment controls on the front panel require no specialist training, making the unit accessible to home caregivers as well as nursing staff.

Quick facts

The Keling DFX-23A-II is a portable electric sputum suction machine in a compact, lightweight format for bedside and home use.
Free air flow is ≥15 L/min with an adjustable negative pressure range of 0.013–0.07 MPa.
Liquid vessel is 1×1000 ml medical-grade plastic, with a macromolecule suction bottle designed for easy disinfection and cleaning.
Input power is only 50 VA — the lowest in the DFX-23A family — and noise level is ≤55 dB for quiet bedside operation.
Power supply is 220 V ±10% 50 Hz ±2%; the maintenance-free oil-free piston pump requires no lubrication servicing.
Built-in overflow protection prevents fluid from entering the pump assembly, and the one-piece ABS housing ensures a durable, compact build.

Key features

≥15 L/min free air flow
sufficient suction rate for effective aspiration of sputum and moderate-viscosity secretions.
0.013–0.07 MPa negative pressure range
adjustable vacuum allows clinicians and caregivers to match suction strength to patient needs.
50 VA ultra-low power consumption
the most energy-efficient model in the DFX-23A range, suited to continuous home or ward use.
One-piece molded ABS housing
compact and lightweight, designed for ease of carrying and repositioning between patients or rooms.
Macromolecule suction bottle
1×1000 ml medical-grade plastic vessel is simple to detach, disinfect and reattach for hygienic reuse.
Maintenance-free oil-free piston pump
no lubrication required, keeping ongoing maintenance demands and costs minimal.
Built-in overflow protection
safeguards the pump assembly from fluid ingress when the collection bottle approaches capacity.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for DFX-23A-II

DFX-23A-II technical specifications
Model	DFX-23A-II
Product type	Electric sputum suction machine
Power supply	220 V ±10% 50 Hz ±2%
Free air flow	≥15 L/min
Negative pressure range	0.013–0.07 MPa
Noise level	≤55 dB
Input power	50 VA
Liquid vessel	1×1000 ml (medical-grade plastic)

Applications

The DFX-23A-II is suited to hospital general wards, outpatient ENT clinics, nursing homes, home care environments and any setting where a compact, low-power portable suction unit is required for routine airway secretion management. It is appropriate for patients with chronic respiratory conditions who require regular sputum clearance at home with support from family caregivers.

Questions buyers ask

What is the Keling DFX-23A-II electric sputum suction machine used for?

The DFX-23A-II is a compact portable aspirator for clearing sputum and thick secretions from patients' airways in hospitals, clinics and home care settings. Its ≥15 L/min flow rate and 0.013–0.07 MPa vacuum range are appropriate for patients with moderate secretion volumes requiring regular aspiration.

How does the DFX-23A-II differ from the DFX-23A-I model?

The DFX-23A-II has a lower power input (50 VA vs. 150 VA), a slightly lower maximum vacuum (0.07 MPa vs. 0.08 MPa) and a lower free air flow (≥15 L/min vs. ≥18 L/min). This makes the DFX-23A-II the more compact, energy-efficient choice for lighter-duty use, including home nursing environments.

What suction bottle does the DFX-23A-II use?

The DFX-23A-II uses a 1×1000 ml macromolecule (medical-grade plastic) suction bottle that is easy to detach, disinfect and clean between uses, supporting infection control in both clinical and home settings.

Can the DFX-23A-II be ordered in bulk or exported internationally?

Yes. Keling Medical supplies hospitals, distributors and export customers worldwide via its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for pricing, bulk purchasing terms and export documentation.
