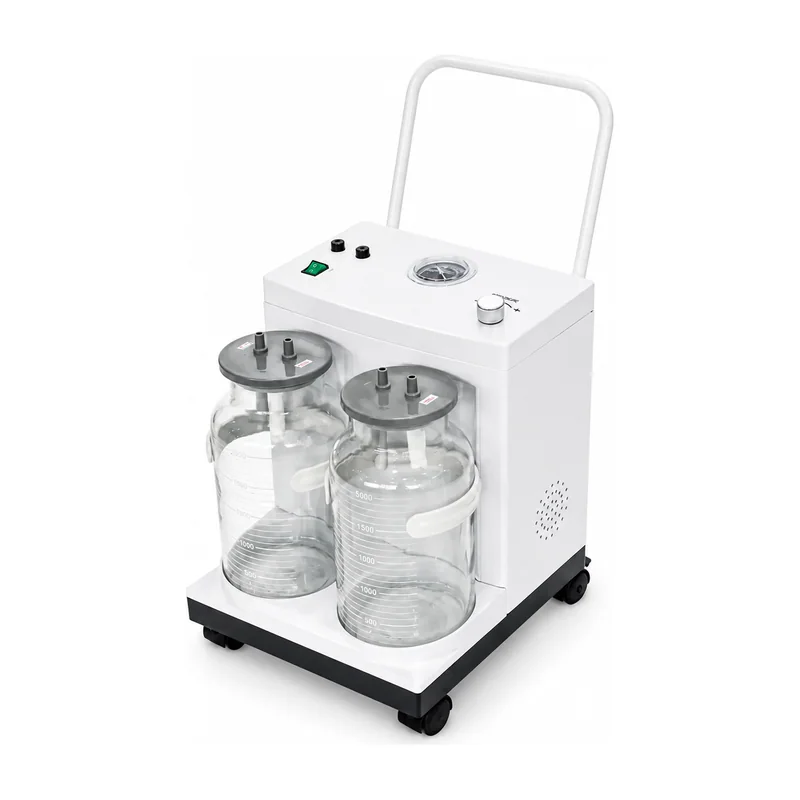

DFX-23D-I Electric Suction Machine — Portable Carry-Handle Aspirator for Hospital Operations and Mobile Ward Care

Quick answer. The Keling DFX-23D-I is an electric suction machine with ≥40 L/min free air flow, a negative pressure range of 0.013–0.09 MPa, dual 2×2500 ml glass bottle collection vessels, a one-piece all-plastic enclosure with integrated carry handle, ≤65 dB noise and 400 VA input power. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital operations, ward procedures and mobile clinical use.

Power supply: 220 V ±10% 50 Hz ±2%
Free air flow: ≥40 L/min
Input power: 400 VA
Negative pressure range: 0.013–0.09 MPa

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The DFX-23D-I electric suction machine bridges the gap between bedside portable units and fixed ward aspirators. Built on the same ≥40 L/min airflow and 0.013–0.09 MPa vacuum platform as other DFX-23C/D-series models, it adds an integrated carry handle to the one-piece all-plastic enclosure, making the unit straightforwardly portable for transport between beds, rooms or clinical stations that do not have dedicated suction pipeline access.

Dual 2×2500 ml glass collection bottles offer 5 L combined capacity with the hygiene and chemical resistance benefits of glass, supporting autoclave sterilization between procedures. The maintenance-free oil-free piston pump requires no lubrication servicing, and the built-in overflow protection mechanism prevents fluid ingress into the pump assembly if either bottle fills during a procedure. Both hand switch and foot switch controls are included for hands-free sterile technique capability.

The caster-mounted base provides ward-level mobility for routine repositioning, while the carry handle allows staff to lift and carry the unit when stairways, vehicles or non-caster-accessible surfaces are involved. The all-plastic one-piece enclosure simplifies surface decontamination after transport through potentially contaminated areas.

Quick facts

The Keling DFX-23D-I is a portable electric suction machine combining ward-grade clinical performance with an integrated carry handle for relocation between patient sites.
Free air flow is ≥40 L/min with an adjustable negative pressure range of 0.013–0.09 MPa, suitable for aspiration of sputum and viscous body fluids.
Dual 2×2500 ml glass bottle collection vessels provide 5 L total capacity per cycle; glass construction supports autoclaving between uses.
Input power is 400 VA; noise level is ≤65 dB; power supply is 220 V ±10% 50 Hz ±2%.
The one-piece all-plastic enclosure includes an integrated top carry handle for easier unit transport between locations.
Maintenance-free oil-free piston pump with built-in overflow protection, hand switch and foot switch controls, caster base for ward mobility.

Key features

Integrated carry handle
top-mounted handle on the plastic enclosure enables straightforward lifting and transport between clinical locations.
≥40 L/min free air flow
adequate suction rate for effective aspiration of sputum and body fluids in ward and surgical settings.
0.013–0.09 MPa adjustable vacuum
wide negative pressure range for different secretion types and patient clinical needs.
2×2500 ml glass bottles
5 L total collection capacity with autoclavable glass for sterilization between uses.
One-piece all-plastic enclosure
seamless surface for straightforward decontamination following inter-department transport.
Hand switch and foot switch
dual controls for hands-free sterile suction activation in operative settings.
Caster base plus carry handle
dual mobility options for ward repositioning and full-unit transport.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for DFX-23D-I

DFX-23D-I technical specifications
Model	DFX-23D-I
Product type	Electric suction machine
Power supply	220 V ±10% 50 Hz ±2%
Free air flow	≥40 L/min
Negative pressure range	0.013–0.09 MPa
Noise level	≤65 dB
Input power	400 VA
Liquid vessel	2500 ml × 2 (glass bottle)
Controls	Hand switch and foot switch

Applications

The DFX-23D-I is suited to hospital general and surgical wards, operating rooms, emergency departments, outpatient procedure rooms and any clinical environment where the suction unit needs to move between multiple locations during a shift — including between departments, across floors (carried) or between bedside positions (casters). The glass bottle configuration supports high-infection-risk procedure environments.

Questions buyers ask

What is the Keling DFX-23D-I electric suction machine used for?

The DFX-23D-I is a portable carry-handle electric aspirator for aspirating sputum, blood and viscous secretions in hospital wards, operating rooms and mobile clinical settings. Its integrated carry handle makes it suitable for transport between clinical areas where a caster-only mobile unit would be impractical.

What distinguishes the DFX-23D-I from other DFX-23C series models?

The DFX-23D-I shares the ≥40 L/min flow, vacuum range, 2×2500 ml glass bottles and 400 VA power of the DFX-23C-I and DFX-23C-V. Its defining feature is the integrated carry handle on the one-piece plastic enclosure, enabling full unit transport by a single operator beyond the range of the caster base.

What are the collection vessels and how are they cleaned?

The DFX-23D-I uses two 2500 ml glass bottles (5 L total). Glass bottles can be autoclaved for sterilization between procedures, making them appropriate for use in operating rooms and high infection-risk clinical environments where plastic vessels may not meet sterilization requirements.

Can the DFX-23D-I be ordered in bulk or exported?

Yes. Keling Medical supplies hospitals and distributors globally from its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for wholesale pricing, export documentation and customization options.
