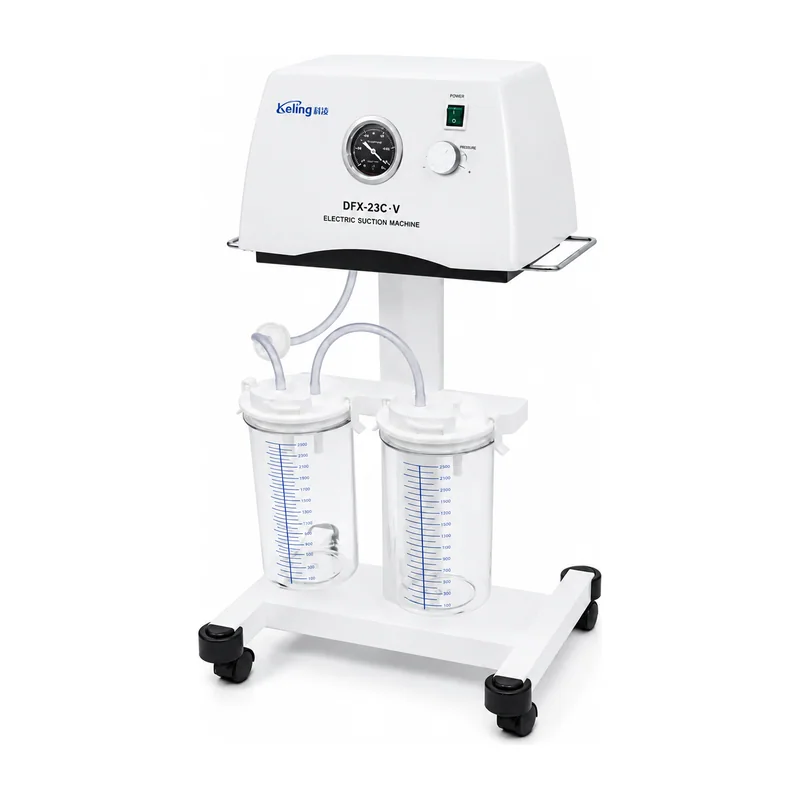

DFX-23C-V Electric Suction Machine — One-Piece Plastic Enclosure Aspirator for Hospital Operations and Ward Procedures

Quick answer. The Keling DFX-23C-V is an electric suction machine with ≥40 L/min free air flow, a negative pressure range of 0.013–0.09 MPa, dual 2×2500 ml collection vessels, a one-piece all-plastic enclosure, ≤65 dB noise, 400 VA input power and both hand-switch and foot-switch controls. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital operations and ward use.

Power supply: 220 V ±10% 50 Hz ±2%
Free air flow: ≥40 L/min
Input power: 400 VA
Negative pressure range: 0.013–0.09 MPa

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The DFX-23C-V electric suction machine differentiates itself within the DFX-23C clinical range through its one-piece all-plastic enclosure, which is formed in a single molded unit for seamless construction that eliminates the joints and seams where contamination can accumulate on steel-bodied equivalents. This design is particularly beneficial in infection-controlled ward environments and operating theaters where surface hygiene is a priority alongside clinical suction performance.

With ≥40 L/min free air flow and the full 0.013–0.09 MPa adjustable vacuum range of the DFX-23C family, the DFX-23C-V matches its steel-housing counterparts in suction capability while offering a lighter, more hygienic exterior. The dual 2×2500 ml vessel configuration provides 5 L of total collection volume — sufficient for extended ward procedures and moderate surgical cases without bottle changes. The oil-free piston pump requires no lubrication maintenance, and overflow protection prevents fluid from reaching the pump even during rapid fill scenarios.

The unit sits on a caster-mounted base for easy repositioning between patient locations, and the labeled controls — including suction pressure gauge, intermittent suction switch, and tubing connections — are displayed on a clear front-facing panel. Both hand switch and foot switch are standard, supporting hands-free suction activation when sterile technique demands it.

Quick facts

The Keling DFX-23C-V is a mobile electric suction machine built around a one-piece all-plastic enclosure for easy cleaning and corrosion resistance.
Free air flow is ≥40 L/min with an adjustable negative pressure range of 0.013–0.09 MPa for clinical aspiration of sputum, blood and body fluids.
Dual 2×2500 ml collection vessels provide 5 L total capacity per procedure cycle; noise level is ≤65 dB.
Input power is 400 VA; power supply is 220 V ±10% 50 Hz ±2%.
Hand switch and foot switch controls allow hands-free operation during sterile procedures; maintenance-free oil-free piston pump with built-in overflow protection.
The DFX-23C-V is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

One-piece all-plastic enclosure
seamless molded construction eliminates surface joints for easier cleaning and reduced contamination risk in clinical environments.
≥40 L/min free air flow
strong suction rate for effective ward and surgical aspiration of sputum and viscous secretions.
0.013–0.09 MPa negative pressure range
full adjustable vacuum range for diverse clinical applications from gentle to aggressive suctioning.
2×2500 ml collection vessels
5 L total capacity with labeled front-panel vacuum pressure display for monitoring fill level.
Hand switch and foot switch
dual controls support hands-free suction activation to maintain sterile technique.
Maintenance-free oil-free piston pump
no lubrication servicing required; built-in overflow protection keeps the pump free of fluid contamination.
Mobile caster base
easy ward repositioning without lifting.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for DFX-23C-V

DFX-23C-V technical specifications
Model	DFX-23C-V
Product type	Electric suction machine
Power supply	220 V ±10% 50 Hz ±2%
Free air flow	≥40 L/min
Negative pressure range	0.013–0.09 MPa
Noise level	≤65 dB
Input power	400 VA
Liquid vessel	2500 ml × 2
Controls	Hand switch and foot switch

Applications

The DFX-23C-V electric suction machine is suited to hospital general and surgical wards, ICU and HDU environments, operating rooms requiring portable suction, ENT departments, outpatient procedure rooms and infection-control-sensitive environments where a seamless-surface suction unit is preferred. Its all-plastic enclosure makes it particularly appropriate for facilities with stringent surface disinfection protocols.

Questions buyers ask

What is the Keling DFX-23C-V electric suction machine used for?

The DFX-23C-V is a mobile hospital electric aspirator for clearing sputum, blood and viscous secretions during ward care and surgical procedures. Its one-piece plastic enclosure makes surface cleaning and disinfection faster and more thorough compared to multi-panel steel cabinet models.

How does the DFX-23C-V differ from the DFX-23C-I model?

Both models share ≥40 L/min flow, the same vacuum range and dual 2×2500 ml vessel capacity. The key difference is the housing: the DFX-23C-V uses a one-piece all-plastic enclosure for easier surface disinfection, while the DFX-23C-I uses a cold-rolled steel housing.

What controls are available on the DFX-23C-V?

The DFX-23C-V provides a front-panel suction pressure gauge, an intermittent suction control switch, and both hand-switch and foot-switch controls, allowing operators to activate suction with either hands or feet for surgical sterile-technique compatibility.

Can the DFX-23C-V be supplied for international distributors or hospital procurement?

Yes. Keling Medical exports to hospitals and medical equipment distributors worldwide from its Shanghai sales and export center. Contact Keling Medical at https://www.kelingmed.com for pricing, bulk orders and export documentation.
