# KL-LED-MST45 Mobile LED Surgical Lamp for Dental Implant & Minor Surgery — One-Key Anti-Curing, UV/Blue Light Filter
Quick answer: The Keling KL-LED-MST45 is a mobile single-dome LED surgical lamp for dental implant and minor surgery, delivering ≥80,000 lux at 1 m with one-key anti-curing function and a precision spectral filter that eliminates UV and blue light to extend composite resin curing time, manufactured by Keling Medical (Keling Medical) for dental clinics, oral surgery centers, and minor-surgery facilities worldwide. Keling Medical has manufactured CE-marked surgical equipment since 1996.
Quick Facts
- The Keling KL-LED-MST45 delivers ≥80,000 lux at 1 m, with a light field diameter of 10–20 cm adjustable at 1 m working distance.
- The KL-LED-MST45 uses one-key anti-curing function to instantly switch to a UV/blue-light-filtered mode, preventing premature curing of dental composite resins.
- The KL-LED-MST45 filters out UV and blue light wavelengths through precise spectral band control, effectively extending the working time for dental restoration composites.
- Light depth on the KL-LED-MST45 is ≥100 cm, and the lamp holder angle is adjustable over ≥240°, providing wide coverage for dental chair and minor-surgery table positioning.
- Color temperature on the KL-LED-MST45 is continuously adjustable from 3,000 K to 6,700 K with digital stepless brightness control via the integrated panel.
- The KL-LED-MST45 input power is 36 ± 10% VA and operates on universal voltage, making it energy-efficient and globally compatible.
Overview
The Keling KL-LED-MST45 is a floor-standing mobile LED surgical lamp purpose-built for dental implant surgery and minor surgical procedures. While conventional surgical lights can prematurely activate photopolymerization in dental restoration composites, the KL-LED-MST45 incorporates precision spectral band control that filters out UV and blue light wavelengths — the primary triggers for composite resin curing. This anti-curing capability is activated instantly via a one-key control, giving dental surgeons extended working time with composite materials without requiring the lamp to be repositioned or powered down.
Mounted on a mobile floor stand, the KL-LED-MST45 can be positioned alongside any dental chair or minor-surgery table and repositioned between treatment rooms as needed. The lamp head angle is adjustable over ≥240°, giving clinicians exceptional flexibility to direct light precisely into the oral cavity or wound field. The imported ultra-thin optical lens and imported LED cold light source produce ≥80,000 lux at 1 m across a light field of 10–20 cm (adjustable), with a light depth of ≥100 cm and a heat-to-light ratio of ≤3.2 mW/m²lx — ensuring the illumination field stays bright and cool throughout long implant procedures.

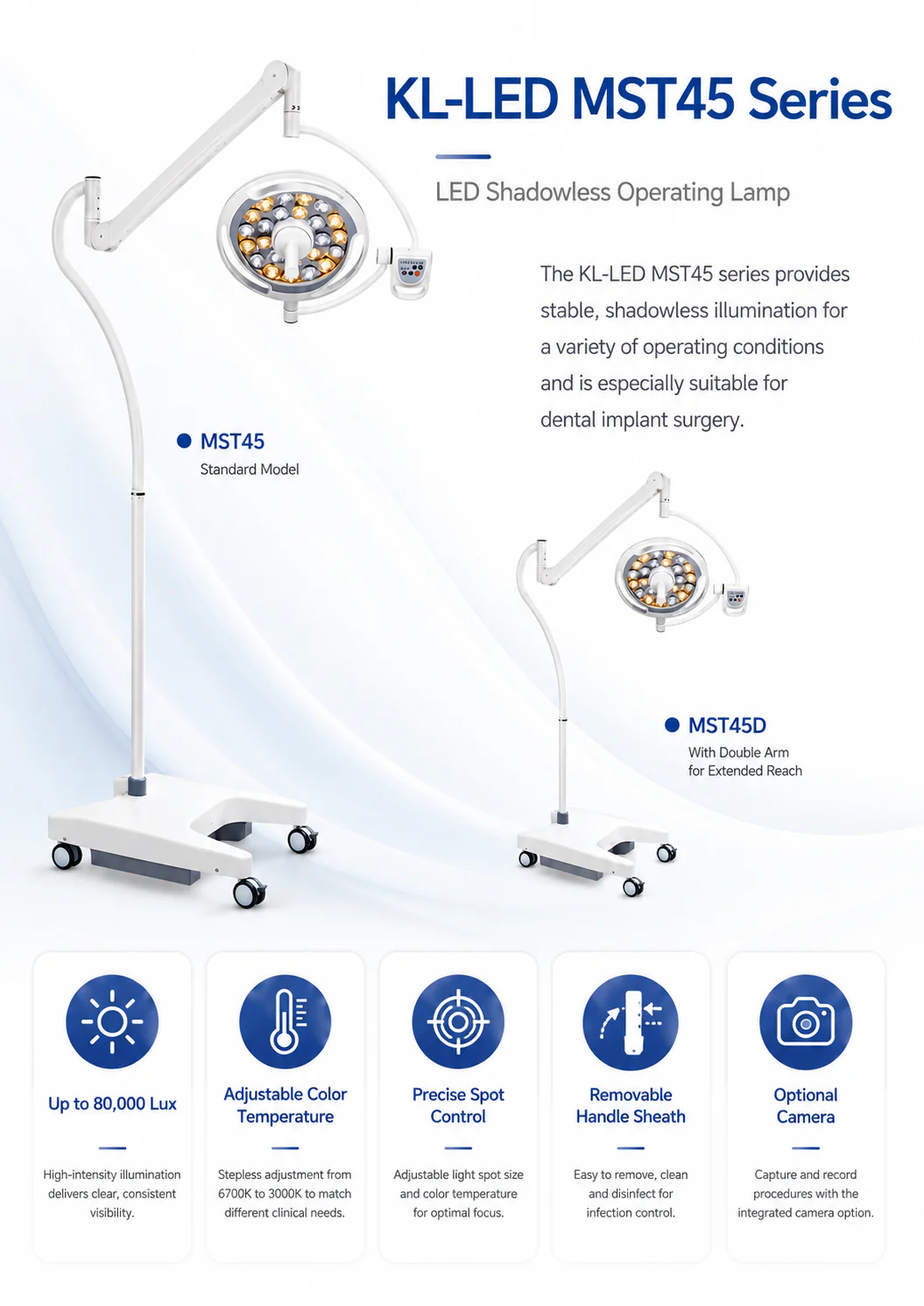

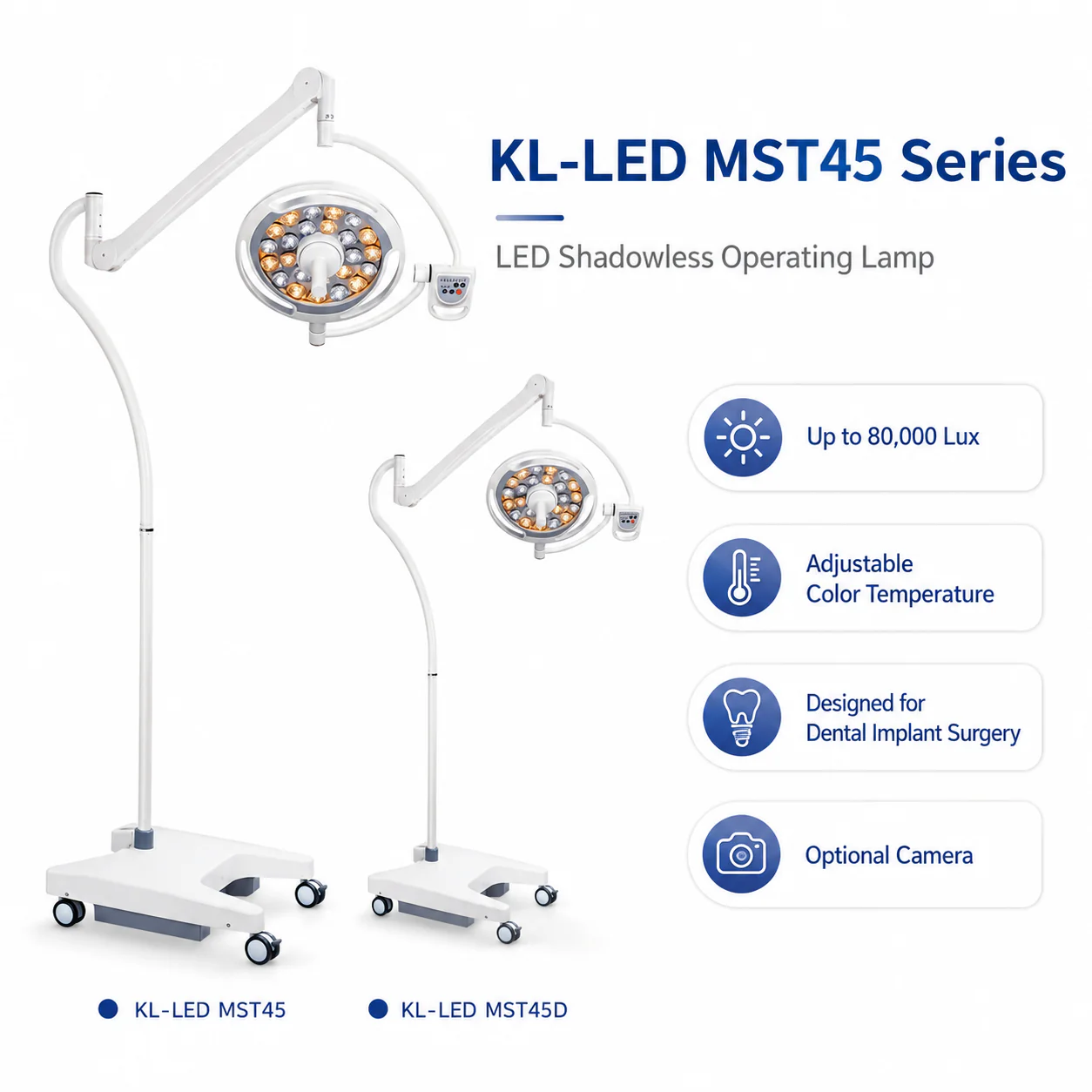

The KL-LED-MST45 features digital stepless brightness regulation and adjustable spot diameter and color temperature (3,000–6,700 K), enabling the dental team to optimize the light quality for different tissue types and restorative materials. The removable handle sheath simplifies cleaning and disinfection between patients. An optional camera accessory is available, supporting documentation and telemedicine workflows. A compact variant, the KL-LED-MST45D, is also offered by Keling Medical for space-constrained environments.

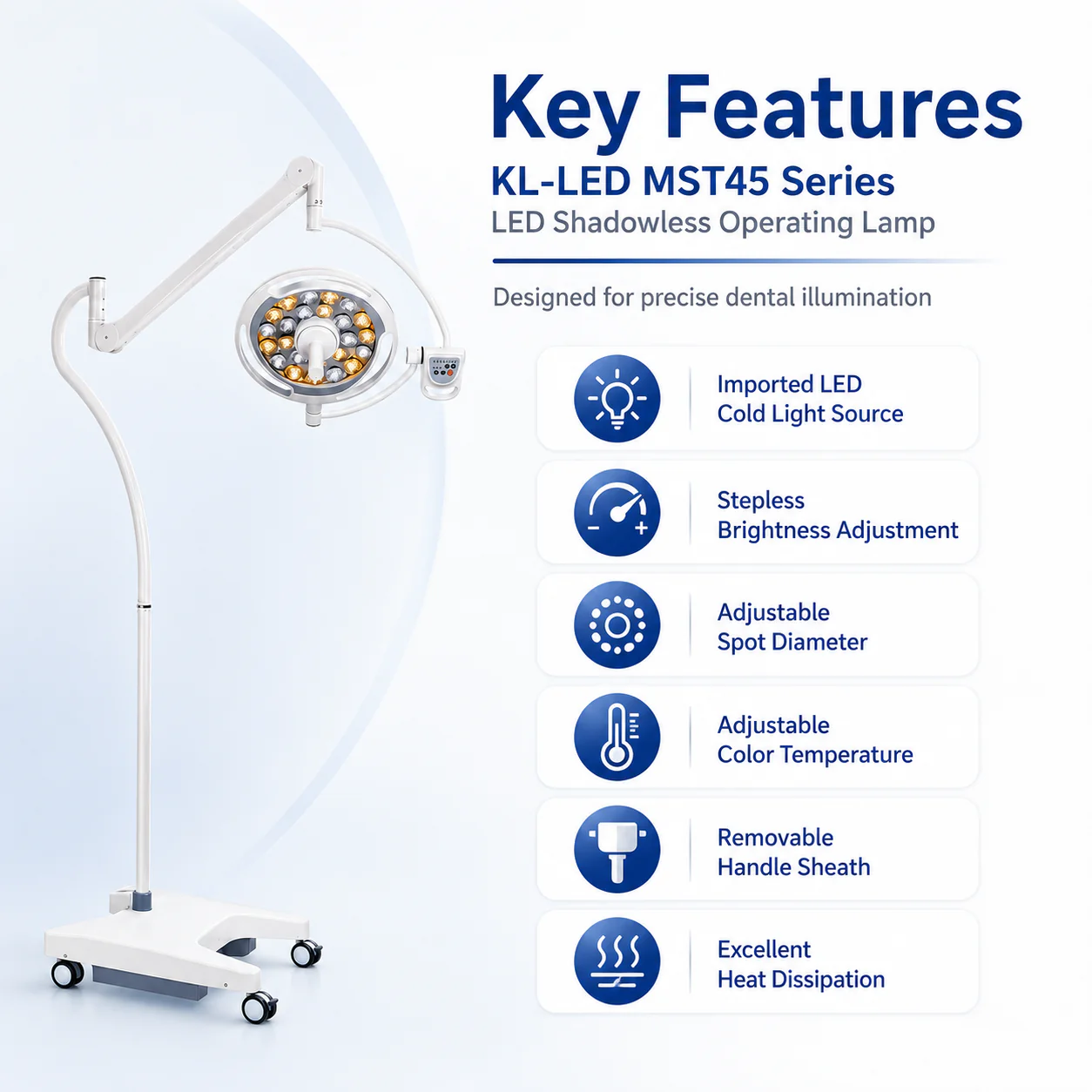

Key Features

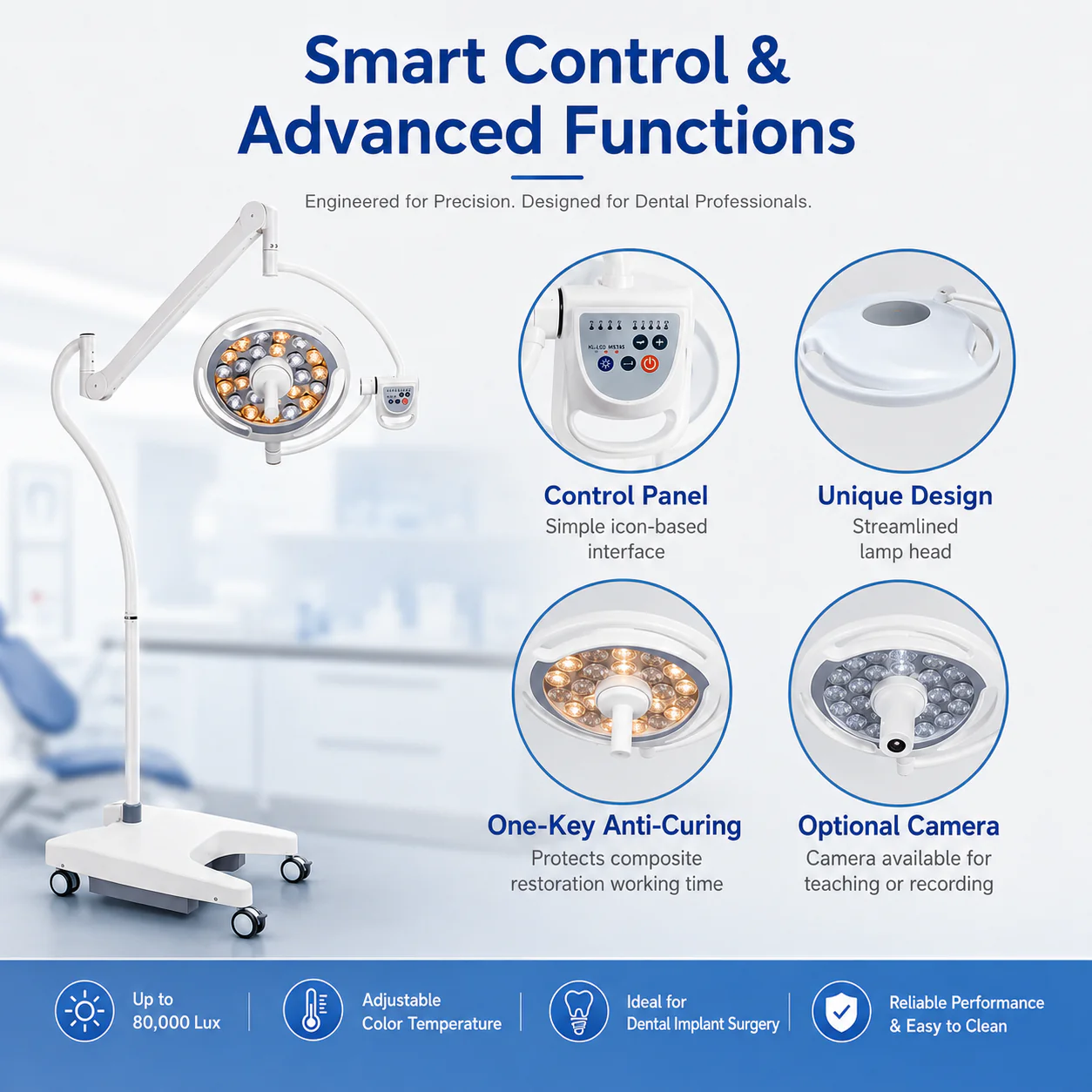

- One-key anti-curing function — Single-touch control instantly switches the lamp to a UV/blue-light-filtered output, preventing premature photopolymerization of dental composite resins.
- UV and blue light filter — Precise spectral band control eliminates the wavelengths responsible for composite curing, extending the working time of dental restoration materials without sacrificing illuminance.
- Especially designed for dental implant surgery — Optical and spectral configuration optimized for oral surgical field illumination, composite resin placement, and implant positioning.
- Imported LED cold light source with ultra-thin optical lens — High-output LED array with slim-profile lens delivers ≥80,000 lux with minimal infrared emission and low heat-to-light ratio ≤3.2 mW/m²lx.
- Digital stepless brightness adjustment — Infinitely variable brightness control via digital panel allows precise dimming without discrete steps.
- Adjustable spot diameter and color temperature — Light field diameter (10–20 cm at 1 m) and color temperature (3,000–6,700 K) are independently adjustable to suit the clinical task.
- Removable handle sheath — Detachable handle cover simplifies cleaning and disinfection between patients.
- Nano-coated heat sink — Nano coating on heat sink components ensures excellent thermal management, protecting LED life.

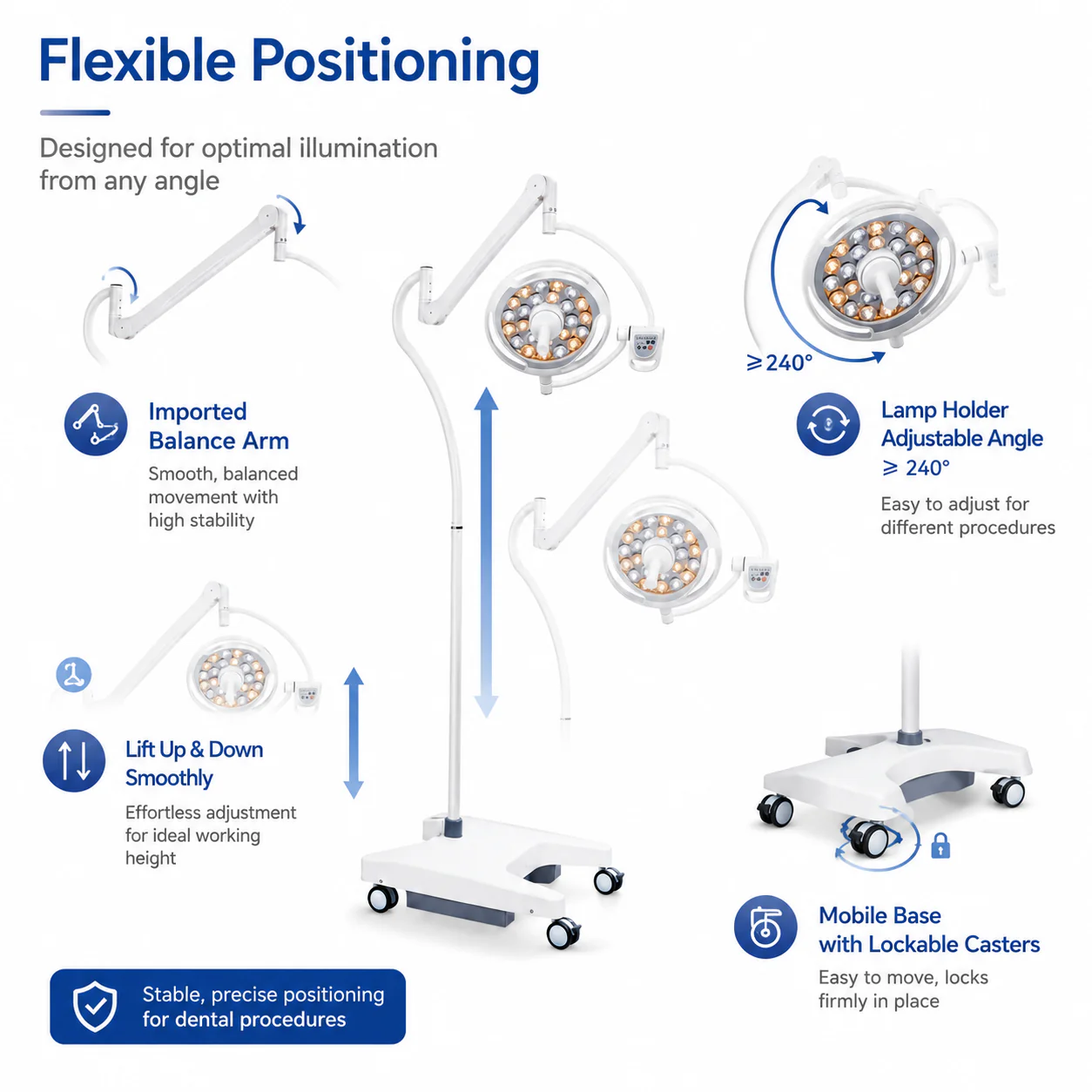

- Imported balance arm, ≥240° angle adjustment — Wide-range articulating arm with imported spring mechanism allows easy lift and positioning over dental chairs and procedure tables.
- Light depth ≥100 cm — Sufficient illumination depth to reach into oral cavities and minor-surgery wound fields at typical working distances.
- Camera optional — Compatible camera accessory available for clinical documentation, training, and telemedicine applications.
- Mobile floor stand — No ceiling installation required; locking base enables rapid deployment and repositioning across treatment rooms.

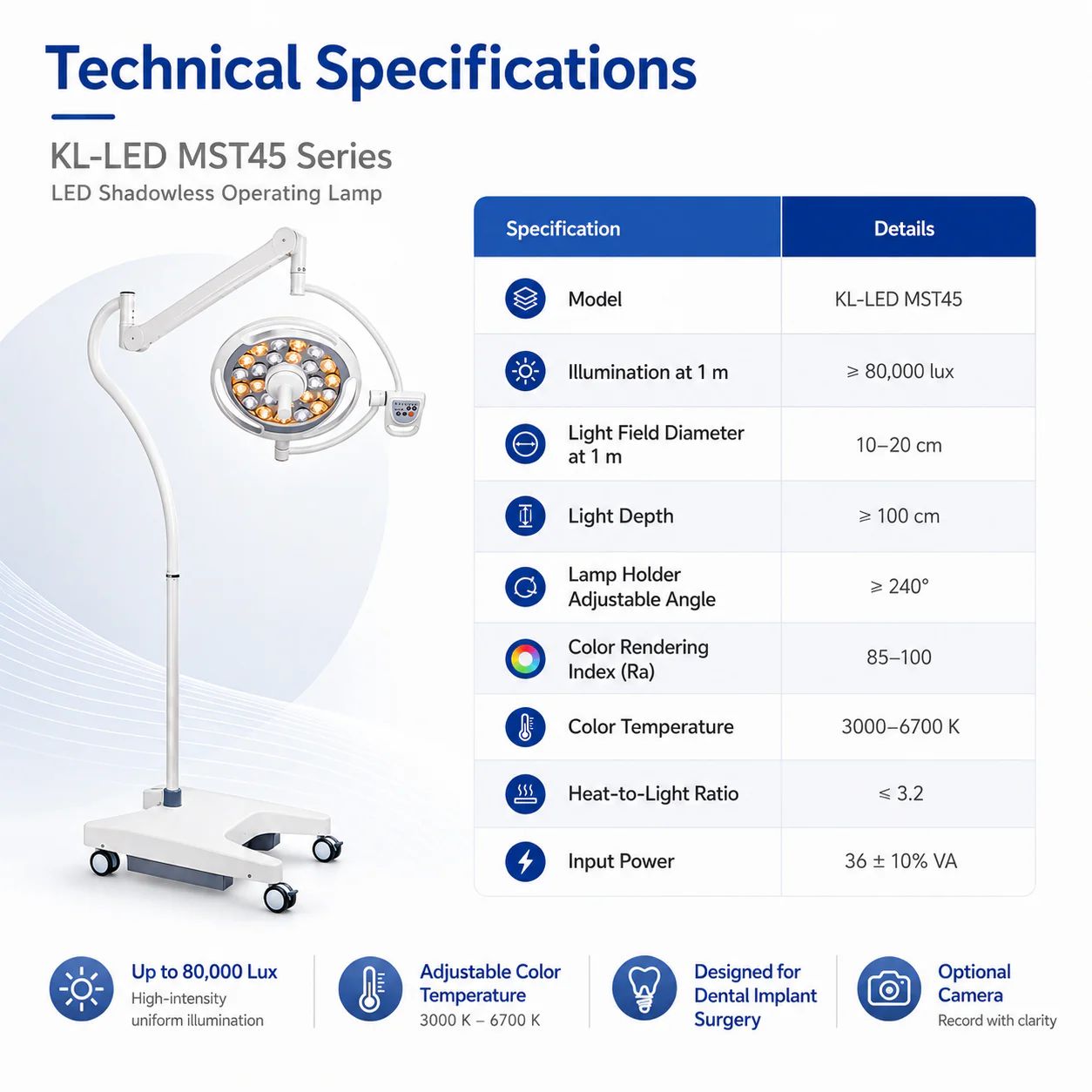

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-LED·MST45 |
| Illumination at 1 m | ≥ 80,000 lux |
| Light field diameter at 1 m | 10–20 cm (adjustable) |
| Light depth | ≥ 100 cm |
| Adjustable angle of lamp holder | ≥ 240° |
| Color rendering index Ra | 100 ≥ Ra ≥ 85 |
| Color temperature range | 6,700 ≥ Tc ≥ 3,000 K |
| Heat-to-light ratio | ≤ 3.2 mW/m²lx |
| Input power | 36 ± 10% VA |
| Anti-curing function | One-key UV/blue light filter |
| Spectral filter | UV and blue light eliminated |
| Mount type | Mobile floor stand |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The Keling KL-LED-MST45 mobile LED surgical lamp is purpose-designed for dental implant surgery and minor surgical procedures where precise spectral control is as important as illuminance. Its anti-curing UV/blue filter and wide-angle arm articulation make it the primary-choice mobile surgical light for dental and oral-surgery settings, while its high lux output and adjustable color temperature extend its utility to a range of outpatient minor-surgery applications.
Typical use settings include:
- Dental implant surgery clinics and oral surgery centres
- Periodontal and endodontic procedure rooms
- Restorative dentistry suites requiring composite resin placement under surgical illumination
- Maxillofacial and oral-maxillofacial surgery theatres
- ENT procedure rooms and minor-surgery units
- Dermatology and plastic surgery clinics performing office-based procedures
- Outpatient procedure centres and ambulatory surgery units
- Teaching and telemedicine-equipped dental clinics (with optional camera accessory)
