KL-LED-STR78 & DTR78 Camera System — LED Surgical Light with Integrated 4K Digital HD Camera

Quick answer. The Keling KL-LED-STR78&DTR78 Camera System is a ceiling-mounted LED operation lamp with an integrated 4K digital HD camera, delivering high-brightness shadowless illumination and ultra-clear surgical field imaging from a single system. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, operating theatres and medical distributors worldwide. The STR78 is a single-head configuration and the DTR78 is a dual-head (satellite + main) configuration, both sharing the same camera platform.

Camera power supply: 12 VDC, 1.5 A
Camera dimensions: 242 × 180 × 358 mm
Camera weight: Approximately 2.7 kg
Camera model: MH-DFC210-SR 4K surgical field camera

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-LED-STR78&DTR78 Camera System brings together shadowless LED surgical illumination and a 4K digital HD camera in one ceiling-mounted platform, giving operating room teams both optimal lighting and real-time high-definition visualization of the surgical field. The STR78 single-head and DTR78 dual-head variants share an identical imaging core, letting hospitals choose the lamp configuration that suits their suite layout while retaining the same documentation and teaching capabilities.

The imaging subsystem is built around a model MH-DFC210-SR 4K surgical field camera equipped with a 1/2.8" Progressive Scan CMOS sensor, 10× optical zoom, and a 3G-SDI output interface for lossless high-bandwidth transmission to the bedside monitor. Focus can be set to Auto, Semi-auto or Manual; electronic shutter range spans 1/25 s to 1/100,000 s; digital noise reduction offers Off, Normal and Expert modes; and scene modes include Normal, Constant-brightness, Shadowless Lamp and Stroboscopic to match varied intraoperative conditions. White balance offers Auto 1, Auto 2, Manual and One-touch options, while image quality adjustment covers brightness, contrast, sharpness, saturation and chroma.

An HD medical monitor paired with the built-in central camera provides real-time visualization and team collaboration, while a panoramic camera and dedicated recording server support image capture, video recording and external storage for documentation, training and telemedicine. Multi-joint suspension arms with smooth movement and stable positioning allow the lamp head to be repositioned without vibration, keeping the surgical field in sharp focus throughout each procedure.

Quick facts

The Keling KL-LED-STR78&DTR78 is a ceiling-mounted LED operating lamp with built-in 4K surgical field camera for simultaneous illumination and high-definition imaging.
The integrated camera system uses a 1/2.8" Progressive Scan CMOS sensor with 10× optical zoom and focal length 4.7–47 mm.
Camera output interface is 3G-SDI (MCX female connector), supporting PAL 25/50 fps and NTSC 30/60 fps at 1920 × 1080 resolution.
Signal-to-noise ratio is >50 dB; aperture range is F1.6–F3.0; horizontal field of view spans 58.6–6.4 degrees (wide-telephoto).

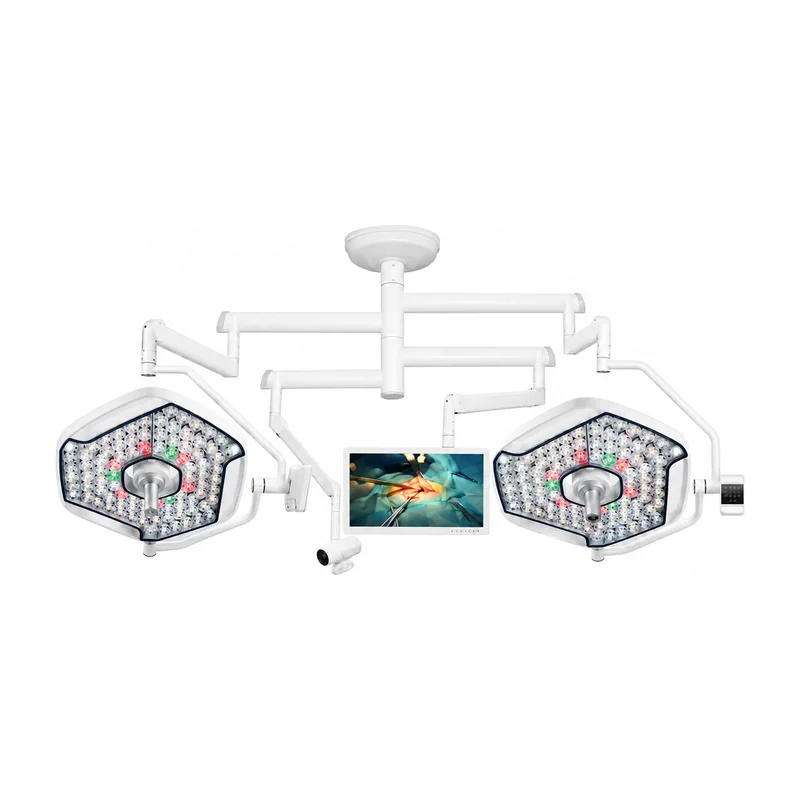

The system includes LED operation lamp head, ceiling suspension arms, built-in HD camera, central camera, panoramic camera, recording server and HD medical monitor.
The Keling KL-LED-STR78&DTR78 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience and an ISO 13485-certified factory.

Key features

4K Ultra-HD Imaging
high-resolution 4K camera captures surgical detail with exceptional clarity and true color reproduction for confident intraoperative decision-making.
Integrated Camera System
built-in camera and HD display allow seamless capture, viewing and knowledge sharing without additional ceiling-mounted equipment.
Shadowless LED Illumination
advanced LED lamp head delivers high-brightness, even light with adjustable color temperature, eliminating shadows in the surgical field.
10× Optical Zoom
focal length 4.7–47 mm, aperture F1.6–F3.0, horizontal FOV 58.6–6.4°; covers both wide-field overview and close telephoto detail.
3G-SDI Output
MCX female connector transmits full 1920 × 1080 at up to 60 fps (NTSC) over a single cable to the bedside monitor.
Flexible Positioning Arms
multi-joint ceiling suspension arms with smooth movement and stable locking allow precise repositioning during procedures.
Recording Support
onboard recording server supports image capture, video recording and external storage for documentation and surgical education.
Safe & Durable Design
medical-grade materials and stable structure; modular design facilitates quick service and easy maintenance.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

28 parameters for KL-LED-STR78&DTR78-Camera-System

KL-LED-STR78&DTR78-Camera-System technical specifications
Model	KL-LED-STR78 (single head) / KL-LED-DTR78 (dual head) with camera system
Camera model	MH-DFC210-SR 4K surgical field camera
Sensor	1/2.8" Progressive Scan CMOS
Signal system	PAL / NTSC
Signal-to-noise ratio	>50 dB
Optical zoom	10×
Focal length	4.7–47 mm
Aperture	F1.6–F3.0
Horizontal field of view	58.6–6.4° (wide-telephoto)
Focus	Auto / Semi-auto / Manual
Electronic shutter	1/25 s to 1/100,000 s
White balance	Auto 1 / Auto 2 / Manual / One-touch
Output interface	3G-SDI, MCX female connector
PAL frame rate	25 fps (1920 × 1080), 50 fps (1920 × 1080)
NTSC frame rate	30 fps (1920 × 1080), 60 fps (1920 × 1080)
Communication interface	1 RS-485 interface; 1 3G-SDI interface (MCX female connector)
Remote control	Infrared remote control
Camera power supply	12 VDC, 1.5 A
Camera power consumption	5.5 W
Camera dimensions	242 × 180 × 358 mm
Camera weight	Approximately 2.7 kg
Operating temperature	0°C–40°C, <90% RH
Transportation temperature	-20°C–60°C
Transportation humidity	20%–90%
Transportation air pressure	70 kPa–106 kPa
Strong light suppression	Supported
Image freeze	Supported
Digital noise reduction	Off / Normal Mode / Expert Mode

Applications

The KL-LED-STR78&DTR78 Camera System is designed for operating theatres requiring both premium illumination and integrated HD documentation: general surgery, orthopaedics, neurosurgery, cardiovascular surgery, laparoscopy support rooms and surgical training facilities. The recording server supports live streaming, telemedicine consultations and resident education in academic medical centres.

Questions buyers ask

What is the KL-LED-STR78&DTR78 Camera System used for?

The KL-LED-STR78&DTR78 is a ceiling-mounted LED operating lamp with an integrated 4K HD camera system. It simultaneously provides shadowless surgical illumination and high-definition real-time imaging of the operative field, supporting surgery, documentation, and surgical education in modern operating rooms.

What is the difference between the STR78 and DTR78 configurations?

The KL-LED-STR78 is a single-head operating lamp with camera, while the KL-LED-DTR78 is a dual-head (main plus satellite) configuration. Both share the same 4K camera platform and imaging specifications; the dual-head variant adds a second lamp head to increase illumination coverage for larger operative fields.

What camera output and resolution does the system provide?

The integrated camera outputs 1920 × 1080 HD video via a 3G-SDI MCX female connector. Frame rates are PAL 25/50 fps or NTSC 30/60 fps, with 10× optical zoom and signal-to-noise ratio exceeding 50 dB, suitable for high-fidelity surgical documentation and live streaming.

Can distributors order the KL-LED-STR78&DTR78 Camera System in bulk or OEM?

Yes. Keling Medical supplies hospitals, medical equipment distributors and project contractors worldwide through its Shanghai sales and export center. OEM and wholesale enquiries are welcomed; contact Keling Medical via https://www.kelingmed.com for project pricing and specifications.
