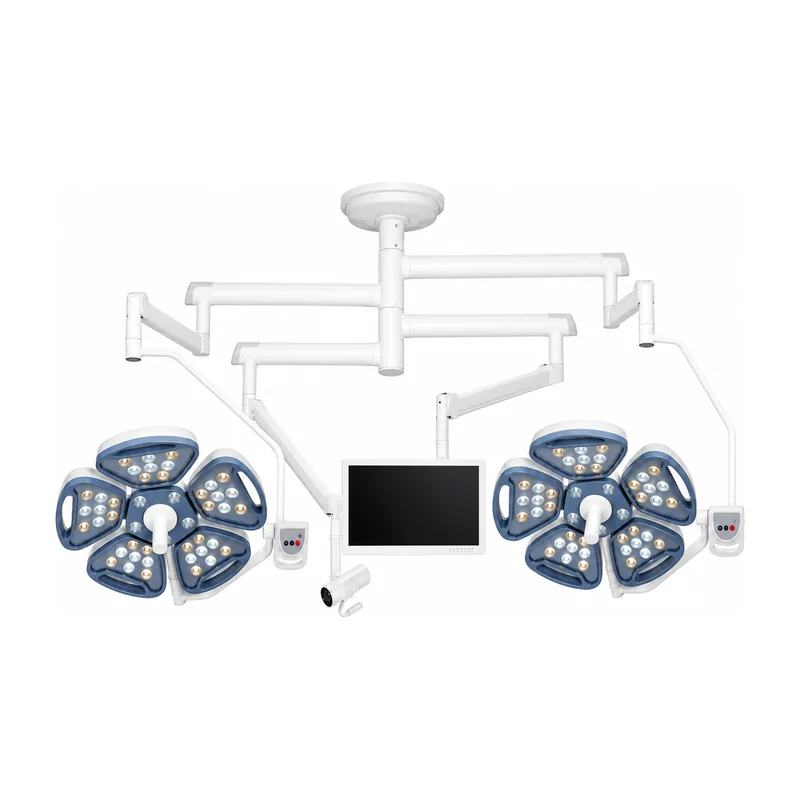

KL-LED-STZ5 Camera System — LED Operation Lamp with HD Surgical Field Camera

Quick answer. The Keling KL-LED-STZ5 Camera System is a ceiling-mounted LED operation lamp combining dual lamp heads with an HD surgical field camera (model MH-DFC210-SR), delivering high-definition real-time imaging alongside shadowless illumination. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for operating theatres, hospitals and medical distributors worldwide. The camera provides 1920 × 1080 output via 3G-SDI interface with 10× optical zoom.

Camera power supply: 12 VDC, 1.5 A
Camera dimensions: 242 × 180 × 358 mm
Camera weight: Approximately 2.7 kg
Camera model: MH-DFC210-SR HD surgical field camera

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-LED-STZ5 Camera System provides operating room teams with a fully integrated solution for both surgical illumination and high-definition field documentation. Dual multi-petal LED lamp heads deliver uniform, shadowless light across the operative field, while the ceiling-mounted HD camera captures crystal-clear video and still images simultaneously, supporting precise surgical decisions and real-time team collaboration.

At the heart of the imaging subsystem is the MH-DFC210-SR HD surgical field camera, which pairs a 1/2.8" Progressive Scan CMOS sensor with 10× optical zoom to cover everything from wide field overviews to close-up tissue detail. The 3G-SDI output transmits the full 1920 × 1080 stream to the paired HD medical monitor over a single cable. Focus modes — Auto, Semi-auto and Manual — and horizontal field of view adjustment from 58.6° to 6.4° give the operating team flexible control without interrupting the procedure. Image freeze is supported for still capture, and the 3G-SDI interface provides a standard pathway for integration into hospital AV systems.

Ceiling suspension arms allow smooth repositioning of both the lamp heads and the camera. The HD medical monitor displays the live surgical view for the entire team, while the additional panoramic camera and optional recording server — shown in the system overview — support documentation, remote consultation and resident teaching. The design is built to IEC 60601-1 and IEC 60601-1-2 electrical safety and EMC standards, as indicated on the camera datasheet.

Quick facts

The Keling KL-LED-STZ5 Camera System is a ceiling-mounted LED operating lamp with dual lamp heads and an integrated HD surgical field camera.
The HD camera (model MH-DFC210-SR) uses a 1/2.8" Progressive Scan CMOS sensor with signal-to-noise ratio >50 dB.
Optical zoom is 10×; focal length ranges from 4.7 to 47 mm; aperture is F1.6–F3.0.
Output is 3G-SDI via MCX female connector at 1920 × 1080, supporting PAL 25/50 fps and NTSC 30/60 fps.
The camera power supply is 12 VDC, 1.5 A; power consumption is 5.5 W; dimensions are 242 × 180 × 358 mm.
The KL-LED-STZ5 Camera System is manufactured by Keling Medical, with more than 20 years of industry experience and operating from an ISO 13485-certified facility in Jiangsu, China.

Key features

HD Surgical Field Camera
MH-DFC210-SR with 1/2.8" Progressive Scan CMOS sensor, >50 dB S/N ratio and image freeze function for precise documentation.
10× Optical Zoom
focal length 4.7–47 mm, aperture F1.6–F3.0, horizontal FOV 58.6–6.4° for both wide and telephoto surgical views.
3G-SDI Output
single-cable 1920 × 1080 transmission at up to 60 fps (NTSC), compatible with standard hospital AV and recording infrastructure.
Dual LED Lamp Heads
multi-joint ceiling suspension arms with dual petal-head lamps provide uniform, adjustable illumination across the surgical field.
Precise Surgical Visualization
accurate color reproduction with adjustable white balance (Auto 1 / Auto 2 / Manual / One-touch) for reliable tissue differentiation.
Flexible Focus & Exposure
Auto/Semi-auto/Manual focus; electronic shutter 1/25 s to 1/100,000 s; strong light suppression supported.
HD Medical Monitor
dedicated display for real-time surgical field visualization and multi-team collaboration.
IEC 60601-Compliant Camera
complies with Medical Electrical Equipment Safety Standard IEC 60601-1 and EMC standard IEC 60601-1-2.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

24 parameters for KL-LED-STZ5-Camera-System

KL-LED-STZ5-Camera-System technical specifications
Model	KL-LED-STZ5 / STZ5 with camera system
Camera model	MH-DFC210-SR HD surgical field camera
Sensor type	1/2.8" Progressive Scan CMOS
Signal system	PAL / NTSC
Signal-to-noise ratio	>50 dB
Optical zoom	10×
Focal length	4.7–47 mm
Aperture	F1.6–F3.0
Horizontal field of view	58.6–6.4° (wide-telephoto)
Focus	Auto / Semi-auto / Manual
Electronic shutter	1/25 s to 1/100,000 s
White balance	Auto 1 / Auto 2 / Manual / One-touch
Output interface	3G-SDI, MCX female connector
PAL frame rate	25 fps (1920 × 1080), 50 fps (1920 × 1080)
NTSC frame rate	30 fps (1920 × 1080), 60 fps (1920 × 1080)
Communication interface	1 RS-485; 1 3G-SDI (MCX female connector)
Remote control	Infrared
Camera power supply	12 VDC, 1.5 A
Camera power consumption	5.5 W
Camera dimensions	242 × 180 × 358 mm
Camera weight	Approximately 2.7 kg
Operating temperature	0°C–40°C, <90% RH
Camera certification	IEC 60601-1, IEC 60601-1-2
Image freeze	Supported

Applications

The KL-LED-STZ5 Camera System is suited for modern operating theatres in general hospitals, specialty surgical centres and academic medical institutions. It serves general and specialty surgery, orthopaedics, neurosurgery and cardiovascular procedures, and supports surgical education, telemedicine consultations and live streaming in training hospitals.

Questions buyers ask

What is the KL-LED-STZ5 Camera System used for?

The KL-LED-STZ5 Camera System is a ceiling-mounted LED operation lamp with an integrated HD surgical field camera. It provides simultaneous high-quality surgical illumination and real-time HD video capture, supporting surgical procedures, documentation and team visualization in operating rooms.

What camera resolution and frame rate does the KL-LED-STZ5 system provide?

The integrated MH-DFC210-SR camera outputs 1920 × 1080 HD video via 3G-SDI. PAL mode supports 25 fps and 50 fps; NTSC mode supports 30 fps and 60 fps. The 10× optical zoom enables both wide surgical field overview and detailed close-up capture.

How does the KL-LED-STZ5 differ from the KL-LED-STR78&DTR78 Camera System?

The KL-LED-STZ5 features a distinctive multi-petal lamp head design (STZ5 series) with the same MH-DFC210-SR HD camera platform. The STR78/DTR78 series uses a hexagonal lamp head. Both share the same imaging specifications. The STZ5 is available in single-head (STZ5) configuration with ceiling mount.

Can hospitals order the KL-LED-STZ5 Camera System in project quantities or OEM?

Yes. Keling Medical exports surgical lights and camera systems to hospitals, distributors and integrators worldwide through its Shanghai sales and export center. Project orders, OEM customization and bulk supply are available; contact Keling Medical at https://www.kelingmed.com for detailed pricing.
