Operating room design and layout: a planning guide for surgery rooms
Operating room design and layout explained: room size, zones, table and light positions, pendants, airflow, storage, plus hybrid and integrated operating rooms.
Operating room design starts with the operating table: place it in the center under the ceiling air diffuser, then arrange surgical lights above it, the anesthesia pendant at the head and a surgical pendant on the equipment side, with clear floor space all round. A general operating room in a hospital typically needs about 400 sq ft (37.2 m²) of clear floor area; image-guided and hybrid rooms need much more.
This guide covers operating room layout from the planner's point of view: room size, zones, ceiling coordination, airflow, storage, and the extra demands of hybrid and integrated operating rooms. For the equipment list itself, use our operating room equipment checklist.
What does an operating room look like?
A modern operation theatre room is a near-square room with seamless, washable walls and flooring, an operating table in the center, two or three surgical light domes and one or more pendants hanging from the ceiling, wall-mounted displays and recessed storage. Doors connect it to a clean corridor, a scrub area and, in many designs, a separate exit route for used instruments and waste.
Almost everything is mounted on the ceiling or the walls. That is deliberate: a clear floor is easier to clean, safer for staff moving around the sterile field, and leaves space for mobile imaging, robots and transfers.
How big should an operating room be?
Operating room size depends on the specialty and the equipment. In the US, the FGI Guidelines set about 400 sq ft (37.2 m²) with a minimum clear dimension of 20 ft (6.1 m) for a general operating room, and about 600 sq ft (55.7 m²) with a minimum clear dimension of 25 ft (7.6 m) for rooms that need extra staff or large equipment.
| Room type | Typical clear floor area | Notes |
|---|---|---|
| Procedure room (minor surgery, endoscopy) | Smaller than an OR; per national guidance | Often no general anesthesia |
| General operating room | about 400 sq ft / 37.2 m² | General, gynecology, ENT, urology |
| Large operating room | about 600 sq ft / 55.7 m² | Orthopedics, cardiac, neurosurgery, robotic |
| Hybrid operating room | often 70 m² (about 750 sq ft) or more | Plus control room and technical room |
Ceiling height matters as much as floor area. Surgical lights and pendants need enough height to swing clear of staff and to reach the working position; most suppliers ask for a finished ceiling of roughly 2.9–3.1 m (9.5–10.2 ft) and a structural support above it. Always confirm with the mounting drawings of the models you buy.
Operating suite zones and flows
An operating suite is divided into three zones: unrestricted (public corridors, changing rooms entrances), semi-restricted (peripheral support areas and corridors where scrubs and hair covers are required) and restricted (the operating rooms themselves and sterile stores, where masks are added). Good layouts keep these boundaries obvious with doors and floor finishes.
Plan separate flows wherever the building allows:
- Patients: from the holding or pre-operative area into the OR, out to recovery (PACU).
- Staff: from changing rooms through the semi-restricted corridor to scrub sinks and the OR.
- Clean supplies and sterile instruments: from the sterile store or the sterile processing department.
- Used instruments and waste: out to decontamination without crossing the clean route.
Our guide to the sterile processing department explains how the instrument loop connects to the theatre suite.
Operating room layout: placing the table, lights and pendants
The core operating room layout follows a simple order: table, air diffuser, lights, pendants, then everything else. Working from the center outward avoids the most common and costly mistake, which is a light or pendant arm that collides with another ceiling item or cannot reach the table.
- Operating room bed (table). Center it under the diffuser array. Specify one fixed position, even for mobile tables, and draw the table at its full length with accessories.
- Surgical lights. Mount the central axis over the table center. A general room usually has a double-dome light; add a third satellite or a camera for teaching. Keling's KL-LED-DTR78 Double-Dome LED Shadowless Operating Lamp with Camera is a double-dome operating room lamp with an integrated camera system, delivering 160,000 lux per dome.
- Anesthesia pendant. At the head end, on the anesthetist's working side, carrying the anesthesia workstation, monitor and gas outlets. The KL-T7500 Electric Medical Pendant is an electric pendant configured as an anesthesia station.

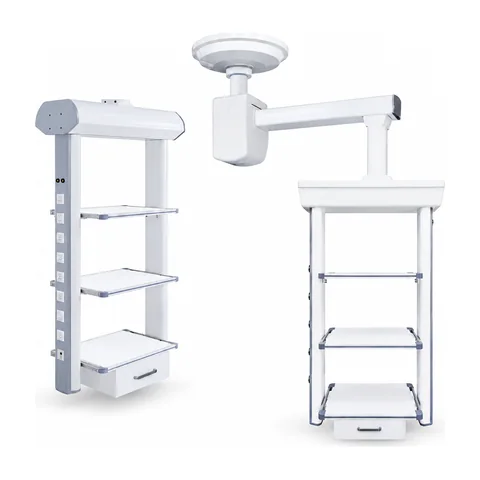

- Surgical pendant. On the side where electrosurgery, endoscopy towers and insufflators will sit. The KL-T6200 Medical Hanging Tower adds a suspended endoscopic workstation to an electric pendant.
- Displays and imaging. Booms or wall monitors where the surgeon looks naturally; a film viewer or digital display for reference images.
Draw the sweep circle of every arm on one reflected ceiling plan. For deeper detail on arm reach and outlet schedules, see the medical pendants planning guide, and for light choices, operating room lights: ceiling vs mobile.
Airflow, temperature and humidity
Ventilation is the part of operating room design that the equipment team cannot change later, so coordinate it early. ASHRAE 170, widely used in the US, calls for operating rooms to be kept at positive pressure with at least 20 total air changes per hour (4 of them outdoor air), 68–75°F (20–24°C) and relative humidity between 20% and 60%, with a unidirectional diffuser array over the table.
What this means for equipment planners:
- Keep surgical light and pendant mounts outside the diffuser footprint, or choose lights with a slim, open shape so they disturb the airflow less.
- Avoid tall equipment directly beside the table that blocks the downward flow.
- Check that pendant and light ceiling plates are sealed to the cleanroom ceiling system.
Other countries use their own standards, such as HTM 03-01 in the UK or DIN 1946-4 in Germany; the HVAC engineer should confirm which applies.
Operating room storage and cabinets
Operating room storage should keep frequently used sterile supplies inside the room in closed, cleanable cabinets, and everything else in the sterile store. Open shelves collect dust and are hard to clean, so most new theatres use recessed or wall-hung stainless steel or powder-coated cabinets with glass or solid doors.
- Recessed cabinets keep corners clean and the floor clear; freestanding cabinets suit refurbishment where walls cannot be opened.
- Glass upper doors let staff see stock without opening; solid lower doors suit bulkier packs.

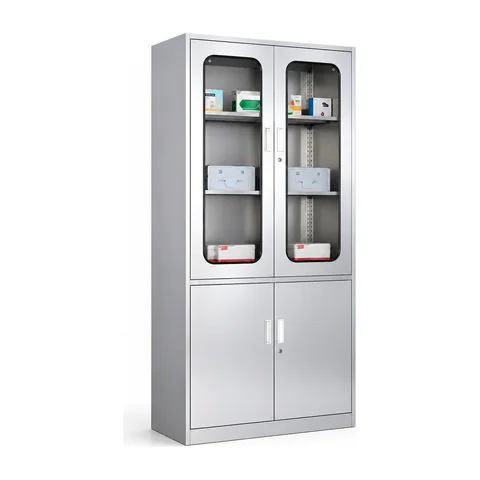

- Stainless steel tolerates aggressive disinfectants. The KL-TC063 Stainless Steel Cabinet is a stainless steel cabinet with tempered glass upper doors and a closed lower compartment.
- Keep a separate drug storage solution, such as an anesthesia trolley with a lock, at the head end.
Hybrid operating room design
A hybrid operating room combines a full surgical room with a fixed angiography system, and sometimes CT or MRI on rails. It lets teams perform open and endovascular steps in one session, which is why hybrid OR rooms are used for complex vascular, cardiac, neurovascular and trauma cases.
Hybrid operating room design adds requirements that a standard surgery operating room does not have:
- Floor area and height for the C-arm's movement range, its parking position and ceiling rails.
- A control room with a shielded window, and a technical room for imaging cabinets and cooling.
- Radiation shielding in walls, doors and sometimes floors and ceilings, designed by a qualified expert.
- A fully radiolucent table with carbon fiber top and imaging-compatible movements. Tables such as the KL-D-III-III Electric Operating Table, with a carbon fiber free-backboard top compatible with C-arm and 360° imaging, suit mobile C-arm work; fixed angiography systems usually specify their own compatible table.
- Ceiling coordination between imaging rails, lights, pendants, radiation shields and the diffuser, which is far tighter than in a standard room.
A hybrid operating room equipment list therefore starts with the imaging vendor's planning requirements; lights and pendants are then chosen to fit around them.
Integrated operating room and video
An integrated operating room routes video and data from endoscopy cameras, light-handle cameras, imaging and the patient record to wall and boom displays through a central system, controlled from a touch panel. It reduces cables on the floor and allows recording and streaming for teaching.
For planning, an integrated room needs data and video cabling in the pendants and walls, display arms on the pendants or lights, and a location for the control rack. Even if full integration is not affordable now, installing spare conduit and pendant cable capacity costs little during construction.
Operating room machines and equipment to coordinate with the layout
Most operating room machines and equipments must be placed on the layout drawing, not just on the purchase list. The ones that need floor or ceiling space and utilities are:
| Item | What to coordinate |
|---|---|
| Operating table | Position, accessory storage, power for electric tables |
| Surgical lights | Ceiling mount, arm sweep, camera and display arms |
| Anesthesia and surgical pendants | Ceiling load, gas and electrical outlets, device shelves |
| Anesthesia workstation | Head-end space, gas connections |
| Electrosurgery, endoscopy, insufflation | Pendant shelf or cart space, power |
| Mobile C-arm or robot | Parking area, door widths, floor loading |
| Suction | Pipeline outlets plus a mobile backup unit |
| Instrument and Mayo trolleys | Space around the sterile field |
| Storage cabinets and displays | Wall space, recess depth |
The operating table buying guide explains how to choose the table itself.
Next steps
Fix the room size and zones with your architect, place the table under the diffuser, then coordinate lights, pendants and imaging on one ceiling plan before ordering. Keling Medical manufactures operating tables, surgical lights, pendants, trolleys and cabinets in one ISO 13485-certified factory, which simplifies interface checks for a whole theatre. Browse surgical lights, medical pendants and operating tables, or send your room drawings for a quotation.
Frequently asked questions
What does an operating room look like?
A modern operating room is a square or near-square room with seamless washable walls and floor, an operating table in the center under a ceiling air diffuser and two or three surgical light domes, ceiling pendants for anesthesia and surgical equipment, wall displays, recessed storage cabinets and doors to a clean corridor and a scrub area.
How big should an operating room be?
Under the US FGI Guidelines, a general operating room needs about 400 sq ft (37.2 m²) of clear floor area with a minimum clear dimension of 20 ft (6.1 m). Rooms for orthopedic, cardiac, robotic or image-guided surgery need about 600 sq ft (55.7 m²). Hybrid rooms are usually larger still. Follow your national guidance where it differs.
What is a hybrid operating room?
A hybrid operating room is a surgical room with a fixed, high-quality imaging system, usually a ceiling- or floor-mounted angiography C-arm, and sometimes CT or MRI. It allows open surgery and catheter-based procedures in one session, but needs a larger room, a control room, radiation shielding, reinforced ceilings and a radiolucent table.
What are the benefits of a hybrid operating room?
Hybrid operating room benefits include combining open and endovascular steps without moving the patient, high-quality imaging during surgery, and the ability to switch to open surgery quickly if a catheter procedure fails. The trade-offs are high capital cost, a larger footprint and a scheduling model that keeps an expensive room busy.
What is an integrated operating room?
An integrated operating room connects video sources such as endoscopy cameras, surgical light cameras, imaging and patient data to wall and boom-mounted displays through a central routing and control system. Staff can switch images, record and stream procedures for teaching from a touch panel, with fewer cables on the floor.
What is the difference between an operating room and an operation theatre?
They are the same space. Operating room (OR) is the usual term in the US; operation theatre or operating theatre (OT) is used in the UK, India, Africa and much of Asia. Surgery room and surgical room are informal terms for the same thing.
Where should the operating table be placed in the room?
Place the operating table in the center of the room under the unidirectional airflow diffuser, usually with its long axis along the room's long axis. Leave clear space on all sides for the team, the anesthesia workstation at the head, instrument trolleys and imaging, and align the surgical light mounts to the table center.
