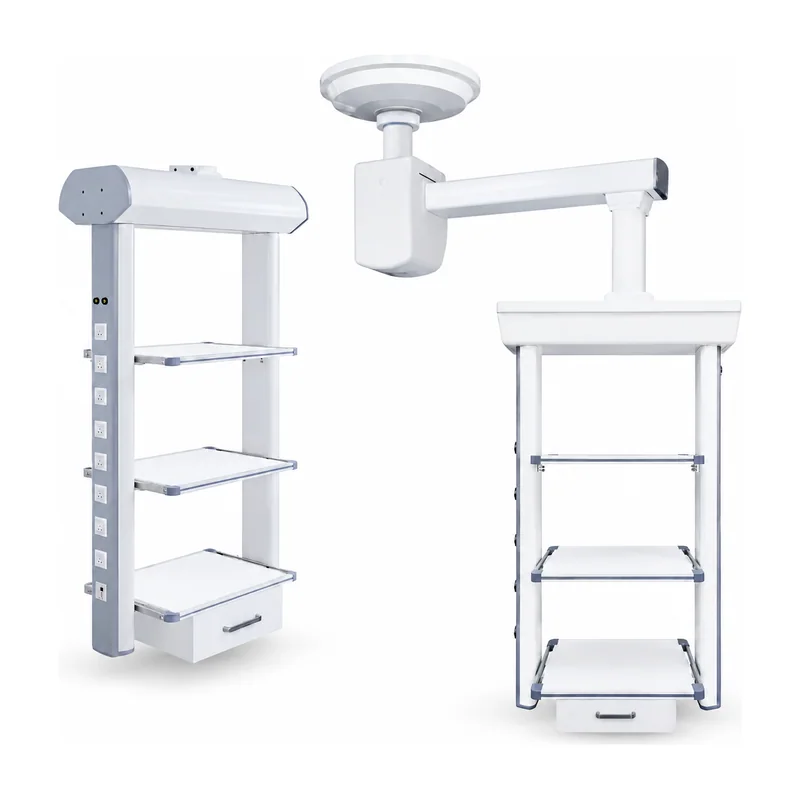

KL-T6200 Medical Hanging Tower — Electric Pendant with Integrated Endoscopic Workstation

Quick answer. The Keling KL-T6200 is an electric medical hanging tower (series code KL-T·IBJ) that extends the KL-T6100 with a dedicated suspension endoscopic workstation. It is designed for purifying (clean) operating rooms and general operating rooms, and is operated by a handheld remote controller. The 304 stainless steel frame carries multi-layer shelves, an integrated drawer, and 8 power outlets with full German standard gas terminals. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Power outlets: 8
Frame material: 304 stainless steel
Workstation casters: Ultra-quiet, 360° rotation, brake function
Data/communication outlets: 1 telephone outlet, 1 internet outlet

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T6200 medical hanging tower is the endoscopy-ready variant in the KL-T6100 series, combining a fully equipped ceiling pendant with an integrated suspension workstation optimized for endoscopic procedures. Designed for purifying operating rooms and general ORs, it keeps all utilities, monitoring equipment and endoscopy accessories organized at ceiling level, freeing the floor and reducing cable hazards in high-traffic surgical environments.

The workstation frame uses 304 stainless steel construction, providing the load capacity and corrosion resistance needed for continuous clinical use. Multi-layer shelves with raised edges hold instruments and equipment securely, while the integrated drawer provides a lockable storage compartment for consumables. A handheld remote controller manages all motorized movements — vertical lift, horizontal swing and rotation — so the surgical team can reposition the entire system without leaving the sterile field or interrupting the procedure.

Infection control is addressed through the Smart Roll function, which reduces cross-contamination risk between patients, and an antibacterial waterproof mattress where applicable. Ultra-quiet casters with 360° rotation and brake function ensure the workstation can be locked precisely in position, even in compact OR layouts. The imported brand motor runs silently and is rated for durable, maintenance-light operation.

Quick facts

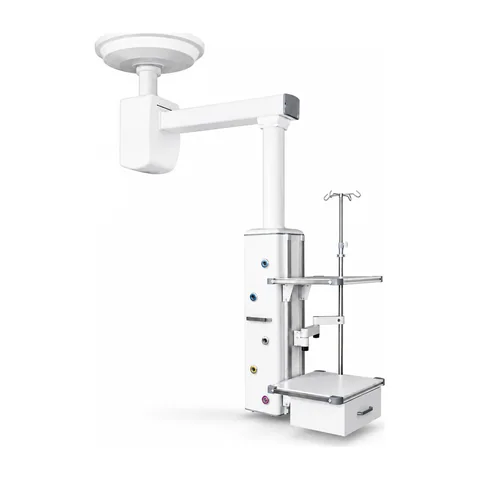

The Keling KL-T6200 is an electric medical pendant that adds a suspension endoscopic workstation over the KL-T6100 base configuration.
The workstation frame is constructed from 304 stainless steel for strength, durability and hygiene.
All actions — height, rotation, positioning — are controlled via a handheld remote controller.
Ultra-quiet medical casters on the workstation allow 360° rotation with a braking function to hold position.
Standard utility configuration includes eight power outlets, one telephone outlet, one internet outlet, plus compressed air, oxygen, carbon dioxide, suction gas and anesthesia gas (German style terminals; optional gases available).
The KL-T6200 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Suspension endoscopic workstation
dedicated workstation integrated into the pendant system for organized endoscopy equipment support and monitoring display mounting.
304 stainless steel frame
high-strength, corrosion-resistant structural frame for long service life and easy decontamination.
Handheld remote controller
all motorized actions (lift, rotation, positioning) are operated remotely for convenience from anywhere in the OR.
Imported motor, silent operation
quiet, durable motor provides reliable vertical lift with no noise interference in the surgical environment.
Ultra-quiet 360° casters with brake
medical-grade casters on the workstation allow smooth repositioning and secure braking at the chosen position.
Smart Roll anti-contamination function
reduces cross-contamination risk between patients.
Expanded utility configuration
8 power outlets, 1 telephone outlet, 1 internet outlet, compressed air, oxygen, CO₂, suction gas and anesthesia gas (German style terminals).
Multi-layer shelves with integrated drawer
spacious shelves with raised edges plus a built-in drawer for organized, accessible storage.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-T6200

KL-T6200 technical specifications
Model	KL-T6200
Series code	KL-T·IBJ
Product type	Electric medical pendant with endoscopic workstation
Application	Clean (purifying) operating rooms, general operating rooms
Frame material	304 stainless steel
Lift mechanism	Electric (imported motor), remote-controlled
Controls	Handheld remote controller
Workstation casters	Ultra-quiet, 360° rotation, brake function
Gas terminals	German standard (optional gases)
Power outlets	8
Data/communication outlets	1 telephone outlet, 1 internet outlet
Gas outlets	1 compressed air, 1 oxygen, 1 carbon dioxide, 1 suction gas, 1 anesthesia gas

Applications

The KL-T6200 is suited to clean and purifying ORs performing endoscopic, laparoscopic or minimally invasive procedures, as well as general operating rooms requiring an integrated equipment workstation. Its endoscopic workstation configuration makes it a practical choice for combined surgical and endoscopy suites, hybrid ORs and advanced procedural rooms where monitoring equipment, insufflators and camera systems must be organized at the point of care.

Questions buyers ask

What distinguishes the KL-T6200 from the KL-T6100?

The KL-T6200 adds a suspension endoscopic workstation to the standard KL-T6100 electric pendant platform. This workstation, built on a 304 stainless steel frame with multi-layer shelves and 360° casters, provides dedicated support for endoscopy equipment, monitors and accessories.

How are the utilities configured on the KL-T6200?

The KL-T6200 provides eight power outlets, one telephone outlet and one internet outlet on the pendant column, plus German standard gas terminals for compressed air, oxygen, carbon dioxide, suction gas and anesthesia gas. Additional optional gas types are available.

Is the KL-T6200 suitable for infection control in shared ORs?

Yes. The Smart Roll function is designed to reduce cross-contamination between patients. The 304 stainless steel frame is easy to wipe down and resistant to clinical disinfectants. The antibacterial waterproof design is available where specified.

Can the KL-T6200 be purchased in volume or configured for export?

Yes. Keling Medical exports to hospitals and distributors worldwide and supports project quotations, wholesale orders and OEM configurations through its Shanghai export center. Contact Keling Medical via https://www.kelingmed.com.
