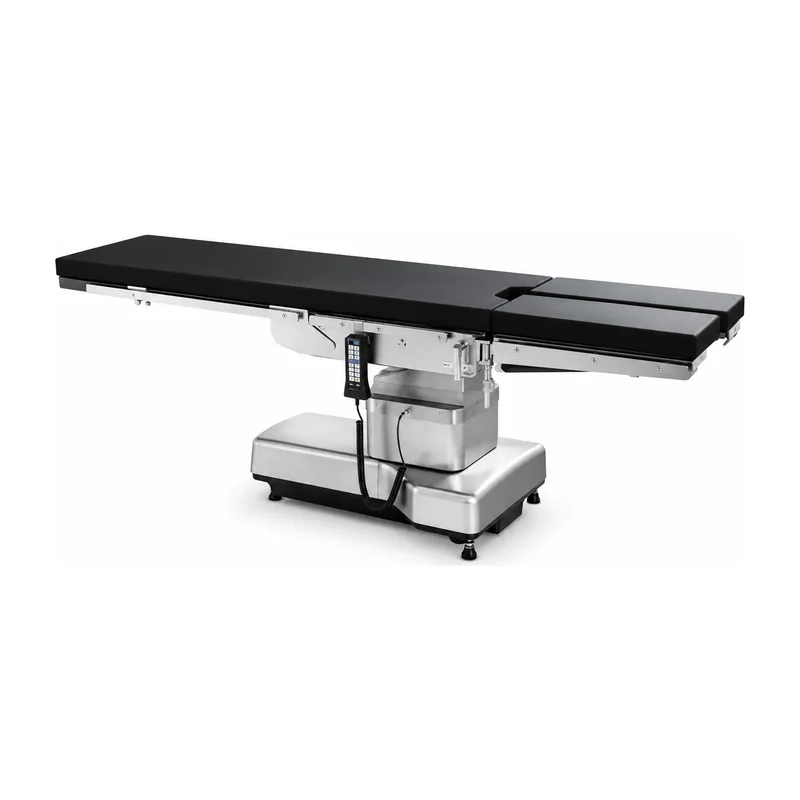

KL-D-III-III Electric Operating Table — Carbon Fiber C-Arm Table for Orthopaedic and Imaging-Guided Surgery

Quick answer. The Keling KL-D-III-III is an electric operating table with a carbon fiber free-backboard tabletop compatible with C-arm and 360° X-ray imaging, a length of carbon fiber backboard of 1100 mm, height adjustment range, Trendelenburg ≥ 25°/≥ 20°, and dual hand-held and table-mounted CPU controllers. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Input Power: 400 ± 10% VA
Power Supply: AC 110V–220V 50Hz ± 1Hz
Length: 2000 ± 100 mm
Width: 520 ± 20 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-III-III electric operating table is specifically engineered for procedures requiring full-length C-arm access and 360° X-ray imaging capability. The carbon fiber backboard extends 1100 mm and is designed to remain in position while delivering a clear, unobstructed imaging path through the entire tabletop surface — critical for orthopaedic procedures such as femoral nail insertion, hip arthroplasty under fluoroscopy, and spinal instrumentation. The free-backboard design also allows intraoperative longitudinal repositioning of the patient relative to the X-ray field without table movement.

The complete hydraulic system is dual-controller managed: a hand-held remote and a table-mounted panel, both operating through the same CPU platform with a one-key reset function. The high-quality memory foam mattress is formed from imported artificial leather in a seamless single piece — antibacterial, waterproof, and straightforward to disinfect. The imported gas springs control head and leg plate movement for smooth, stable adjustment, while the main hydraulic circuit drives height, Trendelenburg, tilt, and backboard positioning.

All external-contact components — base, column cover, side rails and accessories — are 304 stainless steel, resisting hospital-grade chemical disinfectants without corrosion or surface degradation. The table is mounted on electric-brake casters for controlled OR repositioning, with foot-operated lock and unlock.

Quick facts

The Keling KL-D-III-III is an electric operating table designed for 360° X-ray and C-arm imaging compatibility.
The tabletop backbone is carbon fiber, providing radiolucency throughout the full table length for orthopaedic and spinal fluoroscopy.
Height adjustment covers a wide surgical positioning range with electro-hydraulic drive.
Trendelenburg reaches ≥ 25° and reverse-Trendelenburg ≥ 20°, supporting a variety of patient orientations.
Two control modes are provided: hand-held remote controller and table-mounted panel controller, with one-key reset.
The base, side rails and accessories are made of high-quality 304 stainless steel, easy for clinical cleaning and sterilisation.

Key features

Carbon fiber tabletop for 360° X-ray/C-arm imaging
radiolucent carbon fiber throughout provides clear intraoperative imaging for orthopaedic, spinal and urological fluoroscopy-guided procedures.
1100 mm carbon fiber backboard length
extended carbon fiber section ensures imaging access through the full patient torso without repositioning.
Dual CPU controller modes
hand-held remote and table-mounted panel controller, both CPU-managed with one-key reset for fast case changeover.
Imported gas spring head and leg control
smooth, stable adjustment of head and leg sections independent of the main hydraulic circuit.
304 stainless steel base and accessories
corrosion-resistant structural components throughout for durable, hygienic performance.
Electric-brake casters
foot-operated brake for safe, precise OR positioning and stable intraoperative locking.
Seamless imported artificial leather mattress
one-piece high-density memory foam mattress, antibacterial, waterproof, and seam-free for infection control.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

18 parameters for KL-D-III-III

KL-D-III-III technical specifications
Model	KL-D-III-III
Product type	Electric operating table
Length	2000 ± 100 mm
Width	520 ± 20 mm
Length of carbon fiber backboard	1100 mm
Tilt Left / Tilt Right	≥ 5° / ≥ 5°
Trendelenburg / Rev-Trend	≥ 25° / ≥ 20°
Headboard Upwards	≥ 45°
Headboard Downwards	≥ 75°
Backboard Upwards	≥ 40°
Backboard Downwards	≥ 25°
Leg plate upwards	≥ 15°
Leg plate downwards	≥ 90°
Lumbar lordosis angle "∧"	≤ 110°
Lumbar kyphosis angle "∨"	≤ 110°
Longitudinal Movement	200 ± 30 mm
Input Power	400 ± 10% VA
Power Supply	AC 110V–220V 50Hz ± 1Hz

Applications

The KL-D-III-III is primarily deployed in orthopaedic surgery requiring intraoperative fluoroscopy — hip and knee arthroplasty, femoral and tibial nailing, spinal fixation — as well as urological endoscopy, general surgery with C-arm guidance, and any procedure where 360° X-ray access through the table surface is clinically required.

Questions buyers ask

What is the Keling KL-D-III-III electric operating table used for?

The KL-D-III-III is designed for orthopaedic, spinal, and imaging-guided surgical procedures requiring intraoperative C-arm or 360° X-ray access. Its carbon fiber tabletop — with an 1100 mm backboard section — provides unobstructed imaging through the full patient torso without repositioning.

How does the carbon fiber backboard on the KL-D-III-III benefit orthopaedic surgery?

The 1100 mm carbon fiber backboard is radiolucent, allowing C-arm fluoroscopy to pass through the entire upper body region of the patient without image artefact. This is critical for orthopaedic procedures such as spinal pedicle screw placement, hip nailing, and femoral fixation where real-time imaging guides implant placement.

What positioning adjustments are available on the KL-D-III-III?

The KL-D-III-III supports lateral tilt (≥ 5° each side), Trendelenburg (≥ 25°)/reverse-Trendelenburg (≥ 20°), headboard up (≥ 45°)/down (≥ 75°), backboard up (≥ 40°)/down (≥ 25°), leg plate upward (≥ 15°)/downward (≥ 90°), lumbar bridge (∧ ≤ 110°, ∨ ≤ 110°), and longitudinal movement (200 ± 30 mm).

Is the KL-D-III-III available for export or wholesale distribution?

Yes. Keling Medical supplies hospitals and distributors worldwide through its Shanghai export center and supports wholesale, project, and OEM orders for the KL-D-III-III. Contact Keling Medical at https://www.kelingmed.com for specifications and pricing.
