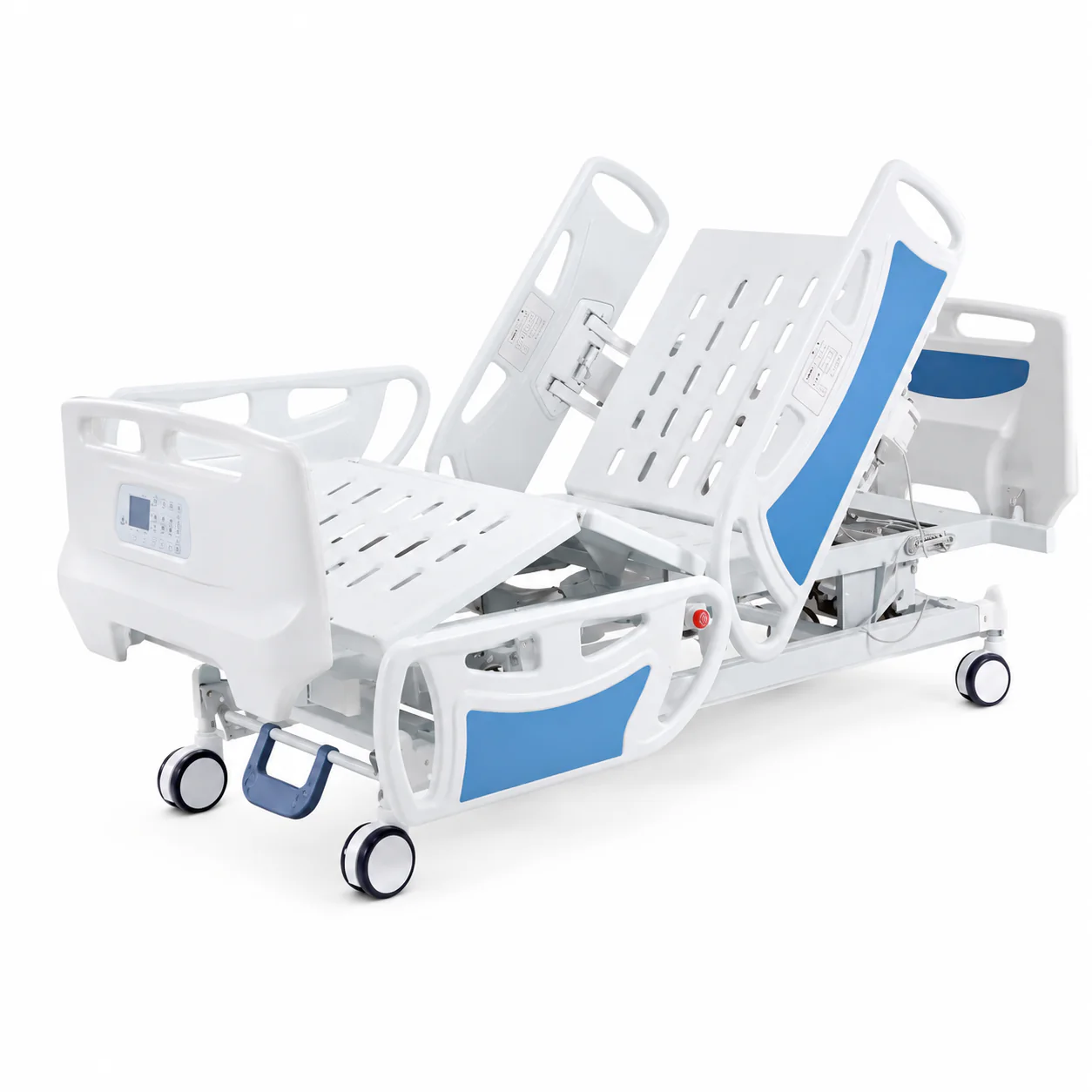

# KL-BC101 Electric Hospital Bed — 5-Function ICU Bed with CPR Instant Release

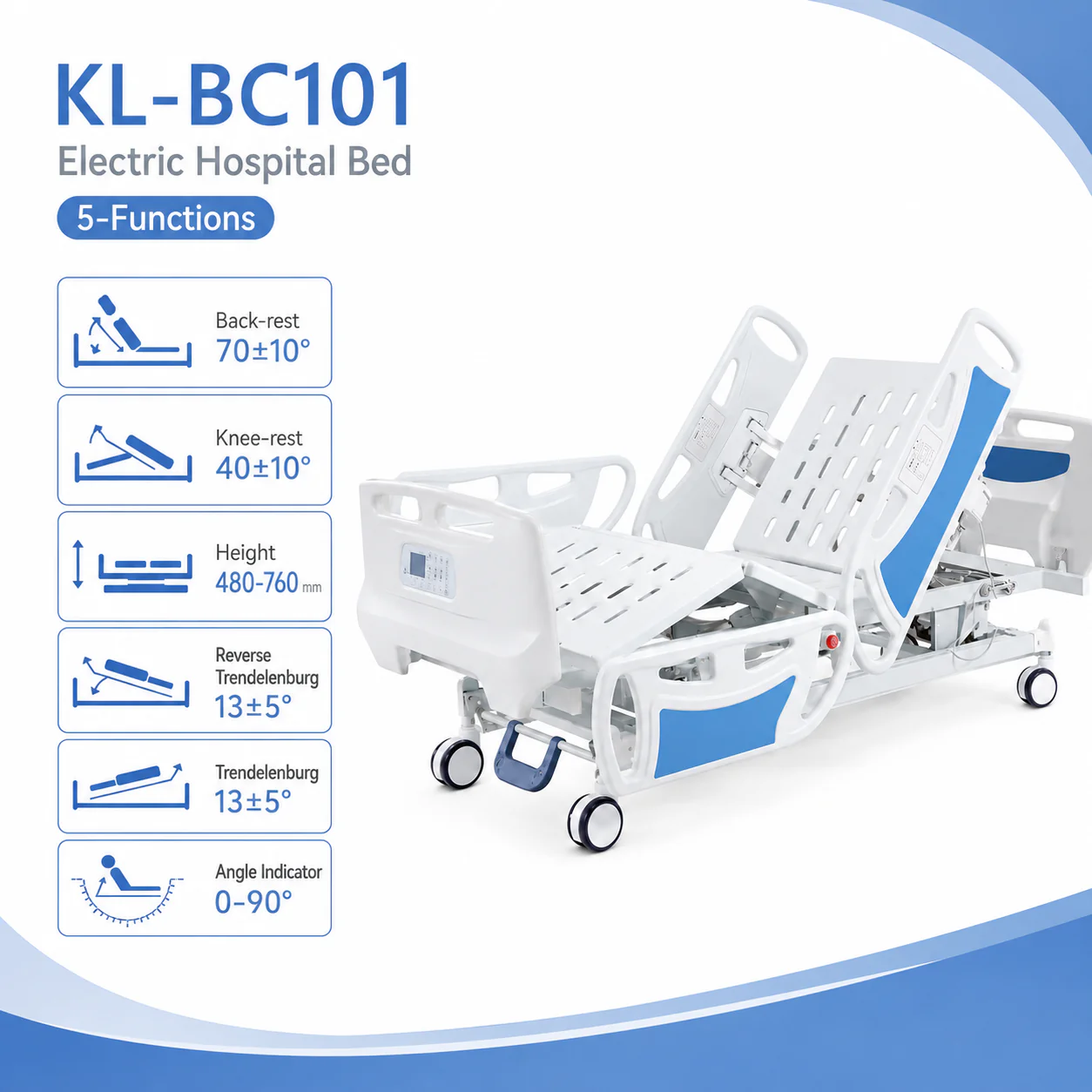

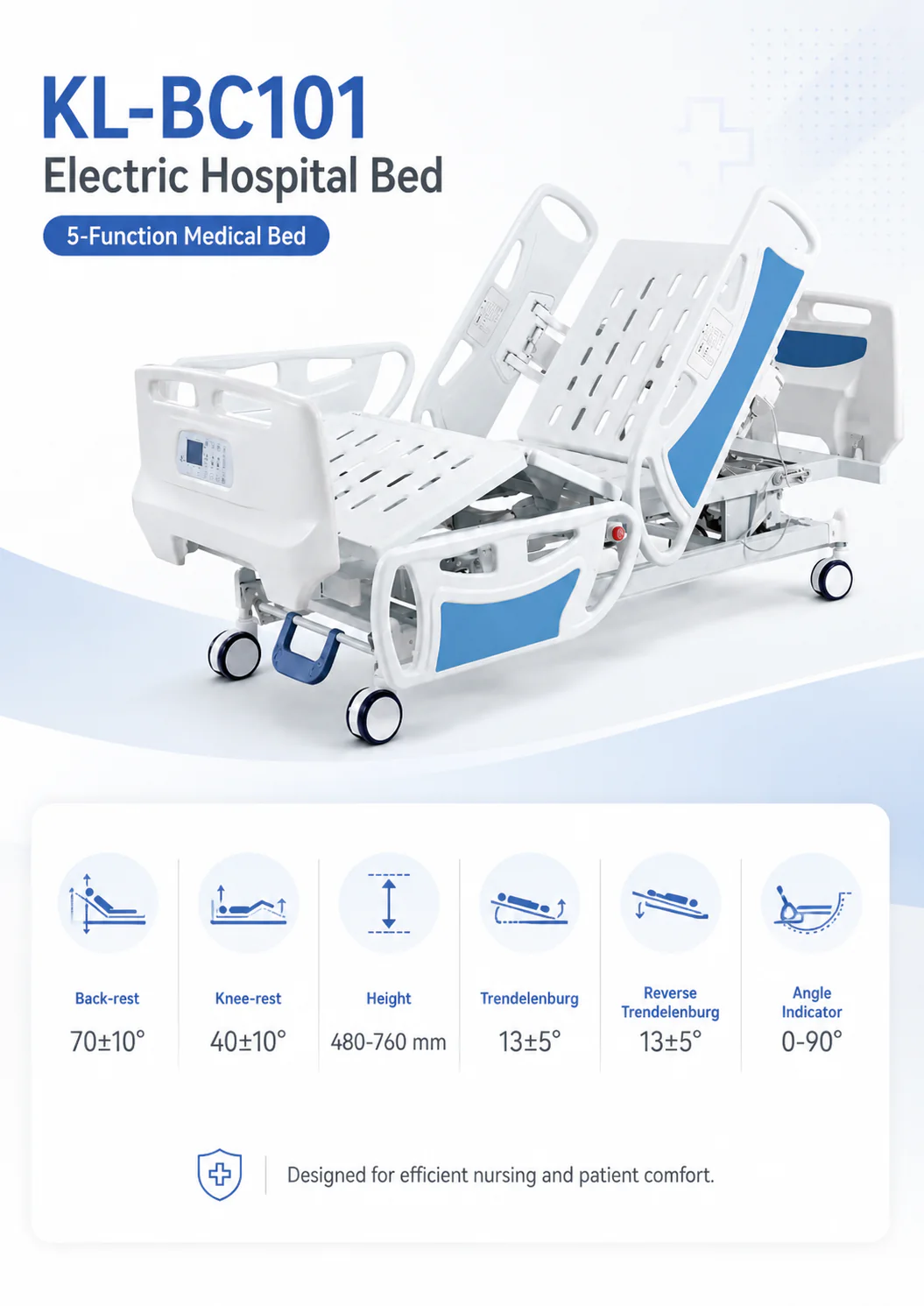

Quick answer: The Keling KL-BC101 is a 5-function electric hospital bed with backrest adjustment to 70±10°, knee-rest to 40±10°, height range 480–760 mm, Trendelenburg/reverse Trendelenburg tilt of 13±5°, CPR instant release and a 240 kg safe working load. It is manufactured by Keling Medical (Keling Medical) for ICUs, general wards and hospitals worldwide.
Quick Facts
- The Keling KL-BC101 is a 5-function electric hospital bed designed for ICU and general ward use.
- Backrest adjusts to 70±10° and knee-rest adjusts to 40±10° via independent electric drives.
- Height adjustment spans 480–760 mm (480 mm range), making transfers and care tasks easier for nursing staff.
- Trendelenburg and reverse Trendelenburg tilt each reach 13±5°, enabling postural drainage and anti-shock positioning.
- The KL-BC101 features CPR instant release, a nurse lock function and an integrated 0–90° angle indicator.
- Safe working load is 240 kg; optional integrated weighing system and battery power storage are available.
- External dimensions are 2160 × 1070 × (480–760) mm; bed surface is 1930 × 900 mm.
Overview
The KL-BC101 electric hospital bed is a full-featured 5-function platform built for demanding inpatient environments including intensive care units, high-dependency wards and surgical recovery rooms. Electric actuation across all five adjustment axes — backrest, knee-rest, bed height, Trendelenburg and reverse Trendelenburg — lets nursing staff reposition patients precisely and safely without manual effort. The 0–90° integrated angle indicator provides at-a-glance confirmation of backrest position, reducing the risk of positioning errors during ventilator care or post-operative recovery.

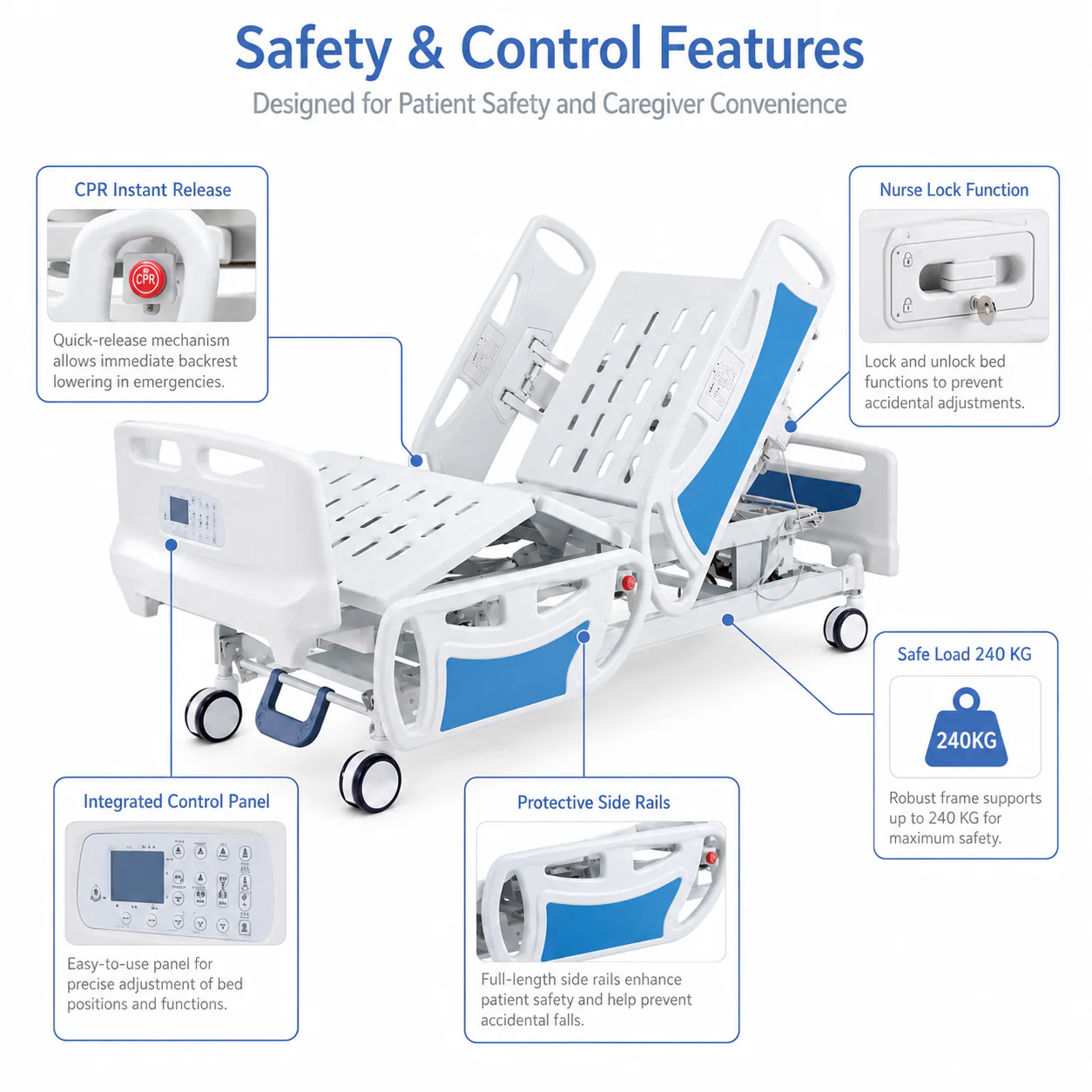

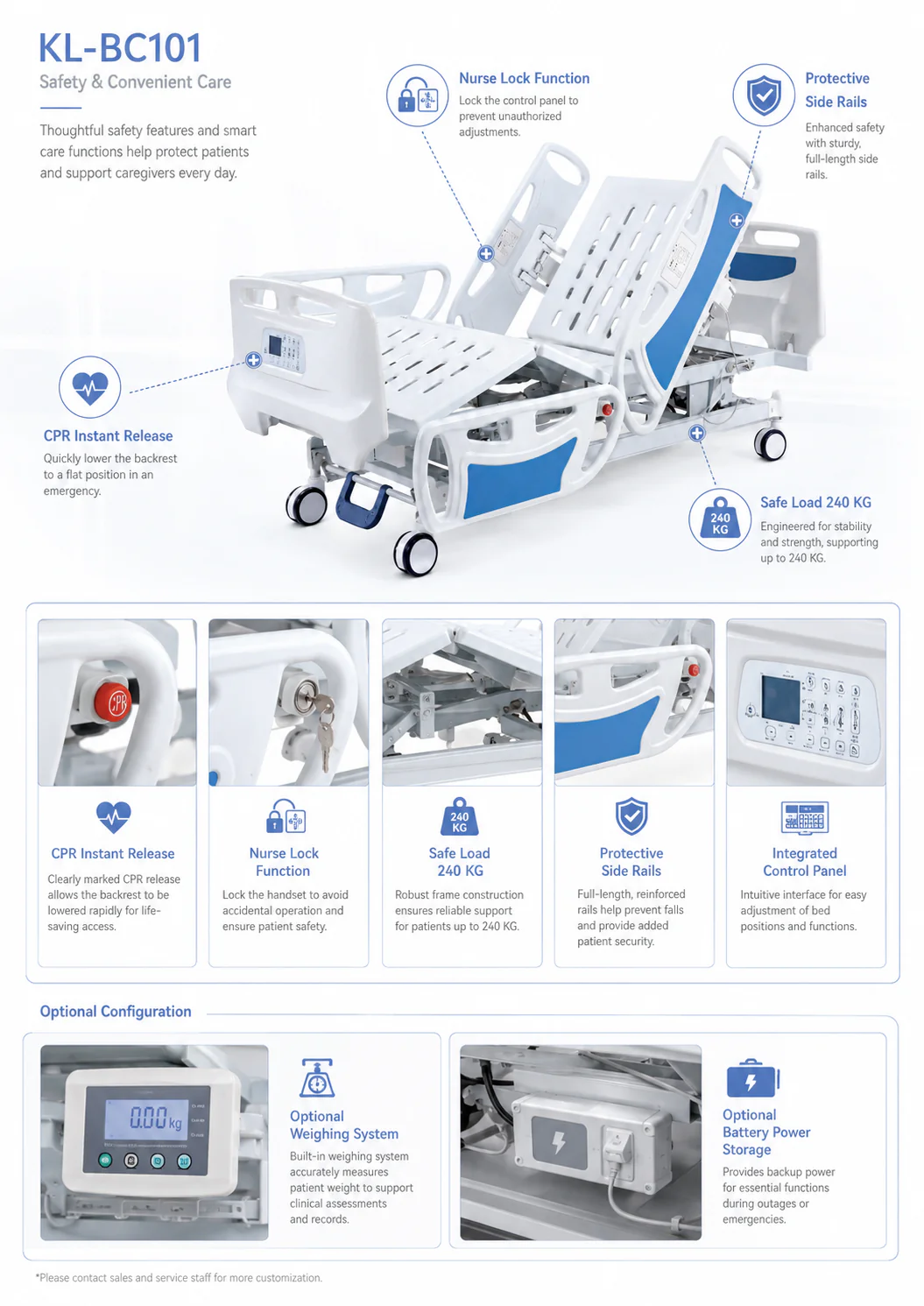

Patient safety features are built into the core design. The CPR instant release function drops the backrest to flat in a single action, eliminating precious seconds during cardiac events. The nurse lock function prevents accidental patient-side adjustment of bed controls, while side rail integration keeps patients secure. A safe working load of 240 kg accommodates a wide patient population without compromising structural integrity.
For facilities that need extended operational continuity, the optional battery power storage module keeps all electric functions active during power interruptions, and an optional integrated weighing system allows direct bedside patient weight monitoring — eliminating the need to transfer patients to dedicated scales. The KL-BC101 is suited to high-acuity environments where every positioning adjustment and clinical measurement matters.
Key Features

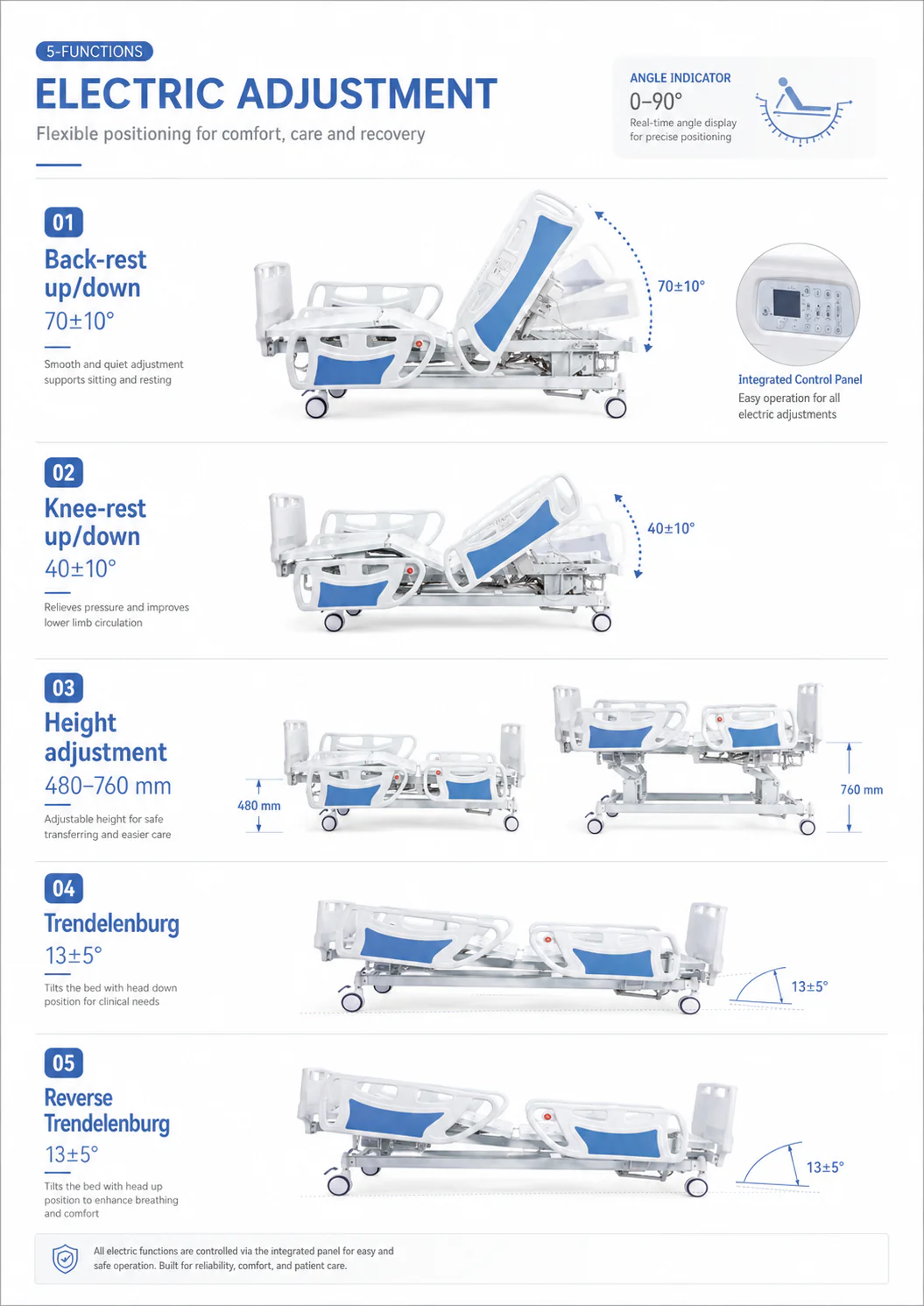

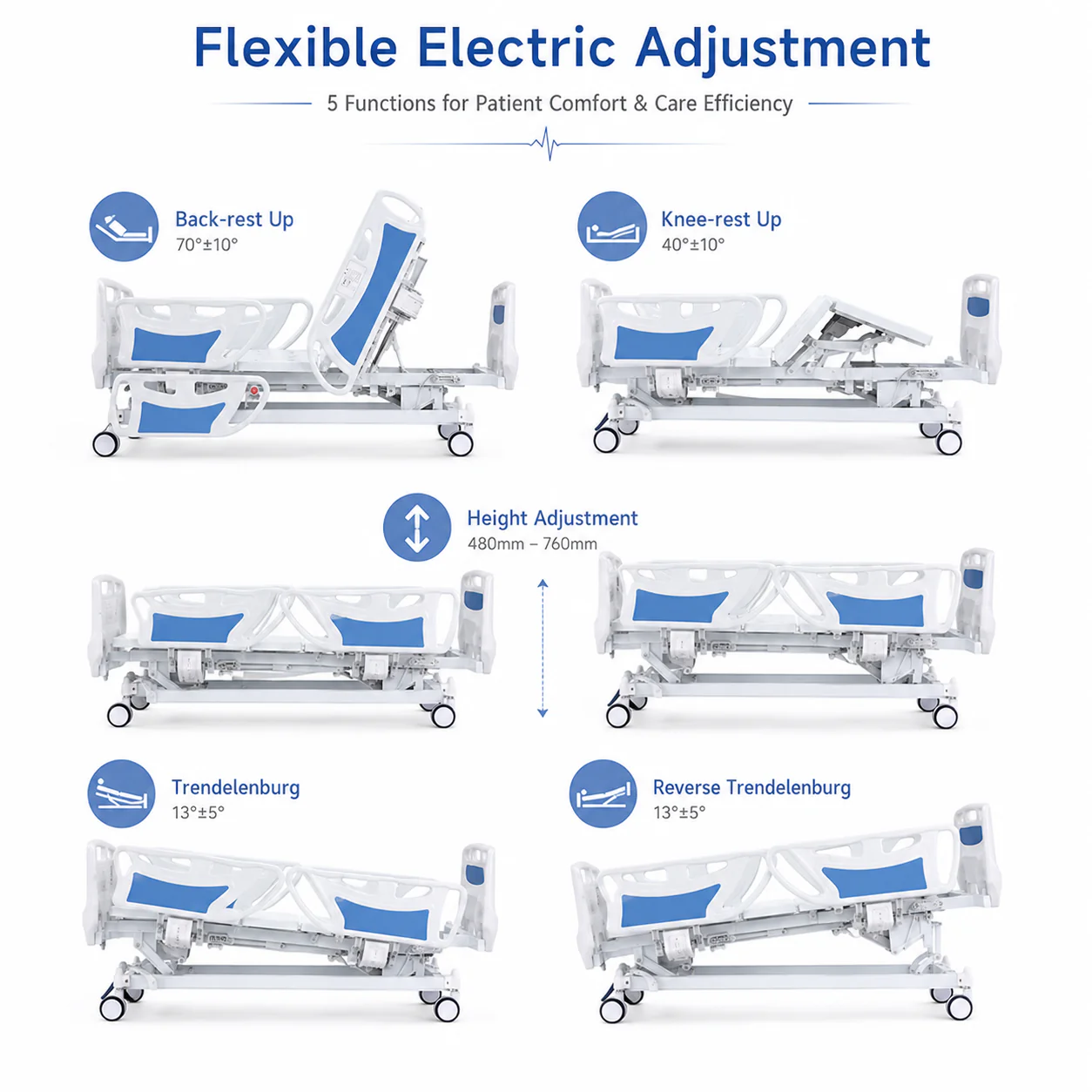

- 5-Function electric actuation — independent electric drives for backrest, knee-rest, bed height, Trendelenburg and reverse Trendelenburg tilt; precise positioning across all axes.
- Backrest up to 70±10° — wide adjustment range accommodates respiratory support, feeding and therapeutic positions.
- Knee-rest up to 40±10° — independent knee elevation reduces shear forces and supports post-operative lower-limb positioning.
- Height range 480–760 mm — wide electric height adjustment simplifies patient transfers and enables nursing tasks at ergonomic working height.
- Trendelenburg / reverse Trendelenburg 13±5° — both tilt directions support postural drainage, anti-shock positioning and surgical prep.
- CPR instant release — one-action backrest drop to flat position for immediate cardiac resuscitation access.
- Nurse lock function — disables patient-side controls to prevent unintended adjustments in high-dependency settings.
- 0–90° angle indicator — continuous visual readout of backrest angle visible to clinical staff at a glance.
- Optional weighing system & battery backup — integrated weight monitoring and uninterrupted electric function during power outages.

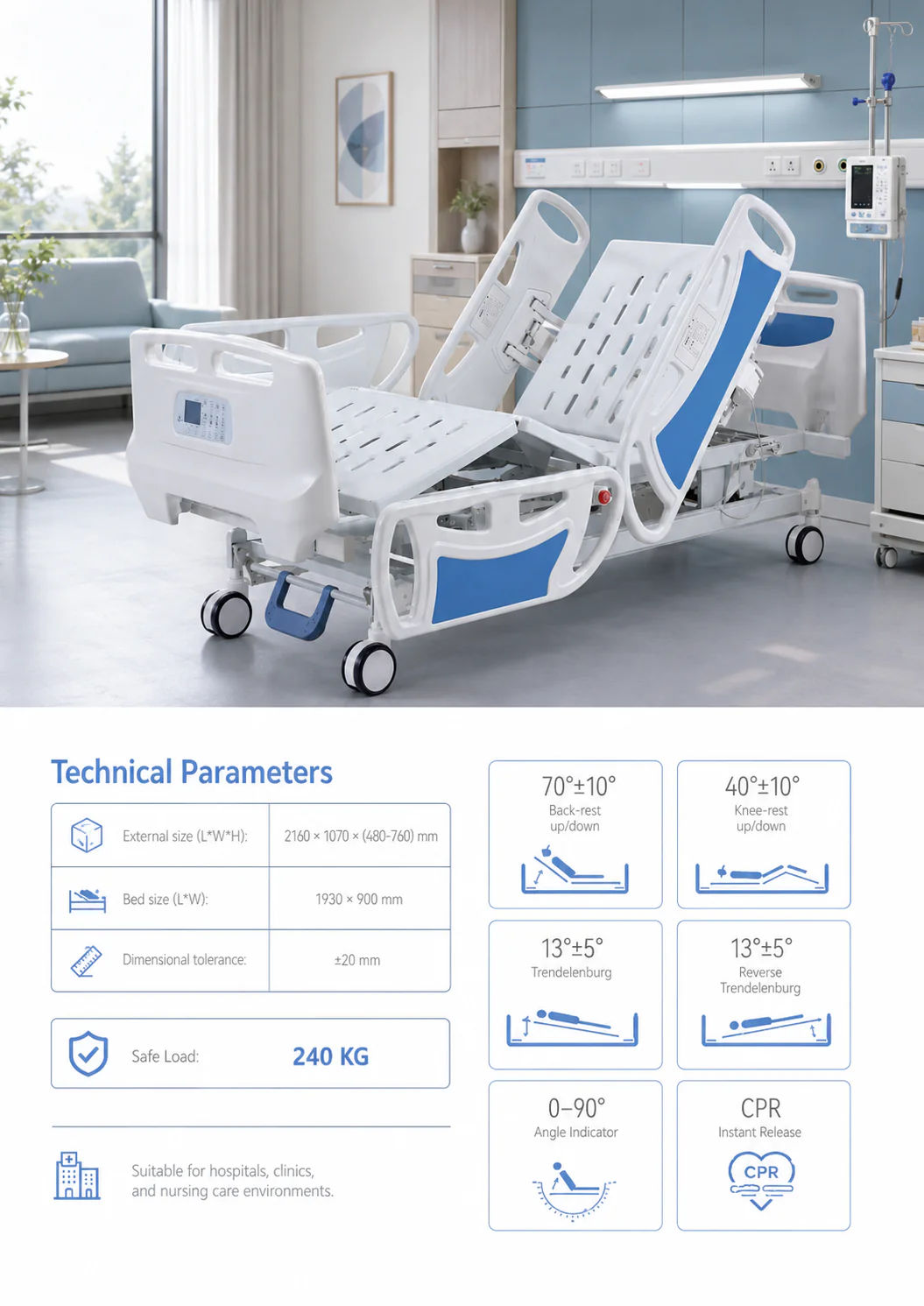

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC101 |
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 40±10° |
| Height adjustment | 480–760 mm |
| Reverse Trendelenburg | 13±5° |
| Trendelenburg | 13±5° |
| Angle indicator | 0–90° |
| CPR release | Instant release |
| Nurse lock | Yes |
| Safe working load | 240 kg |

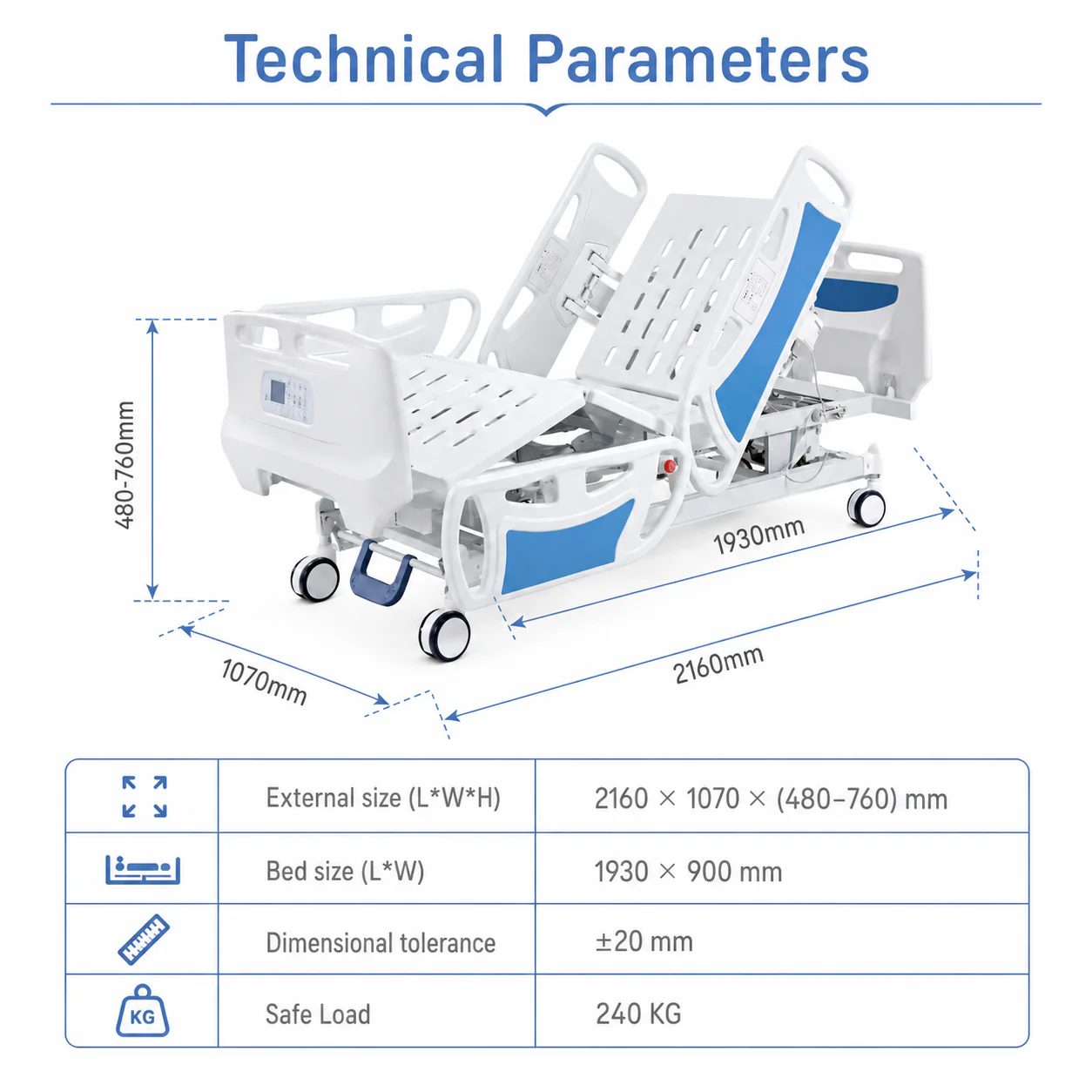

| External size (L × W × H) | 2160 × 1070 × (480–760) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
| Optional accessories | Weighing system, battery power storage |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC101 is suited to the most demanding inpatient settings: intensive care units (ICU), high-dependency units (HDU), cardiac care units (CCU), post-operative surgical recovery wards, general medical and surgical wards, and long-term care facilities. The CPR function and nurse lock make it especially appropriate for acute-care environments where patient safety and rapid emergency response are paramount.
