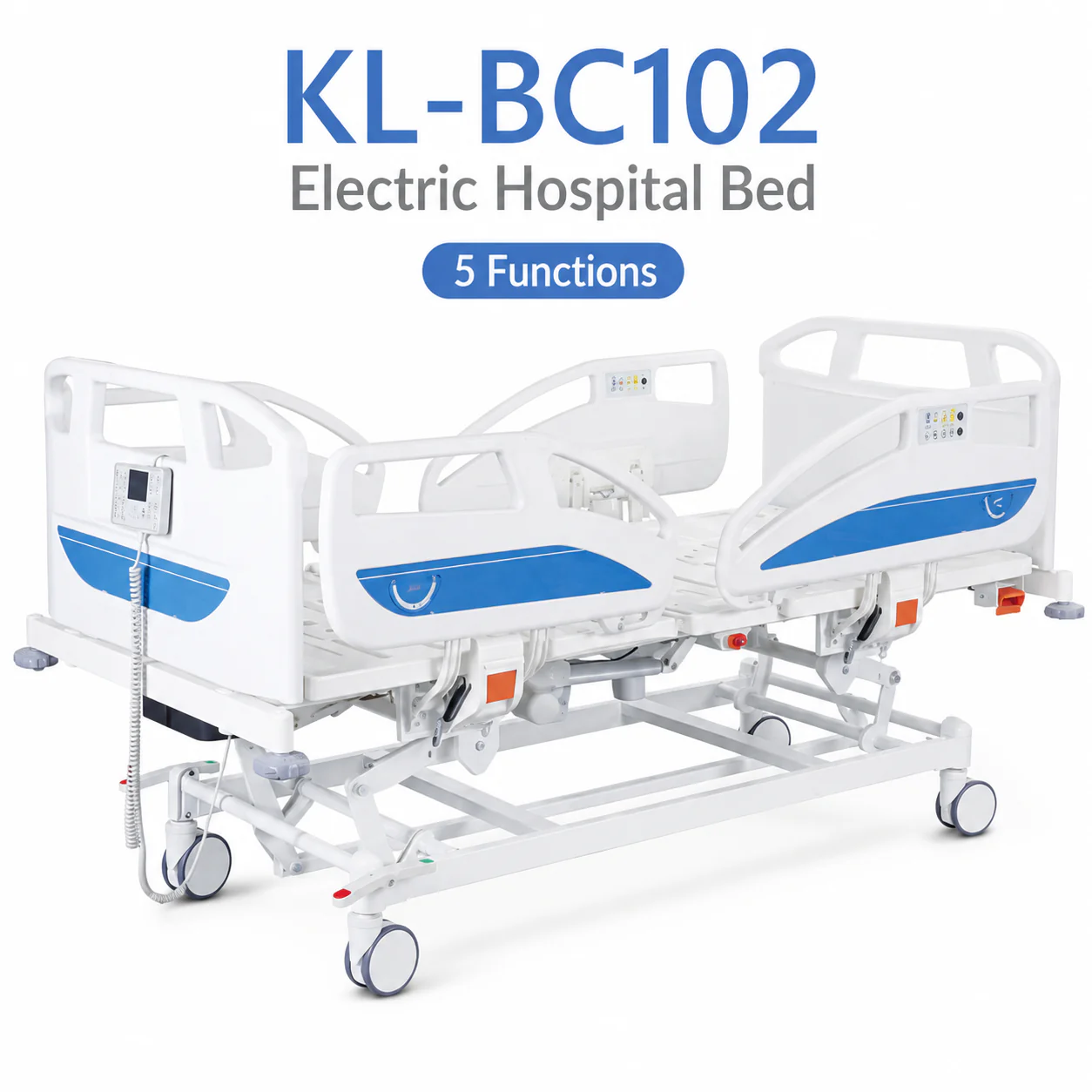

# KL-BC102 Electric Hospital Bed — 5-Function Bed with Dual Return Mechanism
Quick answer: The Keling KL-BC102 is a 5-function electric hospital bed featuring a dual return mechanism, backrest adjustment to 70±10°, knee-rest to 30±10°, height range 450–760 mm, Trendelenburg/reverse Trendelenburg of 12±5°, CPR instant release, nurse lock and a 240 kg safe working load. It is manufactured by Keling Medical (Keling Medical) for hospitals, clinics and medical distributors worldwide.
Quick Facts
- The Keling KL-BC102 is a 5-function electric hospital bed with a dual return mechanism for smooth backrest repositioning.

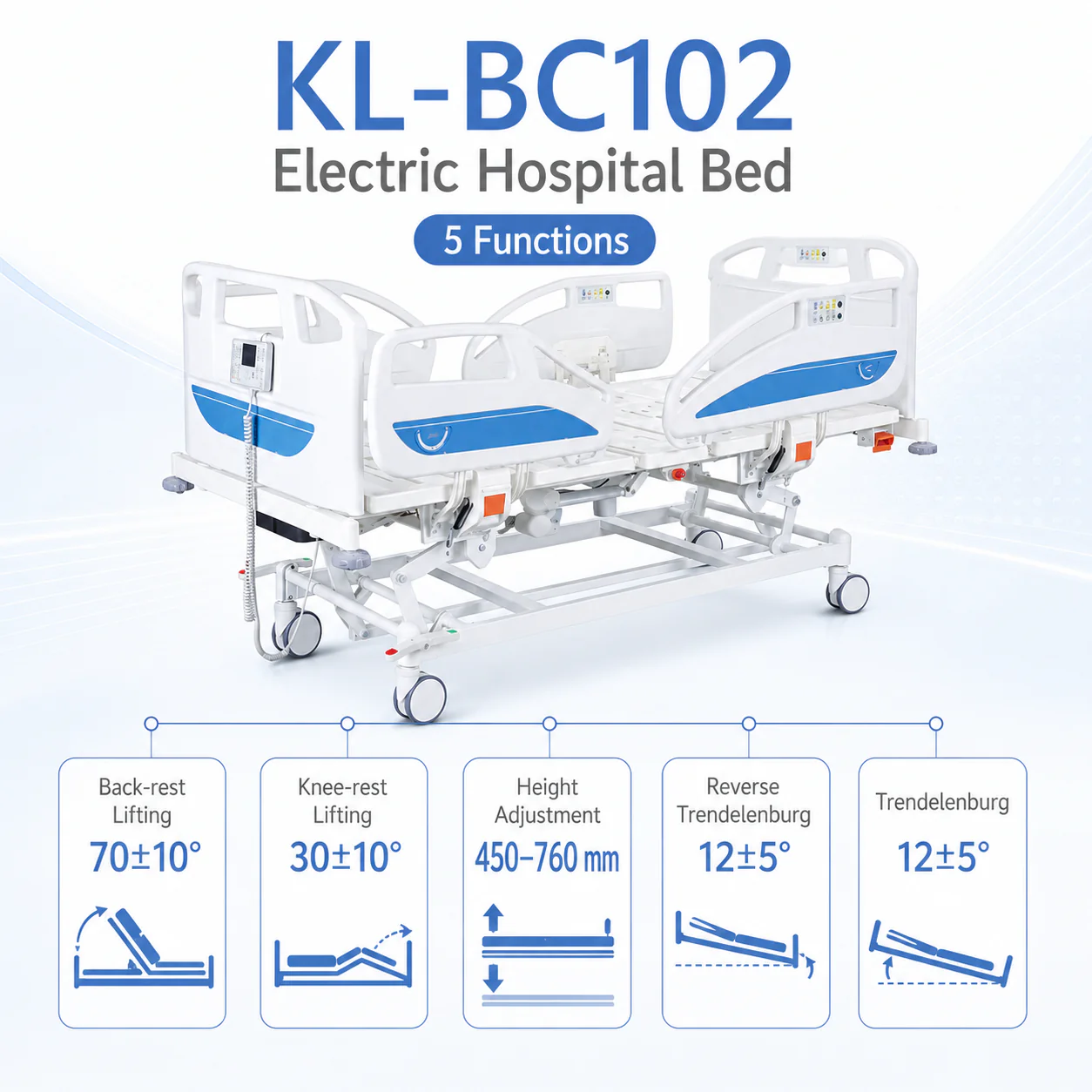

- Backrest adjusts electrically to 70±10° and knee-rest to 30±10°.
- Height adjustment range is 450–760 mm with a 310 mm travel span.
- Trendelenburg and reverse Trendelenburg each reach 12±5°, with an integrated 0–90° angle indicator.
- CPR instant release and nurse lock function are standard; optional integrated weighing system and battery backup are available.
- Safe working load is 240 kg; external dimensions are 2240 × 1030 × (450–760) mm; bed surface is 1930 × 900 mm.
Overview
The KL-BC102 electric hospital bed combines five independently controlled adjustment functions with a dual return mechanism that ensures smooth, controlled return of the backrest to flat — reducing noise and jerk during repositioning and improving patient comfort during frequent position changes. All five functions — backrest elevation, knee-rest elevation, bed height, Trendelenburg and reverse Trendelenburg tilt — are driven electrically, enabling nursing staff to adjust patient position precisely with minimal physical effort.
The bed's clinical feature set is matched to general ward and high-dependency environments. The 0–90° angle indicator provides visible confirmation of backrest angle for respiratory and post-operative care protocols. The CPR instant release drops the backrest instantly during emergencies, while the nurse lock secures patient-side controls in settings where unintended adjustments could compromise care. The wider external width of 1030 mm provides additional clearance for side-rail accessories and monitoring equipment.
Optional configurations include an integrated patient weighing system for direct bedside weight monitoring without patient transfer, and a battery power storage module that maintains all electric functions during power interruptions. Together, these features make the KL-BC102 a reliable choice for hospitals requiring a versatile, safety-equipped electric bed across a broad range of ward environments.

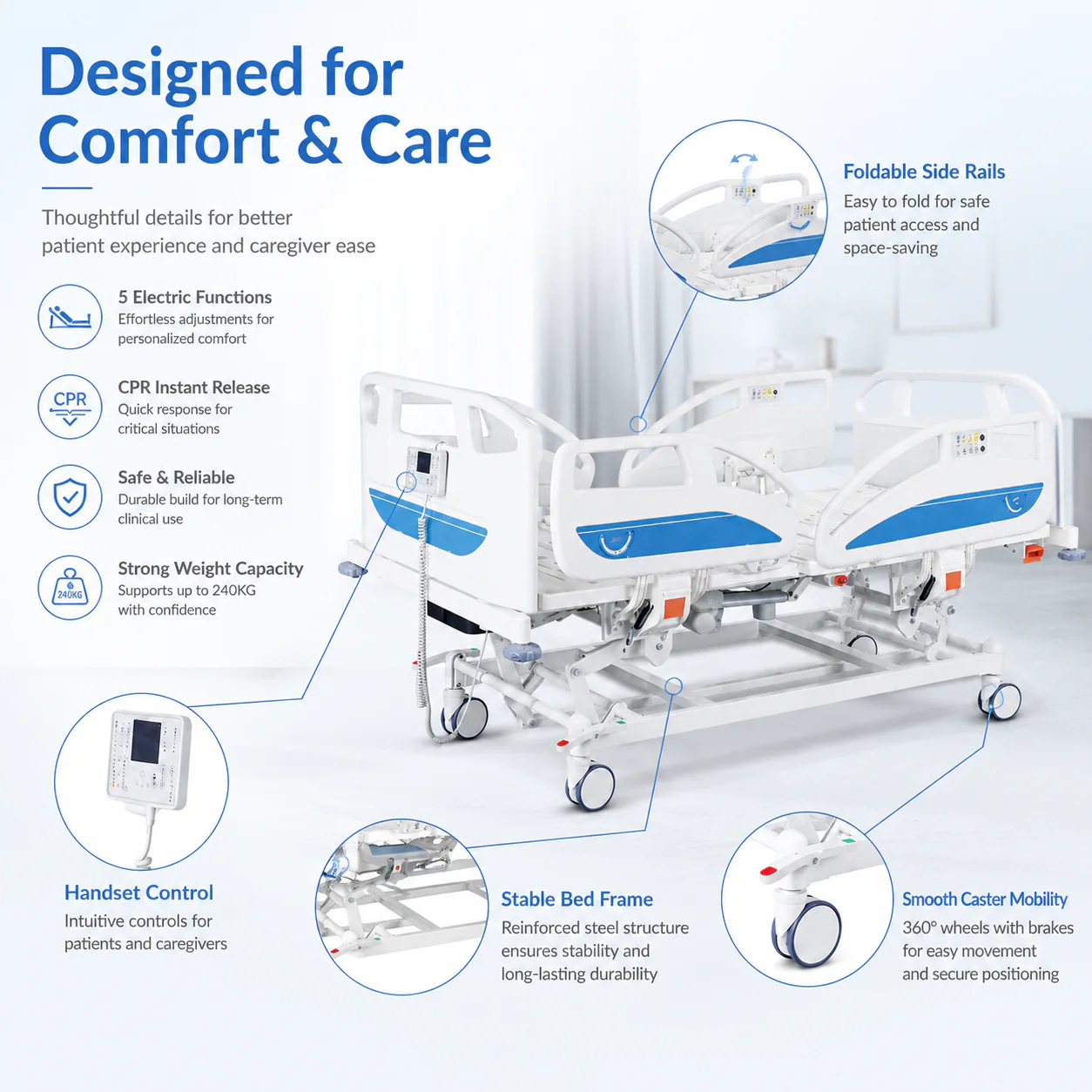

Key Features

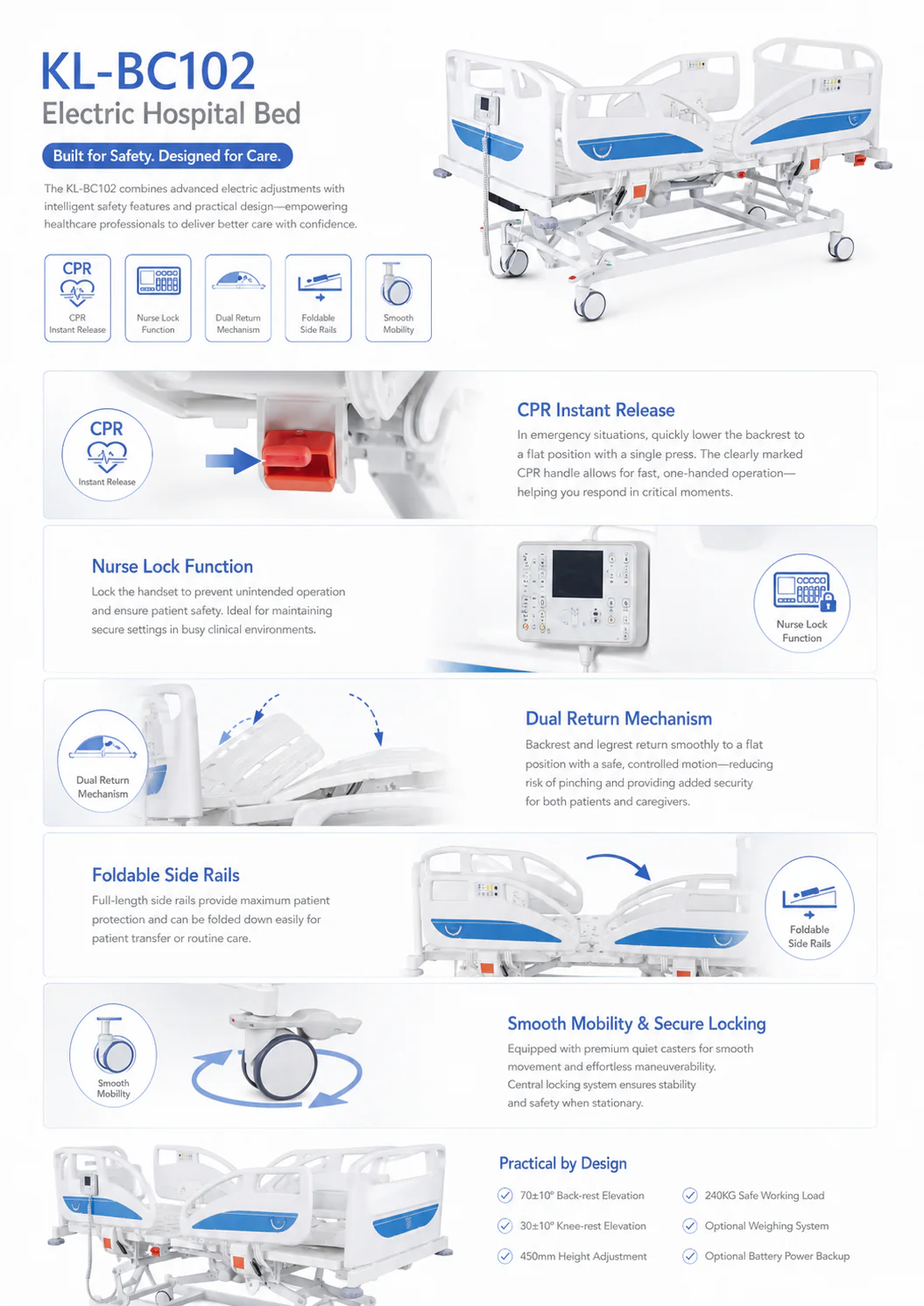

- Dual return mechanism — smooth, controlled backrest return to flat, reducing jerk and noise during repositioning.

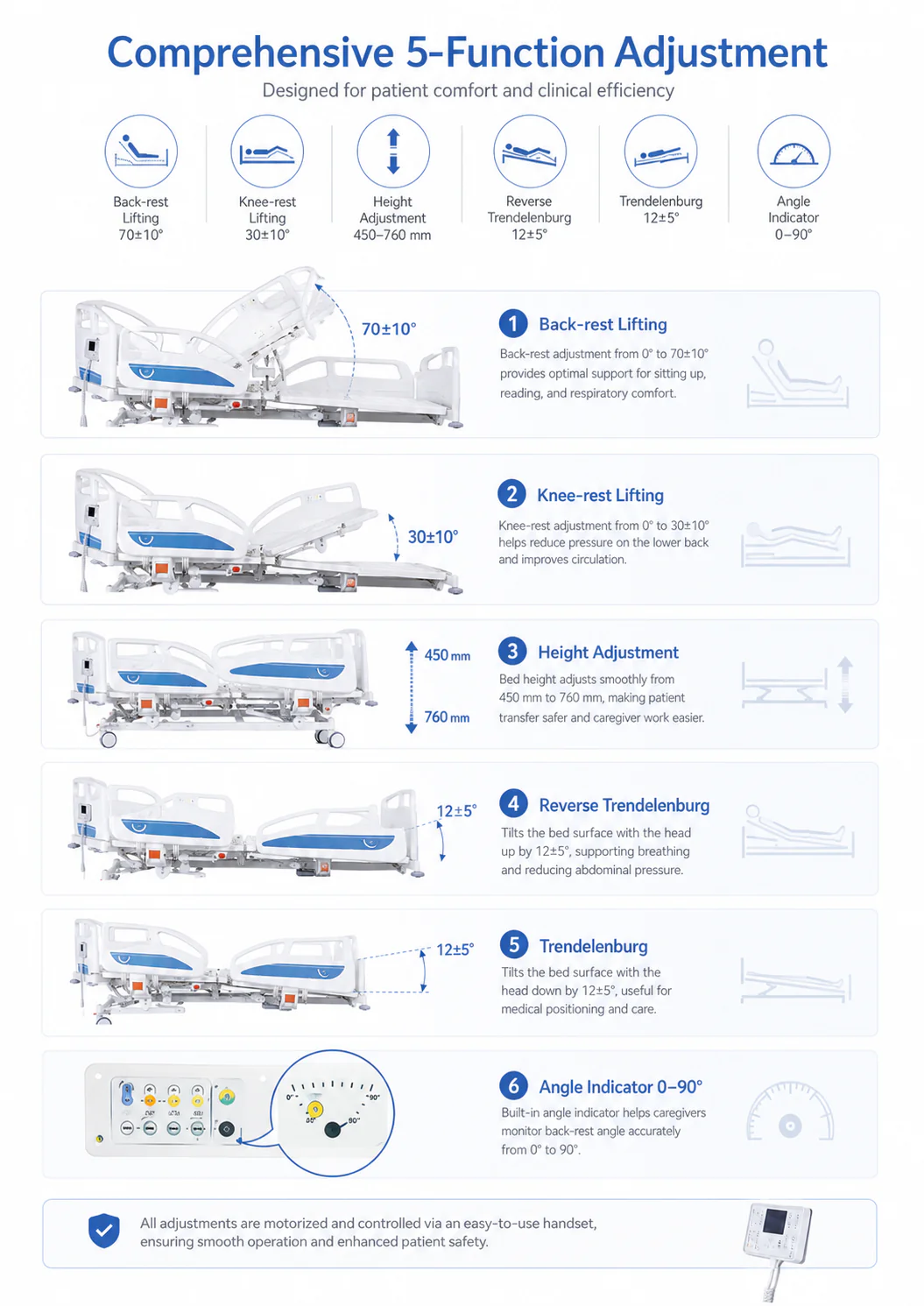

- 5-Function electric actuation — independent electric control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
- Backrest to 70±10° — wide elevation range for respiratory support, feeding and therapeutic positioning.
- Knee-rest to 30±10° — independent knee elevation reduces shear and supports post-operative lower-limb care.
- Height range 450–760 mm — electric height adjustment over 310 mm travel eases patient transfers and nursing workflow.
- Trendelenburg / reverse Trendelenburg 12±5° — bilateral tilt supports shock positioning, postural drainage and surgical preparation.

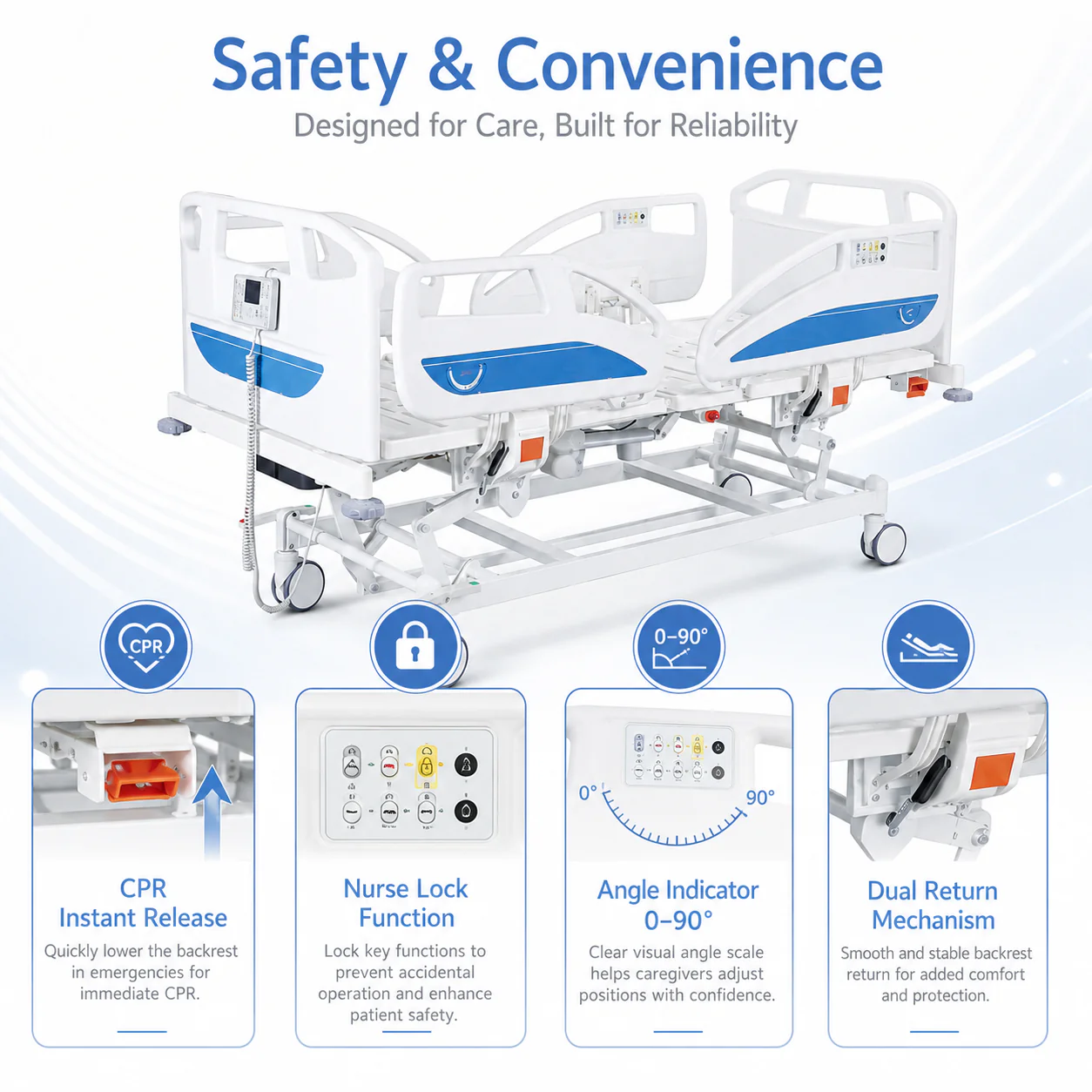

- CPR instant release — one-action backrest drop enables immediate cardiac resuscitation.
- 0–90° angle indicator — continuous visual backrest angle readout for care protocol compliance.
- Nurse lock function — disables patient-side controls to prevent unintended adjustments.
- Optional weighing & battery backup — bedside weight monitoring and uninterrupted electric operation.

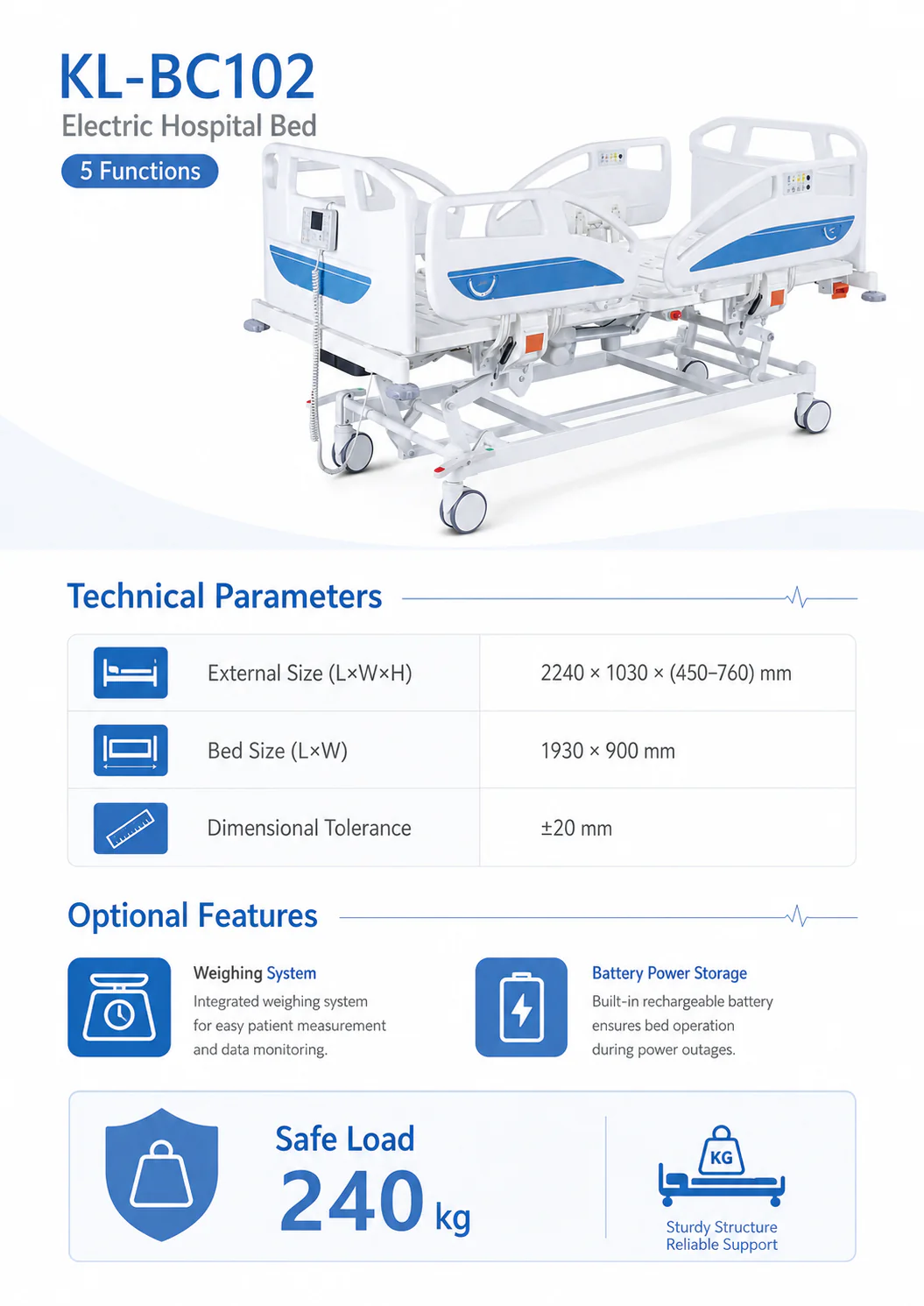

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC102 |
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Angle indicator | 0–90° |
| Dual return mechanism | Yes |
| CPR release | Instant release |
| Nurse lock | Yes |
| Safe working load | 240 kg |

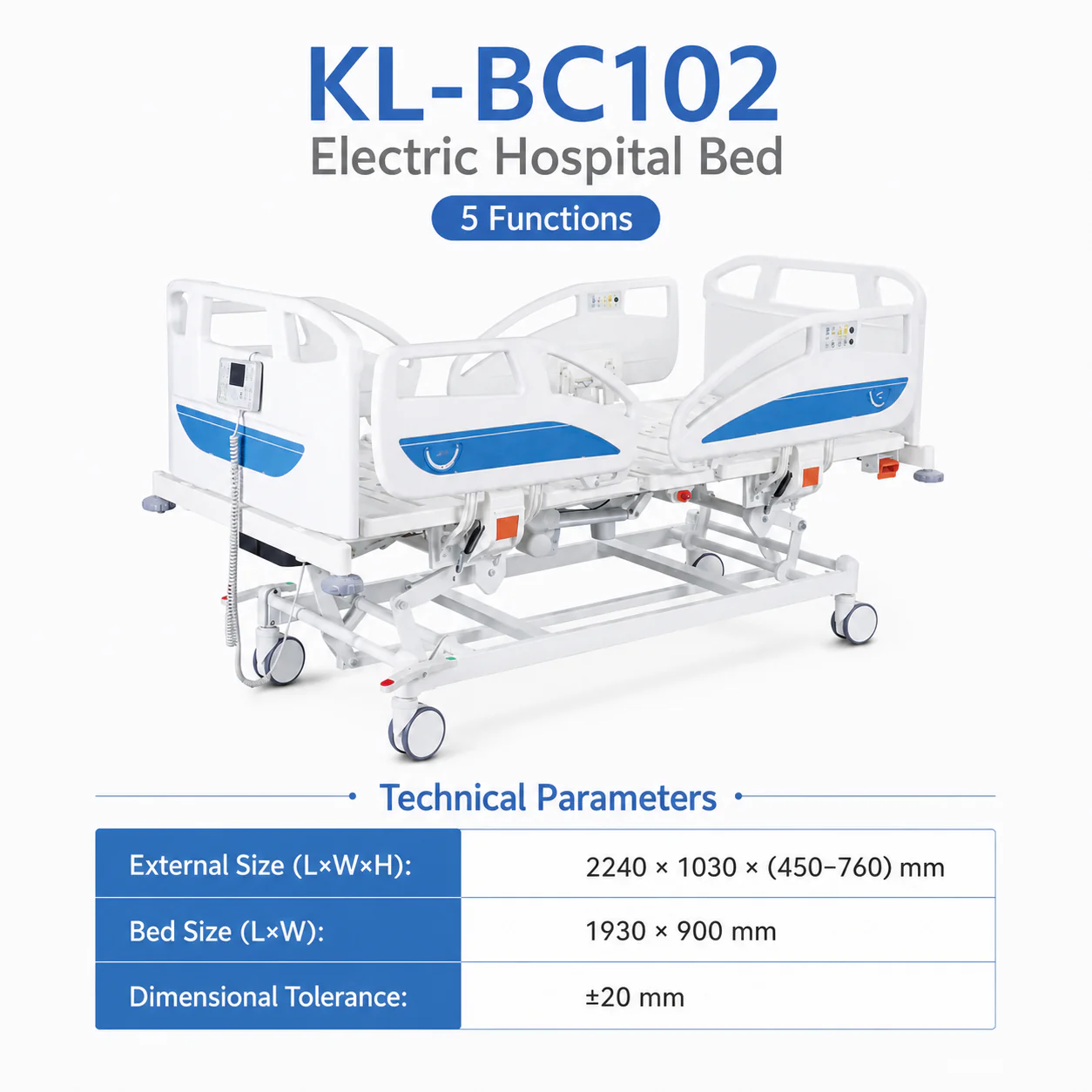

| External size (L × W × H) | 2240 × 1030 × (450–760) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
| Optional accessories | Weighing system, battery power storage |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC102 is appropriate for general medical and surgical wards, high-dependency units, ICU step-down rooms, cardiac care and respiratory units, and post-operative recovery wards. Its dual return mechanism and full electric functionality also suit rehabilitation settings where frequent repositioning is required throughout the day.
