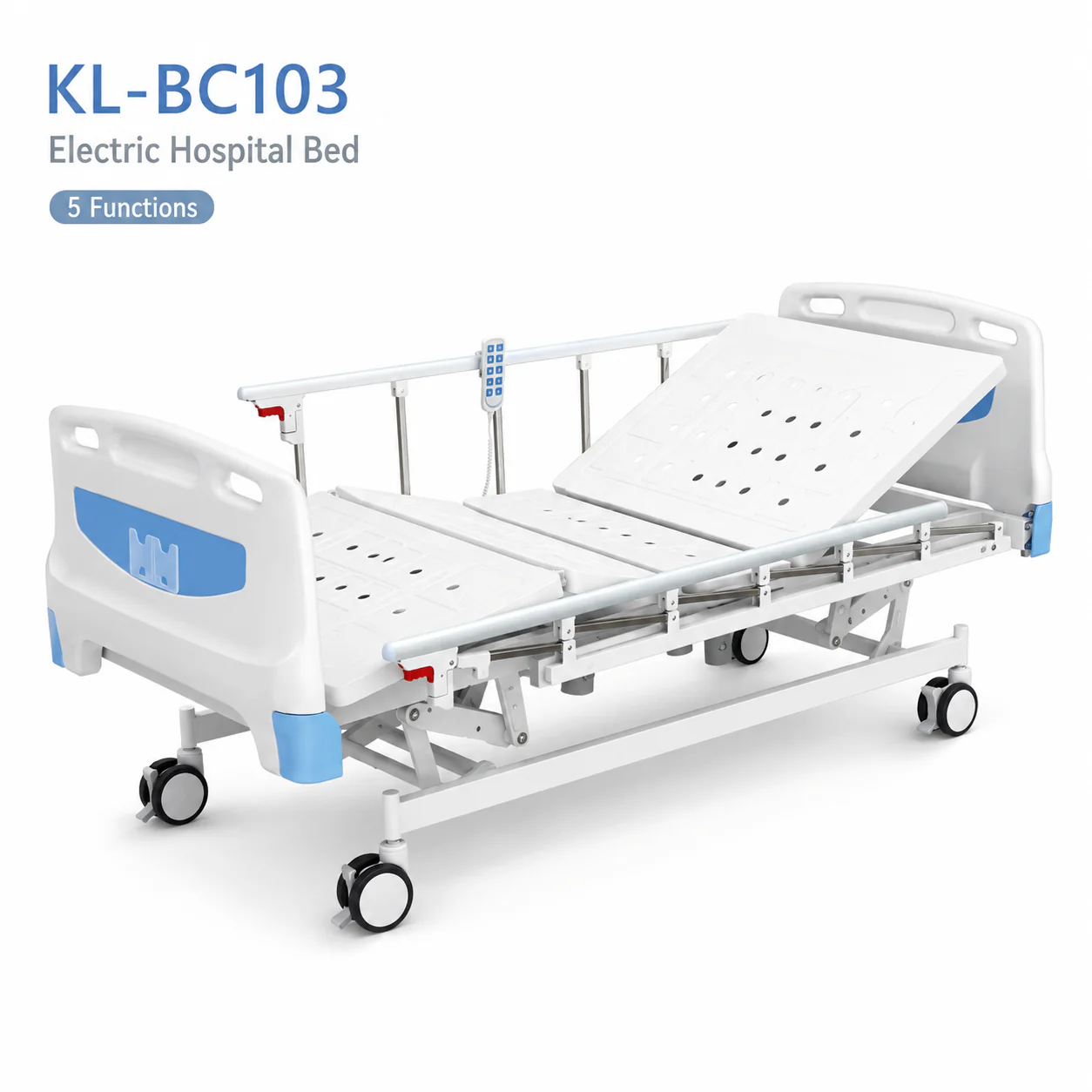

# KL-BC103 Electric Hospital Bed — Compact 5-Function Ward Bed with 240 kg Capacity
Quick answer: The Keling KL-BC103 is a 5-function electric hospital bed with backrest adjustment to 70±10°, knee-rest to 30±10°, height range 450–760 mm, Trendelenburg and reverse Trendelenburg of 12±5°, and a 240 kg safe working load. It measures 2150 × 960 mm overall — a compact footprint suited to general wards and clinics. Manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-BC103 is a 5-function electric hospital bed designed for general ward and clinical environments.
- Backrest adjusts electrically to 70±10°; knee-rest adjusts independently to 30±10°.
- Height range is 450–760 mm, providing ergonomic access for nursing staff and low-height transfer capability.
- Trendelenburg and reverse Trendelenburg tilt each reach 12±5° for postural and clinical positioning.
- Safe working load is 240 kg; external dimensions are 2150 × 960 × (450–760) mm; bed surface is 1925 × 900 mm.
- The KL-BC103 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Overview
The KL-BC103 electric hospital bed delivers five independently adjustable functions in a compact 960 mm-wide external footprint, making it well-suited to standard ward bays and single-occupancy rooms where floor space is at a premium. Electric actuation covers backrest elevation, knee-rest elevation, bed height, Trendelenburg tilt and reverse Trendelenburg tilt, enabling full postural management without manual crank operation.
The bed's 450–760 mm height range allows clinicians to lower the bed close to floor level for patient safety and raises it to a working height that reduces nursing back strain during care procedures. The 30±10° knee-rest elevation works in combination with the backrest to relieve pressure along the patient's spine and prevent sliding, which is particularly beneficial during long-term inpatient stays and for patients at risk of pressure injuries.
With a 240 kg rated load and a 1925 × 900 mm bed surface, the KL-BC103 accommodates a broad patient population across general medicine, surgical recovery and elderly care wards. Its straightforward 5-function layout, without additional optional modules, makes it a cost-effective standard ward bed suitable for facilities equipping large numbers of beds.

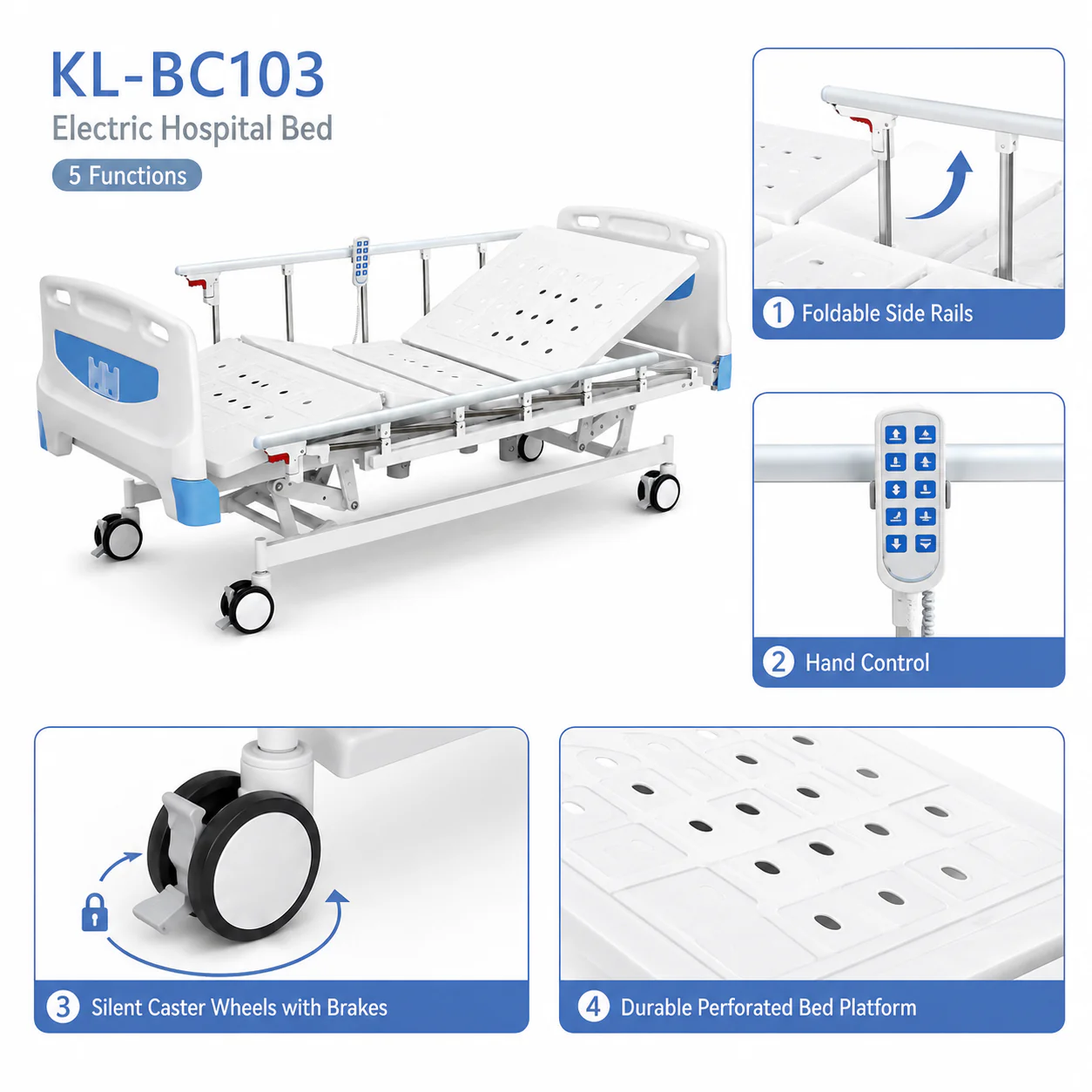

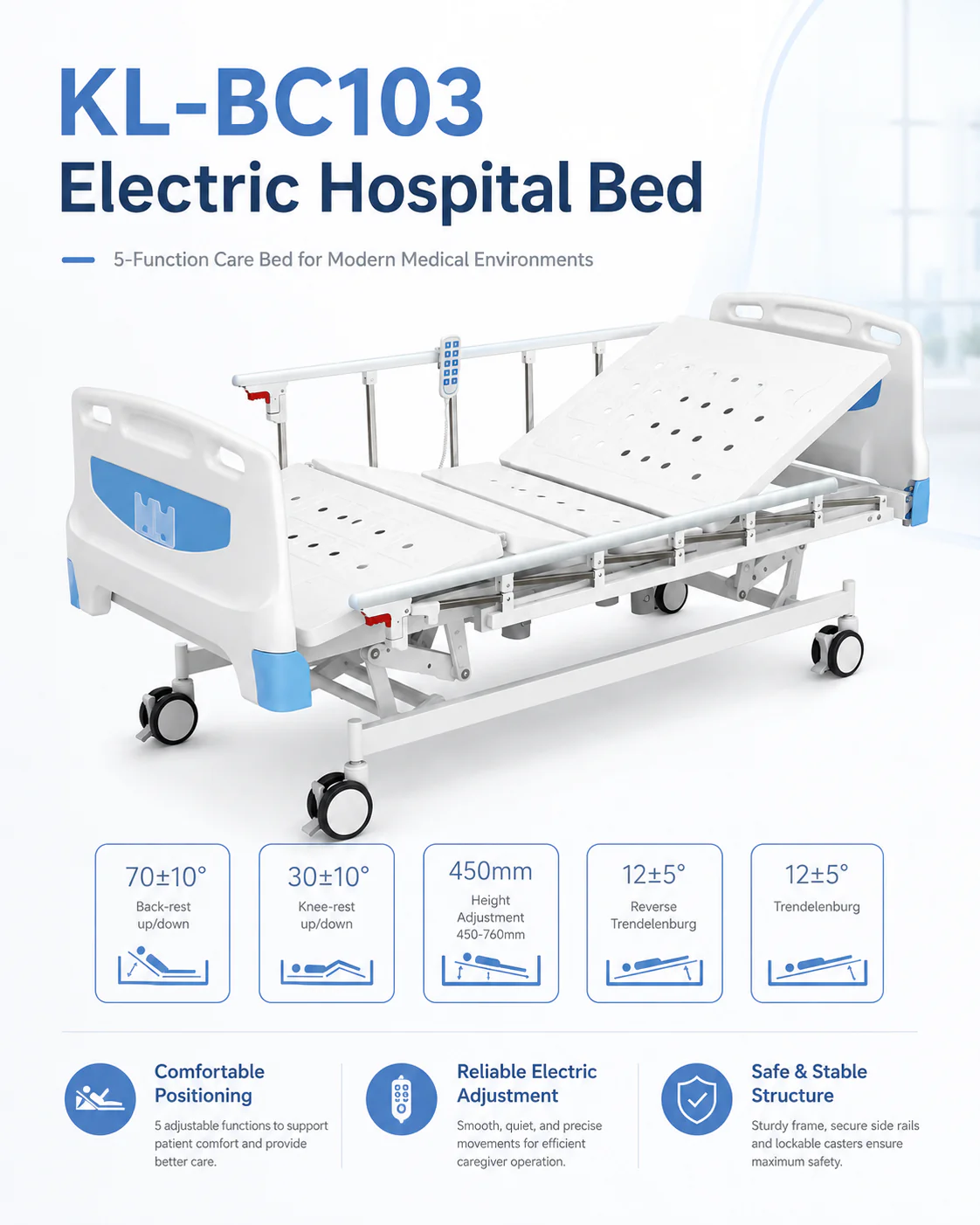

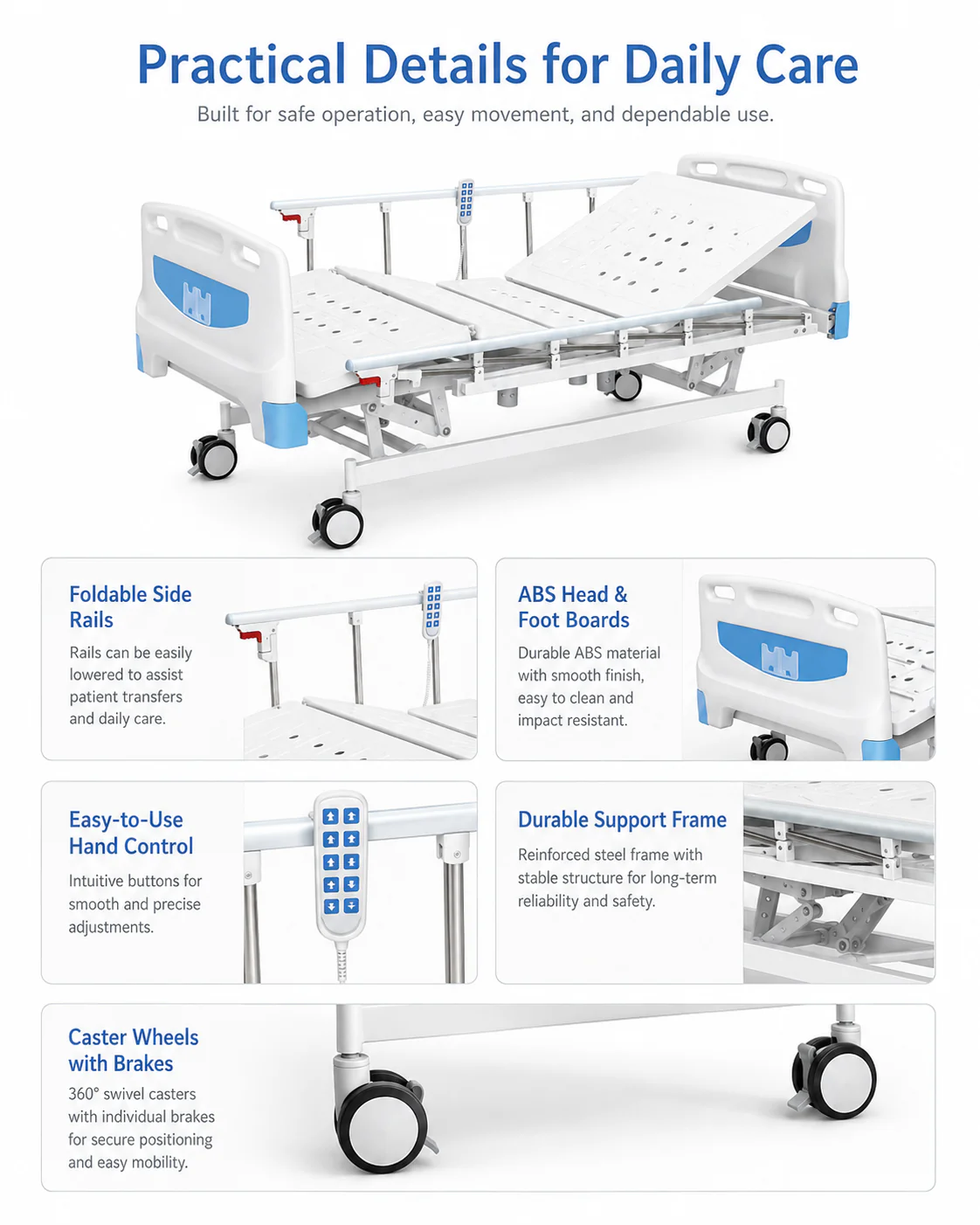

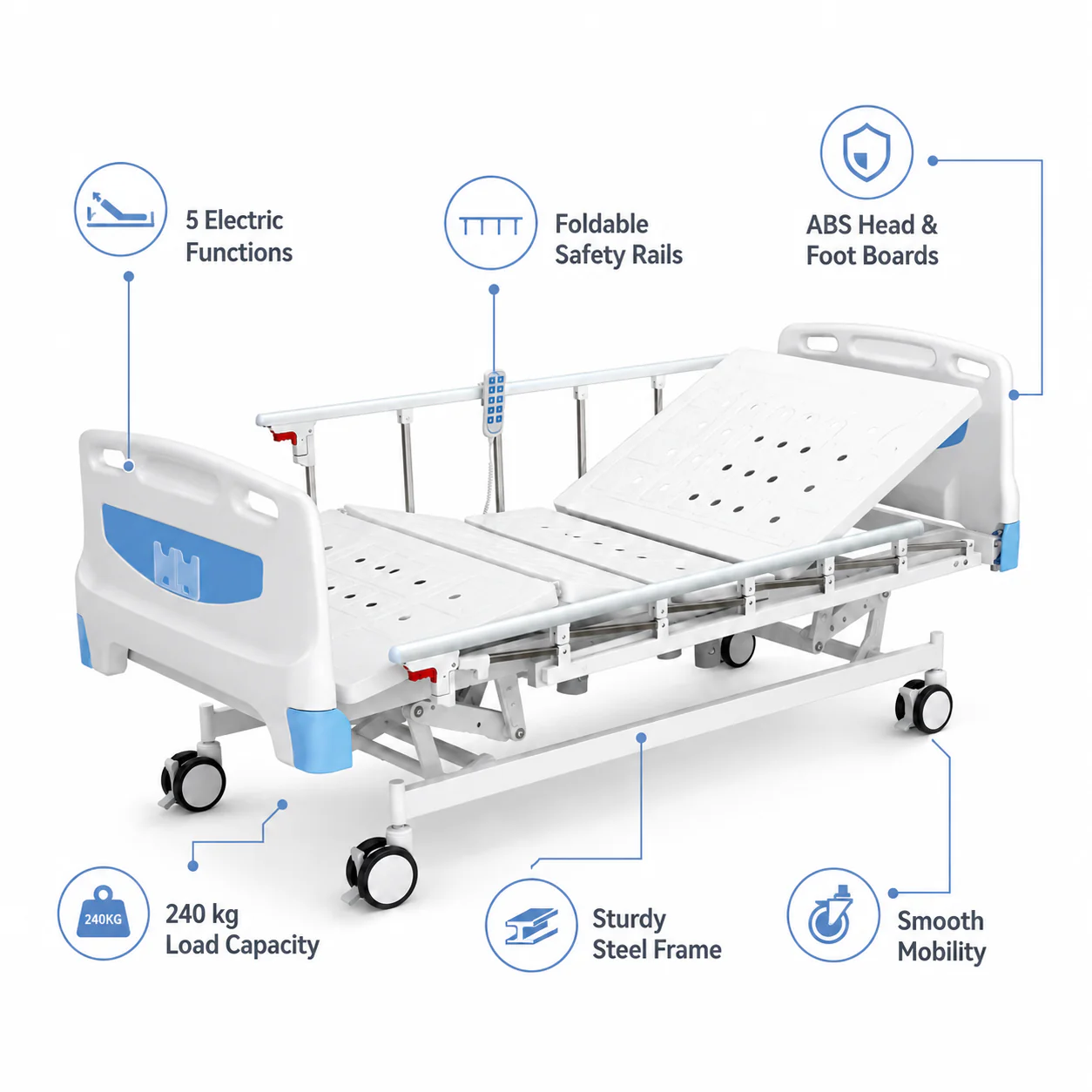

Key Features

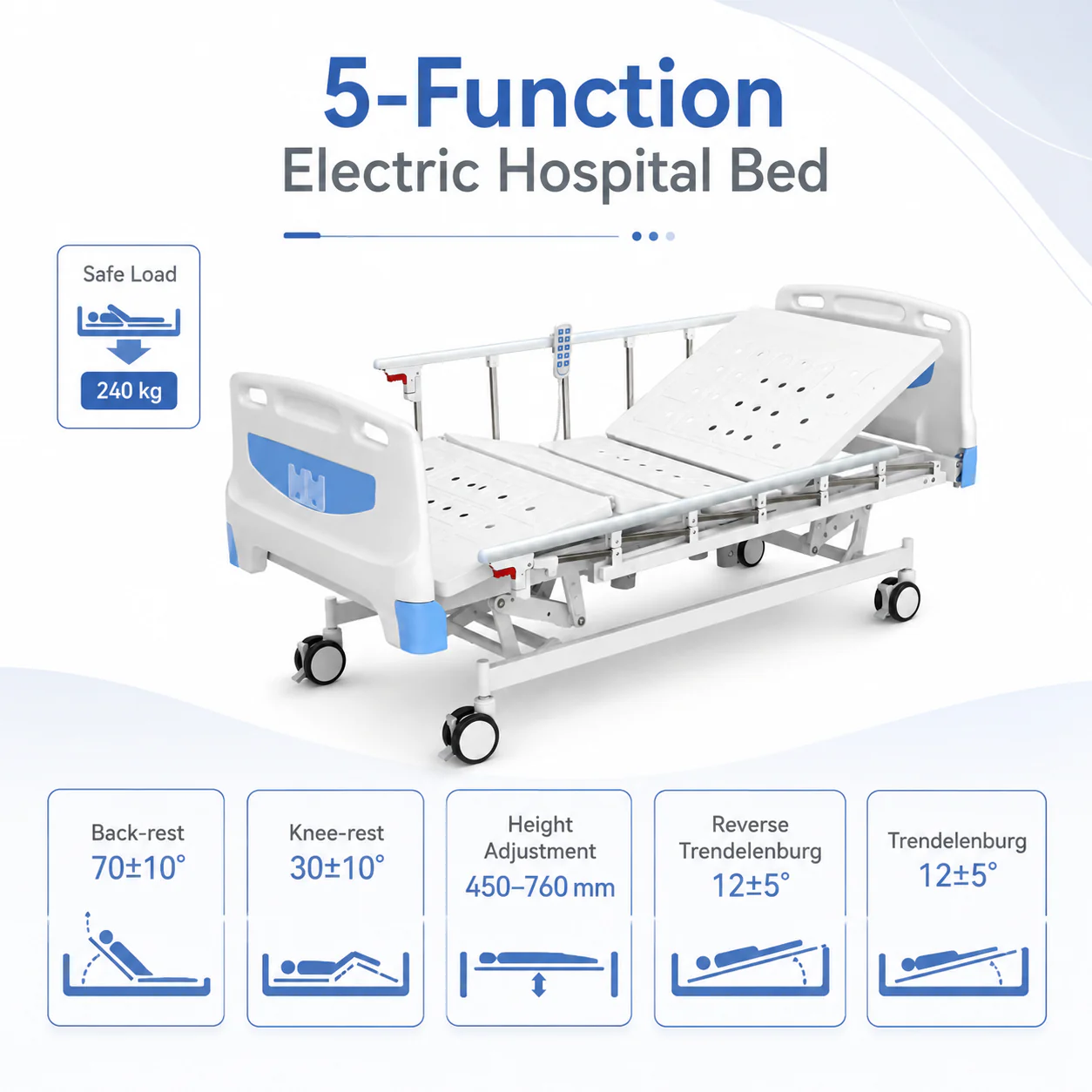

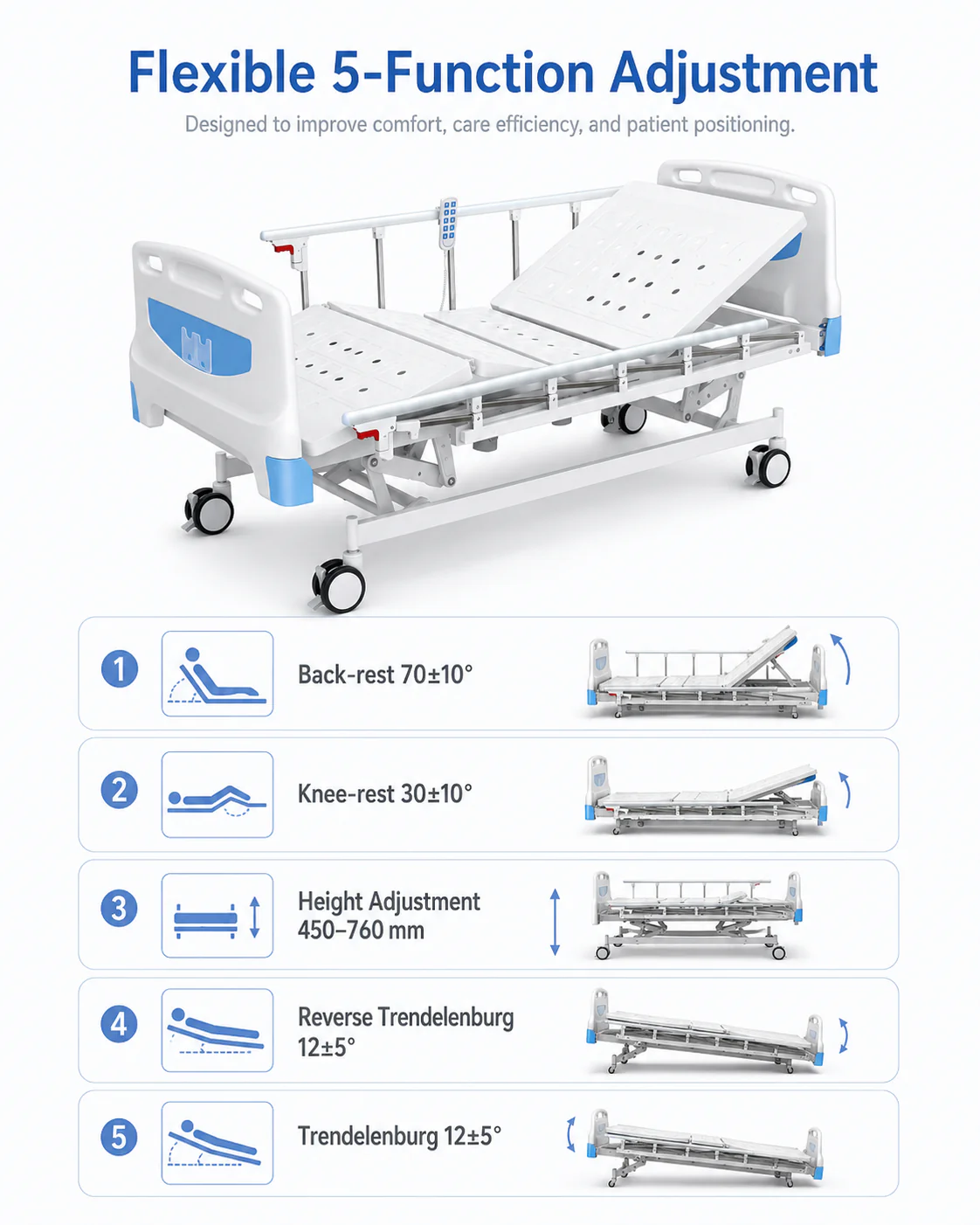

- 5-Function electric actuation — motorized control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
- Backrest to 70±10° — electrically adjustable for respiratory, feeding and therapeutic positioning.
- Knee-rest to 30±10° — independent knee elevation reduces patient sliding and supports circulatory positioning.
- Height range 450–760 mm — 310 mm electric travel for transfer safety and nursing ergonomics.
- Trendelenburg / reverse Trendelenburg 12±5° — bidirectional tilt for postural drainage, shock management and surgical preparation.
- 240 kg safe working load — robust structural capacity for a broad inpatient population.
- Compact external width 960 mm — efficient use of ward floor space without compromising patient surface width.

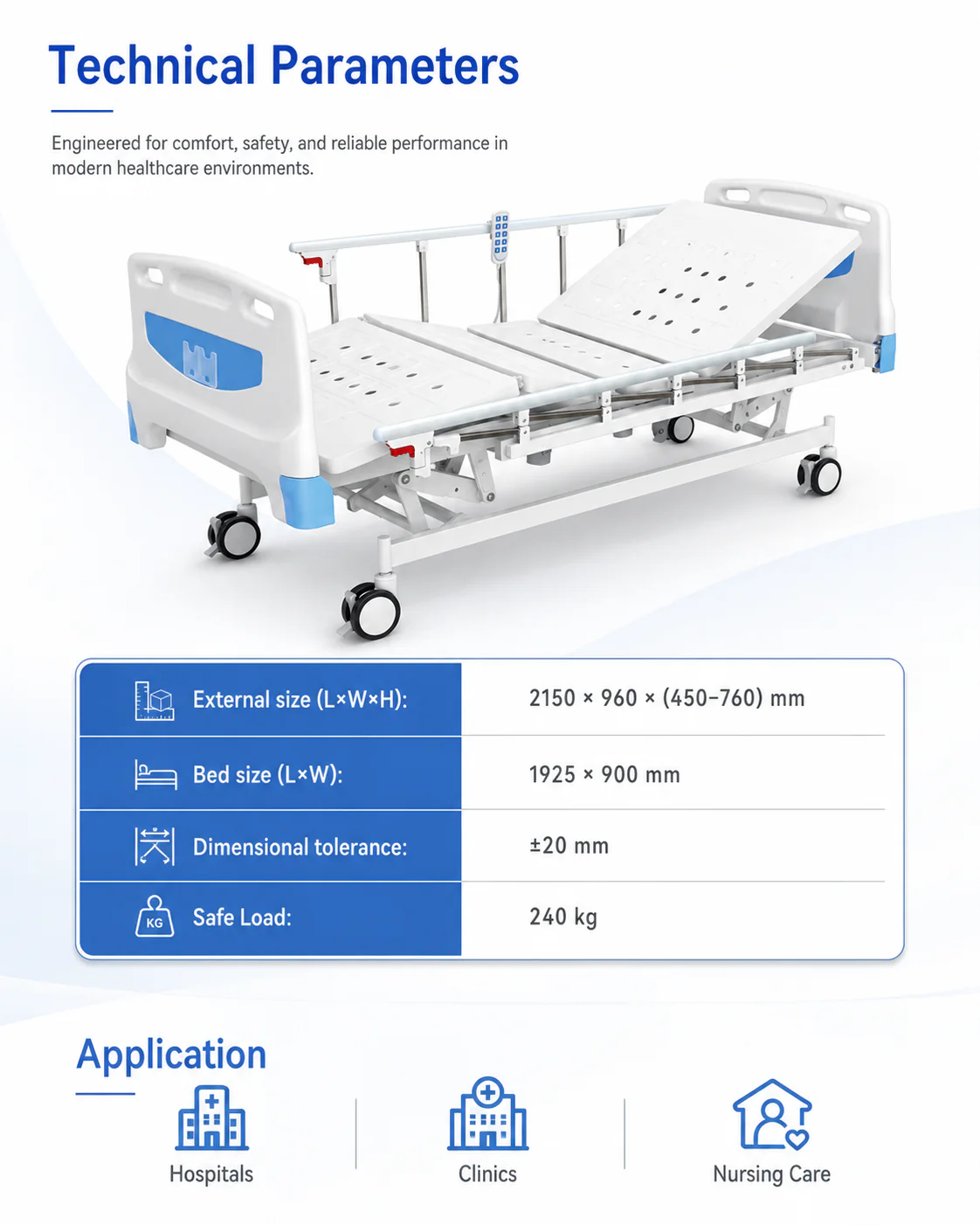

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC103 |
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 240 kg |

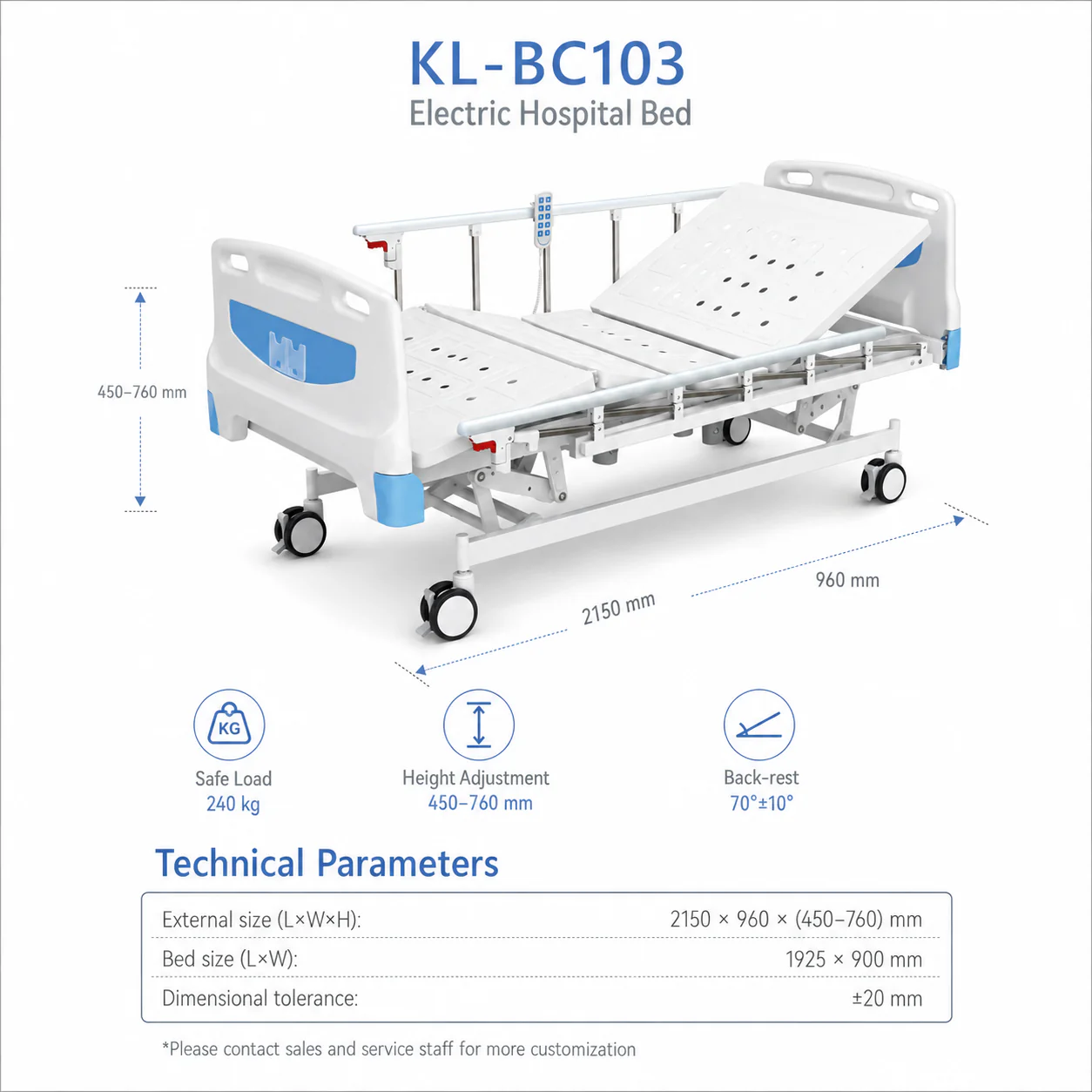

| External size (L × W × H) | 2150 × 960 × (450–760) mm |
| Bed surface size (L × W) | 1925 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

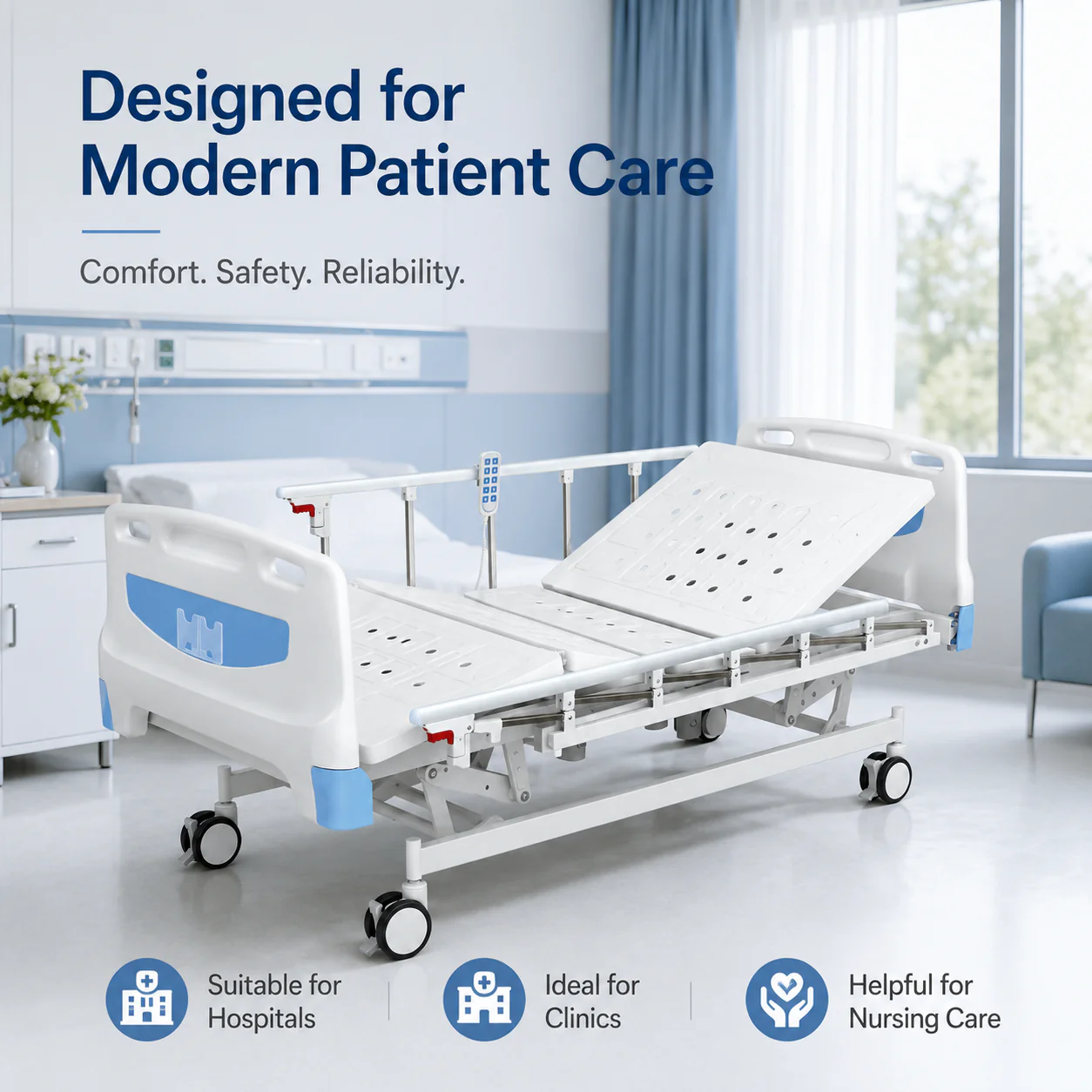

The KL-BC103 is intended for general medical wards, surgical inpatient wards, post-operative recovery rooms, rehabilitation wards and long-term care facilities. Its compact footprint and full 5-function electric capability make it a versatile standard-issue ward bed for facilities deploying beds at scale.
