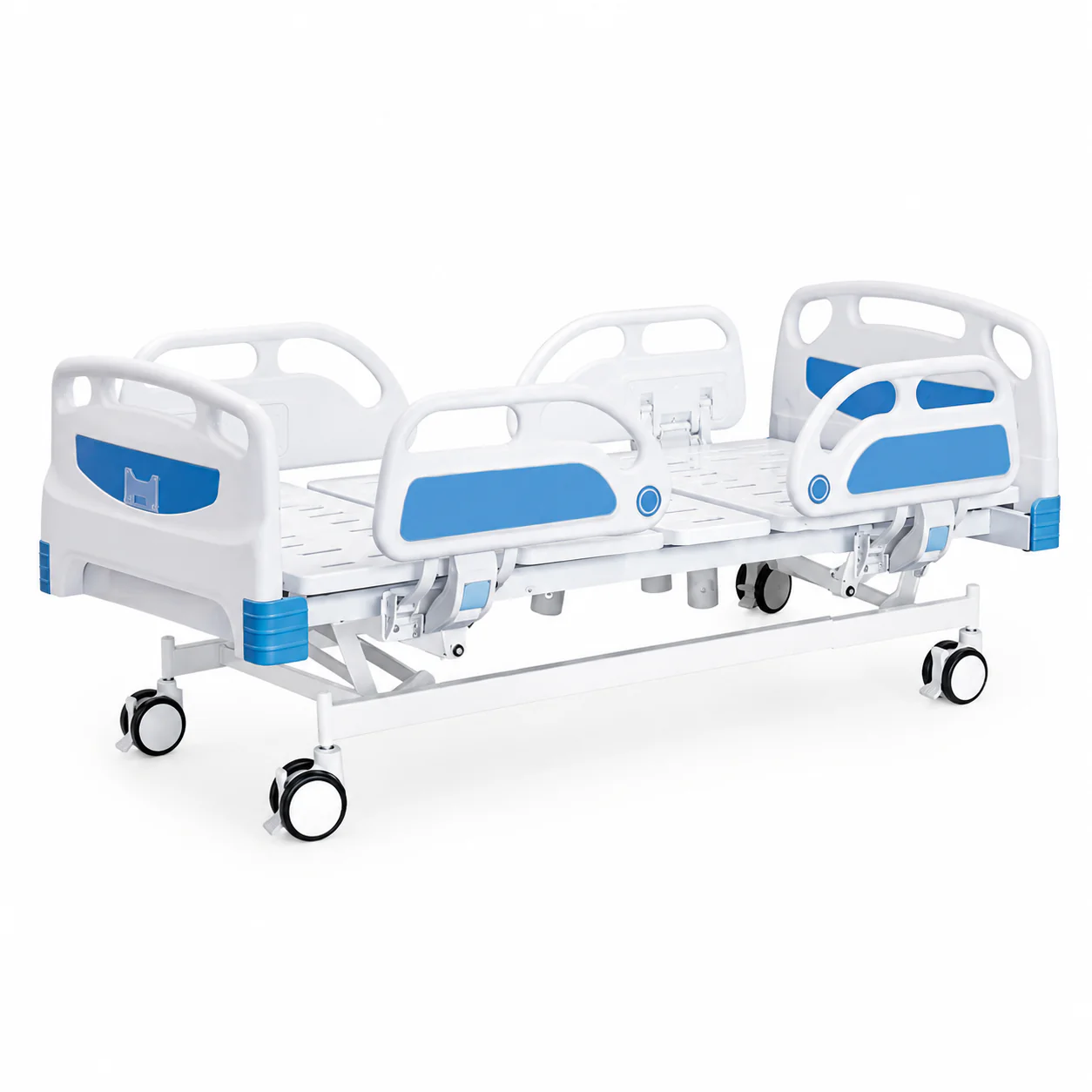

# KL-BC103-A Electric Hospital Bed — 5-Function Bed in Alternative Design Style
Quick answer: The Keling KL-BC103-A is a 5-function electric hospital bed sharing the same functional specification as the KL-BC103 — backrest to 70±10°, knee-rest to 30±10°, height 450–760 mm, Trendelenburg/reverse Trendelenburg 12±5°, 240 kg safe working load — in an alternative visual design. External dimensions are 2150 × 960 × (450–760) mm; bed surface is 1925 × 900 mm. Manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-BC103-A is a 5-function electric hospital bed offering an alternative aesthetic design to the KL-BC103.
- Backrest adjusts electrically to 70±10° and knee-rest independently to 30±10°.
- Electric height adjustment spans 450–760 mm, providing a 310 mm travel range.
- Trendelenburg and reverse Trendelenburg each reach 12±5° for full postural tilt capability.
- Safe working load is 240 kg; bed surface size is 1925 × 900 mm.
- External dimensions are 2150 × 960 × (450–760) mm with a ±20 mm dimensional tolerance.
Overview
The KL-BC103-A electric hospital bed delivers the same clinical performance as the KL-BC103 in a distinct visual design style, giving hospitals and procurement teams the flexibility to select a bed that aligns with ward aesthetics or institutional branding preferences while maintaining identical technical specifications. All five electrically controlled functions — backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg — are powered independently, enabling precise patient positioning throughout inpatient care.
The 70±10° backrest range supports respiratory positioning, enteral feeding protocols and comfortable semi-recumbent patient rest. The independent 30±10° knee-rest limits patient sliding toward the foot of the bed — a common concern when the backrest is elevated — and reduces lumbar and sacral pressure that can contribute to pressure injury development in long-stay patients.
Height adjustment from 450 mm enables low-entry transfers that reduce fall risk, while the 760 mm upper limit brings the patient surface to a nursing-task height that reduces staff back strain. The 240 kg load rating ensures the KL-BC103-A accommodates patients across a wide body weight range without compromising structural safety.

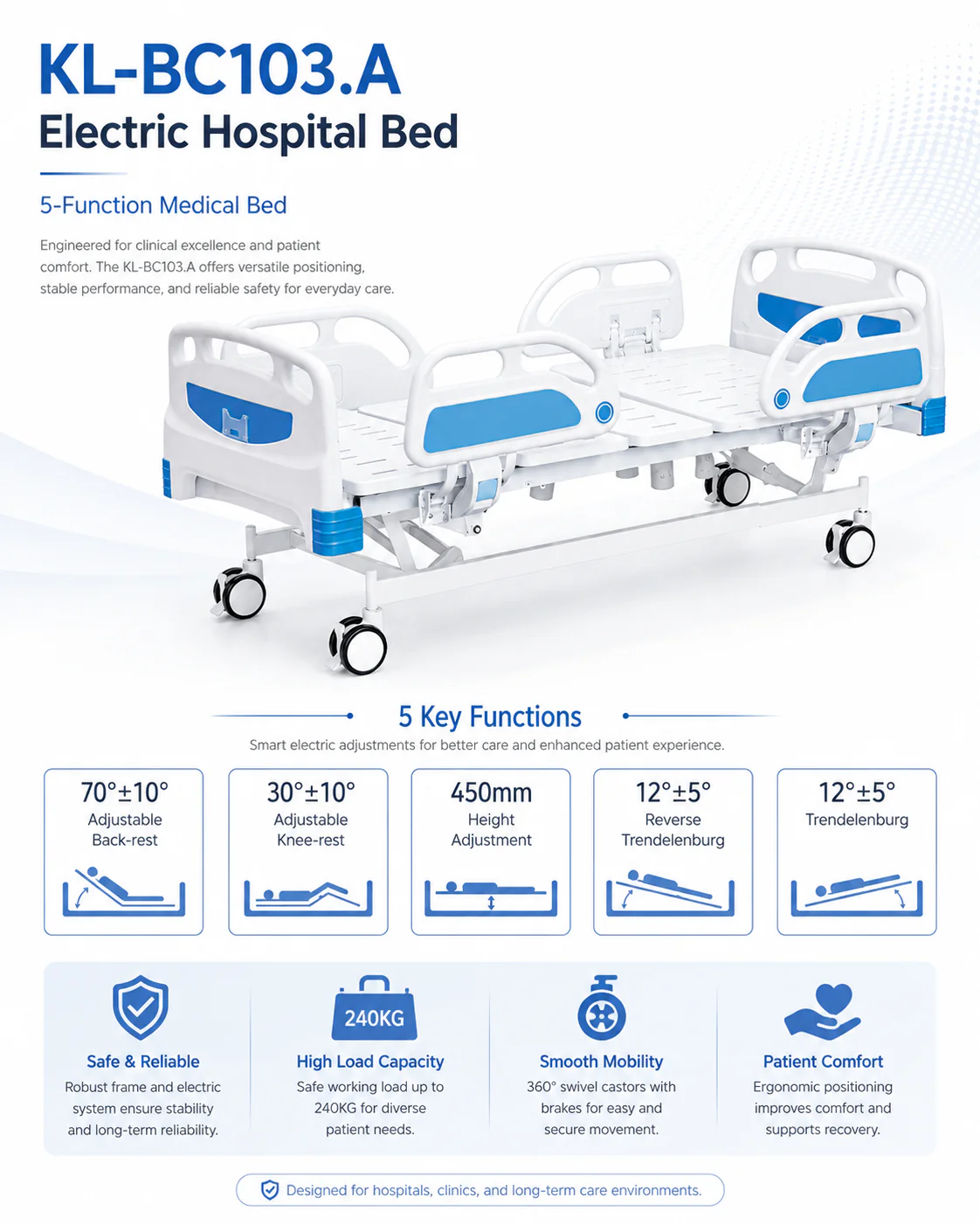

Key Features
- Alternative design style — same 5-function specification as KL-BC103 in a distinct visual design for ward aesthetic flexibility.

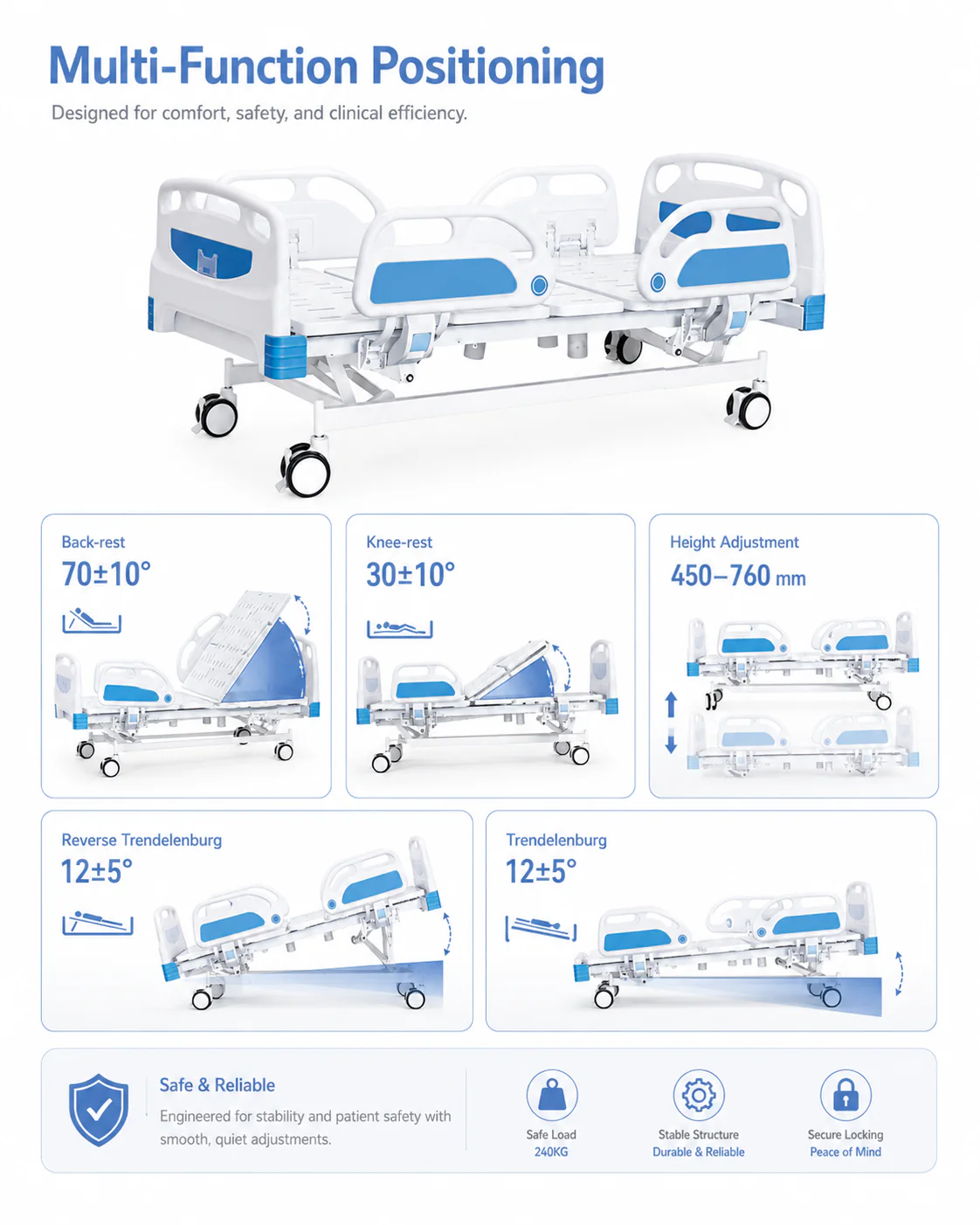

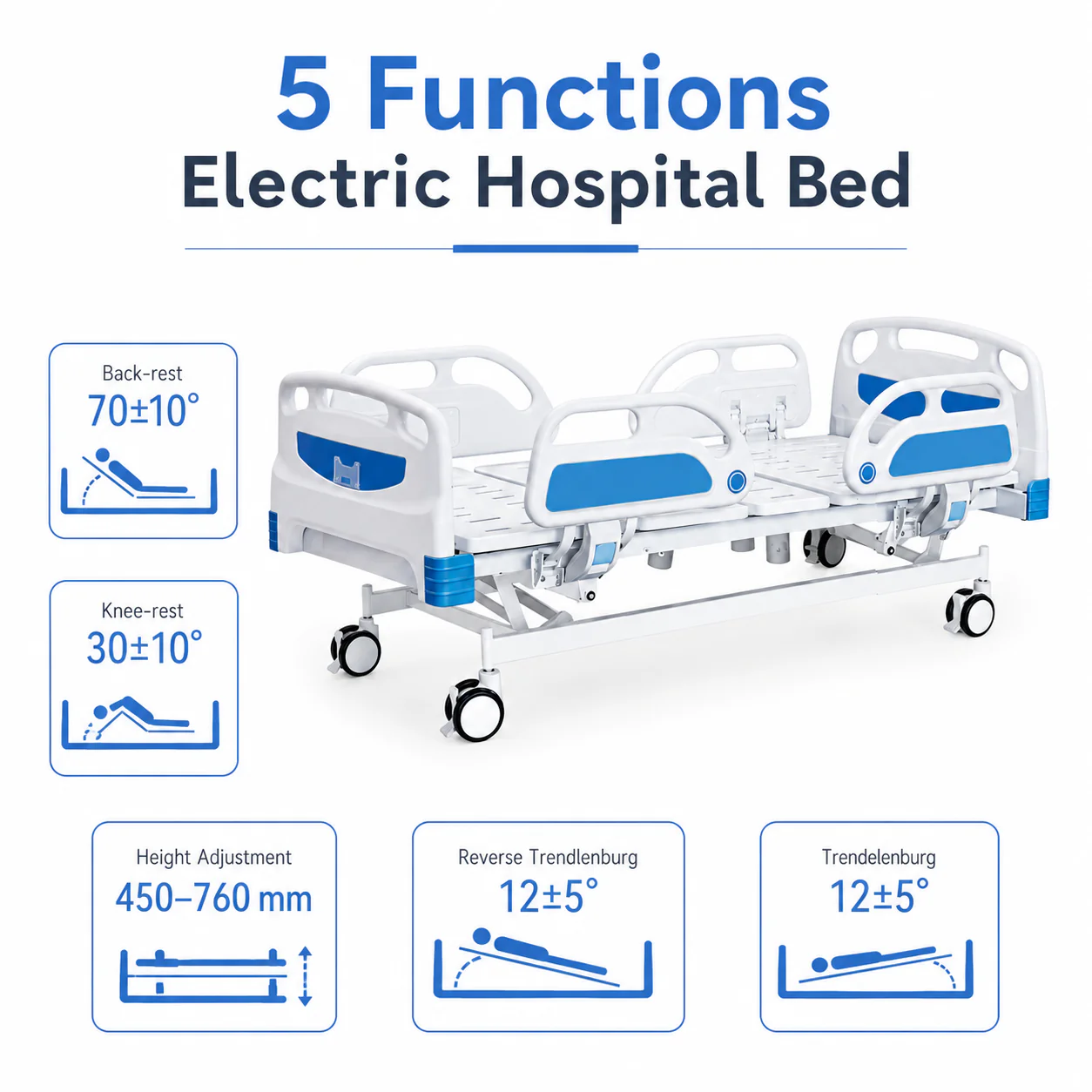

- 5-Function electric actuation — independent motorized control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.

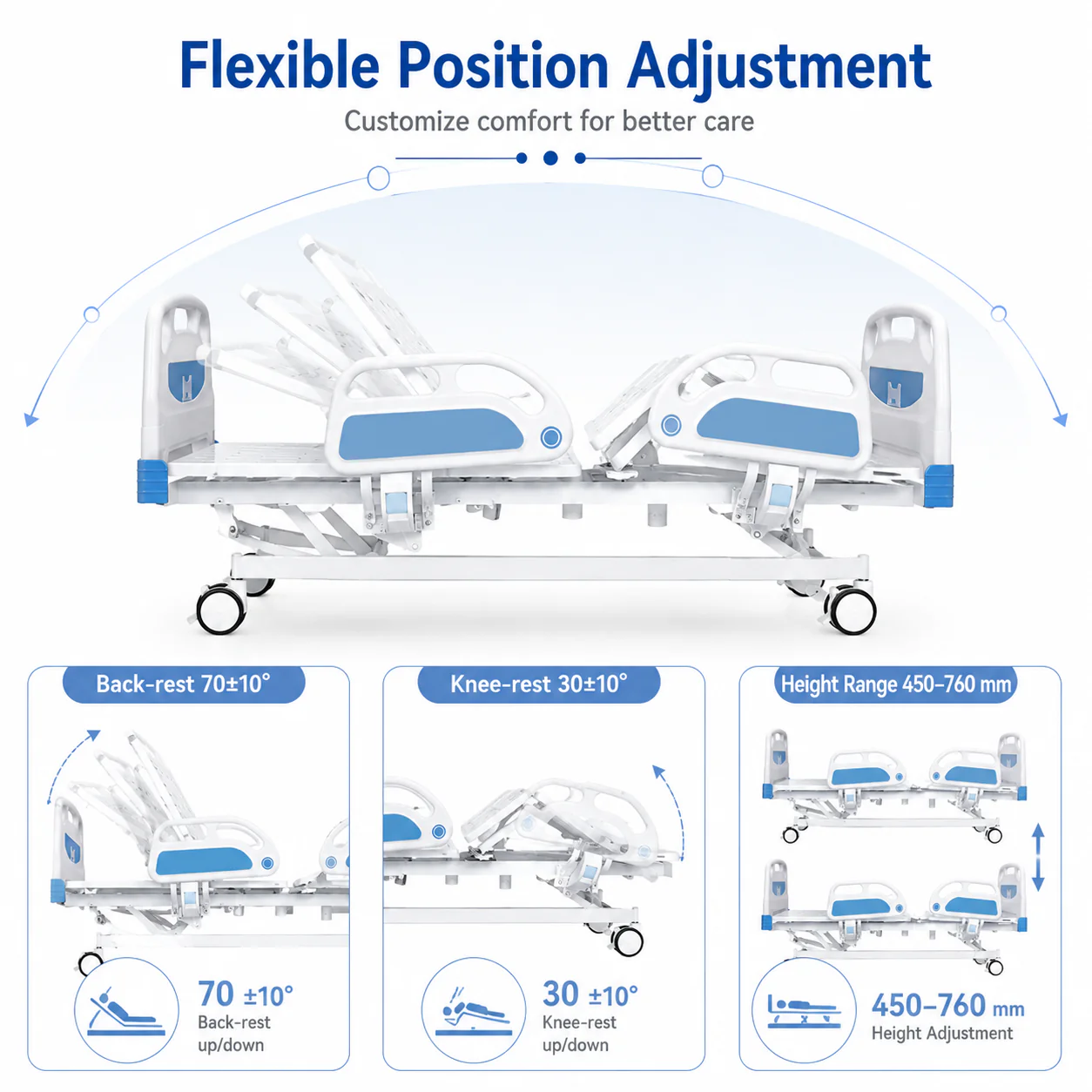

- Backrest to 70±10° — broad electric adjustment range for respiratory care, feeding and therapeutic positions.
- Knee-rest to 30±10° — independent elevation limits patient sliding and supports post-operative lower limb care.
- Height range 450–760 mm — full electric height travel for patient safety and nursing ergonomics.

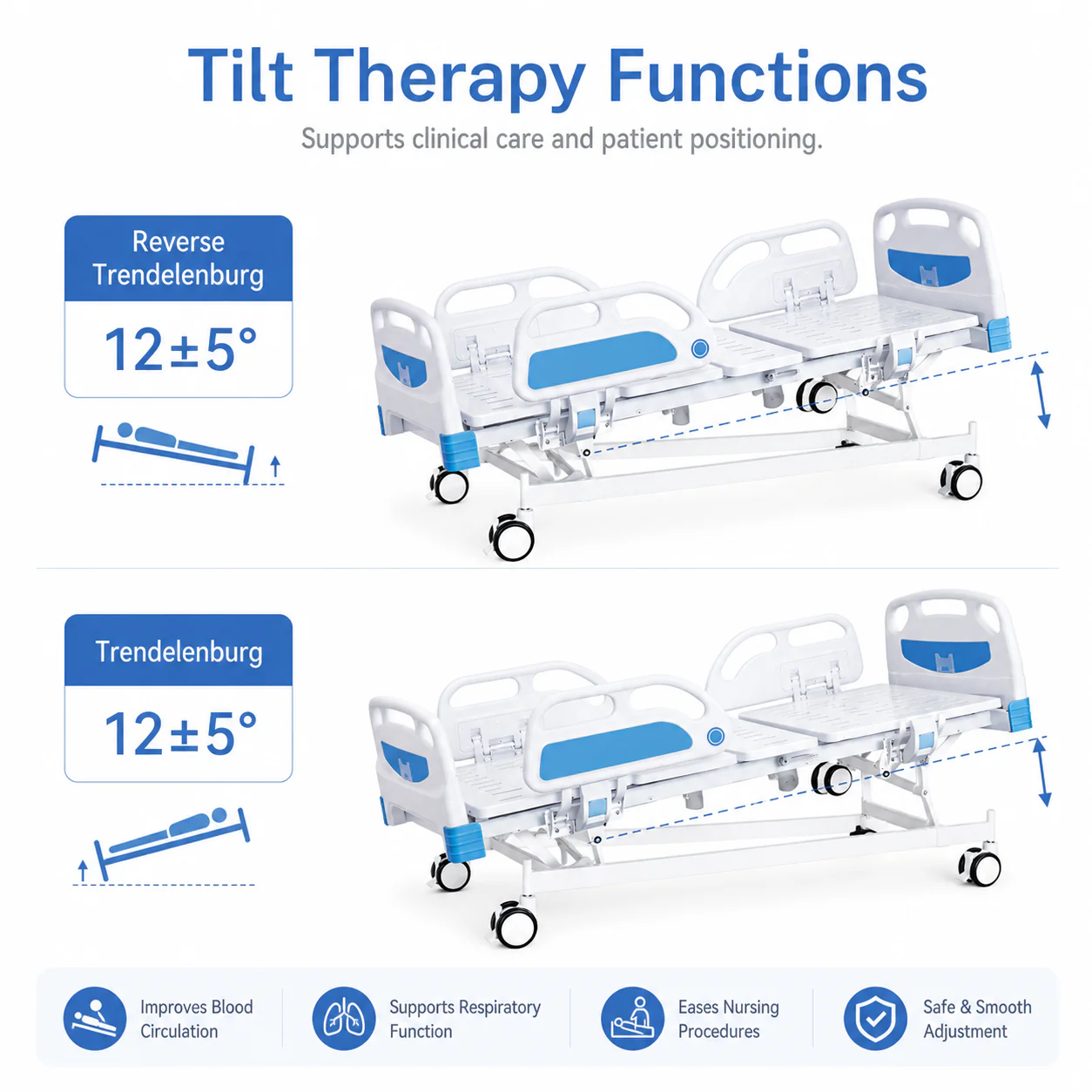

- Trendelenburg / reverse Trendelenburg 12±5° — bidirectional postural tilt for drainage, circulatory and surgical positioning.
- 240 kg safe working load — rated capacity for a broad inpatient population.
- Compact 960 mm external width — space-efficient footprint for standard ward bays.

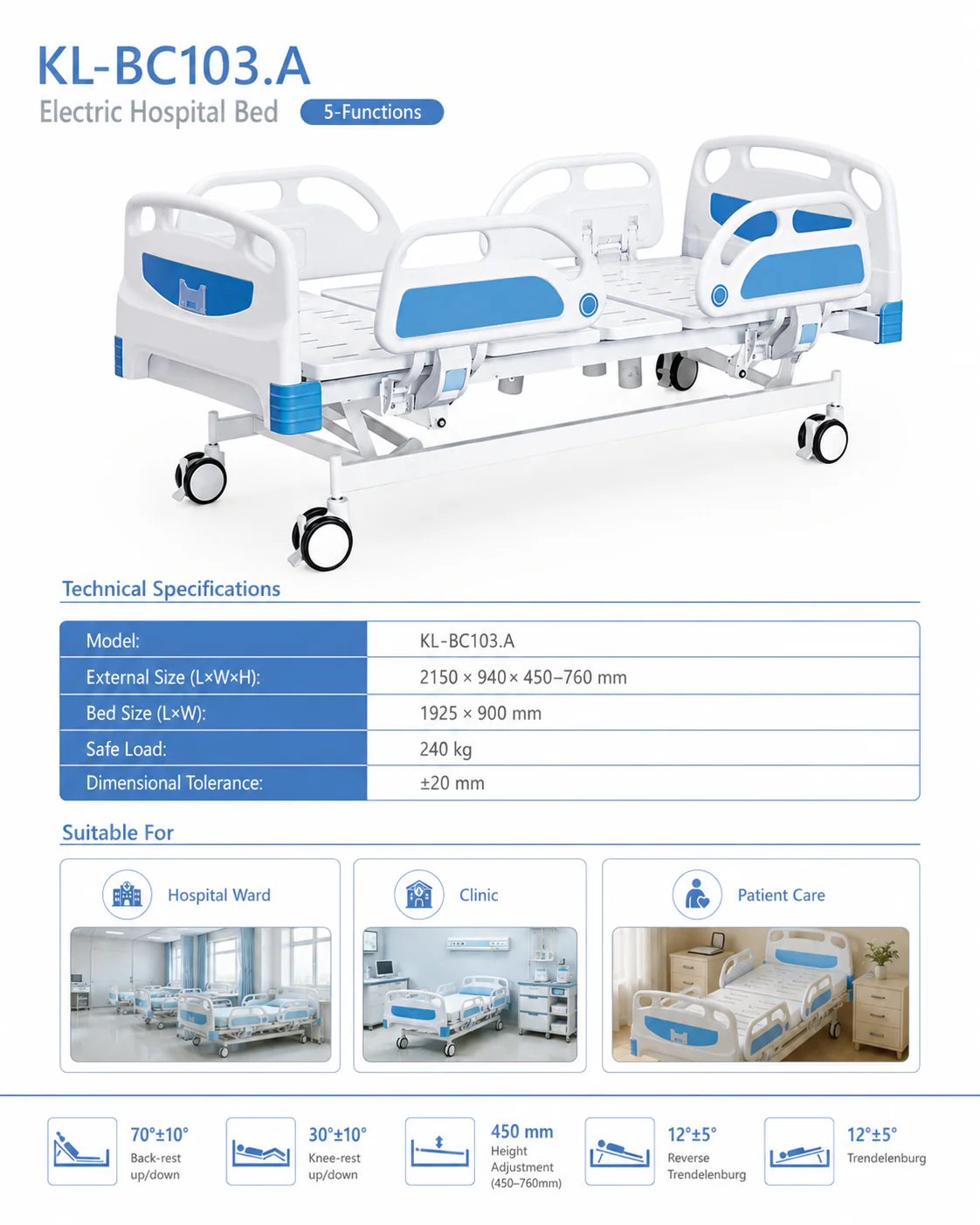

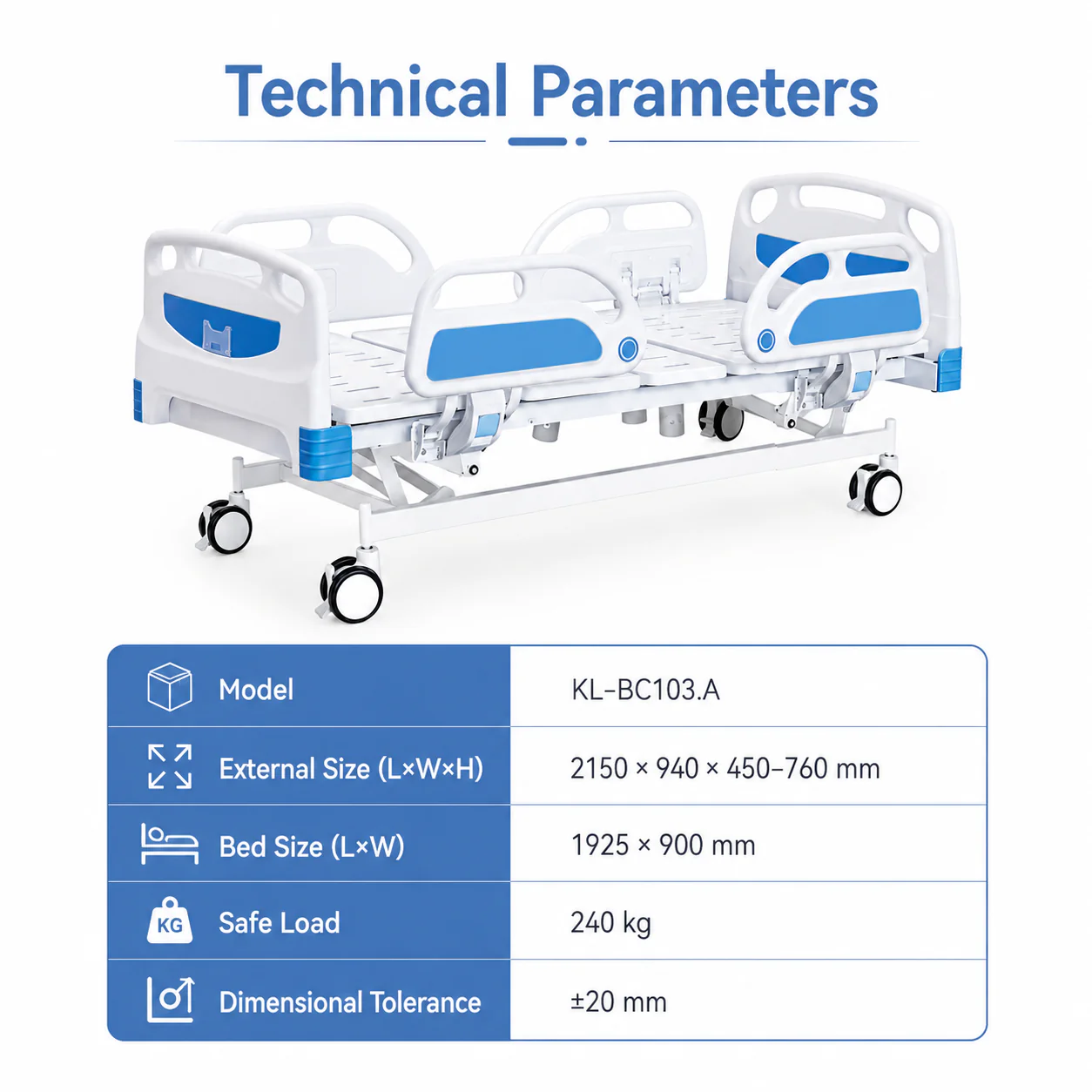

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC103-A |
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 240 kg |
| External size (L × W × H) | 2150 × 960 × (450–760) mm |
| Bed surface size (L × W) | 1925 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC103-A is suitable for general medical and surgical wards, post-operative recovery rooms, elderly care units and long-term inpatient facilities. Its design-style differentiation from the KL-BC103 makes it a useful choice when mixed bed procurement requires visual distinction between functional zones or ward types.
