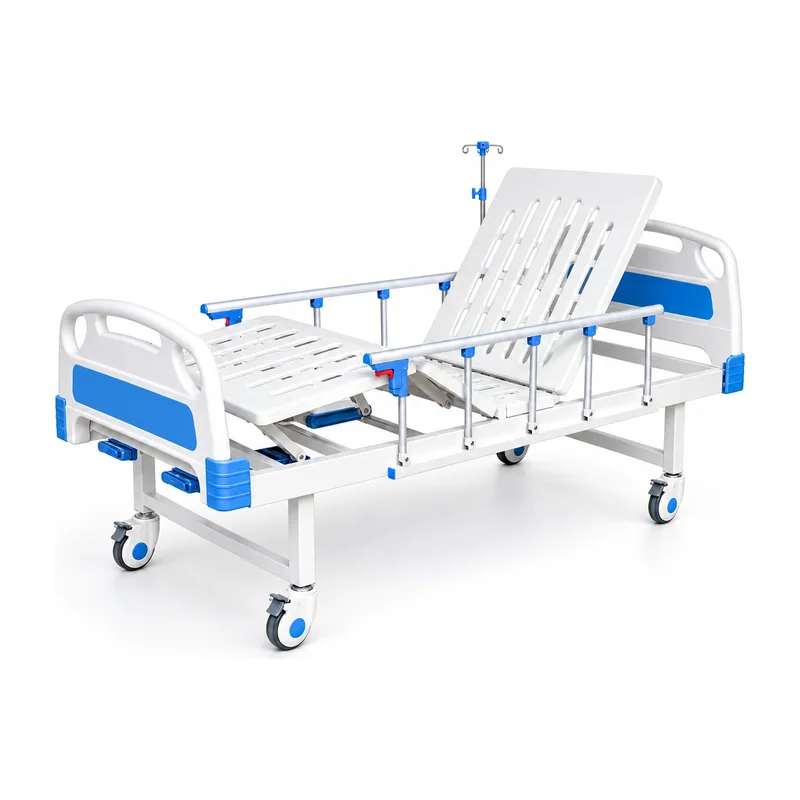

KL-BC107 Manual Hospital Bed — 2-Function Bed with Backrest and Knee-Rest Adjustment

Quick answer. The Keling KL-BC107 is a 2-function manual hospital bed with backrest adjustment to 70±10° and knee-rest adjustment to 30±10°, a fixed bed height of 500 mm, 200 kg safe working load and external dimensions of 2150 × 960 × 500 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for general wards and care facilities that require manual patient positioning without height adjustment or electric drive systems.

Backrest adjustment: 70±10°
Bed height (fixed): 500 mm
Safe working load: 200 kg
External size (L × W × H): 2150 × 960 × 500 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-BC107 manual hospital bed extends the single backrest function of the KL-BC106 by adding independent manual knee-rest adjustment, giving nursing staff the two most clinically relevant positioning controls in a low-maintenance, manually operated platform. The combination of backrest and knee-rest adjustment enables effective anti-sliding positioning that keeps patients comfortably seated in the bed during elevated postures without the need for repositioning every few hours.

The 70±10° backrest range covers the standard clinical requirements for head-of-bed elevation in respiratory care, post-operative recovery and feeding protocols. The 30±10° knee-rest angle, operated independently, provides the lower-limb support that counteracts the tendency for patients to slide toward the foot of the bed when the head is raised — reducing shear stress on the sacral and heel regions and contributing to pressure-injury prevention in long-stay patients.

With a fixed height of 500 mm and a compact 960 mm external width, the KL-BC107 is dimensionally identical to the KL-BC106, allowing the two models to be used interchangeably within the same ward layout. Manual operation keeps servicing requirements low: no electric motor, control box or wiring to maintain. The 200 kg load rating and 1930 × 900 mm bed surface ensure the KL-BC107 accommodates the full range of standard adult inpatients.

Quick facts

The Keling KL-BC107 is a 2-function manual hospital bed with crank-operated backrest and knee-rest adjustment.
Backrest adjusts manually to 70±10° for respiratory, feeding and comfort positions.
Knee-rest adjusts independently to 30±10°, reducing patient sliding when the backrest is raised.
Bed height is fixed at 500 mm; external size is 2150 × 960 × 500 mm; bed surface is 1930 × 900 mm.
Safe working load is 200 kg, rated for standard adult inpatient populations.
The KL-BC107 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.

Key features

2-Function manual adjustment
independent crank-operated backrest and knee-rest adjustment.
Backrest to 70±10°
manual elevation covering full clinical positioning range from flat to near-upright.
Knee-rest to 30±10°
independent knee elevation reduces patient sliding and sacral pressure.
Fixed height 500 mm
consistent stable working height for standard ward environments.
200 kg safe working load
rated for standard adult inpatient use.
Compact 960 mm external width
space-efficient footprint matching standard ward bay dimensions.
No electric components
manual operation for low maintenance requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for KL-BC107

KL-BC107 technical specifications
Model	KL-BC107
Product type	Manual hospital bed (2-function)
Backrest adjustment	70±10°
Knee-rest adjustment	30±10°
Bed height (fixed)	500 mm
Safe working load	200 kg
External size (L × W × H)	2150 × 960 × 500 mm
Bed surface size (L × W)	1930 × 900 mm
Dimensional tolerance	±20 mm

Applications

The KL-BC107 is suited to general medical and surgical wards, long-term care facilities, nursing homes, community hospitals and outpatient observation settings. The two-function manual configuration is appropriate for post-acute and lower-acuity inpatient environments where backrest and knee-rest positioning meet the day-to-day clinical needs without requiring electric systems or height adjustment.

Questions buyers ask

What is the Keling KL-BC107 manual hospital bed used for?

The KL-BC107 is a 2-function manual hospital bed for general ward and long-term inpatient care. It provides manual backrest and knee-rest adjustment, enabling nursing staff to maintain comfortable anti-sliding patient positioning and head-of-bed elevation for respiratory care, feeding and therapeutic positioning.

How does the KL-BC107 differ from the KL-BC106?

Both the KL-BC106 and KL-BC107 are 1- and 2-function manual beds, respectively, with the same 200 kg load, 500 mm fixed height and 2150 × 960 mm external dimensions. The KL-BC107 adds independent manual knee-rest adjustment (30±10°) compared to the KL-BC106's backrest-only function, providing better anti-sliding positioning when the backrest is elevated.

Does the KL-BC107 have electric controls?

No. The KL-BC107 is a fully manual bed. Backrest and knee-rest positions are set using manual cranks, eliminating the need for electric power or electronic control systems. For electric backrest and knee-rest adjustment, Keling Medical offers the KL-BC105 (2-function electric) or KL-BC104 (3-function electric) models.

Can the KL-BC107 be sourced in volume for hospital procurement?

Yes. Keling Medical is an export-oriented manufacturer supplying hospitals and distributors worldwide and handles bulk and project-volume orders through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for quotations and product specifications.
