KL-BC111 Manual Orthopedics Traction Bed — 5-Function Orthopaedic Bed with Overhead Traction Frame

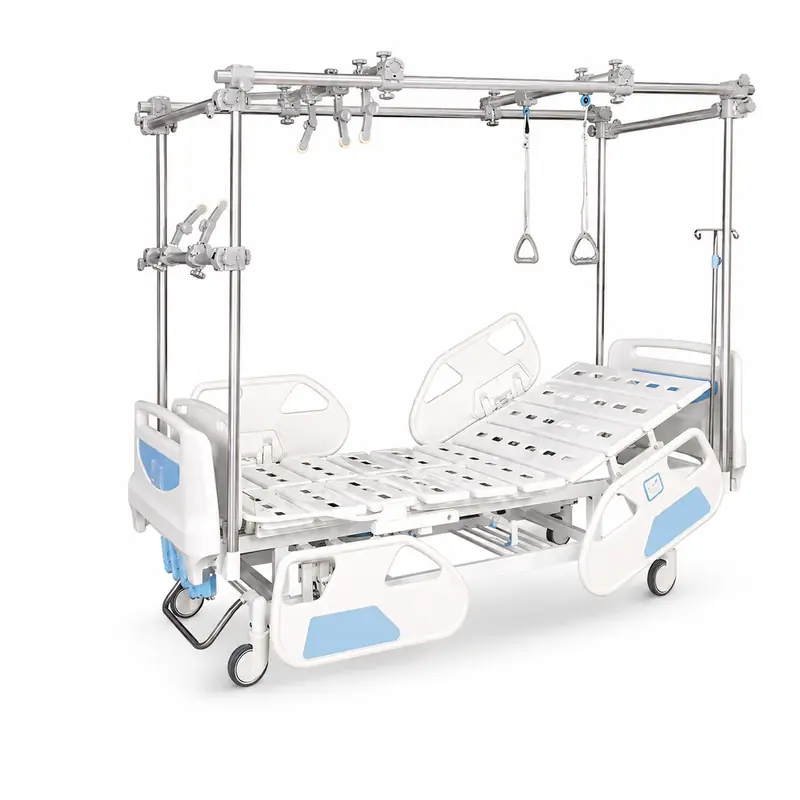

The KL-BC111 manual orthopedics traction bed is a specialist inpatient bed designed for the care of orthopaedic and trauma patients who require traction, balanced suspension or upper limb trapeze support as part of their clinical management. The integrated overhead traction frame — visible as a structural steel gantry above the bed — provides multiple attachment points for skeletal traction weights, slings, pulleys and a patient trapeze bar, enabling the nursing and physiotherapy team to maintain traction devices without a separate freestanding frame.

The five-function manual platform — backrest, knee-rest, height adjustment, Trendelenburg and reverse Trendelenburg — gives clinicians the positioning flexibility needed in orthopaedic post-operative and fracture management contexts. The 460–720 mm height range, while slightly higher in its lower bound than standard ward beds (450 mm), is appropriate for the orthopaedic care context where traction equipment clearance at the foot and sides of the bed is required. Trendelenburg tilt at 12±5° is compatible with anti-shock positioning and lower-limb vascular support protocols.

The 200 kg load rating and 1925 × 900 mm surface accommodate the full range of adult orthopaedic patients, including those with casts, external fixators and splints. The 1060 mm external width — the widest in the KL-BC manual series — reflects the additional clearance needed for traction attachments, side-mounted accessories and external fixation equipment alongside the patient.
