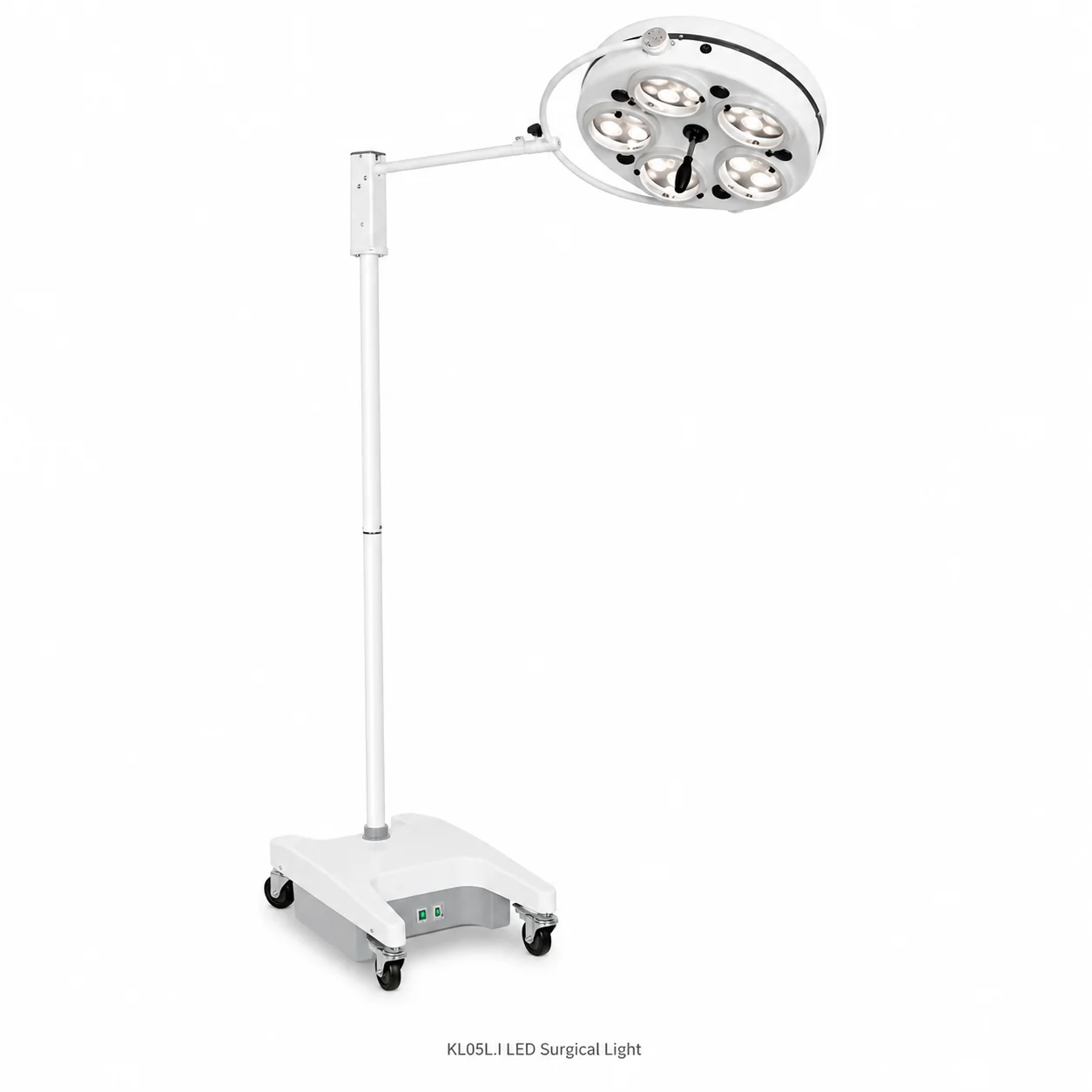

# KL05L-LED LED Surgical Light — High-Efficiency Six-Hole LED Operating Lamp with Battery Backup
Quick answer: The Keling KL05L-LED is an LED surgical light delivering 90,000 lux at 1 m through a six-hole multi-reflector lamp head with LED bulbs, a color temperature of 4500 ± 500 K and Ra ≥ 85 color rendering. It is manufactured by Keling Medical (Keling Medical) and is available in mobile (KL05L.I LED), ceiling-mounted (KL05L LED) and wall-mounted (KL05L.III LED) configurations; the mobile variant incorporates a 12 V × 2, 12 AH lead-acid battery for backup operation.
Quick Facts
- The Keling KL05L-LED is a LED surgical light rated at 90,000 lux at 1 m — the highest output in the KL05L/KL04L series.
- The six-hole LED lamp head provides illumination depth ≥ 500 cm and total irradiance <6 mW/m²lx.
- Color temperature is 4500 ± 500 K; color rendering index is 100 ≥ Ra ≥ 85; rated bulb voltage is 24 V.
- Power supply is 220 V ± 10%, 50 Hz; input power is 36 VA — significantly lower than the halogen KL05L's 150 VA.
- The mobile variant (KL05L.I LED) integrates a 12 V, 12 AH × 2 lead-acid battery for continued operation during power interruptions.
- The KL05L-LED is available in mobile, ceiling-mounted and wall-mounted configurations to suit different clinical environments.
Overview

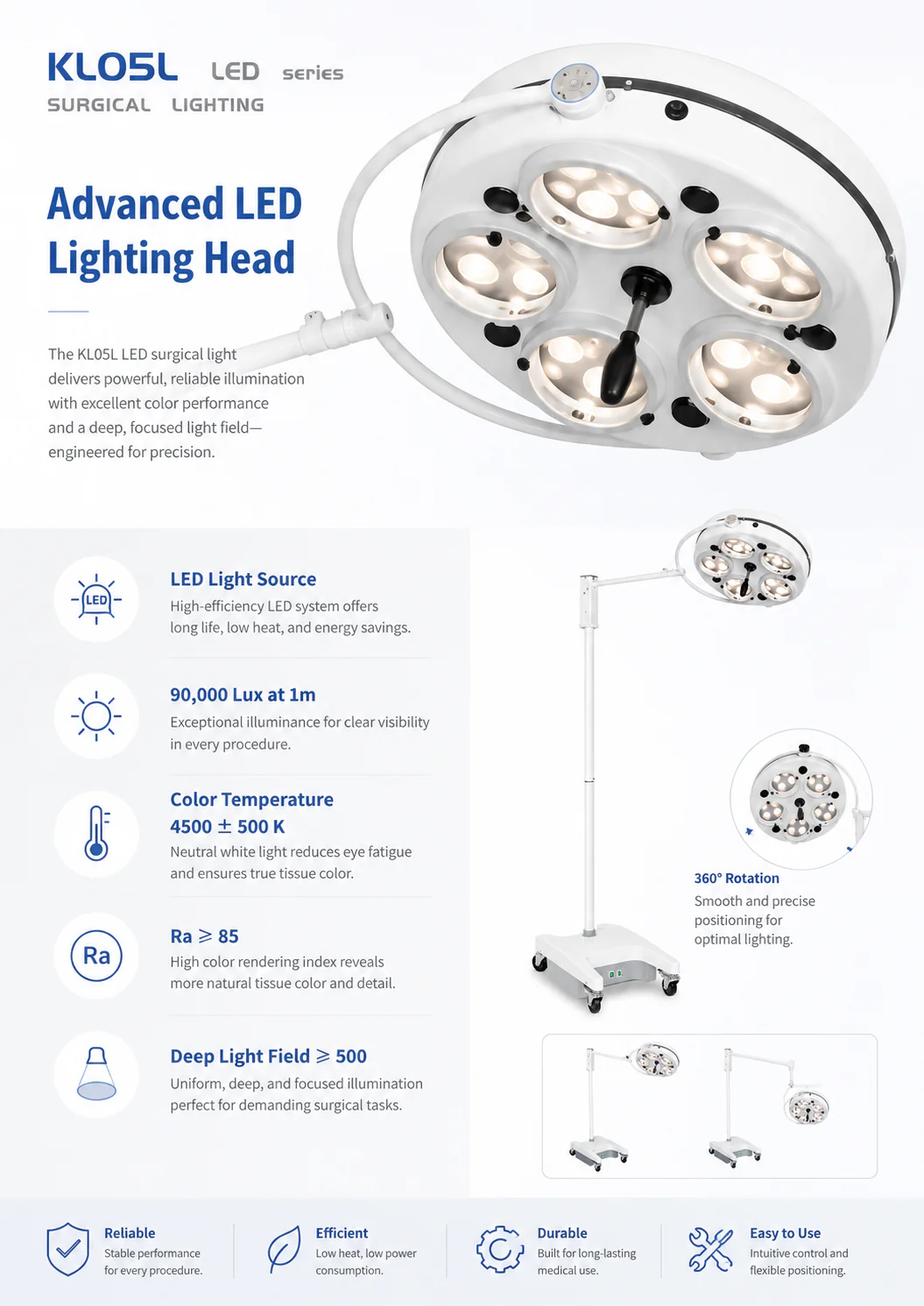

The KL05L-LED LED surgical light is the LED-technology version of the KL05L series, combining the established six-hole multi-reflector lamp head with LED light sources to achieve 90,000 lux — 12.5% higher than the halogen KL05L's rated 80,000 lux — while consuming only 36 VA versus the halogen's 150 VA. This efficiency gain translates directly to lower running costs, reduced heat generation and a substantially lighter load on the facility's electrical infrastructure, while the LED light source brings instantaneous full brightness and consistent output across its service life.
The six-hole reflector head continues to deliver an even, shadow-minimizing surgical field across the operative area, with illumination depth rated at ≥ 500 cm to reach into deep body cavities during abdominal, thoracic and pelvic procedures. The 24 V LED bulb specification maintains compatibility with standard surgical lighting supply infrastructure for facilities managing mixed halogen and LED installations.

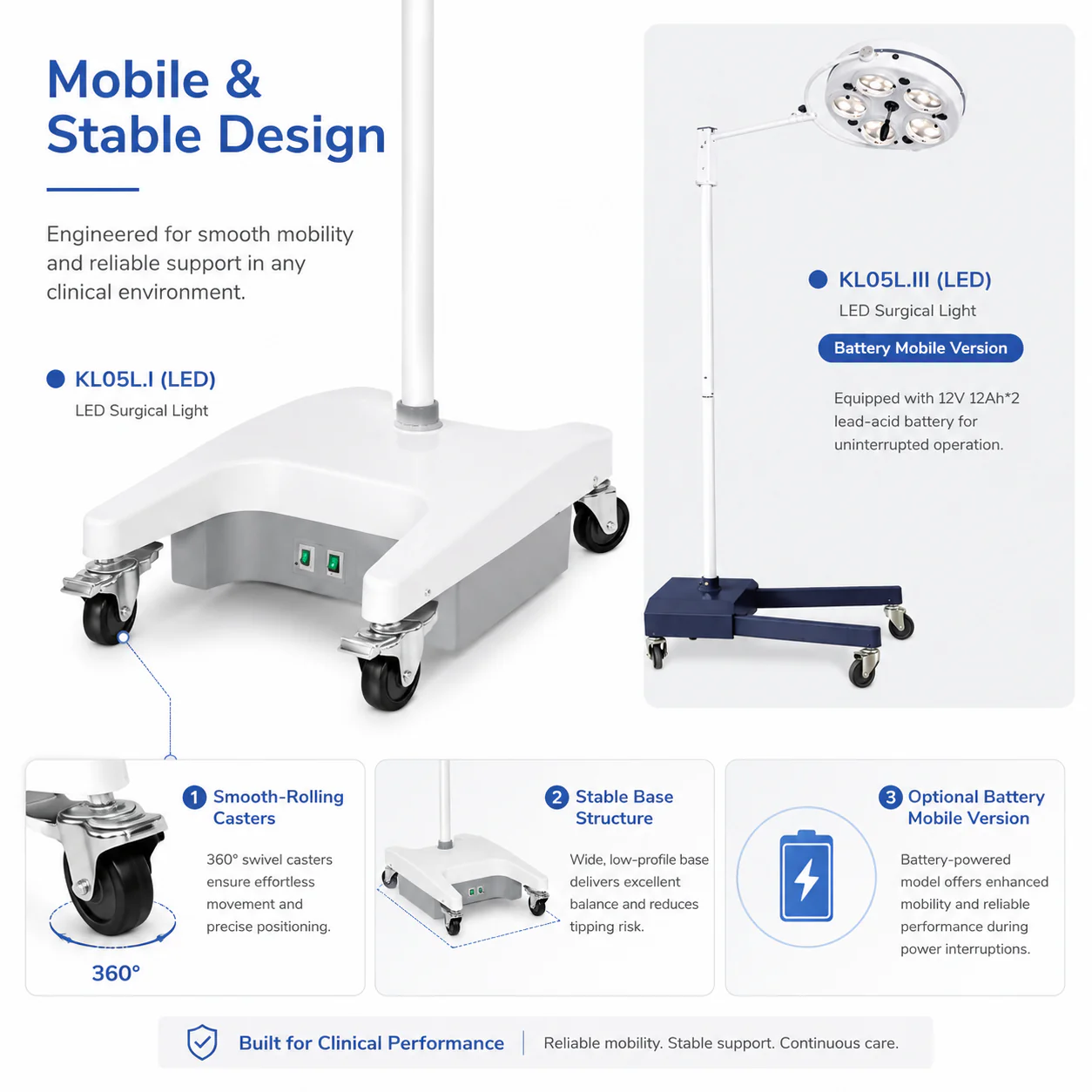

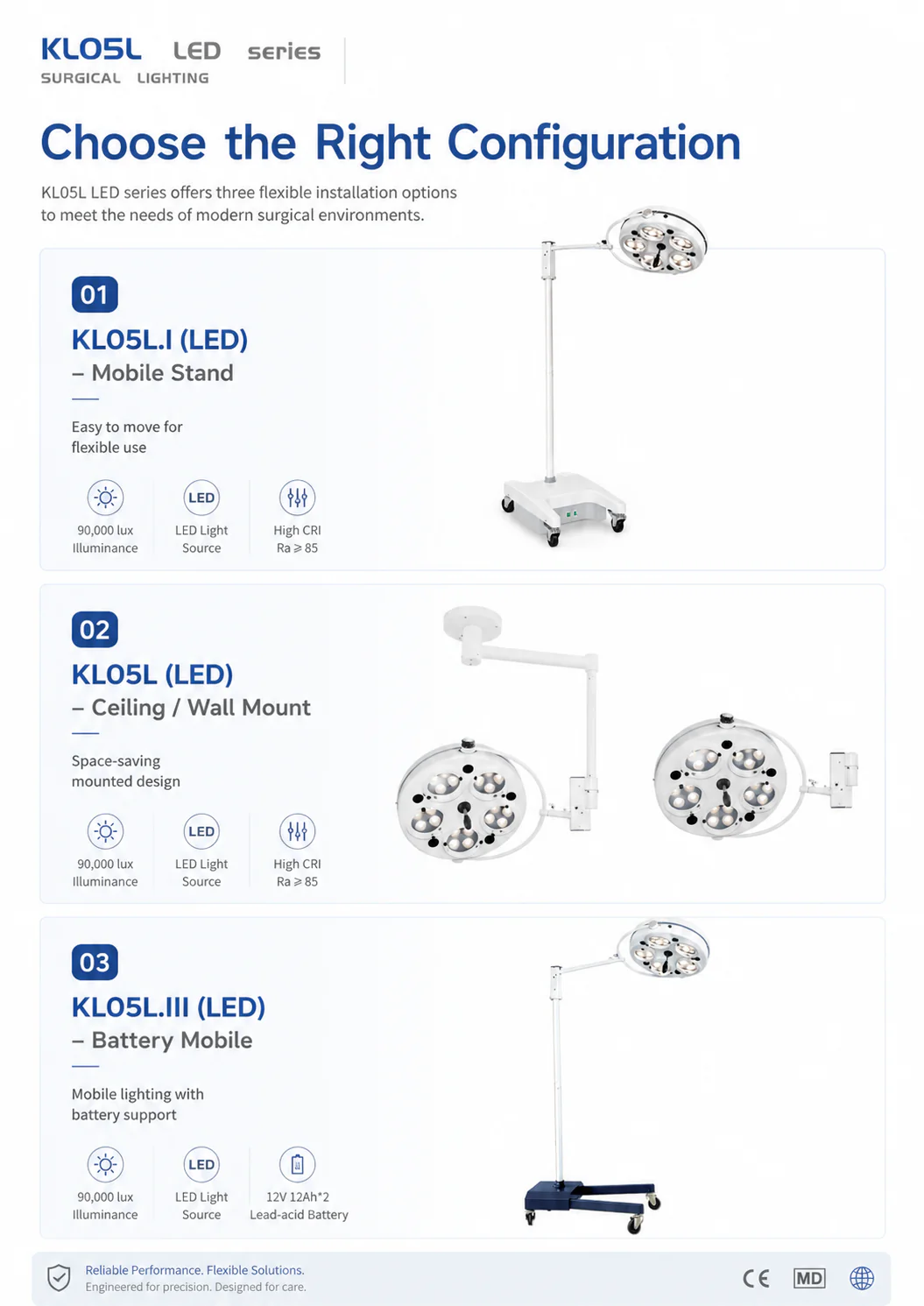

A distinguishing feature of the KL05L-LED mobile configuration (KL05L.I LED) is the integrated 12 V, 12 AH × 2 lead-acid battery system, which provides autonomous power for a defined operating period in the event of mains failure. This makes the mobile KL05L-LED a true dual-mode surgical light: primary mobile OR lighting in normal operation, and an automatic standby source when the mains circuit trips. Three mounting options — mobile floor-standing (KL05L.I LED), ceiling-mounted (KL05L LED) and wall-mounted (KL05L.III LED) — cover the full range of surgical room layouts.
Key Features
- 90,000 Lux LED Output — highest illumination in the KL05L/KL04L range, providing maximum visibility for complex and deep surgical procedures.

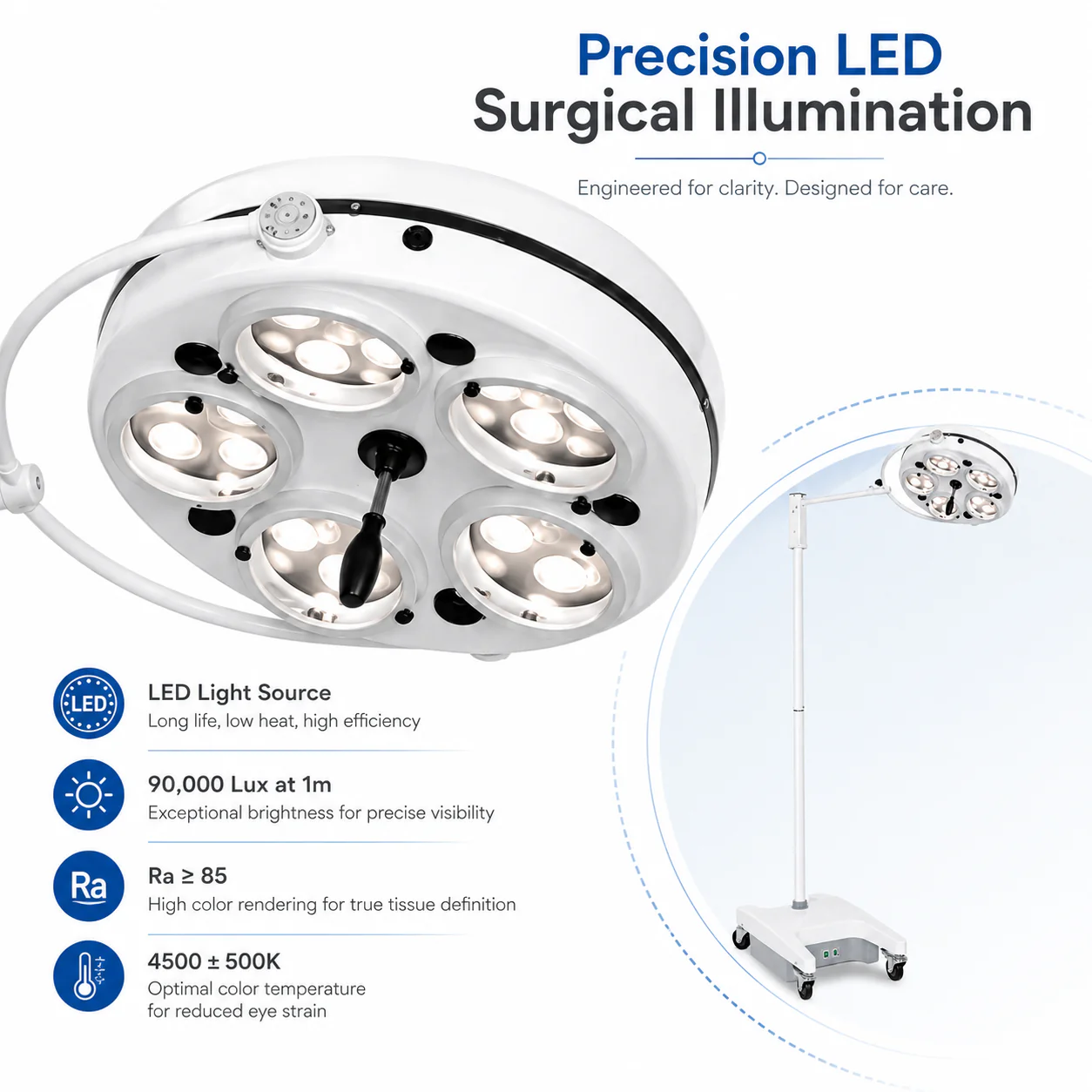

- Six-Hole Multi-Reflector LED Head — six independent LED reflector bays produce a smooth, shadow-free light field across the surgical site.
- Illumination Depth ≥500 cm — effective light delivery into deep surgical cavities for abdominal, thoracic and pelvic operations.
- Integrated Battery Backup (Mobile KL05L.I LED) — 12V 12AH × 2 lead-acid battery provides continuous operation during power interruptions.
- Very Low Power Consumption — 36 VA input power versus 150 VA for the halogen equivalent; significantly reduces energy cost and infrastructure load.
- Ra ≥ 85 Color Rendering — 4500 ± 500 K natural white light for accurate tissue, blood and anatomical color differentiation.

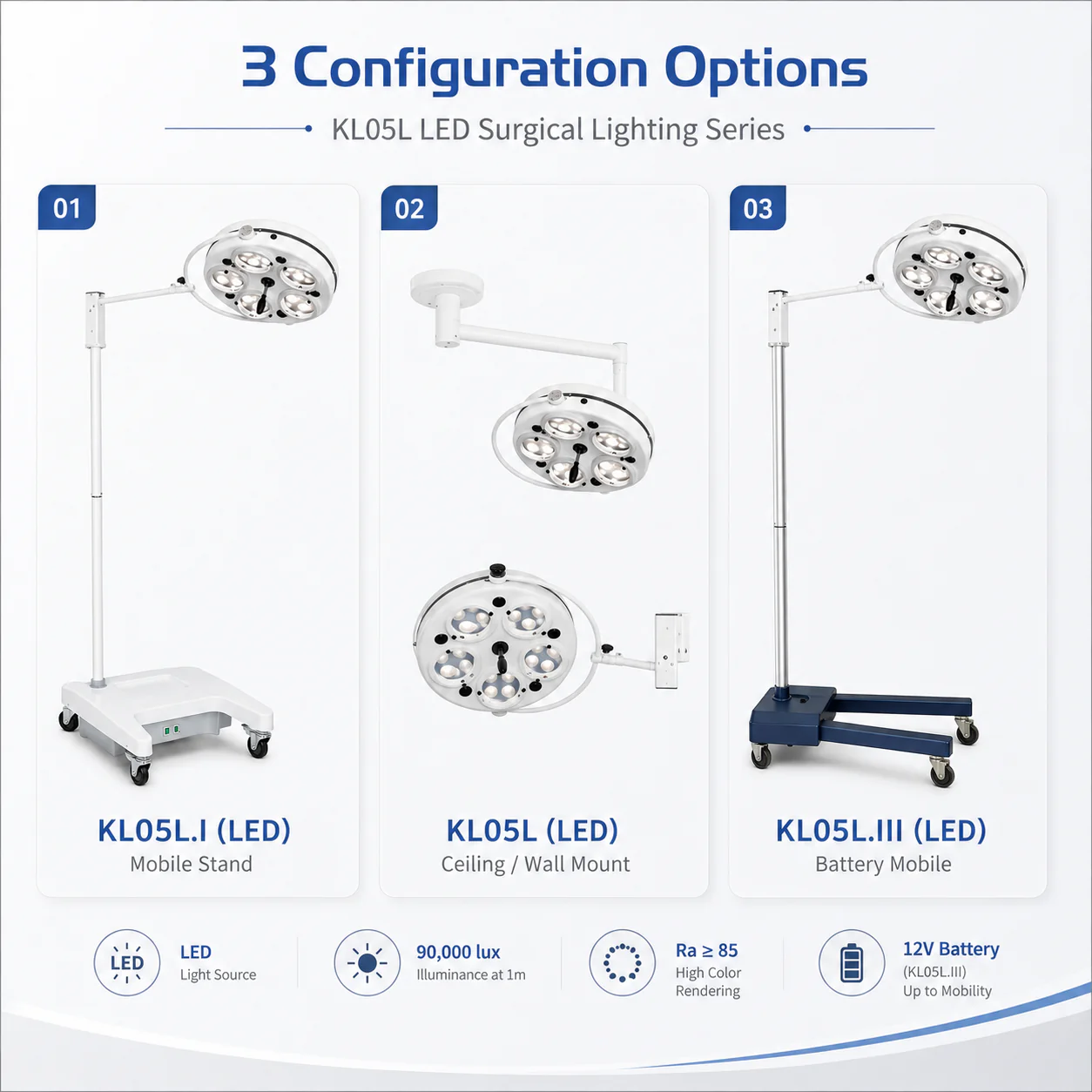

- Three Mounting Options — mobile floor (KL05L.I LED), ceiling-mounted (KL05L LED) and wall-mounted (KL05L.III LED) configurations.
- Stable and Uniform LED Lighting — advanced LED optical system ensures consistent light output and even illumination across the surgical field.

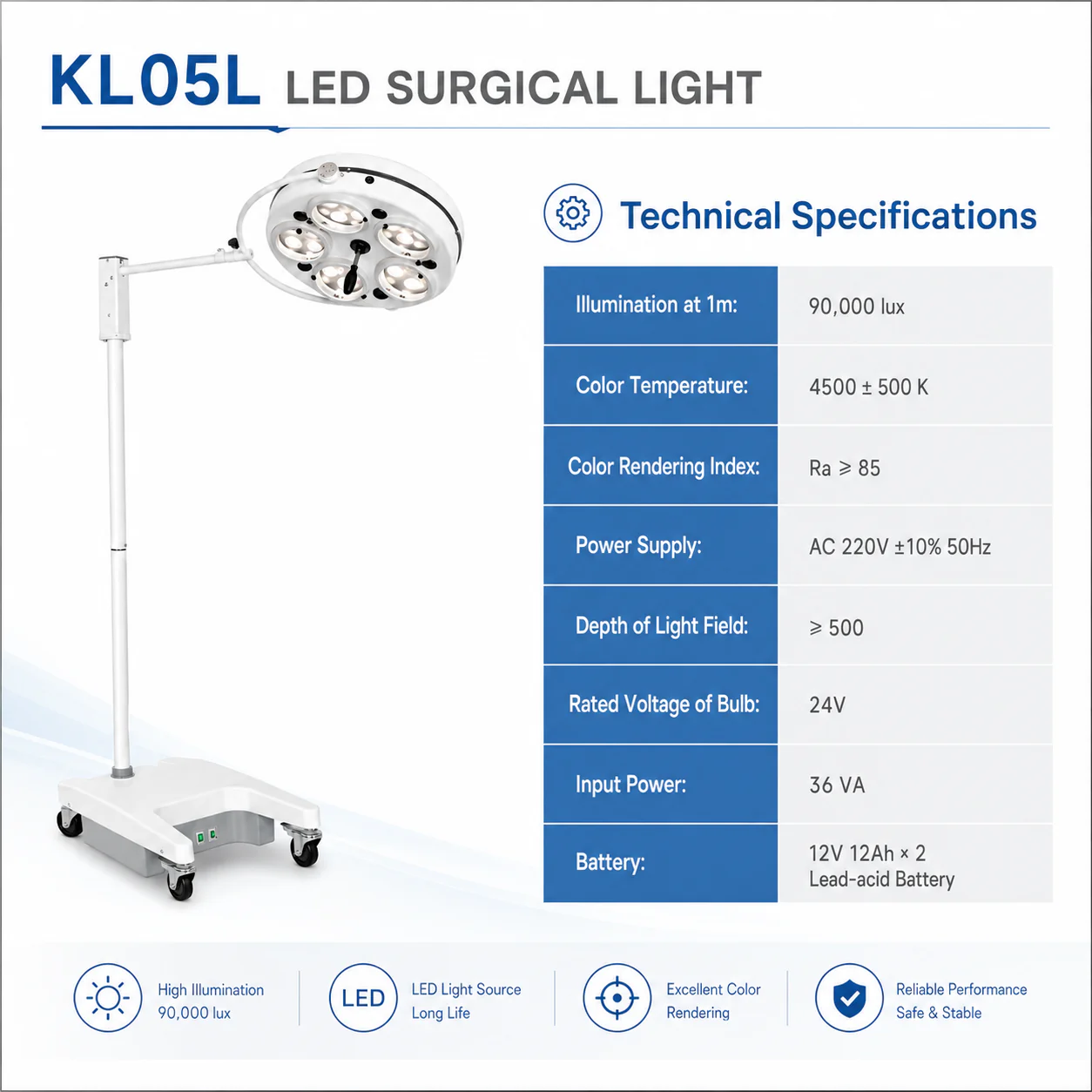

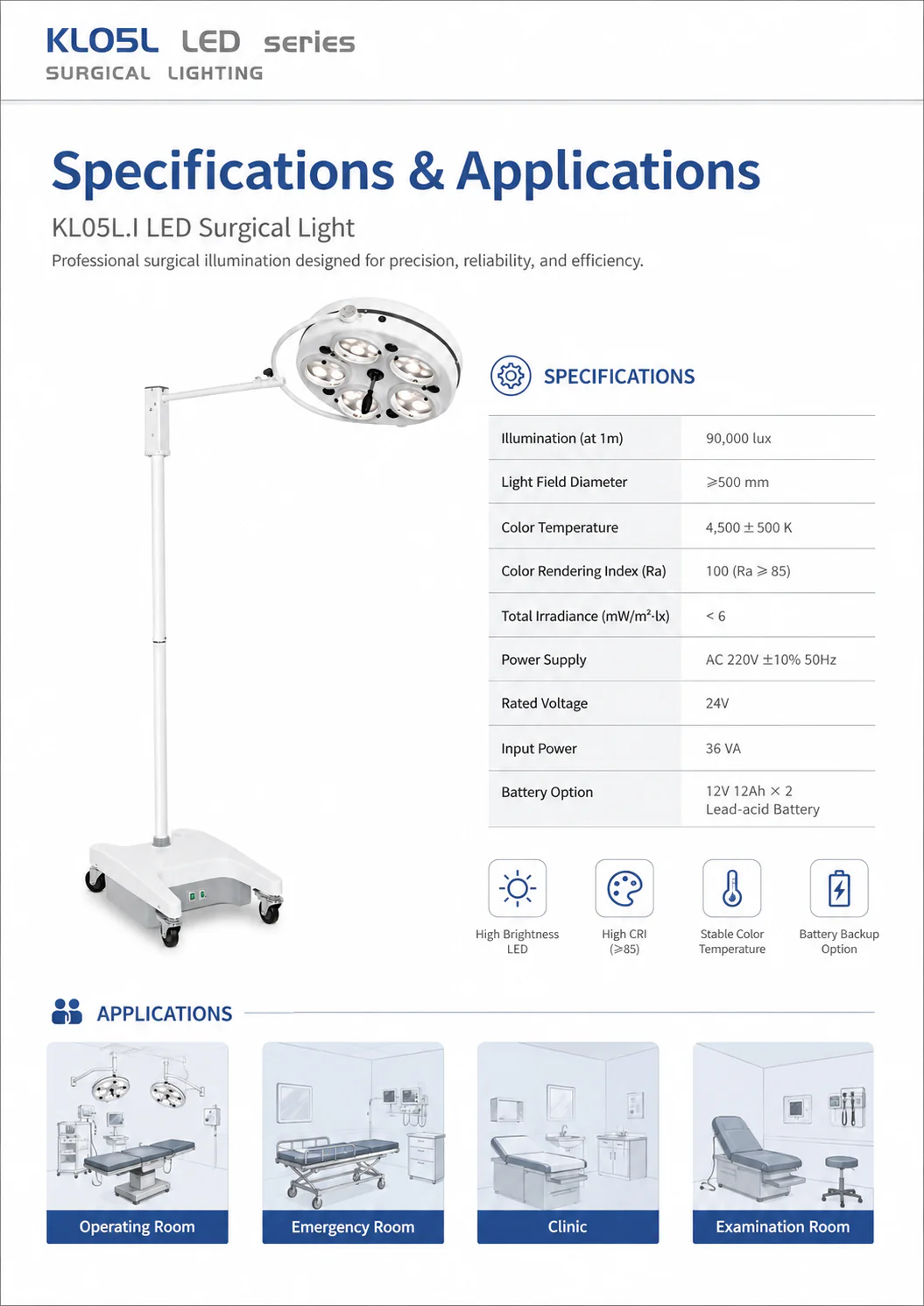

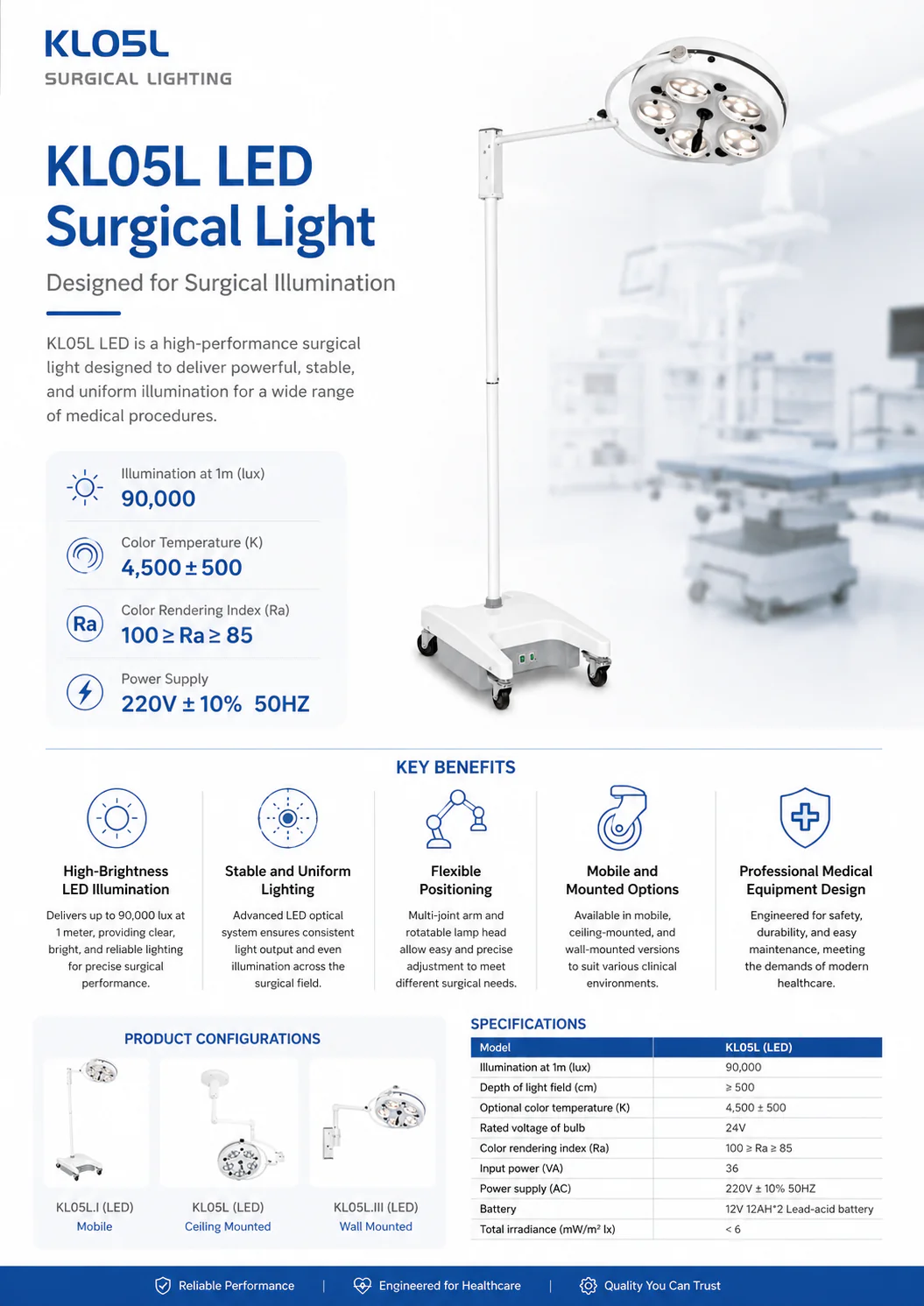

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL05L (LED) |
| Illumination at 1 m (lux) | 90,000 |
| Optional color temperature (K) | 4500 ± 500 |
| Color rendering index (Ra) | 100 ≥ Ra ≥ 85 |
| Light source | LED |
| Power supply (AC) | 220 V ± 10%, 50 Hz |
| Input power (VA) | 36 |
| Total irradiance (mW/m²lx) | <6 |
| Illumination depth (cm) | ≥500 |
| Rated voltage of bulb | 24 V |
| Battery (mobile variant) | 12V 12AH × 2 lead-acid battery |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL05L-LED LED surgical light is suited for modern operating theatres requiring high-output LED illumination with low energy consumption: general surgery, orthopaedic, cardiovascular, thoracic and neurosurgery suites, outpatient procedure rooms, laparoscopy rooms and emergency surgical areas. The battery-equipped mobile variant is particularly valued in facilities with intermittent power supply, as a primary mobile OR light and as mandated standby surgical lighting.
