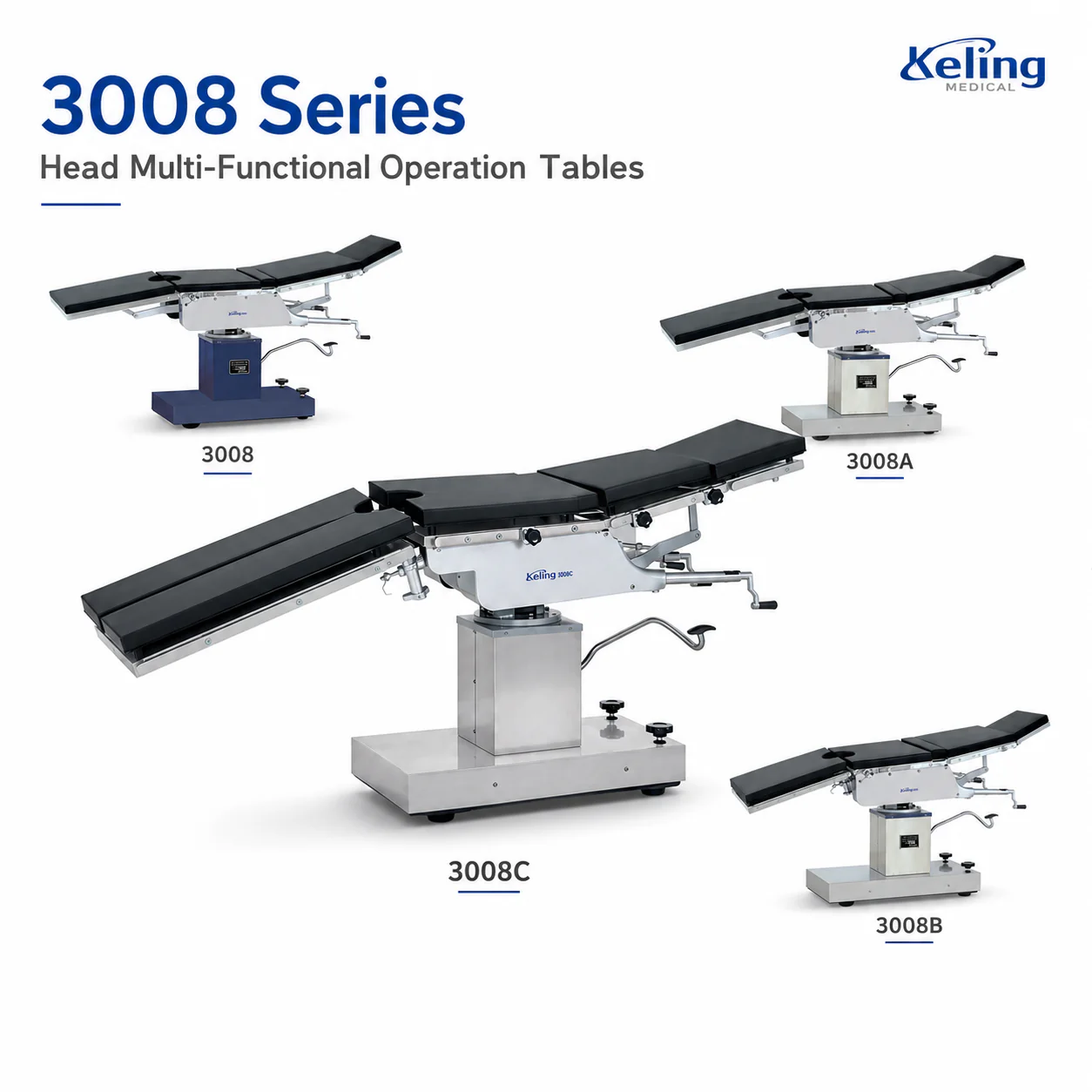

# 3008 Series Operation Tables — Head Multi-Functional Mechanical Surgical Platform
Quick answer: The Keling 3008 Series comprises four head multi-functional operation table models (3008, 3008A, 3008B, 3008C) with mechanical hydraulic drives, height adjustment from 750–950 mm, Trendelenburg/reverse Trendelenburg positioning, a head-position mechanical control system and 304 stainless steel construction on all models. The 3008C additionally features 180° split leg plates. Manufactured by Keling Medical (Keling Medical).
Quick Facts

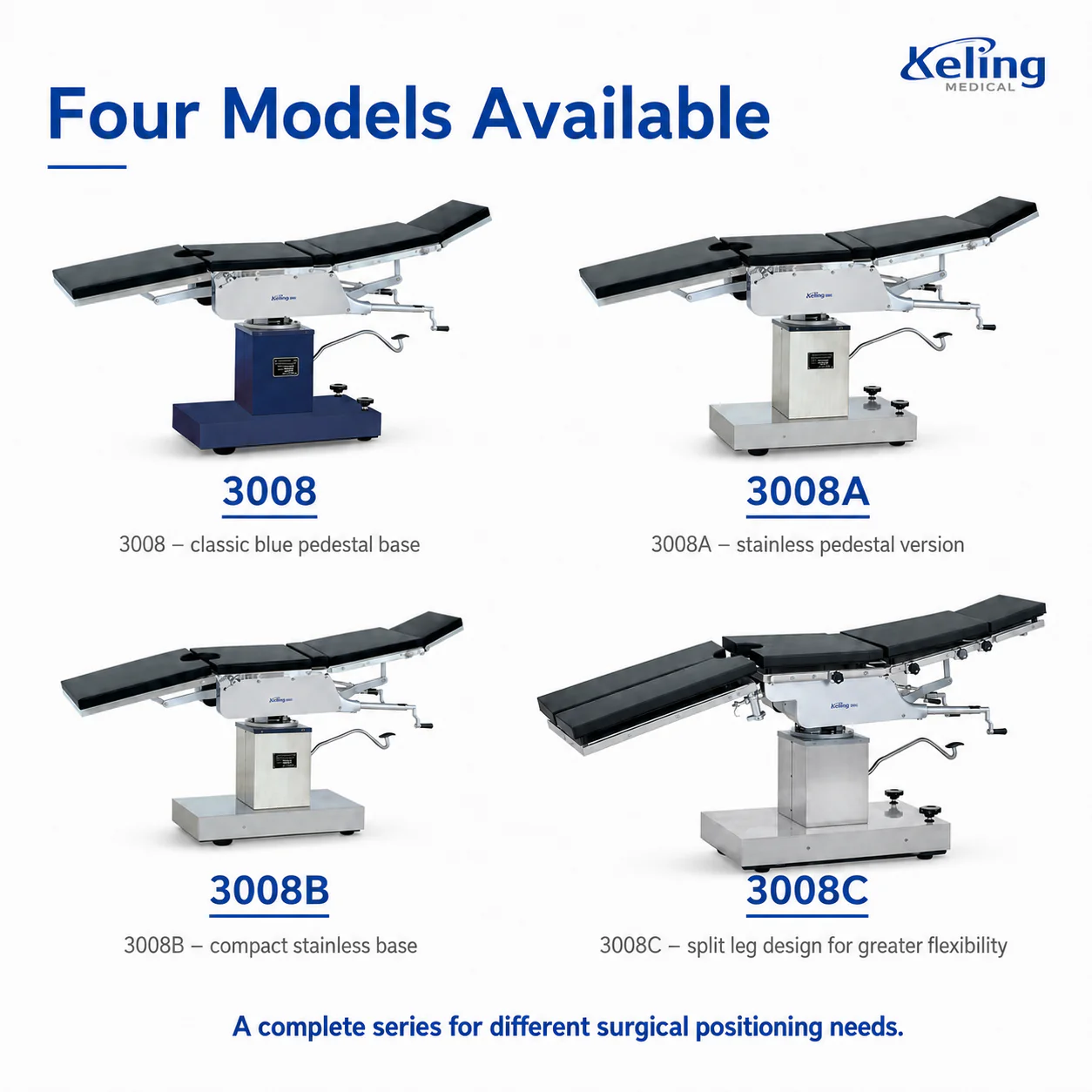

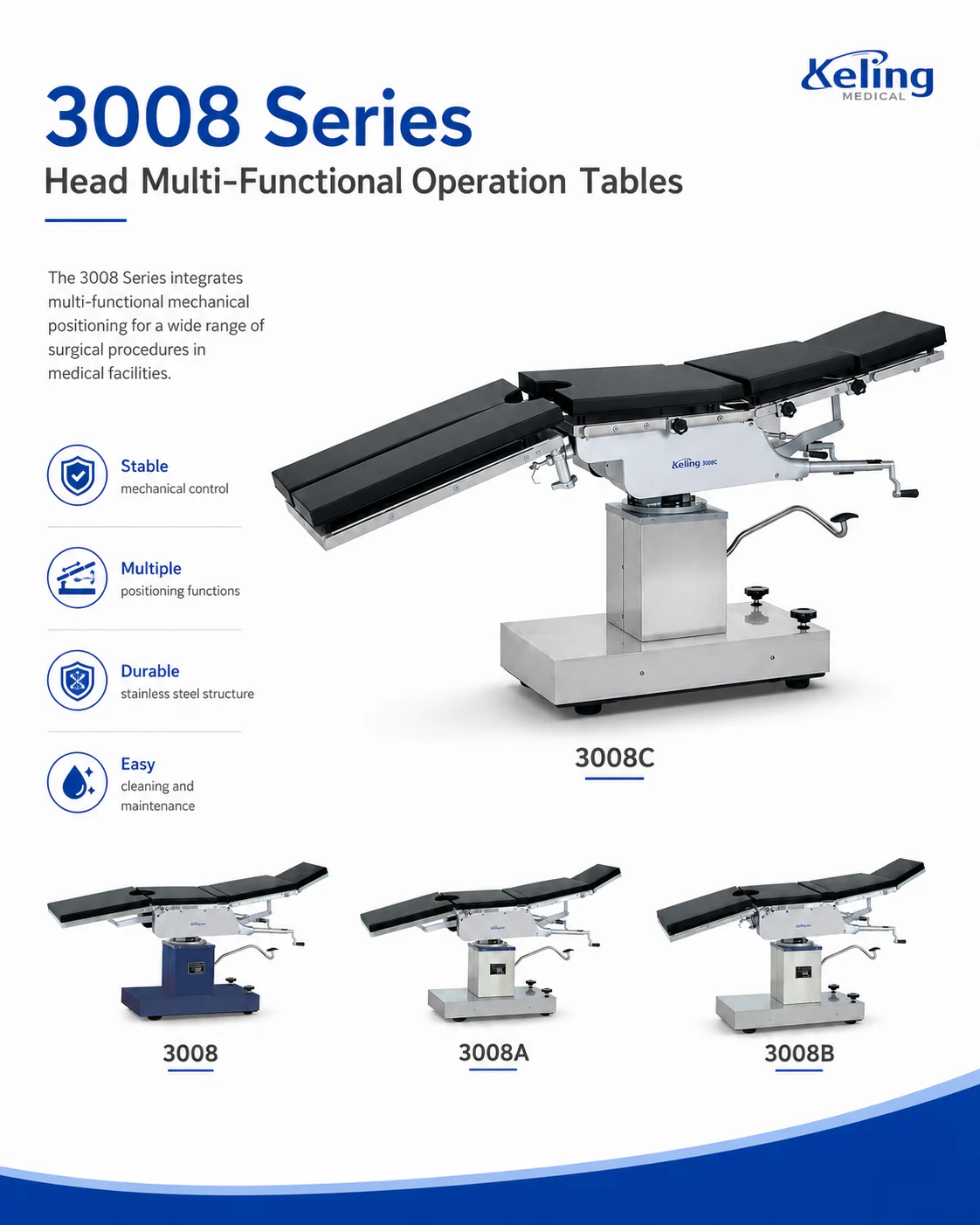

- The Keling 3008 Series offers four model variants: 3008 (Standard), 3008A (Advanced), 3008B (Enhanced) and 3008C (Premium).
- All models feature imported Y-type sealing rings for high-performance, oil-leakage-free hydraulic sealing.
- Head-position mechanical control enables accurate, stable adjustment for precise patient positioning during neurosurgical and ENT procedures.
- The 3008C Premium model includes 180° split leg plates for comprehensive urological and gynecological access.
- Base seat and upright column coverings are made of high-quality 304 stainless steel across the series, which is anti-corrosive and easy to clean.
- An optional foot-operated brake device is available for hands-free table locking during surgical procedures.
Overview
The Keling 3008 Series operation tables are engineered for facilities requiring head-position management as a core surgical function. Marketed as "Head Multi-Functional Operation Tables," all four models in the series integrate mechanical control of the headboard position alongside the standard suite of height, tilt, Trendelenburg and leg-plate adjustments, making them well suited for neurosurgical, ENT, ophthalmic and combined general-surgery programs.
Across the series, the base seat and column coverings are manufactured in 304 stainless steel — corrosion resistant and easy to wipe down between cases. An imported Y-type sealing ring protects the hydraulic circuit from oil leakage, and a rotary brake device gives the table smooth, lockable mobility. The four models graduate in adjustment range and configuration: the 3008 Standard is appropriate for routine general surgery; the 3008A adds structural upgrades for greater stability; the 3008B expands the height adjustment range; and the 3008C tops the range with maximum positioning flexibility, including 180° split leg plates for lithotomy, urological and gynecological procedures.

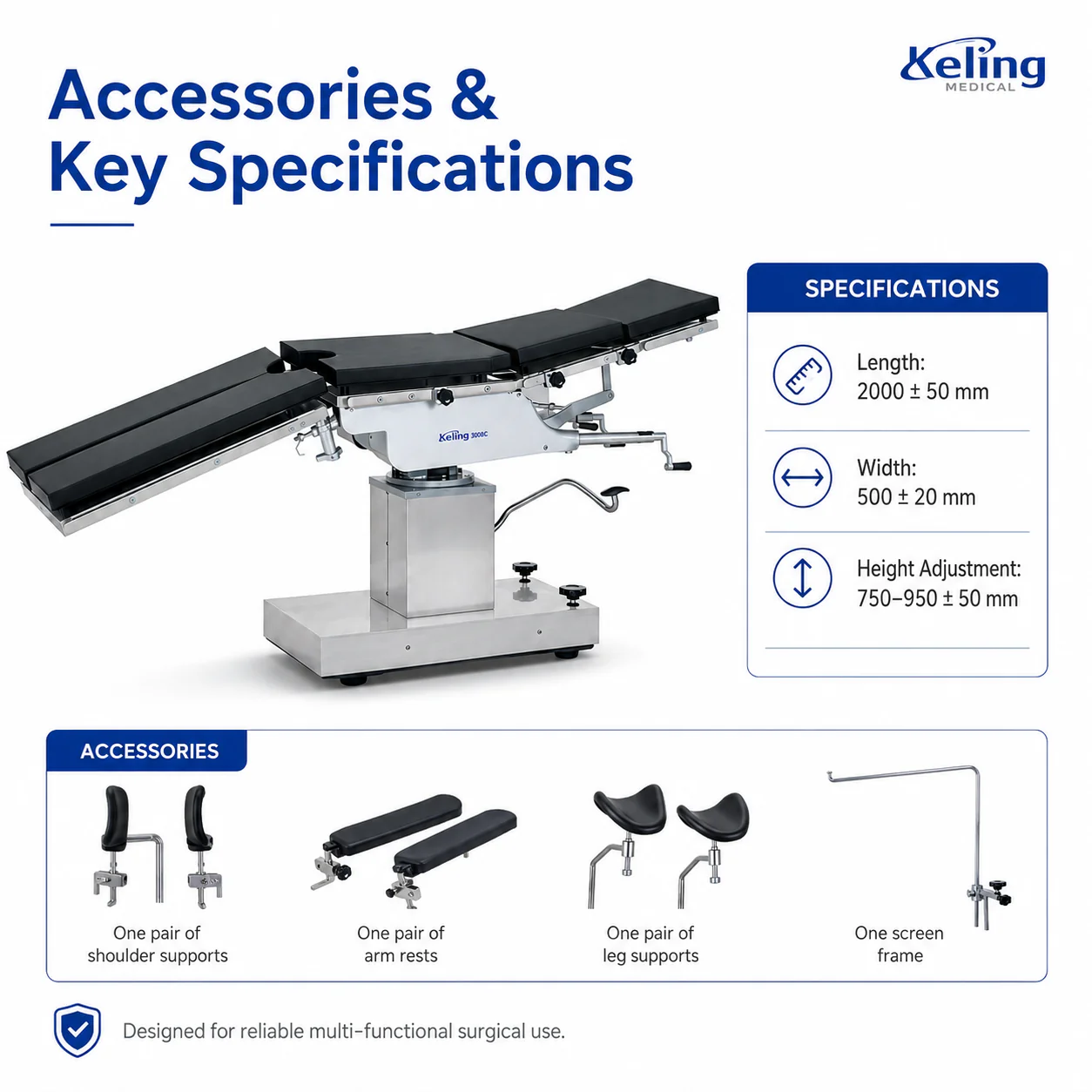

The 3008 Series column covers are made of high-quality 304 stainless steel that is anti-corrosive and easily cleaned, while the 3008C upright column cover features double-bolt construction for added rigidity. An accessory package including shoulder support frames, arm rests, a leg support frame and a screen frame is standard, covering the majority of positioning requirements for a general surgical programme.

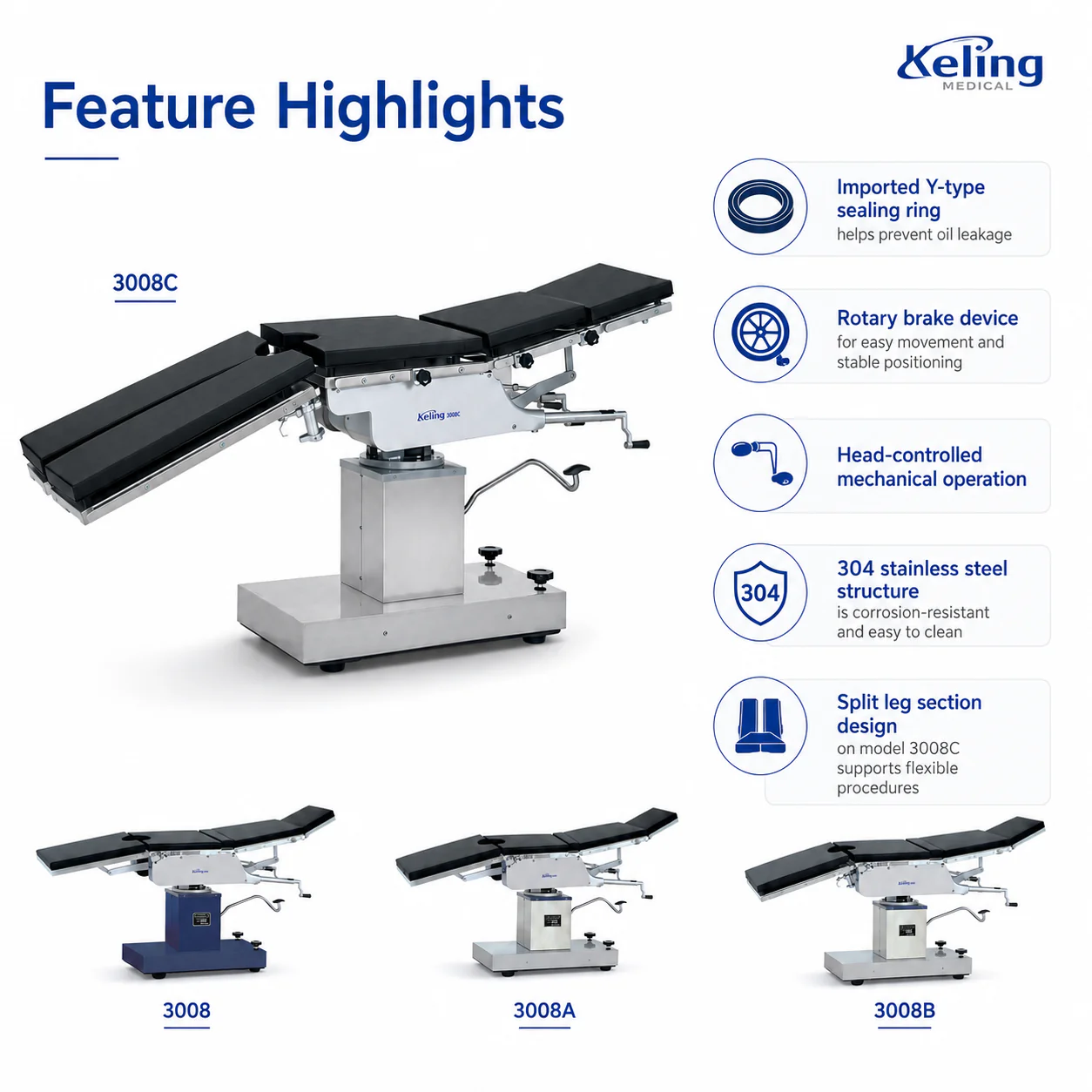

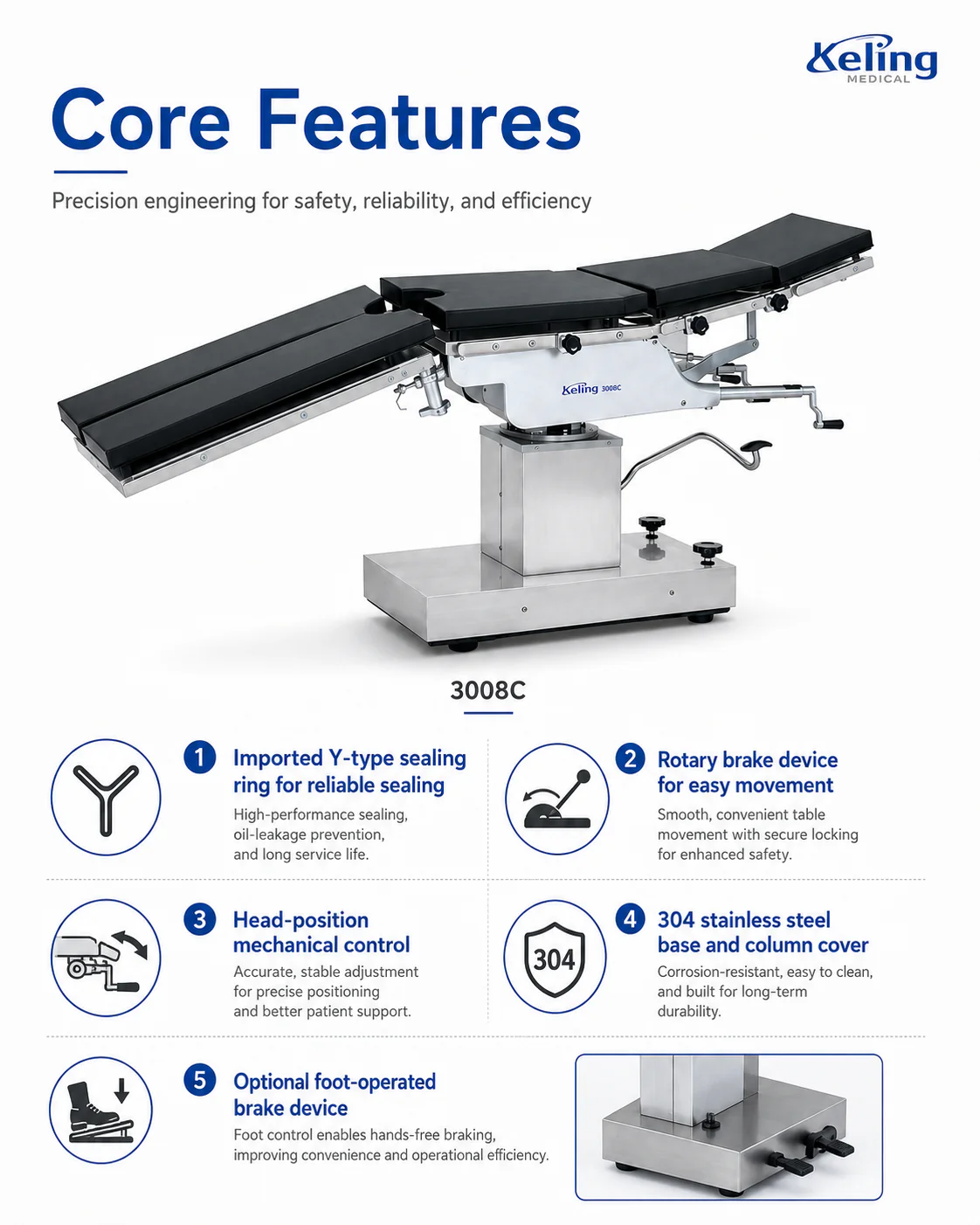

Key Features
- Head-position mechanical control — accurate, stable headboard adjustment supports precise positioning for head, neck, ENT and ophthalmic surgery.
- Imported Y-type sealing ring — high-performance sealing prevents oil leakage and extends hydraulic system service life.

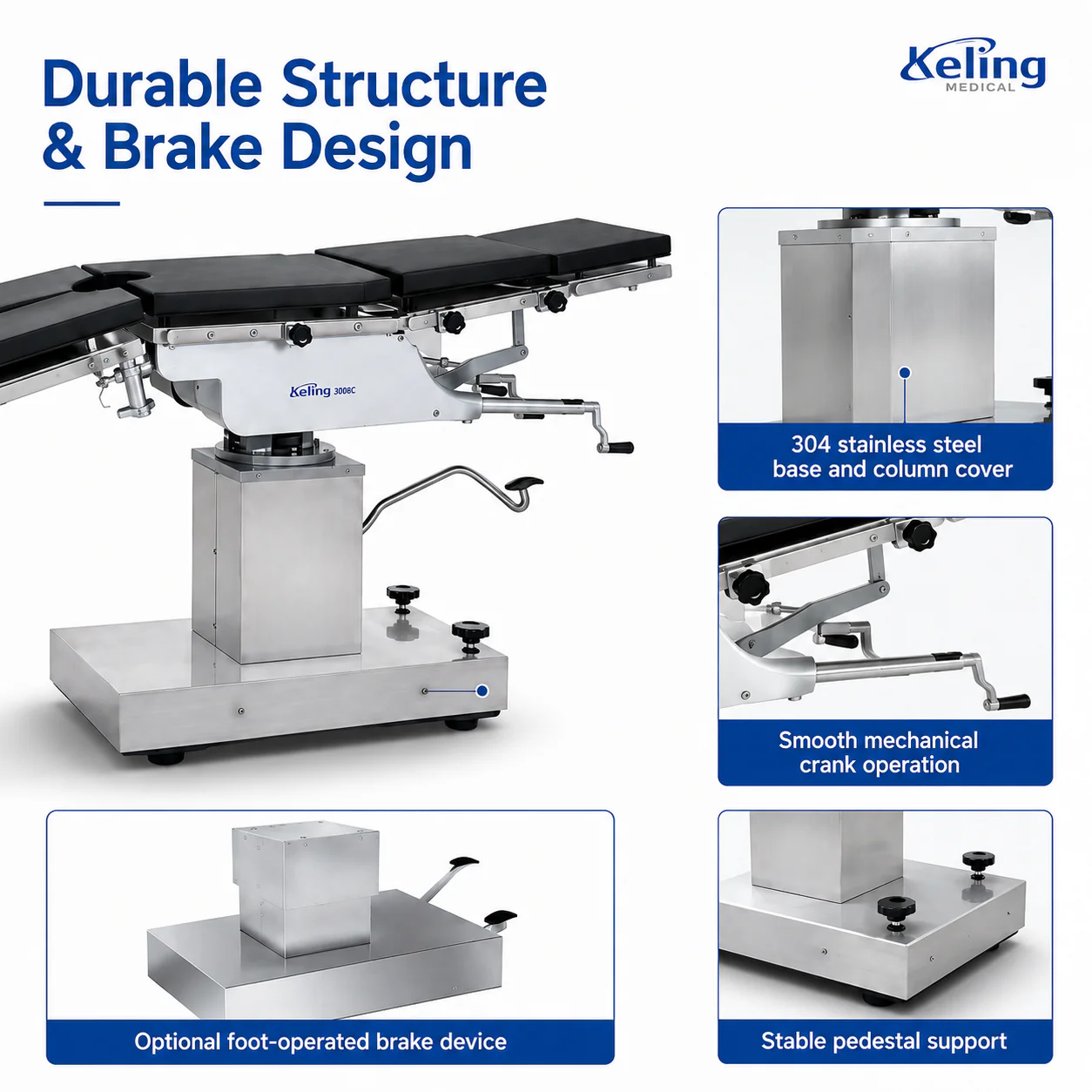

- Rotary brake device — smooth, convenient table movement with secure locking for operational safety.
- 304 stainless steel base and column covers — corrosion resistant, easy to clean and built for long-term durability across the entire series.
- Optional foot-operated brake device — hands-free braking for improved convenience during positioning and surgery.
- 180° split leg plates (3008C only) — full leg abduction access for urological, gynecological and lithotomy procedures.

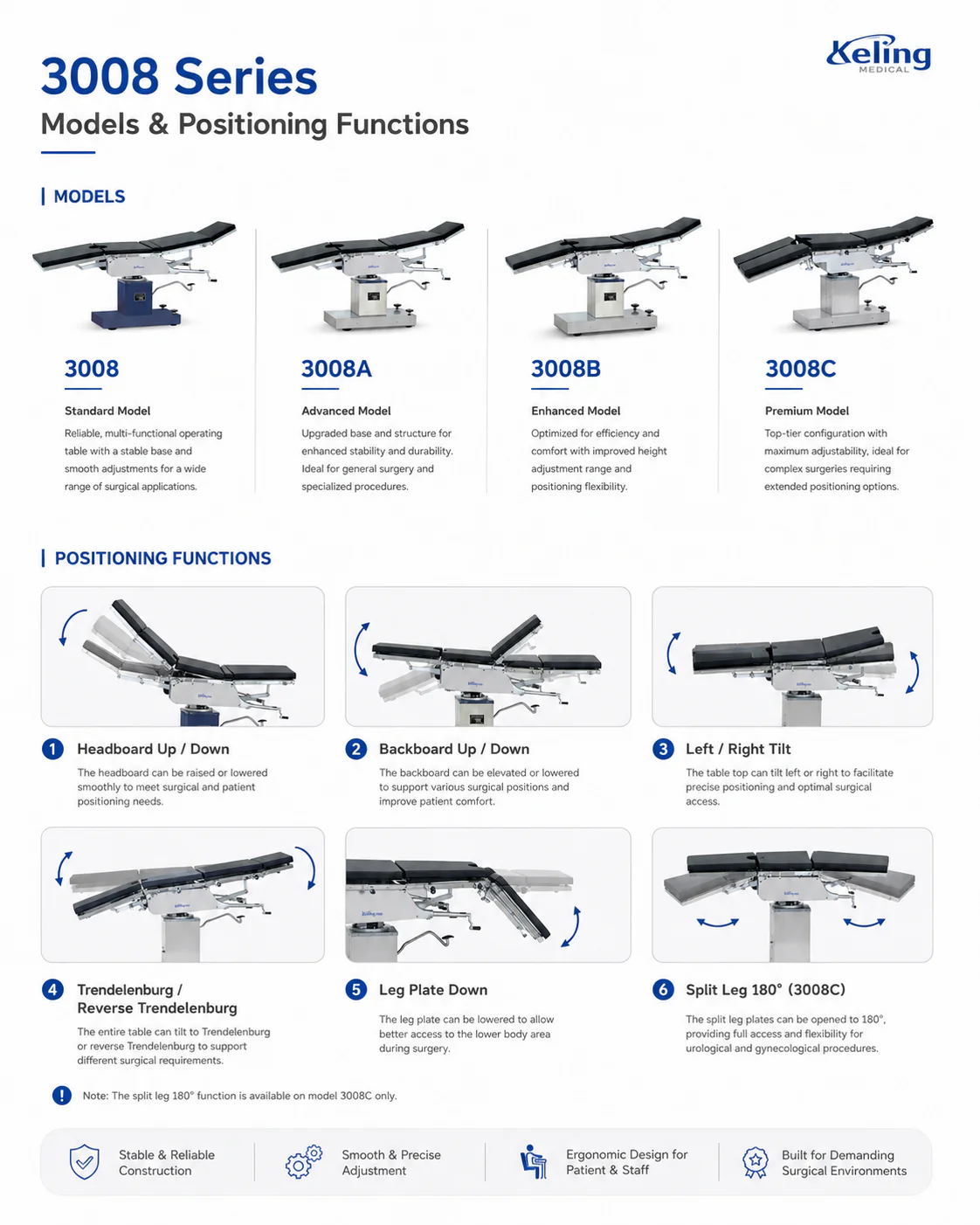

- Headboard / backboard / tilt / Trendelenburg functions — six standard positioning modes cover general, abdominal, thoracic and orthopaedic surgery needs.

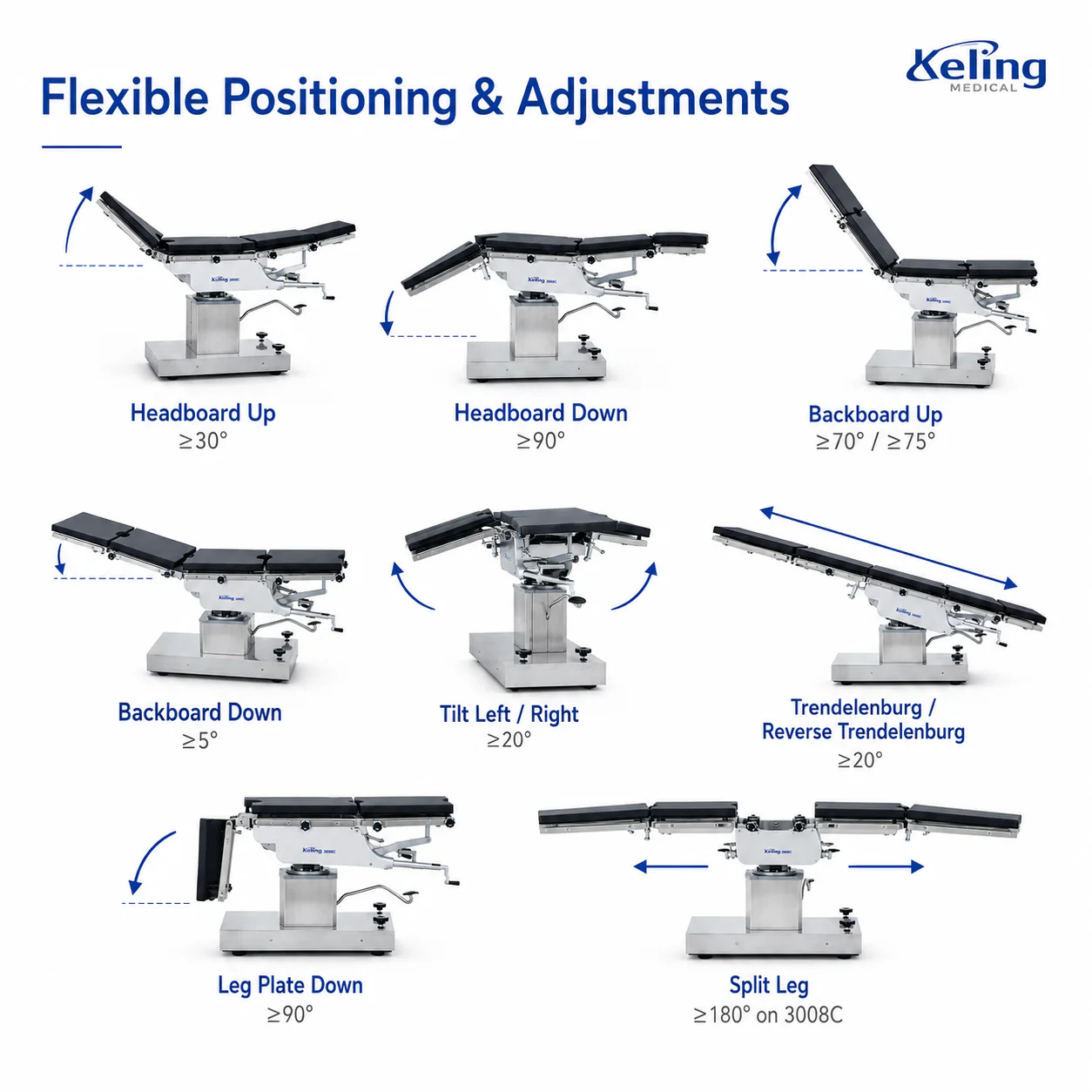

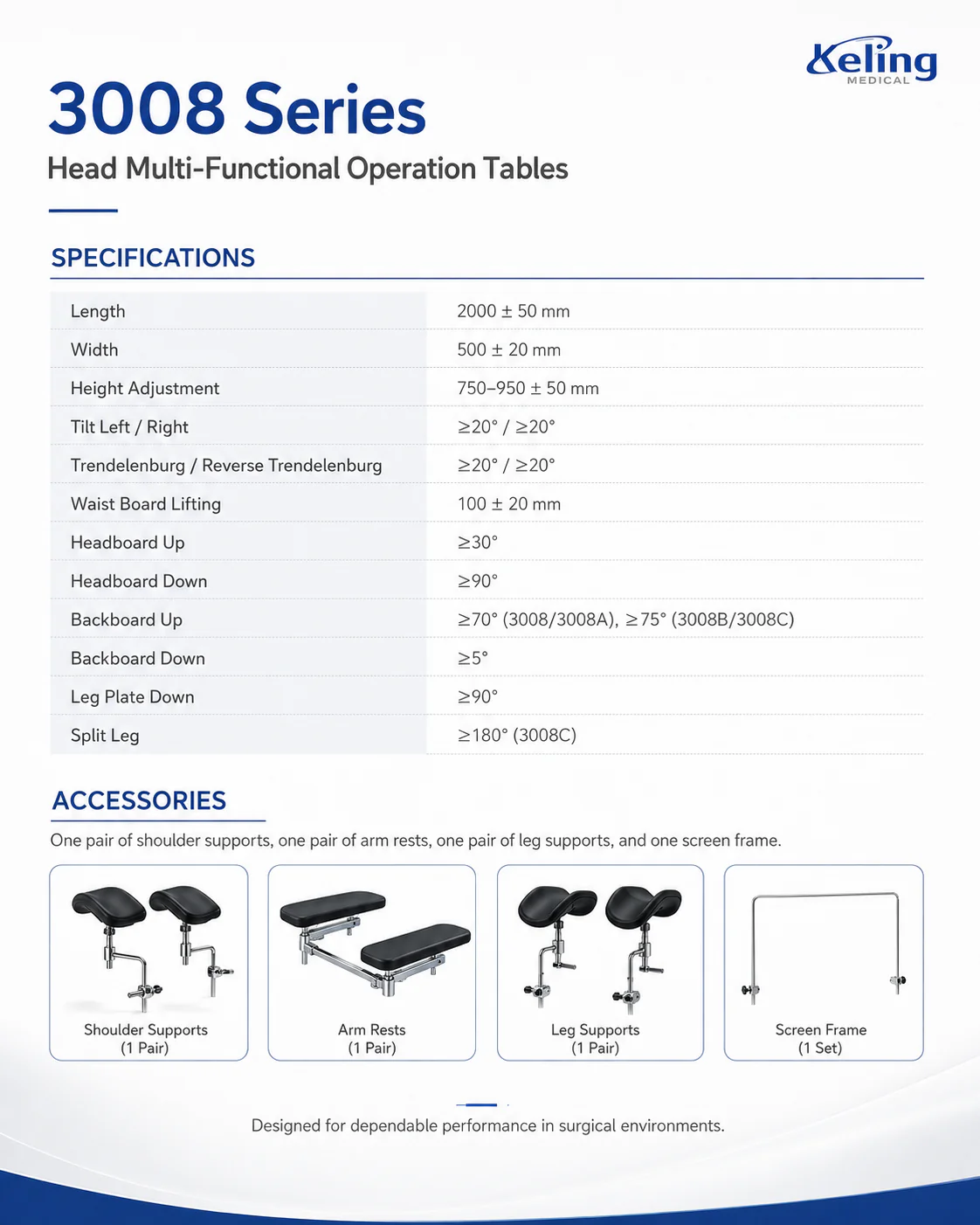

Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3008 / 3008A / 3008B / 3008C |
| Table width | 500 ± 50 mm |
| Height adjustment | (750–950) ± 50 mm |
| Tilt left / tilt right | ≥20° / ≥20° |
| Trendelenburg / Rev-Trend | ≥20° / ≥20° |
| Headboard upwards | ≥30° |
| Backboard upwards | ≥70° (3008); ≥70° (3008C) |
| Leg plate downwards | ≥90° |
| Leg plate split | ≥180° (3008C); ≥180° (3008C only) |
| Column material | 304 stainless steel (all models) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The 3008 Series is deployed across general surgery theatres, neurosurgical and ENT operating rooms, ophthalmic surgery centres, urology departments (3008C) and gynecology suites (3008C). The head-position control function makes these tables particularly effective for procedures where precise head and neck alignment is critical, including tonsillectomy, sinus surgery and thyroid operations.
