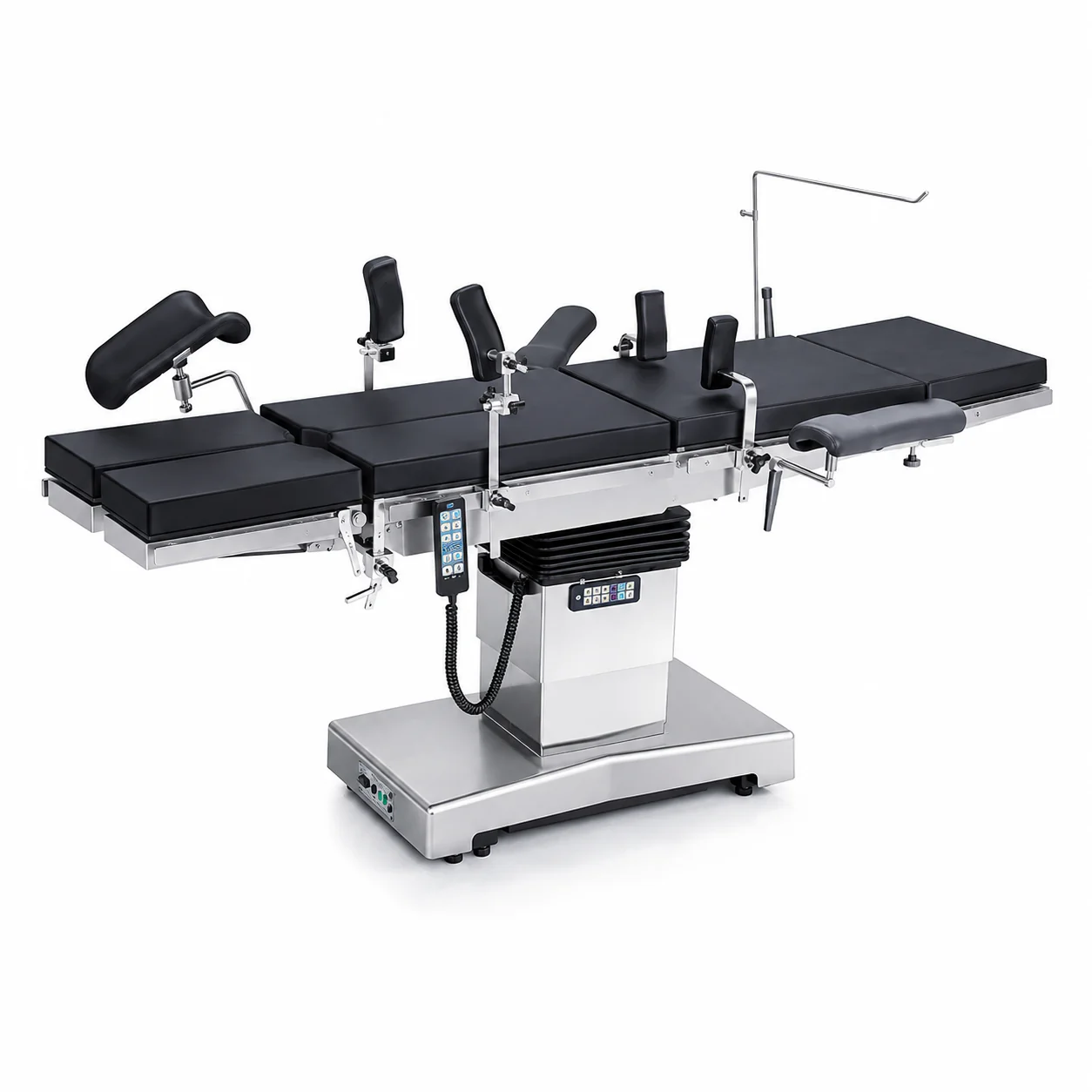

# DL·A Electric Operating Table — Full-Electric Multi-Position Surgical Platform
Quick answer: The Keling DL·A is a full-electric operating table with a length of 2000 ± 100 mm, height adjustment from 750 to 1000 mm (±50 mm), safe working load of ≥250 kg, Trendelenburg/reverse-Trendelenburg ≥18°/≥18°, lateral tilt ≥15°/≥15°, 350 ± 30 mm longitudinal table movement, and a power supply of 220V ± 22V 50Hz ± 1Hz. Manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling DL·A is a fully electric operating table with a safe working load of ≥250 kg.
- Table length is 2000 ± 100 mm and width is 520 ± 20 mm; height adjusts from 750 to 1000 mm (±50 mm).
- Trendelenburg and reverse Trendelenburg positions each reach ≥18°; lateral tilt is ≥15° in both directions.
- The DL·A provides 350 ± 30 mm of longitudinal tabletop movement, enabling patient repositioning without transfer.
- Headboard raises ≥40° and lowers ≥90°; backboard raises ≥70° and lowers ≥15°; leg plate abduction ≥180°.
- Lumbar lordosis "∧" angle is ≤150° and lumbar kyphosis "∨" angle is ≤120°, supporting spinal positioning needs.
Overview
The Keling DL·A electric operating table is a high-specification surgical platform designed for hospitals and surgical centres demanding precise, repeatable electric positioning across the full range of surgical specialties. Unlike mechanical or manual-hydraulic tables, the DL·A uses electric motor drives for every major positioning function, controlled through a hand-held remote controller and an integrated control panel mounted on the table — reducing the physical effort required from the surgical team and enabling fine intraoperative adjustments without disrupting the sterile field.
At 2000 ± 100 mm in length with a 520 ± 20 mm table width and a 750–1000 mm height range, the DL·A accommodates a broad patient population while delivering the vertical clearance needed for C-arm access and instrument manipulation beneath the table. The 350 mm longitudinal slide function permits the patient to be repositioned along the table axis for different operative phases without a patient transfer, improving both efficiency and safety.

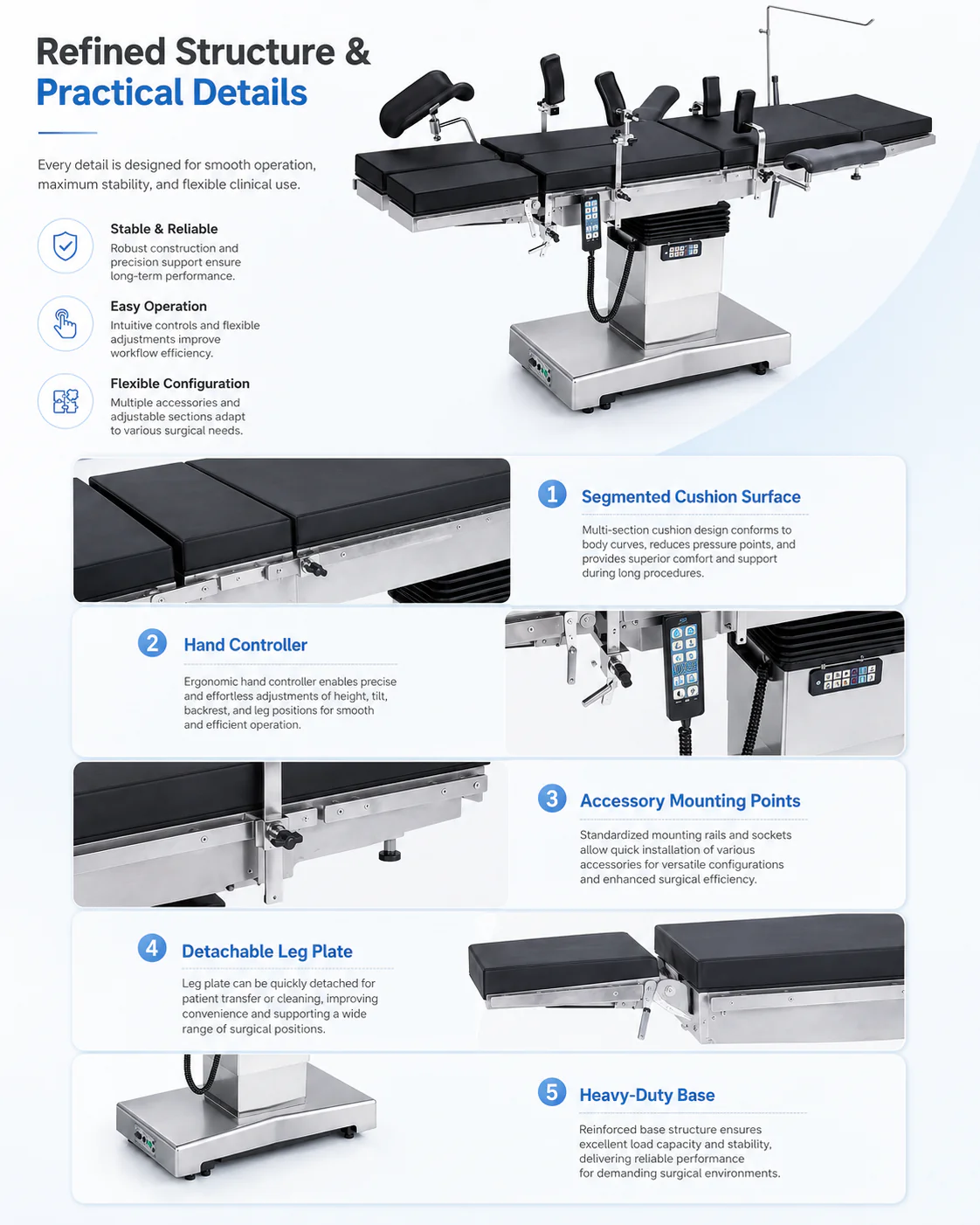

A segmented, modular tabletop design with radiolucent sections allows flexible configuration and straightforward adaptation to imaging workflows. The robust base structure ensures excellent stability under load, with the safe working capacity of ≥250 kg meeting the requirements of bariatric surgical cases. Input power is 300 ± 10% VA on a 220V ± 22V, 50Hz ± 1Hz supply.

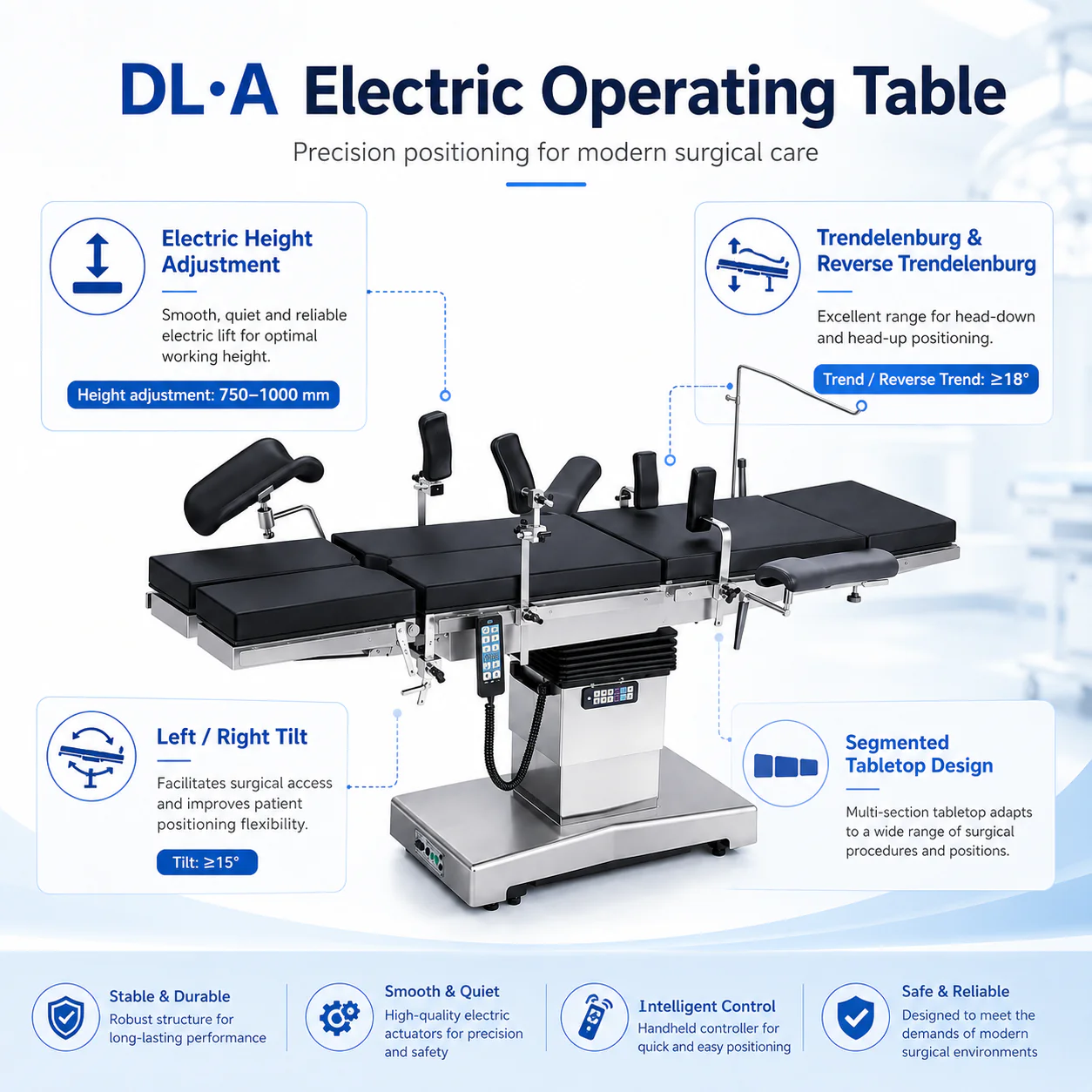

Key Features
- Full electric height adjustment — smooth, quiet electric lifting from 750 mm to 1000 mm for optimal surgical access and ergonomics.
- Longitudinal table movement — 350 ± 30 mm of powered longitudinal slide repositions the patient along the table axis without transfer.

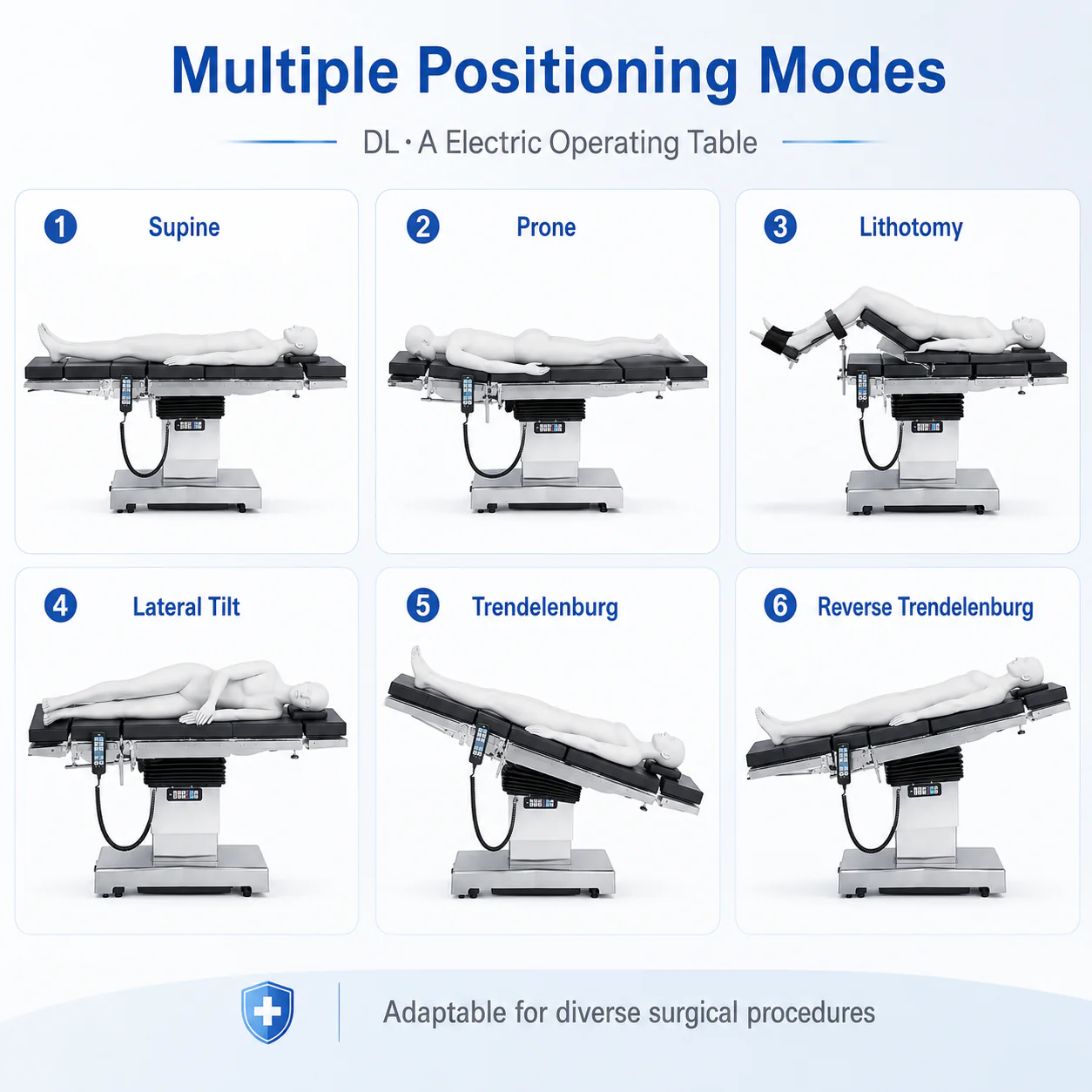

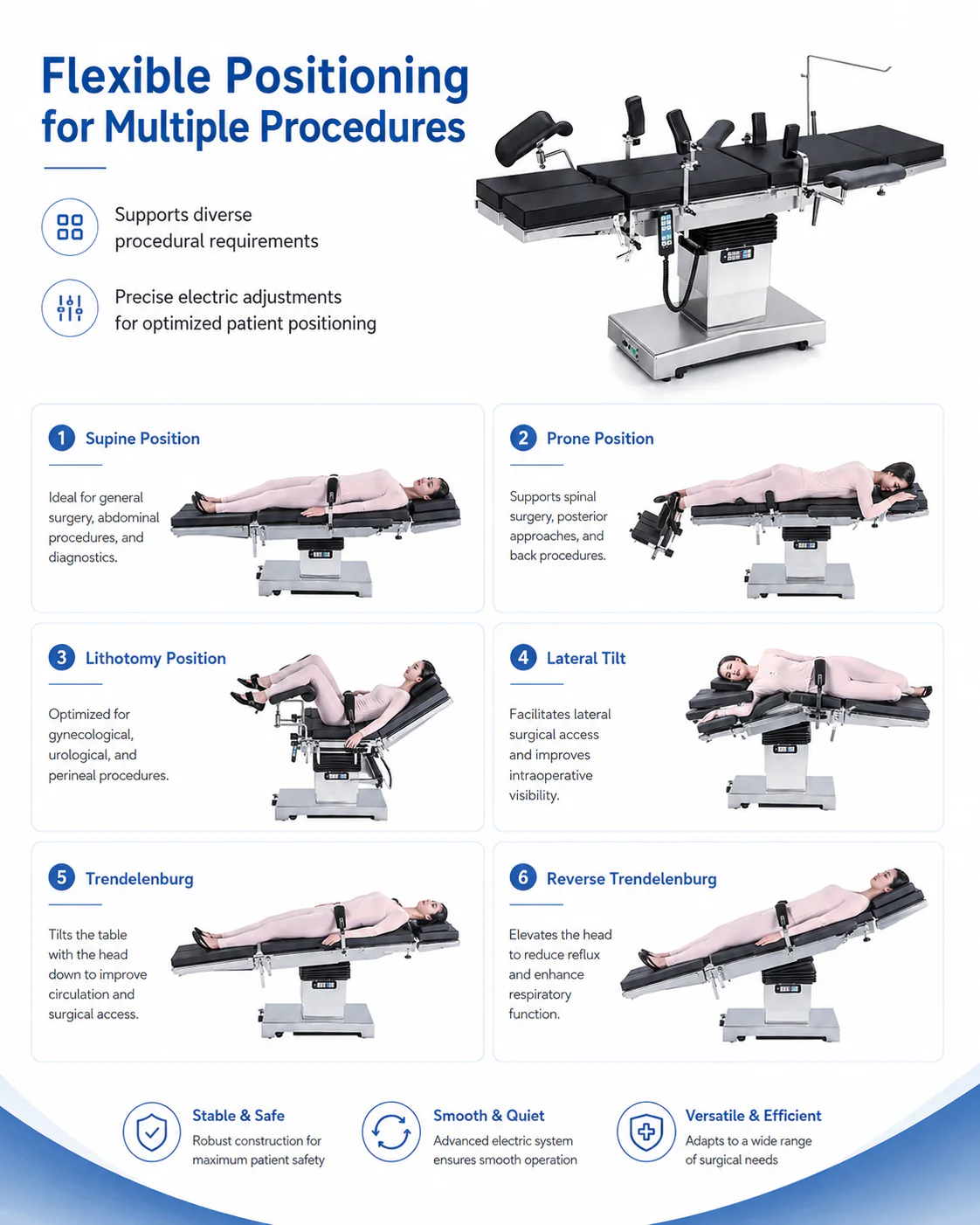

- Multi-angle positioning — Trendelenburg (≥18°), reverse Trendelenburg (≥18°), lateral tilt (≥15°/≥15°), headboard, backboard and leg plate adjustments supported.
- Lumbar positioning — lordosis "∧" up to 150° and kyphosis "∨" up to 120° for spinal and orthopaedic procedure support.
- Safe working load ≥250 kg — high capacity base accommodates bariatric and complex surgical cases.
- Segmented radiolucent tabletop — modular sections allow easy adaptation to imaging needs and fluoroscopy workflows.

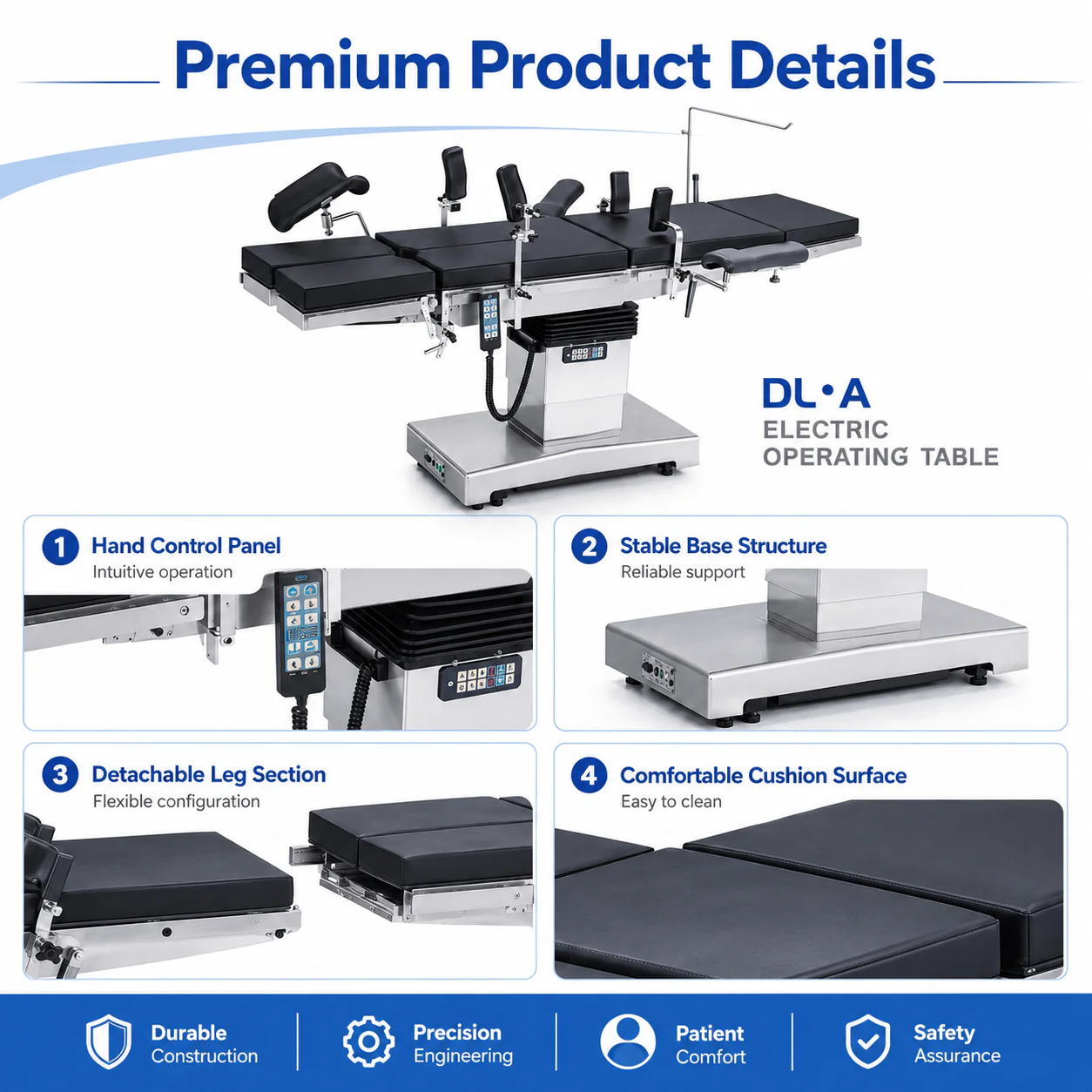

- Intuitive control interface — hand-held remote controller and integrated control panel simplify operation for any team member.

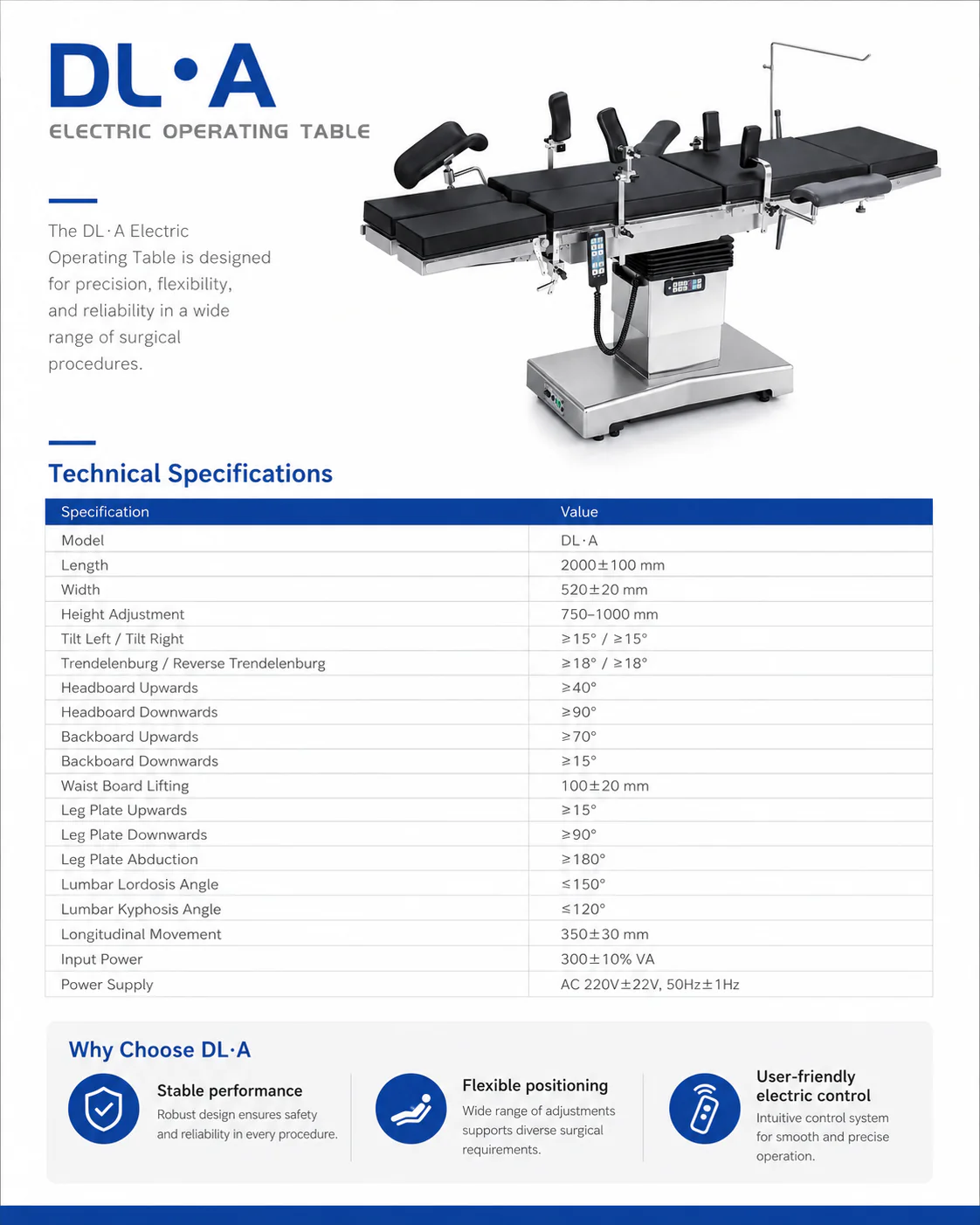

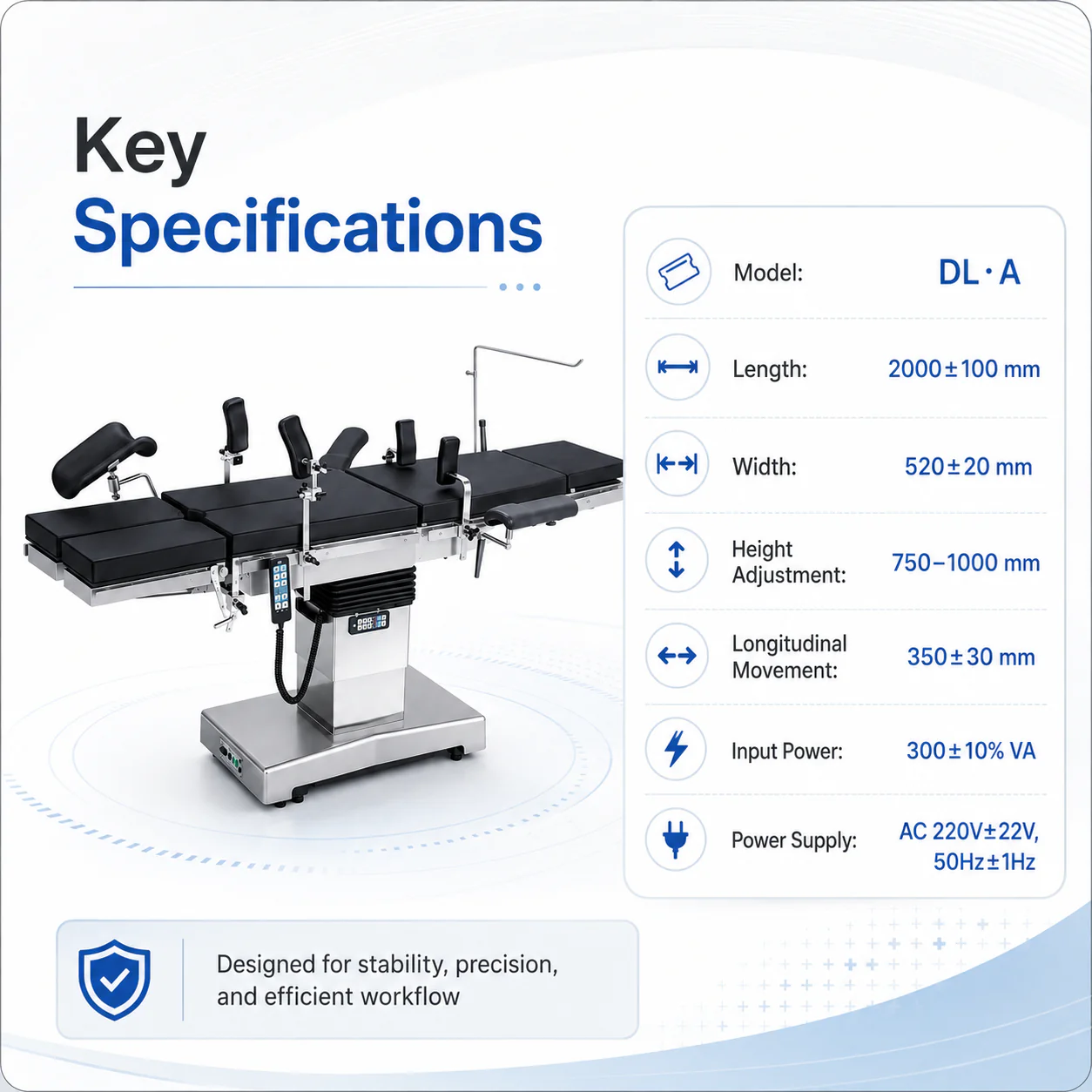

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DL·A |
| Length | 2000 ± 100 mm |
| Width | 520 ± 20 mm |
| Height adjustment | (750–1000) ± 50 mm |
| Tilt left / tilt right | ≥15° / ≥15° |
| Trendelenburg / Rev-Trend | ≥18° / ≥18° |
| Headboard upwards | ≥40° |
| Headboard downwards | ≥90° |
| Backboard upwards | ≥70° |
| Backboard downwards | ≥15° |
| Waist board lifting | 100 ± 20 mm |
| Leg plate upwards | ≥15° |
| Leg plate downwards | ≥90° |
| Leg plate abduction | ≥180° |
| Lumbar lordosis angle "∧" | ≤150° |
| Lumbar kyphosis angle "∨" | ≤120° |
| Longitudinal movement | 350 ± 30 mm |
| Safe working load | ≥250 kg |
| Input power VA | 300 ± 10% |
| Power supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

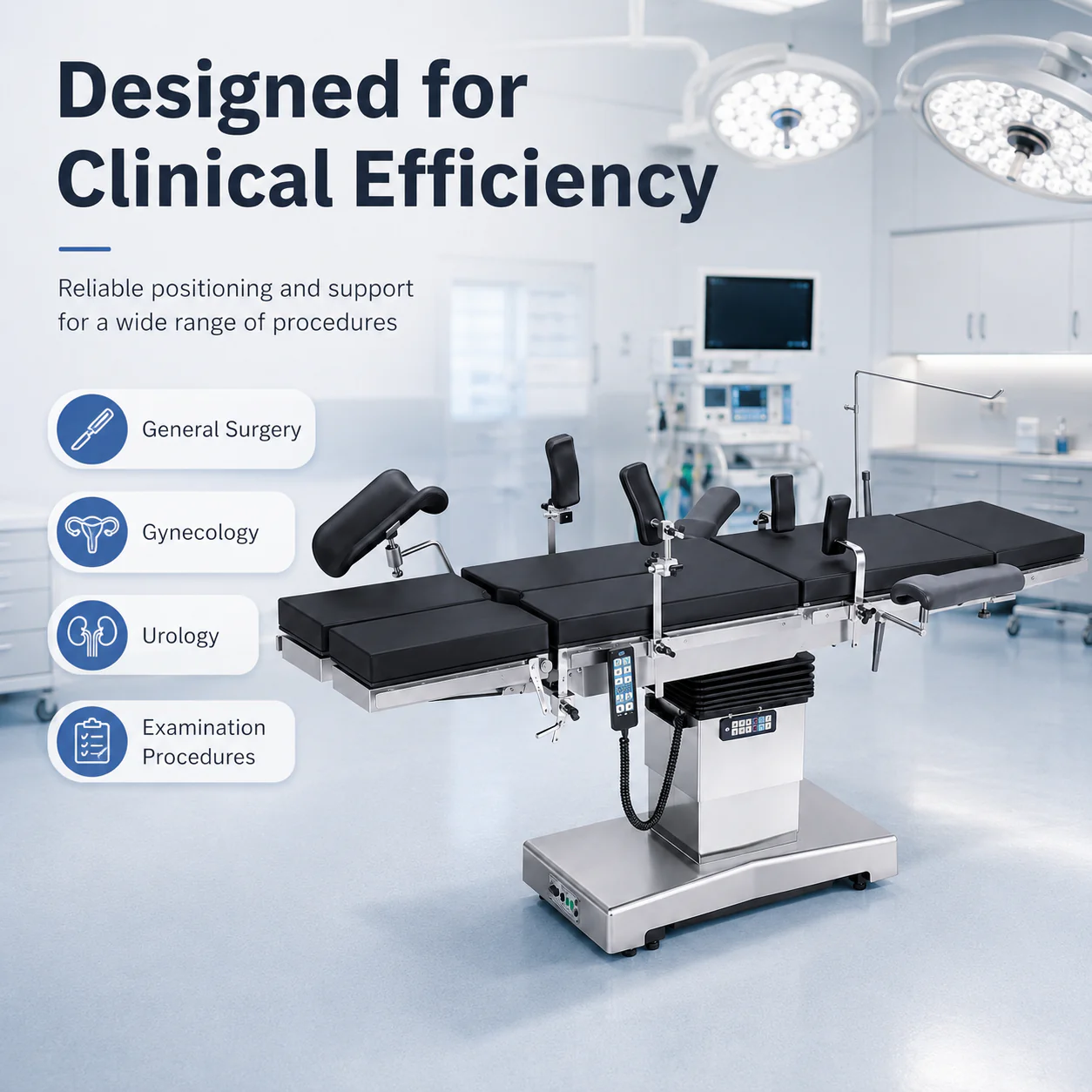

The DL·A electric operating table serves general surgery, abdominal surgery, thoracic surgery, orthopaedics, urology, gynecology, neurosurgery and vascular surgery operating theatres. Its electric longitudinal movement and imaging-compatible tabletop are particularly valued in orthopaedic and trauma centres where intraoperative fluoroscopy is routine. The high load capacity makes it appropriate for bariatric surgical programmes.
