# 3009A, 3009C & 3009D Operation Tables — Hydraulic Pneumatic Surgical Positioning
Quick answer: The Keling 3009A, 3009C and 3009D are hydraulic pneumatic operating tables with a 1000 × 530 mm tabletop, height adjustment from approximately 740–950 mm, Trendelenburg/reverse-Trendelenburg positioning, 304 stainless steel construction and X-ray-compatible carbon plastic table surfaces. Manufactured by Keling Medical (Keling Medical) for hospitals and medical distributors worldwide.
Quick Facts

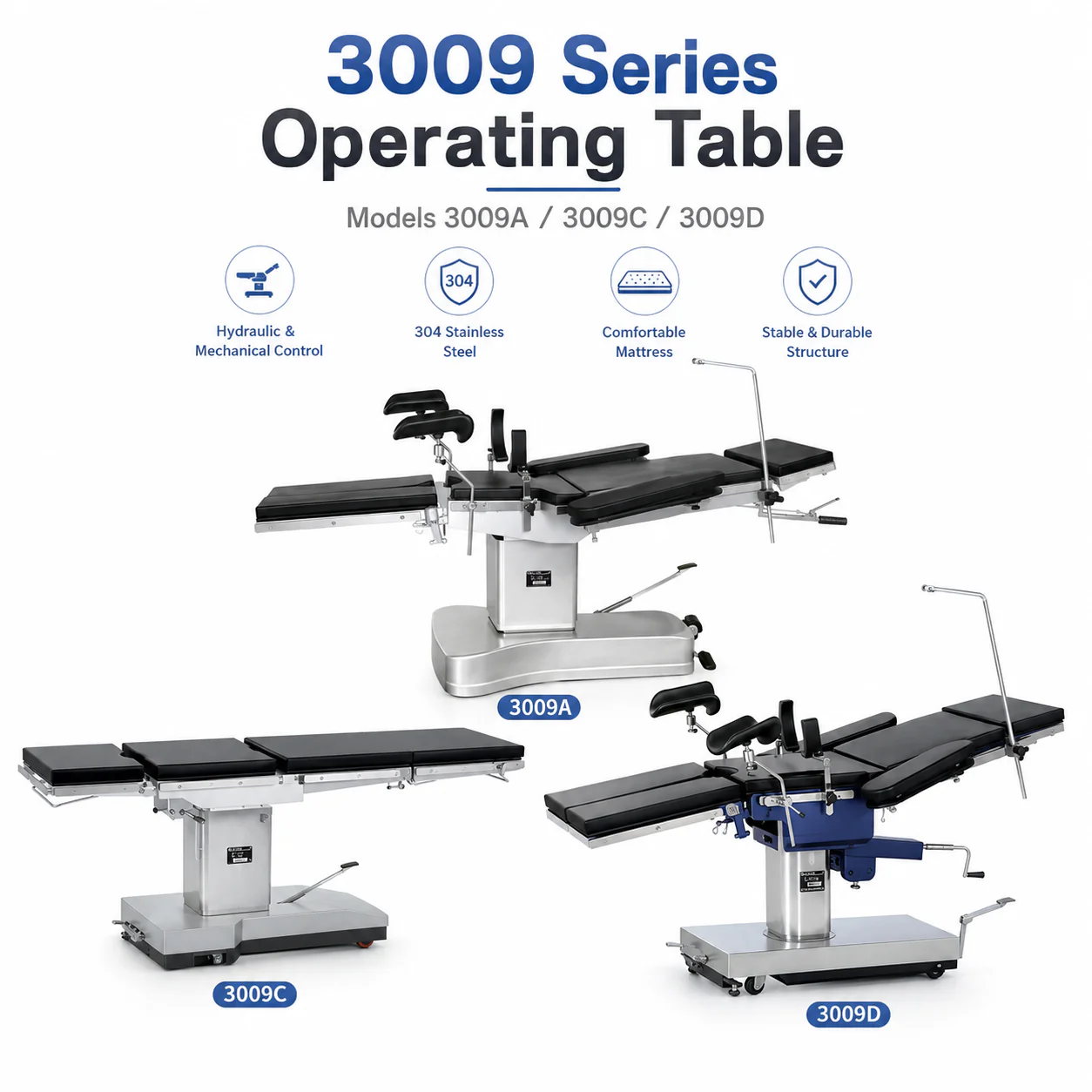

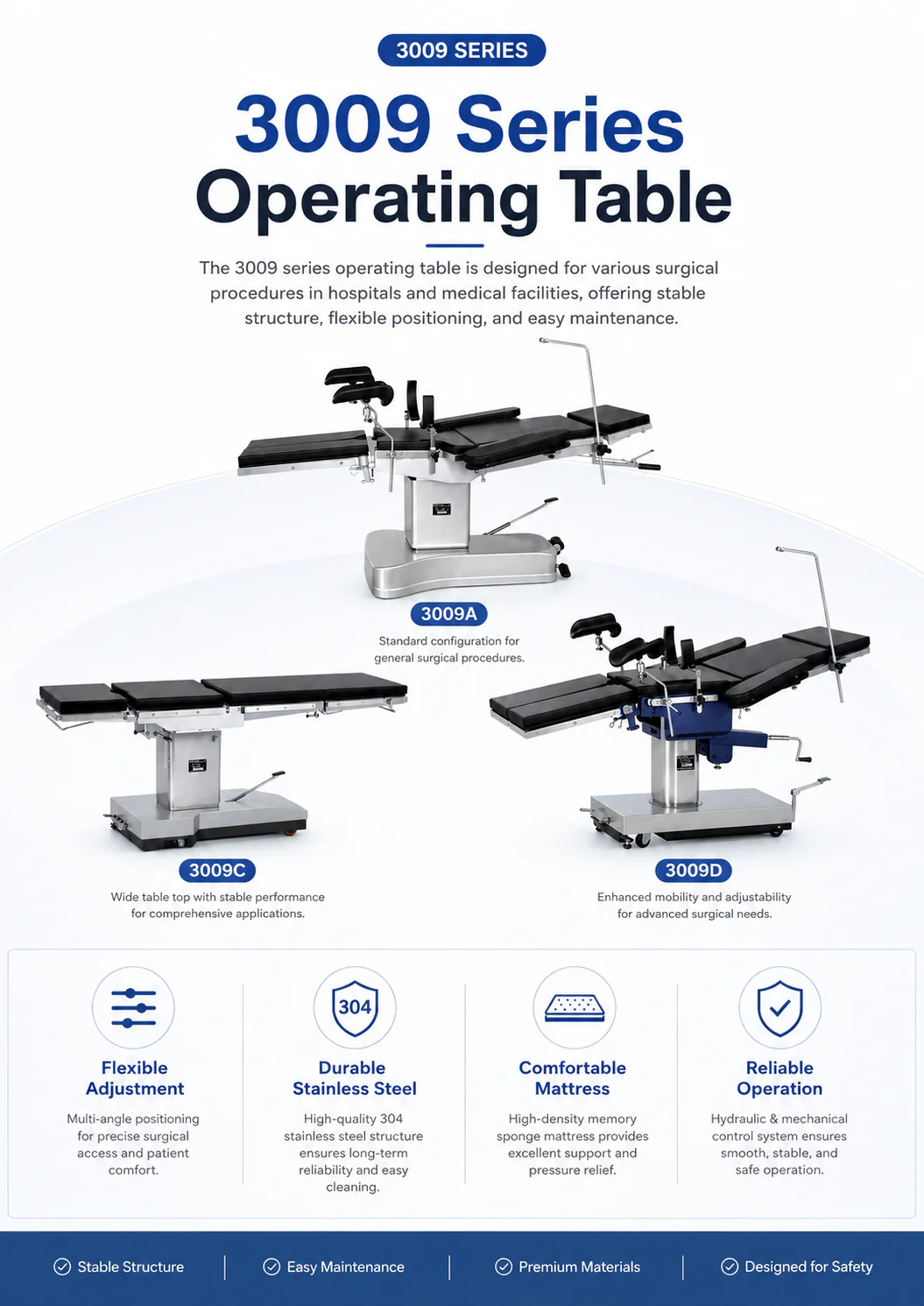

- The Keling 3009 Series comprises three models: 3009A (standard configuration), 3009C (wide tabletop for comprehensive applications) and 3009D (enhanced mobility and adjustability).
- All movements are controlled by a hydraulic pneumatic system for smooth, precise and reliable operation.
- The tabletop is made of imported carbon plastic material, providing X-ray transparency for intraoperative imaging.
- 304 stainless steel is used for the base and upright column covers across all three models.
- A high-density memory sponge mattress is fitted as standard, providing excellent patient support and pressure relief.
- The 3009 Series is manufactured by Keling Medical, a Jiangsu-based surgical equipment producer operating since 1996.
Overview
The Keling 3009A, 3009C and 3009D operation tables are hydraulic pneumatic surgical platforms designed for a broad range of procedures conducted by hospitals and medical facilities. Using a hydraulic pneumatic control system, all table movements are executed smoothly and precisely without the operator effort required by pure mechanical tables, improving workflow efficiency during complex case positioning.

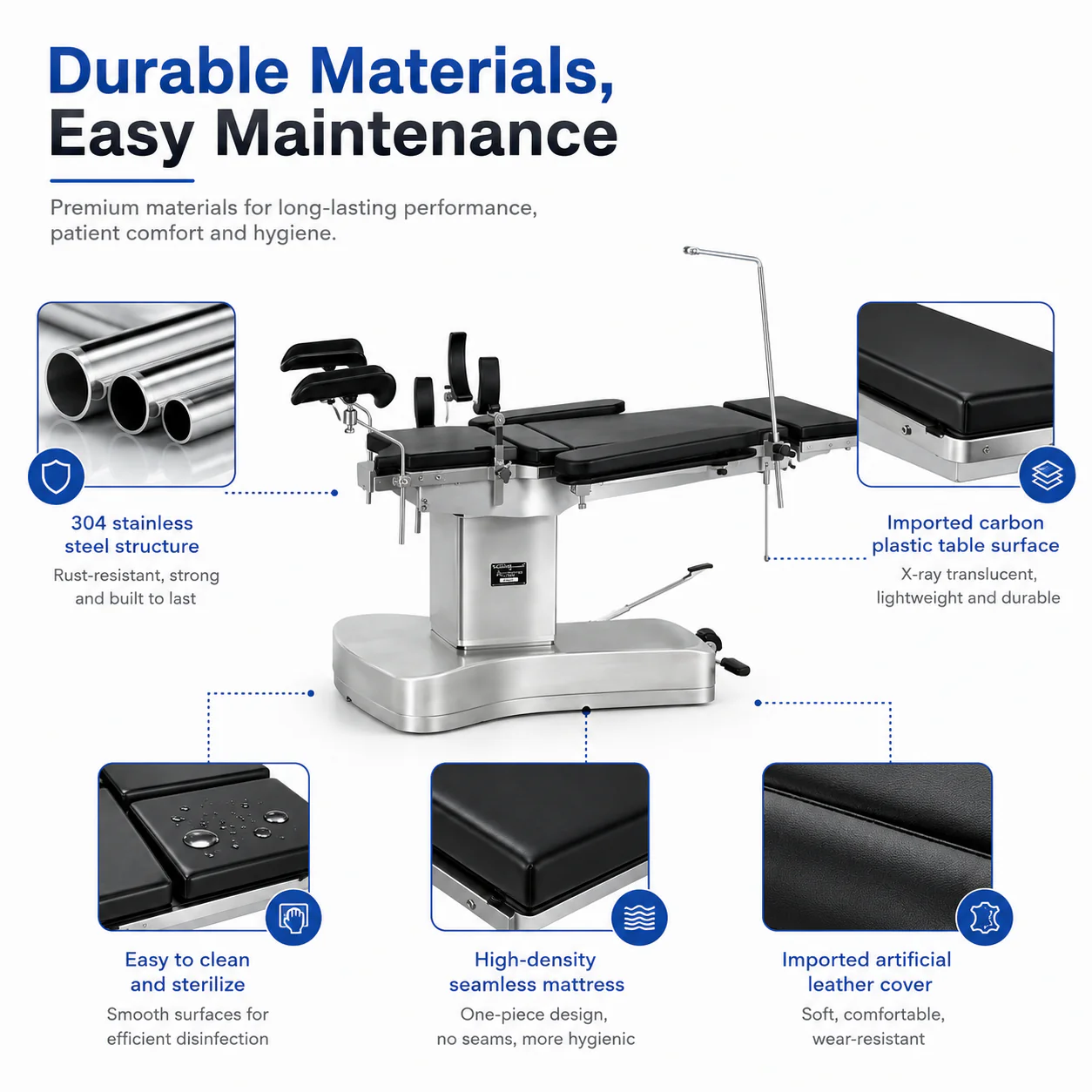

Each model in the series shares a 304 stainless steel structural base and side rails, combining excellent corrosion resistance with straightforward decontamination between cases. The imported carbon plastic table surface is X-ray transparent, allowing intraoperative fluoroscopy and C-arm imaging without moving the patient — a practical advantage for orthopaedic, urological and vascular procedures. A high-density seamless memory sponge mattress provides comfortable, pressure-relieving patient support throughout even lengthy procedures.

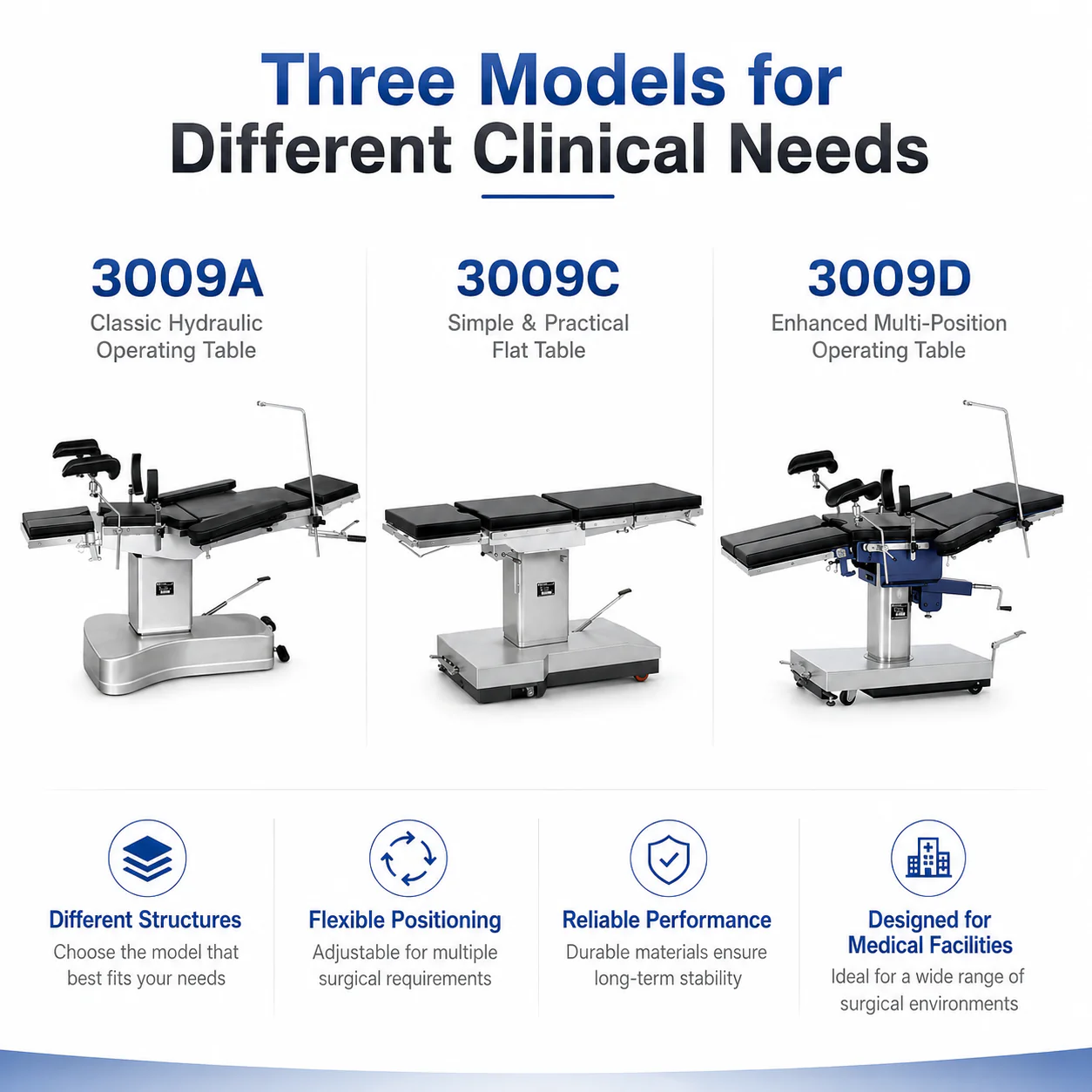

The three models serve distinct clinical priorities: the 3009A delivers standard positioning for general surgical programmes; the 3009C provides a wider table platform for comprehensive applications where patient size or procedure complexity demand greater surface area; and the 3009D adds enhanced mobility and extended adjustability for advanced surgical needs. All models are equipped with an imported Y-type sealing ring for durable hydraulic sealing and a foot-operated brake device for convenient repositioning.

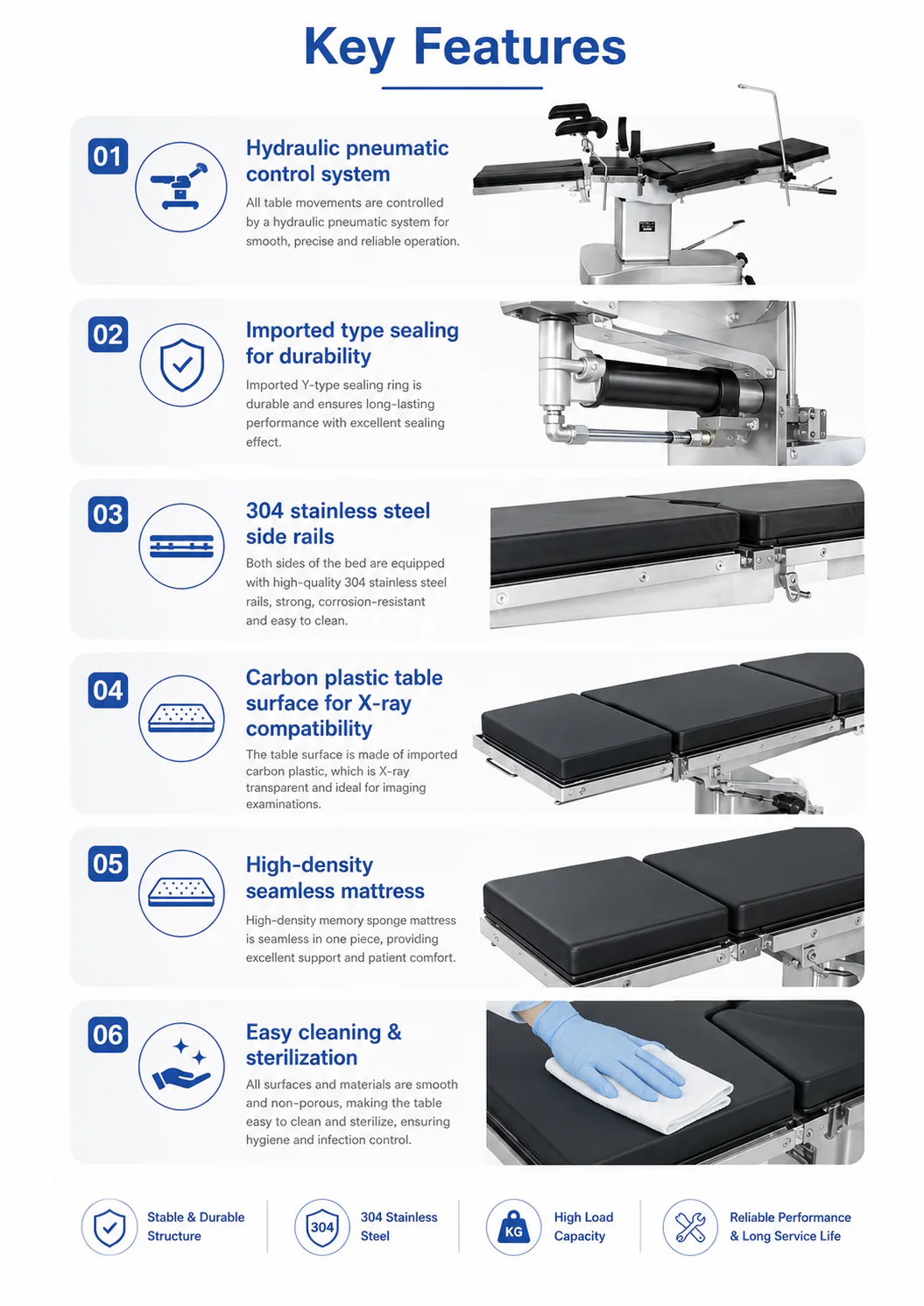

Key Features
- Hydraulic pneumatic control — all table movements controlled by a hydraulic pneumatic system for smooth, stable and precise operation without excessive manual effort.
- Carbon plastic X-ray-compatible tabletop — imported carbon plastic surface is transparent to X-rays and C-arm imaging, enabling intraoperative fluoroscopy without patient transfer.
- 304 stainless steel construction — base, column and side rails in high-quality 304 stainless steel for corrosion resistance, hygiene and easy cleaning.
- High-density seamless mattress — one-piece memory sponge mattress provides excellent pressure relief and patient comfort during extended procedures.
- Imported Y-type sealing ring — durable hydraulic seal with excellent sealing effect and long service life.

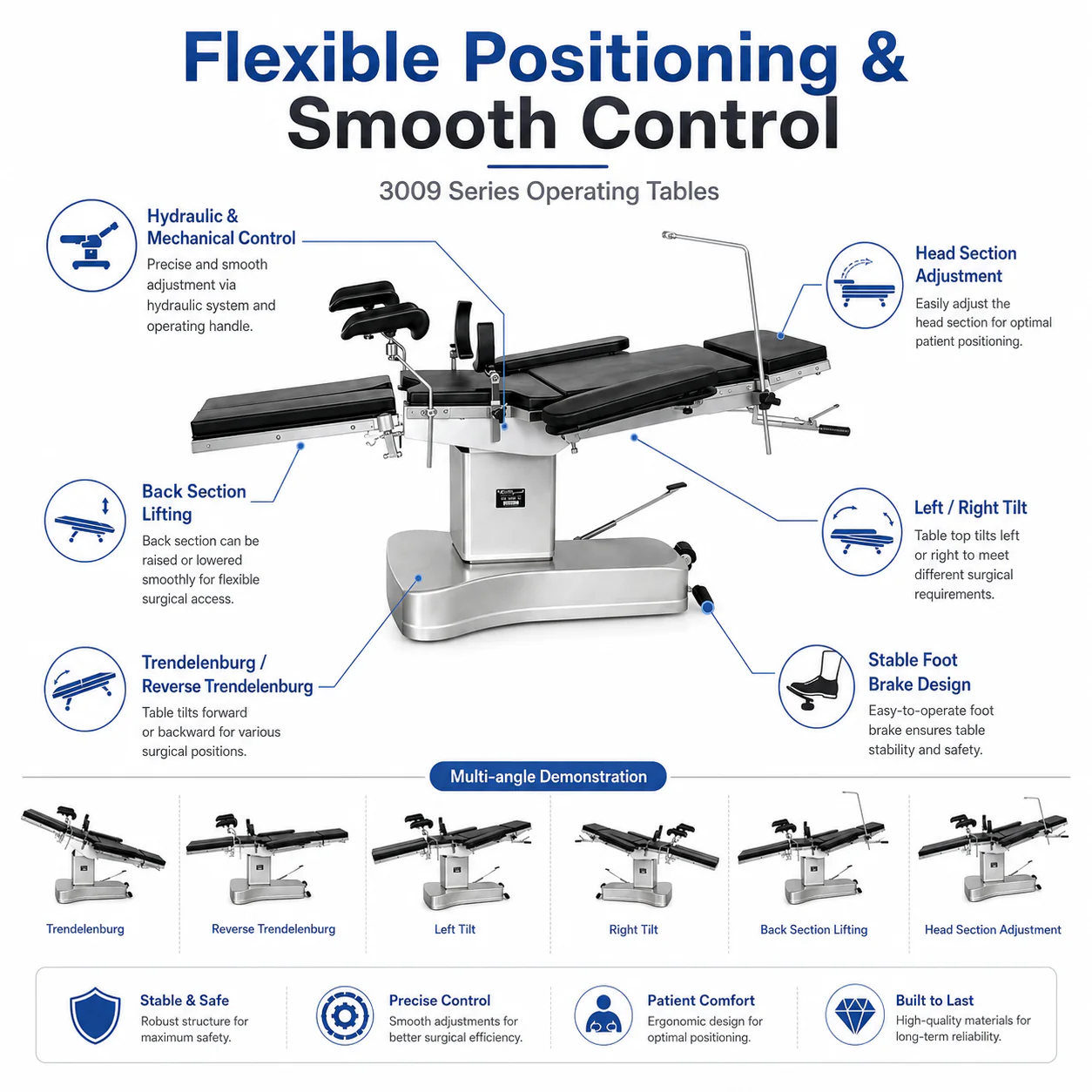

- Multiple positioning functions — Trendelenburg, reverse Trendelenburg, lateral tilt, headboard, backboard, waist board and leg plate adjustments cover the full range of surgical positions.
- Foot-operated brake device — convenient hands-free table locking for safe positioning and easy manoeuvring.
Technical Specifications
| Parameter | 3009A | 3009C | 3009D |
|---|---|---|---|
| Table length | 1000 × 530 mm | 1000 × 530 mm | 1000 × 530 mm |
| Height adjustment | 740–950 ± 50 mm | 750–950 ± 50 mm | 750–950 ± 50 mm |
| Tilt left / tilt right | ≥15° / ≥15° | ≥15° / ≥15° | ≥15° / ≥15° |
| Trendelenburg / Rev-Trend | ≥15° / ≥10° | ≥15° / ≥10° | ≥15° / ≥10° |
| Headboard downwards | ≥40° | ≥40° | ≥40° |
| Backboard downwards | ≥15° | ≥15° | ≥15° |
| Leg plate downwards | ≥40° | ≥40° | ≥40° |
| Lumbar lordosis angle "∧" | ≤130° | ≤130° | ≤130° |
| Bear loading | 150 kg | 150 kg | 150 kg |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

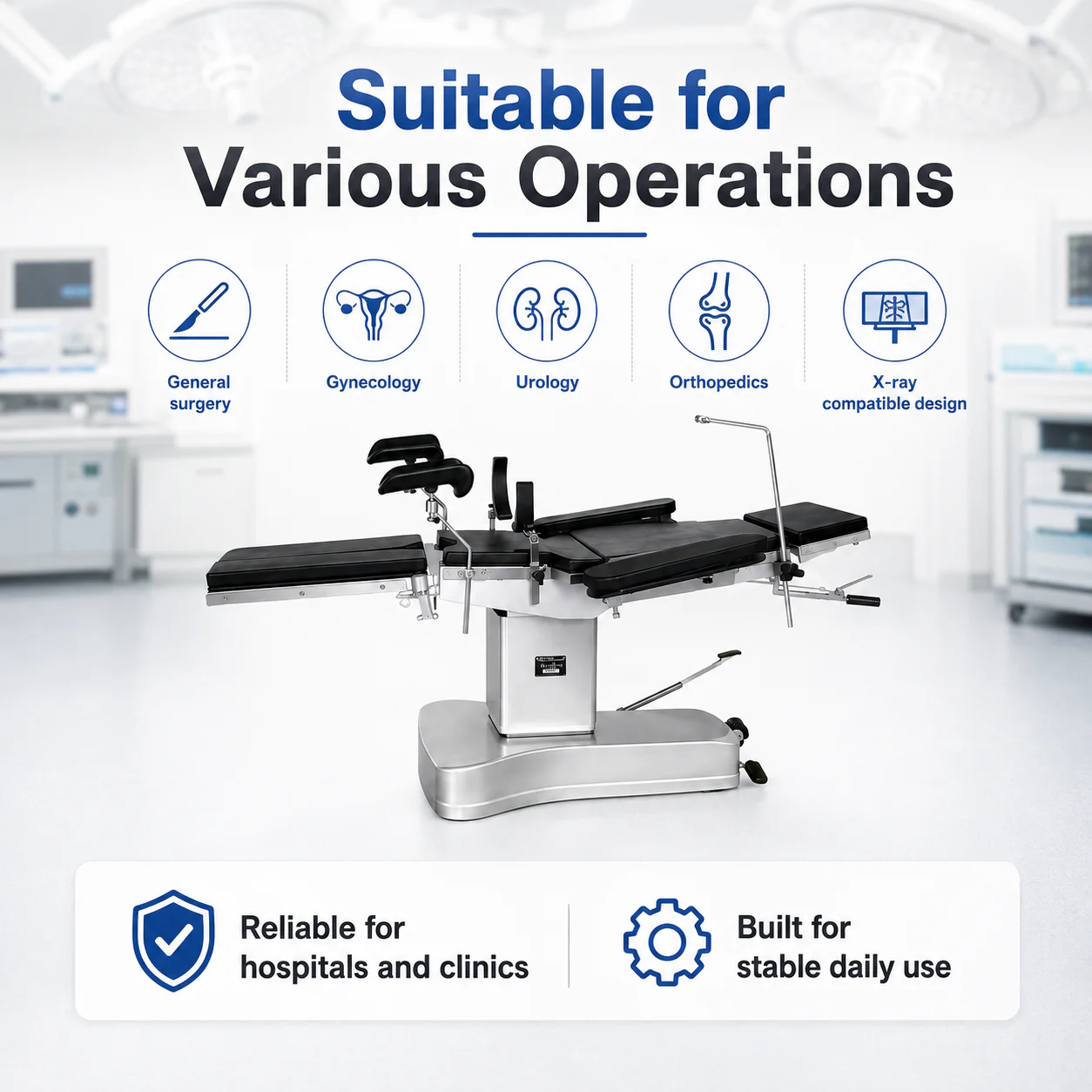

Applications
The 3009A, 3009C and 3009D operation tables are used across general surgery, abdominal surgery, orthopaedic surgery (with fluoroscopy benefit), urology and vascular surgery operating rooms in hospitals, day surgery centres and private surgical clinics. The X-ray-compatible tabletop extends their utility to procedures requiring intraoperative imaging without patient repositioning.
