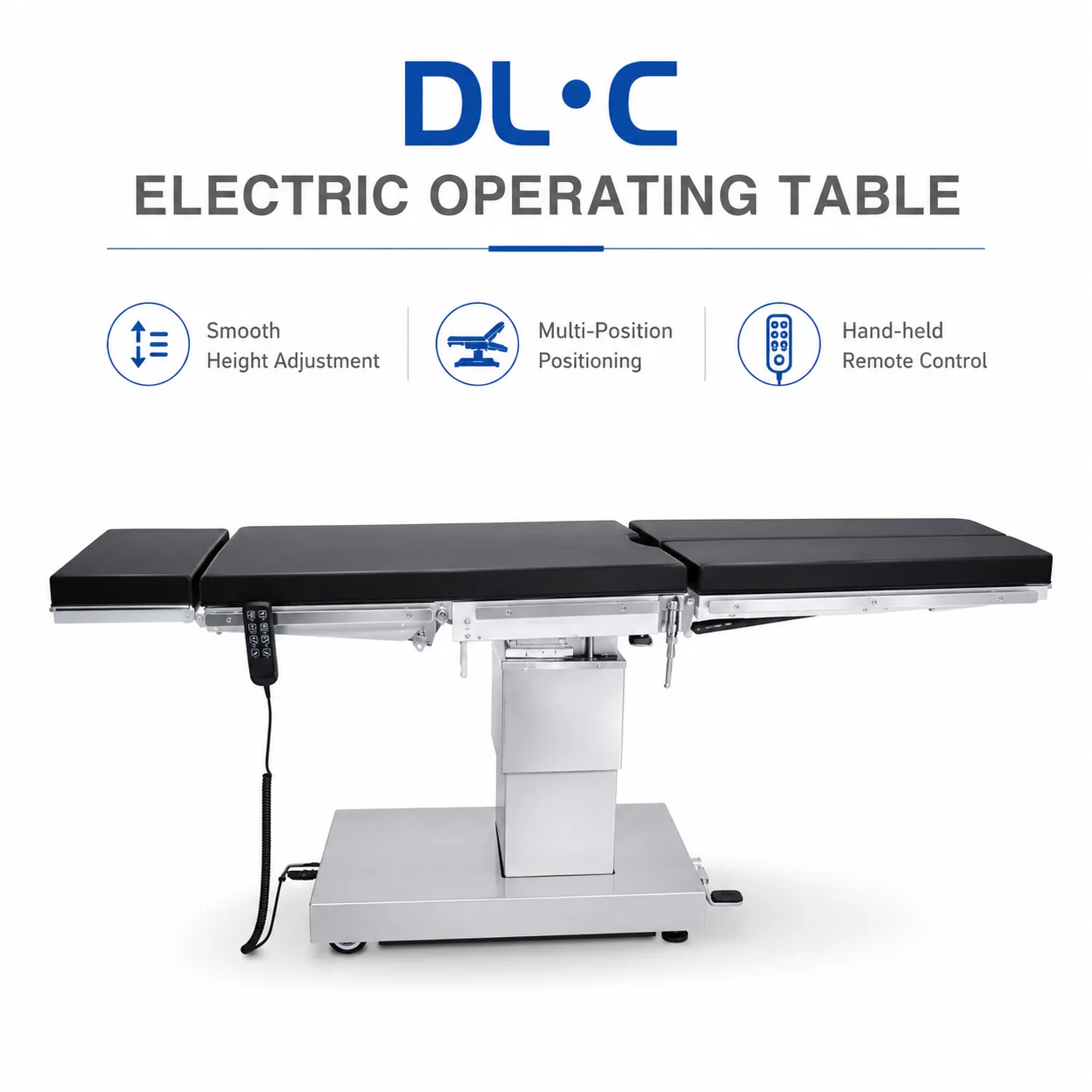

# DL·C Electric Operating Table — Electric Hydraulic Surgical Platform with Split Leg Plate
Quick answer: The Keling DL·C is an electric hydraulic operating table measuring 2000 ± 100 mm long × 500 ± 20 mm wide with height adjustment from 750 to 1000 mm (±50 mm), Trendelenburg/reverse-Trendelenburg ≥15°/≥15°, lateral tilt ≥15°/≥15°, headboard upward ≥50°/downward ≥90°, leg plate abduction ≥180°, hand-held remote controller and a power supply of 220V ± 22V 50Hz ± 1Hz. Manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling DL·C is a fully electric operating table with length 2000 ± 100 mm and width 500 ± 20 mm.

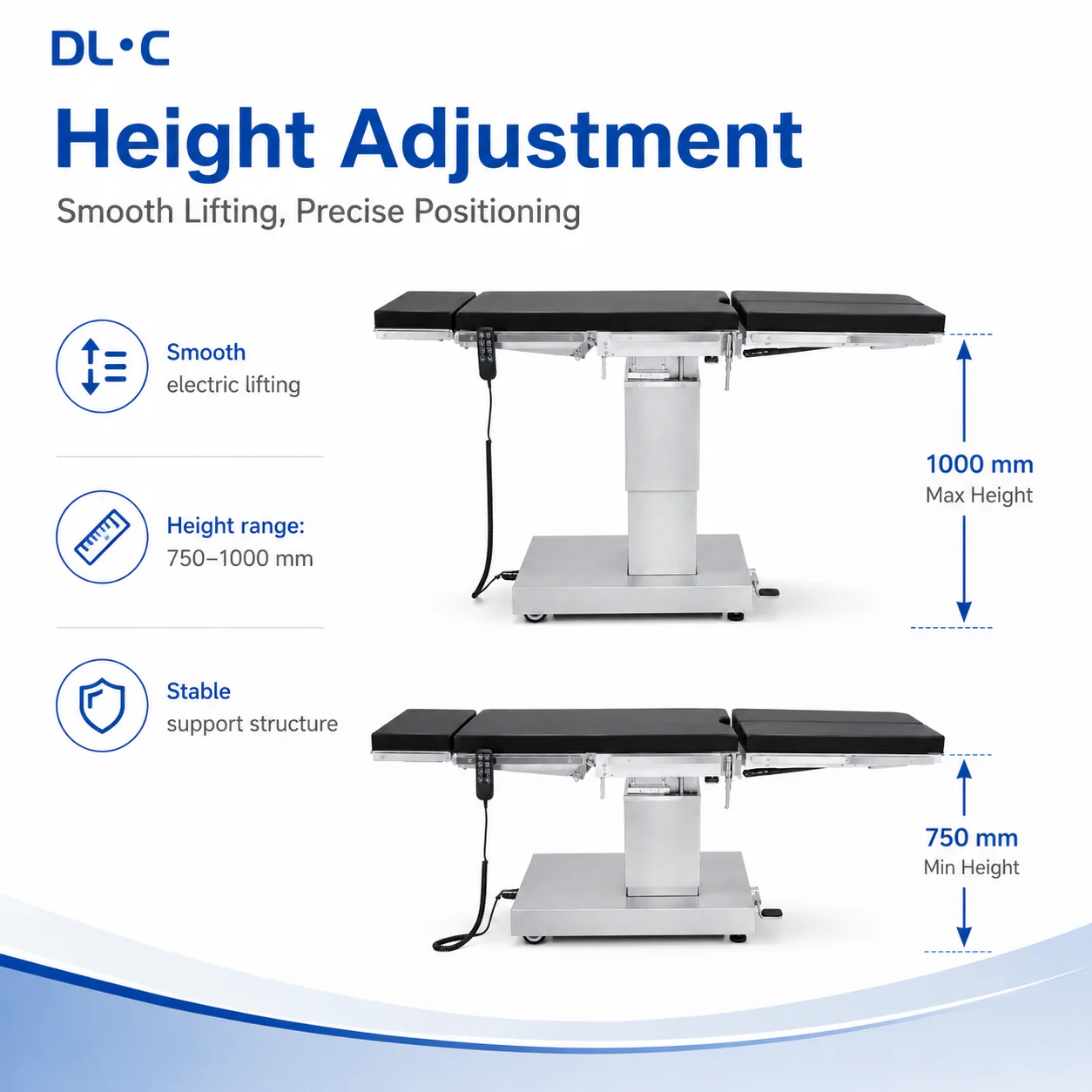

- Height adjusts from 750 mm to 1000 mm (±50 mm) via electric motor with smooth, quiet lifting.

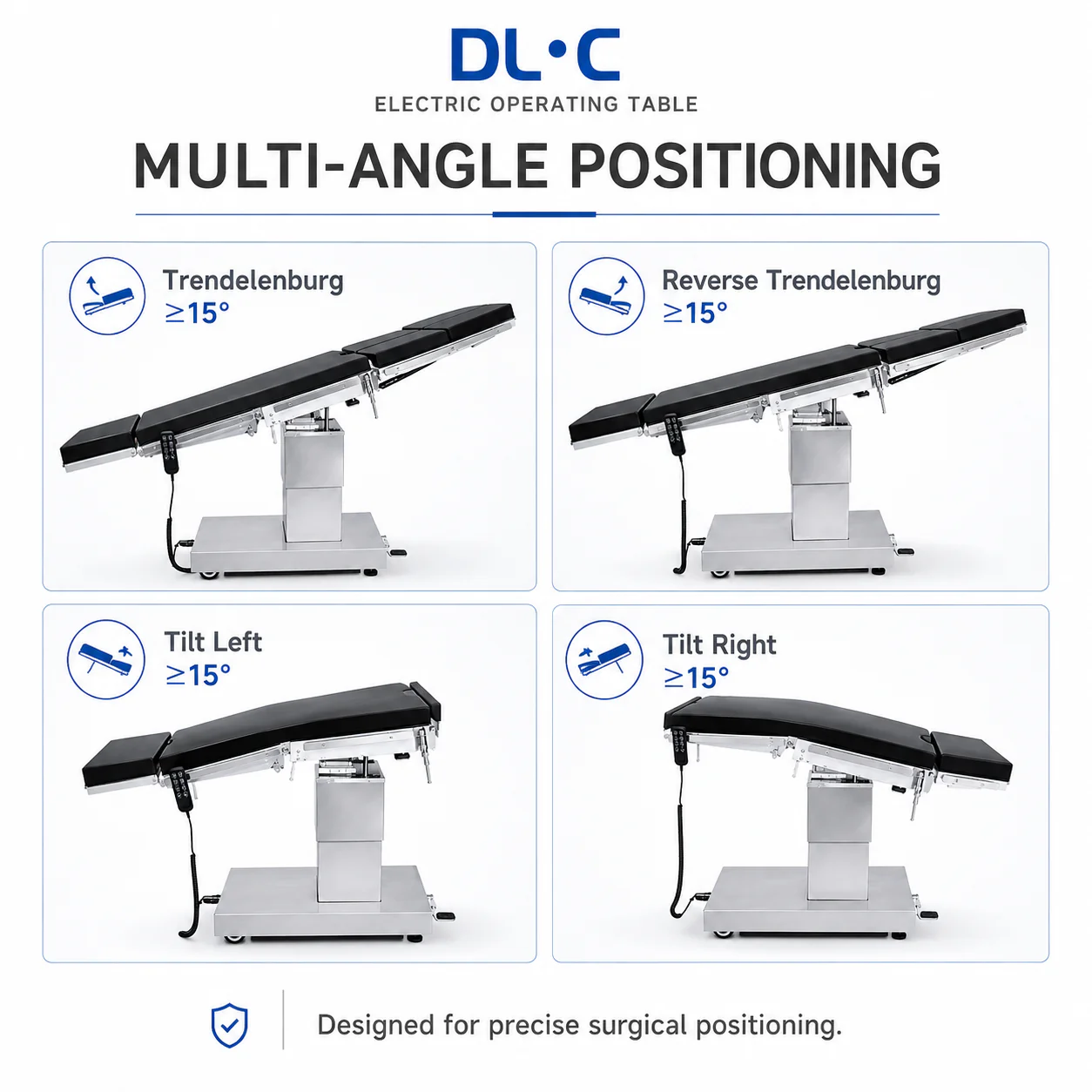

- Lateral tilt is ≥15° each side; Trendelenburg and reverse Trendelenburg both ≥15°.
- The headboard tilts upward ≥50° and downward ≥90°; backboard upward ≥70° and downward ≥30°.
- Split leg plate abducts ≥180°, enabling full lithotomy access for gynecological and urological surgery.
- Lumbar lordosis "∧" is ≤150° and lumbar kyphosis "∨" is ≤120°; waist board lifting is 100 ± 20 mm.
Overview

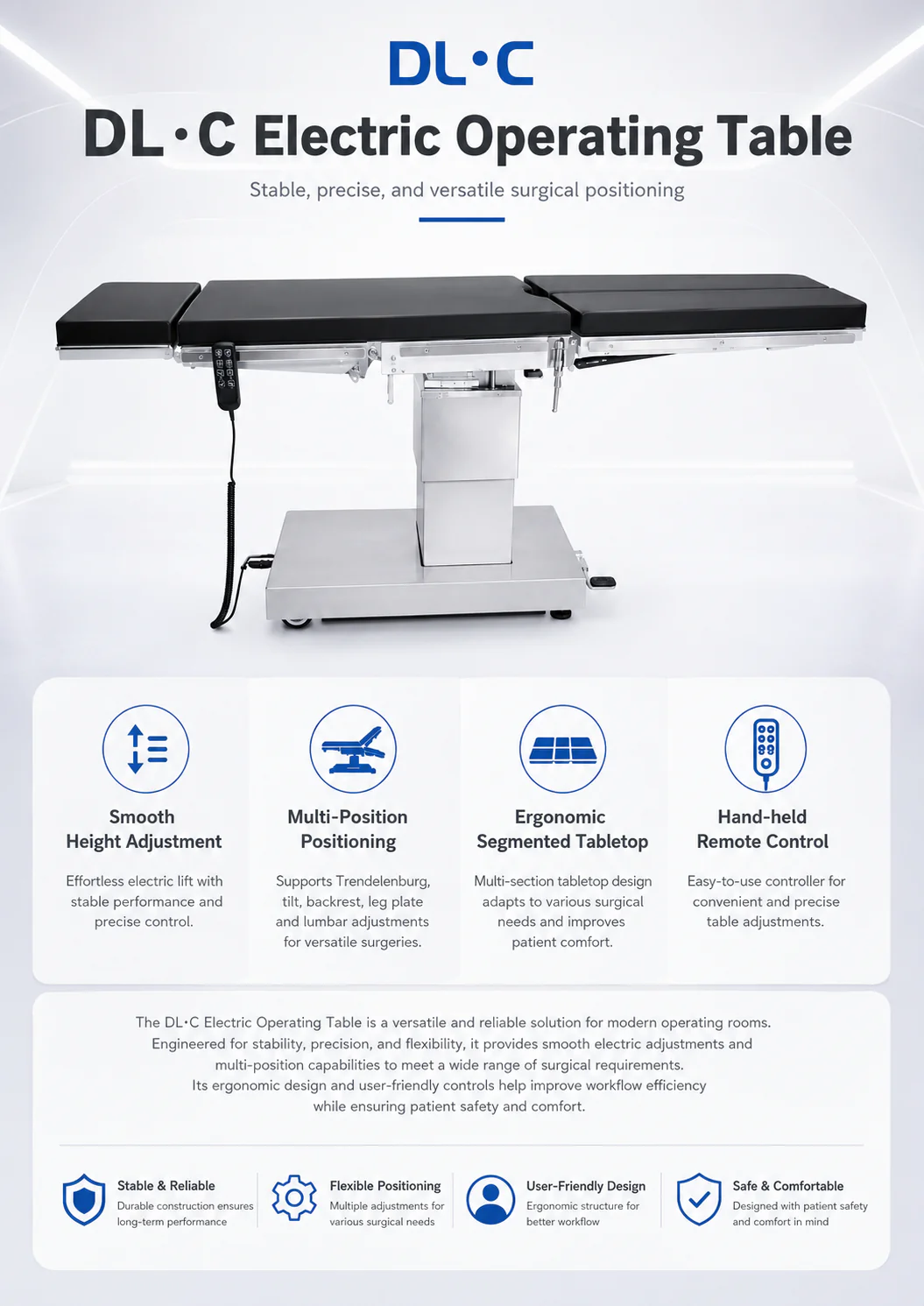

The Keling DL·C electric operating table combines electric hydraulic drive technology with a comprehensive positioning range to serve a wide variety of surgical specialties in hospital operating theatres. Electric control via a hand-held remote controller and foot-operated brake device allows the surgical team to make precise, quiet adjustments during procedures without manual handwheel operation, reducing physical demand and maintaining positioning accuracy throughout complex cases.
A distinguishing feature of the DL·C is its split leg plate with ≥180° abduction range, which opens full lithotomy access for gynecological, urological and colorectal procedures. The lumbar bridge — with both "∧" lordosis (≤150°) and "∨" kyphosis (≤120°) capability — supports spinal surgery positioning and general patient comfort during extended procedures. The waist board can be elevated 100 ± 20 mm independently, allowing the surgeon to adjust lumbar prominence for improved operative exposure.
The table width of 500 mm and the generous headboard range — from 50° upward to 90° downward — make the DL·C suitable for head-and-neck procedures including ENT, thyroid and maxillofacial surgery. The Trendelenburg and reverse Trendelenburg positions at ≥15° each cover standard requirements for abdominal, pelvic and laparoscopic surgery. Power supply is 220V ± 22V, 50Hz ± 1Hz; input power is 300 ± 10% VA.
Key Features

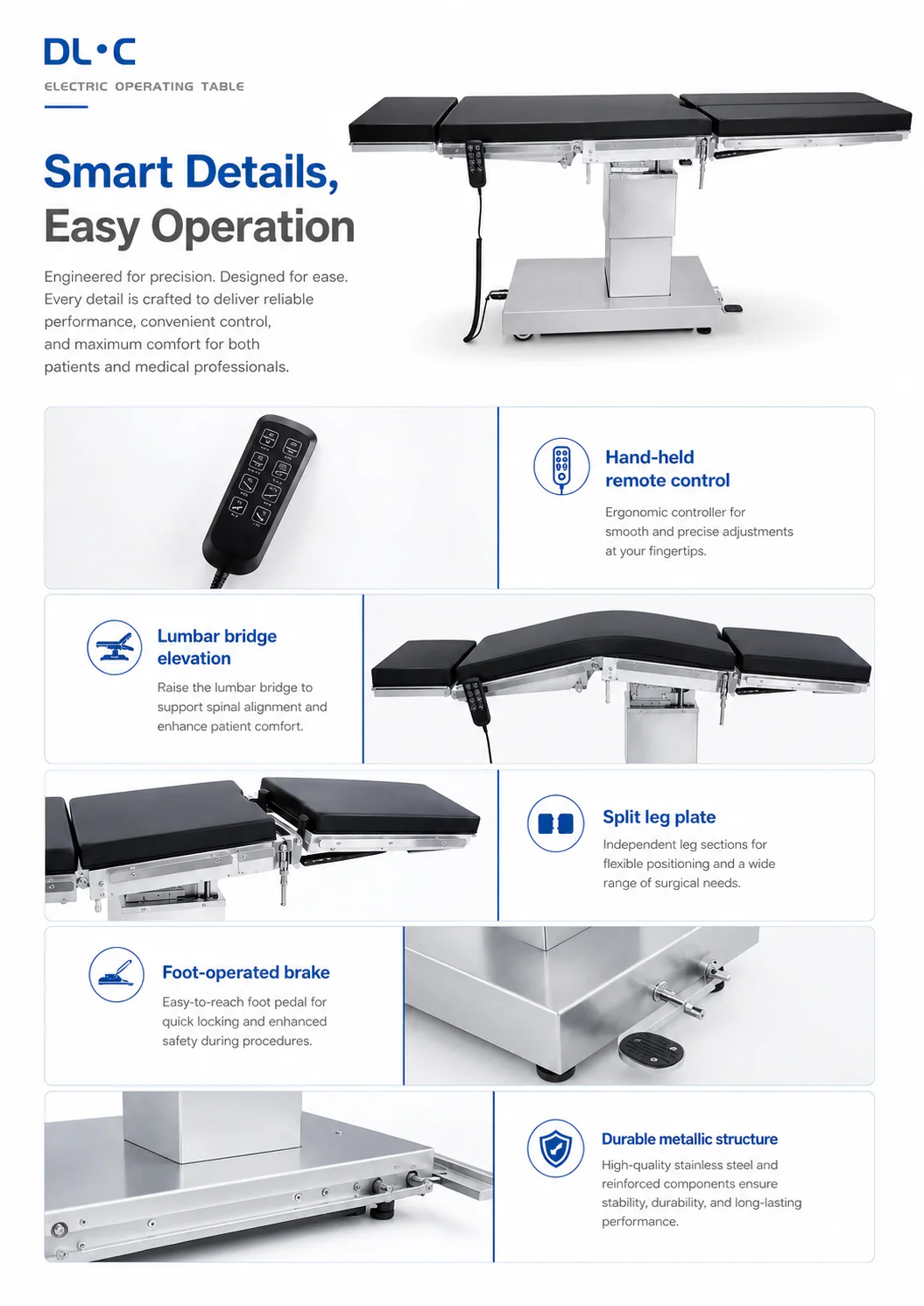

- Electric hydraulic positioning — all major functions driven electrically for smooth, quiet and precise adjustment; controlled via a hand-held remote controller.
- Split leg plate ≥180° — wide leg abduction enables full lithotomy positioning for gynecological, urological and colorectal procedures.

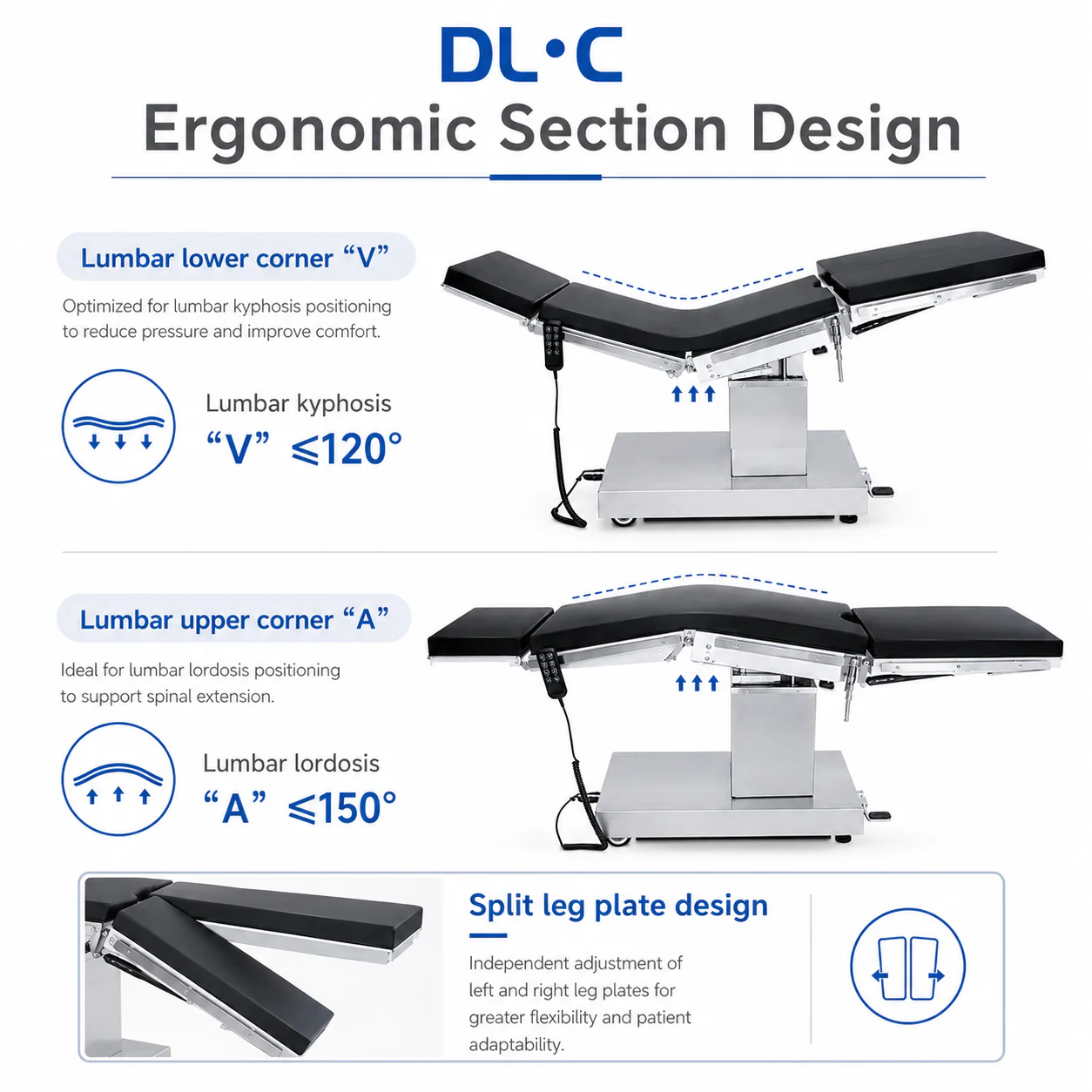

- Lumbar bridge (lordosis/kyphosis) — "∧" and "∨" lumbar adjustments up to 150° and 120° respectively support spinal and complex abdominal positioning.
- Waist board elevation 100 ± 20 mm — independent lumbar lifting provides improved operative field exposure without repositioning the whole table.
- Headboard range ≥50° up / ≥90° down — extended headboard travel supports head-and-neck procedures including ENT and thyroid surgery.

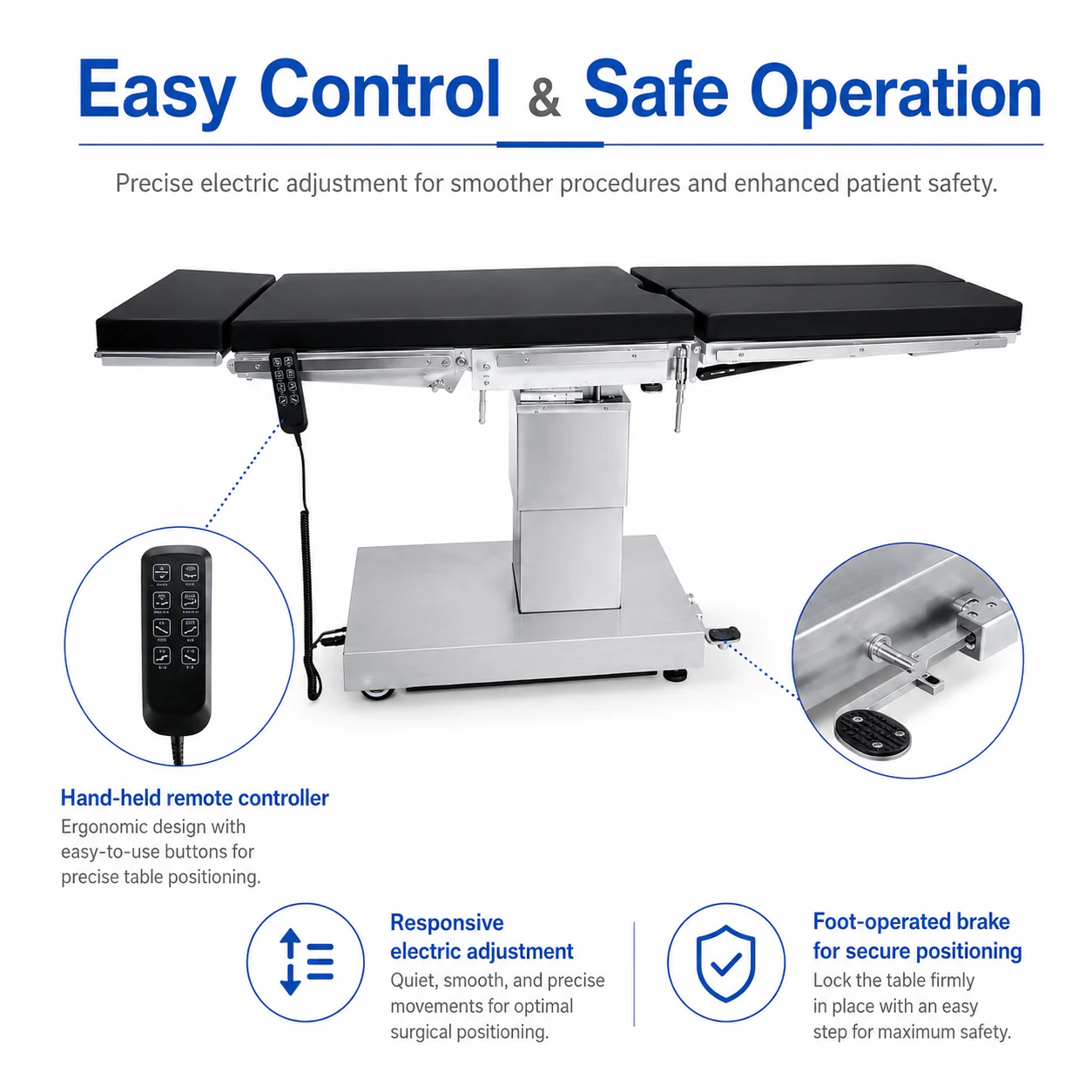

- Foot-operated brake — hands-free table locking for safe movement and secure positioning.

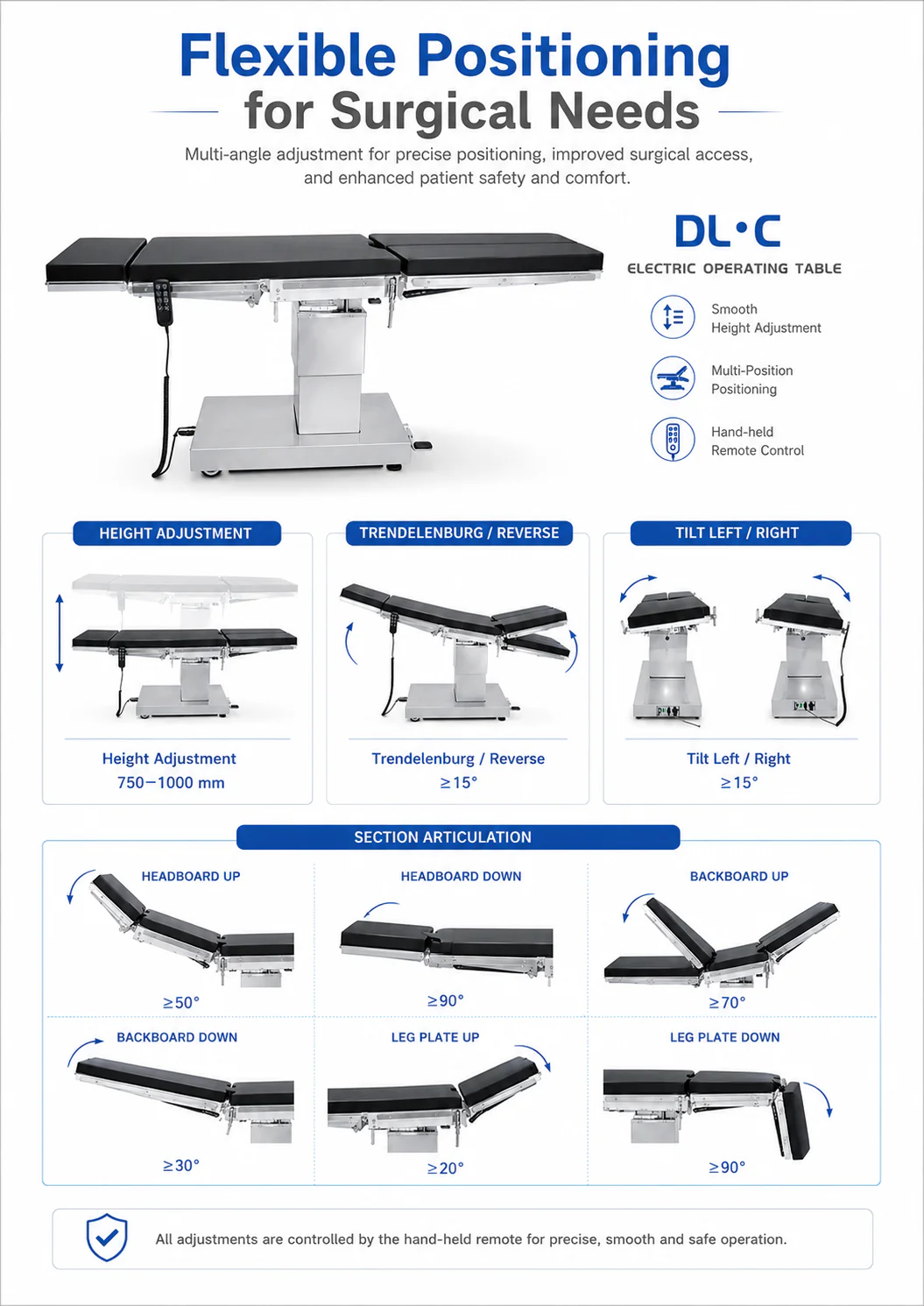

- Comprehensive tilt and Trendelenburg — lateral tilt ≥15° each side; Trendelenburg/reverse-Trendelenburg both ≥15° for standard surgical access.

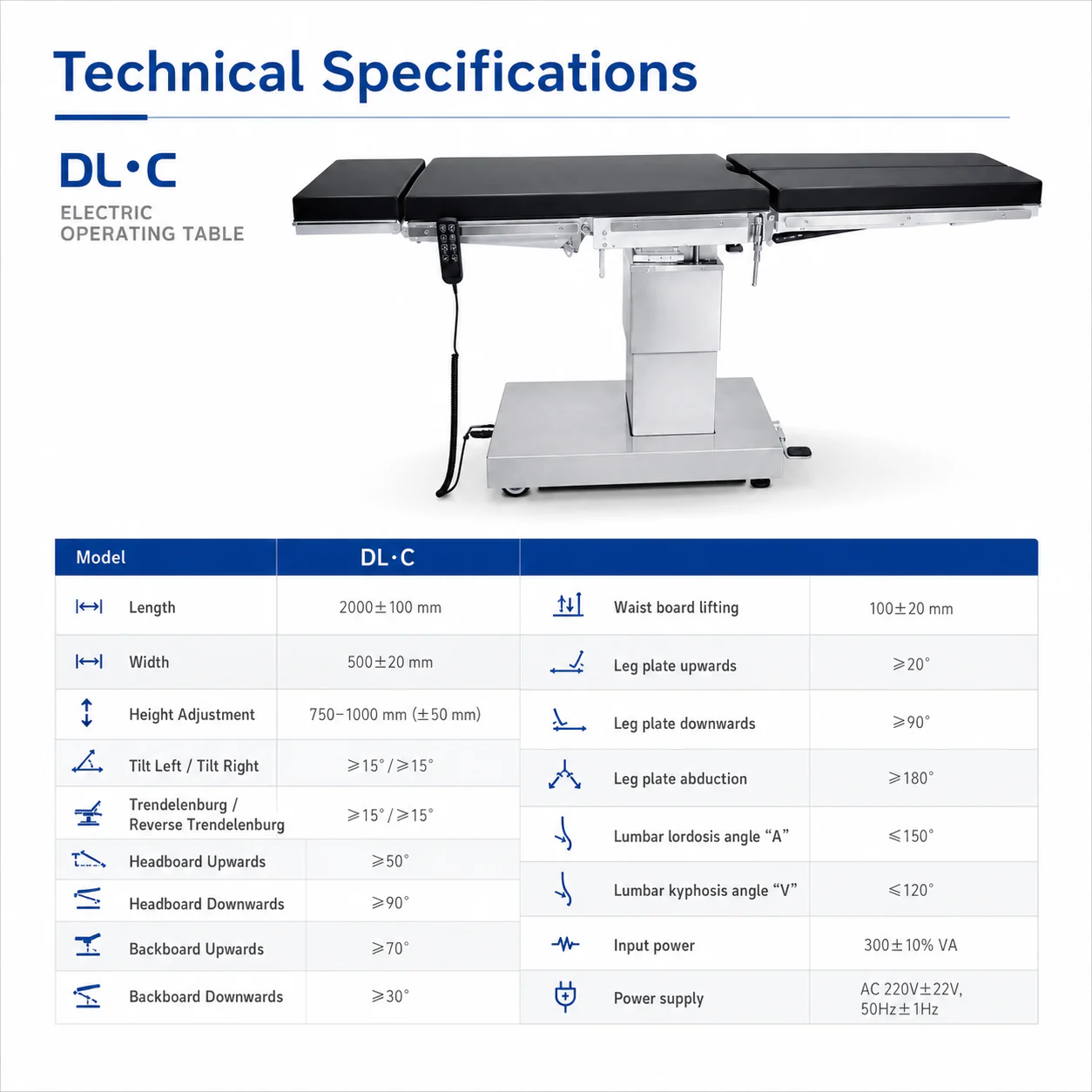

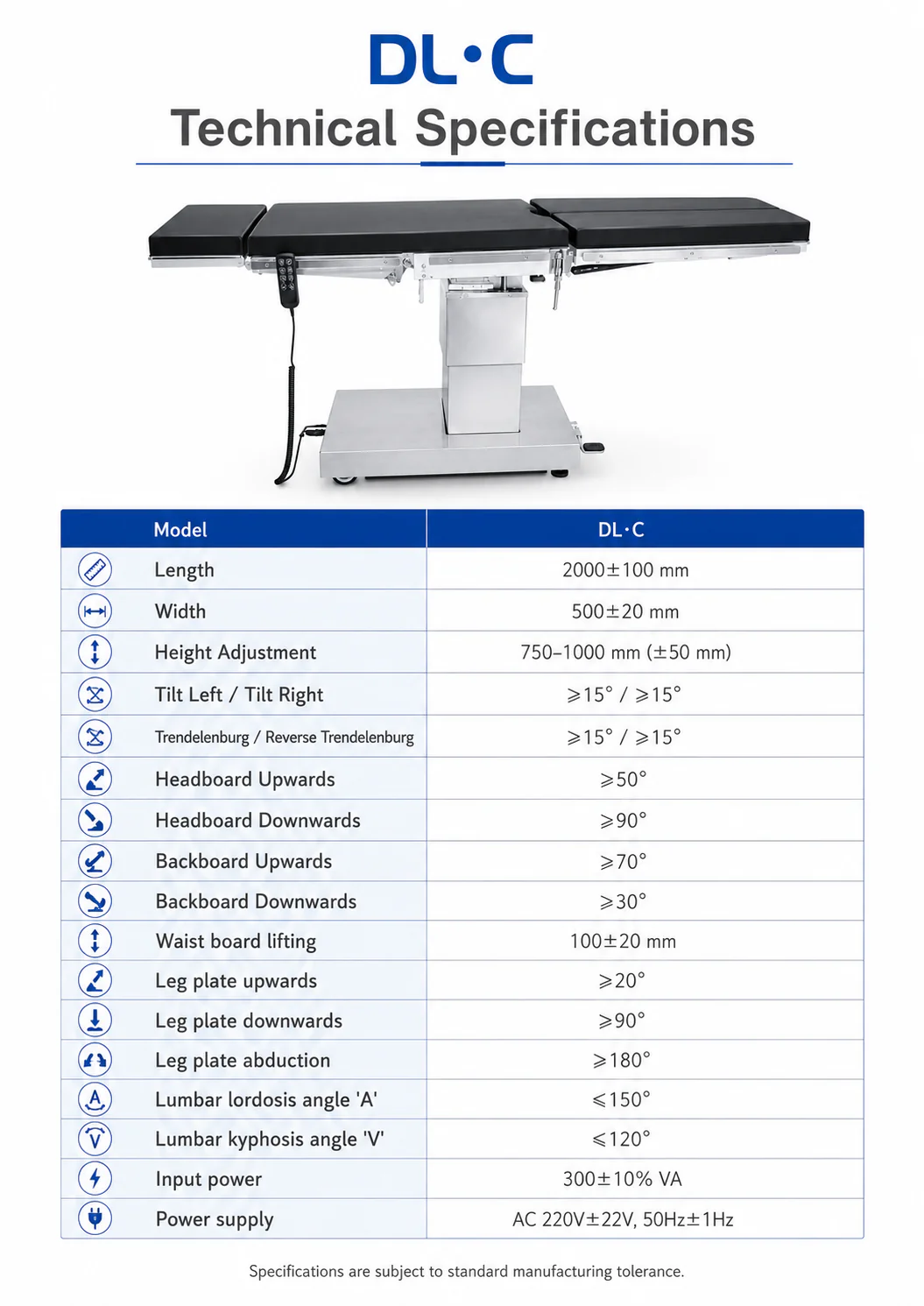

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DL·C |
| Length | 2000 ± 100 mm |
| Width | 500 ± 20 mm |
| Height adjustment | (750–1000) ± 50 mm |
| Tilt left / tilt right | ≥15° / ≥15° |
| Trendelenburg / Rev-Trend | ≥15° / ≥15° |
| Headboard upwards | ≥50° |
| Headboard downwards | ≥90° |
| Backboard upwards | ≥70° |
| Backboard downwards | ≥30° |
| Waist board lifting | 100 ± 20 mm |
| Leg plate upwards | ≥20° |
| Leg plate downwards | ≥90° |
| Leg plate abduction | ≥180° |
| Lumbar lordosis angle "∧" | ≤150° |
| Lumbar kyphosis angle "∨" | ≤120° |
| Input power VA | 300 ± 10% |
| Power supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The DL·C electric operating table is deployed in general surgery, gynecology, urology, colorectal surgery, ENT, thyroid and head-and-neck surgery, and laparoscopic procedure suites in hospitals and day-surgery centres. The 180° split leg plate and lumbar bridge make it especially productive in gynecology and urology operating rooms where lithotomy and spinal flexion positioning are routine.
