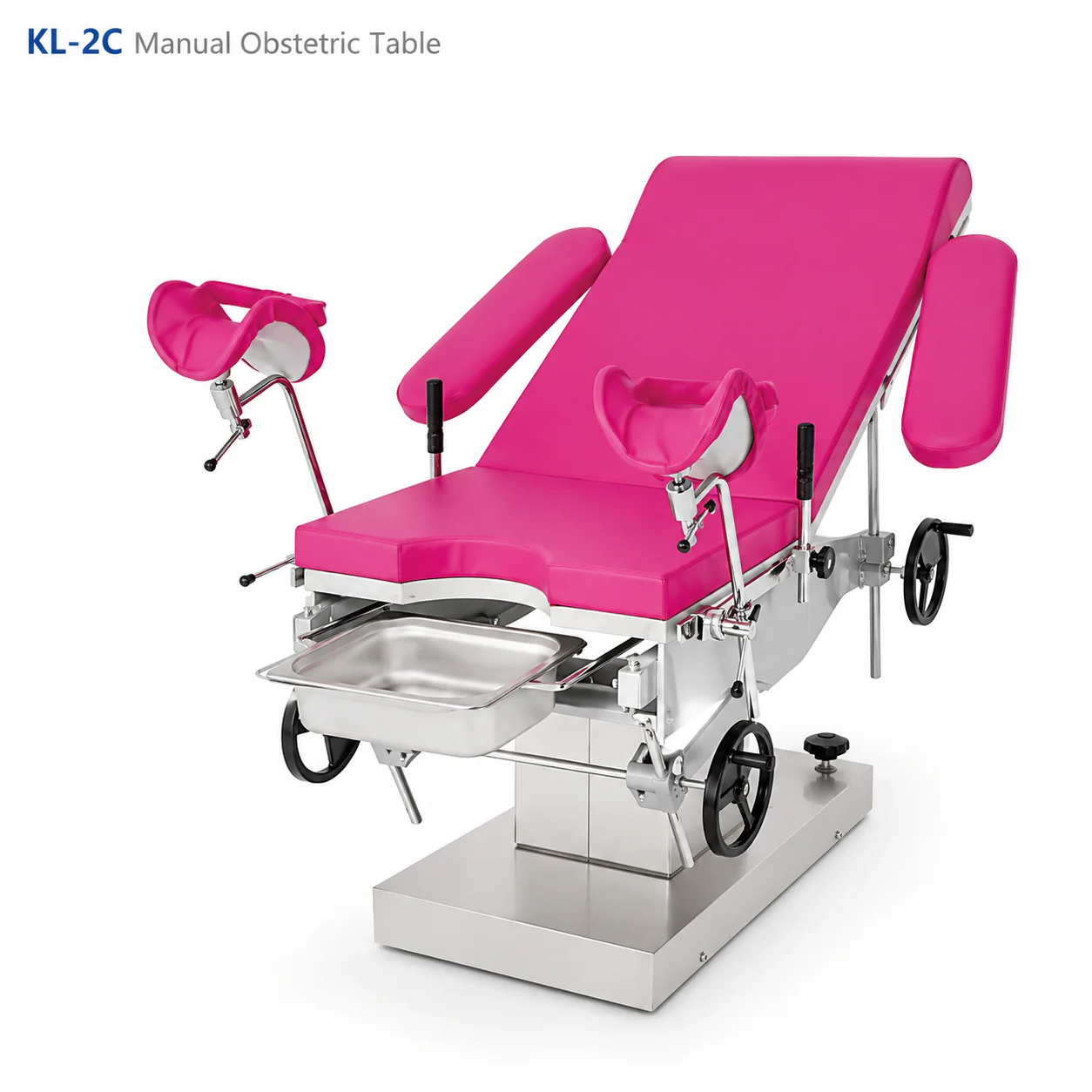

# KL-2C Manual Obstetric Table — Stainless Steel Hydraulic Delivery and Gynecology Platform
Quick answer: The Keling KL-2C is a manual hydraulic obstetric table with 1900 ± 50 mm length, 600 ± 10 mm width, height adjustment from 700 to 900 mm (±50 mm), a 304 stainless steel base and column, auxiliary table 600 × 600 mm, backboard upward ≥50°, stainless steel sewage basin and foot-step hydraulic elevation. Suited to parturient delivery, gynecological surgery, operative abortion and clinical examinations. Manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-2C is a manual hydraulic integrated obstetric table with 1900 ± 50 mm length and 600 ± 10 mm width.
- Height adjusts from 700 to 900 mm (±50 mm) via foot-step hydraulic elevation with an imported Y-type sealing ring.
- The base seat and upright column covering are high-quality 304 stainless steel — anti-corrosive and easy to clean.
- A stainless steel sewage basin is fitted as standard for efficient fluid management during obstetric and gynecological procedures.
- The auxiliary table measures 600 × 600 mm and extends/retracts flexibly from the main bed.

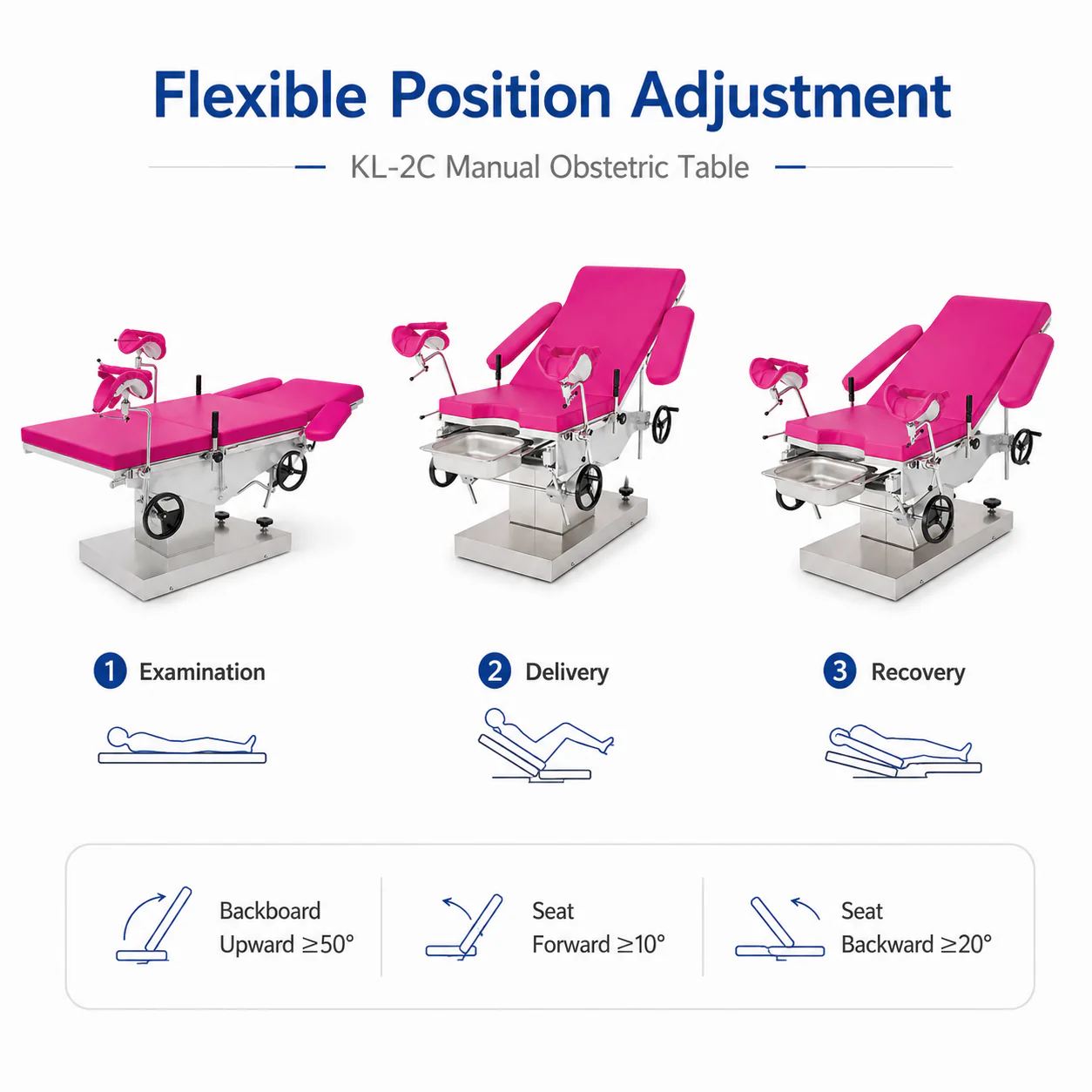

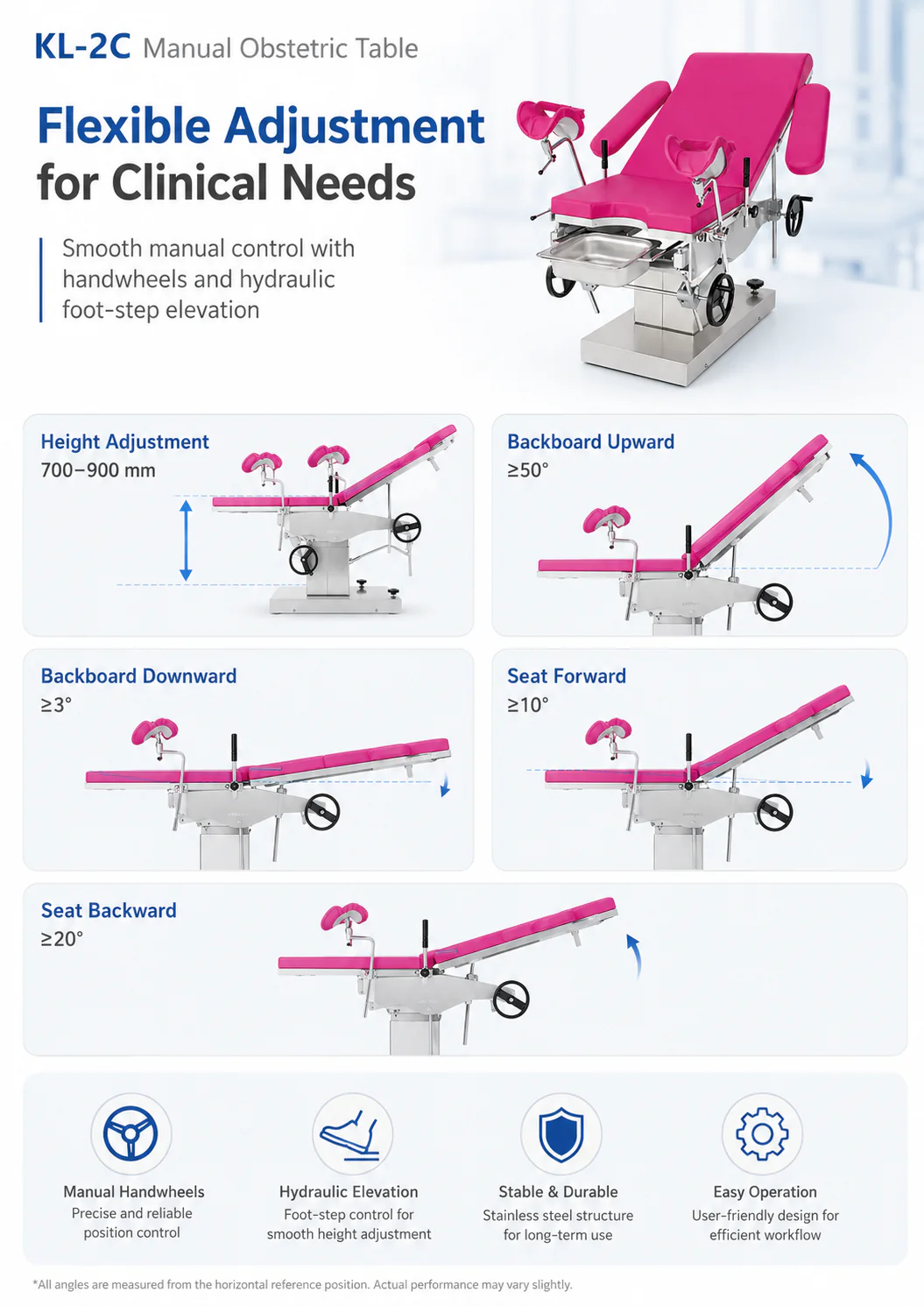

- Backboard adjusts upward ≥50° and downward ≥3°; seat forward ≥10° and backward ≥20° for versatile clinical positioning.
Overview

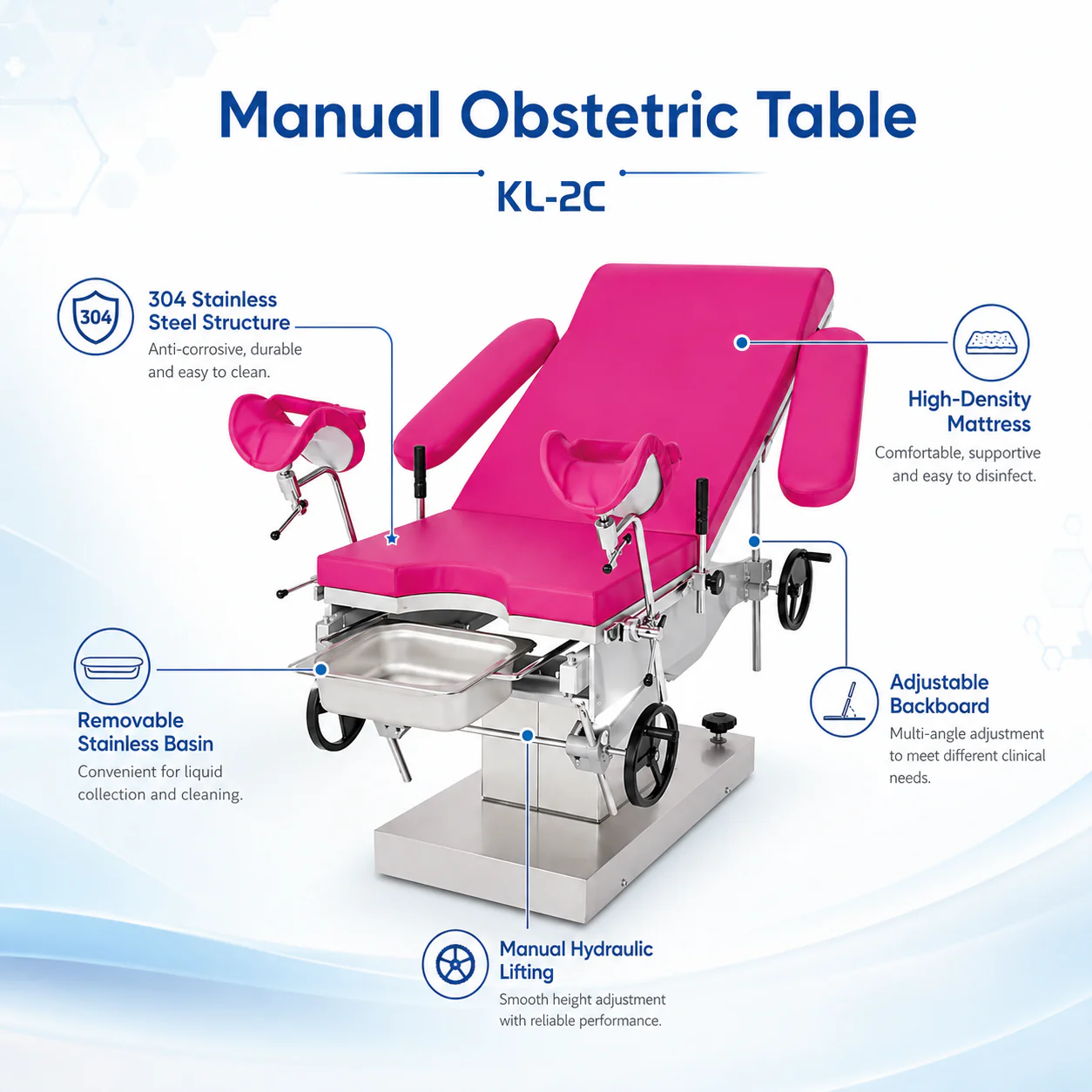

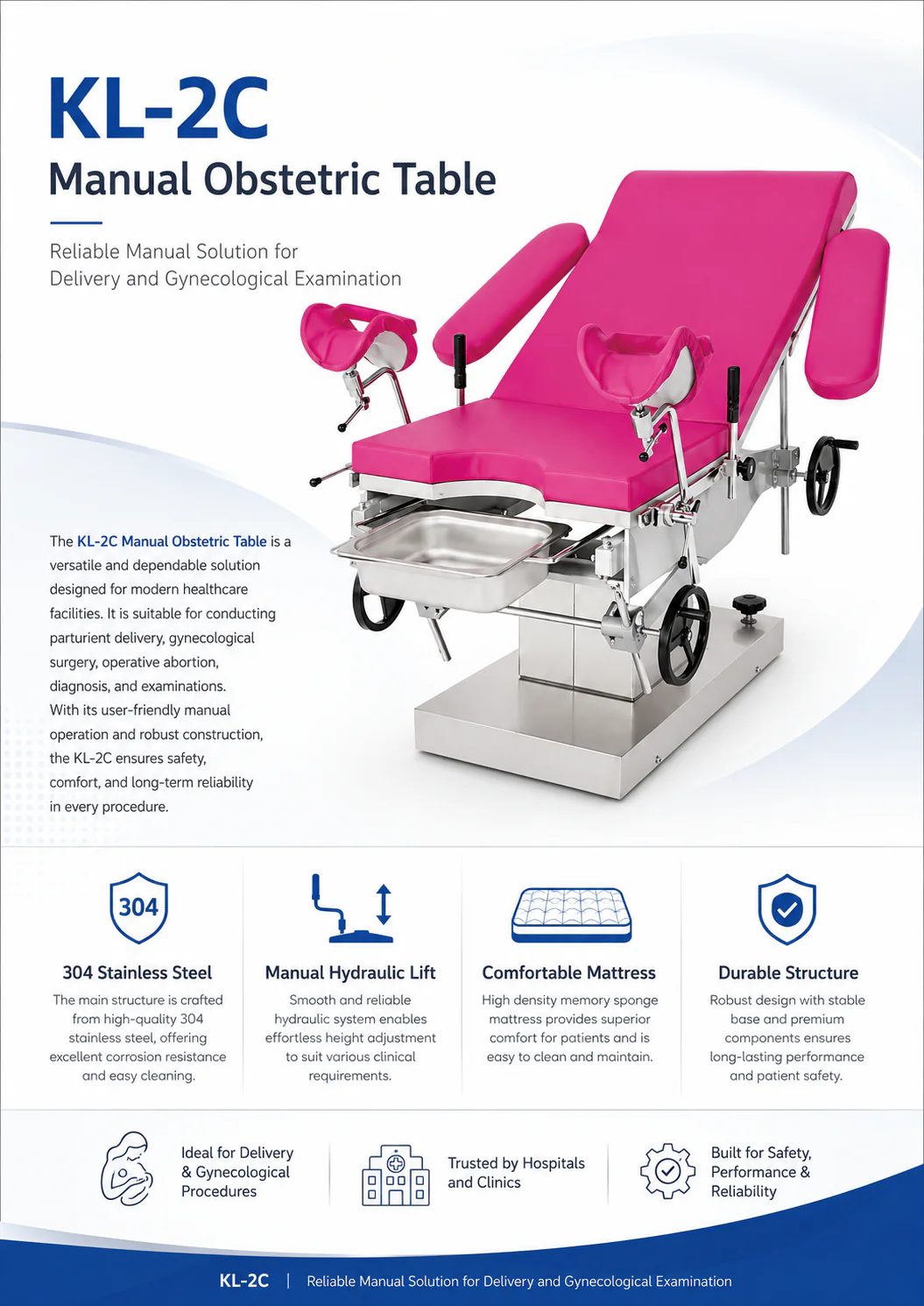

The Keling KL-2C manual obstetric table is a dedicated delivery and gynecological surgical platform with a full 304 stainless steel structural specification. Designed for maternity wards, gynecology operating rooms and women's health clinics, it provides the combination of hygiene, durability and clinical function required in environments where frequent decontamination is essential and infection control is a priority.
Height adjustment is performed by foot-step hydraulic lifting, leaving both the operator's hands free throughout the positioning process. An imported Y-type sealing ring ensures reliable hydraulic sealing and a long service life with low maintenance. The flexible auxiliary table — 600 × 600 mm — extends and retracts to provide instrument and equipment support, keeping the working environment organised during delivery and procedures. A stainless steel sewage basin fitted as standard manages fluid disposal during obstetric and gynecological cases, reducing the need for additional bedside equipment.

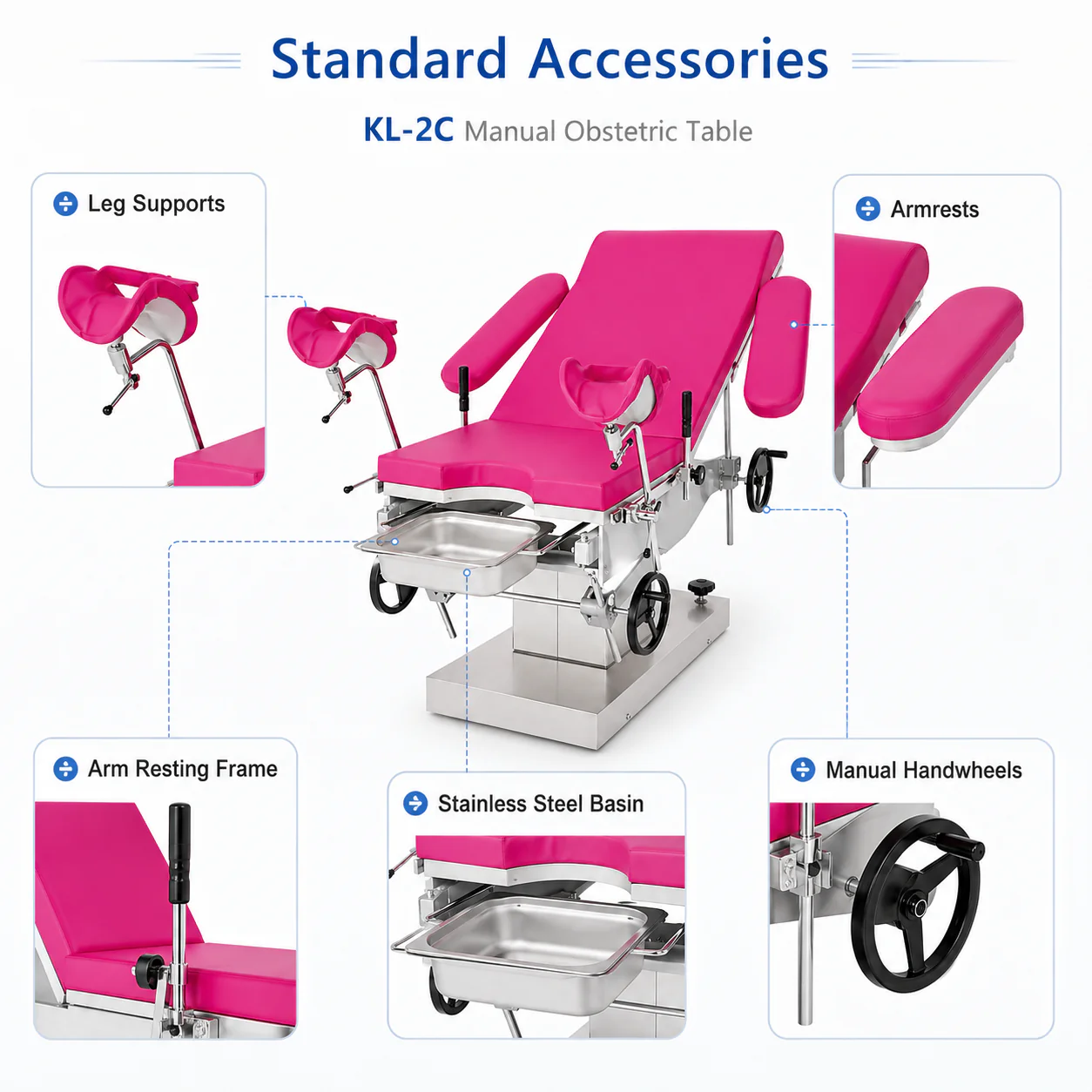

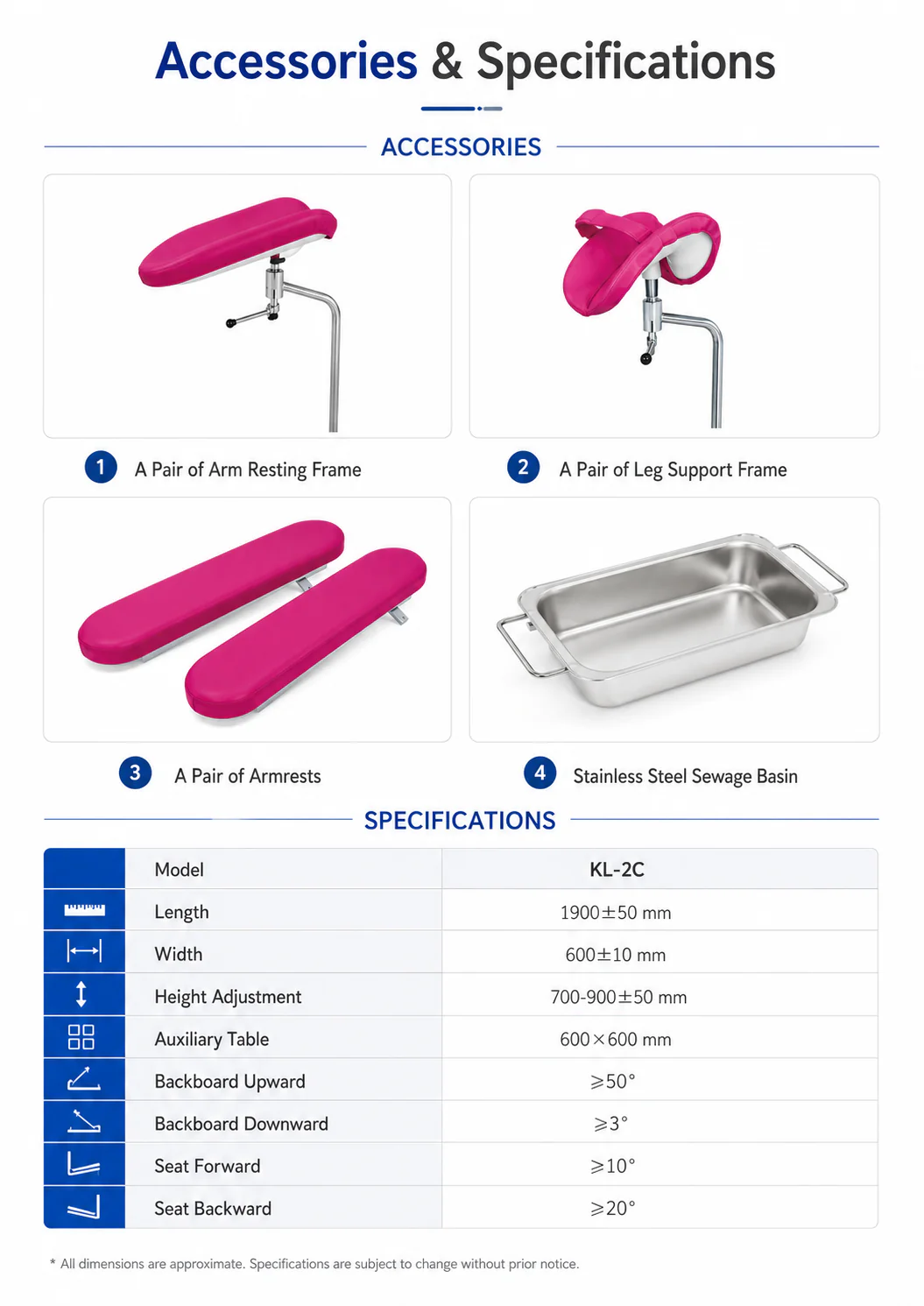

The mattress is made from high-density memory sponge, formed in one piece for durability and consistent patient comfort. A rotary brake device enables convenient movement and secure positional locking. The accessory set — arm resting frames, leg support frames, armrests and a stainless steel sewage basin — equips the KL-2C for the full range of delivery, examination and minor gynecological procedure workflows without supplementary equipment.
Key Features

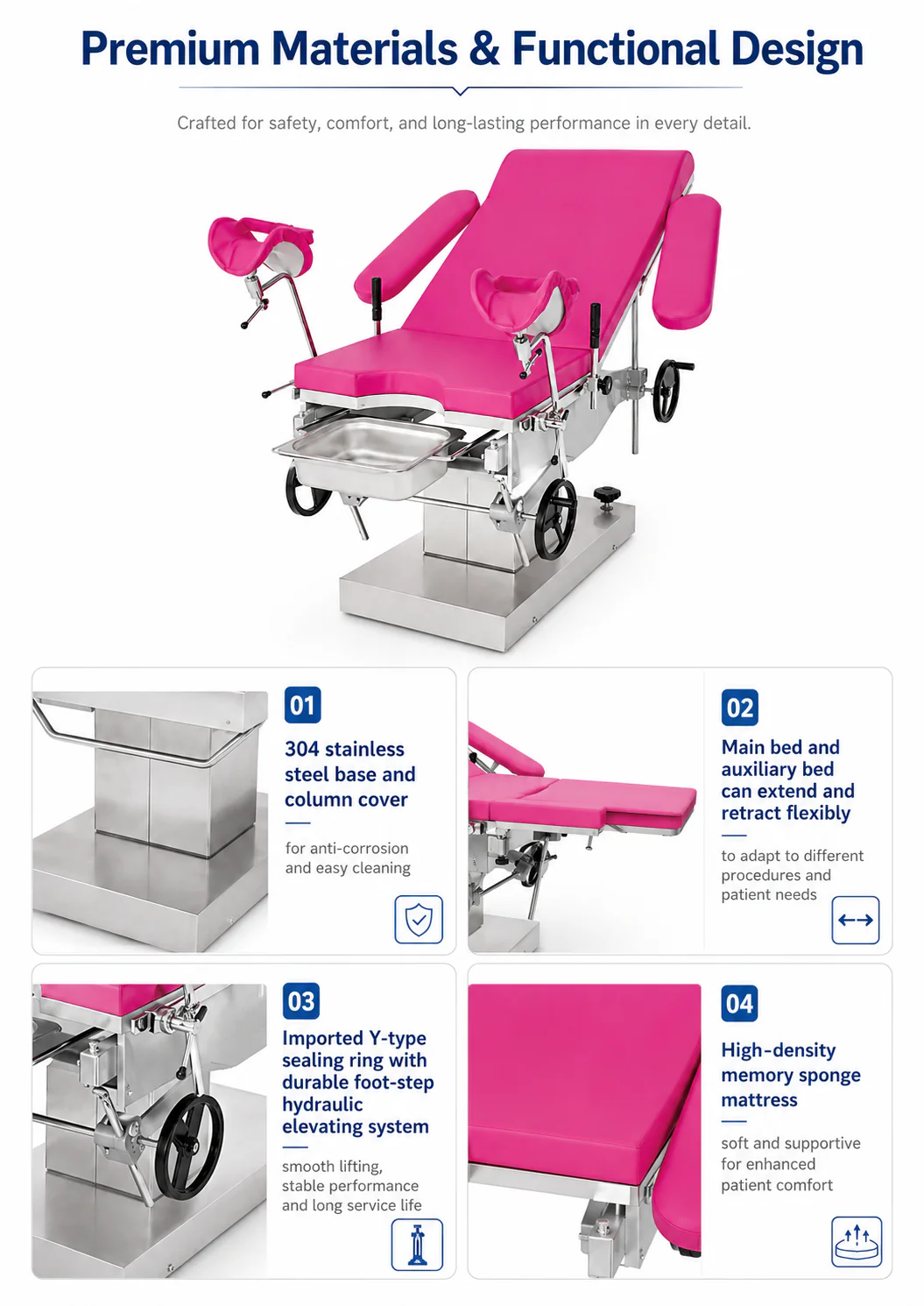

- 304 stainless steel structure — base seat and column covering in high-quality 304 stainless steel: anti-corrosive, easy to clean and long-lasting for high-throughput clinical environments.
- Foot-step hydraulic elevation — hands-free height adjustment using a foot pedal for efficient, controlled positioning throughout procedures.
- Imported Y-type sealing ring — reliable hydraulic seal with excellent sealing performance and extended service life.
- Stainless steel sewage basin — fitted as standard for integrated fluid management during obstetric and gynecological procedures.
- Flexible auxiliary table 600 × 600 mm — extendable and retractable, connecting to the main bed to provide stable instrument support.
- High-density memory sponge mattress — single-piece, one-time-formed mattress delivers comfortable and supportive patient positioning.
- Rotary brake device — smooth table movement and secure locking for safe repositioning and procedural stability.

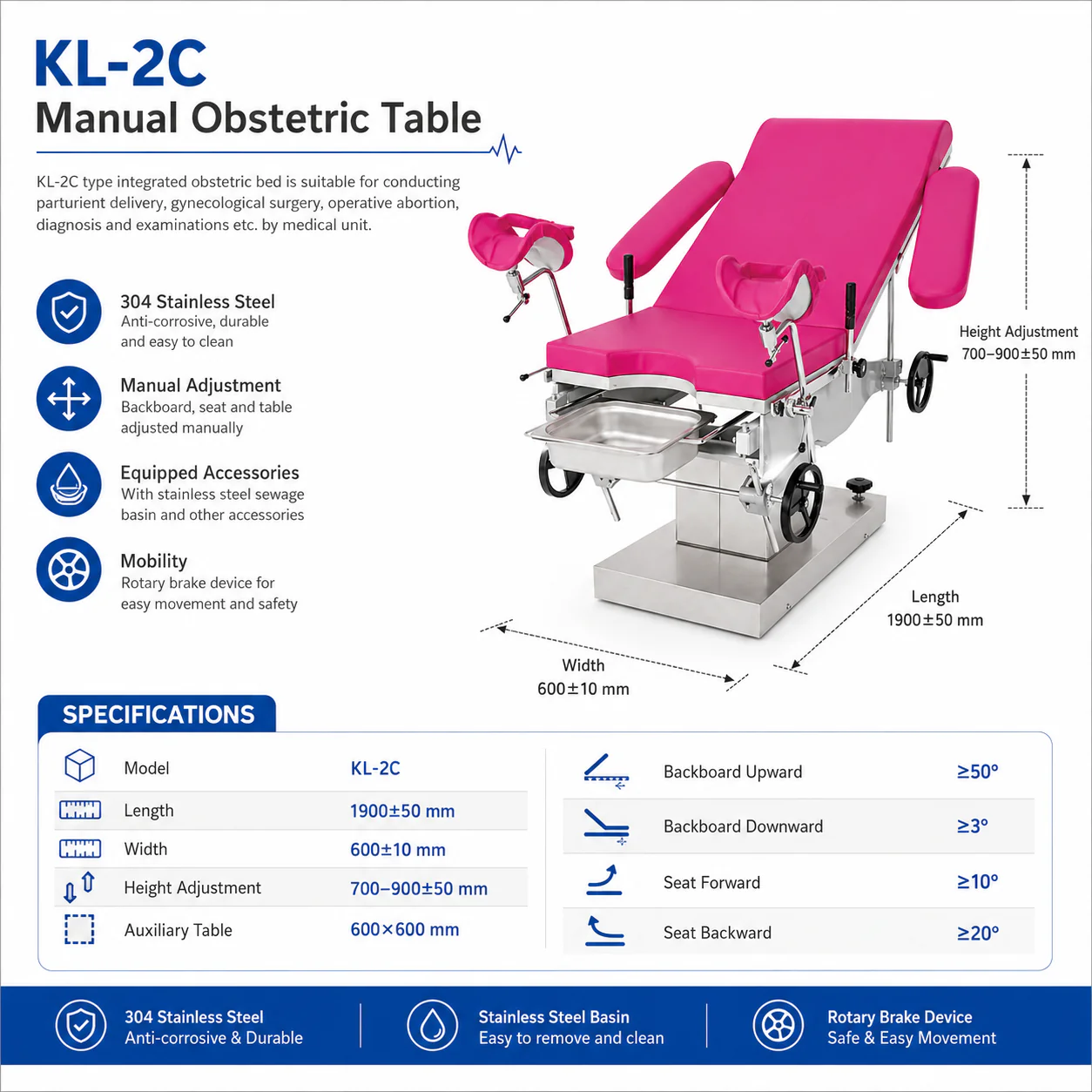

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-2C |
| Length | 1900 ± 50 mm |
| Width | 600 ± 10 mm |
| Height adjustment | (700–900) ± 50 mm |
| Auxiliary table | 600 × 600 mm |
| Backboard upward | ≥50° |
| Backboard downward | ≥3° |
| Seat forward | ≥10° |
| Seat backward | ≥20° |
| Base/column material | 304 stainless steel |
| Elevation type | Foot-step hydraulic |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

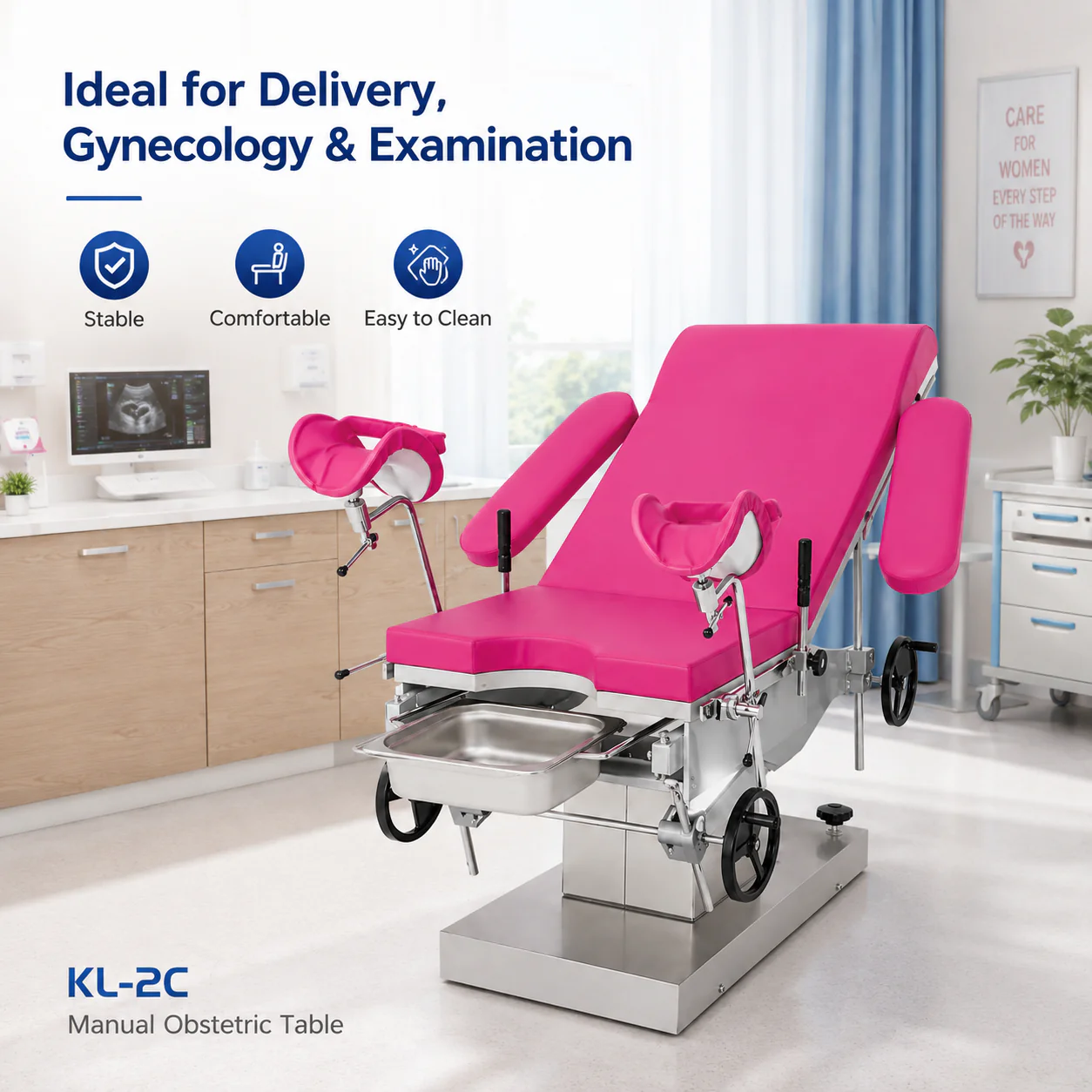

The KL-2C is deployed in maternity delivery rooms, gynecological operating theatres, obstetric intervention suites, family planning departments and outpatient gynecology clinics. The stainless steel sewage basin and 304 stainless steel structure make it particularly well suited to facilities with high procedural throughput and stringent infection control requirements, including operative abortion and ambulatory gynecology services.
