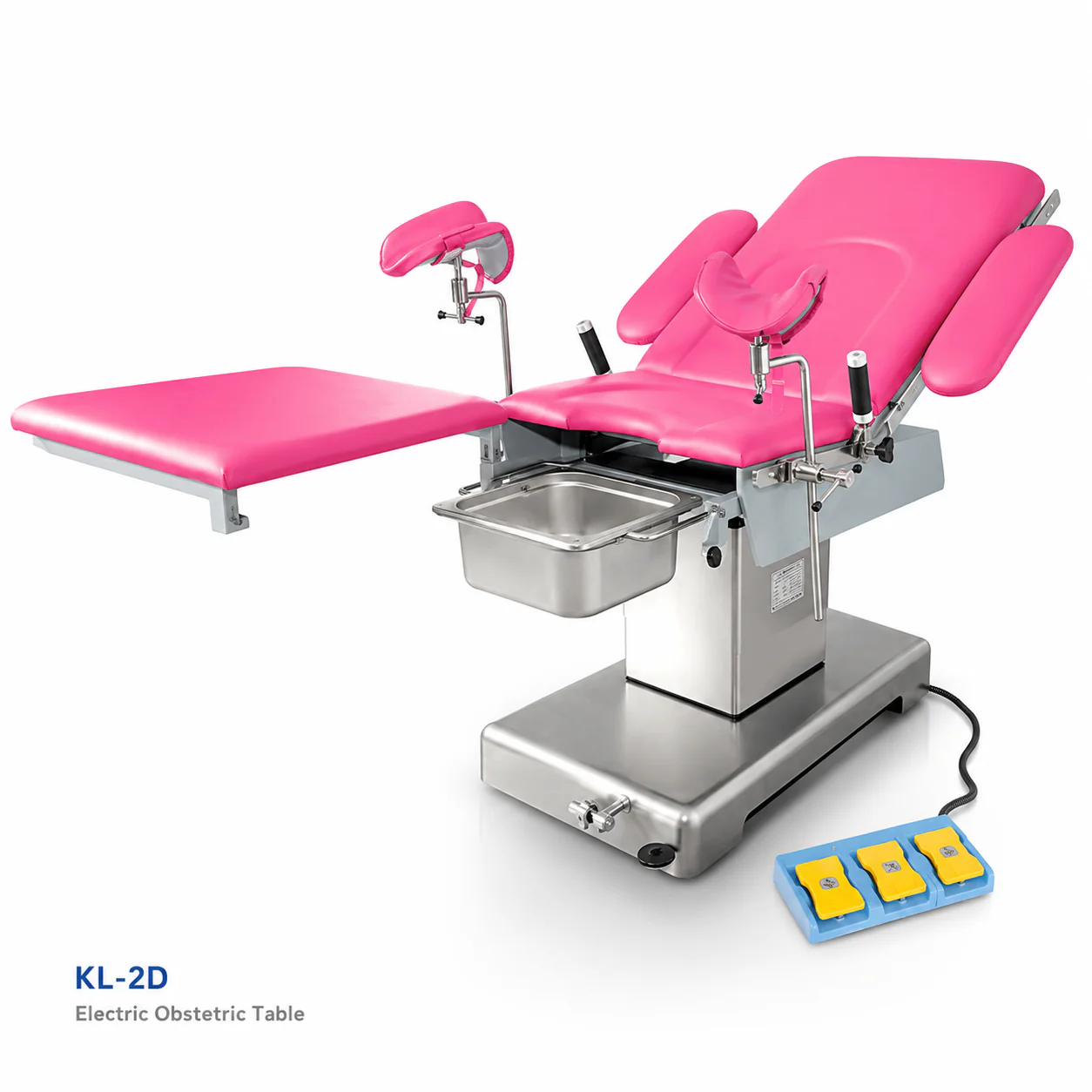

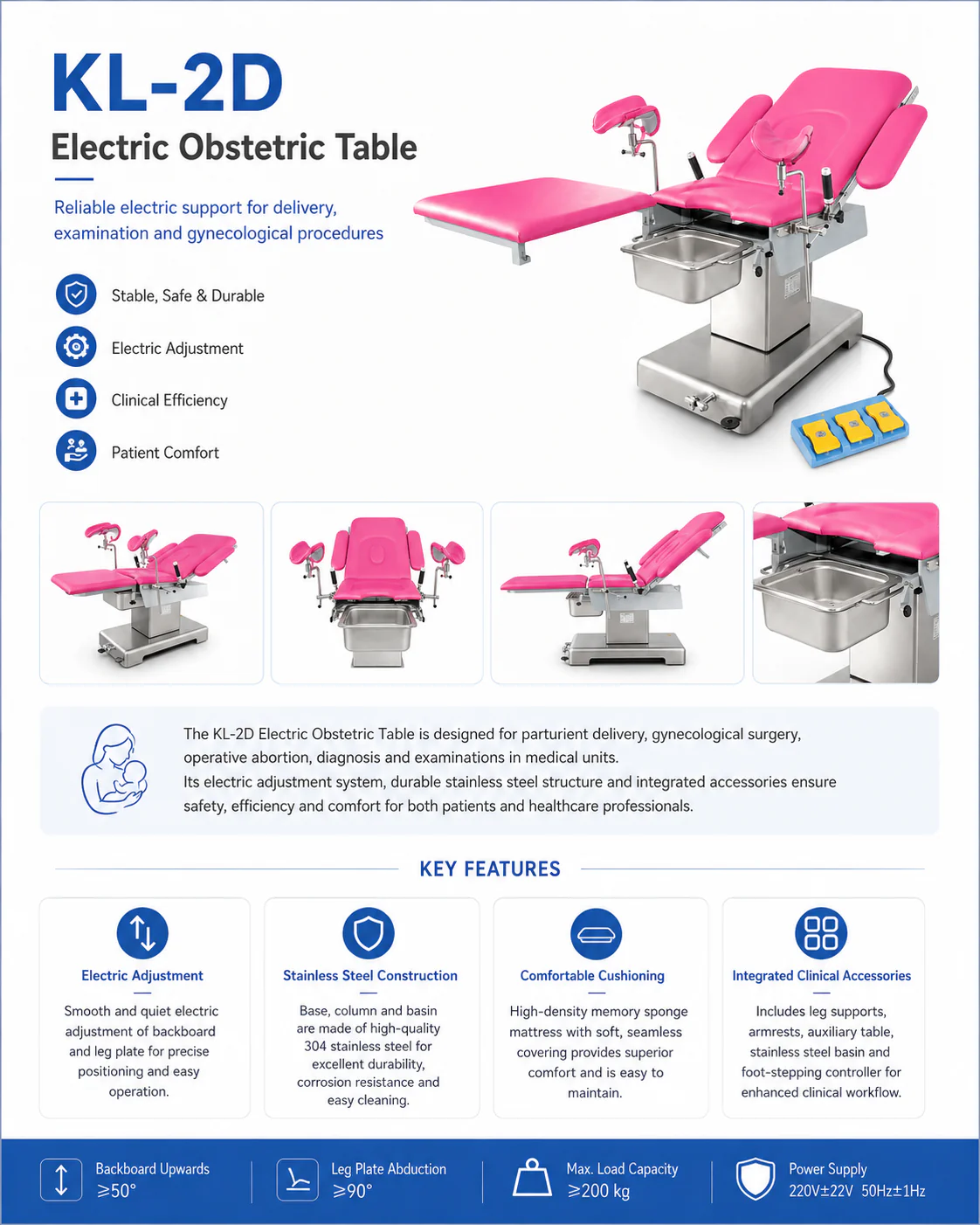

# KL-2D Electric Obstetric Table — Fully Electric Delivery and Gynecological Surgery Platform
Quick answer: The Keling KL-2D is a fully electric integrated obstetric table with 2000 ± 50 mm length, 600 ± 10 mm width, height adjustment from 750 to 950 mm (±50 mm), remote controller operation, Trendelenburg/reverse-Trendelenburg ≥10°/≥10°, backboard upward ≥50°, leg plate abduction ≥90°, auxiliary platform 650 × 600 mm and a 220V ± 22V 50Hz power supply. Manufactured by Keling Medical (Keling Medical) for delivery rooms and gynecological operating theatres.
Quick Facts

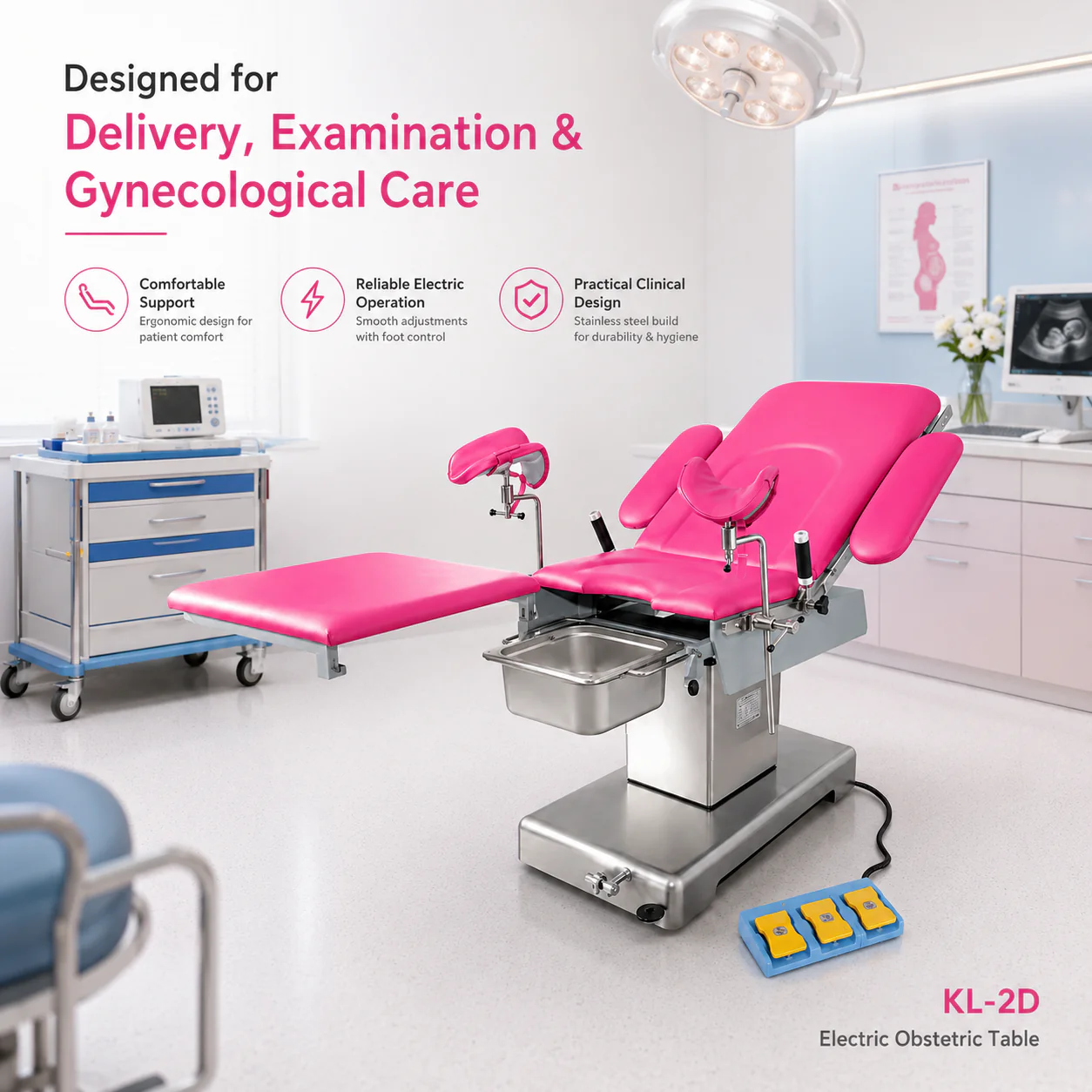

- The Keling KL-2D is a fully electric obstetric table for delivery, gynecological surgery, operative abortion, diagnosis and examination.
- All positioning functions are controlled by a remote controller and foot-treadle brake device.
- Table length is 2000 ± 50 mm, width 600 ± 10 mm; height adjusts from 750 to 950 mm (±50 mm) via imported brand electric motor.
- The auxiliary platform measures 650 × 600 mm and is made from stainless steel with hidden flexible extension and retraction.

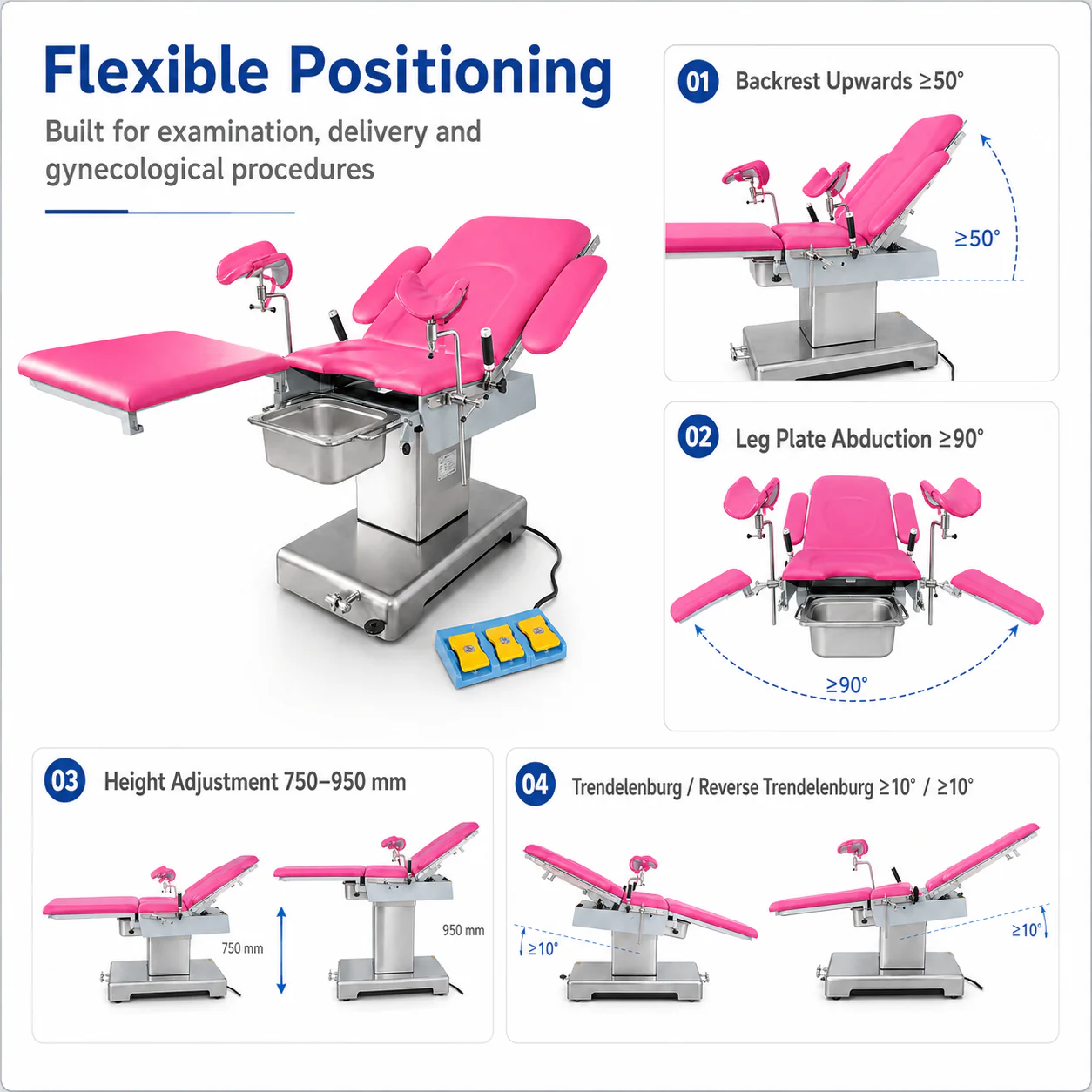

- Trendelenburg and reverse Trendelenburg are both ≥10°; leg plate abducts ≥90°; backboard raises ≥50°.
- A stainless steel sewage basin and full accessory set are included as standard equipment.
Overview
The Keling KL-2D electric obstetric table is the electric-drive model in the KL-2 series, replacing the manual foot-step hydraulic system of the KL-2A, KL-2B and KL-2C with an imported brand electric motor controlled via a foot-stepping remote controller. This provides smoother, more precise height and position adjustments with less physical effort from the clinical team — a meaningful advantage in high-volume delivery rooms and gynecological operating theatres where staff efficiency and patient throughput are priorities.
The base seat and upright column covering are made from high-quality 304 stainless steel, providing excellent corrosion resistance and straightforward surface decontamination between cases. The stainless steel hidden auxiliary table — 650 × 600 mm — extends and retracts flexibly from the main bed body, giving clinicians immediate instrument and accessory support without a separate trolley. A foot treadle brake device provides hands-free table locking during clinical activities.

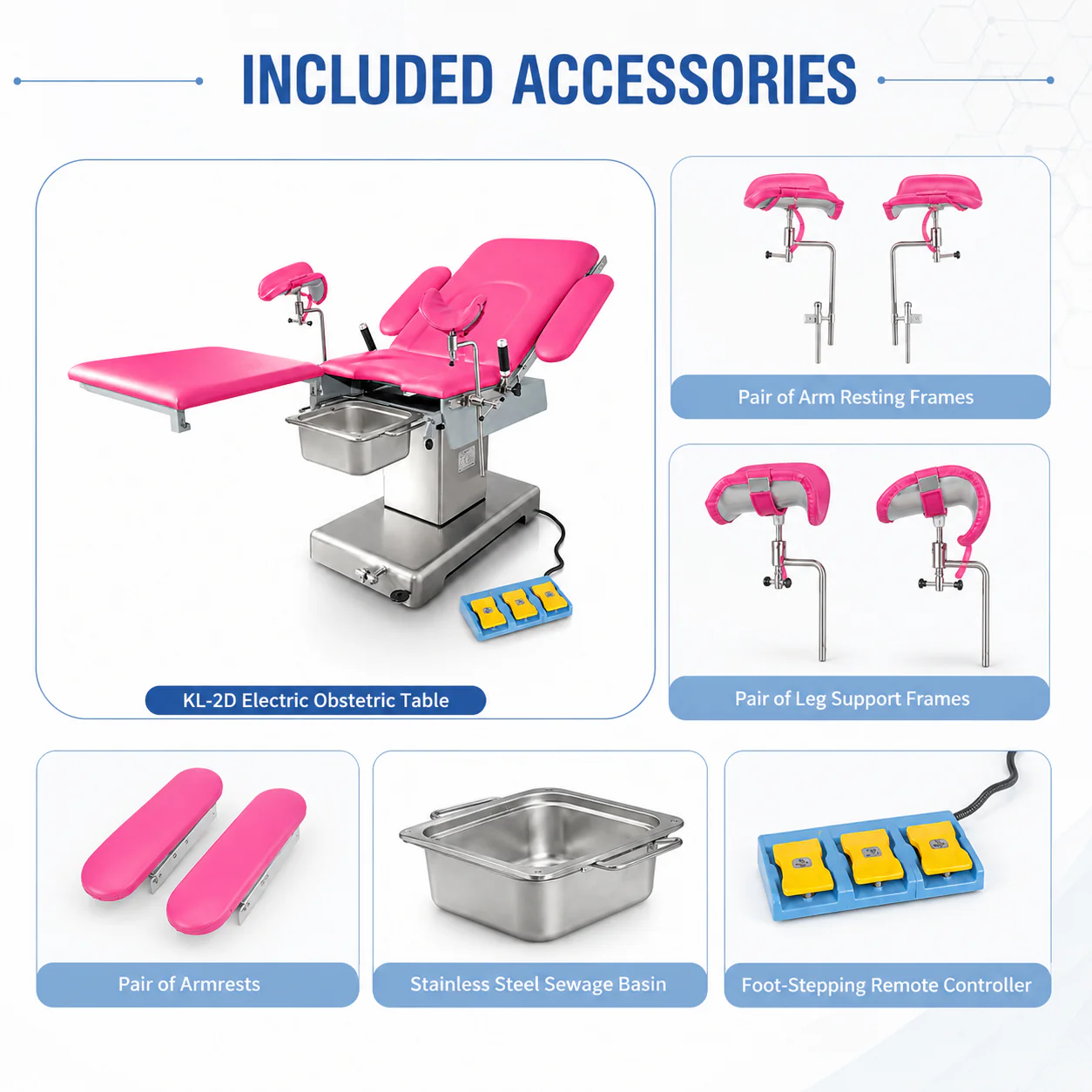

A high-density memory sponge mattress, formed in one piece, provides consistent patient comfort during procedures of all durations. The standard accessory package — arm resting frames, leg support frames, armrests, stainless steel sewage basin and foot-stepping remote controller — equips the KL-2D for delivery, operative and examination workflows from the moment of installation. Power supply is 220V ± 22V, 50Hz ± 1Hz with 150 ± 10% VA input power.

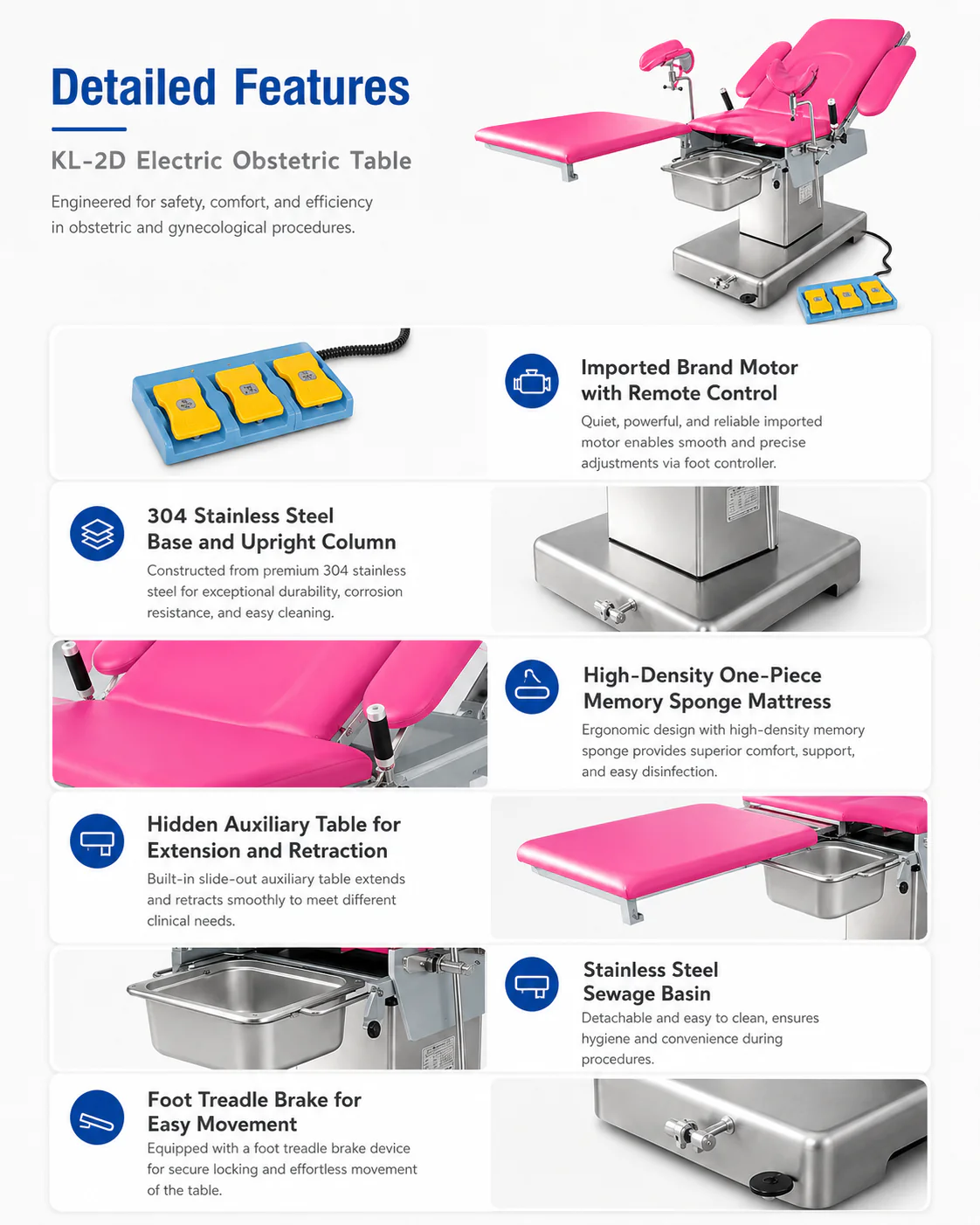

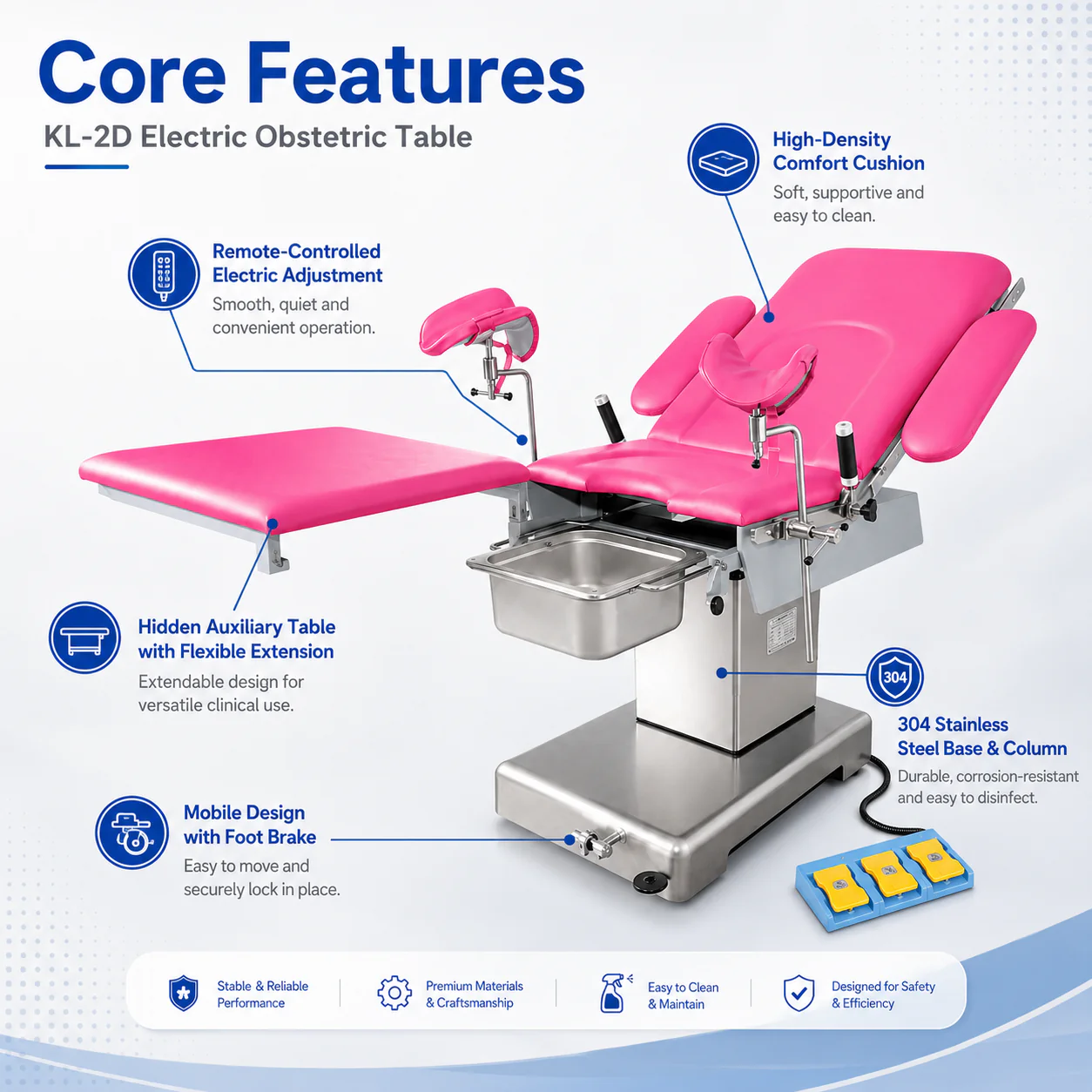

Key Features
- Electric motor drive — all functions controlled via imported brand electric motor and foot-stepping remote controller for smooth, precise, hands-free adjustment.
- 304 stainless steel construction — base seat and column covering in high-quality 304 stainless steel for durability, corrosion resistance and easy decontamination.
- Hidden stainless steel auxiliary table 650 × 600 mm — extends and retracts flexibly from the main bed; stainless steel surface for hygiene.
- Stainless steel sewage basin — integrated fluid management for obstetric and gynecological procedures.
- High-density memory sponge mattress — single-piece one-time-formed mattress for comfortable and supportive patient positioning.
- Trendelenburg positioning ≥10° — Trendelenburg and reverse Trendelenburg both ≥10° for standard surgical and delivery positioning.
- Leg plate abduction ≥90° — supports lithotomy positioning for gynecological examination and minor surgical procedures.

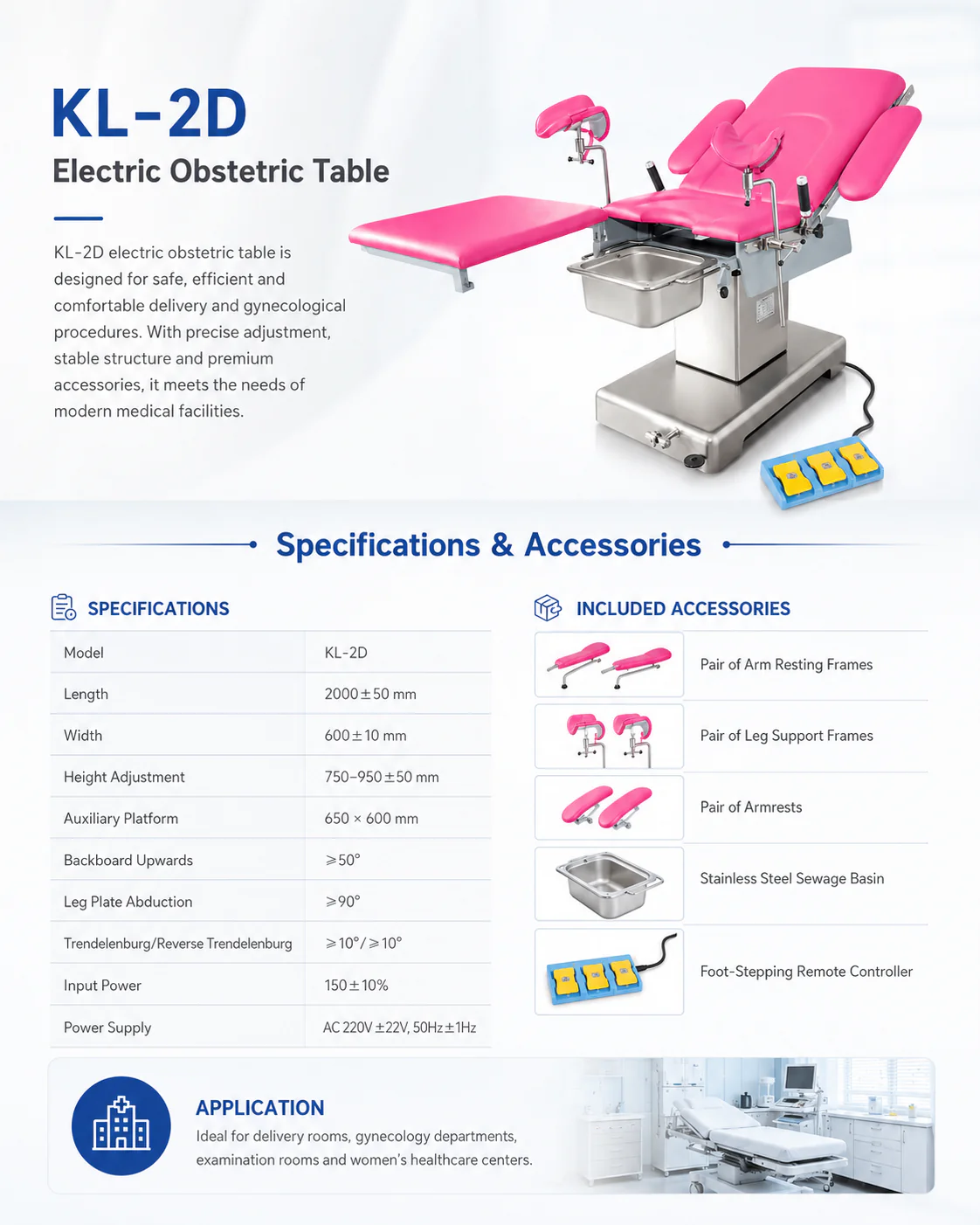

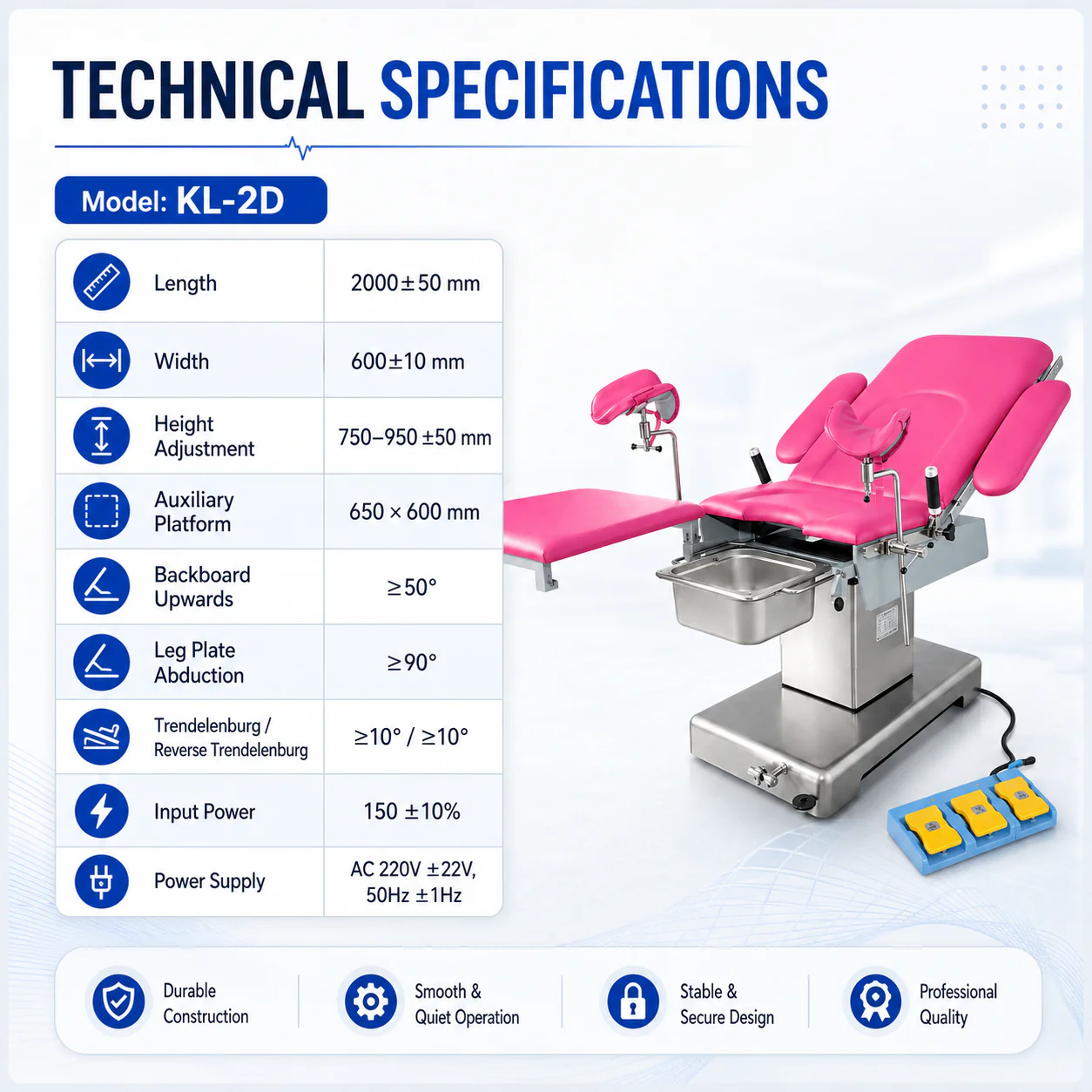

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-2D |
| Length | 2000 ± 50 mm |
| Width | 600 ± 10 mm |
| Height adjustment | (750–950) ± 50 mm |
| Dimension of auxiliary platform | 650 × 600 mm |
| Trendelenburg / Rev-Trend | ≥10° / ≥10° |
| Backboard upwards | ≥50° |
| Leg plate abduction | ≥90° |
| Drive type | Electric (imported brand motor) |
| Control | Foot-stepping remote controller |
| Input power VA | 150 ± 10% |
| Power supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-2D electric obstetric table is used in hospital delivery rooms, gynecological operating theatres, obstetric intervention suites, family planning departments and women's health outpatient clinics. Its electric drive is particularly valued in high-throughput delivery units and gynecology centres where the efficiency of electric position adjustment and the hygiene of the all-stainless-steel construction deliver measurable operational benefits.
