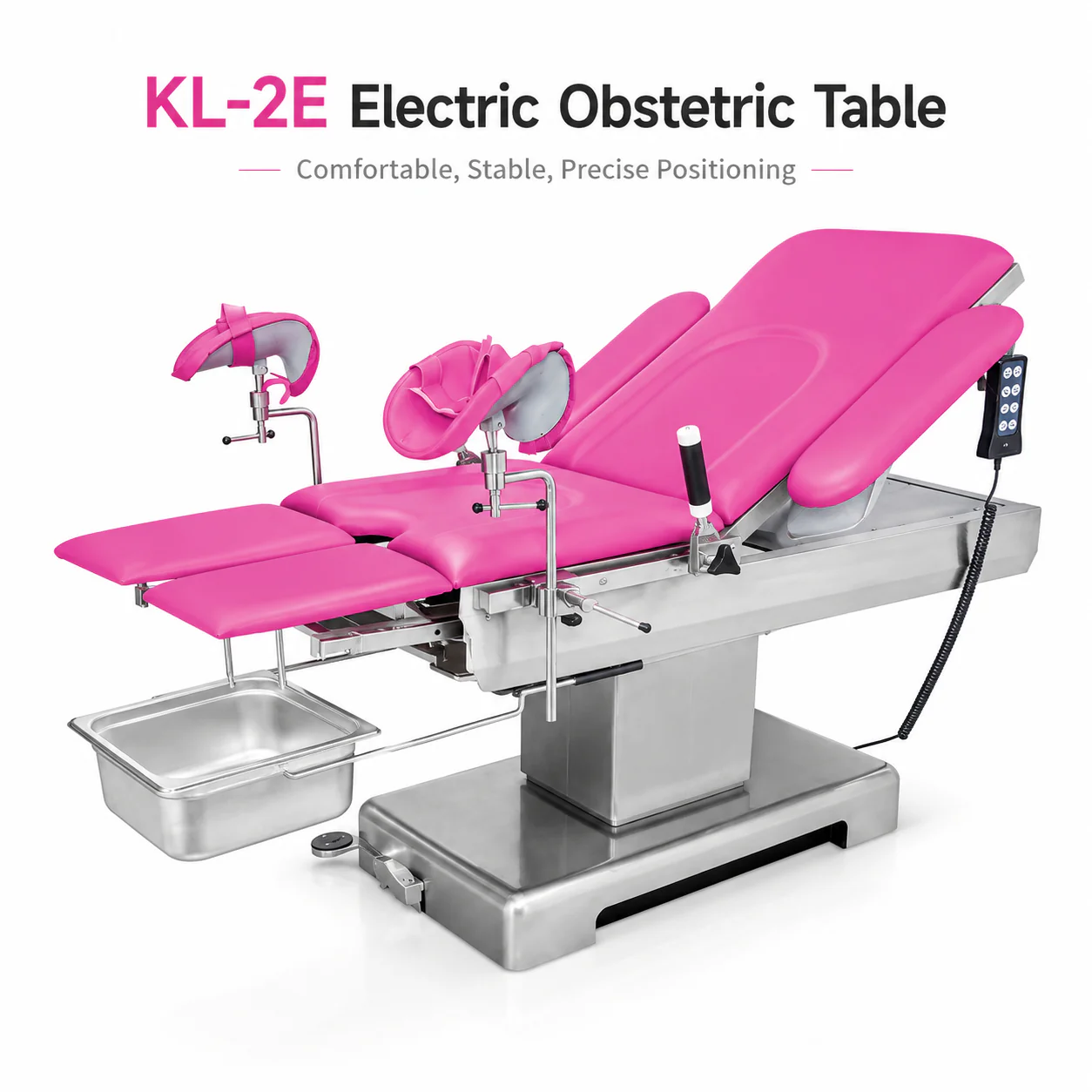

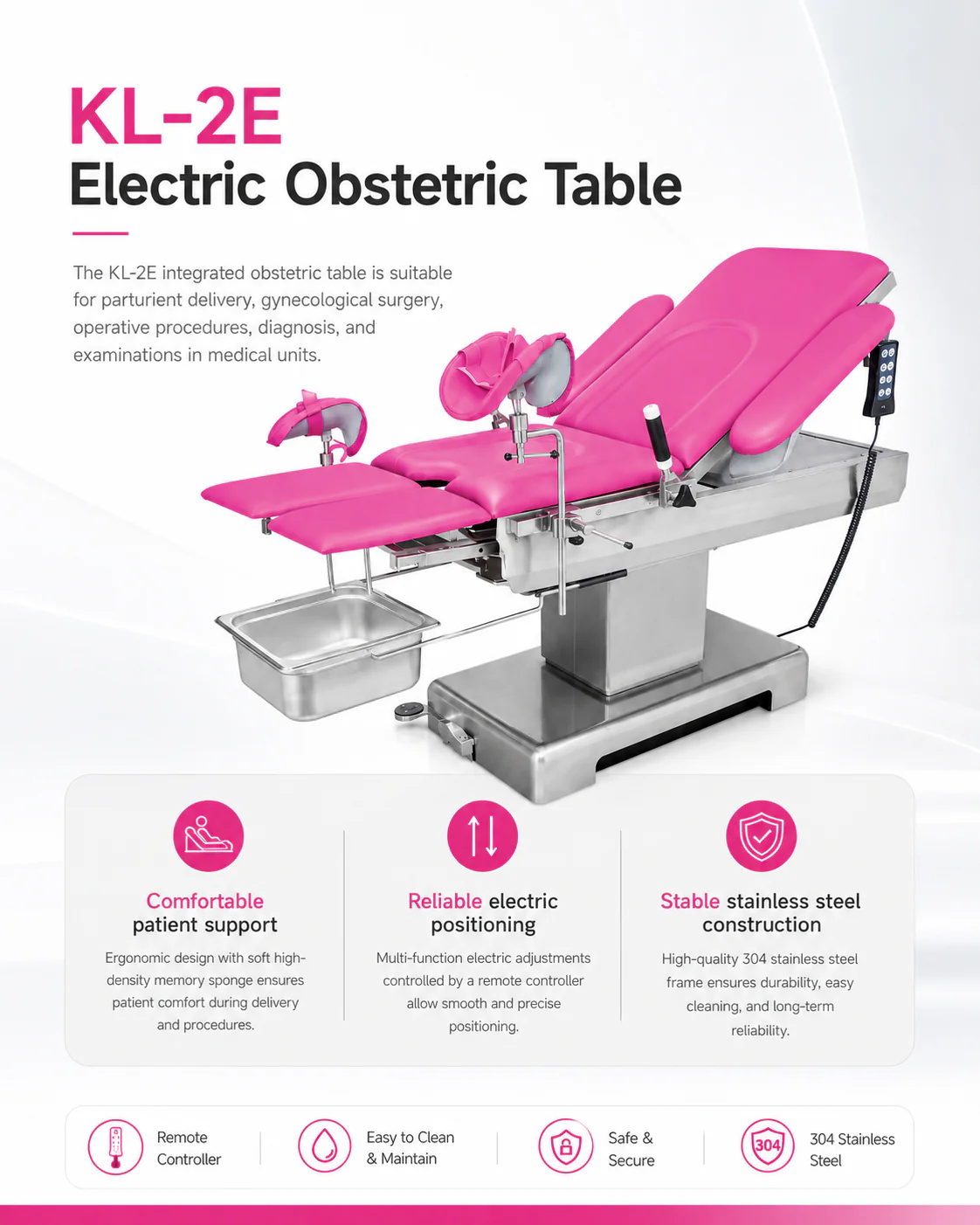

# KL-2E Electric Obstetric Table — Premium Electric Delivery and Gynecological Surgical Platform
Quick answer: The Keling KL-2E is a fully electric integrated obstetric table with 2000 ± 50 mm length, 600 ± 10 mm width, height adjustment from 700 to 950 mm (±50 mm), Trendelenburg/reverse-Trendelenburg ≥10°/≥15°, backboard upward ≥50°, stainless steel construction, auxiliary platform 480 × 550 mm, foot treadle brake device and 220V ± 22V power supply. Manufactured by Keling Medical (Keling Medical) for delivery rooms and gynecological operating theatres.
Quick Facts
- The Keling KL-2E is a fully electric obstetric table with a lower minimum height of 700 mm (vs 750 mm on the KL-2D) for greater ergonomic flexibility.
- Table length is 2000 ± 50 mm, width 600 ± 10 mm; all actions are controlled by an imported brand electric motor via remote controller.

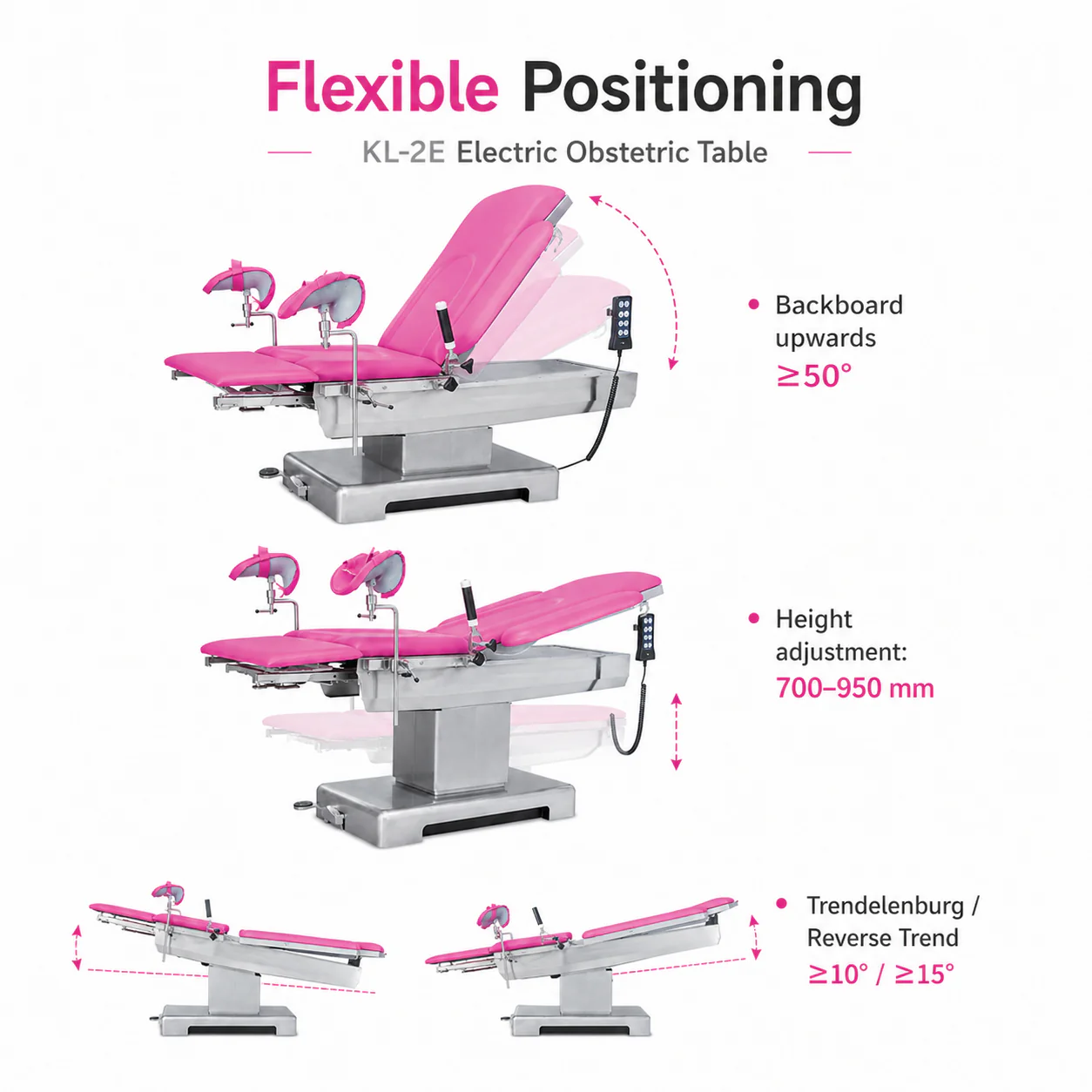

- Trendelenburg is ≥10° and reverse Trendelenburg is ≥15°; backboard raises ≥50°.
- The base seat and upright column covering are high-quality 304 stainless steel for corrosion resistance and easy cleaning.
- A whole stainless steel hidden auxiliary table (480 × 550 mm) with flexible extension and retraction is integrated into the main bed.

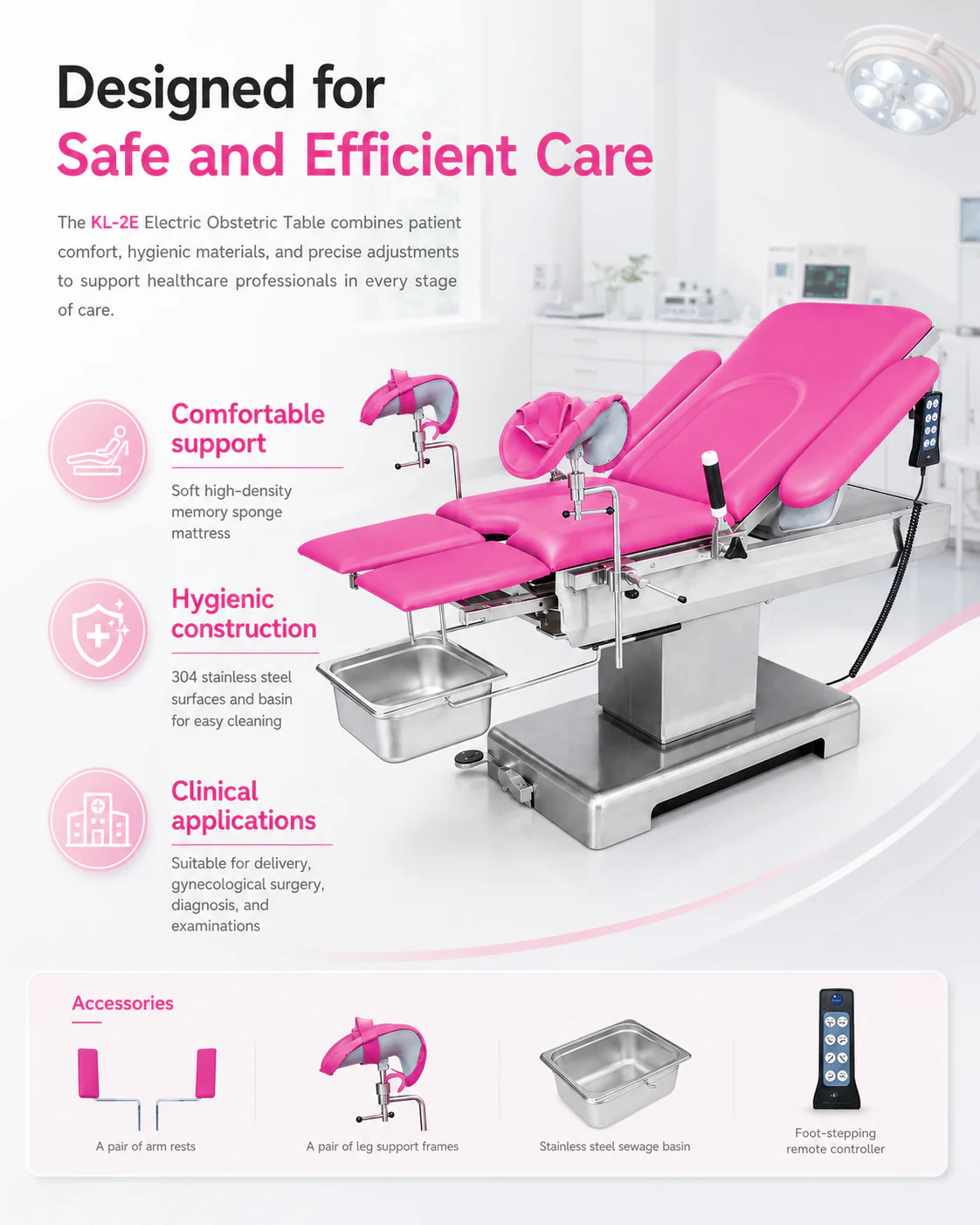

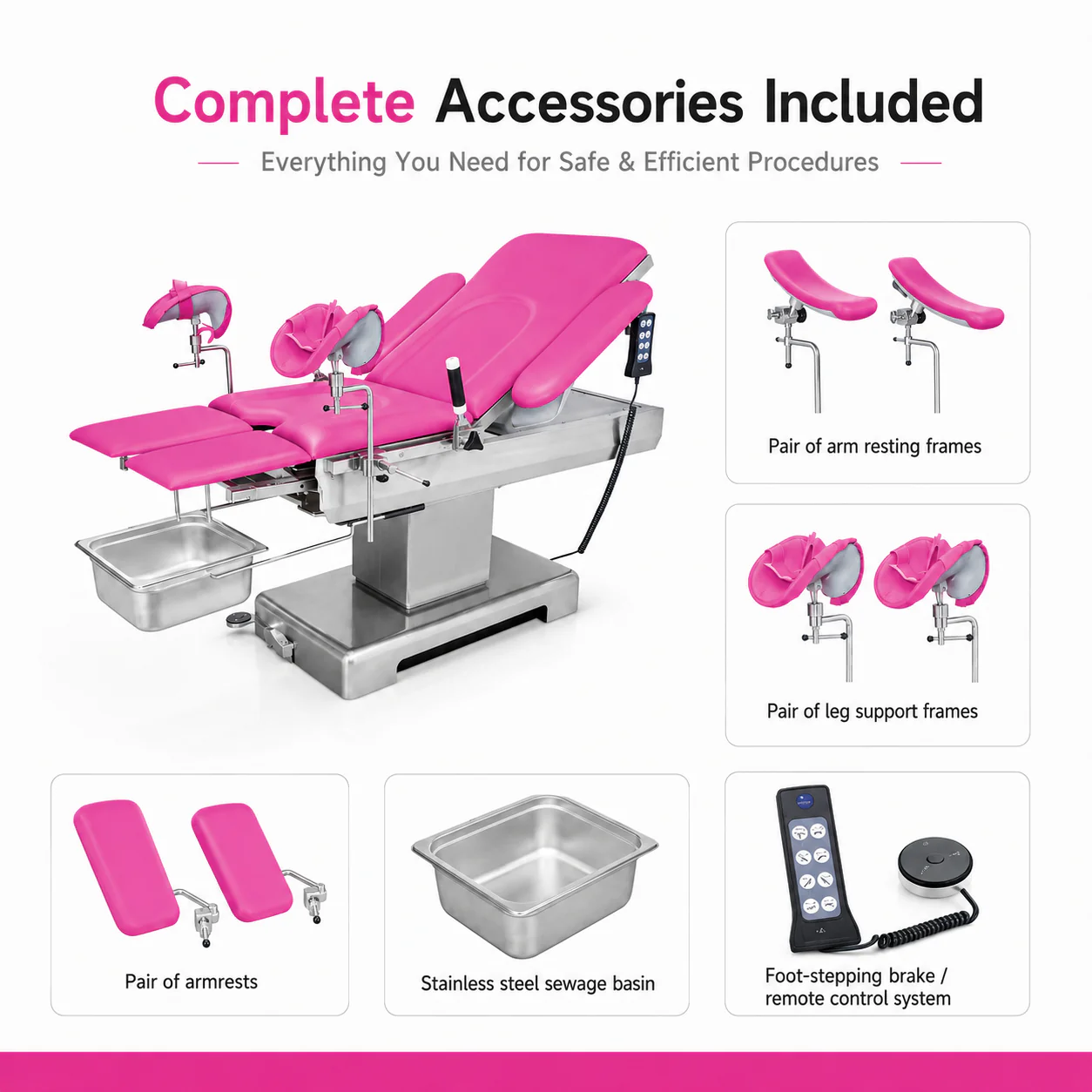

- Standard accessories include arm resting frames, leg support frames, armrests, stainless steel sewage basin and a foot-stepping remote controller.
Overview
The Keling KL-2E electric obstetric table represents a refined version of the KL-2D, offering a lower minimum table height (700 mm vs 750 mm) for improved ergonomic access to shorter or paediatric patients, and an extended reverse Trendelenburg angle (≥15° vs ≥10°) for broader clinical positioning. Like the KL-2D, all functions are driven by an imported brand electric motor controlled by a foot-stepping remote controller, keeping both hands free throughout all clinical activities.
The 304 stainless steel base and column construction ensures robust corrosion resistance and straightforward decontamination between cases — an important characteristic for high-throughput maternity and gynecology departments. The integrated stainless steel auxiliary table (480 × 550 mm) extends and retracts flexibly from the main bed body, providing instrument and equipment support close to the working field without requiring a separate trolley. A foot treadle brake device locks the table securely during procedures.
A high-density memory sponge mattress, formed in one piece, delivers comfortable patient support across the full duration of delivery and gynecological procedures. The stainless steel sewage basin fitted as standard manages fluid disposal efficiently during obstetric cases. The KL-2E is powered by 220V ± 22V, 50Hz ± 1Hz at 150 ± 10% VA, consistent with standard hospital electrical supplies worldwide.

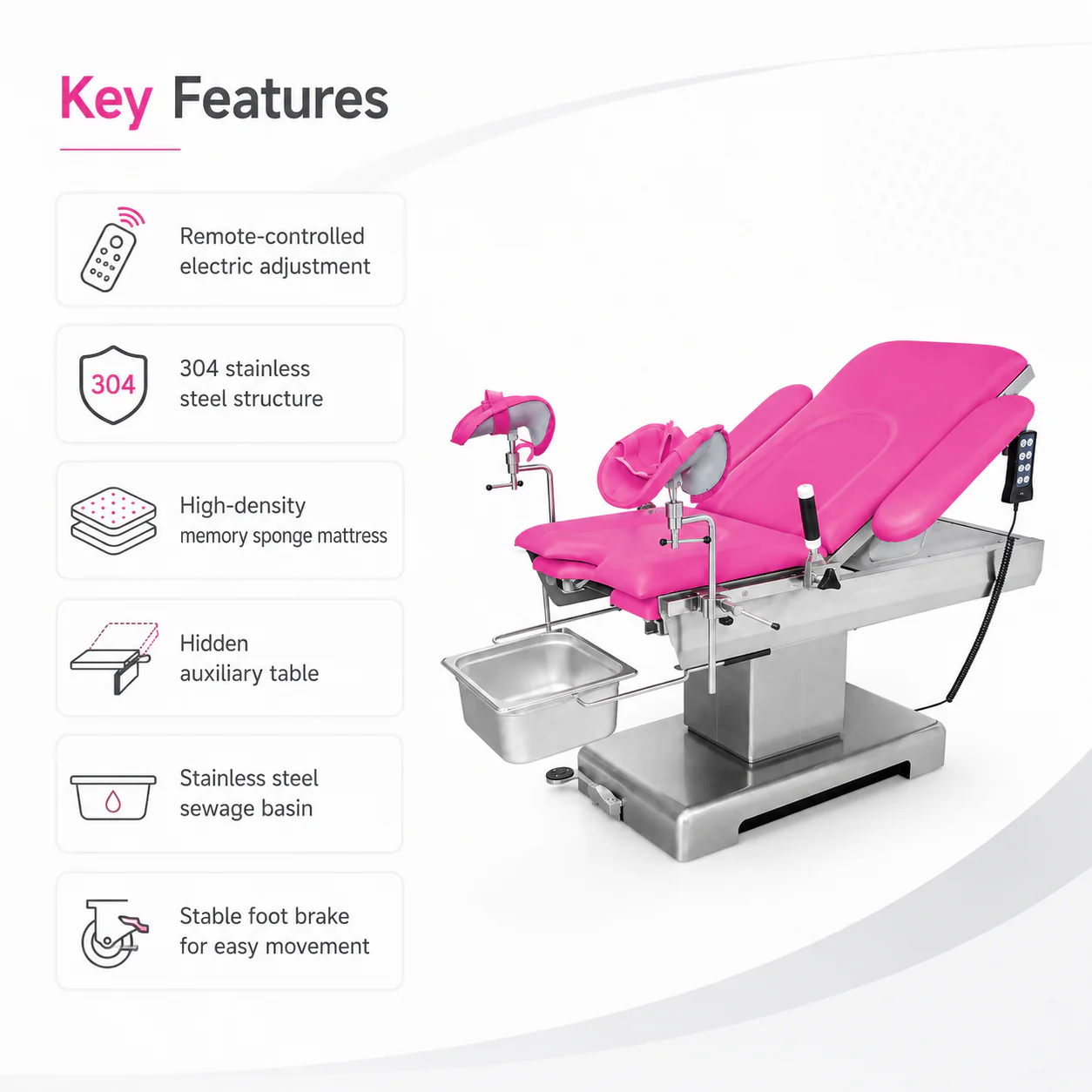

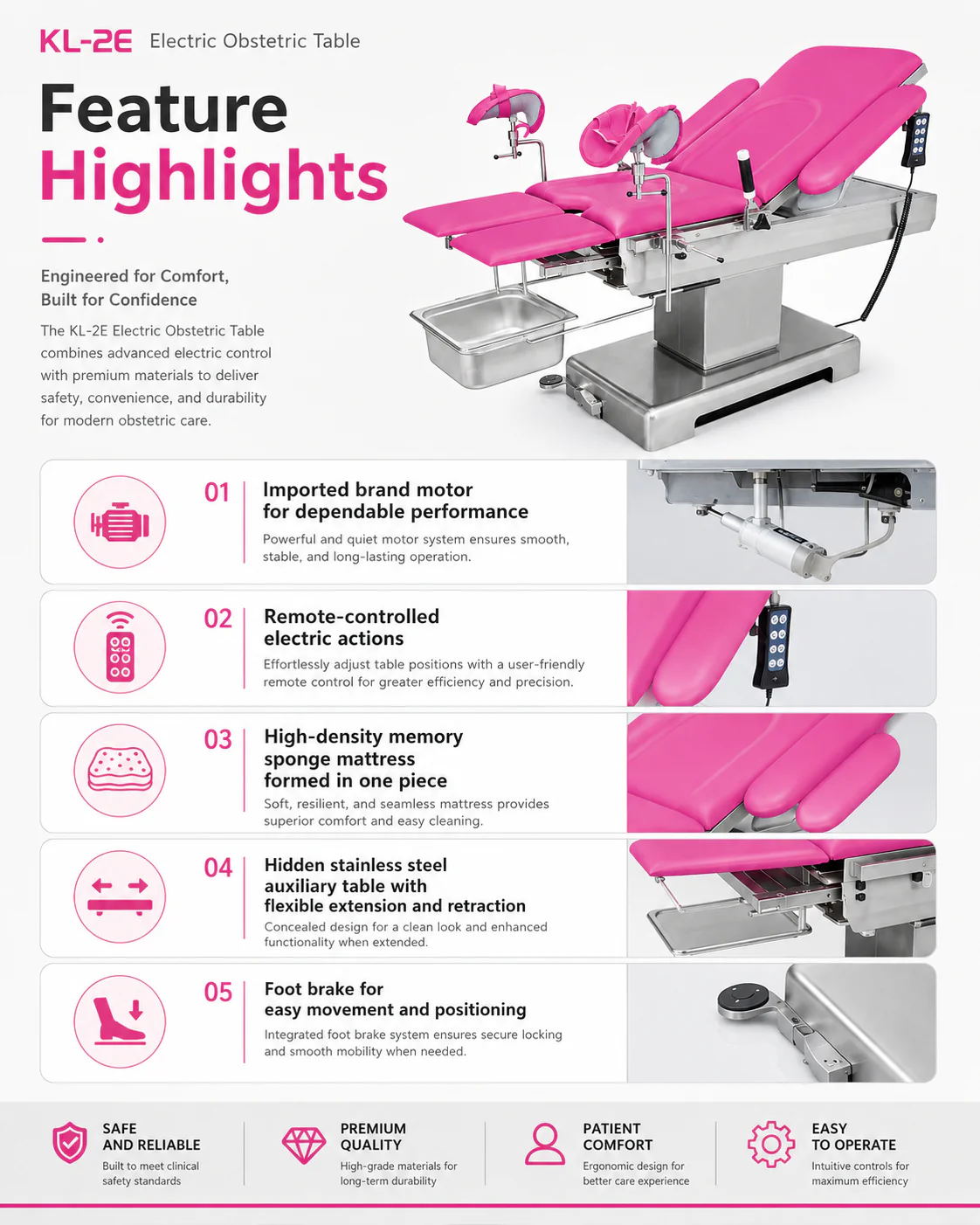

Key Features
- Electric motor drive with lower minimum height — height range 700–950 mm (±50 mm), extending ergonomic reach compared with the KL-2D's 750 mm minimum.
- Extended reverse Trendelenburg ≥15° — wider reverse tilt angle compared to the KL-2D (≥10°), providing more flexibility for head-end elevation during delivery and examination.
- Whole stainless steel hidden auxiliary table 480 × 550 mm — integrates flexibly with the main bed; extends and retracts for instrument support without additional equipment.

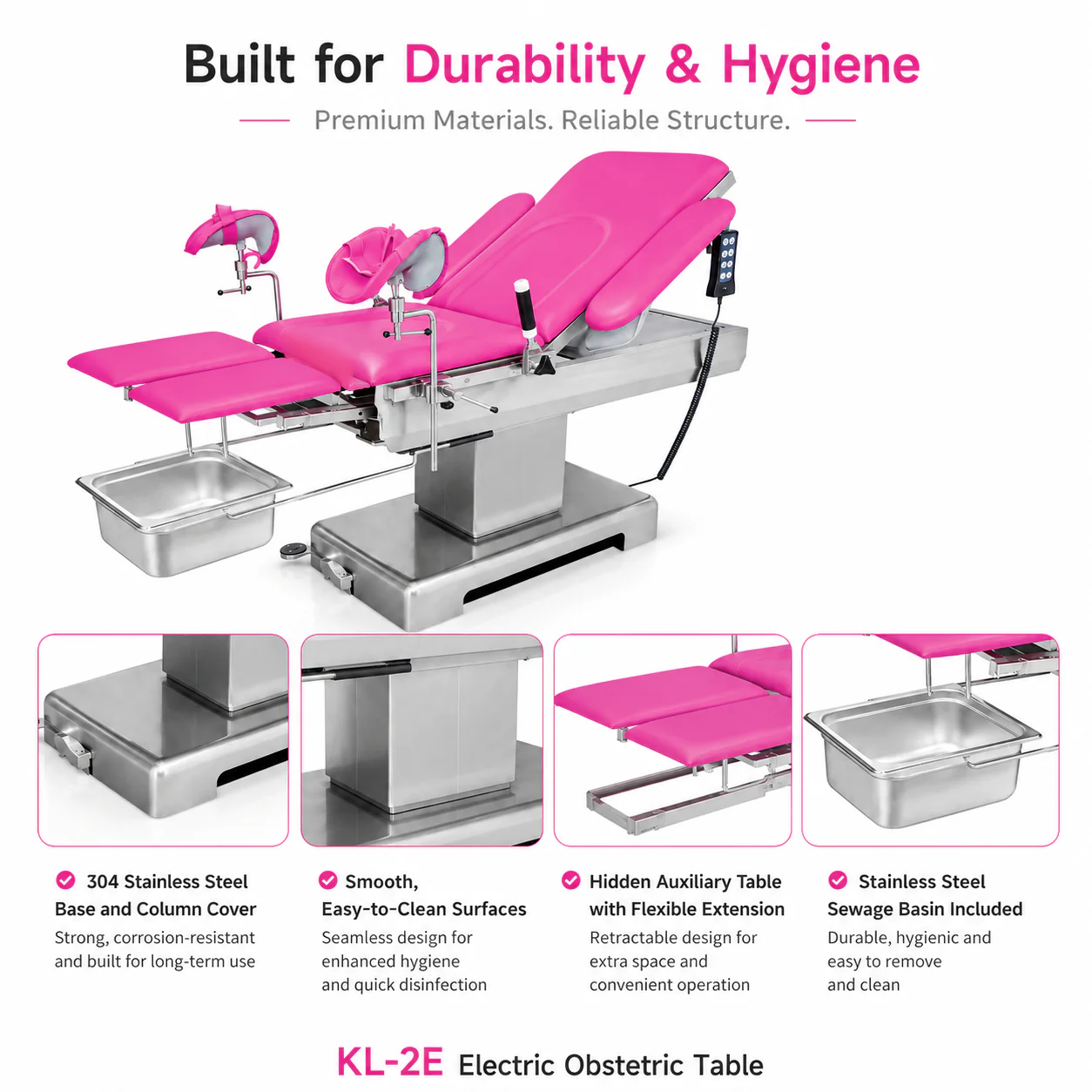

- 304 stainless steel base and column — anti-corrosive and easy to clean for infection control in high-throughput environments.

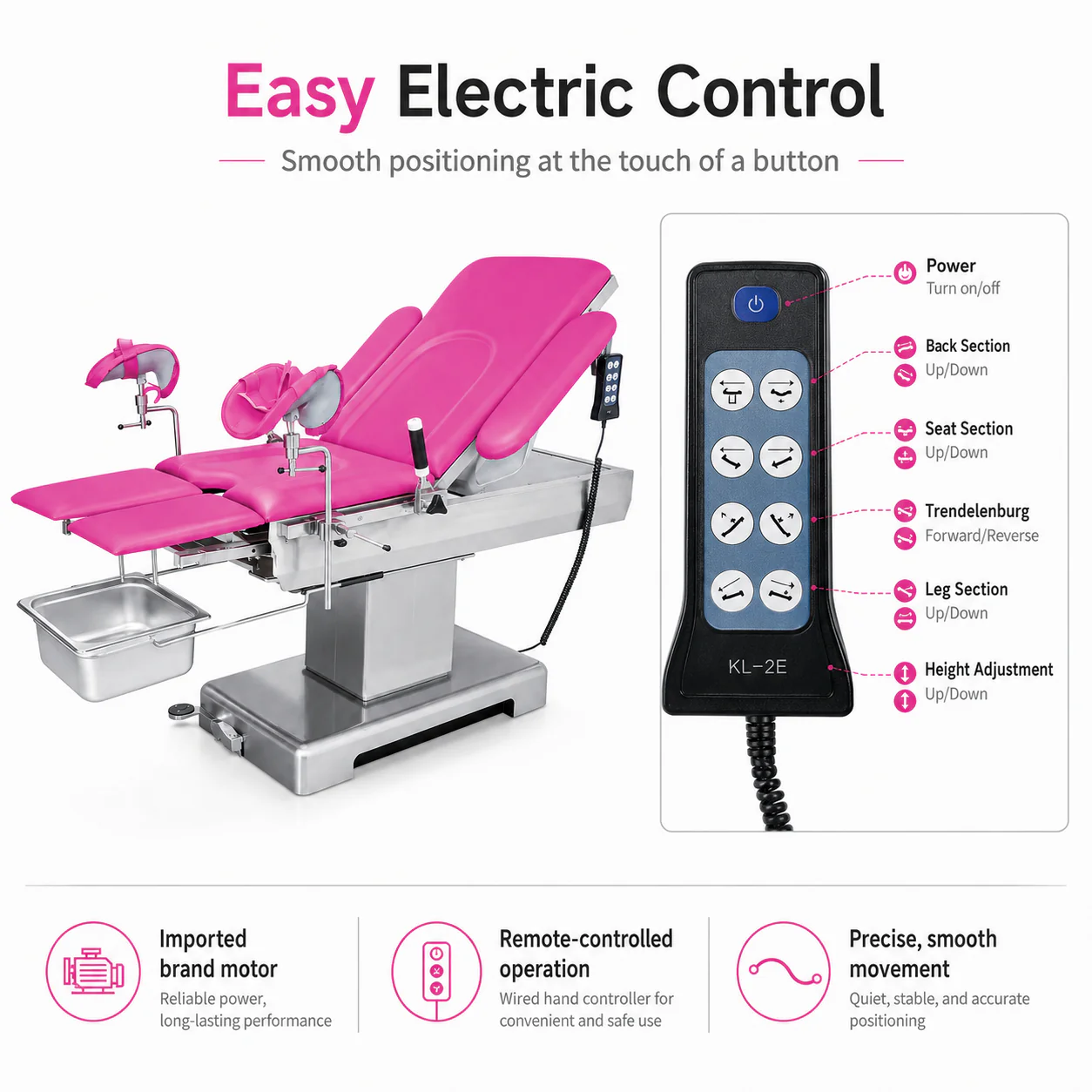

- Foot-stepping remote controller — imported brand motor controlled via foot pedal remote for hands-free electric positioning.
- High-density one-piece mattress — single-formed memory sponge provides durable and comfortable patient support.
- Stainless steel sewage basin — standard equipment for integrated fluid management during obstetric and gynecological procedures.

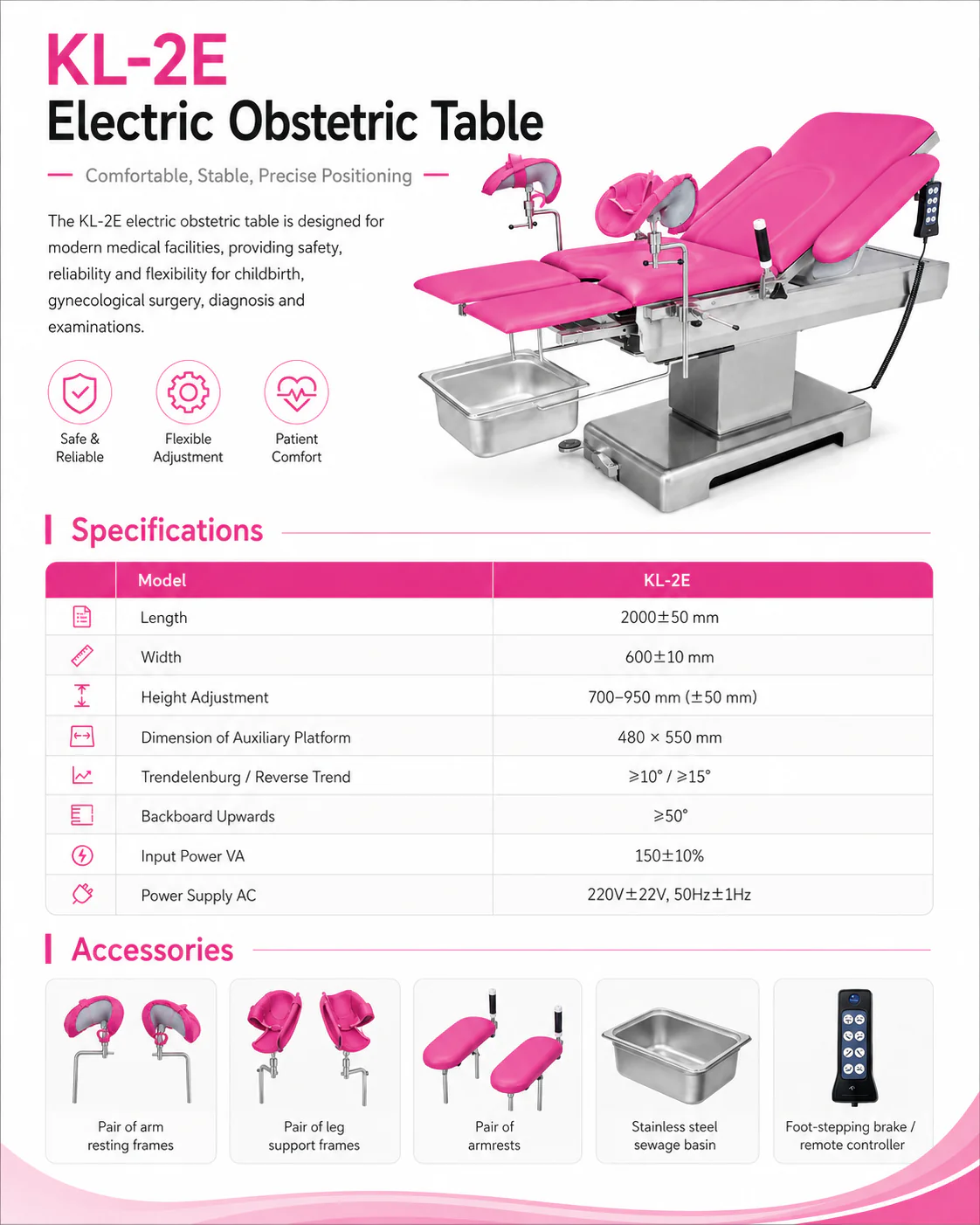

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-2E |
| Length | 2000 ± 50 mm |
| Width | 600 ± 10 mm |
| Height adjustment | (700–950) ± 50 mm |
| Dimension of auxiliary platform | 480 × 550 mm |
| Trendelenburg / Rev-Trend | ≥10° / ≥15° |
| Backboard upwards | ≥50° |
| Drive type | Electric (imported brand motor) |
| Control | Foot-stepping remote controller |
| Input power VA | 150 ± 10% |
| Power supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-2E is used in hospital delivery rooms, gynecological operating theatres, obstetric intervention suites, family planning clinics and women's health outpatient centres. The lower minimum height and wider reverse Trendelenburg make it particularly suitable for mixed-patient environments and departments serving patients of varied stature or where ergonomic flexibility is a priority.
