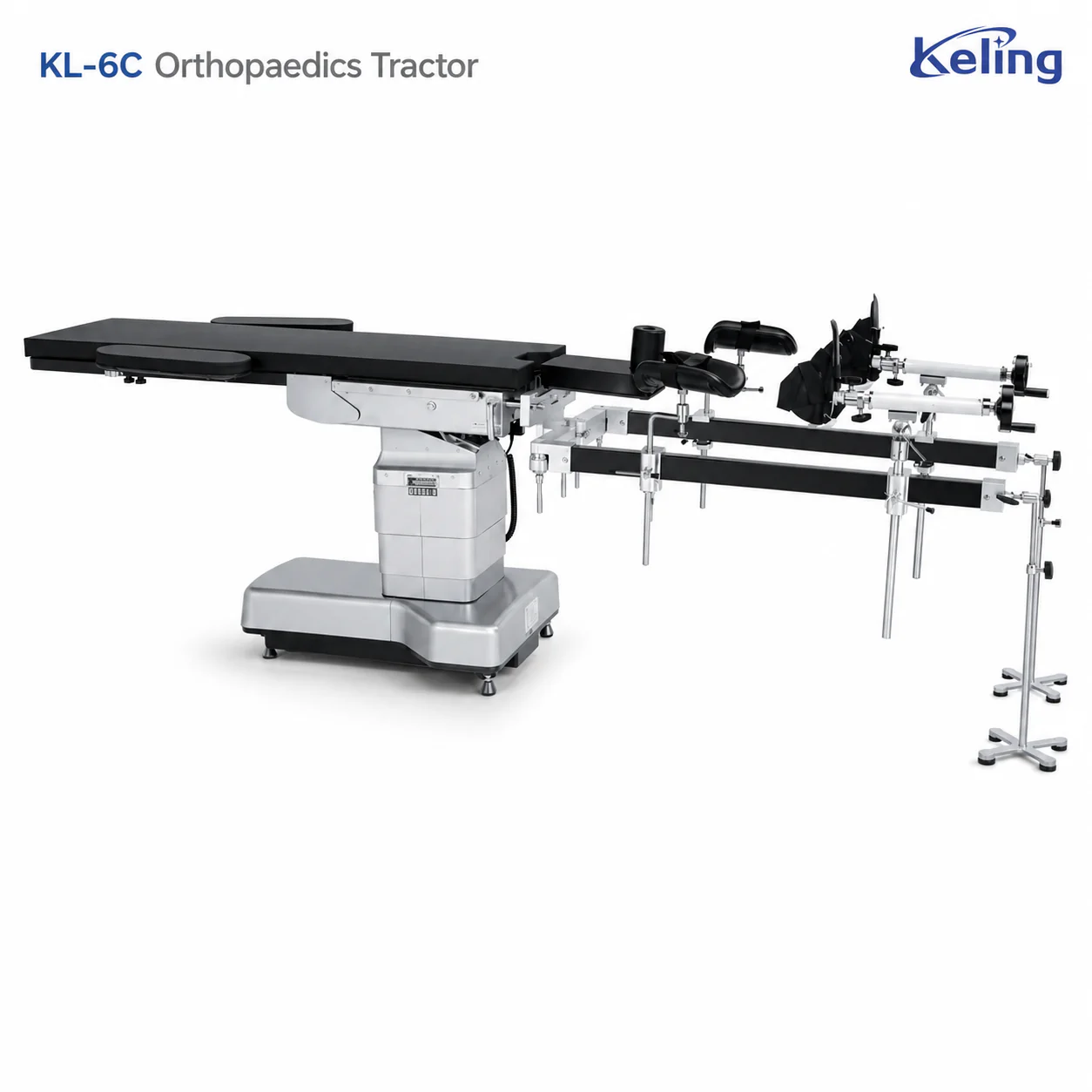

# KL-6 Series Orthopaedics Tractor — Carbon Fiber Traction Frame for Fracture and Dislocation Surgery
Quick answer: The Keling KL-6 Series (primary model KL-6C) is a carbon fiber orthopaedics traction frame measuring 1700 ± 10 mm long × 750 ± 100 mm wide, with traction device horizontal rotation 0–180°, traction distance (0–200 mm) ± 10%, traction device height adjustment ≥400 mm, clear fluoroscopic imaging capability and plug-in connection to compatible operating tables. Manufactured by Keling Medical (Keling Medical) for orthopaedic fracture and dislocation surgery.
Quick Facts

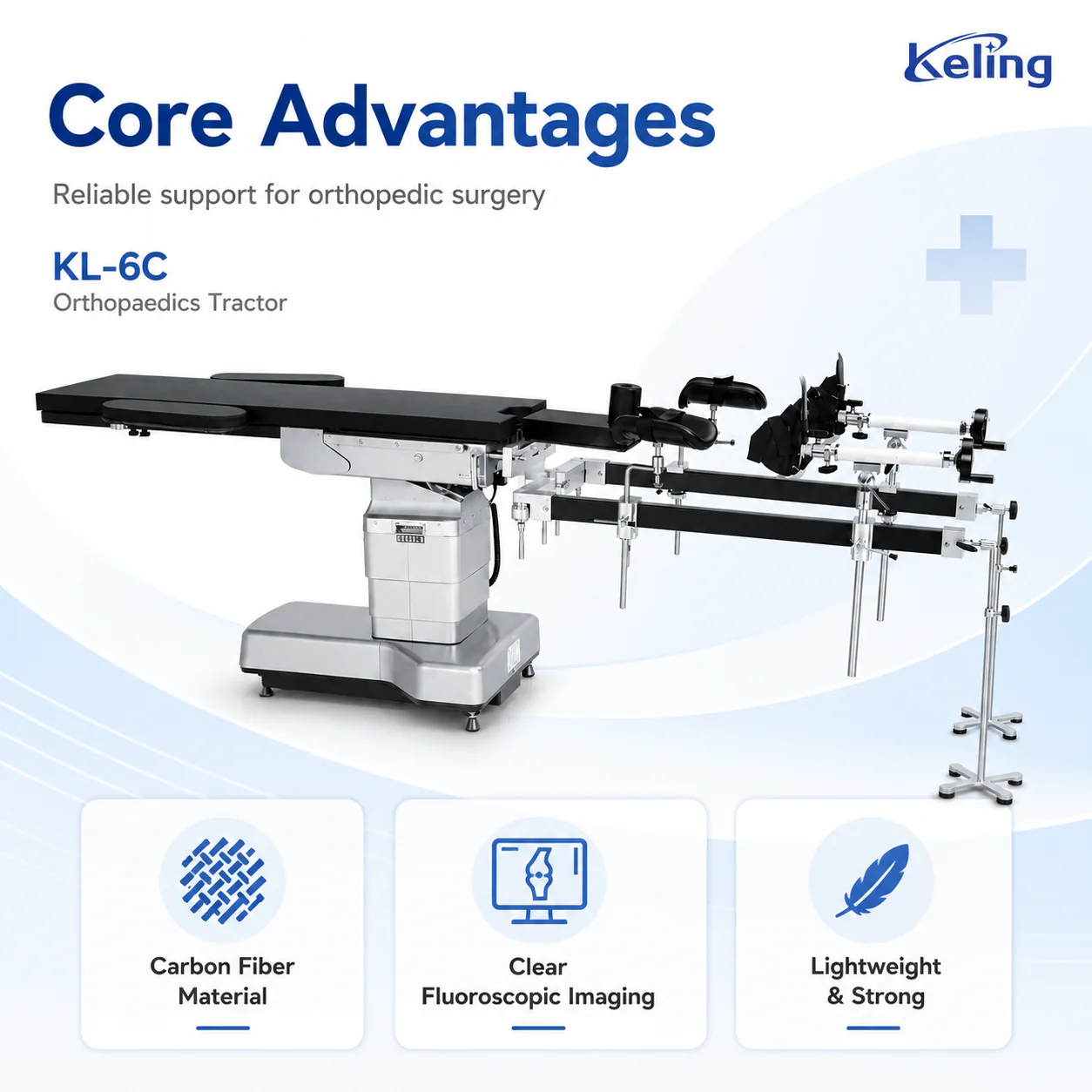

- The Keling KL-6 Series orthopaedics tractor uses carbon fiber material, providing clear fluoroscopic imaging for intraoperative C-arm use.
- The primary model is KL-6C; it measures 1700 ± 10 mm long and 750 ± 100 mm wide.
- Traction device horizontal rotation range is 0–180°; traction distance is (0–200 mm) ± 10%; height adjustment is ≥400 mm.
- The plug-in design connects conveniently and quickly to compatible operating tables, including the KL-D·III-III.
- An accessory car (traction frame trolley) is included for convenient movement and space-efficient storage.
- The KL-6 Series is manufactured by Keling Medical, a Jiangsu-based surgical equipment producer established in 1996.
Overview

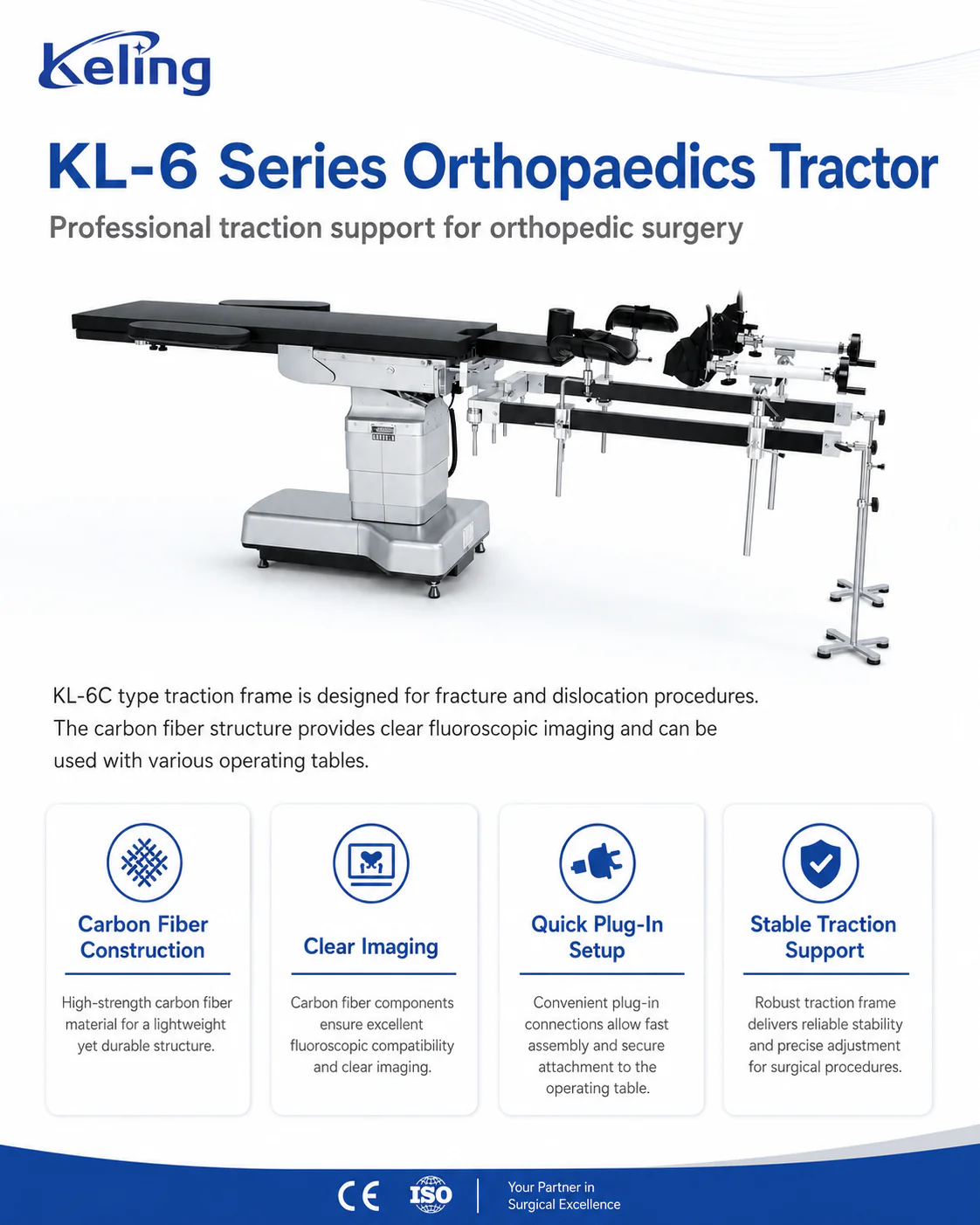

The Keling KL-6 Series orthopaedics tractor is a specialist surgical attachment designed for the operative treatment of fractures and dislocations — particularly of the lower extremity — where controlled axial traction and precise limb positioning are required throughout the surgical procedure. The traction frame plugs directly into compatible Keling operating tables via a quick plug-in connection, creating an integrated orthopaedic surgical system without the need for a dedicated fracture table in every theatre.
Carbon fiber construction is the defining material choice for the KL-6C. Unlike stainless steel or aluminium traction frames, carbon fiber is fully radiolucent — it appears transparent on fluoroscopy and C-arm imaging, delivering clear, artefact-free intraoperative images of the surgical field, fracture reduction and implant placement. This characteristic is essential for procedures such as intramedullary nailing of femoral and tibial fractures, femoral neck fixation and hip arthroplasty revisions where real-time fluoroscopy guides the surgical technique.

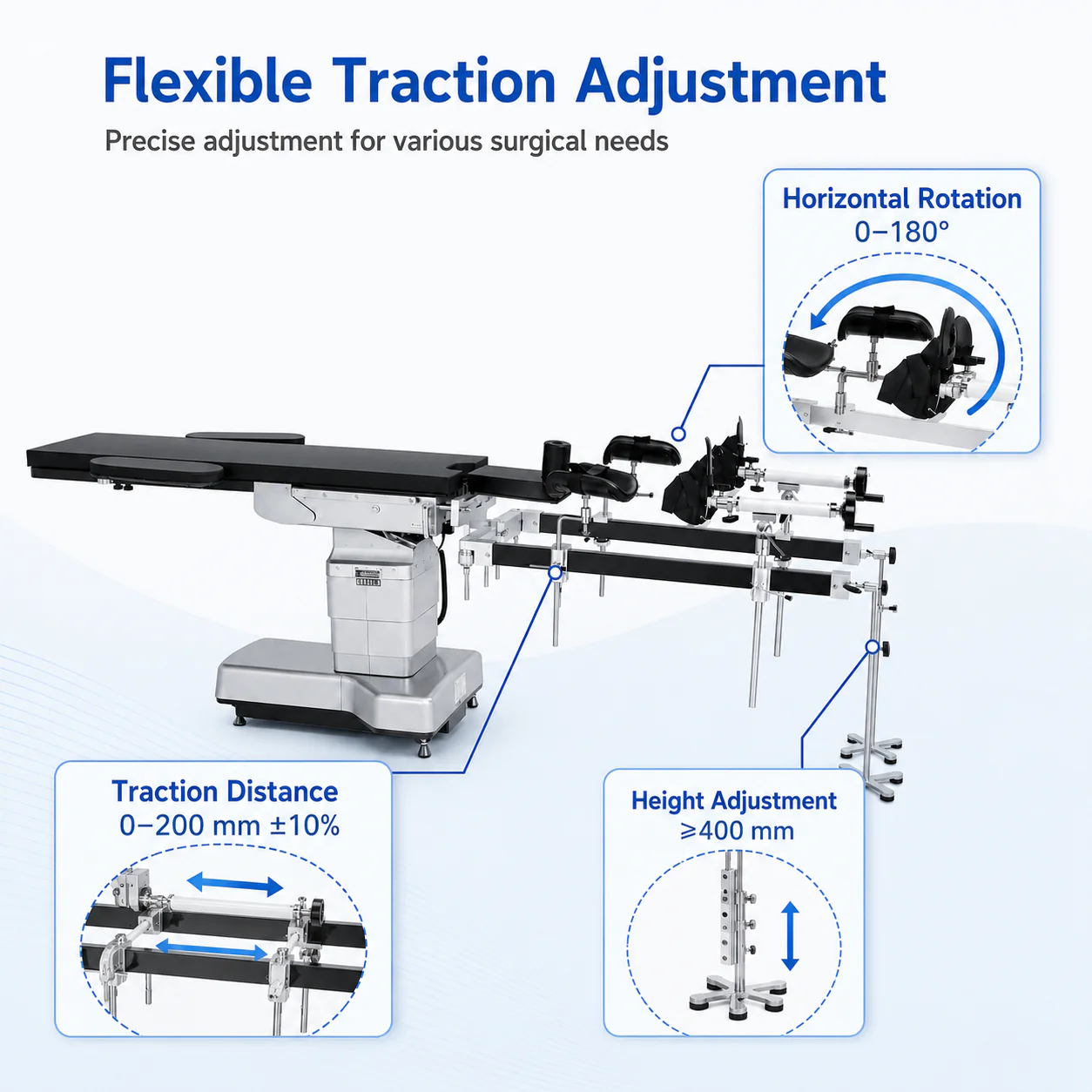

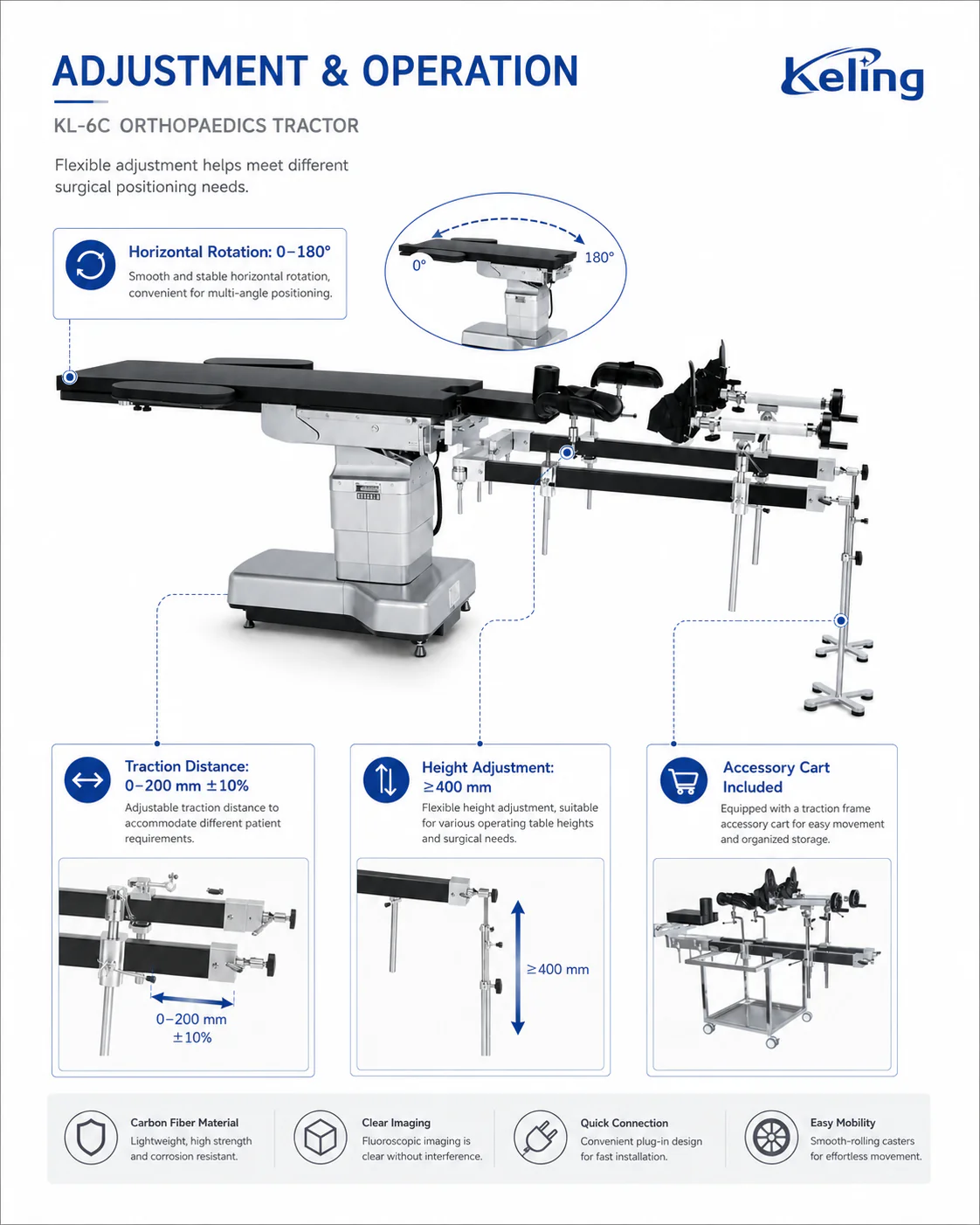

The traction mechanism provides 0–180° horizontal rotation for limb positioning, 0–200 mm of axial traction distance for fracture reduction, and ≥400 mm of height adjustment to accommodate patients of different stature and limb length. The included accessory car allows the traction frame to be moved conveniently between theatres and stored compactly when not in use, making it practical even in facilities that use it only periodically.

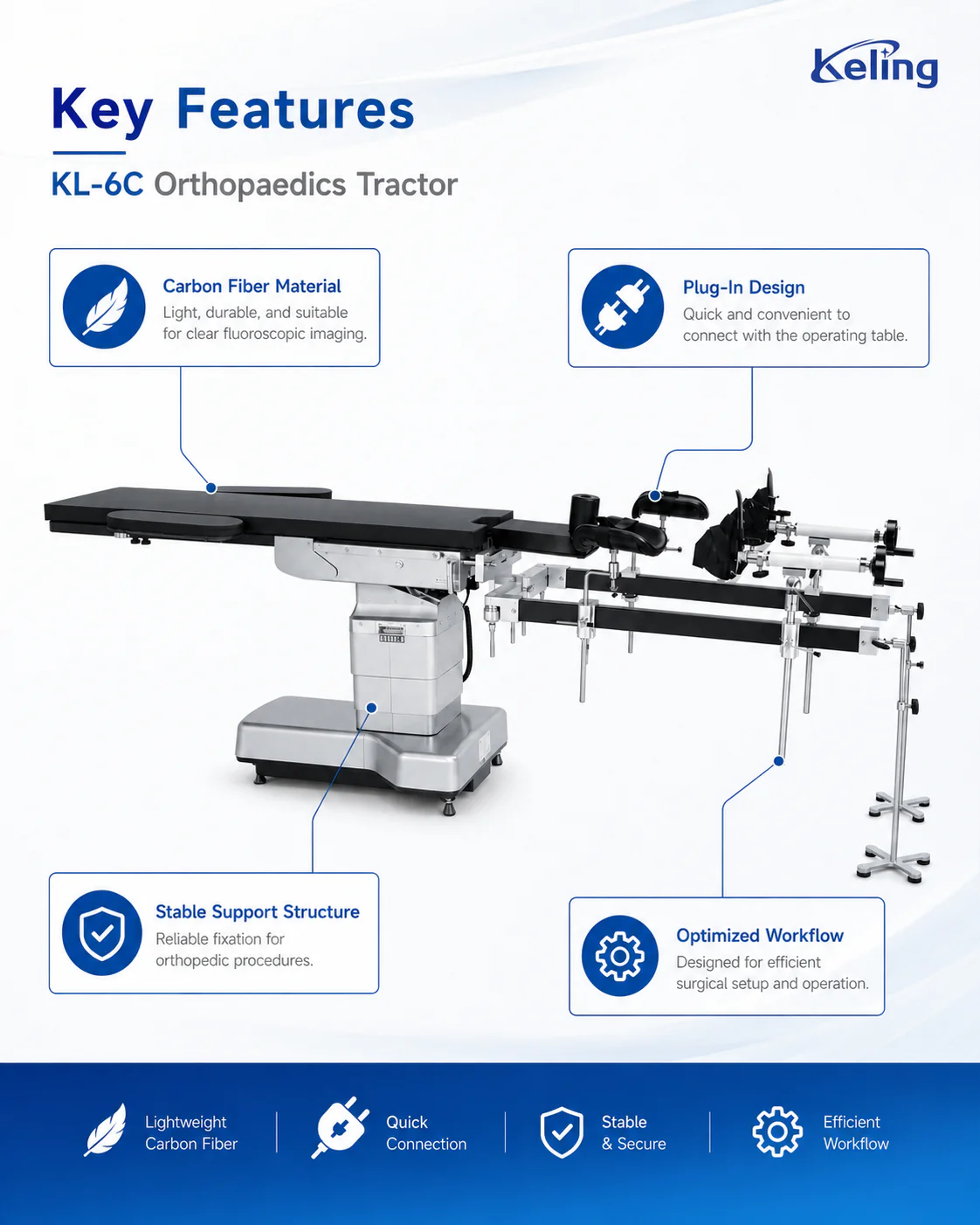

Key Features
- Carbon fiber construction — high-strength, lightweight carbon fiber is fully radiolucent for clear fluoroscopic and C-arm imaging without interference or artefacts during surgery.
- 0–180° horizontal rotation — wide rotational range of the traction device enables precise limb positioning for varied fracture patterns and surgical approaches.
- 0–200 mm traction distance — controlled axial traction for fracture reduction; adjustable in small increments with ±10% tolerance for fine positioning.
- ≥400 mm height adjustment — extensive vertical adjustment accommodates patients across a wide range of stature and limb length for consistent surgical access.

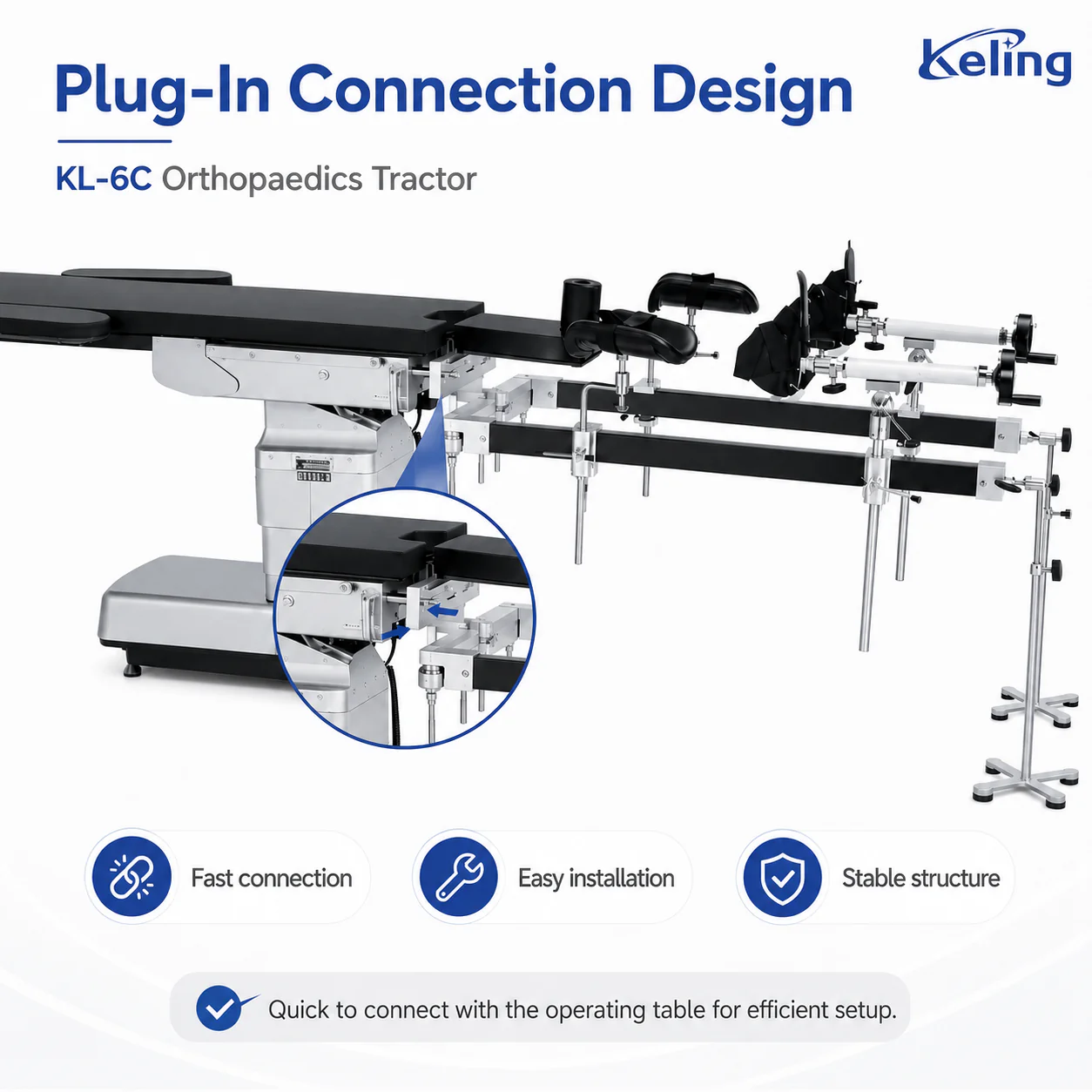

- Plug-in table connection — convenient, quick-connect plug-in system attaches securely to compatible Keling operating tables including the KL-D·III-III, eliminating the need for a dedicated fracture table.

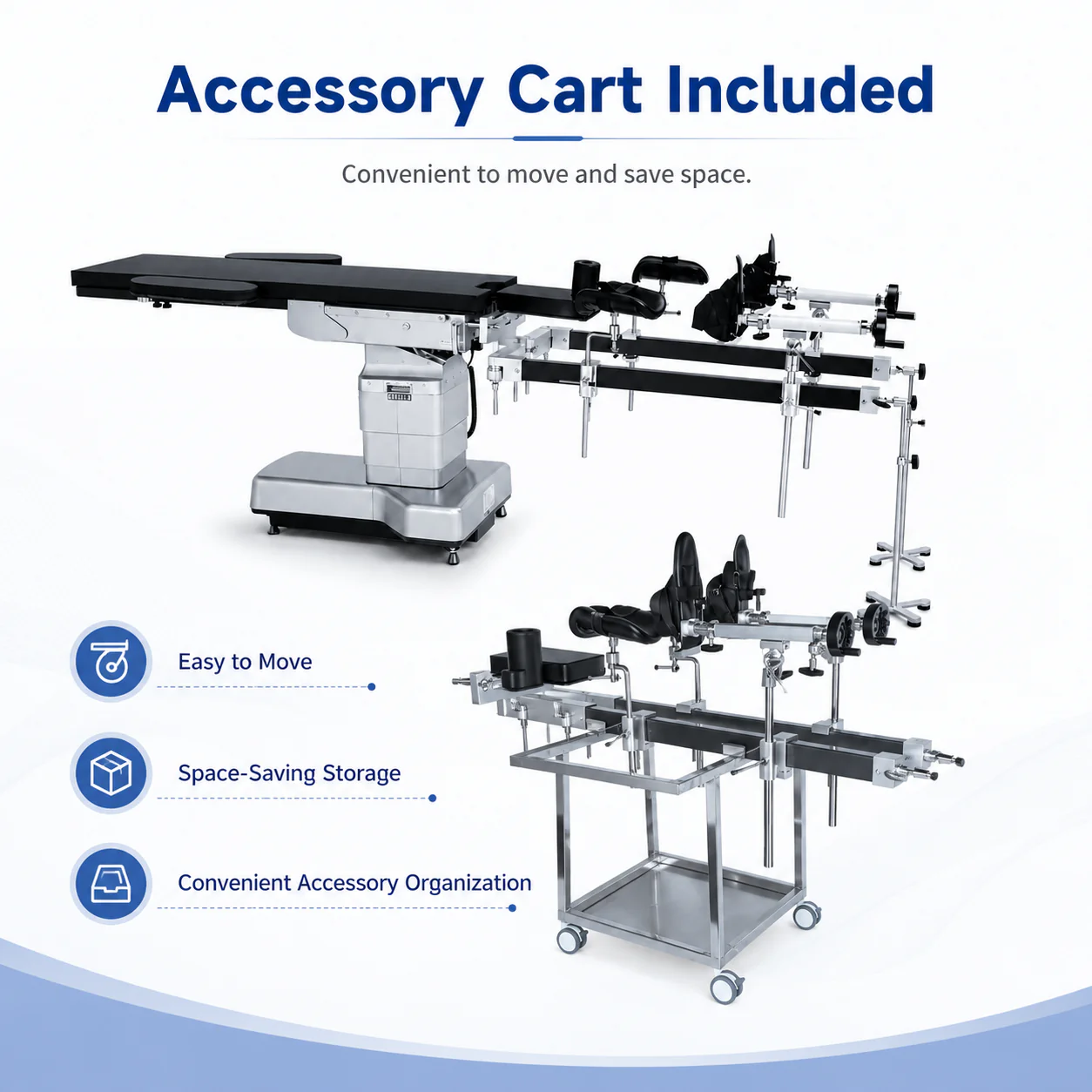

- Traction frame accessory car — included trolley provides convenient, space-efficient movement and storage of the traction frame between cases and theatres.
- Lightweight high-strength structure — carbon fiber provides strength equivalent to stainless steel at significantly reduced weight, reducing setup effort and handling load.

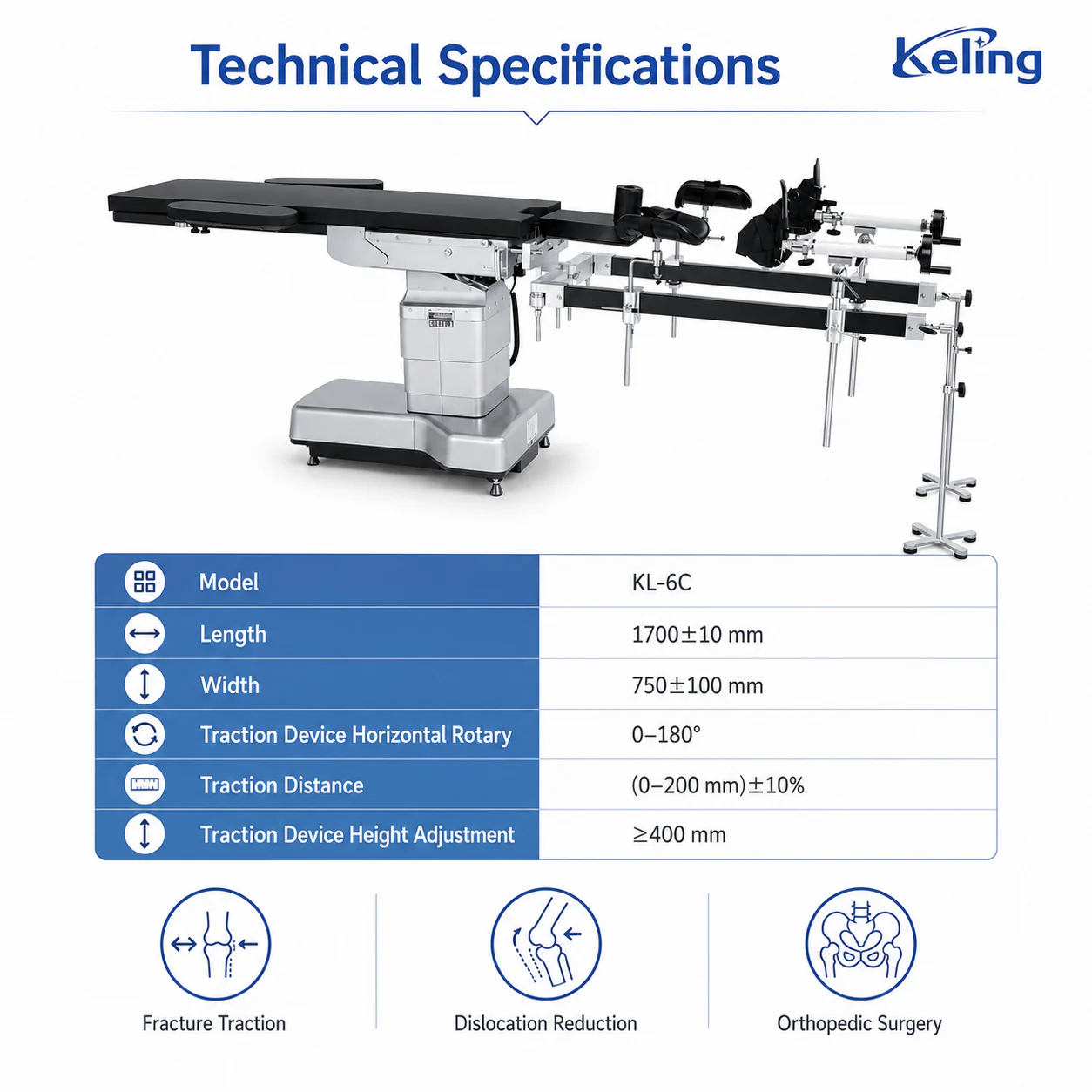

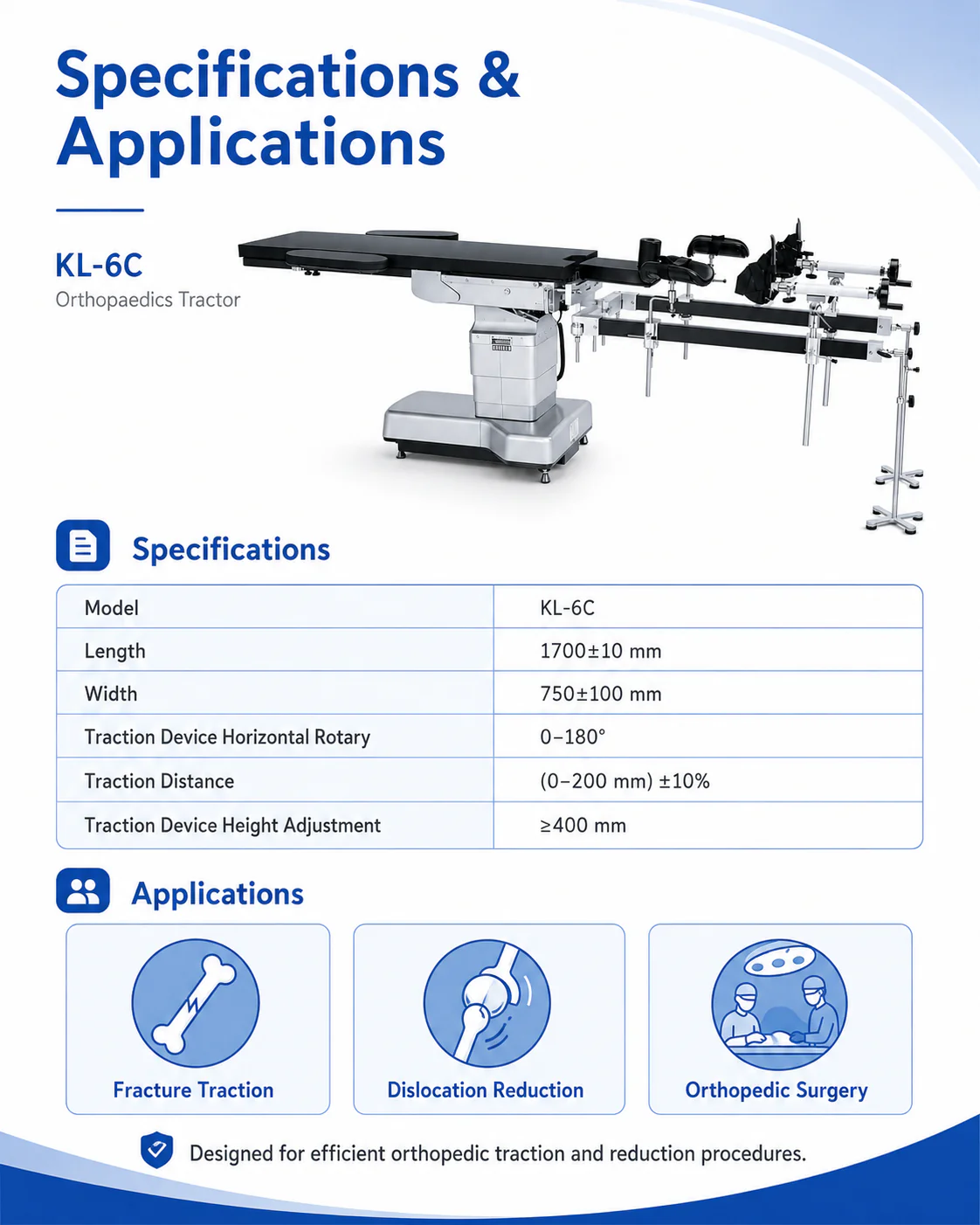

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-6C |
| Length | 1700 ± 10 mm |
| Width | 750 ± 100 mm |
| Traction device horizontal rotary | 0–180° |
| Traction distance | (0–200 mm) ± 10% |
| Traction device height adjustment | ≥400 mm |
| Material | Carbon fiber |
| Connection type | Plug-in (compatible with KL-D·III-III and other operating tables) |
| Included accessories | Traction frame accessory car |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-6 Series orthopaedics tractor is used in orthopaedic operating theatres for fracture and dislocation surgery including intramedullary nailing of femoral and tibial fractures, femoral neck screw fixation, hip arthroplasty, ankle and lower extremity fracture reduction, and traction and reduction procedures under fluoroscopic guidance. It can be used in combination with various Keling operating tables to create a complete orthopaedic surgical system.
