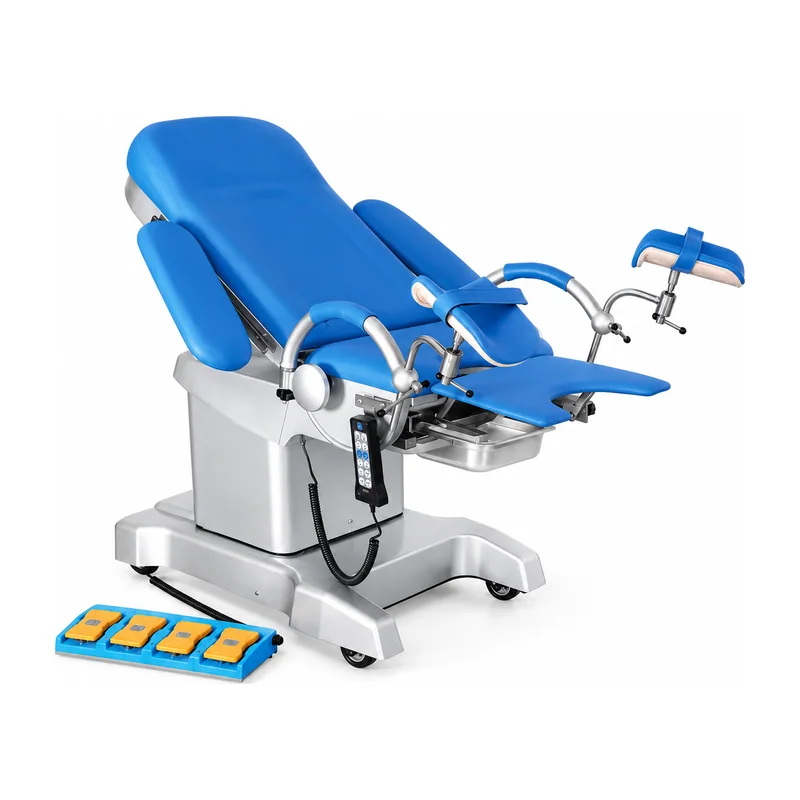

KL-FS-II Electric Gynecological Table — Extended-Height Obstetric Table with Leg Support Reflex Function

Quick answer. The Keling KL-FS-II is an electric gynecological table with height adjustment from 720–1000 mm (± 50 mm), leg support reflex ≥ 40°, backboard fold-up ≥ 60°, Trendelenburg/reverse-Trendelenburg ≥ 5°/≥ 15°, and an auxiliary platform of 350 × 480 mm (± 20 mm). It features dual hand-held and foot controller operation, imported motor, and a hidden sewage basin. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: (720–1000) ± 50 mm
Power Supply AC: 220v ± 10% 50Hz ± 1Hz
Dimension of Auxiliary Platform: (350 × 480) ± 20 mm
Length: 1270 ± 50 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-FS-II electric gynecological table advances Keling's gynecological table range with a taller height range (720–1000 mm), a more capable Trendelenburg/reverse-Trendelenburg function, an active leg support reflex of ≥ 40°, and a larger auxiliary platform compared to the KL-FS-I. These features collectively provide greater surgical flexibility for gynecological operations requiring both elevated patient positioning and controlled leg manipulation — such as advanced laparoscopic gynecological procedures, hysteroscopy, and operative deliveries.

The dual controller system on the KL-FS-II provides both a hand-held remote controller and a foot controller, each operating the same motor-driven table axes independently. Surgeons can switch between controllers based on hand availability during the procedure. The imported brand motor provides quiet, precise actuation across height, backboard, leg support, and tilt functions, while the stainless steel accessory set — including the one-piece stainless steel basin and leg support pair — provides a hygienic, complete procedural setup.

The seat plate also moves electrically forward and backward, an important practical feature during the transition between examination and surgical operative phases, allowing the patient's perineal position to be optimised without manual table repositioning. A leg support reflex function of ≥ 40° gives controlled, motorised leg elevation beyond the standard static support found on basic gynecological tables.

Quick facts

The Keling KL-FS-II is an electric gynecological table suitable for gynecological surgery, operative abortion, and gynecological examination.
Height adjusts from 720 to 1000 mm (± 50 mm) — a wider range than the KL-FS-I, supporting higher surgical positioning.
Leg support reflex reaches ≥ 40°, providing active leg positioning for improved surgical access.
Trendelenburg is ≥ 5° and reverse-Trendelenburg ≥ 15°, enabling head-tilt adjustments for procedural convenience.
Dual controllers are provided: hand-held controller and foot controller, mutually independent for flexible operation.
An auxiliary platform measuring 350 × 480 mm (± 20 mm) provides a built-in instrument surface.

Key features

Extended height range 720–1000 mm
taller maximum height than KL-FS-I, accommodating surgeon ergonomics for standing procedures at elevated positions.
Leg support reflex ≥ 40°
electric, motorised leg elevation for active repositioning of leg supports during the procedure.
Trendelenburg ≥ 5° / reverse-Trendelenburg ≥ 15°
dual-direction tilt for patient orientation adjustments during gynecological surgery.
Dual controller: hand-held + foot pedal
independent hand-held and foot controllers enable flexible table command with either hands or feet.
Electric seat plate forward/backward movement
motorised seat plate repositioning for perineal position optimisation without table relocation.
Auxiliary platform 350 × 480 mm
built-in instrument tray surface provides dedicated workspace for procedure instruments.
Imported motor, stainless steel basin
quiet, reliable motor actuation and hygienic 1-piece stainless steel sewage basin for fluid management.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

10 parameters for KL-FS-II

KL-FS-II technical specifications
Model	KL-FS-II
Product type	Electric gynecological table
Length	1270 ± 50 mm
Width	550 ± 30 mm
Height Adjustment	(720–1000) ± 50 mm
Trendelenburg / Rev-Trend	≥ 5° / ≥ 15°
Backboard up folded	≥ 60°
Leg support reflex	≥ 40°
Dimension of Auxiliary Platform	(350 × 480) ± 20 mm
Power Supply AC	220v ± 10% 50Hz ± 1Hz

Applications

The KL-FS-II is used in hospital gynecology departments, obstetric units, and women's health clinics for gynecological surgery, operative abortion, hysteroscopy, cervical procedures, laparoscopic gynecological surgery, and advanced gynecological examination requiring active leg support and higher patient elevation.

Questions buyers ask

What is the Keling KL-FS-II electric gynecological table used for?

The KL-FS-II is an electric gynecological table for gynecological surgery, operative abortion, and gynecological examination. Its height range of 720–1000 mm, leg support reflex ≥ 40°, and dual hand-held plus foot controller make it well-suited to both outpatient and surgical gynecological procedures requiring active positional adjustment.

What is the leg support reflex function on the KL-FS-II?

The leg support reflex on the KL-FS-II refers to the motorised elevation of the leg supports to an angle of ≥ 40° above the horizontal. This provides powered, adjustable leg positioning during the procedure, rather than relying on static support rods — enabling the clinician to fine-tune perineal access without manual repositioning of the supports.

How does the KL-FS-II differ from the KL-FS-I?

The KL-FS-II offers a taller height range (720–1000 mm vs. 700–900 mm), adds a Trendelenburg/reverse-Trendelenburg function (≥ 5°/≥ 15°), provides a leg support reflex of ≥ 40°, adds a hand-held controller in addition to the foot pedal, includes a larger auxiliary platform (350 × 480 mm), and features electric forward/backward seat plate movement — making it a more functionally complete gynecological table for surgical use.

Is the KL-FS-II available for hospital procurement or international export?

Yes. Keling Medical supplies the KL-FS-II to hospitals and distributors worldwide through its Shanghai export center. Wholesale, OEM, and project orders are supported. Contact Keling Medical at https://www.kelingmed.com for pricing and specifications.
