3001 Series Operation Tables — Mechanical Hydraulic Multi-Function Surgical Support

Quick answer. The Keling 3001 Series is a range of mechanical hydraulic operation tables covering three models (3001, 3001A, 3001B) with height adjustment from 750–950 mm, Trendelenburg ≥20°/reverse ≥15°, lateral tilt ≥15° each side and headboard/backboard positioning, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics and medical distributors worldwide.

Height adjustment: (750–950) ± 50 mm
Table length: 2000 ± 50 mm
Tilt left / tilt right: ≥15° / ≥15°
Headboard upwards: ≥40°

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

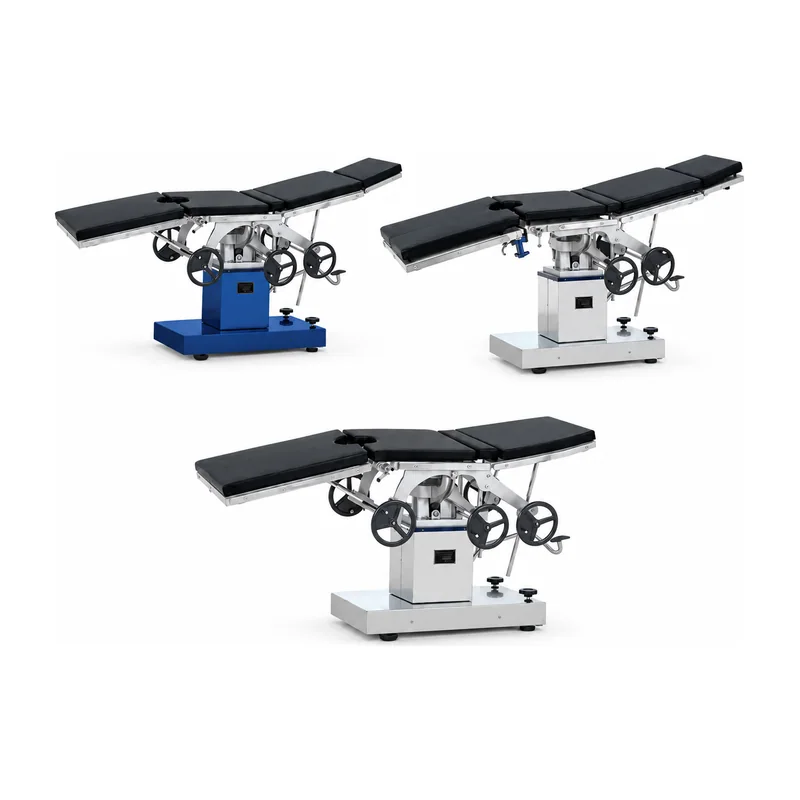

The Keling 3001 Series mechanical hydraulic operation tables deliver stable, multi-function positioning support for a broad range of surgical procedures conducted in hospital operating theatres and clinic surgical suites. Three models — 3001, 3001A and 3001B — share the same ergonomic platform while differing in materials and configuration, allowing facilities to select the specification that matches their clinical volume and budget.

Construction quality varies by model to suit different environments. The 3001 uses high-quality cold plate spray finish on the tabletop and base. The 3001A upgrades to a 304 stainless steel base and column for improved corrosion resistance and ease of cleaning. The 3001B goes further with a double-top design and detachable leg section, making it suitable for urological and gynecological positioning where independent leg-plate manipulation is required.

An imported Y-type sealing ring provides reliable hydraulic sealing and long service life, while a rotary brake device permits safe, convenient table movement and repositioning. All positioning actions — headboard, backboard, tilt and height — are accessible from both sides of the table, so the surgical team can make intraoperative adjustments without changing position.

Quick facts

The Keling 3001 Series comprises three mechanical hydraulic operation table models: 3001, 3001A and 3001B.
Table height adjusts from 750 to 950 mm (±50 mm tolerance) to accommodate a wide range of surgical postures.
Trendelenburg angle is ≥20° and reverse Trendelenburg is ≥15°; lateral tilt is ≥15° in both directions.
All major functions — height, tilt, headboard and backboard — are controllable from either side of the table via dual-side controls.
The 3001B model features a 304 stainless steel base and column, double top, and a detachable leg section for added versatility.
The 3001 Series is produced by Keling Medical, a Chinese surgical equipment manufacturer with more than 20 years of industry experience.

Key features

Imported Y-type sealing ring
high-performance hydraulic seal provides oil-leakage prevention and extended service life, ensuring reliable long-term operation.
Dual-side control
all major table functions can be operated from either side of the table, giving surgeons and scrub nurses equal access to positioning adjustments.
Rotary brake device
enables smooth, controlled table movement with secure locking for positioning safety.
Multi-function positioning
headboard up/down, backboard up/down, left/right lateral tilt, Trendelenburg/reverse Trendelenburg, waist bridge lifting and leg plate adjustments support diverse surgical positions.
Detachable leg section (3001B)
the double-top design with a removable leg plate widens access for urological, gynecological and lithotomy procedures.
Durable materials by model
cold plate spray (3001), 304 stainless steel base and column (3001A and 3001B) ensure appropriate durability for each clinical setting.
Brake casters
built-in brake casters provide smooth movement to and from the theatre and secure table positioning during surgery.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

15 parameters for 3001 series

3001 series technical specifications
Model	3001 / 3001A / 3001B
Table length	2000 ± 50 mm
Height adjustment	(750–950) ± 50 mm
Tilt left / tilt right	≥15° / ≥15°
Trendelenburg / Rev-Trend	≥20° / ≥15°
Headboard upwards	≥40°
Headboard downwards	≥90°
Backboard upwards	≥70°
Backboard downwards	≥10°
Waist board lifting	≥100 mm
Leg plate downwards	≥90°
Leg plate split	≥180°
Materials (3001)	Cold plate spray base and tabletop
Materials (3001A)	304 stainless steel base and column
Materials (3001B)	304 stainless steel base and column, double top, detachable leg section

Applications

The 3001 Series operation tables serve a broad surgical program: general surgery, abdominal surgery, orthopaedics, urology (3001B), gynecology (3001B), ENT and basic laparoscopic procedures. Their multi-function positioning range makes them suited to district hospitals, county-level medical centres, private surgical clinics and ambulatory surgery facilities requiring a reliable, cost-effective mechanical hydraulic platform.

Questions buyers ask

What is the Keling 3001 Series operation table used for?

The 3001 Series are mechanical hydraulic surgical tables designed for general, abdominal, urological and gynecological operations in hospitals and clinics. Their ten positioning functions — including Trendelenburg, lateral tilt, headboard and leg-plate adjustments — cover the majority of standard surgical positioning needs.

What are the differences between the 3001, 3001A and 3001B models?

The 3001 uses a cold plate spray finish on both the tabletop and base. The 3001A upgrades the base and column to 304 stainless steel for better hygiene and corrosion resistance. The 3001B adds a double-top configuration with a detachable leg section, making it the most versatile model in the series for lithotomy and gynecological positioning.

What accessories are available for the 3001 Series?

Standard accessories include a pair of shoulder support frames, a pair of arm rests, a pair of leg support frames and a screen frame. An optional foot-operated brake device is also available for hands-free table locking.

Can international distributors order the 3001 Series in bulk or OEM?

Yes. Keling Medical operates a Shanghai-based sales and export center serving hospitals and medical distributors worldwide, and supports project-volume and OEM orders. Contact Keling Medical via https://www.kelingmed.com for pricing and configuration details.
