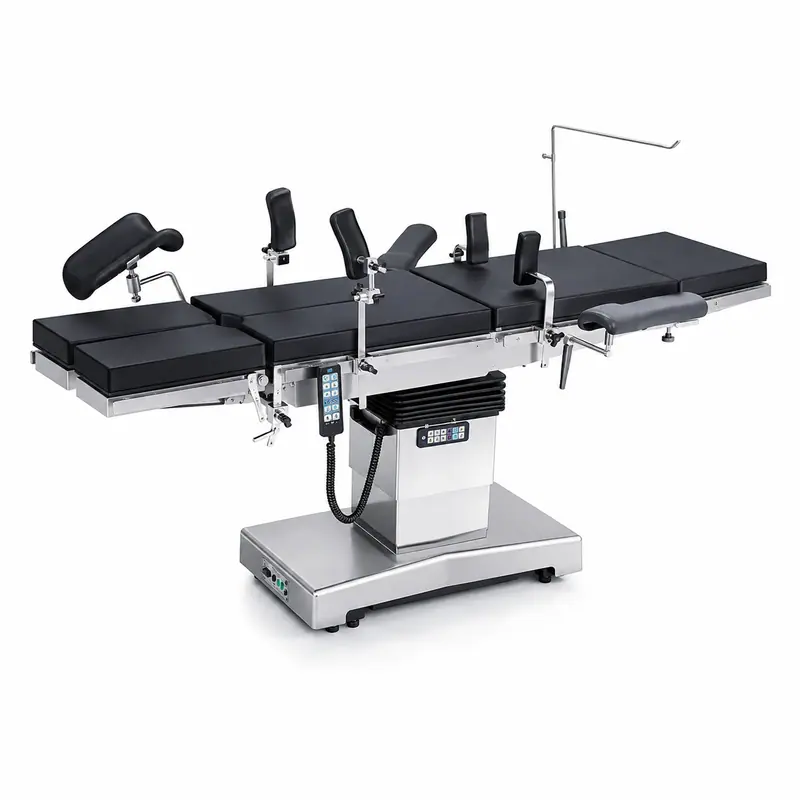

DL·A Electric Operating Table — Full-Electric Multi-Position Surgical Platform

Quick answer. The Keling DL·A is a full-electric operating table with a length of 2000 ± 100 mm, height adjustment from 750 to 1000 mm (±50 mm), safe working load of ≥250 kg, Trendelenburg/reverse-Trendelenburg ≥18°/≥18°, lateral tilt ≥15°/≥15°, 350 ± 30 mm longitudinal table movement, and a power supply of 220V ± 22V 50Hz ± 1Hz. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height adjustment: (750–1000) ± 50 mm
Safe working load: ≥250 kg
Input power VA: 300 ± 10%
Power supply AC: 220V ± 22V 50Hz ± 1Hz

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling DL·A electric operating table is a high-specification surgical platform designed for hospitals and surgical centres demanding precise, repeatable electric positioning across the full range of surgical specialties. Unlike mechanical or manual-hydraulic tables, the DL·A uses electric motor drives for every major positioning function, controlled through a hand-held remote controller and an integrated control panel mounted on the table — reducing the physical effort required from the surgical team and enabling fine intraoperative adjustments without disrupting the sterile field.

At 2000 ± 100 mm in length with a 520 ± 20 mm table width and a 750–1000 mm height range, the DL·A accommodates a broad patient population while delivering the vertical clearance needed for C-arm access and instrument manipulation beneath the table. The 350 mm longitudinal slide function permits the patient to be repositioned along the table axis for different operative phases without a patient transfer, improving both efficiency and safety.

A segmented, modular tabletop design with radiolucent sections allows flexible configuration and straightforward adaptation to imaging workflows. The robust base structure ensures excellent stability under load, with the safe working capacity of ≥250 kg meeting the requirements of bariatric surgical cases. Input power is 300 ± 10% VA on a 220V ± 22V, 50Hz ± 1Hz supply.

Quick facts

The Keling DL·A is a fully electric operating table with a safe working load of ≥250 kg.
Table length is 2000 ± 100 mm and width is 520 ± 20 mm; height adjusts from 750 to 1000 mm (±50 mm).
Trendelenburg and reverse Trendelenburg positions each reach ≥18°; lateral tilt is ≥15° in both directions.
The DL·A provides 350 ± 30 mm of longitudinal tabletop movement, enabling patient repositioning without transfer.
Headboard raises ≥40° and lowers ≥90°; backboard raises ≥70° and lowers ≥15°; leg plate abduction ≥180°.
Lumbar lordosis "∧" angle is ≤150° and lumbar kyphosis "∨" angle is ≤120°, supporting spinal positioning needs.

Key features

Full electric height adjustment
smooth, quiet electric lifting from 750 mm to 1000 mm for optimal surgical access and ergonomics.
Longitudinal table movement
350 ± 30 mm of powered longitudinal slide repositions the patient along the table axis without transfer.
Multi-angle positioning
Trendelenburg (≥18°), reverse Trendelenburg (≥18°), lateral tilt (≥15°/≥15°), headboard, backboard and leg plate adjustments supported.
Lumbar positioning
lordosis "∧" up to 150° and kyphosis "∨" up to 120° for spinal and orthopaedic procedure support.
Safe working load ≥250 kg
high capacity base accommodates bariatric and complex surgical cases.
Segmented radiolucent tabletop
modular sections allow easy adaptation to imaging needs and fluoroscopy workflows.
Intuitive control interface
hand-held remote controller and integrated control panel simplify operation for any team member.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

20 parameters for DL·A

DL·A technical specifications
Model	DL·A
Length	2000 ± 100 mm
Width	520 ± 20 mm
Height adjustment	(750–1000) ± 50 mm
Tilt left / tilt right	≥15° / ≥15°
Trendelenburg / Rev-Trend	≥18° / ≥18°
Headboard upwards	≥40°
Headboard downwards	≥90°
Backboard upwards	≥70°
Backboard downwards	≥15°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥15°
Leg plate downwards	≥90°
Leg plate abduction	≥180°
Lumbar lordosis angle "∧"	≤150°
Lumbar kyphosis angle "∨"	≤120°
Longitudinal movement	350 ± 30 mm
Safe working load	≥250 kg
Input power VA	300 ± 10%
Power supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The DL·A electric operating table serves general surgery, abdominal surgery, thoracic surgery, orthopaedics, urology, gynecology, neurosurgery and vascular surgery operating theatres. Its electric longitudinal movement and imaging-compatible tabletop are particularly valued in orthopaedic and trauma centres where intraoperative fluoroscopy is routine. The high load capacity makes it appropriate for bariatric surgical programmes.

Questions buyers ask

What is the Keling DL·A electric operating table used for?

The DL·A is a full-electric operating table suited to a wide range of surgical specialties including general, orthopaedic, urological, gynecological, thoracic and neurosurgery. Its electric drives, longitudinal movement and radiolucent tabletop make it especially effective for procedures requiring intraoperative imaging and frequent position changes.

What is the height range and load capacity of the DL·A?

The table height adjusts from 750 mm to 1000 mm (±50 mm) electrically. The safe working load is ≥250 kg, covering standard and bariatric patient cases. Table length is 2000 ± 100 mm and width is 520 ± 20 mm.

What positioning angles does the DL·A provide?

The DL·A supports Trendelenburg and reverse Trendelenburg both ≥18°; lateral tilt ≥15° each side; headboard upward ≥40°, downward ≥90°; backboard upward ≥70°, downward ≥15°; leg plate abduction ≥180°; and lumbar lordosis up to 150°. Longitudinal movement is 350 ± 30 mm.

Can the DL·A be ordered by distributors or hospitals internationally?

Yes. Keling Medical exports to hospitals and medical distributors worldwide through its Shanghai sales and export center. Bulk, project and OEM orders are supported. Contact Keling Medical via https://www.kelingmed.com for specifications and pricing.
