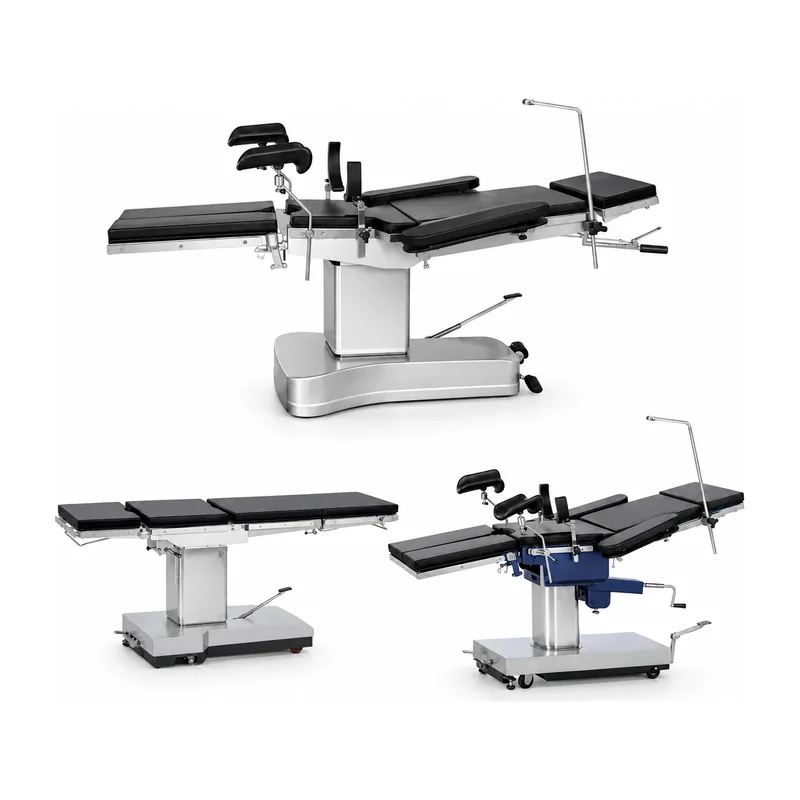

3009A, 3009C & 3009D Operation Tables — Hydraulic Pneumatic Surgical Positioning

Quick answer. The Keling 3009A, 3009C and 3009D are hydraulic pneumatic operating tables with a 1000 × 530 mm tabletop, height adjustment from approximately 740–950 mm, Trendelenburg/reverse-Trendelenburg positioning, 304 stainless steel construction and X-ray-compatible carbon plastic table surfaces. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals and medical distributors worldwide.

Height adjustment: 740–950 ± 50 mm
Bear loading: 150 kg
Lumbar lordosis angle "∧": ≤130°
Table length: 1000 × 530 mm

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling 3009A, 3009C and 3009D operation tables are hydraulic pneumatic surgical platforms designed for a broad range of procedures conducted by hospitals and medical facilities. Using a hydraulic pneumatic control system, all table movements are executed smoothly and precisely without the operator effort required by pure mechanical tables, improving workflow efficiency during complex case positioning.

Each model in the series shares a 304 stainless steel structural base and side rails, combining excellent corrosion resistance with straightforward decontamination between cases. The imported carbon plastic table surface is X-ray transparent, allowing intraoperative fluoroscopy and C-arm imaging without moving the patient — a practical advantage for orthopaedic, urological and vascular procedures. A high-density seamless memory sponge mattress provides comfortable, pressure-relieving patient support throughout even lengthy procedures.

The three models serve distinct clinical priorities: the 3009A delivers standard positioning for general surgical programmes; the 3009C provides a wider table platform for comprehensive applications where patient size or procedure complexity demand greater surface area; and the 3009D adds enhanced mobility and extended adjustability for advanced surgical needs. All models are equipped with an imported Y-type sealing ring for durable hydraulic sealing and a foot-operated brake device for convenient repositioning.

Quick facts

The Keling 3009 Series comprises three models: 3009A (standard configuration), 3009C (wide tabletop for comprehensive applications) and 3009D (enhanced mobility and adjustability).
All movements are controlled by a hydraulic pneumatic system for smooth, precise and reliable operation.
The tabletop is made of imported carbon plastic material, providing X-ray transparency for intraoperative imaging.
304 stainless steel is used for the base and upright column covers across all three models.
A high-density memory sponge mattress is fitted as standard, providing excellent patient support and pressure relief.
The 3009 Series is manufactured by Keling Medical, a Jiangsu-based surgical equipment producer operating since 1996.

Key features

Hydraulic pneumatic control
all table movements controlled by a hydraulic pneumatic system for smooth, stable and precise operation without excessive manual effort.
Carbon plastic X-ray-compatible tabletop
imported carbon plastic surface is transparent to X-rays and C-arm imaging, enabling intraoperative fluoroscopy without patient transfer.
304 stainless steel construction
base, column and side rails in high-quality 304 stainless steel for corrosion resistance, hygiene and easy cleaning.
High-density seamless mattress
one-piece memory sponge mattress provides excellent pressure relief and patient comfort during extended procedures.
Imported Y-type sealing ring
durable hydraulic seal with excellent sealing effect and long service life.
Multiple positioning functions
Trendelenburg, reverse Trendelenburg, lateral tilt, headboard, backboard, waist board and leg plate adjustments cover the full range of surgical positions.
Foot-operated brake device
convenient hands-free table locking for safe positioning and easy manoeuvring.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for 3009A / 3009C / 3009D

3009A / 3009C / 3009D technical specifications
Parameter	3009A	3009C	3009D
Table length	1000 × 530 mm	1000 × 530 mm	1000 × 530 mm
Height adjustment	740–950 ± 50 mm	750–950 ± 50 mm	750–950 ± 50 mm
Tilt left / tilt right	≥15° / ≥15°	≥15° / ≥15°	≥15° / ≥15°
Trendelenburg / Rev-Trend	≥15° / ≥10°	≥15° / ≥10°	≥15° / ≥10°
Headboard downwards	≥40°	≥40°	≥40°
Backboard downwards	≥15°	≥15°	≥15°
Leg plate downwards	≥40°	≥40°	≥40°
Lumbar lordosis angle "∧"	≤130°	≤130°	≤130°
Bear loading	150 kg	150 kg	150 kg

Applications

The 3009A, 3009C and 3009D operation tables are used across general surgery, abdominal surgery, orthopaedic surgery (with fluoroscopy benefit), urology and vascular surgery operating rooms in hospitals, day surgery centres and private surgical clinics. The X-ray-compatible tabletop extends their utility to procedures requiring intraoperative imaging without patient repositioning.

Questions buyers ask

What is the Keling 3009A / 3009C / 3009D used for?

The 3009 Series are hydraulic pneumatic operating tables for general, abdominal, orthopaedic, urological and vascular surgery. Their X-ray-transparent carbon plastic tabletop allows C-arm and fluoroscopy imaging during surgery without moving the patient, which is particularly valuable for fracture fixation and catheter-based procedures.

What is the tabletop size and height range of the 3009 Series?

The table surface measures 1000 × 530 mm and height adjusts from approximately 740–950 mm (±50 mm). This range accommodates operating room ergonomics for surgeons of varying heights and patient body types across a full range of procedures.

How do the three models differ from each other?

The 3009A is the standard configuration for general surgical procedures. The 3009C features a wider table platform designed for comprehensive applications requiring greater patient surface support. The 3009D offers enhanced mobility and expanded adjustability for advanced or complex surgical cases requiring more flexible positioning.

Are OEM and bulk export orders available for the 3009 Series?

Yes. Keling Medical exports surgical tables to hospitals and distributors internationally through its Shanghai sales center. OEM, custom branding and project-volume orders are supported. Contact Keling Medical at https://www.kelingmed.com for quotations and specifications.
