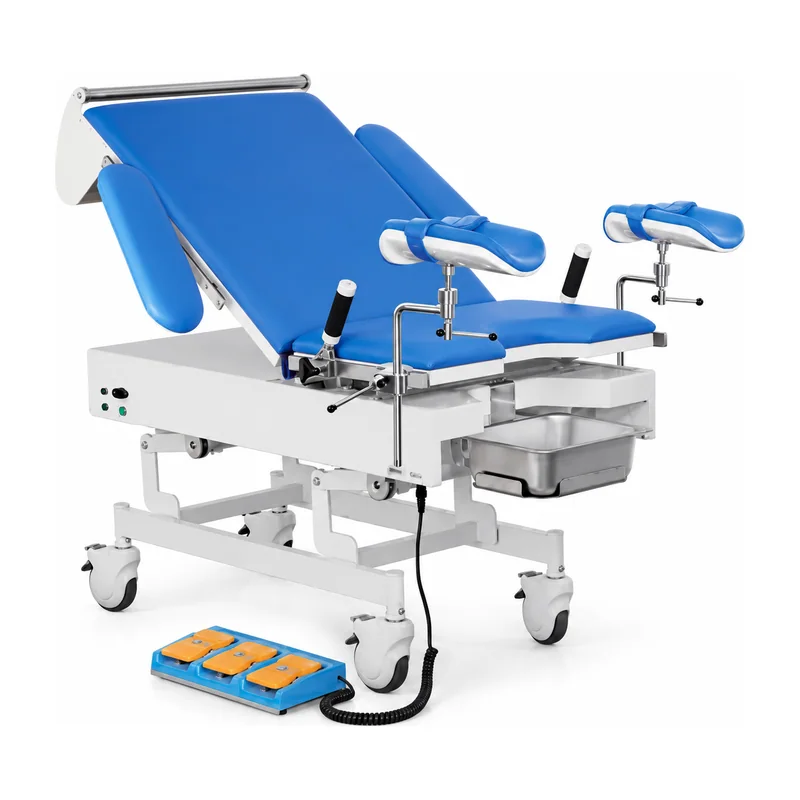

KL-FS-V Electric Gynecological Table — Purpose-Built for Prenatal Examination and Childbirth Surgery

Quick answer. The Keling KL-FS-V is an electric gynecological table specially designed for prenatal examination and childbirth surgery, with dimensions 1260 × 650 mm, height adjustment from 540–840 mm (± 100 mm), Trendelenburg ≥ 9° / reverse-Trendelenburg ≥ 11°, backboard elevation ≥ 60°, disposable examination sheet roll holder, four-wheel independent foot brake, and optional handheld controller. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: (540–840) ± 100 mm
Lifting range: ≥ 300 mm
Length: 1260 ± 100 mm
Width: 650 ± 100 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-FS-V electric gynecological table is purpose-designed for the maternity care setting, where prenatal examination and childbirth surgery place specific demands on table width, low-entry height, and hygiene infrastructure. At 650 mm wide — broader than standard gynecological procedure tables — the KL-FS-V provides a more comfortable and supportive surface for obstetric patients throughout labour and delivery procedures. The minimum height of 540 mm combined with a lifting range of ≥ 300 mm allows the table to descend close to floor level for patient access and rise to optimal delivery height for the obstetric team.

A built-in disposable examination sheet roll holder is a clinically important hygiene feature: fresh sheet material is drawn across the table surface between patients, eliminating direct patient-to-surface contact and reducing cross-infection risk. The stainless steel sewage basin and associated accessories — leg support pair, handle pair, and foot pedal controller — complete the standard obstetric setup without requiring additional equipment.

The brand motor is specified for low noise and long service life, an important attribute in delivery suites where multiple procedures may occur in a single shift. All movements to the limit position — lifting, tilting forward and backward — are protected by motor automatic cutout to prevent overrun. The seat plate travels electrically forward and backward, optimising perineal positioning at any table height. Mute large casters with four-wheel independent foot brakes allow the table to be repositioned silently within the delivery suite and locked securely for each procedure.

Quick facts

The Keling KL-FS-V is an electric gynecological table specially designed for prenatal examination and childbirth surgery.
Dimensions are 1260 ± 100 mm in length and 650 ± 100 mm in width — wider than the KL-FS-I and KL-FS-II for obstetric use.
Height adjustment range is 540–840 mm (± 100 mm) with a lifting range of ≥ 300 mm for comprehensive patient transfer and procedural access.
A disposable examination sheet roll holder is built in to prevent cross-infection between patients.
Mute large casters with four-wheel independent foot brakes provide silent mobility and stable locking.
Optional handheld controller supplements the standard foot pedal for flexible table control.

Key features

Designed for prenatal and childbirth surgery
wider 650 mm table surface and lower minimum height (540 mm) specifically suited to obstetric patient access and comfort.
Disposable sheet roll holder
built-in holder for disposable examination sheets to prevent cross-infection between patients in high-throughput maternity units.
Brand motor, mute, long service life
quiet branded motor maintains low noise in the delivery suite and provides extended service reliability.
Four-wheel independent foot brake
each caster locks independently, providing stable positioning on any floor surface in the delivery room.
Motor auto-protection at limit positions
automatic motor cutout prevents overrun at all positional limits for patient and equipment safety.
Electric seat plate forward/backward
motorised perineal positioning without manual table movement.
Optional handheld controller
supplements standard foot pedal for additional flexibility in positioning control.
Stainless steel sewage basin and accessories
complete procedure-ready accessory set for obstetric and gynecological use.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

10 parameters for KL-FS-V

KL-FS-V technical specifications
Model	KL-FS-V
Product type	Electric gynecological table
Length	1260 ± 100 mm
Width	650 ± 100 mm
Height Adjustment	(540–840) ± 100 mm
Lifting range	≥ 300 mm
Backboard upwards	≥ 60°
Trendelenburg	≥ 9°
Rev-trend	≥ 11°
Main Voltage AC	220v ± 10% 50Hz

Applications

The KL-FS-V is designed for maternity hospitals, obstetric units, prenatal clinics, and women's health centers for prenatal examination, childbirth surgery, operative delivery, and post-partum procedures. The disposable sheet holder and wider table surface specifically suit high-throughput delivery suites.

Questions buyers ask

What is the Keling KL-FS-V electric gynecological table used for?

The KL-FS-V is a purpose-designed electric gynecological table for prenatal examination and childbirth surgery. Its wider table surface (650 mm), low minimum height (540 mm), built-in disposable sheet holder, and mute casters with independent foot brakes make it specifically suited to maternity units and obstetric procedures.

What hygiene features does the KL-FS-V include for a delivery suite?

The KL-FS-V includes a built-in disposable examination sheet roll holder that provides a fresh sheet surface for each patient, preventing direct patient-to-table contact and reducing cross-infection risk. The table surface material is imported artificial leather wrapped with high-density memory sponge, which is antibacterial, corrosion-resistant and easy to clean. The stainless steel sewage basin collects procedural fluids hygienically.

How does the motor protection function work on the KL-FS-V?

When the table reaches a positional limit — maximum height, maximum tilt forward or backward — the motor automatically cuts out to prevent over-travel. This protects both the patient and the hydraulic mechanism from damage caused by running the table beyond its safe operating range.

Is the KL-FS-V available for hospital procurement or international export?

Yes. Keling Medical supports wholesale, project-based, and export orders for the KL-FS-V through its Shanghai sales and export center. Contact Keling Medical at https://www.kelingmed.com for pricing and delivery terms.
