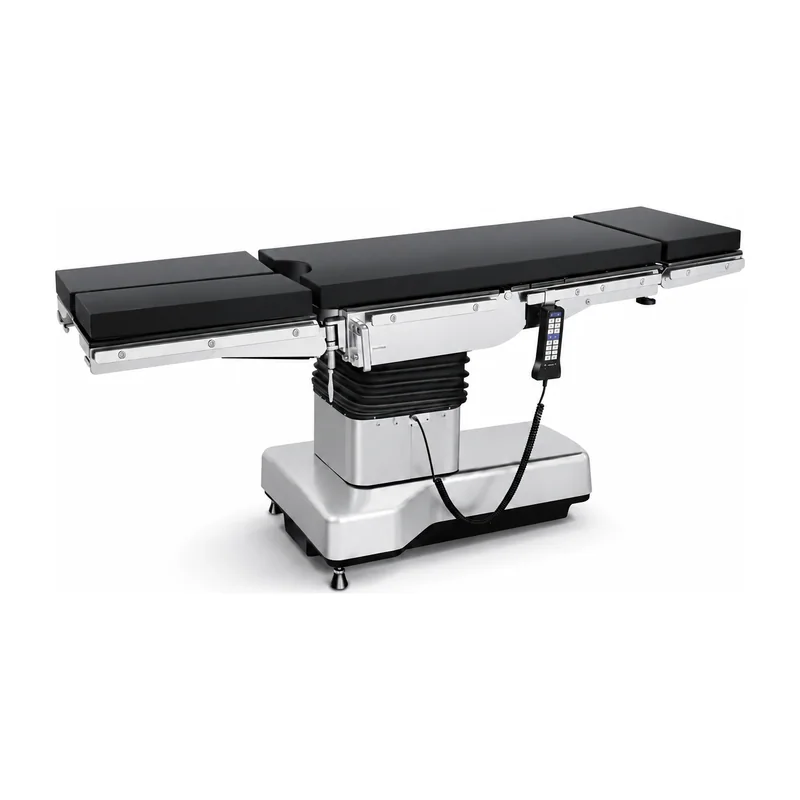

KL-D-III-I Electric Operating Table — Precision Carbon Fiber Electro-Hydraulic Table for Demanding Surgical Environments

Quick answer. The Keling KL-D-III-I is an electric operating table with a carbon fiber tabletop, 304 stainless steel structure, electro-hydraulic handheld remote control, height adjustment from 700–1000 mm (± 50 mm), Trendelenburg/reverse-Trendelenburg ≥ 25°/≥ 25°, and longitudinal movement of 320 ± 30 mm. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: (700–1000) ± 50 mm
Input power VA: 400 ± 10%
Power Supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-III-I electric operating table is engineered for precision and durability in demanding surgical environments. Its carbon fiber tabletop — radiolucent, lightweight, and corrosion-resistant — enables clear intraoperative C-arm and X-ray imaging without patient repositioning, making this table equally capable in imaging-guided orthopaedic, spinal, and abdominal procedures. The handheld remote controller drives all movements through a smooth, imported hydraulic motor and solenoid valve system, delivering quiet and stable motion through the full range of positions.

The structural frame uses forged aluminium supports for load-bearing reliability, while the column and accessories are 304 stainless steel throughout — a premium choice for infection-control environments that require regular aggressive decontamination. The 304 stainless steel base cover and side rails can be wiped down without concern for corrosion, and the foot-operated brake locks the table firmly for any procedure.

Patient comfort is addressed through a high-density polyurethane mattress moulded from imported artificial leather — seamless, anti-static, waterproof and easy to clean. The mattress provides uniform pressure distribution across the contact surface, reducing the need for supplementary padding in most patient positions. Accessories including shoulder support, arm supports and leg support are standard.

Quick facts

The Keling KL-D-III-I is an electric operating table suitable for various operations conducted by medical facilities.
Height adjusts from 700 to 1000 mm (± 50 mm) via an electro-hydraulic working principle and handheld remote control.
The tabletop is carbon fiber: radiolucent, lightweight, durable, and fully compatible with C-arm fluoroscopy imaging.
Trendelenburg and reverse-Trendelenburg both reach ≥ 25°, supporting head-down and head-up procedural positions.
Longitudinal movement of 320 ± 30 mm shifts the tabletop horizontally for optimal imaging and surgical access.
The 304 stainless steel structure and base cover offer corrosion resistance and long-term stability.

Key features

Carbon fiber radiolucent tabletop
lightweight and durable, provides excellent X-ray transparency for unobstructed C-arm fluoroscopy imaging during surgery.
Imported hydraulic motor and solenoid valve
high-performance imported hydraulic components ensure smooth, stable and quiet table movement with precise positioning.
304 stainless steel structure
base cover, column and accessories in 304 stainless steel deliver high corrosion resistance and long service life under hospital disinfection protocols.
Handheld remote electro-hydraulic control
intuitive hand pendant for precise, effortless adjustment of all table positions from any OR position.
AC/DC dual power with one-key reset
uninterrupted operation on mains or battery; single-button reset returns the table to horizontal for fast case changeover.
Longitudinal sliding tabletop
320 ± 30 mm horizontal travel positions the patient for optimal C-arm access without table relocation.
Forged aluminium support frame
high-strength forged aluminium components provide excellent load-bearing capacity and corrosion resistance.
Foot-operated brake device
convenient foot brake locks and unlocks the table for safe OR repositioning and stable intraoperative use.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

20 parameters for KL-D-III-I

KL-D-III-I technical specifications
Model	KL-D-III-I
Product type	Electric operating table
Length	2000 ± 100 mm
Width	520 ± 20 mm
Height Adjustment	(700–1000) ± 50 mm
Tilt Left / Tilt Right	≥ 20° / ≥ 20°
Trendelenburg / Rev-Trend	≥ 25° / ≥ 25°
Headboard Upwards	≥ 45°
Headboard Downwards	≥ 90°
Backboard Upwards	≥ 70°
Backboard Downwards	≥ 20°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥ 10°
Leg plate downwards	≥ 90°
Leg plate abduction	≥ 180°
Lumbar lordosis angle "∧"	≤ 160°
Lumbar kyphosis angle "∨"	≤ 105°
Longitudinal Movement	320 ± 30 mm
Input power VA	400 ± 10%
Power Supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-D-III-I is deployed in general surgery, orthopaedics, spinal surgery, thoracic surgery, urology, gynaecology and neurosurgery. The carbon fiber tabletop and longitudinal sliding function make it particularly well-suited to procedures requiring intraoperative fluoroscopy, including spinal fixation, femoral nail insertion, and percutaneous urological surgery.

Questions buyers ask

What is the Keling KL-D-III-I electric operating table used for?

The KL-D-III-I is a versatile electric operating table for various surgical procedures in hospitals. Its carbon fiber tabletop, 304 stainless steel structure, Trendelenburg range of ≥ 25° in both directions, and longitudinal tabletop movement make it suited to both imaging-guided and conventional open surgical cases.

What makes the KL-D-III-I different from the KL-D-III?

The KL-D-III-I features a carbon fiber tabletop (vs. carbon plastic on the KL-D-III), a 304 stainless steel structural frame and base cover, imported hydraulic motor and solenoid valve, a higher Trendelenburg range (≥ 25°/≥ 25° vs. ≥ 20°/≥ 15°), and a longitudinal tabletop movement of 320 ± 30 mm, making it a higher-specification model for demanding imaging and surgical environments.

What positioning range does the KL-D-III-I support?

The KL-D-III-I supports lateral tilt (≥ 20° each side), Trendelenburg/reverse-Trendelenburg (≥ 25°/≥ 25°), headboard up (≥ 45°)/down (≥ 90°), backboard up (≥ 70°)/down (≥ 20°), leg plate upward (≥ 10°)/downward (≥ 90°), leg abduction (≥ 180°), waist board lifting (100 ± 20 mm), lumbar bridge, and longitudinal movement (320 ± 30 mm).

Is the KL-D-III-I available for hospital procurement or export?

Yes. Keling Medical supplies the KL-D-III-I to hospitals and distributors worldwide through its Shanghai export center. Wholesale, OEM and project-based orders are accepted. Contact Keling Medical at https://www.kelingmed.com for quotations and specifications.
