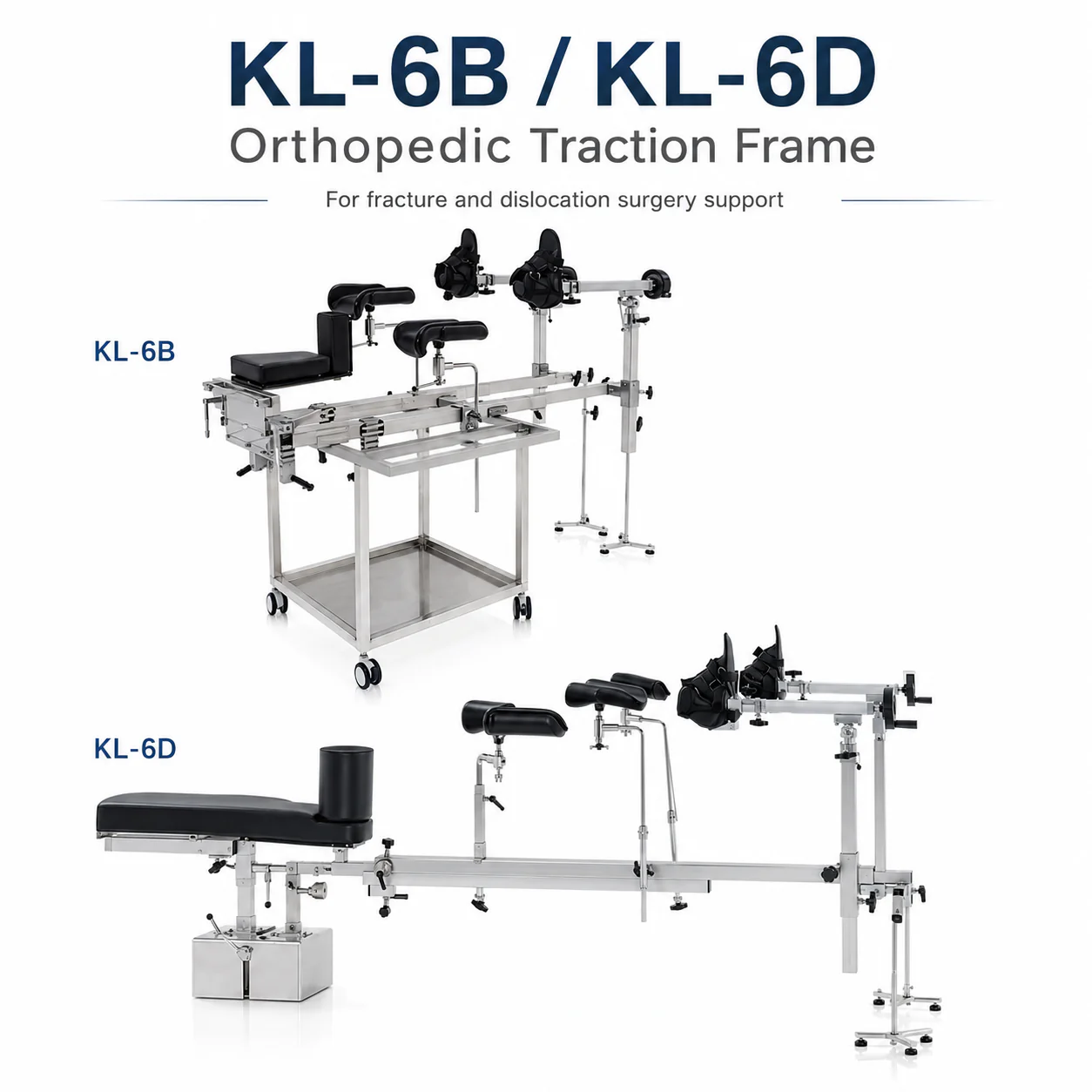

# KL-6B & KL-6D Orthopaedic Traction Frame — Reliable Support for Fracture and Dislocation Procedures
Quick answer: The Keling KL-6B and KL-6D are orthopaedic traction frames designed to assist fracture and dislocation procedures, with 0–180° horizontal rotation and adjustable traction distance. The KL-6D is specifically used for traction and reduction of fractures or dislocations and can be combined with various operating tables. Both are manufactured by Keling Medical (Keling Medical).
Quick Facts

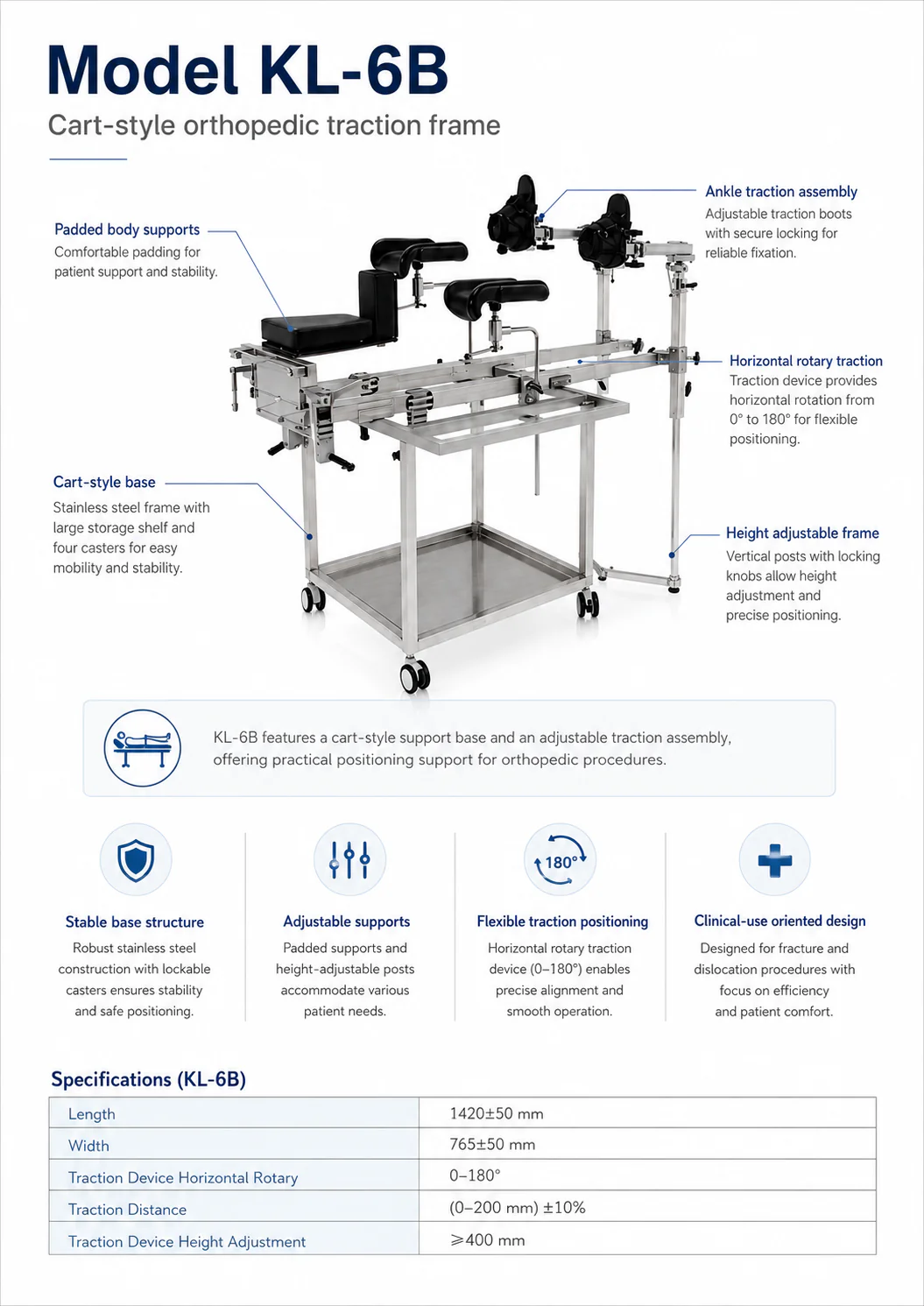

- The Keling KL-6B is an orthopaedic traction frame measuring 1420 ± 50 mm in length and 765 ± 50 mm in width.

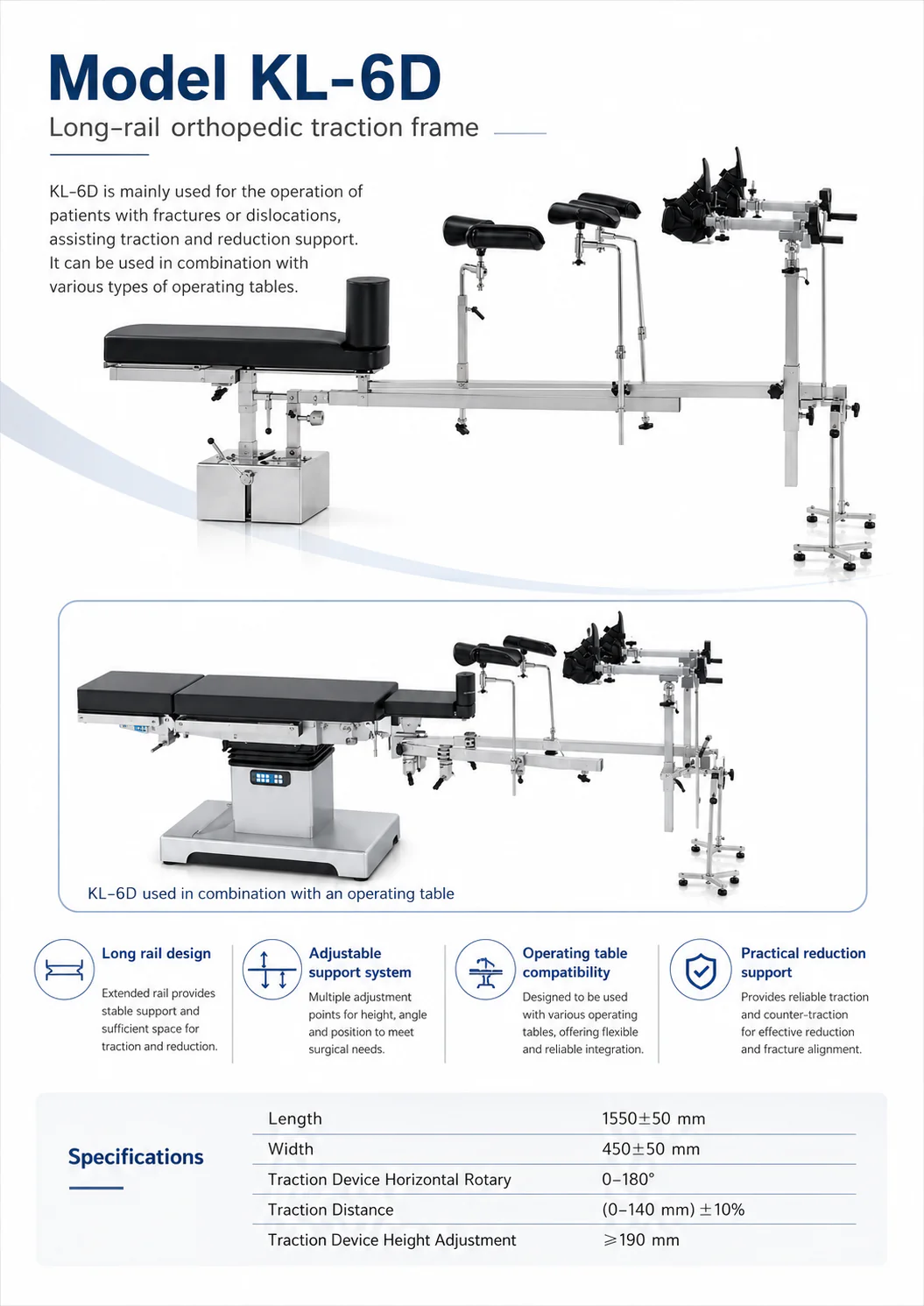

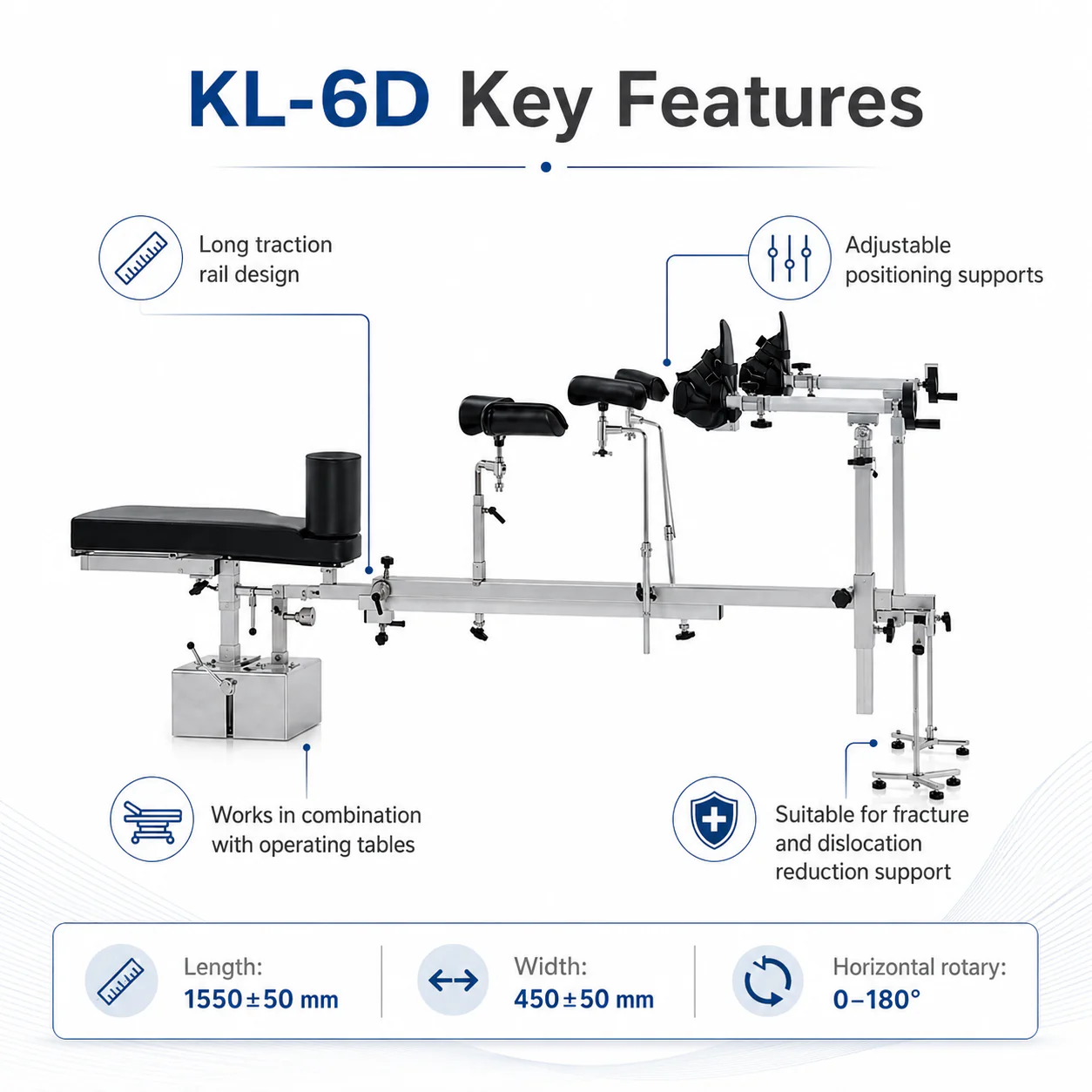

- The Keling KL-6D is a narrower traction frame at 1550 ± 50 mm length and 450 ± 50 mm width, designed for compatibility with operating tables.
- Both frames offer traction device horizontal rotation of 0–180°, enabling flexible intraoperative limb positioning.
- The KL-6B provides a traction distance of (0–200 mm) ± 10% and height adjustment of ≥ 400 mm.
- The KL-6D offers a traction distance of (0–140 mm) ± 10% and height adjustment of ≥ 190 mm.
- The KL-6D traction frame is designed for use in combination with operating tables, including the KL-D·III series.
Overview

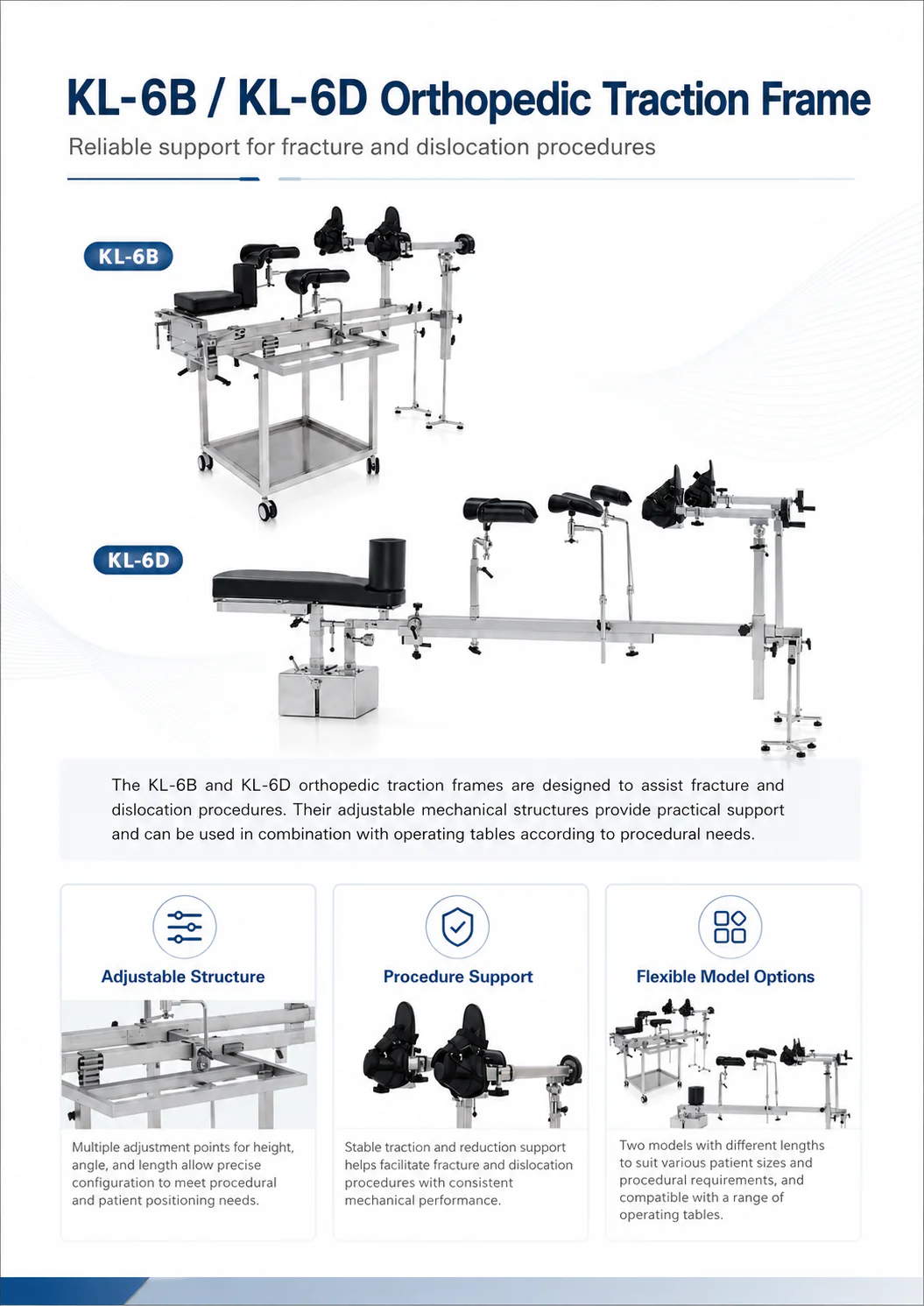

The KL-6B and KL-6D orthopaedic traction frames from Keling Medical provide mechanical traction and patient positioning support for fracture and dislocation procedures in orthopaedic operating rooms. Both frames feature multiple adjustment points for height, angle, and traction distance, allowing surgical teams to configure the frame precisely to each patient and procedure without interrupting sterile draping.
The KL-6B is a standalone traction frame with a wider base footprint (765 mm) suited to larger procedural setups, while the KL-6D is a slimmer, operating-table-compatible unit that mounts alongside standard surgical tables. The KL-6D's reduced width ensures it clears table columns and C-arm equipment, making it practical for fluoroscopy-guided fracture reduction in the OR.
Both models feature 0–180° horizontal rotation of the traction device — a clinically important range allowing surgeons to position the limb in internal or external rotation throughout the procedure. The adjustable mechanical structure provides stable, repeatable traction force, reducing the manual effort required during reduction manoeuvres.
Key Features

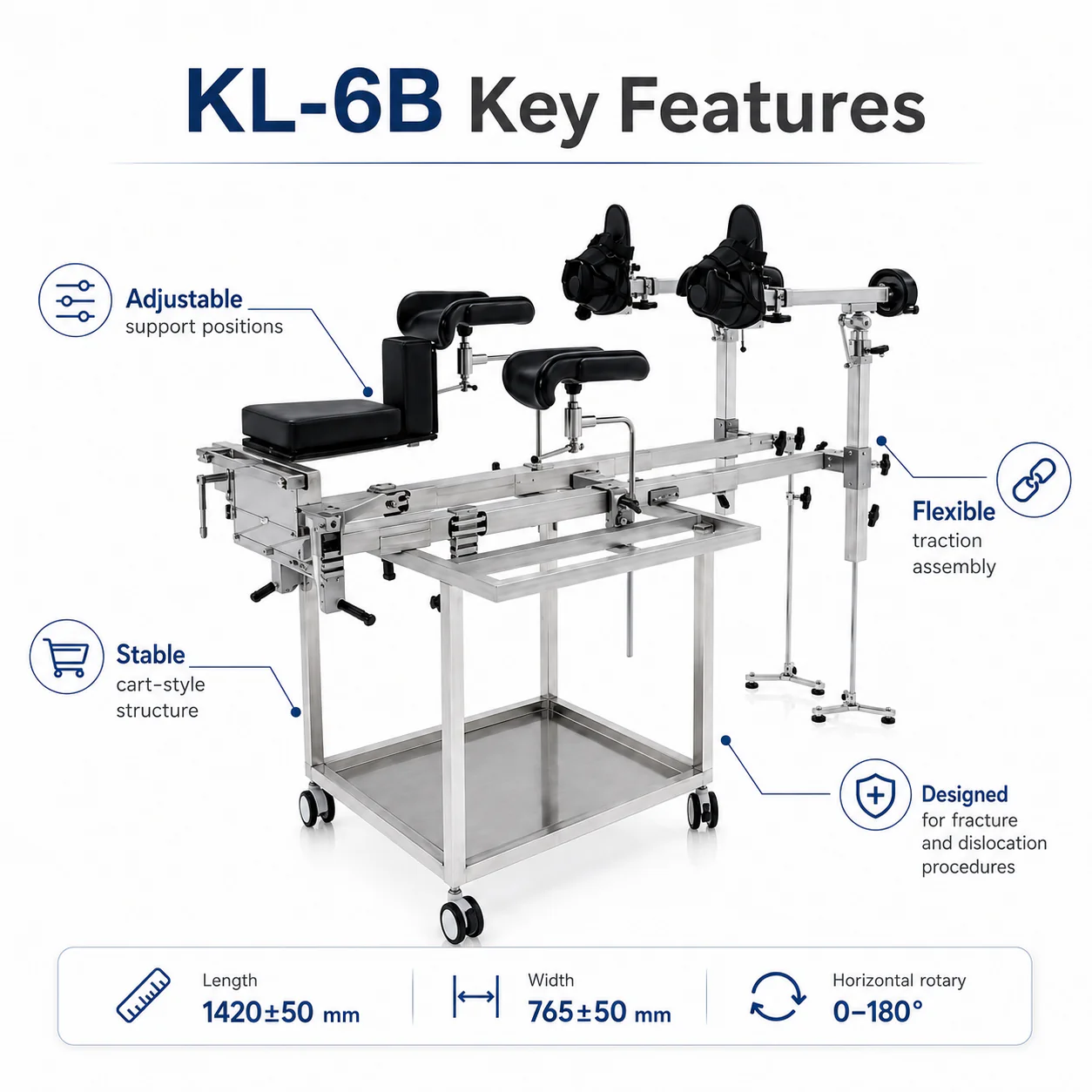

- 0–180° horizontal traction rotation — full rotational range of the traction device enables precise limb positioning for internal and external rotation during fracture surgery on both models.
- Adjustable traction distance — the KL-6B accommodates (0–200 mm) ± 10% and the KL-6D (0–140 mm) ± 10%, covering a range of patient anatomies and procedural requirements.
- Height-adjustable column — KL-6B height adjustment ≥ 400 mm; KL-6D ≥ 190 mm, enabling alignment with different table and patient heights.

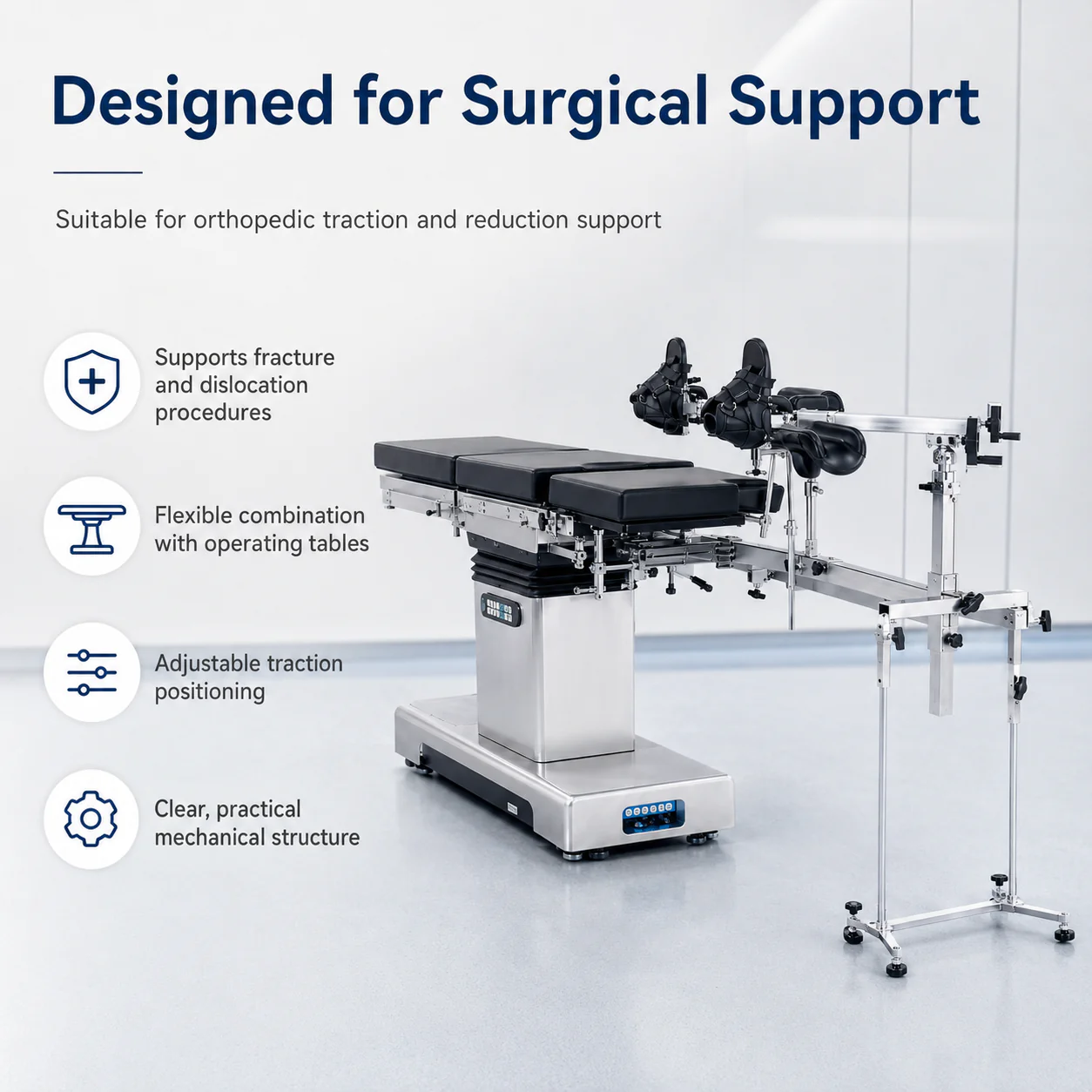

- Operating-table compatibility (KL-6D) — the KL-6D is specifically engineered for use alongside operating tables, including Keling's own KL-D·III series, minimising equipment conflicts in the OR.
- Stable mechanical structure — adjustable mechanical linkages maintain traction force consistently throughout the procedure without power dependence.

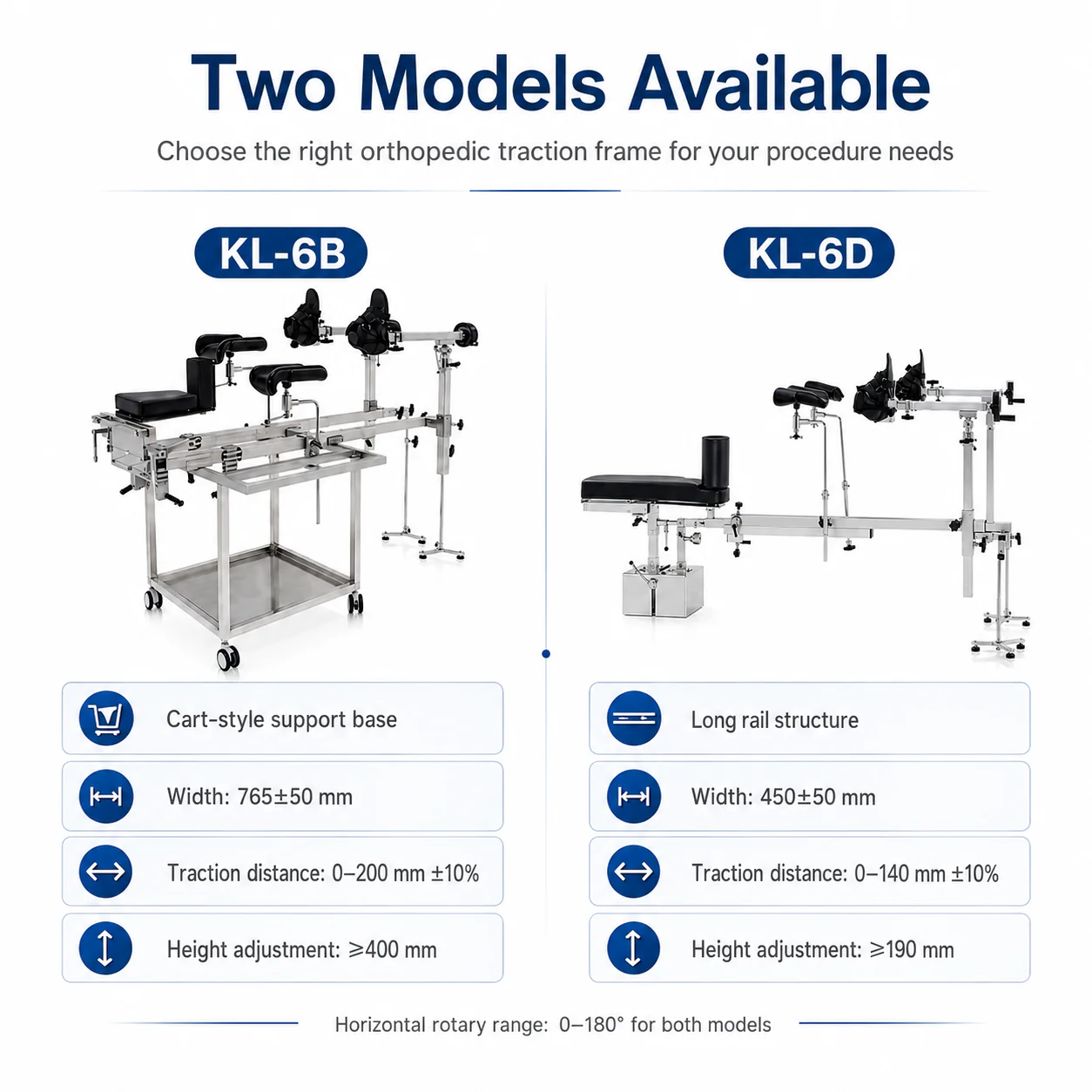

- Flexible model options — two frame lengths and widths suit different patient sizes, procedural requirements, and OR configurations.
Technical Specifications

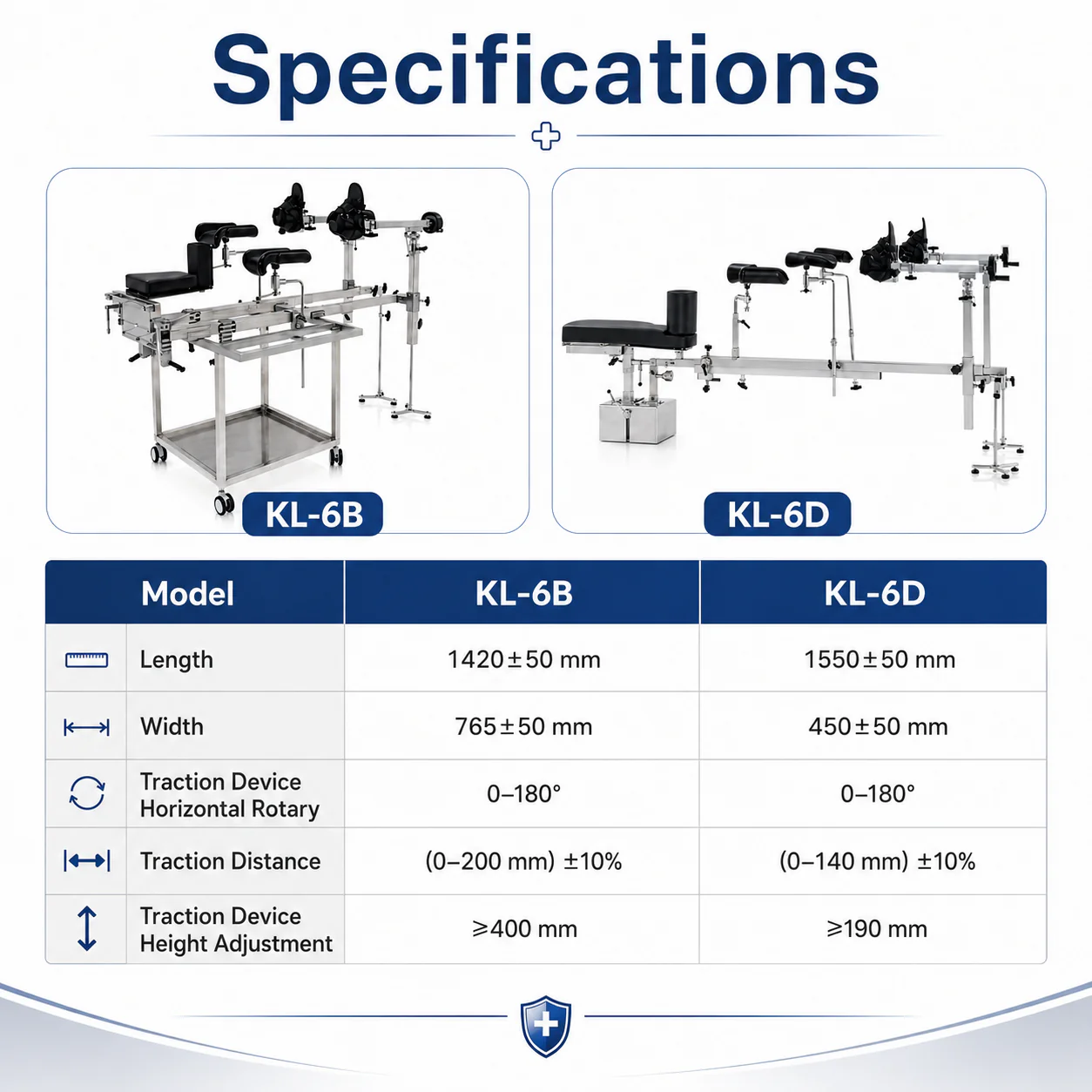

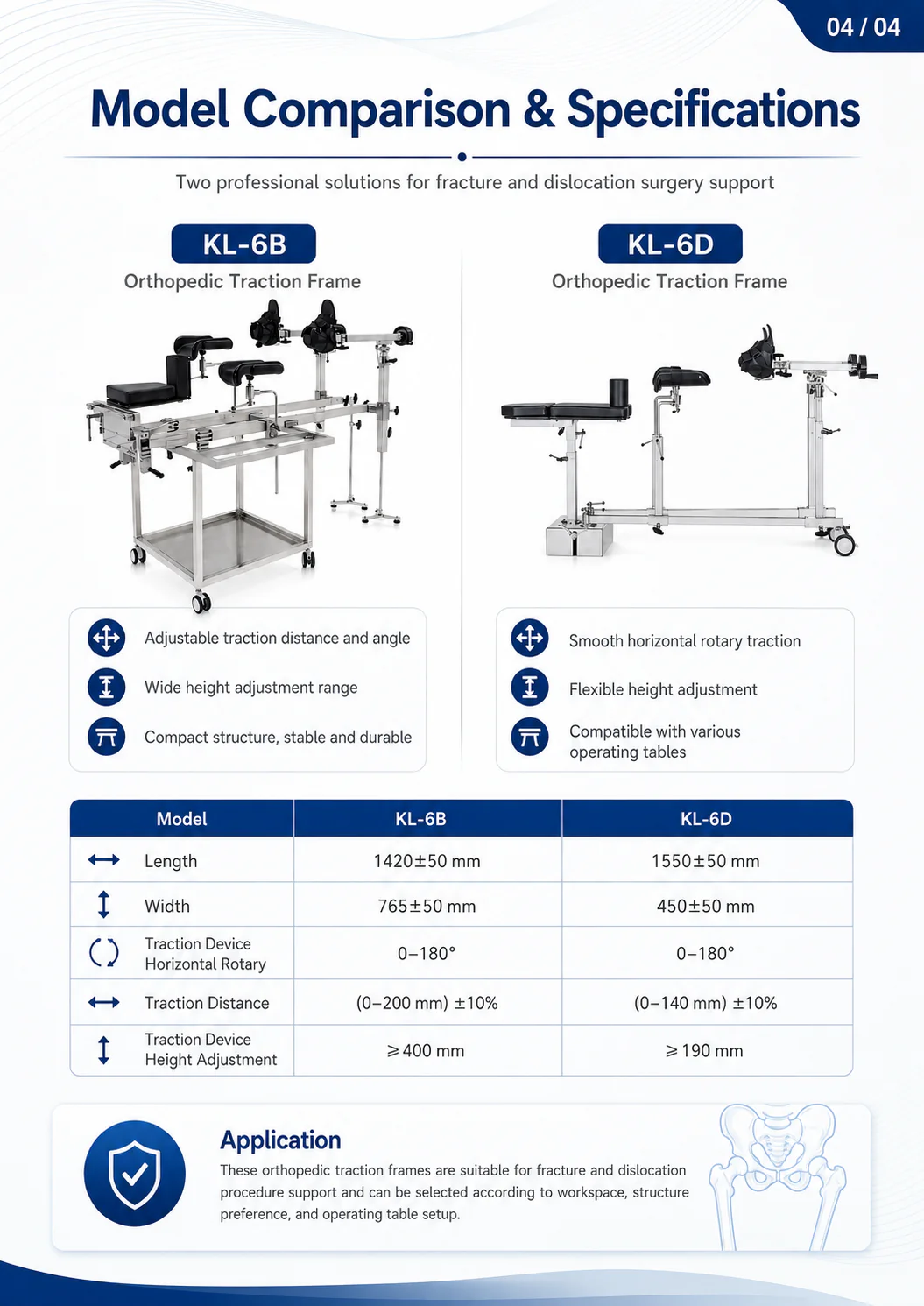

| Parameter | KL-6B | KL-6D |
|---|---|---|
| Model | KL-6B | KL-6D |
| Product type | Orthopaedic traction frame | Orthopaedic traction frame |
| Length | 1420 ± 50 mm | 1550 ± 50 mm |
| Width | 765 ± 50 mm | 450 ± 50 mm |
| Traction device horizontal rotary | 0–180° | 0–180° |
| Traction distance | (0–200 mm) ± 10% | (0–140 mm) ± 10% |
| Traction device height adjustment | ≥ 400 mm | ≥ 190 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-6B and KL-6D traction frames are used in orthopaedic operating rooms for femoral fracture fixation, hip dislocation reduction, tibial nailing, and other lower-limb fracture procedures requiring controlled traction. The KL-6D is particularly suited to procedures conducted on operating tables with C-arm fluoroscopy, where space efficiency is critical.
