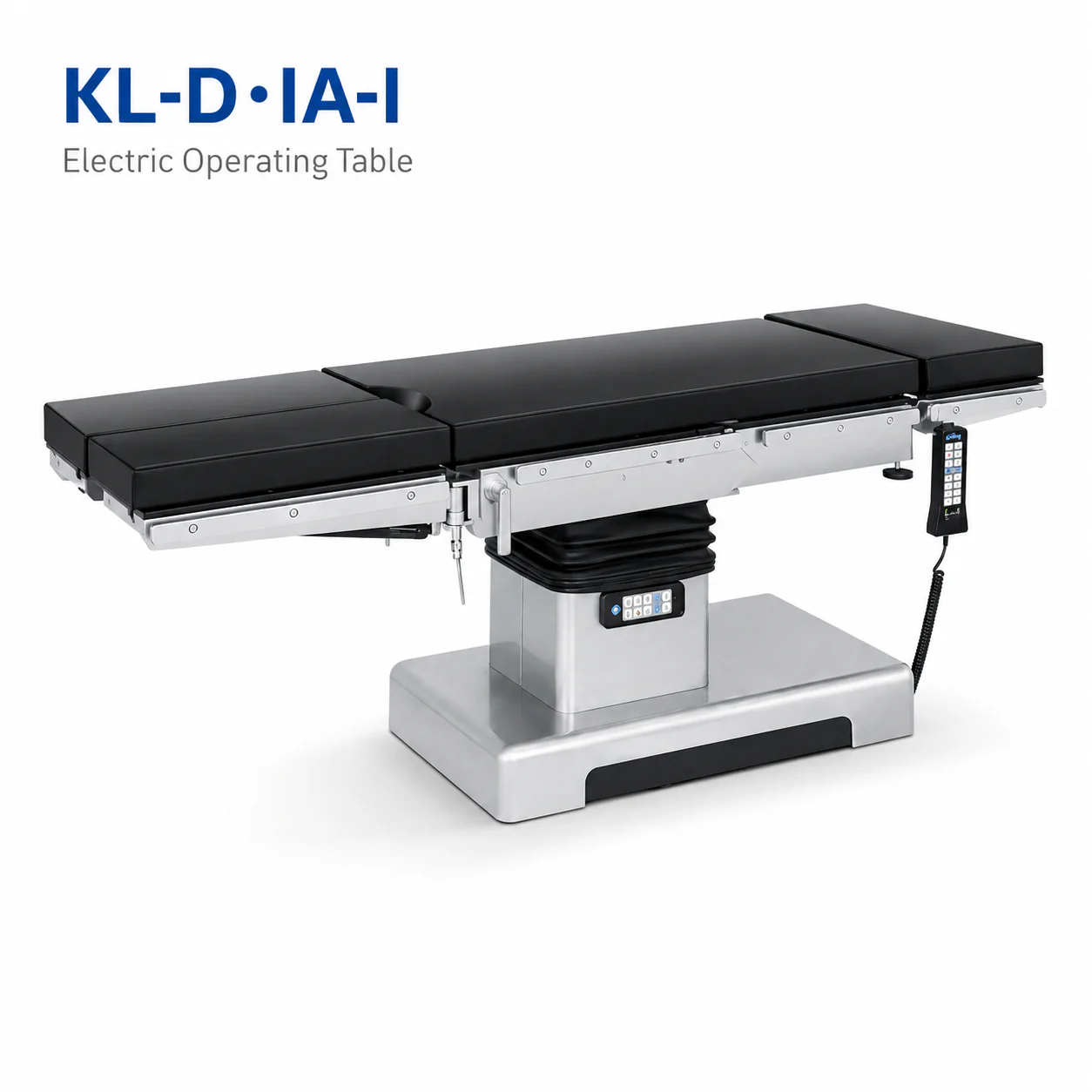

# KL-D-IA-I Electric Operating Table — Super Low-Level Electro-Hydraulic Table for Versatile Surgery
Quick answer: The Keling KL-D-IA-I is an electric operating table with a super low-level design, carbon fiber table plate, electro-hydraulic working principle and remote control operation, with height adjustment from 700–1000 ± 50 mm. It is manufactured by Keling Medical (Keling Medical) for hospitals, clinics and medical distributors worldwide.
Quick Facts
- The Keling KL-D-IA-I is an electric operating table suitable for various surgical procedures conducted by medical facilities.
- Height adjusts from 700 to 1000 mm (± 50 mm), with a super low-level design enabling easier patient transfer.
- The tabletop is made of imported carbon plastic plates, providing radiolucency for C-arm and X-ray imaging.
- The mattress is imported artificial leather wrapped over high-density polyurethane foam, formed at one time with no seam.
- Various positions are controlled by electric-hydraulic working principle with remote controller operation.
- The KL-D-IA-I includes imported sealing rings, motors, pipelines, and solenoid valves for reliable hydraulic performance.
Overview
The KL-D-IA-I electric operating table delivers smooth, precise electro-hydraulic positioning for a broad spectrum of surgical procedures. Its super low-level design — reaching a minimum table height within the 700–1000 mm adjustment range — simplifies patient transfers directly from stretchers or wheelchairs, reducing manual lifting and transfer risk in busy operating suites. Both head and leg board sections are split and detachable, allowing the table to adapt to general surgery, orthopaedic, urological, and imaging-assisted procedures without reconfiguring the core unit.

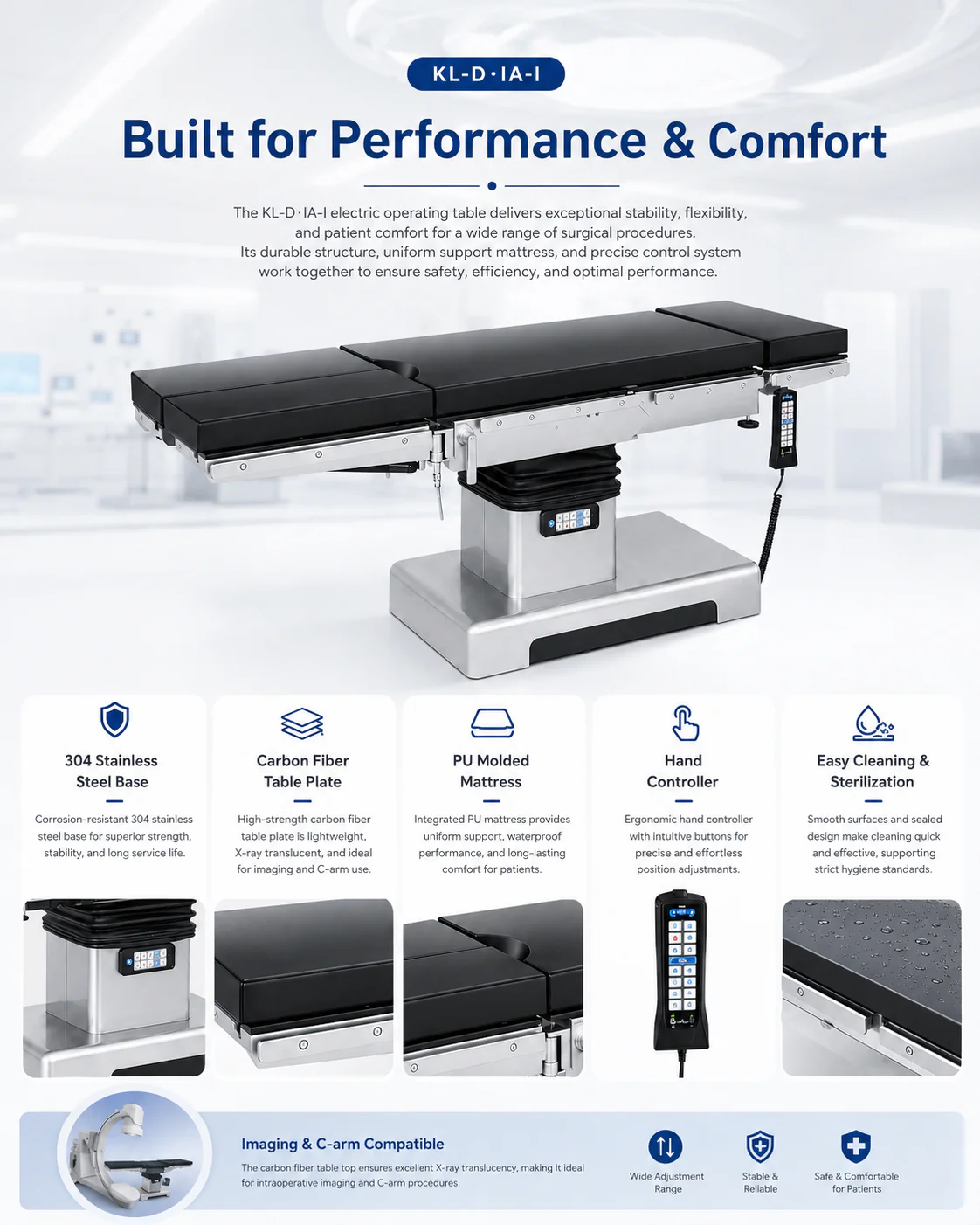

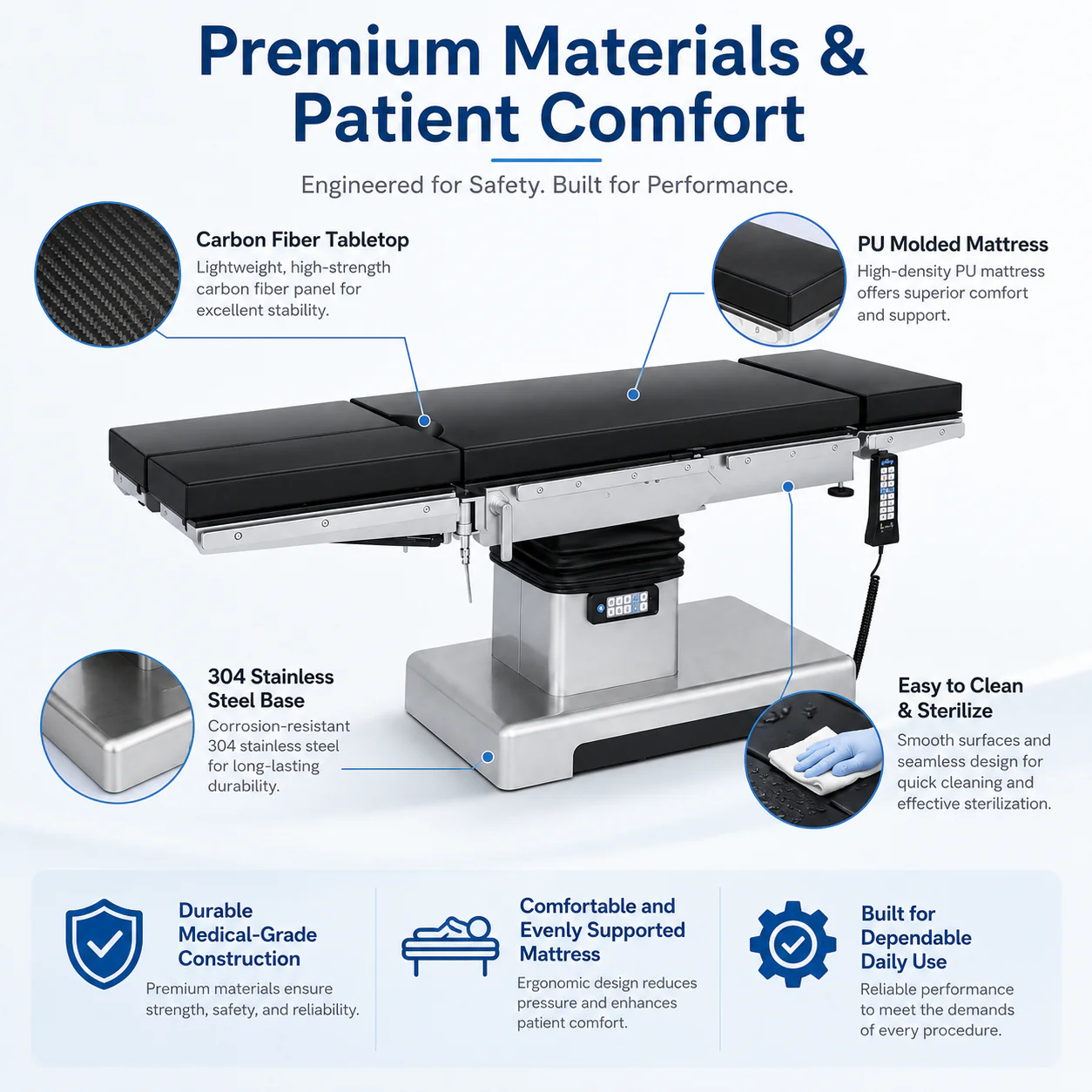

Construction emphasises durability and hygiene. The imported carbon plastic tabletop is radiolucent, supporting intraoperative C-arm fluoroscopy without repositioning. The one-piece polyurethane mattress, formed without seams, eliminates fluid traps and simplifies decontamination between cases. Imported sealing rings, motors, pipelines and solenoid valves in the hydraulic circuit ensure quiet, leak-free operation over an extended service life.

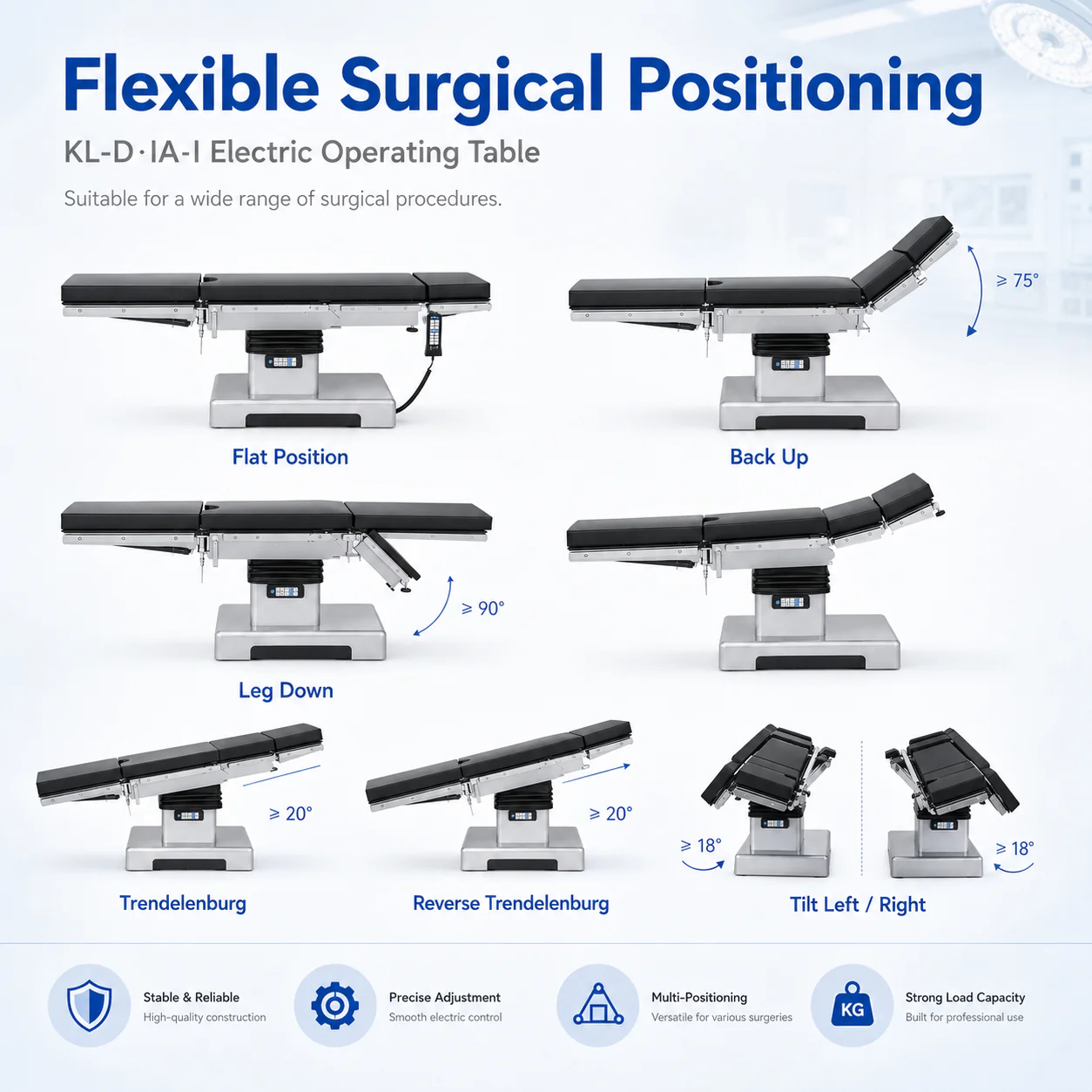

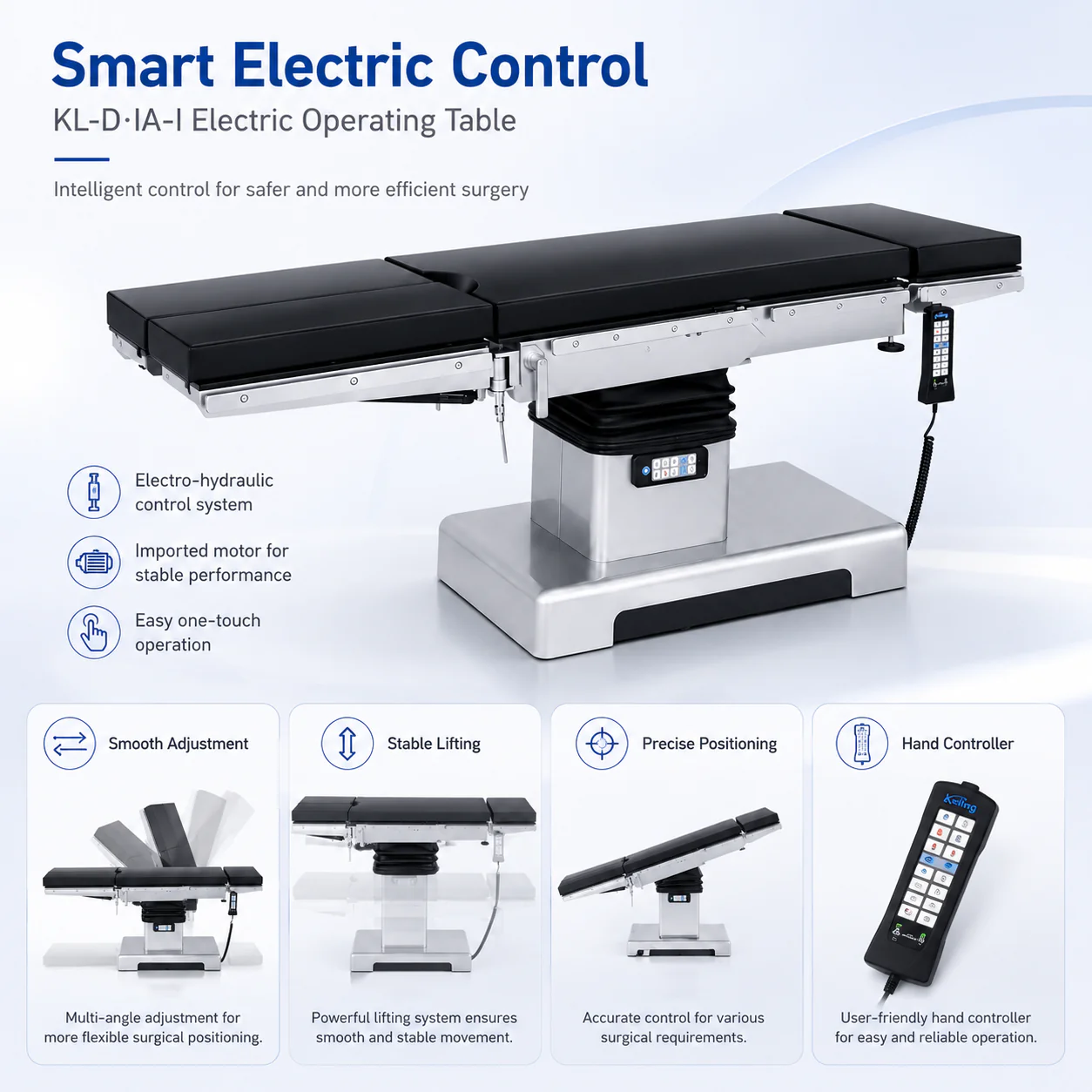

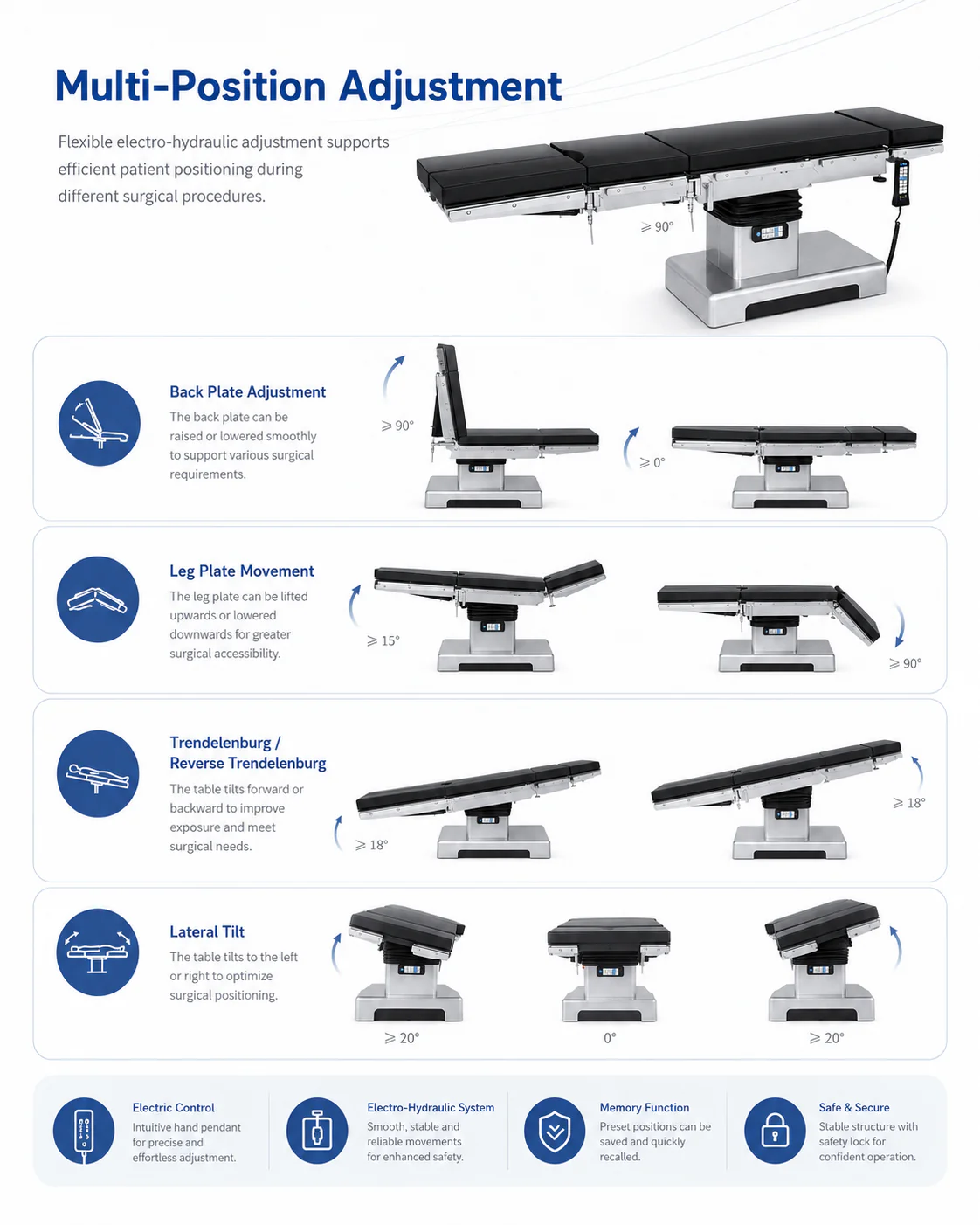

Control is via an electric remote controller, supporting all standard operative positions — Trendelenburg, reverse-Trendelenburg, lateral tilt, back-section elevation, leg-section adjustment, and waist-board lifting — without the need for manual handles or foot pumps. The head board and leg plates are interchangeable to support C-arm imaging from either end.

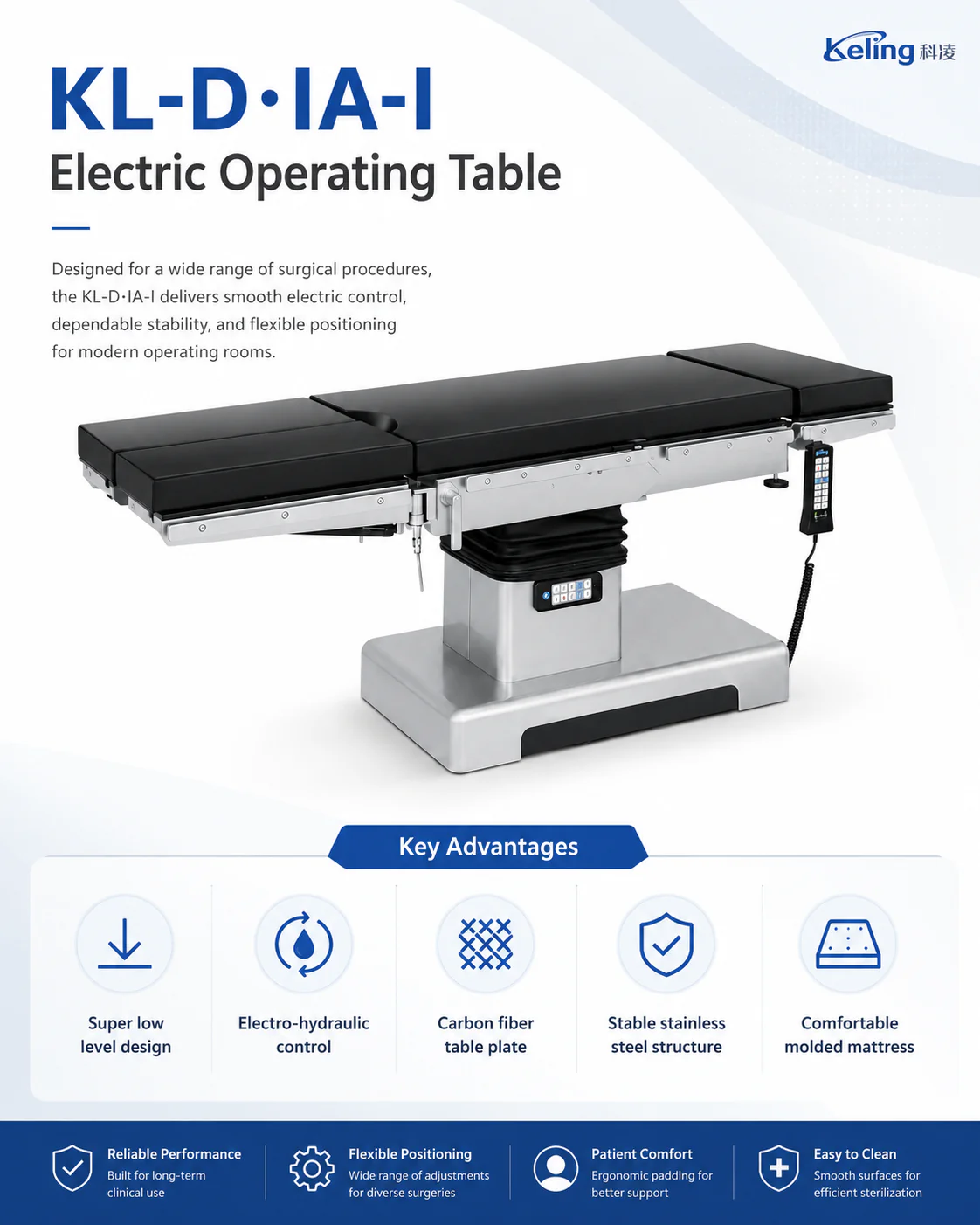

Key Features
- Super low-level design — the table descends to the lower end of the 700–1000 mm height range, enabling safe, ergonomic patient transfer from stretchers and wheelchairs.
- Carbon fiber-reinforced tabletop — imported carbon plastic plate is radiolucent for intraoperative X-ray and C-arm imaging without patient repositioning.
- Electro-hydraulic control — all major positions controlled by electric-hydraulic principle and remote controller; supports AC and DC dual-function operation.
- Seamless polyurethane mattress — imported artificial leather with high-density memory foam formed in one piece; no seams, antibacterial and easy to clean.
- Imported hydraulic components — motors, pipelines, sealing rings and solenoid valves from imported brands ensure stable, quiet, long-life hydraulic performance.
- Split and detachable head/leg sections — head board and leg plates separate for maximum surgical access and are interchangeable for C-arm positioning.
- Electric brake casters — built-in electric brakes facilitate precise displacement and locking of the operating table.

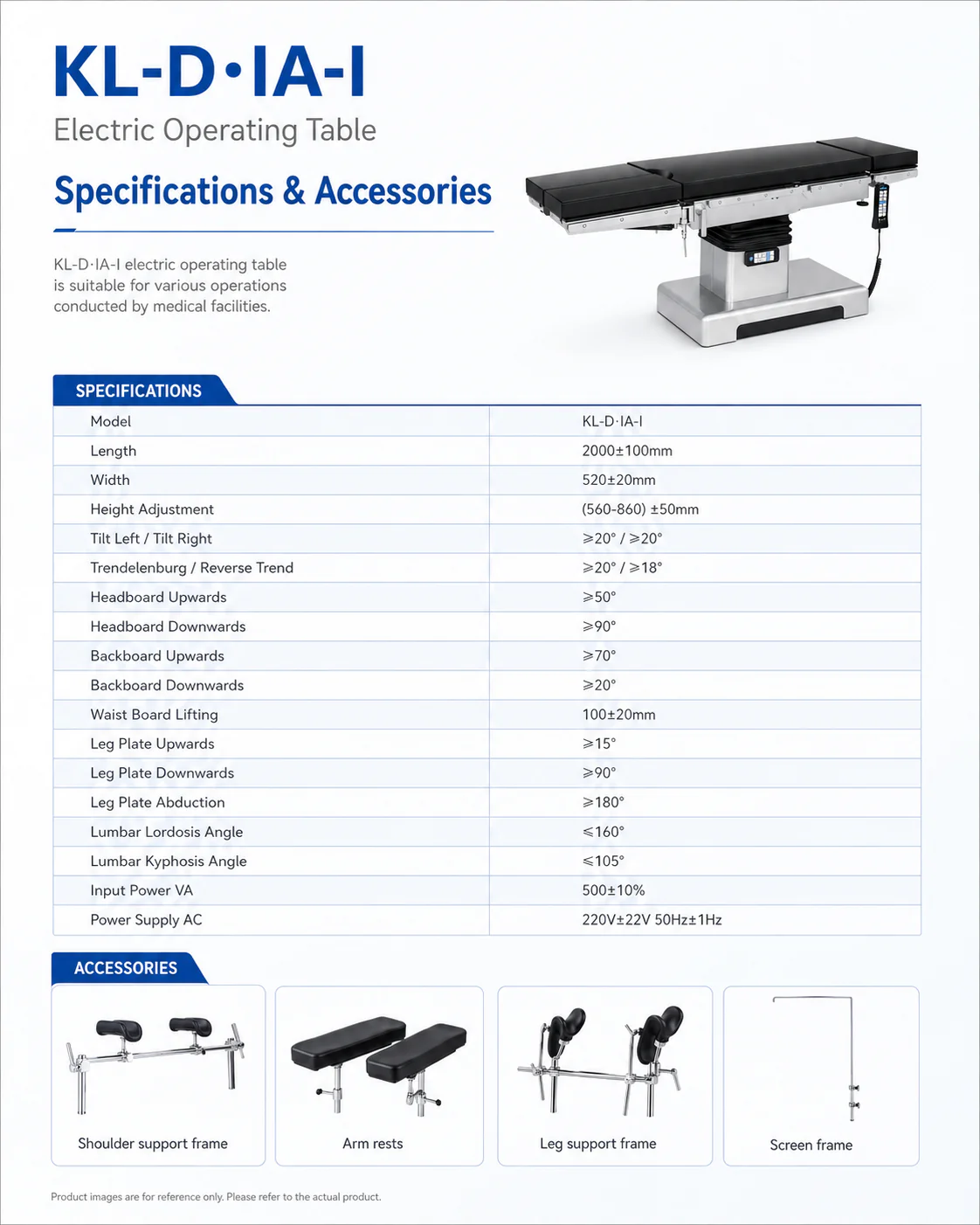

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-D-IA-I |
| Product type | Electric operating table |
| Length | 2000 ± 100 mm |
| Width | 520 ± 20 mm |
| Height Adjustment | (700–1000) ± 50 mm |
| Tilt Left / Tilt Right | ≥ 15° / ≥ 15° |
| Trendelenburg / Rev-Trend | ≥ 20° / ≥ 15° |
| Headboard Upwards | ≥ 45° |
| Headboard Downwards | ≥ 90° |
| Backboard Upwards | ≥ 70° |
| Backboard Downwards | ≥ 20° |
| Waist board lifting | 100 ± 20 mm |
| Leg plate upwards | ≥ 10° |
| Leg plate downwards | ≥ 90° |
| Leg plate abduction | ≥ 180° |
| Lumbar lordosis angle "∧" | ≤ 160° |
| Lumbar kyphosis angle "∨" | ≤ 105° |
| Input power VA | 500 ± 10% |
| Power Supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

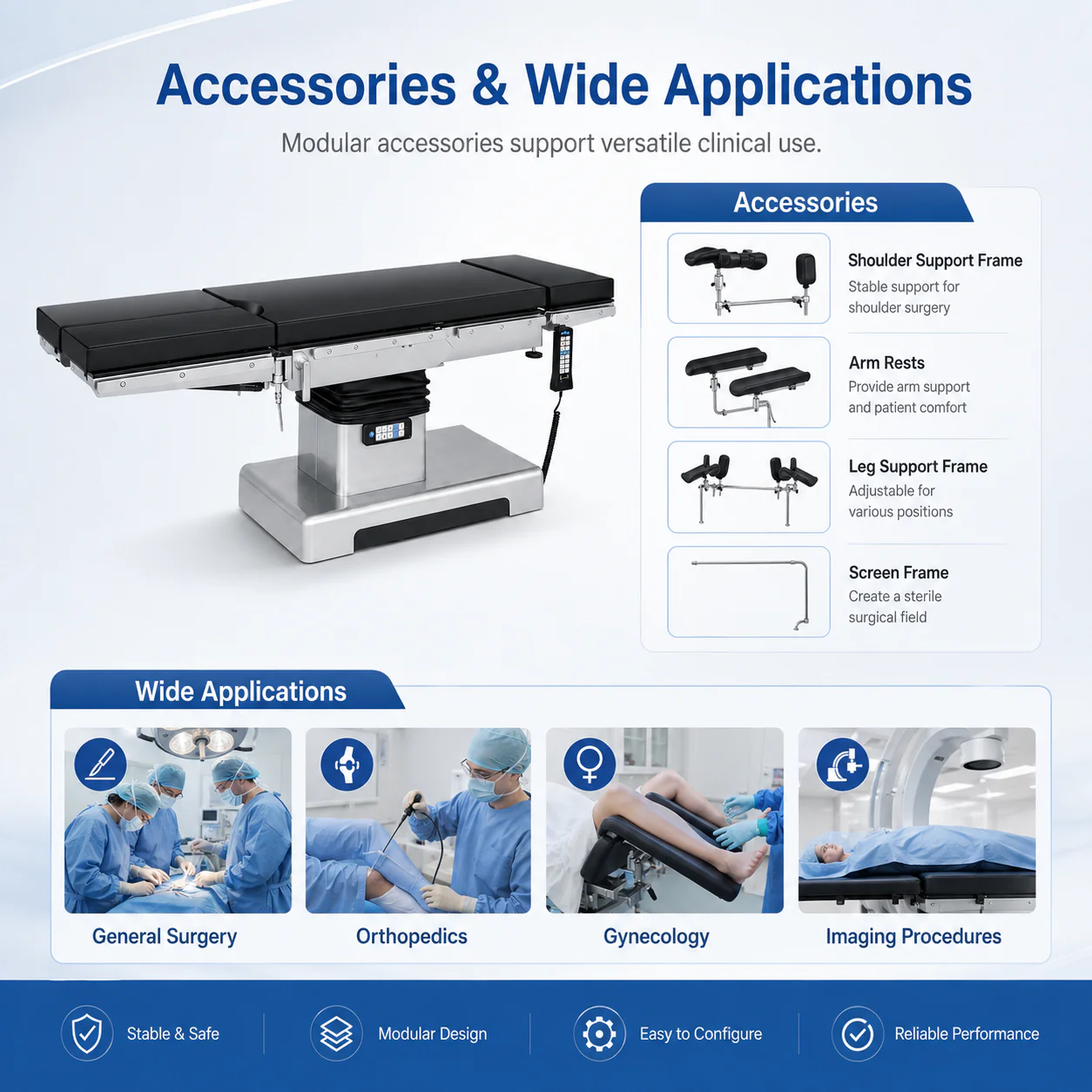

Applications
The KL-D-IA-I electric operating table is suited to general surgery, abdominal surgery, thoracic surgery, orthopaedic procedures, urology, gynaecology and ENT operations in hospitals and ambulatory surgery centers. Its carbon fiber tabletop and interchangeable head/leg board configuration make it particularly effective in C-arm fluoroscopy-guided procedures.
