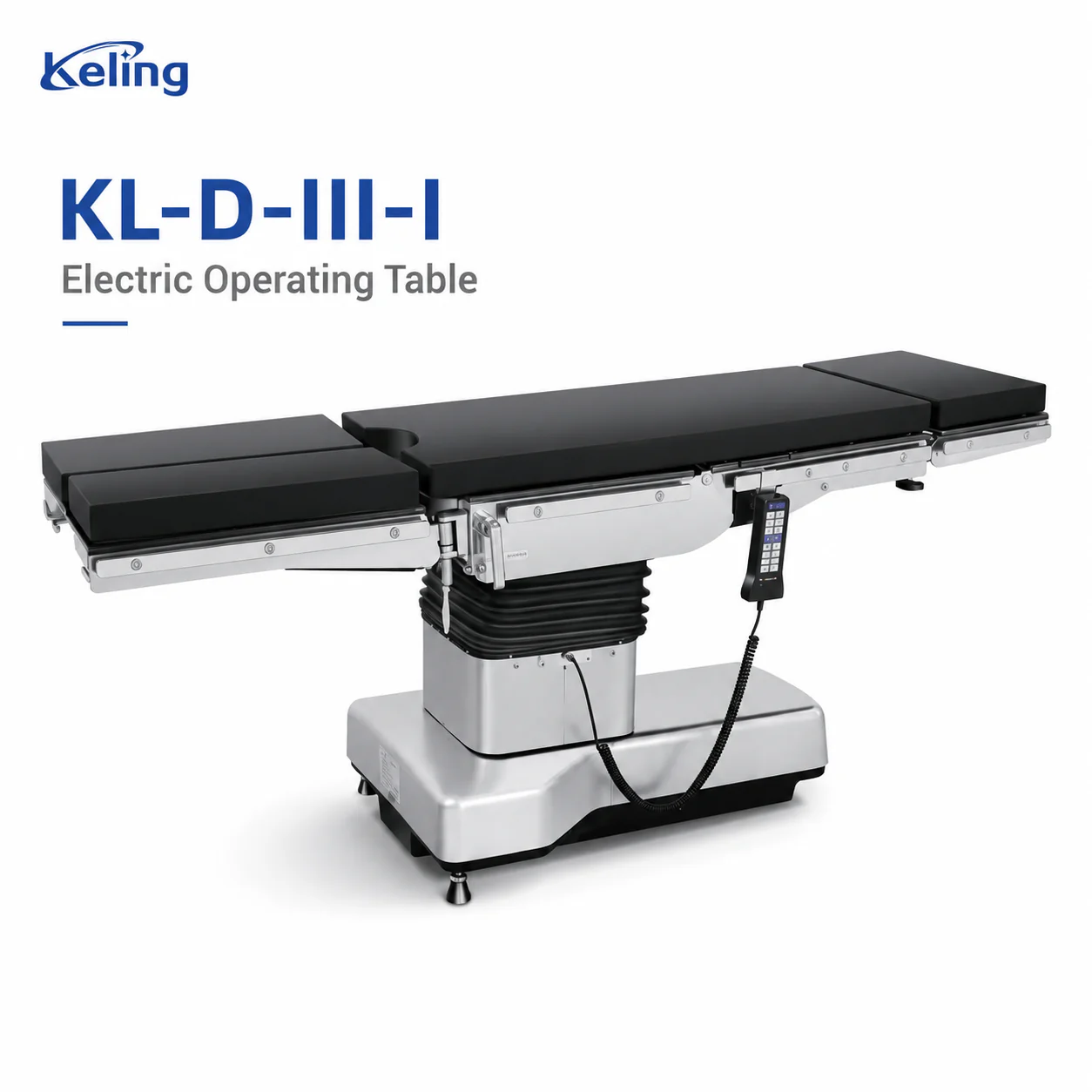

# KL-D-III-I Electric Operating Table — Precision Carbon Fiber Electro-Hydraulic Table for Demanding Surgical Environments
Quick answer: The Keling KL-D-III-I is an electric operating table with a carbon fiber tabletop, 304 stainless steel structure, electro-hydraulic handheld remote control, height adjustment from 700–1000 mm (± 50 mm), Trendelenburg/reverse-Trendelenburg ≥ 25°/≥ 25°, and longitudinal movement of 320 ± 30 mm. It is manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-D-III-I is an electric operating table suitable for various operations conducted by medical facilities.
- Height adjusts from 700 to 1000 mm (± 50 mm) via an electro-hydraulic working principle and handheld remote control.
- The tabletop is carbon fiber: radiolucent, lightweight, durable, and fully compatible with C-arm fluoroscopy imaging.

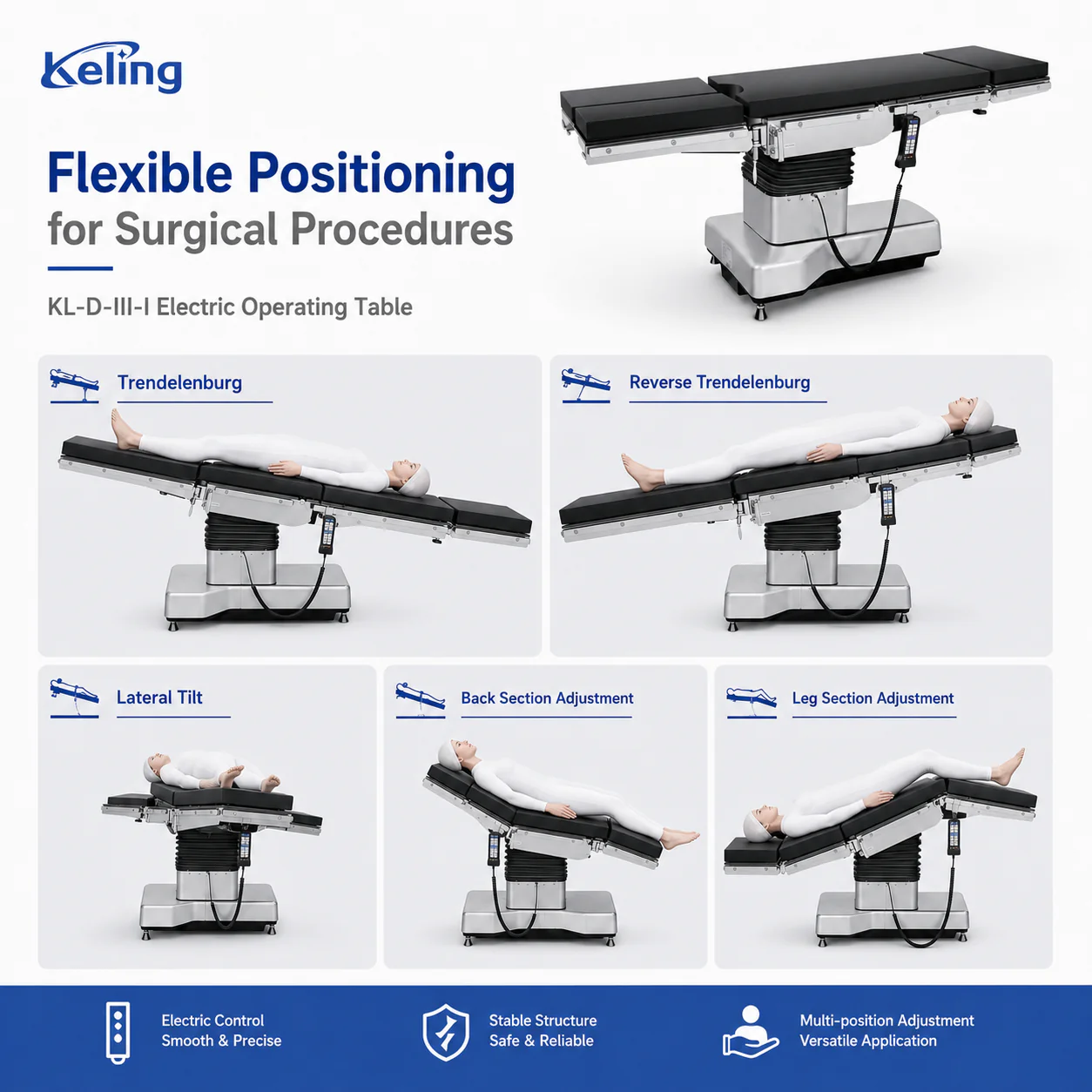

- Trendelenburg and reverse-Trendelenburg both reach ≥ 25°, supporting head-down and head-up procedural positions.
- Longitudinal movement of 320 ± 30 mm shifts the tabletop horizontally for optimal imaging and surgical access.
- The 304 stainless steel structure and base cover offer corrosion resistance and long-term stability.
Overview

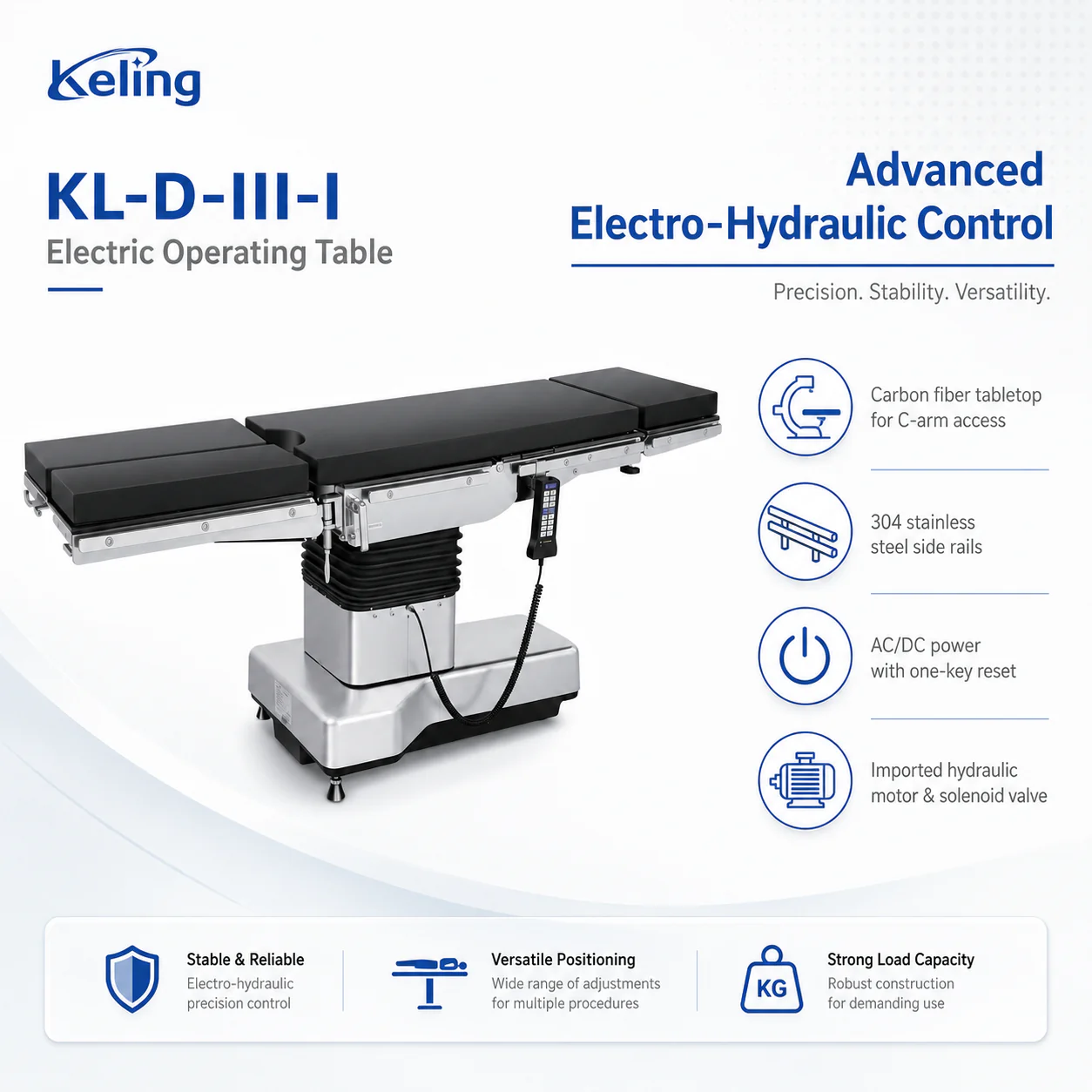

The KL-D-III-I electric operating table is engineered for precision and durability in demanding surgical environments. Its carbon fiber tabletop — radiolucent, lightweight, and corrosion-resistant — enables clear intraoperative C-arm and X-ray imaging without patient repositioning, making this table equally capable in imaging-guided orthopaedic, spinal, and abdominal procedures. The handheld remote controller drives all movements through a smooth, imported hydraulic motor and solenoid valve system, delivering quiet and stable motion through the full range of positions.
The structural frame uses forged aluminium supports for load-bearing reliability, while the column and accessories are 304 stainless steel throughout — a premium choice for infection-control environments that require regular aggressive decontamination. The 304 stainless steel base cover and side rails can be wiped down without concern for corrosion, and the foot-operated brake locks the table firmly for any procedure.

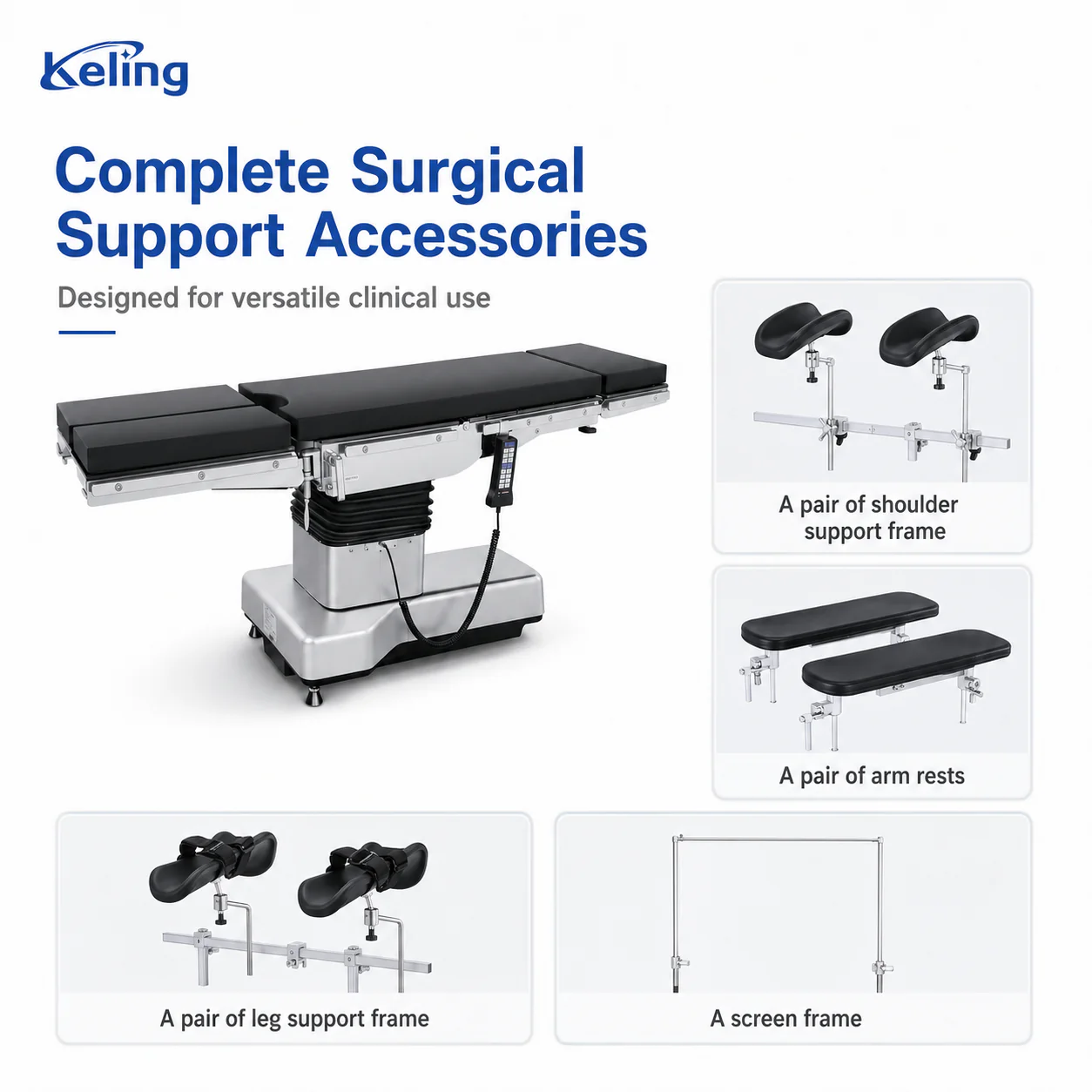

Patient comfort is addressed through a high-density polyurethane mattress moulded from imported artificial leather — seamless, anti-static, waterproof and easy to clean. The mattress provides uniform pressure distribution across the contact surface, reducing the need for supplementary padding in most patient positions. Accessories including shoulder support, arm supports and leg support are standard.

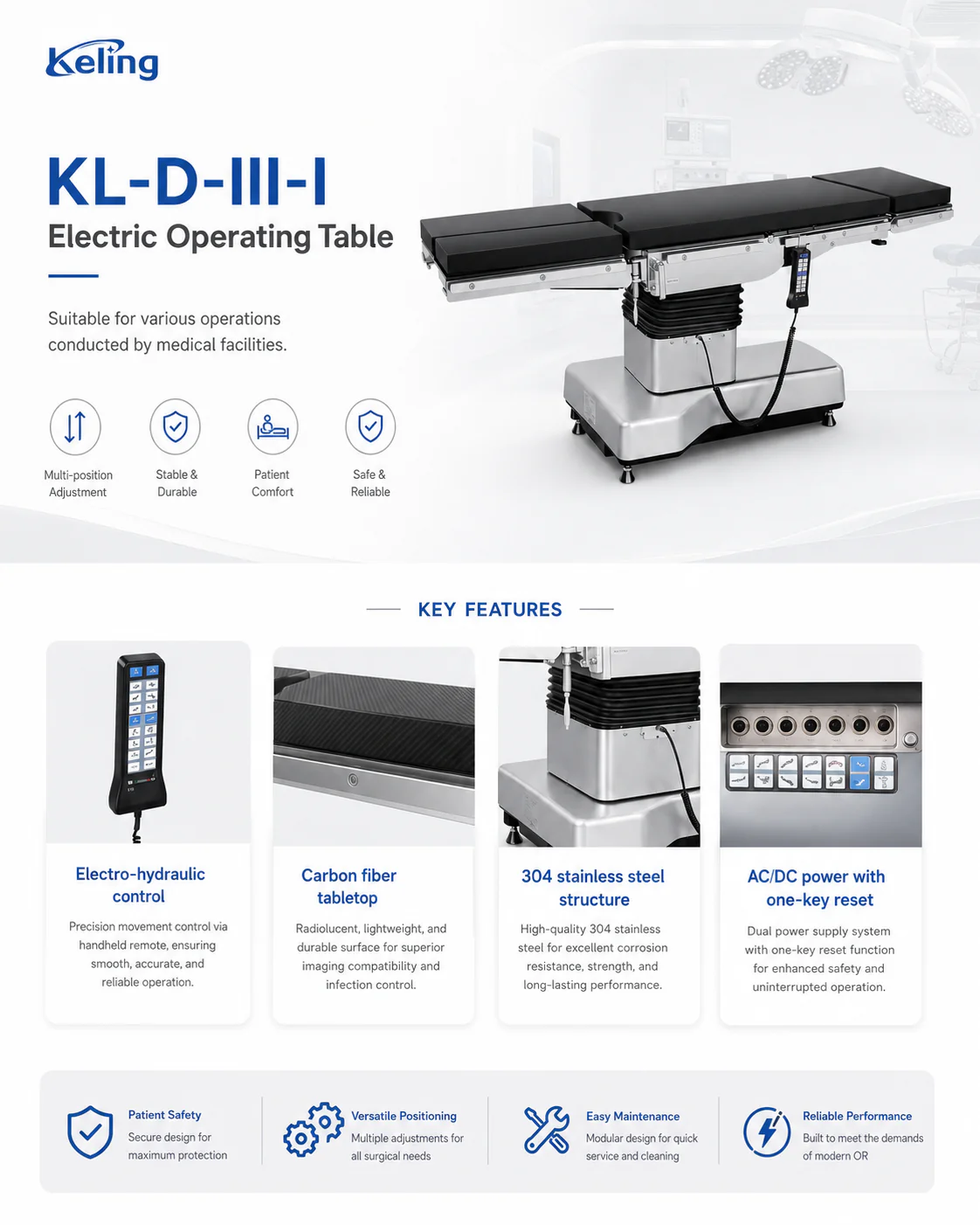

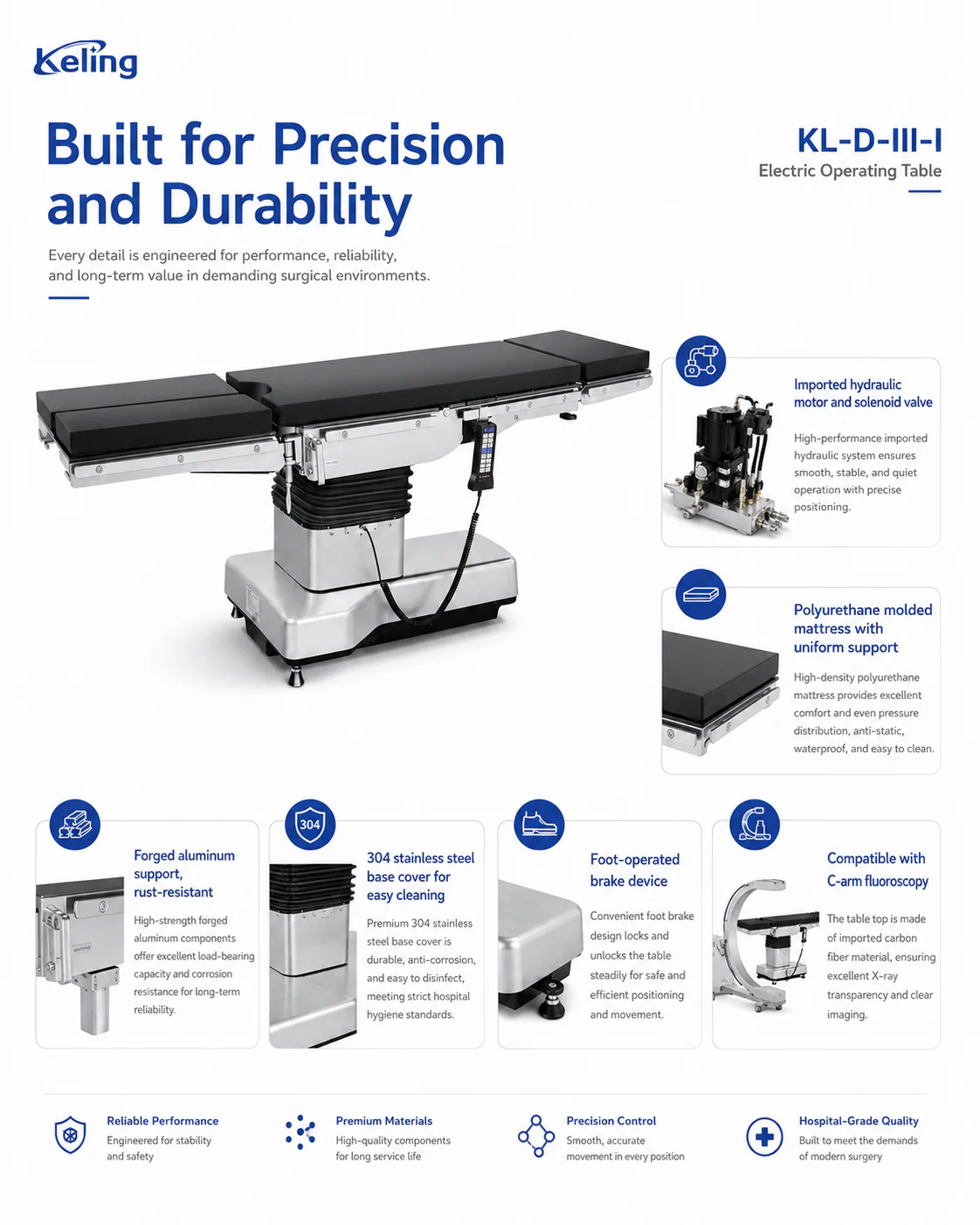

Key Features
- Carbon fiber radiolucent tabletop — lightweight and durable, provides excellent X-ray transparency for unobstructed C-arm fluoroscopy imaging during surgery.
- Imported hydraulic motor and solenoid valve — high-performance imported hydraulic components ensure smooth, stable and quiet table movement with precise positioning.
- 304 stainless steel structure — base cover, column and accessories in 304 stainless steel deliver high corrosion resistance and long service life under hospital disinfection protocols.

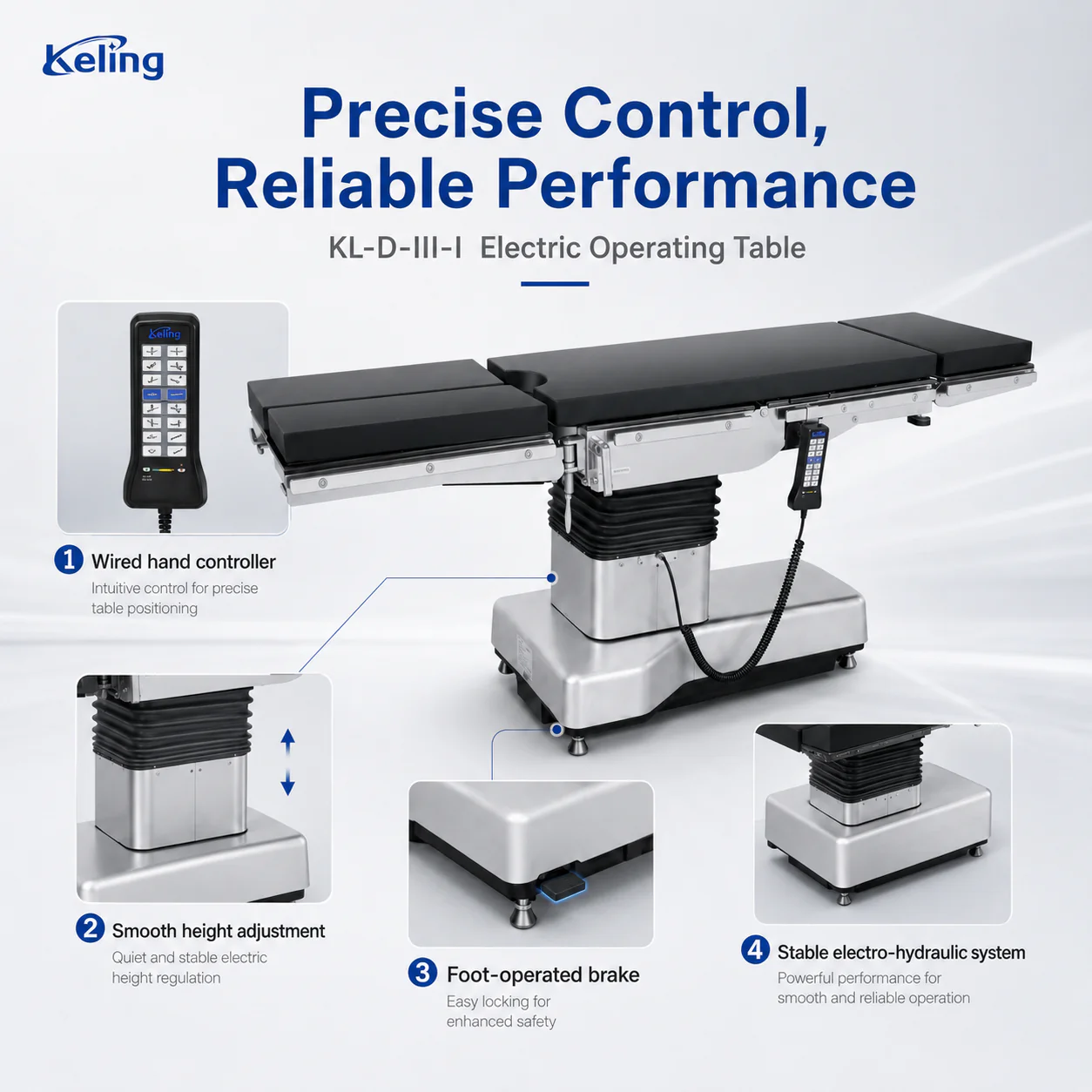

- Handheld remote electro-hydraulic control — intuitive hand pendant for precise, effortless adjustment of all table positions from any OR position.
- AC/DC dual power with one-key reset — uninterrupted operation on mains or battery; single-button reset returns the table to horizontal for fast case changeover.
- Longitudinal sliding tabletop — 320 ± 30 mm horizontal travel positions the patient for optimal C-arm access without table relocation.
- Forged aluminium support frame — high-strength forged aluminium components provide excellent load-bearing capacity and corrosion resistance.
- Foot-operated brake device — convenient foot brake locks and unlocks the table for safe OR repositioning and stable intraoperative use.

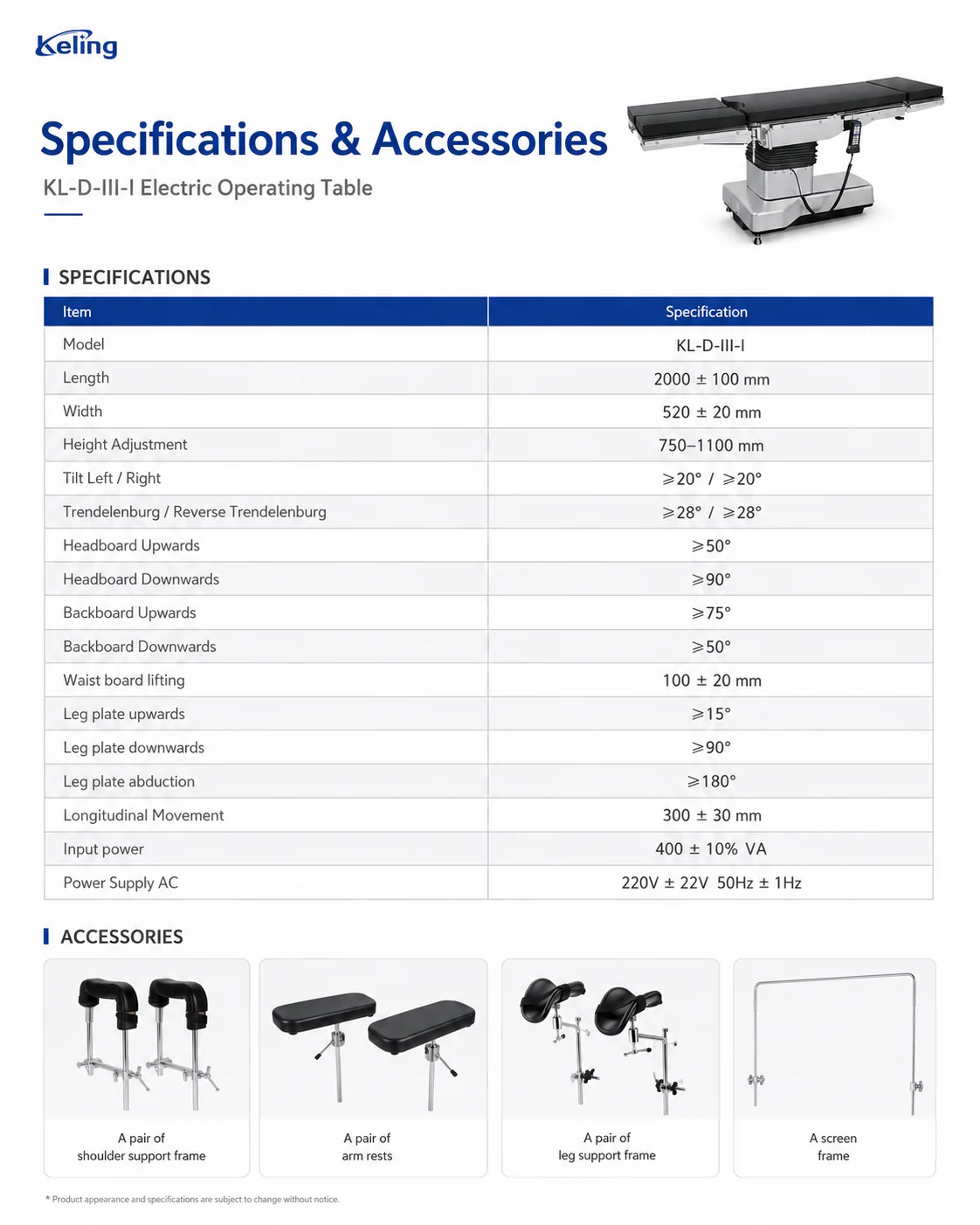

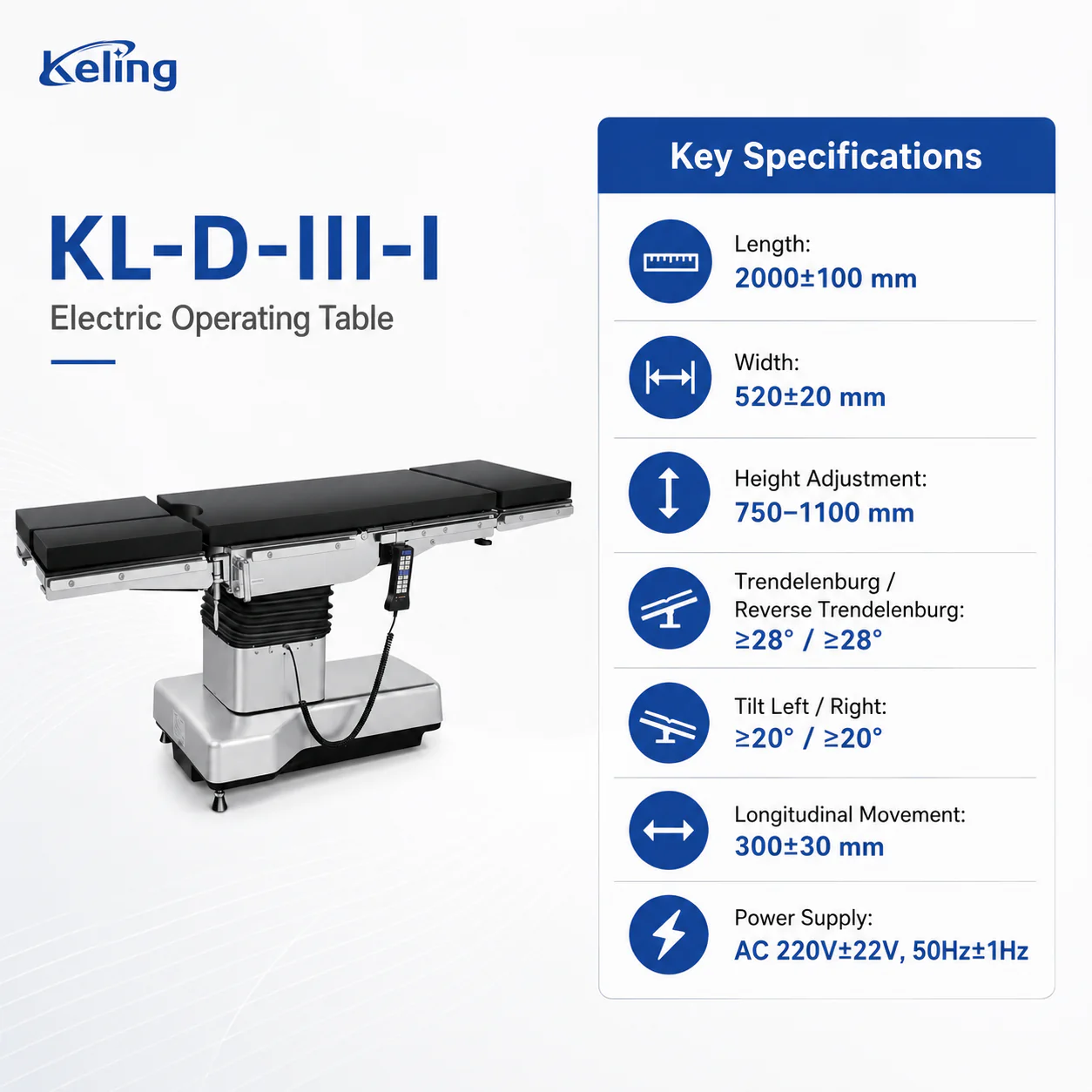

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-D-III-I |
| Product type | Electric operating table |
| Length | 2000 ± 100 mm |
| Width | 520 ± 20 mm |
| Height Adjustment | (700–1000) ± 50 mm |

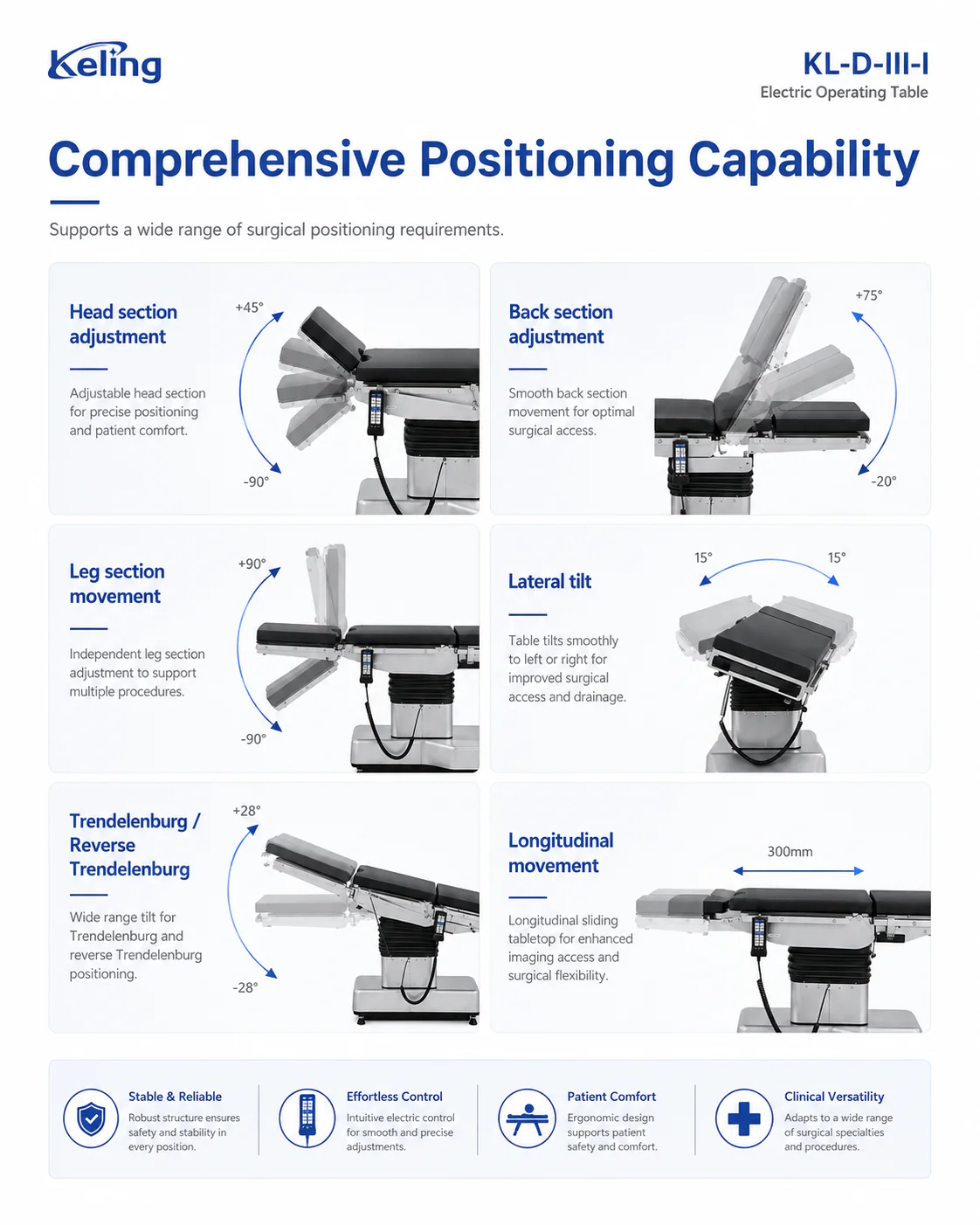

| Tilt Left / Tilt Right | ≥ 20° / ≥ 20° |
| Trendelenburg / Rev-Trend | ≥ 25° / ≥ 25° |
| Headboard Upwards | ≥ 45° |
| Headboard Downwards | ≥ 90° |
| Backboard Upwards | ≥ 70° |
| Backboard Downwards | ≥ 20° |
| Waist board lifting | 100 ± 20 mm |
| Leg plate upwards | ≥ 10° |
| Leg plate downwards | ≥ 90° |
| Leg plate abduction | ≥ 180° |
| Lumbar lordosis angle "∧" | ≤ 160° |
| Lumbar kyphosis angle "∨" | ≤ 105° |
| Longitudinal Movement | 320 ± 30 mm |
| Input power VA | 400 ± 10% |
| Power Supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-D-III-I is deployed in general surgery, orthopaedics, spinal surgery, thoracic surgery, urology, gynaecology and neurosurgery. The carbon fiber tabletop and longitudinal sliding function make it particularly well-suited to procedures requiring intraoperative fluoroscopy, including spinal fixation, femoral nail insertion, and percutaneous urological surgery.
