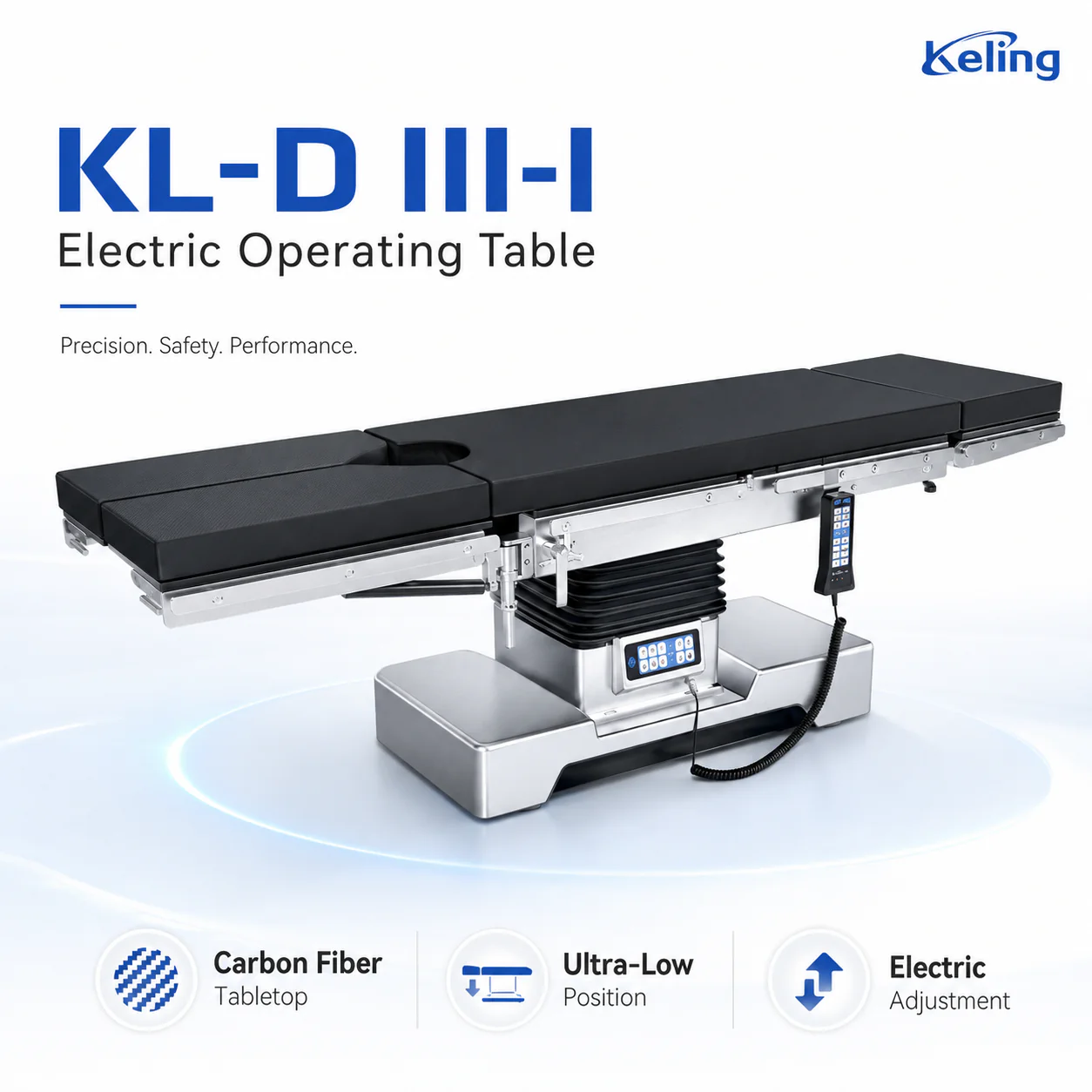

# KL-D-III-I(NEW) Electric Operating Table — Updated Electro-Hydraulic Table with LCD Control and Carbon Fiber Top
Quick answer: The Keling KL-D-III-I(NEW) is the updated version of the KL-D-III-I electric operating table, featuring a high-quality carbon fiber-reinforced tabletop, large-screen LCD wireless controller with dual hand-held and panel control modes, self-locking brake function, and height adjustment from 700–1000 mm (± 50 mm). It is manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-D-III-I(NEW) is an updated electric operating table for various operations conducted by medical facilities.
- The complete hydraulic system adopts the German HOERBIGER brand for smooth, reliable hydraulic performance.
- Height adjusts from 700 to 1000 mm (± 50 mm) via electro-hydraulic drive.
- The tabletop is made of high-quality carbon fiber-reinforced plastic with high-density memory foam mattress formed at one time without seams.
- Two and two-control modes support: hand-held two-control master controller with panel controller and self-locking brake function.
- Longitudinal and leg board width adjustments are anti-pitch and anti-detachable for enhanced safety.
Overview
The KL-D-III-I(NEW) electric operating table represents an updated generation of Keling's mid-high-range electric surgical table line, incorporating a German HOERBIGER hydraulic system and an enhanced large-screen LCD controller set. Where the previous KL-D-III-I relied on a standard handheld remote, the NEW version extends this to a dual-mode control platform — the two-controller master hand-held unit and a table-mounted panel — both with a self-locking brake function for added patient safety during position changes.

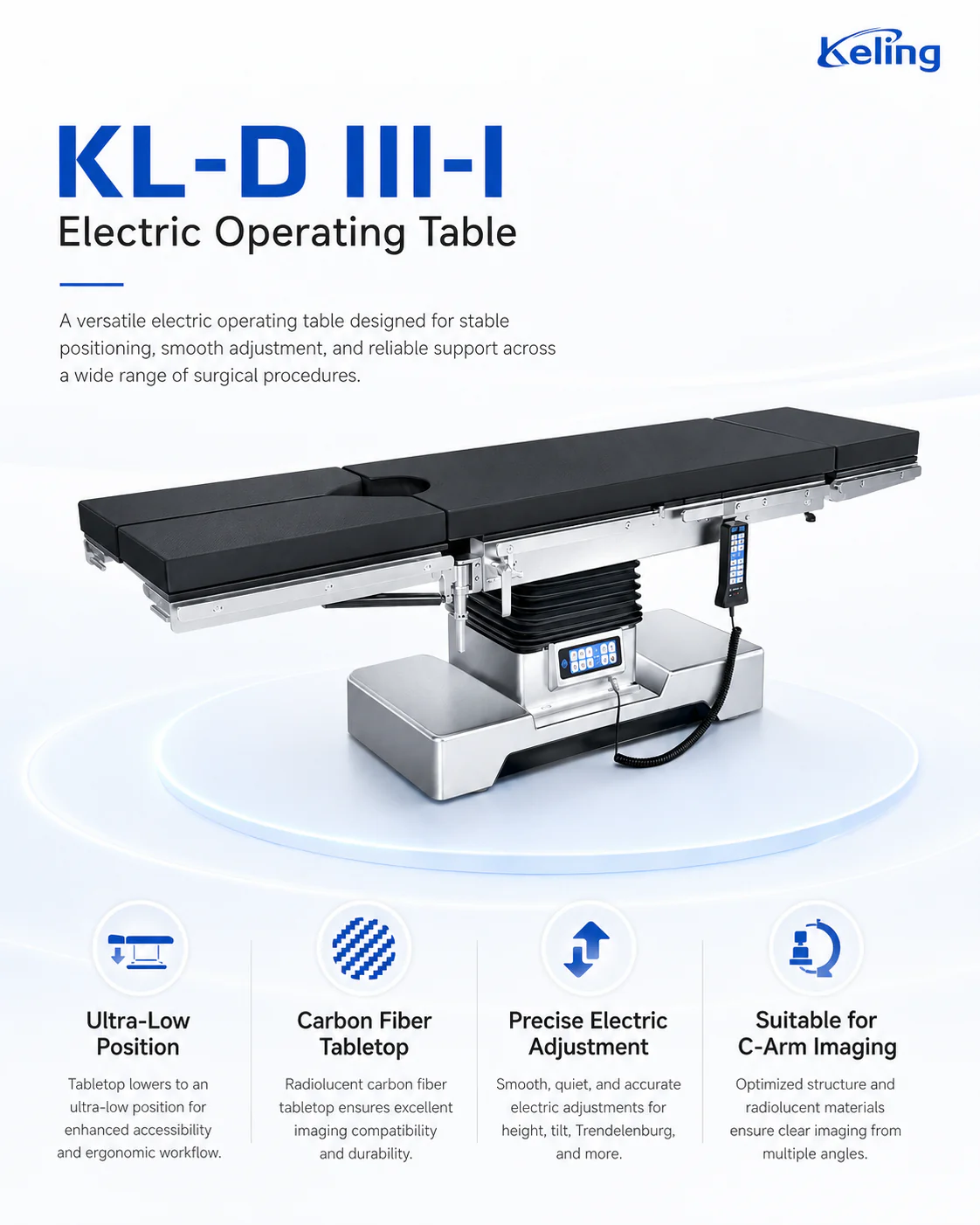

The carbon fiber-reinforced tabletop meets the same C-arm fluoroscopy compatibility requirements as the earlier model, while the high-density memory foam mattress — formed from artificial leather in a single piece with no seam — provides enhanced pressure distribution and straightforward terminal decontamination. The German HOERBIGER hydraulic circuit ensures quiet, smooth movements across all axes including height, Trendelenburg, lateral tilt, backboard, leg plate, and the full lumbar bridge range.
A notable safety improvement in the NEW model is the anti-pitch and anti-detachable design of the longitudinal and leg board width adjustments. This prevents unintended section release during patient positioning, a meaningful upgrade for high-tilt and extreme-angle procedures. The complete system operates on AC/DC dual power with one-key reset, and the large-screen LCD controller displays operating states clearly for the scrub or circulating nurse.

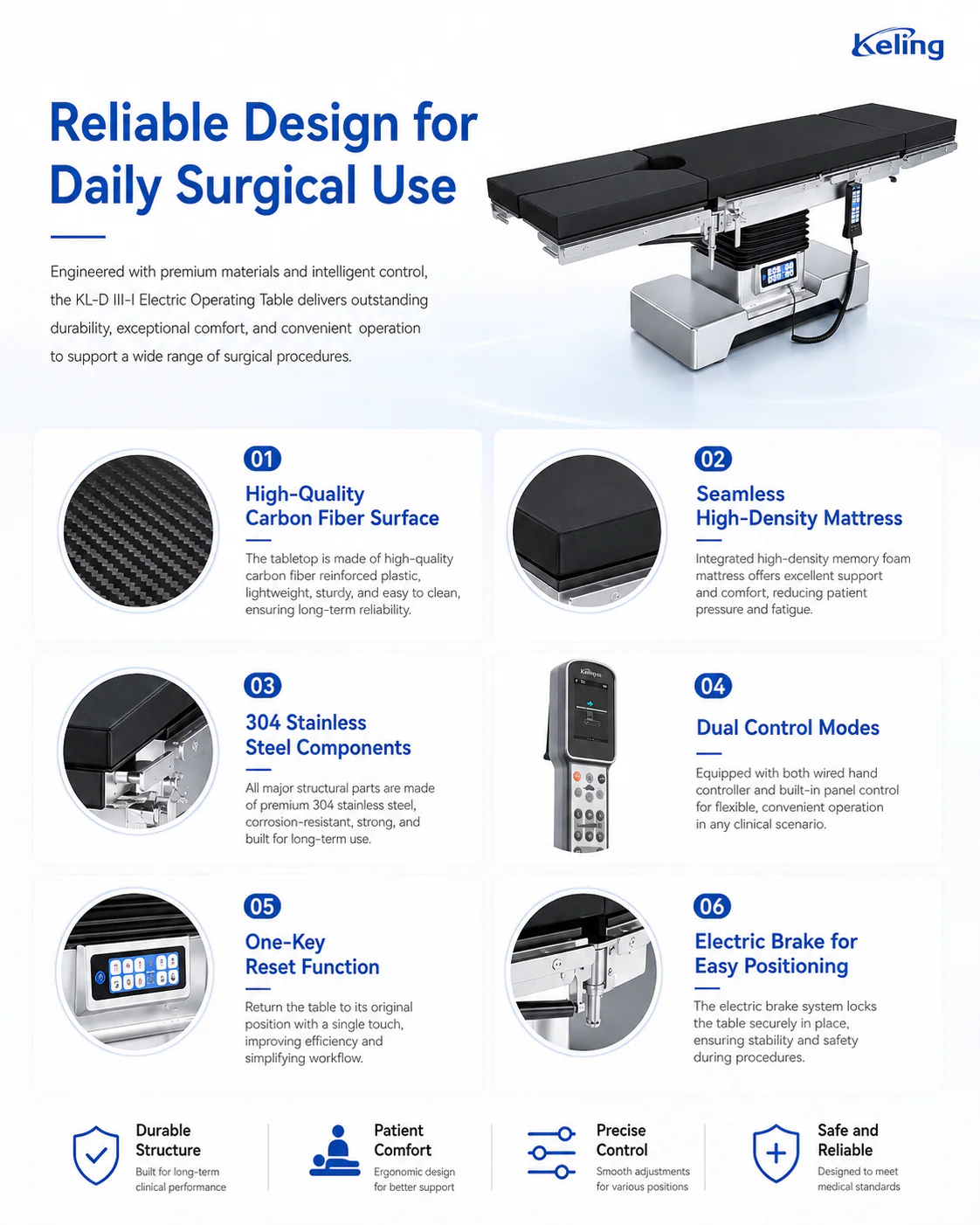

Key Features
- German HOERBIGER hydraulic system — internationally recognised hydraulic brand adopted for smooth, stable, quiet and durable table movement.

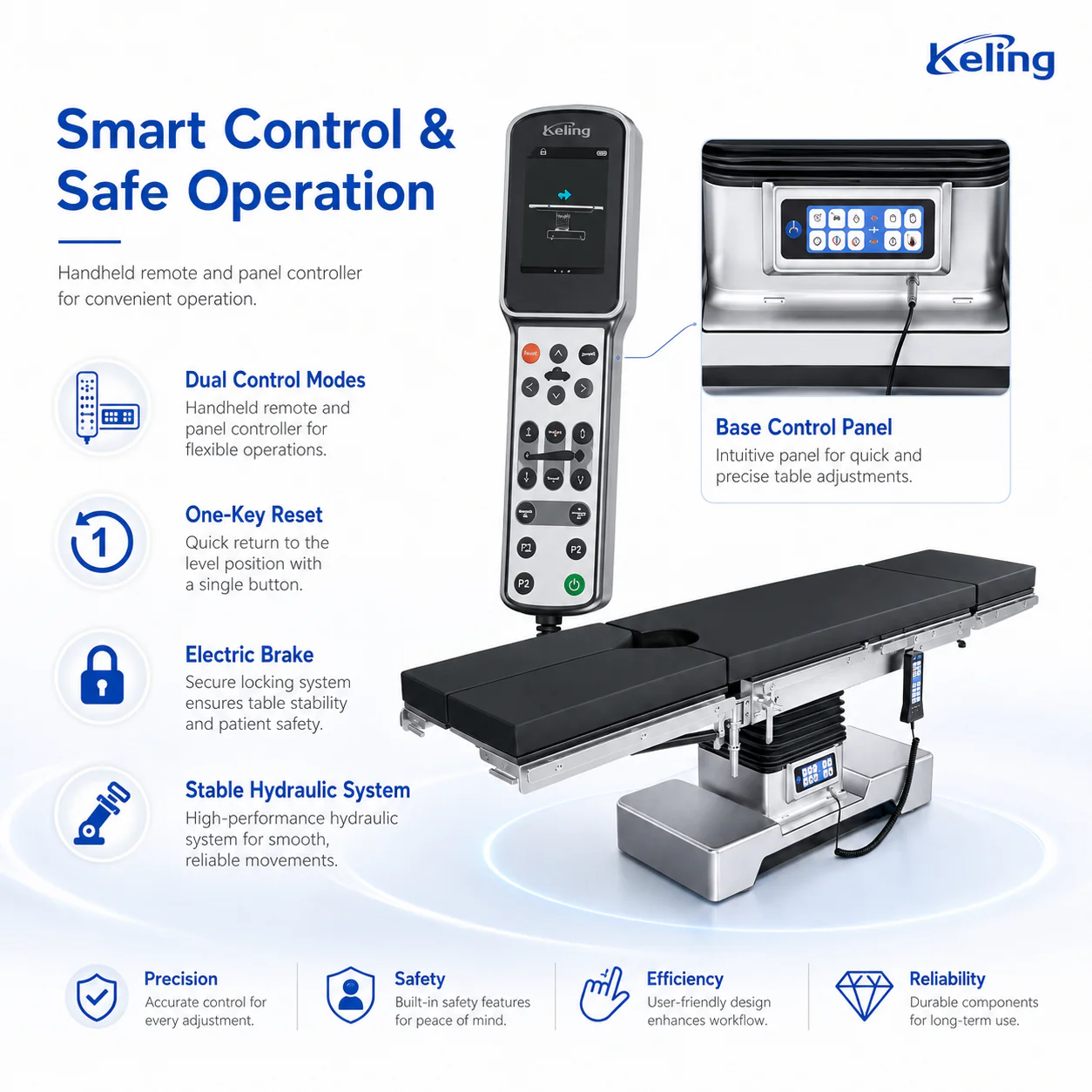

- Large-screen LCD dual controller — oversized LCD screen on the hand-held unit displays system status; dual hand-held plus panel controllers provide flexible command from any OR position.
- Carbon fiber-reinforced tabletop — radiolucent, high-strength carbon fiber supports clear intraoperative C-arm and X-ray imaging without patient movement.
- Self-locking brake function — controller-integrated brake locks the table in position immediately after each movement command to prevent inadvertent drift.
- Anti-pitch, anti-detachable leg/longitudinal adjustment — safety design on width and longitudinal adjustments prevents unintended release during extreme-angle positioning.
- AC/DC dual power with one-key reset — uninterrupted operation on mains or battery; one-button reset returns all sections to horizontal for rapid case turnover.

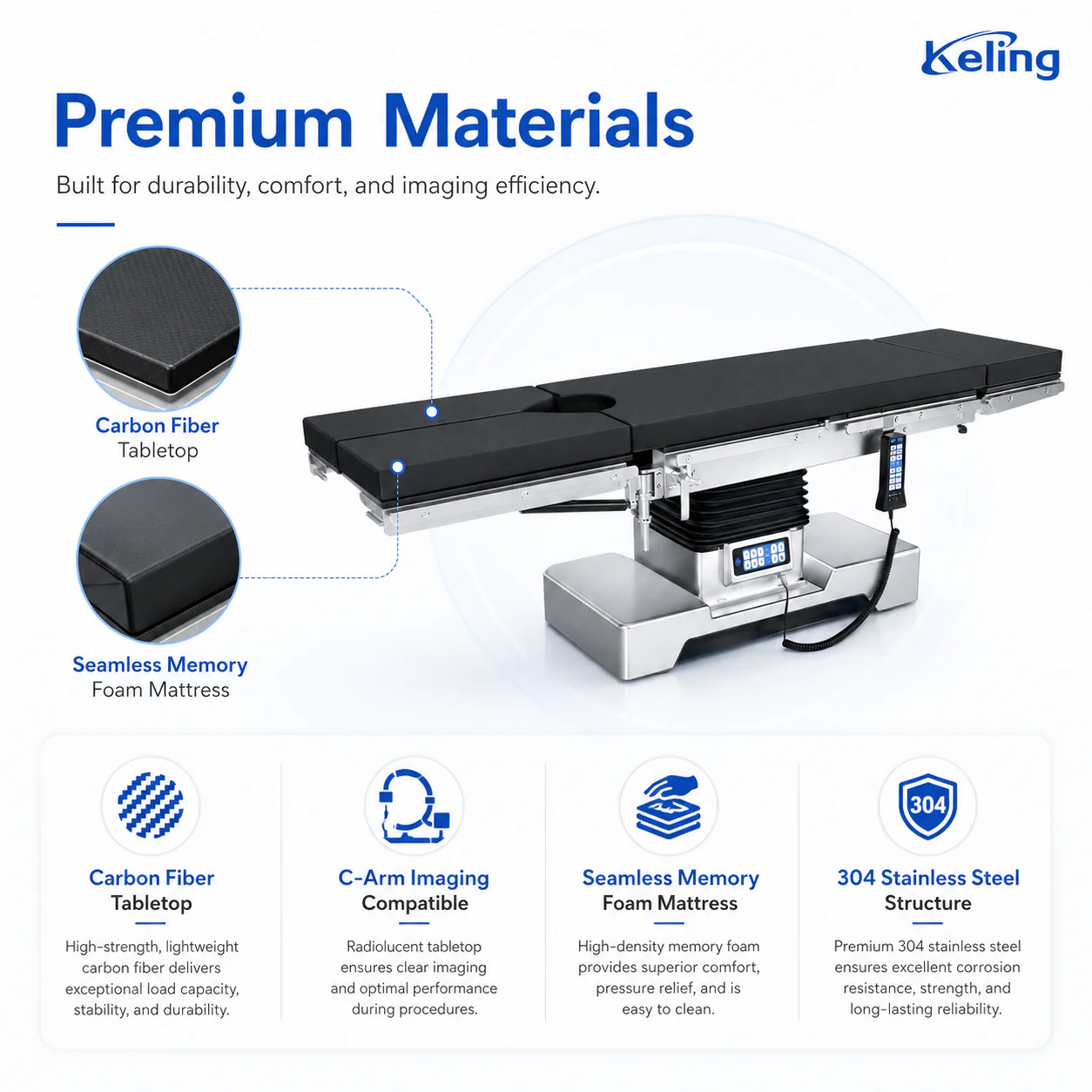

- Seamless high-density memory foam mattress — imported artificial leather formed at one time, antibacterial, waterproof and seam-free for superior infection control.

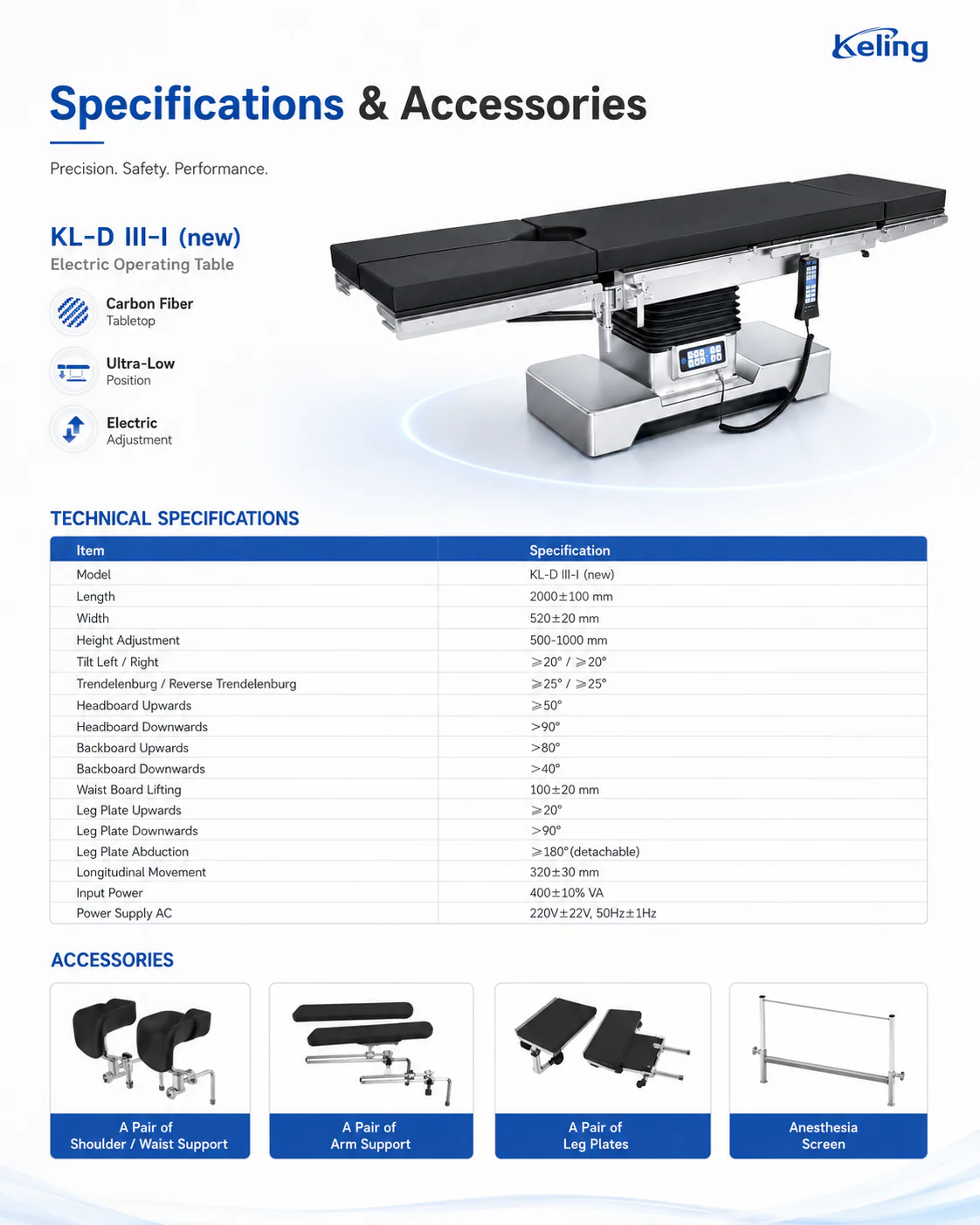

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-D-III-I(NEW) |
| Product type | Electric operating table |
| Length | 2000 ± 100 mm |
| Width | 520 ± 20 mm |

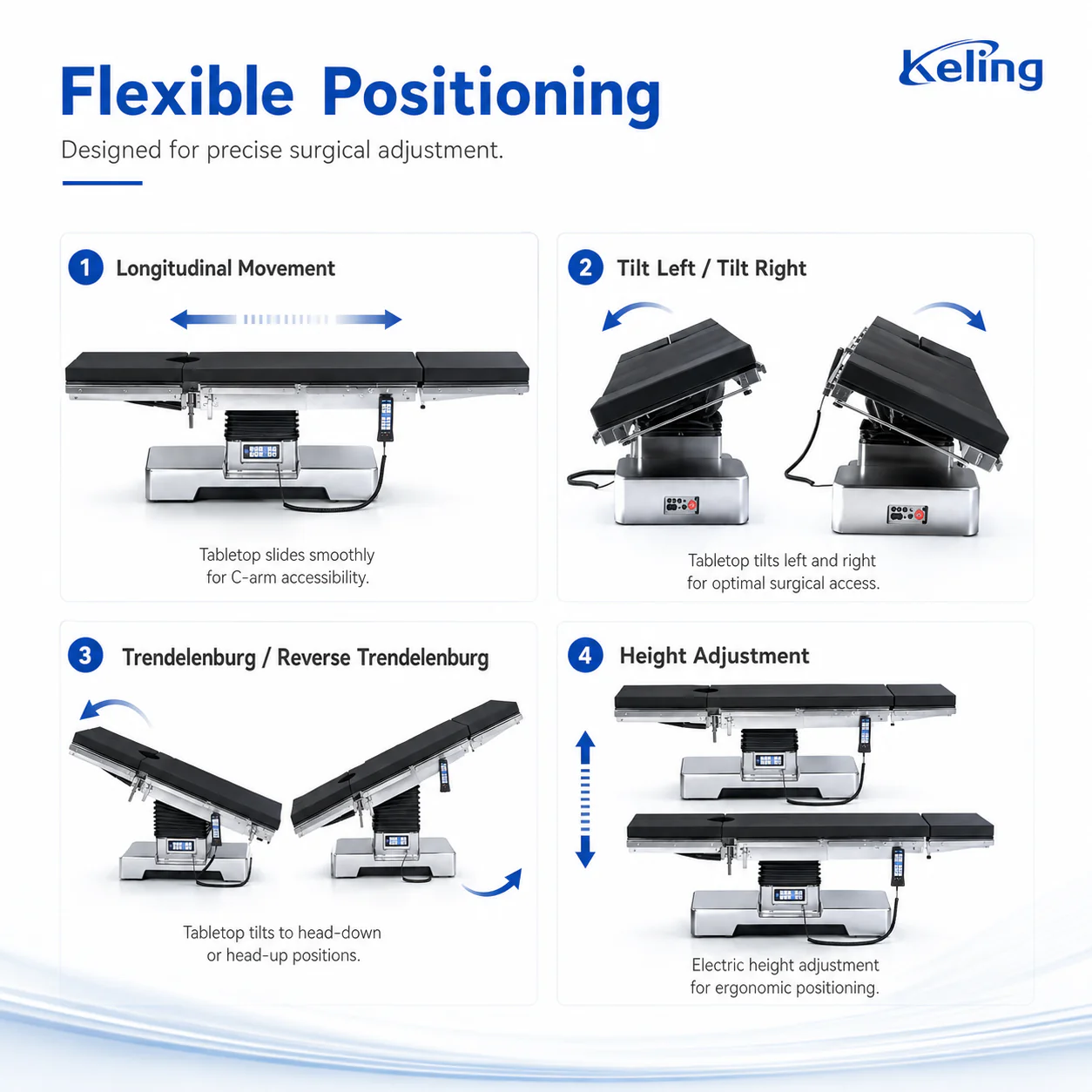

| Height Adjustment | (700–1000) ± 50 mm |
| Tilt Left / Tilt Right | ≥ 20° / ≥ 20° |
| Trendelenburg / Rev-Trend | ≥ 25° / ≥ 25° |
| Headboard Upwards | ≥ 45° |
| Headboard Downwards | ≥ 90° |

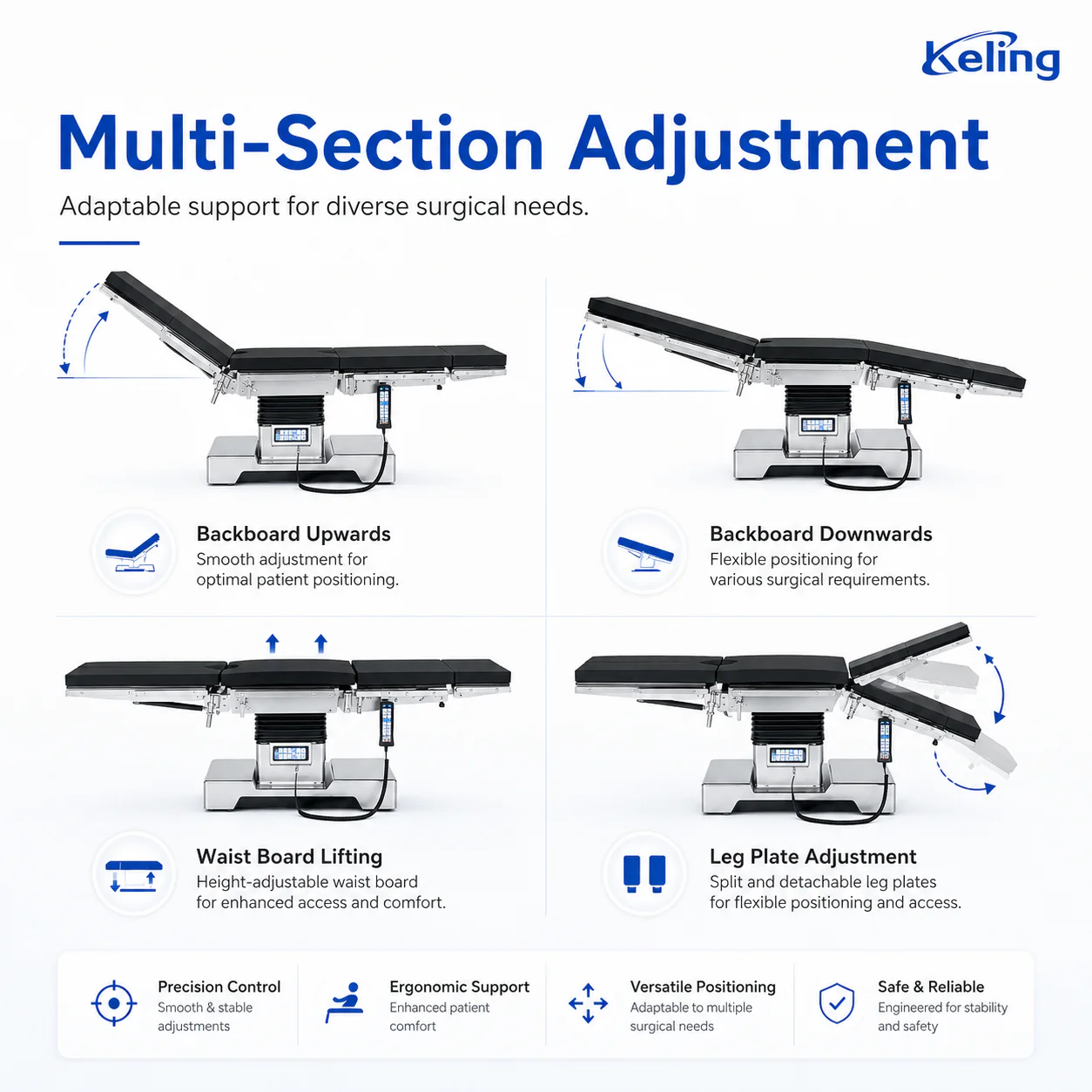

| Backboard Upwards | ≥ 70° |
| Backboard Downwards | ≥ 20° |
| Waist board lifting | 100 ± 20 mm |
| Leg plate upwards | ≥ 10° |
| Leg plate downwards | ≥ 90° |
| Leg plate abduction | ≥ 180° |
| Lumbar lordosis angle "∧" | ≤ 160° |
| Lumbar kyphosis angle "∨" | ≤ 105° |

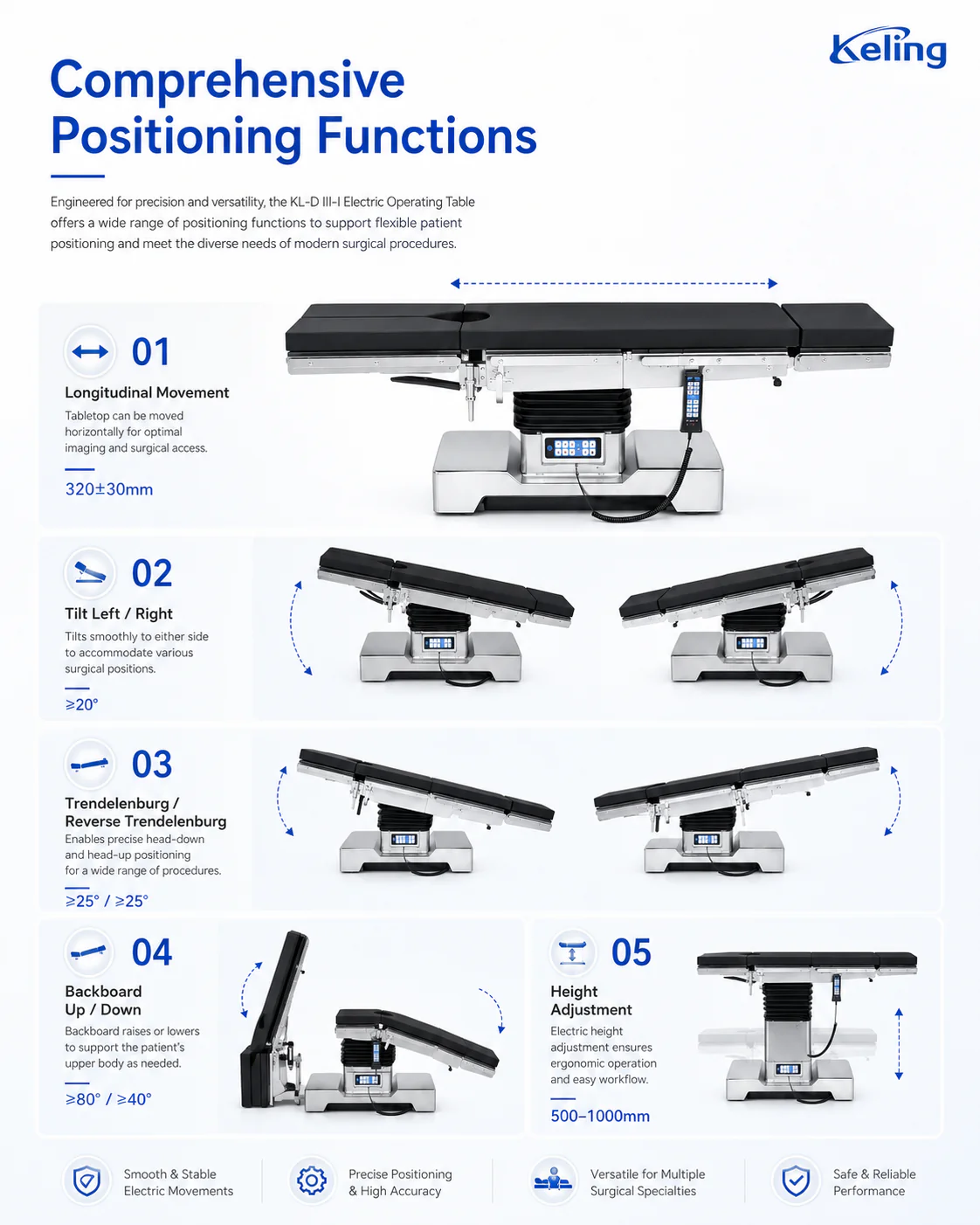

| Longitudinal Movement | 300 ± 30 mm |
| Input power VA | 400 ± 10% |
| Power Supply AC | 220V ± 22V 50Hz ± 1Hz |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-D-III-I(NEW) suits general surgery, orthopaedics, spinal surgery, urological procedures, gynaecology, thoracic surgery and neurosurgery requiring intraoperative fluoroscopy. The German HOERBIGER hydraulic system and enhanced safety features make it appropriate for high-acuity surgical suites where table reliability is critical.
