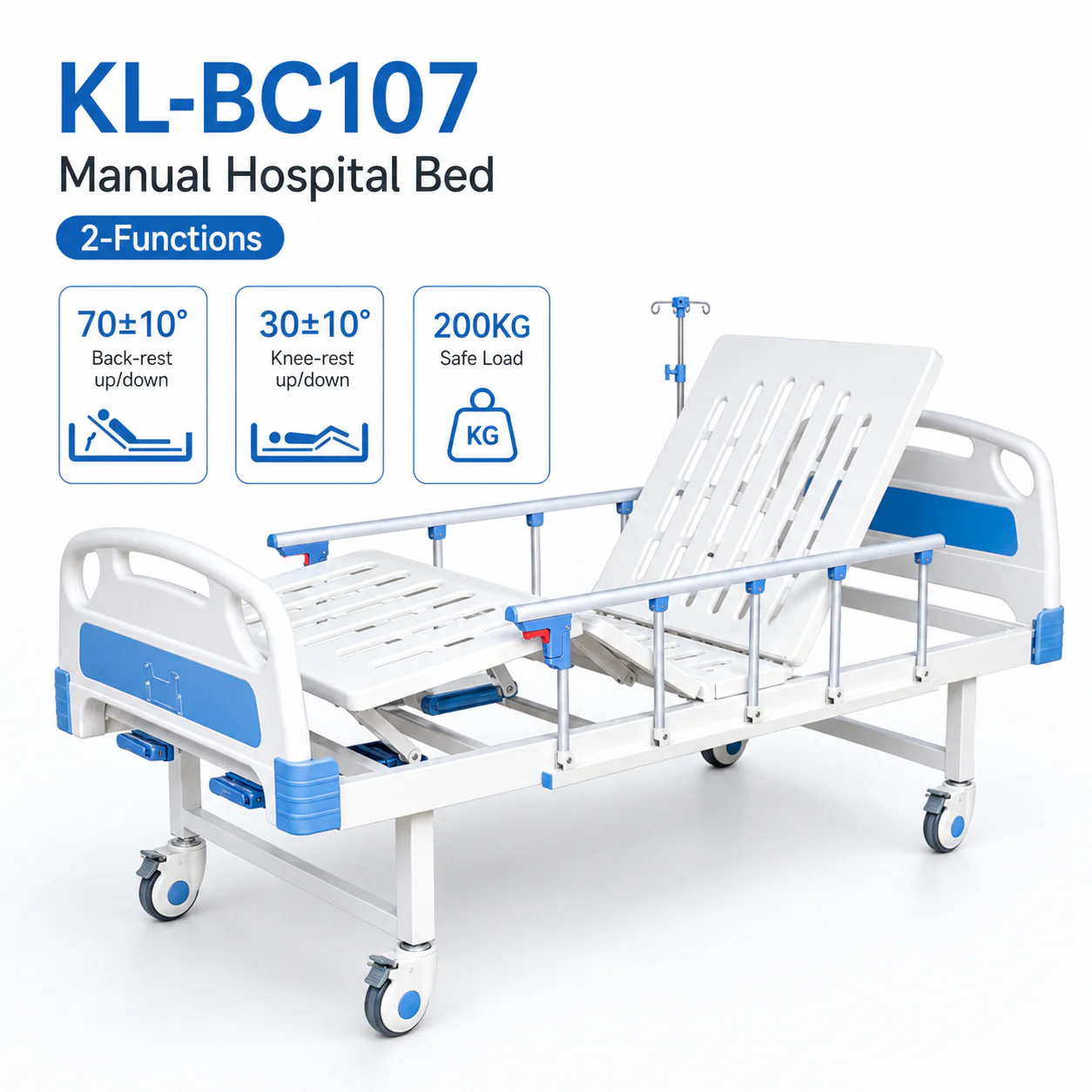

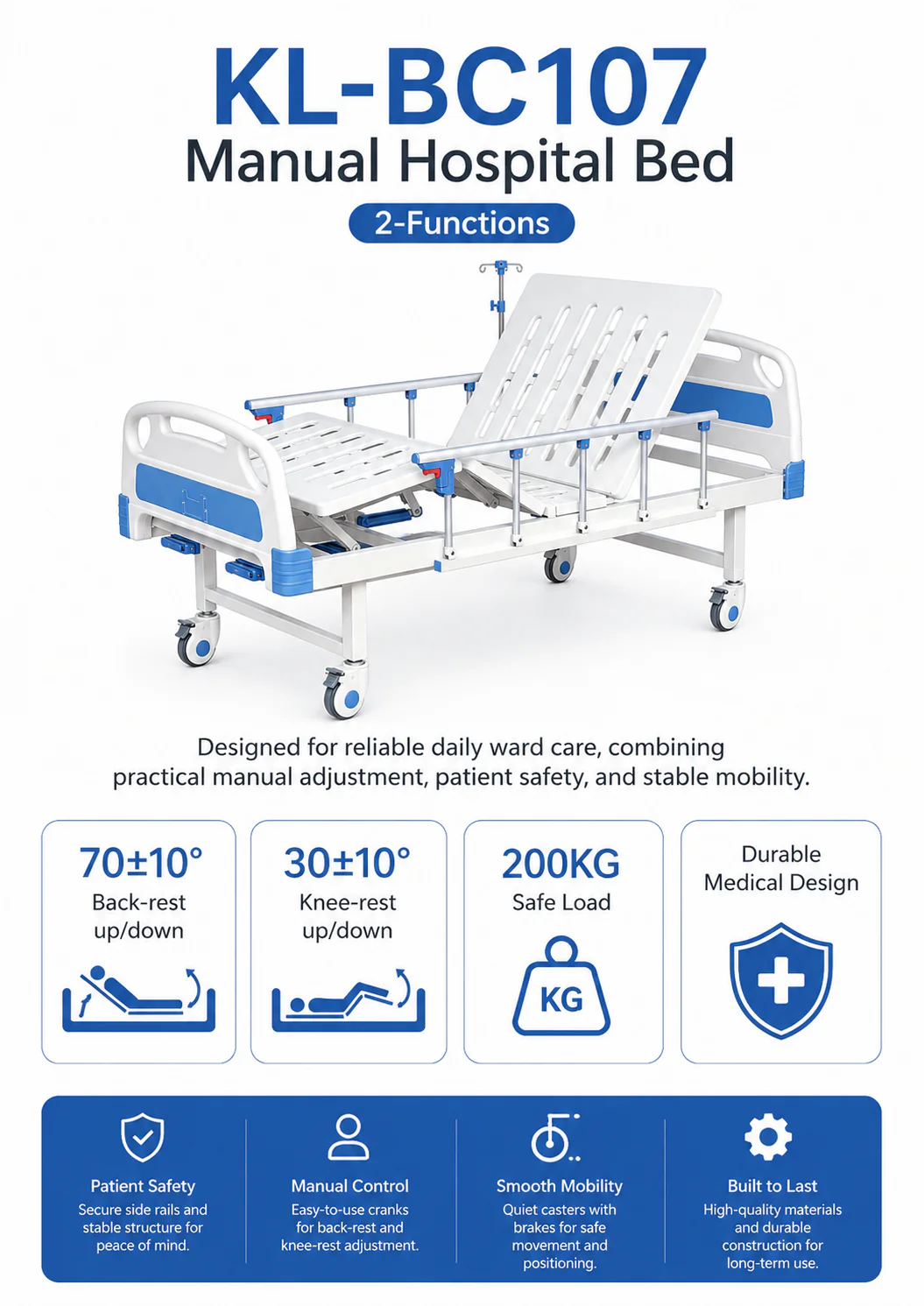

# KL-BC107 Manual Hospital Bed — 2-Function Bed with Backrest and Knee-Rest Adjustment
Quick answer: The Keling KL-BC107 is a 2-function manual hospital bed with backrest adjustment to 70±10° and knee-rest adjustment to 30±10°, a fixed bed height of 500 mm, 200 kg safe working load and external dimensions of 2150 × 960 × 500 mm. Manufactured by Keling Medical (Keling Medical) for general wards and care facilities that require manual patient positioning without height adjustment or electric drive systems.
Quick Facts
- The Keling KL-BC107 is a 2-function manual hospital bed with crank-operated backrest and knee-rest adjustment.
- Backrest adjusts manually to 70±10° for respiratory, feeding and comfort positions.
- Knee-rest adjusts independently to 30±10°, reducing patient sliding when the backrest is raised.
- Bed height is fixed at 500 mm; external size is 2150 × 960 × 500 mm; bed surface is 1930 × 900 mm.
- Safe working load is 200 kg, rated for standard adult inpatient populations.
- The KL-BC107 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.
Overview
The KL-BC107 manual hospital bed extends the single backrest function of the KL-BC106 by adding independent manual knee-rest adjustment, giving nursing staff the two most clinically relevant positioning controls in a low-maintenance, manually operated platform. The combination of backrest and knee-rest adjustment enables effective anti-sliding positioning that keeps patients comfortably seated in the bed during elevated postures without the need for repositioning every few hours.
The 70±10° backrest range covers the standard clinical requirements for head-of-bed elevation in respiratory care, post-operative recovery and feeding protocols. The 30±10° knee-rest angle, operated independently, provides the lower-limb support that counteracts the tendency for patients to slide toward the foot of the bed when the head is raised — reducing shear stress on the sacral and heel regions and contributing to pressure-injury prevention in long-stay patients.
With a fixed height of 500 mm and a compact 960 mm external width, the KL-BC107 is dimensionally identical to the KL-BC106, allowing the two models to be used interchangeably within the same ward layout. Manual operation keeps servicing requirements low: no electric motor, control box or wiring to maintain. The 200 kg load rating and 1930 × 900 mm bed surface ensure the KL-BC107 accommodates the full range of standard adult inpatients.
Key Features

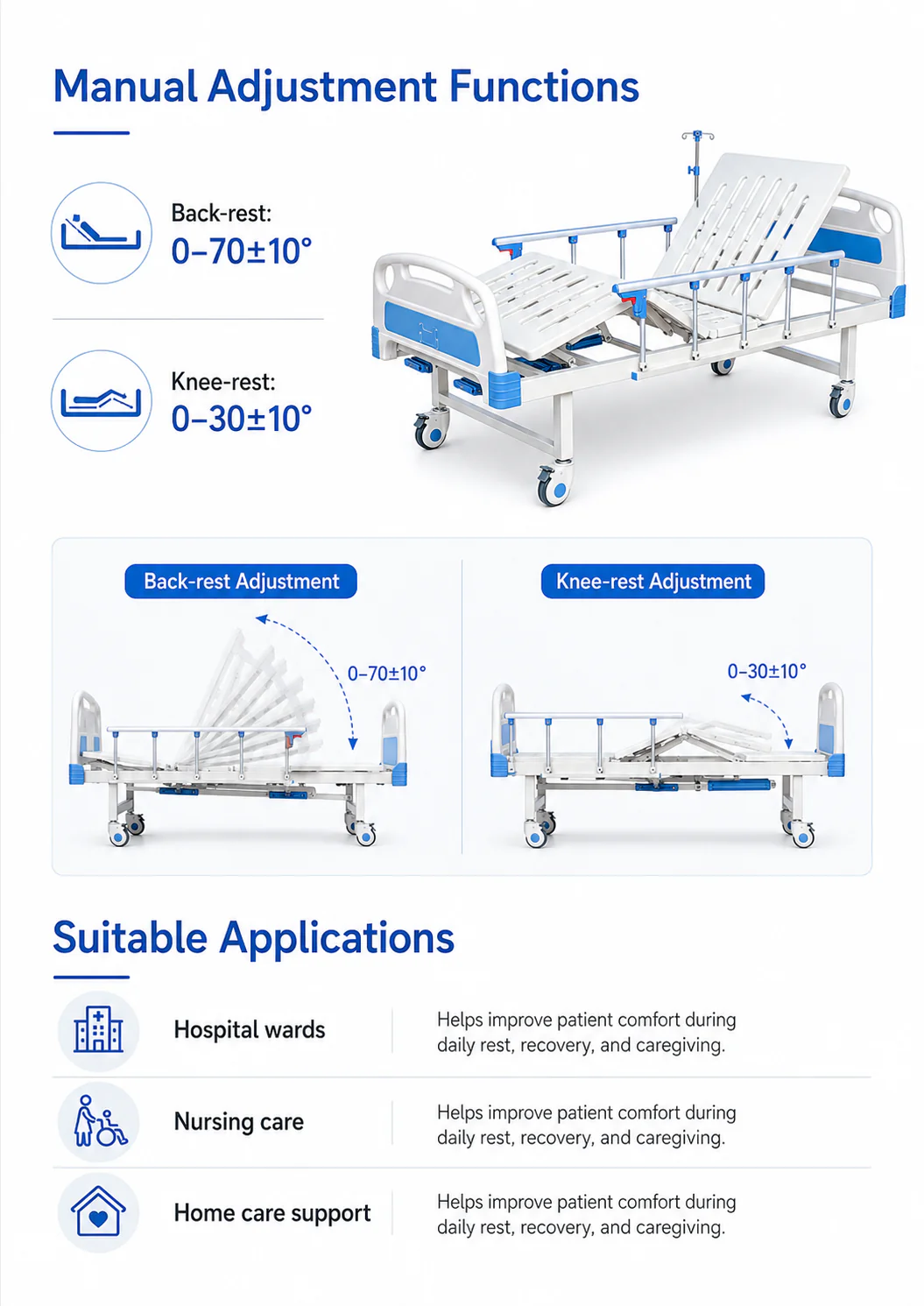

- 2-Function manual adjustment — independent crank-operated backrest and knee-rest adjustment.

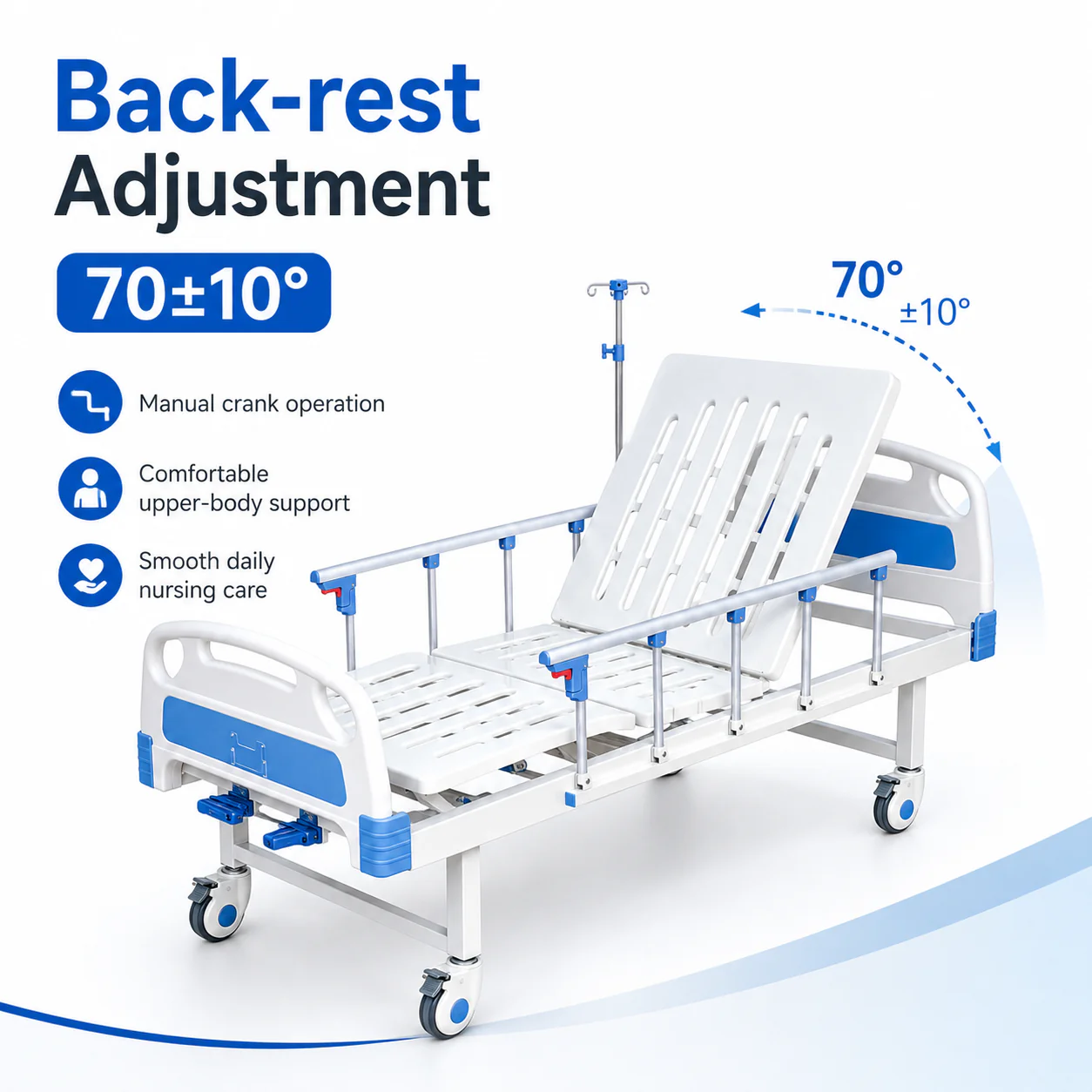

- Backrest to 70±10° — manual elevation covering full clinical positioning range from flat to near-upright.

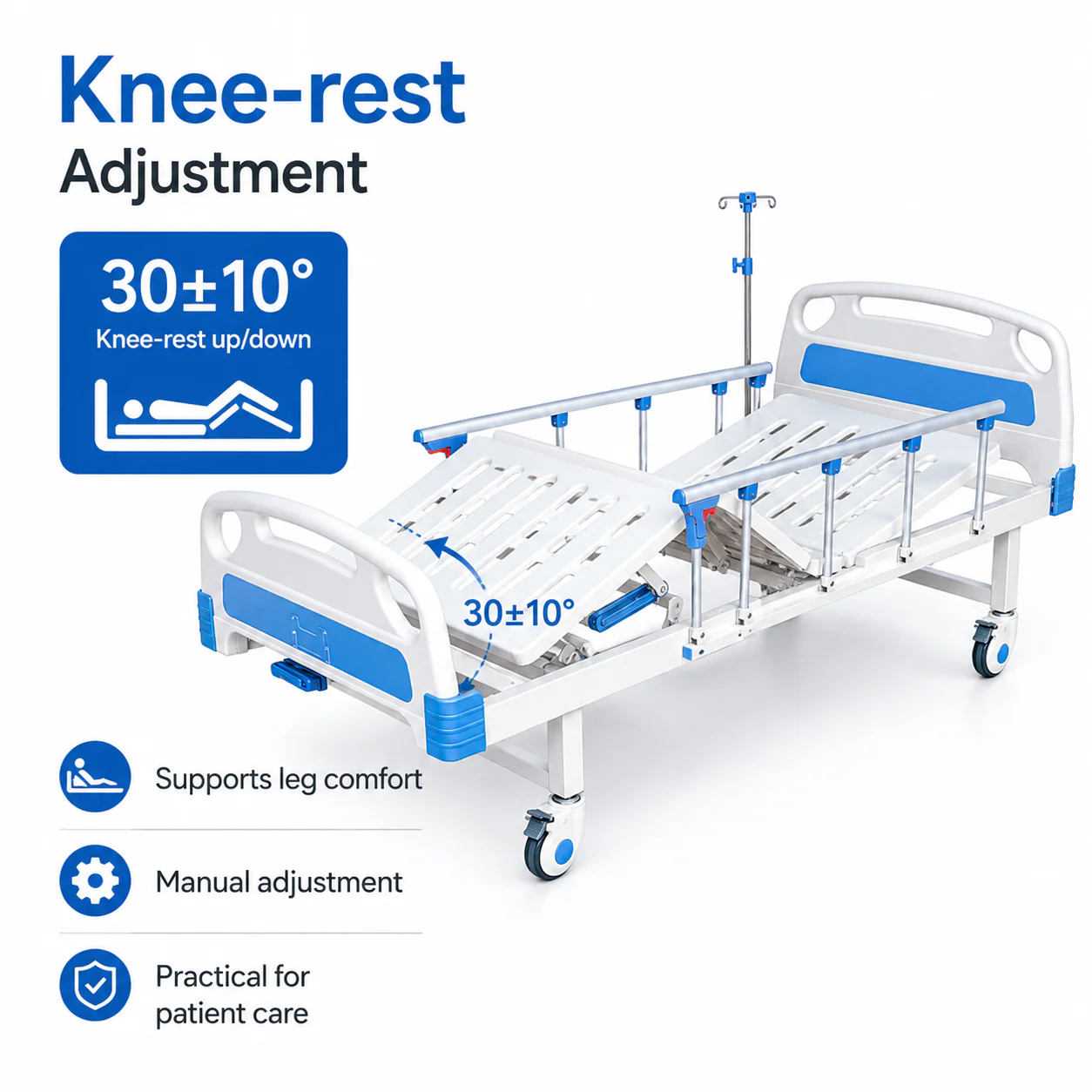

- Knee-rest to 30±10° — independent knee elevation reduces patient sliding and sacral pressure.
- Fixed height 500 mm — consistent stable working height for standard ward environments.
- 200 kg safe working load — rated for standard adult inpatient use.
- Compact 960 mm external width — space-efficient footprint matching standard ward bay dimensions.
- No electric components — manual operation for low maintenance requirements.

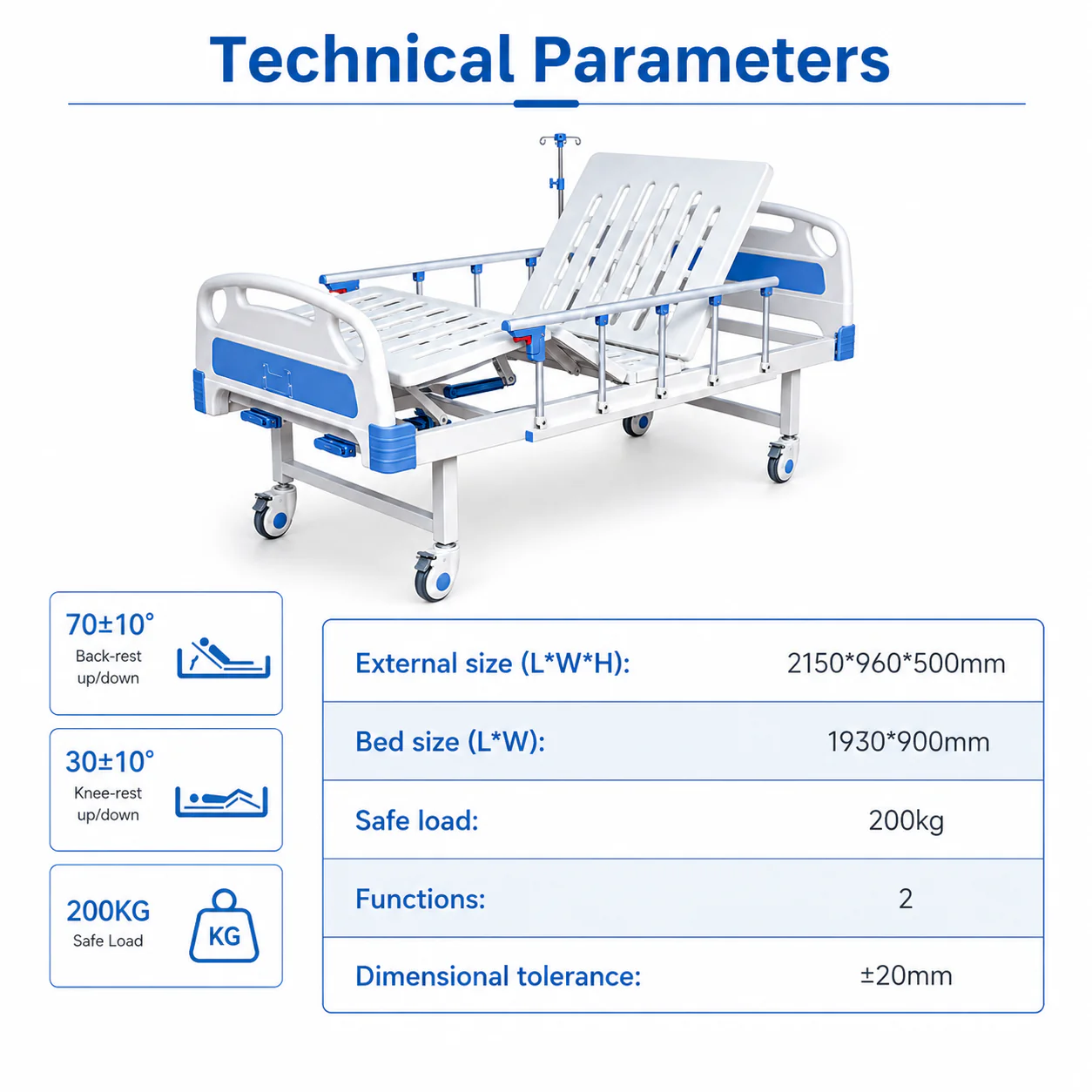

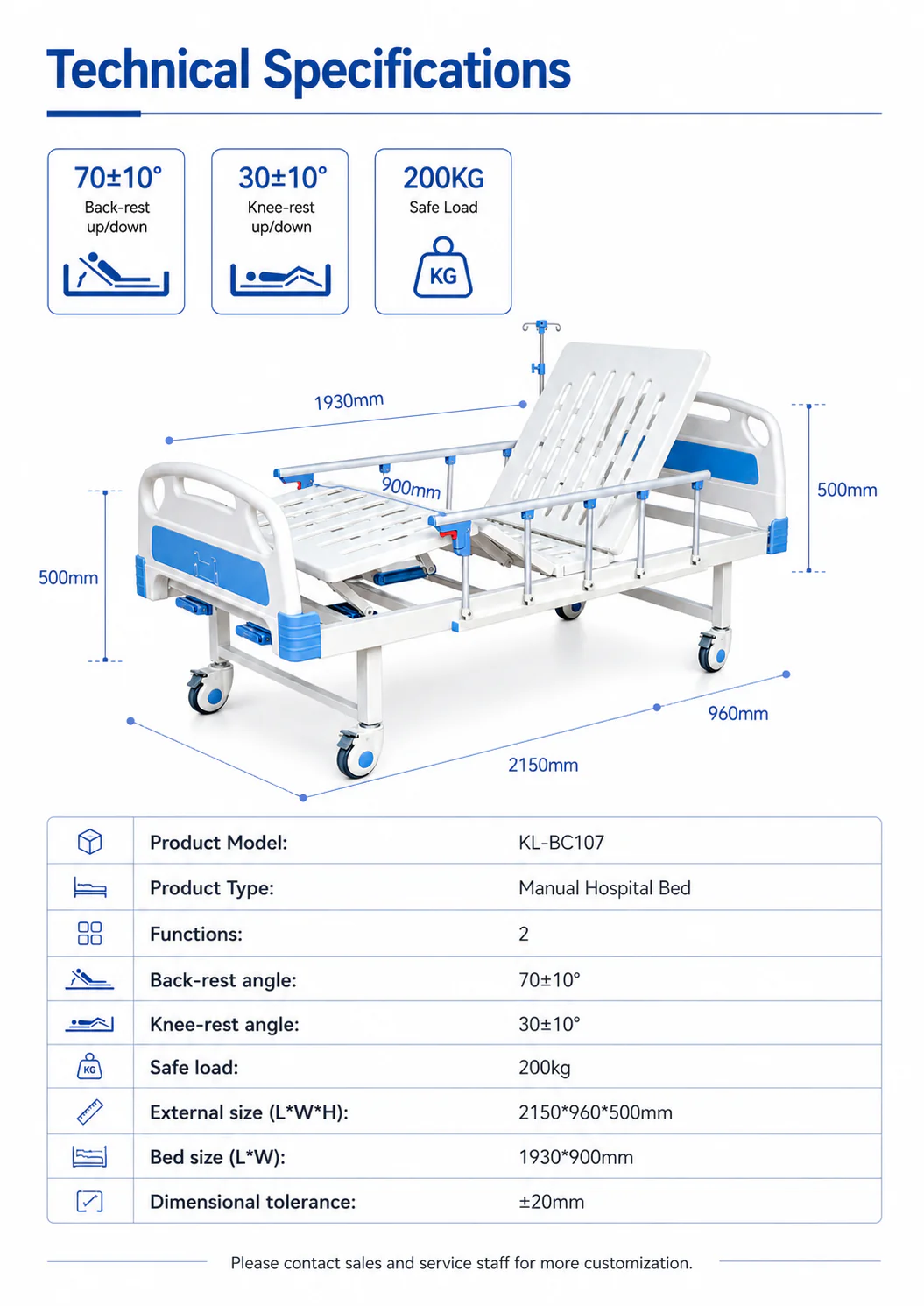

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC107 |
| Product type | Manual hospital bed (2-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Bed height (fixed) | 500 mm |
| Safe working load | 200 kg |
| External size (L × W × H) | 2150 × 960 × 500 mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC107 is suited to general medical and surgical wards, long-term care facilities, nursing homes, community hospitals and outpatient observation settings. The two-function manual configuration is appropriate for post-acute and lower-acuity inpatient environments where backrest and knee-rest positioning meet the day-to-day clinical needs without requiring electric systems or height adjustment.
