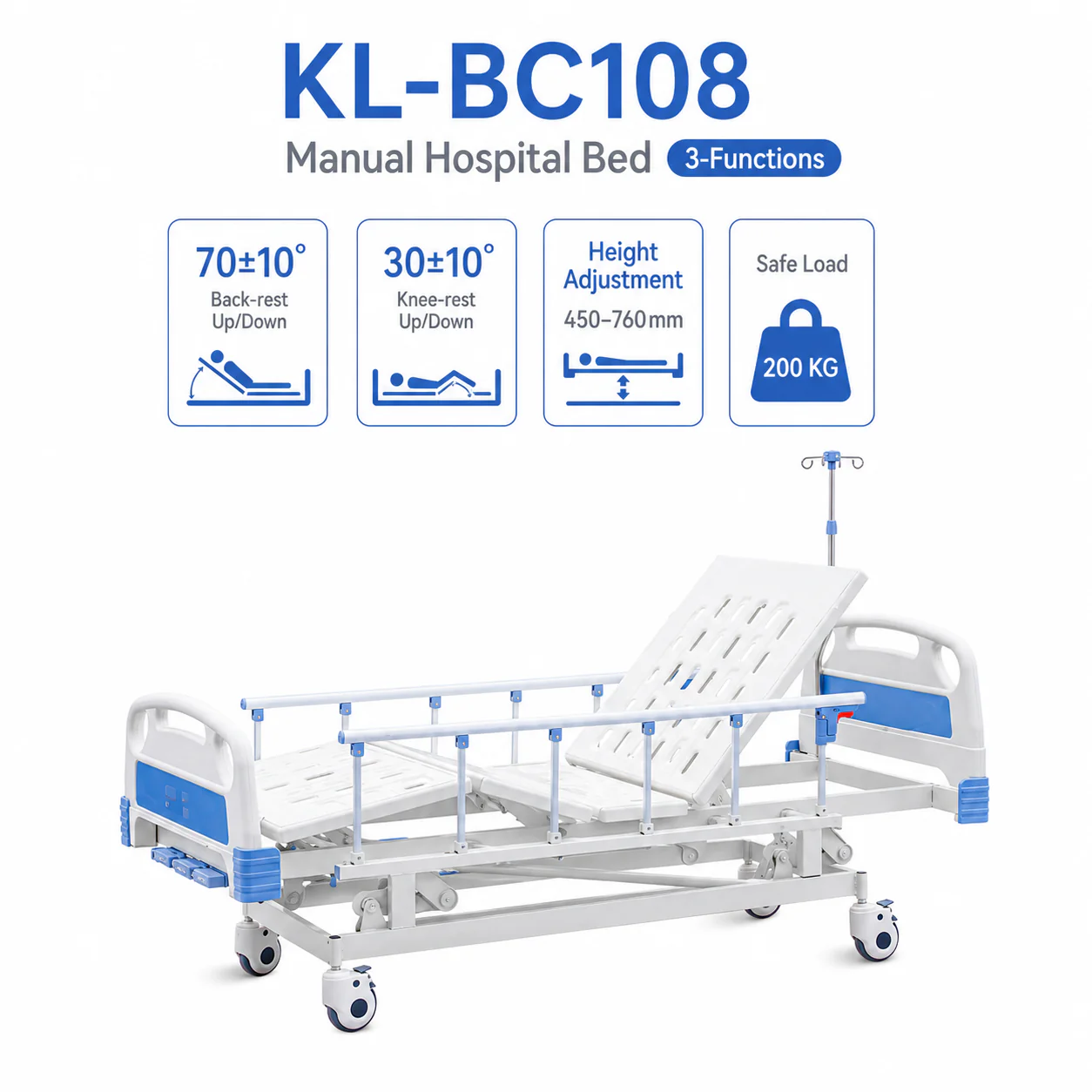

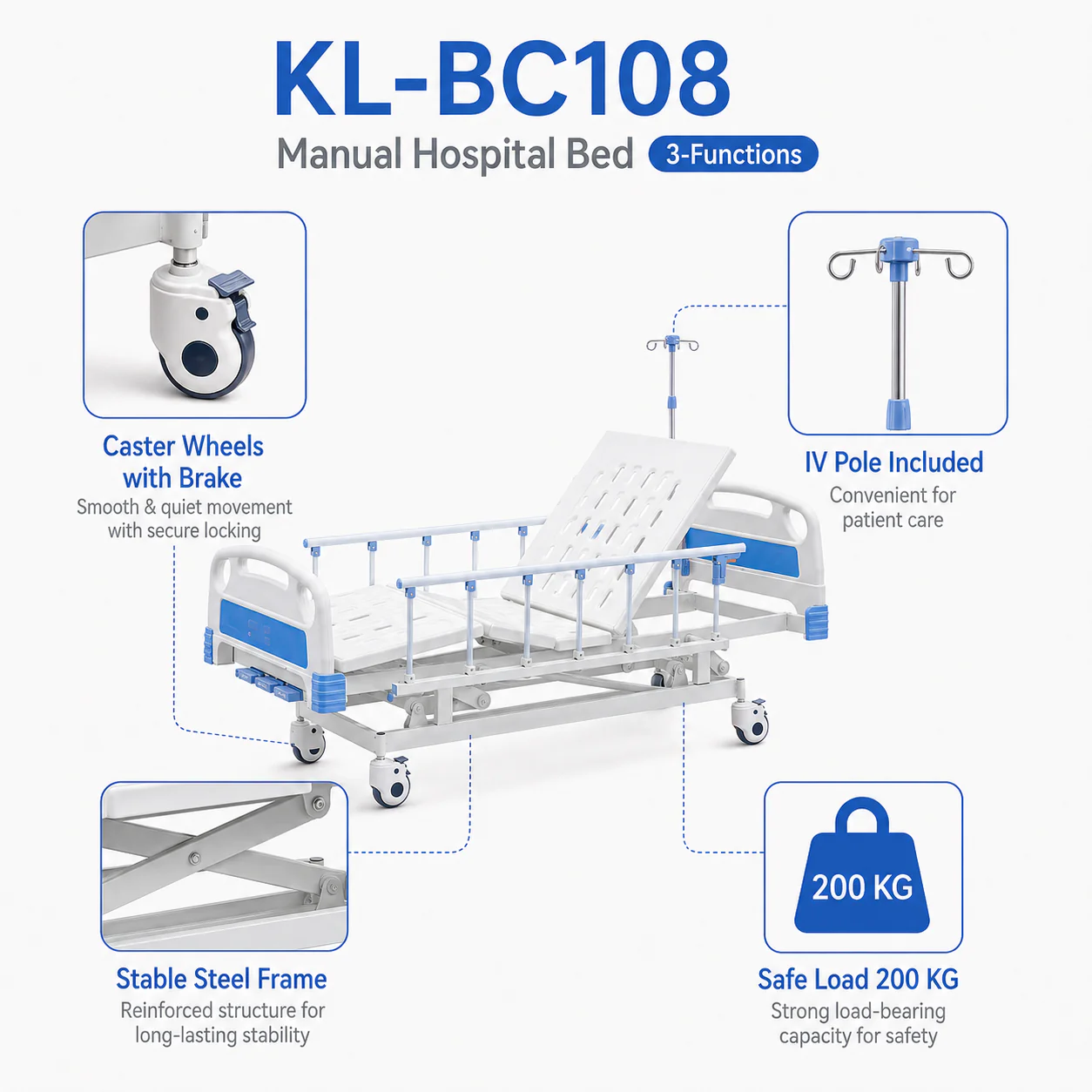

# KL-BC108 Manual Hospital Bed — 3-Function Manual Bed with Backrest, Knee-Rest and Height Adjustment
Quick answer: The Keling KL-BC108 is a 3-function manual hospital bed providing crank-operated backrest adjustment to 70±10°, knee-rest adjustment to 30±10° and height adjustment over a 450–760 mm range. Safe working load is 200 kg; external dimensions are 2150 × 1035 × (450–760) mm; bed surface is 1930 × 900 mm. Manufactured by Keling Medical (Keling Medical) for hospitals and care facilities seeking manual 3-function capability.
Quick Facts
- The Keling KL-BC108 is a 3-function manual hospital bed with crank-operated backrest, knee-rest and height adjustment.
- Backrest adjusts manually to 70±10° and knee-rest to 30±10° for positioning and anti-sliding control.
- Height adjustment covers 450–760 mm (310 mm travel) for nursing ergonomics and safe patient transfer.
- Safe working load is 200 kg; external size is 2150 × 1035 × (450–760) mm; bed surface is 1930 × 900 mm.
- Manual operation eliminates electric drive systems, reducing maintenance cost and dependency on power supply.
- The KL-BC108 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.
Overview
The KL-BC108 manual hospital bed adds height adjustment to the two-function manual backrest-plus-knee-rest capability found in the KL-BC107, making it the most fully featured manual bed in Keling Medical's standard ward range. Three independently operated cranks allow nursing staff to set backrest elevation, knee-rest elevation and overall bed height to the positions required at each stage of the patient's care, without dependence on electrical power.
Height adjustment from 450 to 760 mm gives the KL-BC108 the same transfer-safety and nursing-ergonomics benefit that drives demand for height-adjustable electric beds, without the cost or maintenance overhead of electric drives. The 450 mm low position permits safe patient self-transfer and reduces fall injury risk for lower-mobility patients, while the 760 mm upper position brings the patient surface to a height suited to wound care, bed-making and clinical assessment procedures.
The 70±10° backrest and 30±10° knee-rest provide effective anti-sliding positioning during prolonged head-of-bed elevation — a combination important for respiratory care, post-surgical recovery and pressure injury prevention. The 1035 mm external width offers adequate clearance for side rails and infusion pole accessories. At 200 kg rated load and a 1930 × 900 mm bed surface, the KL-BC108 covers standard adult inpatient requirements across general medical, surgical and rehabilitation wards.

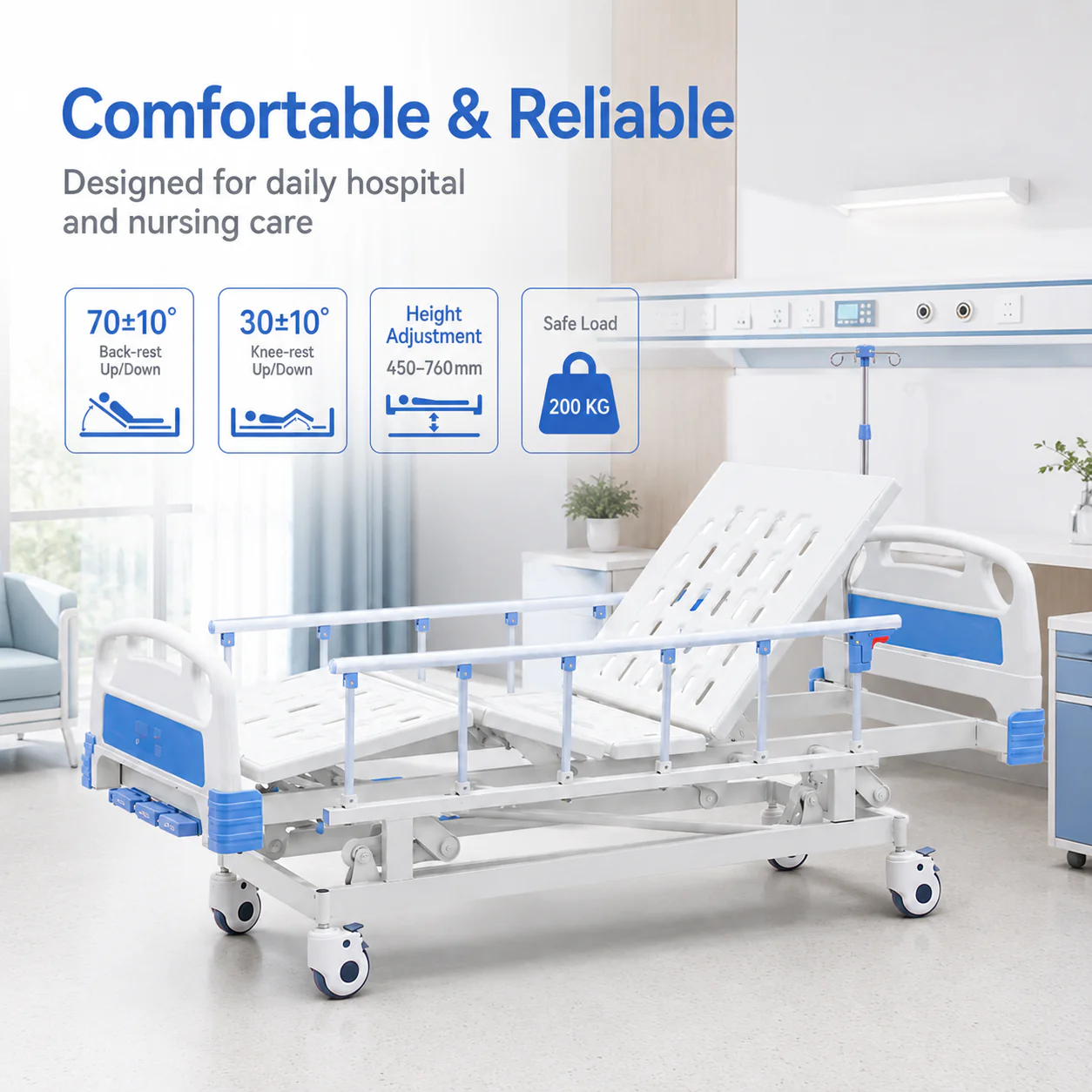

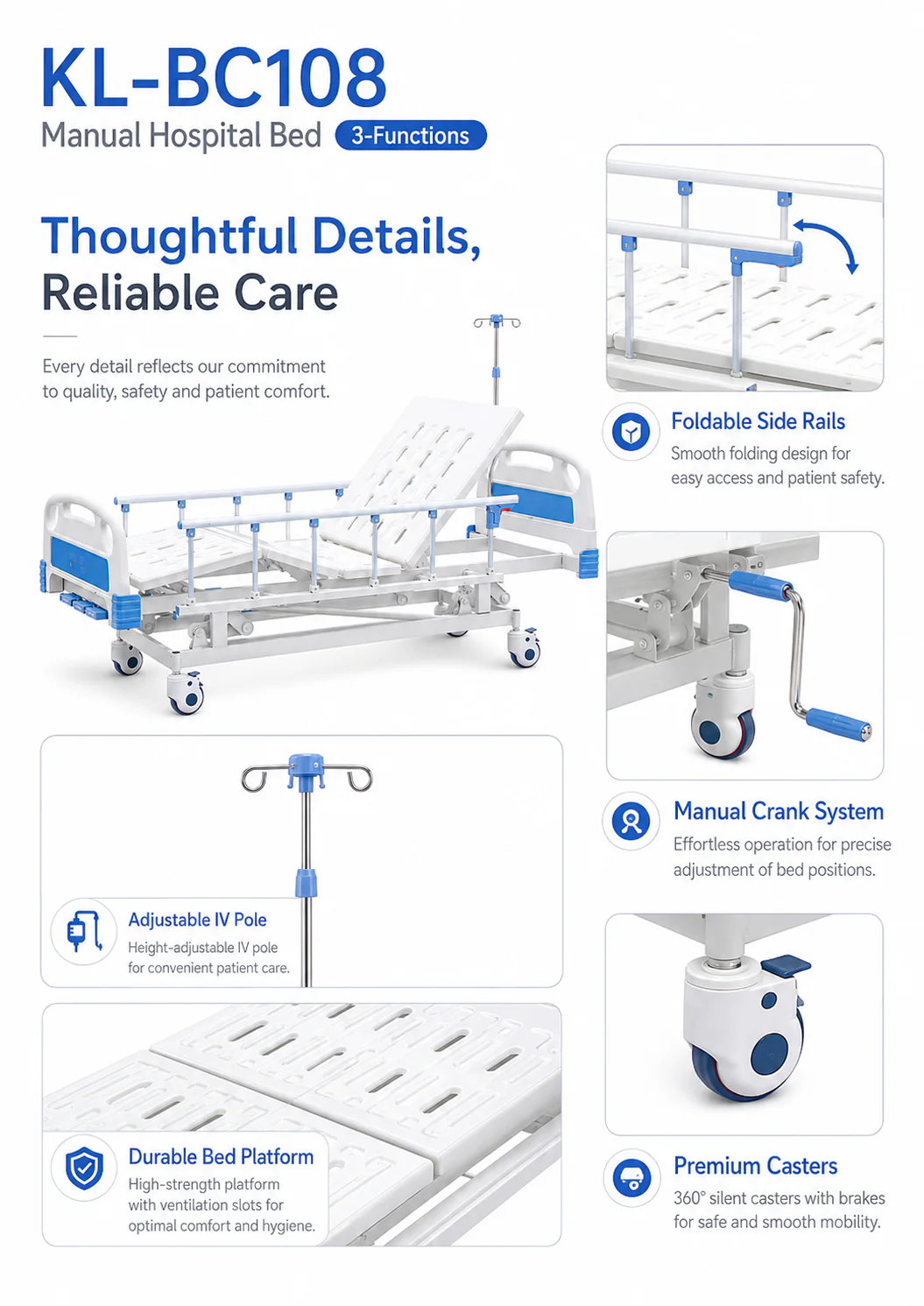

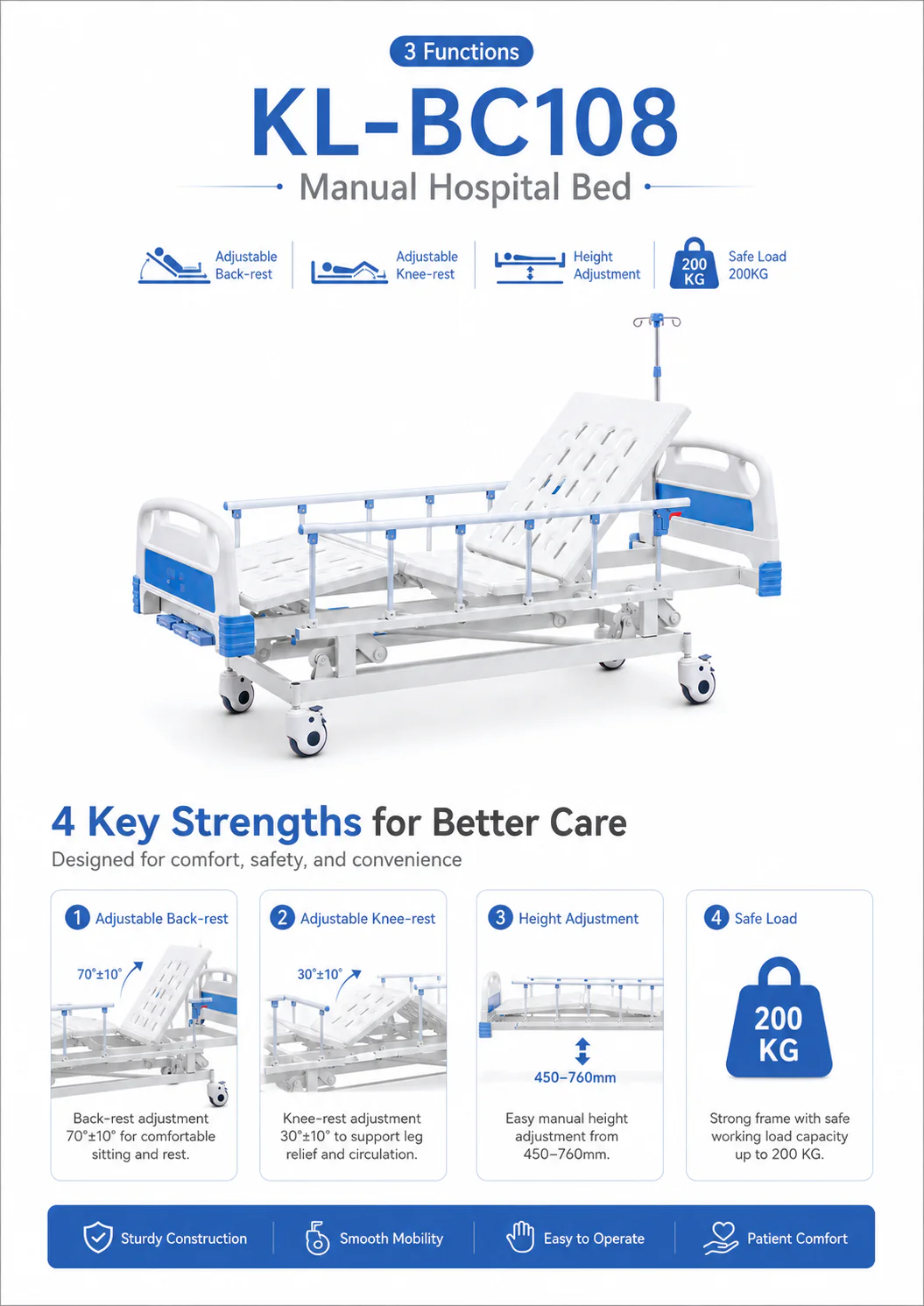

Key Features

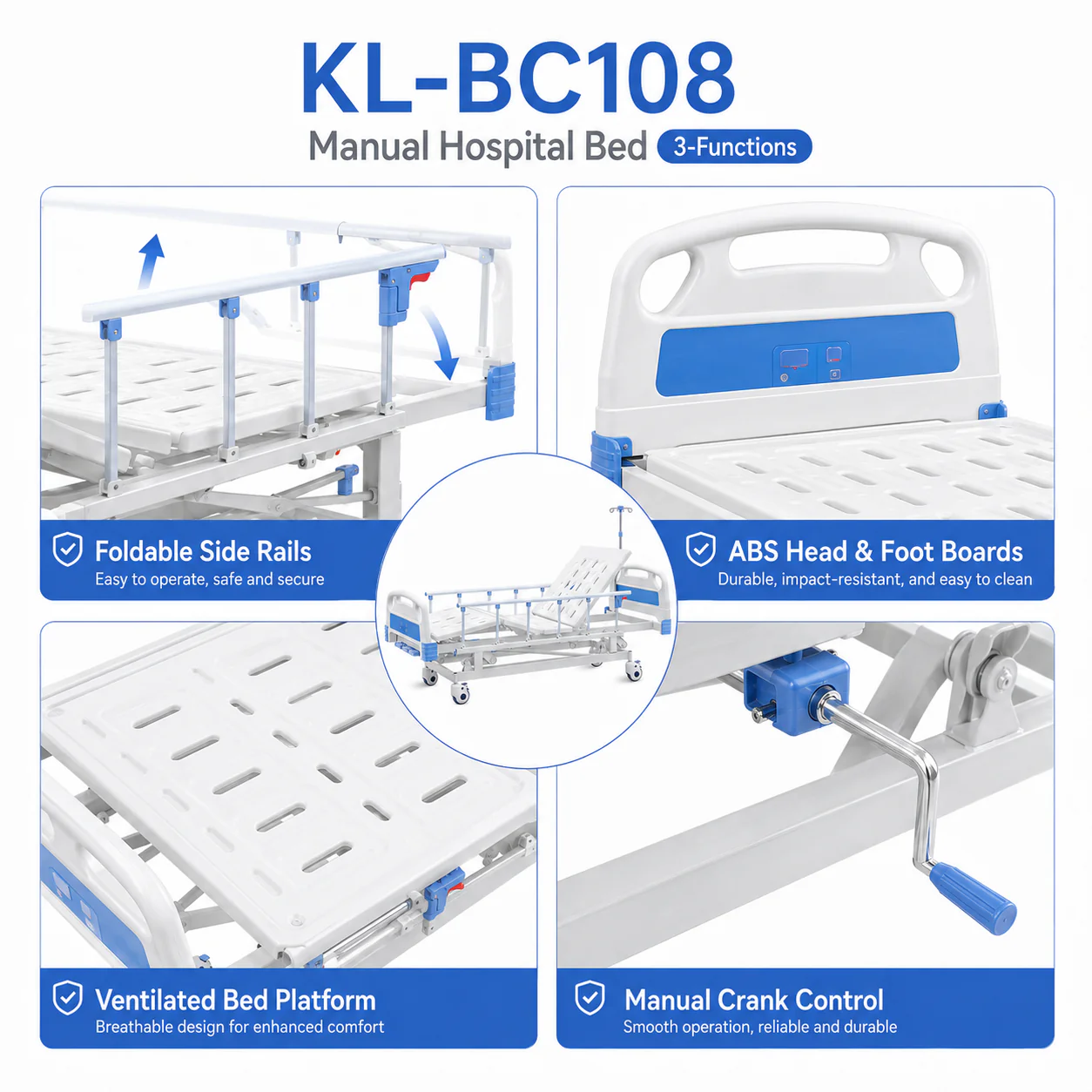

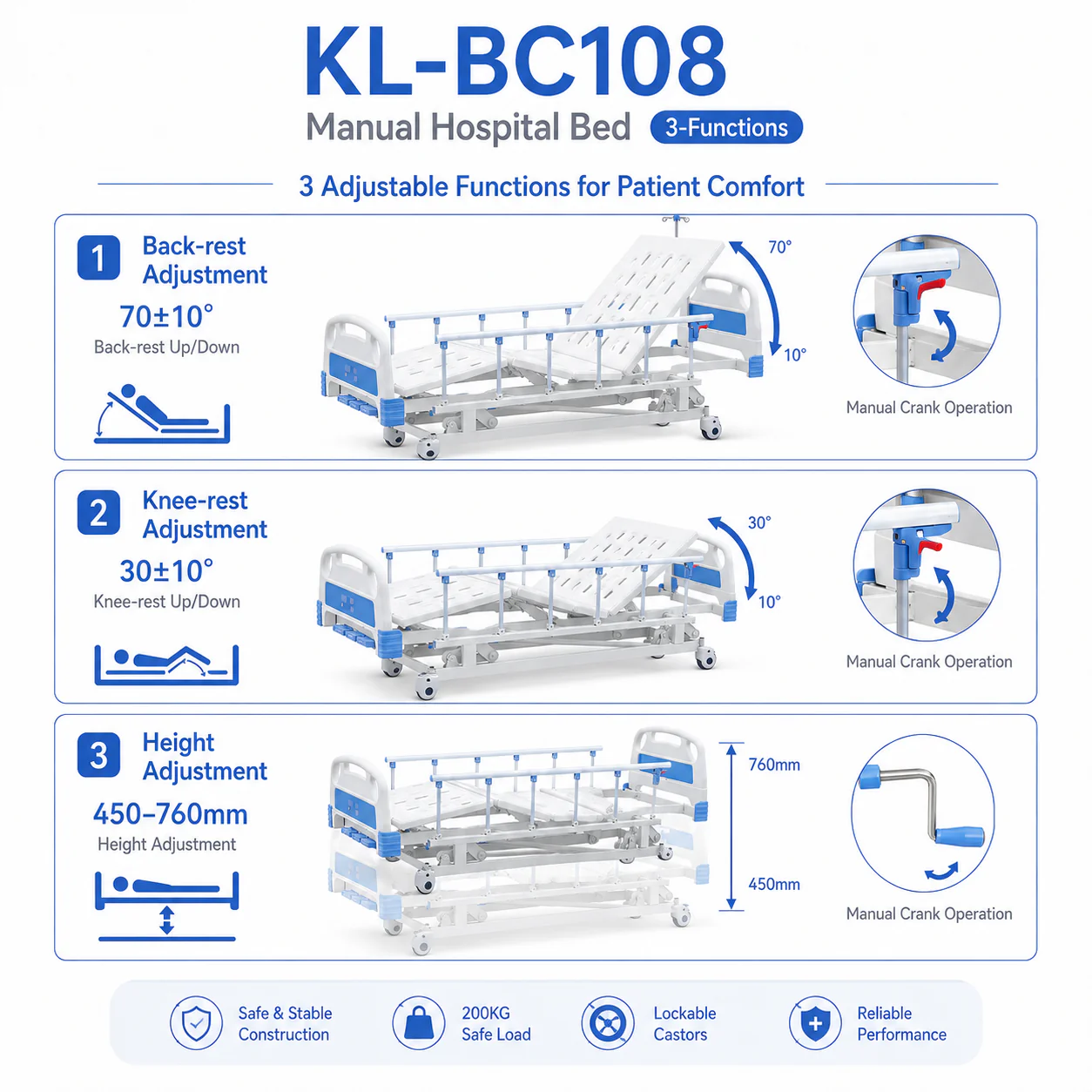

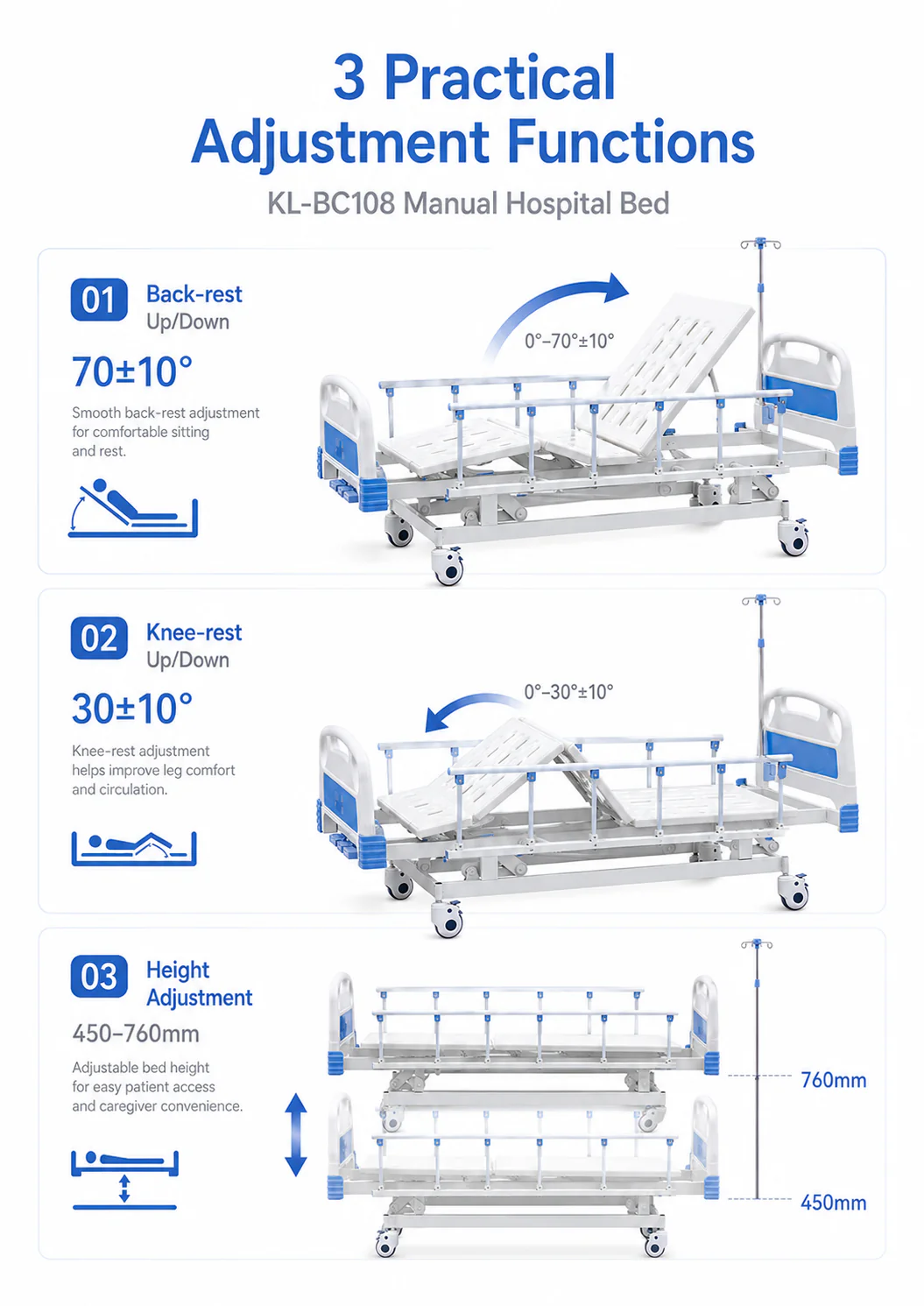

- 3-Function manual adjustment — independent crank-operated backrest, knee-rest and height adjustment.
- Backrest to 70±10° — manual adjustment for respiratory, feeding and therapeutic patient positions.
- Knee-rest to 30±10° — independent knee elevation limits patient sliding and reduces lumbar-sacral pressure.
- Height adjustment 450–760 mm — 310 mm manual travel for transfer safety and ergonomic care access.
- 200 kg safe working load — solid structural rating for standard adult inpatients.
- No electric components — manual drives for low maintenance and power-independent operation.
- 1030 mm external width — clearance for side rails and accessories.

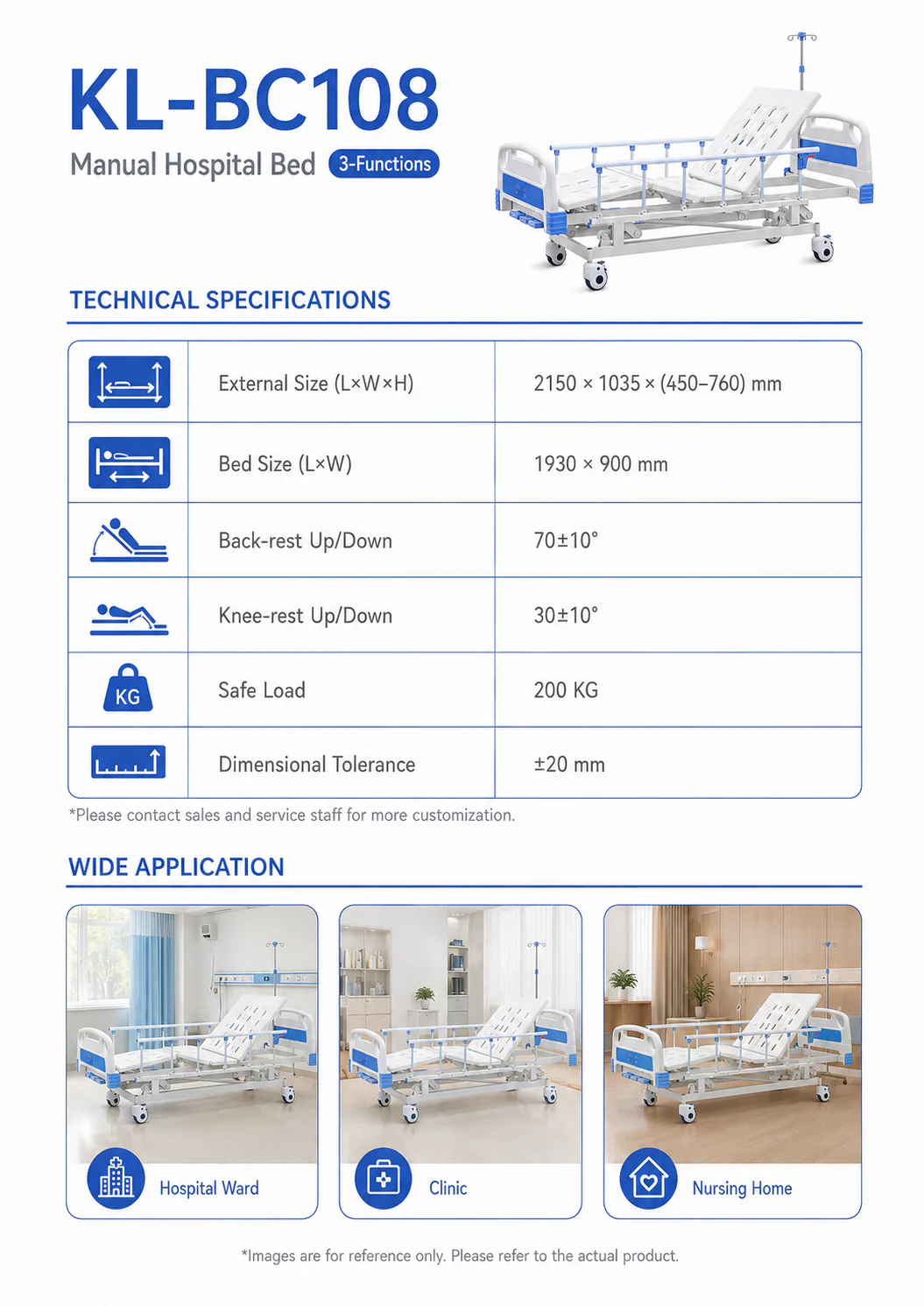

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC108 |
| Product type | Manual hospital bed (3-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Safe working load | 200 kg |

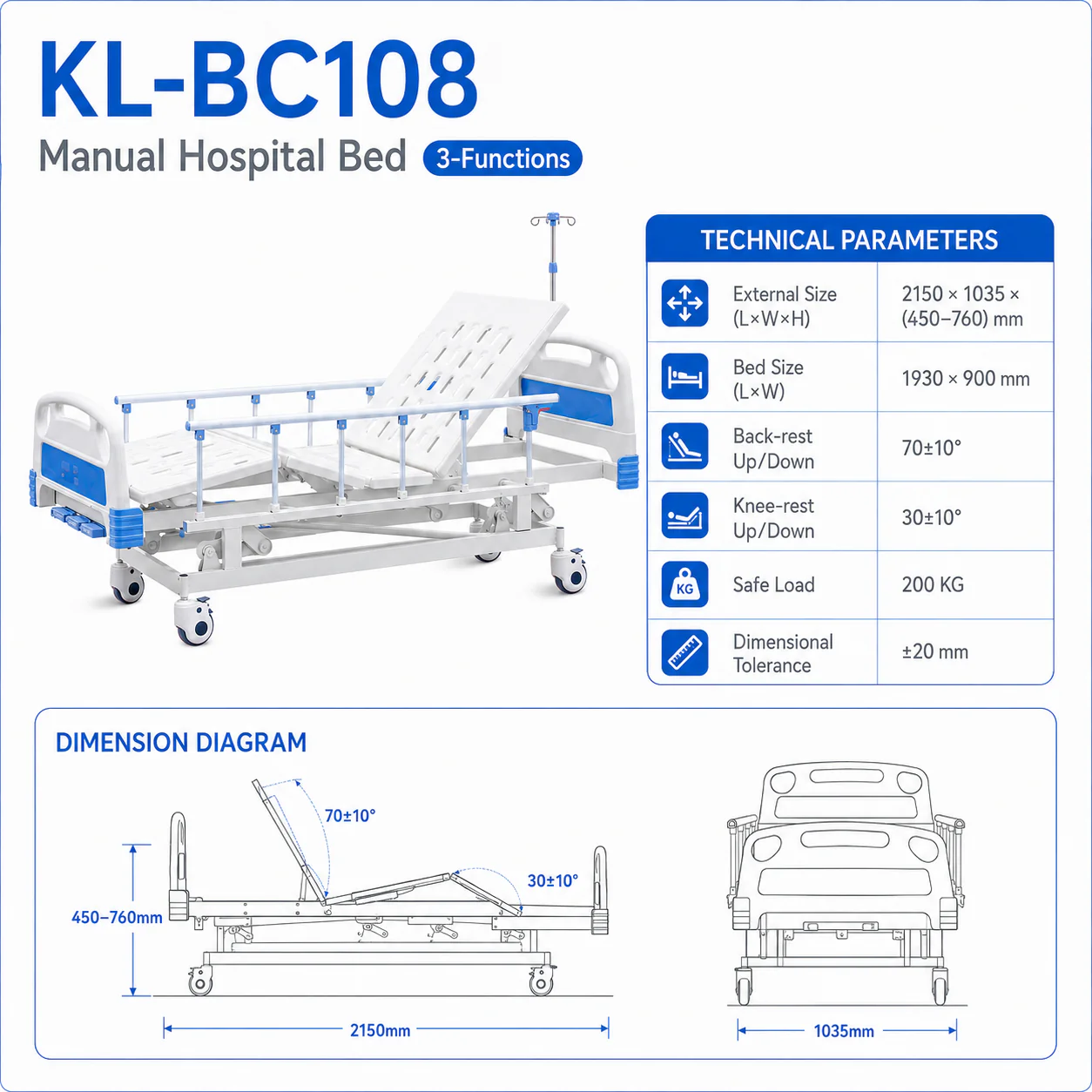

| External size (L × W × H) | 2150 × 1035 × (450–760) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC108 is suited to general medical wards, surgical inpatient wards, rehabilitation wards, community hospitals and long-term care facilities, particularly in settings where manual operation is preferred or where electrical maintenance infrastructure is limited. The height-adjustment capability makes it a practical choice for facilities transitioning from fixed-height manual beds to more ergonomically flexible configurations.
