# KL-BC109 Manual Hospital Bed — 5-Function Manual Bed with Trendelenburg Tilt

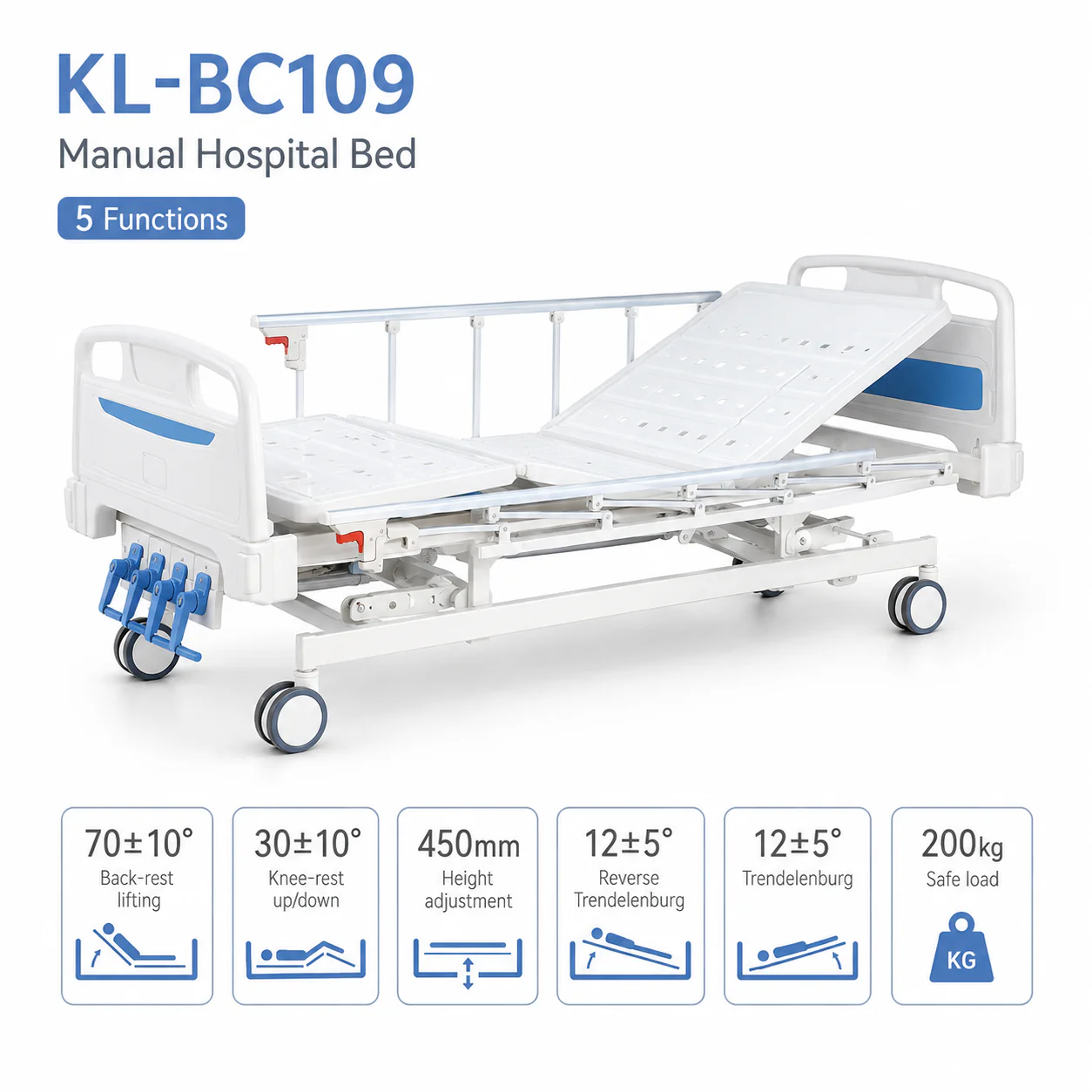

Quick answer: The Keling KL-BC109 is a 5-function manual hospital bed with crank-operated backrest (70±10°), knee-rest (30±10°), height adjustment (450–760 mm), Trendelenburg (12±5°) and reverse Trendelenburg (12±5°) tilt. Safe working load is 200 kg; external size is 2150 × 980 × (450–760) mm; bed surface is 1930 × 900 mm. Manufactured by Keling Medical (Keling Medical) — the most comprehensively adjustable manual bed in the KL-BC range.
Quick Facts
- The Keling KL-BC109 is a 5-function manual hospital bed — the top-specification manual model in the KL-BC series.
- Backrest adjusts manually to 70±10°; knee-rest adjusts to 30±10°; height covers 450–760 mm.
- Trendelenburg and reverse Trendelenburg each reach 12±5°, enabling shock positioning and postural drainage manually.
- Safe working load is 200 kg; external size is 2150 × 980 × (450–760) mm; bed surface is 1930 × 900 mm.
- Five manually operated functions provide full clinical positioning without electric power dependency.
- The KL-BC109 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.
Overview

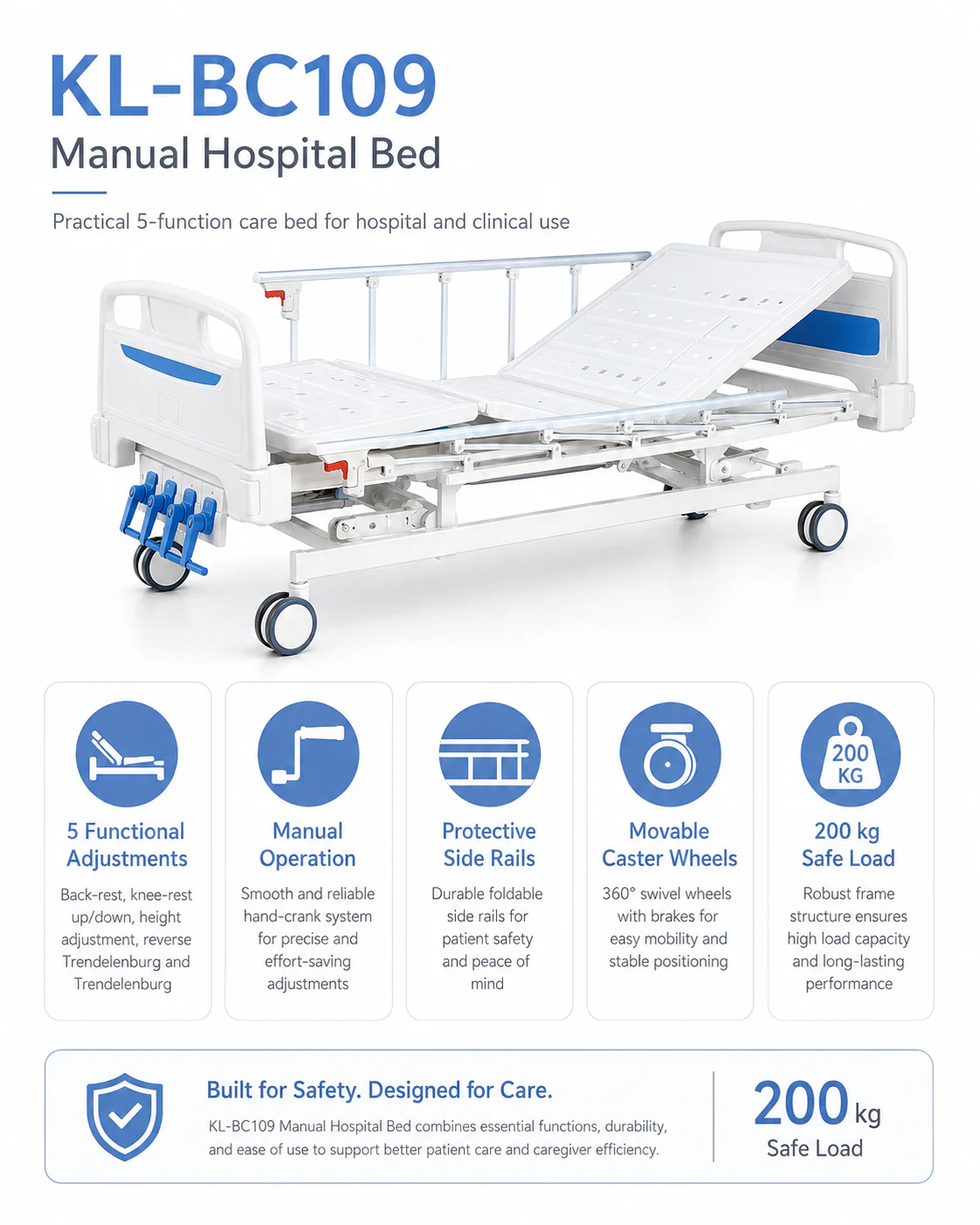

The KL-BC109 manual hospital bed delivers the complete five-adjustment clinical positioning capability found in Keling Medical's electric 5-function models, operated entirely by manual cranks — making it the most fully featured bed in the manual KL-BC series. In environments where electrical power is unreliable, where the cost or maintenance overhead of electric drives is a procurement constraint, or where manual operation is a facility policy preference, the KL-BC109 provides the same clinical positioning range as its electric counterparts.

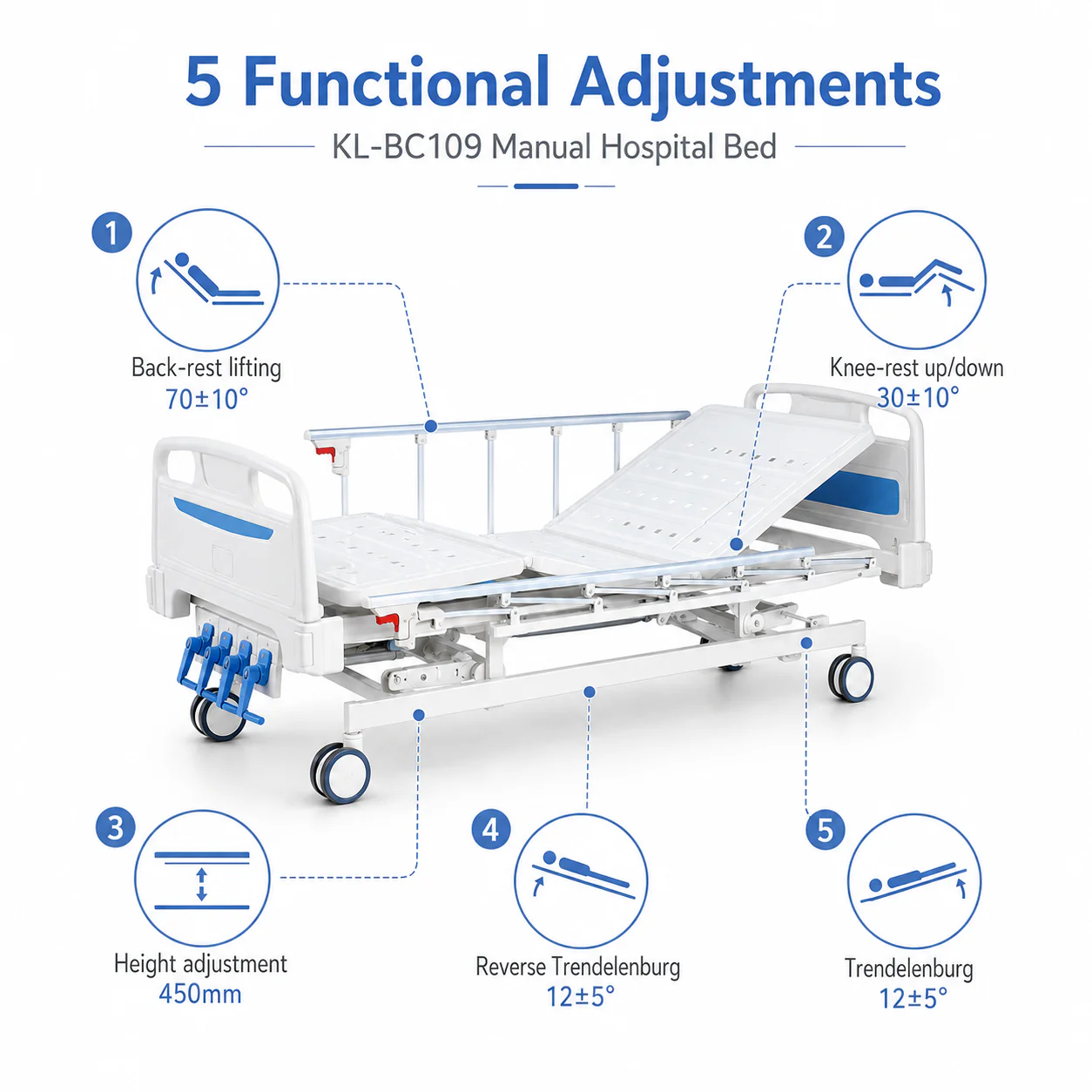

All five adjustments — backrest, knee-rest, bed height, Trendelenburg and reverse Trendelenburg — operate independently, giving clinical staff the ability to combine positions for complex patient care scenarios. Trendelenburg tilt (feet elevated) at 12±5° supports shock management and postural drainage without electric power. Reverse Trendelenburg (head elevated) at the same 12±5° range supports acid reflux management, intracranial pressure positioning and thoracic drainage workflows.
The 450–760 mm height adjustment provides the full transfer-safety and nursing-ergonomics benefit associated with height-adjustable beds. At 200 kg rated load and a 1930 × 900 mm surface, the KL-BC109 accommodates standard adult patients throughout the full clinical positioning range. The 980 mm external width is slightly narrower than the electric 5-function models (1030–1070 mm), making it a compact-footprint option for ward layouts with tighter bay dimensions.
Key Features

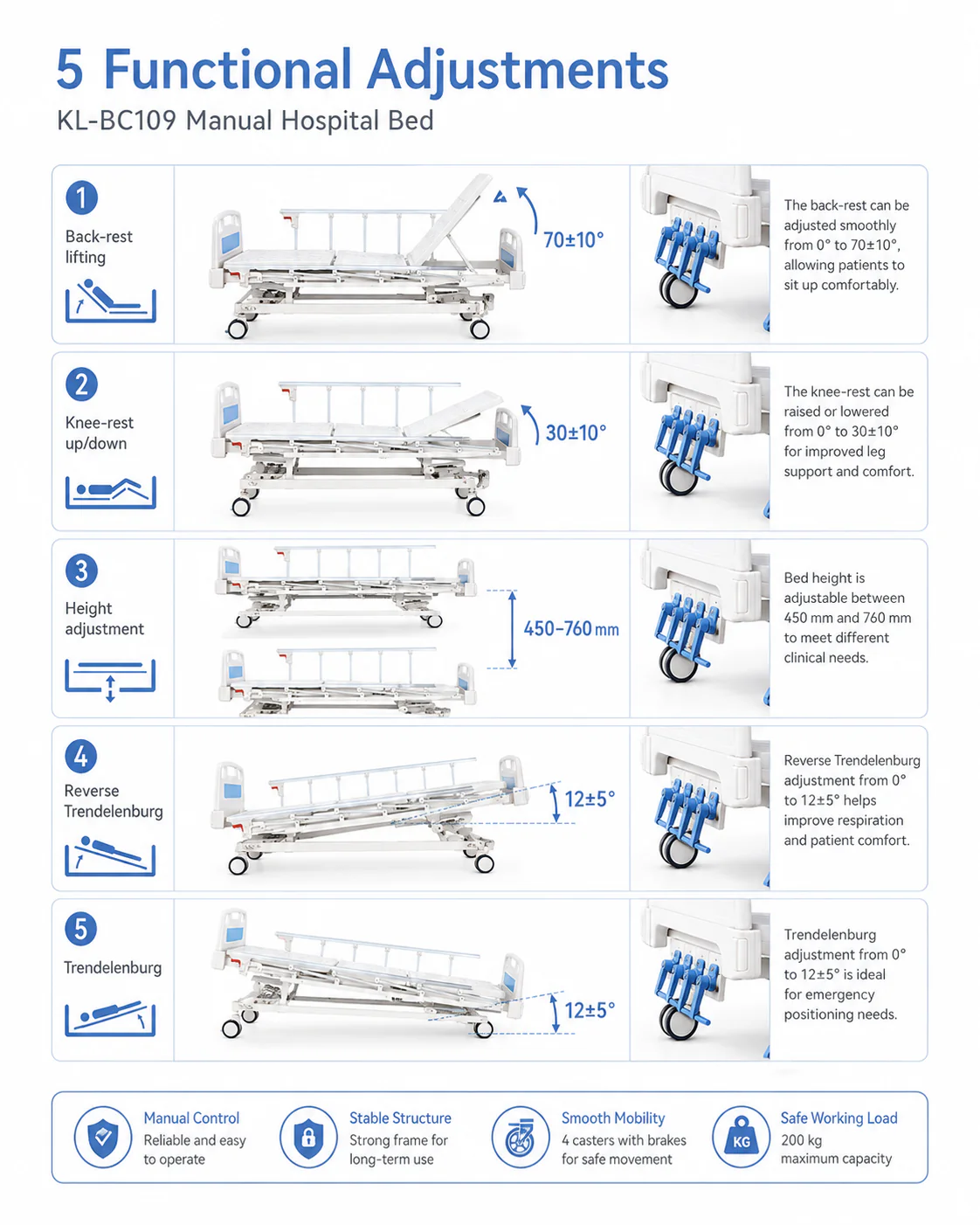

- 5-Function manual adjustment — five independent crank-operated adjustments covering all standard clinical positions.

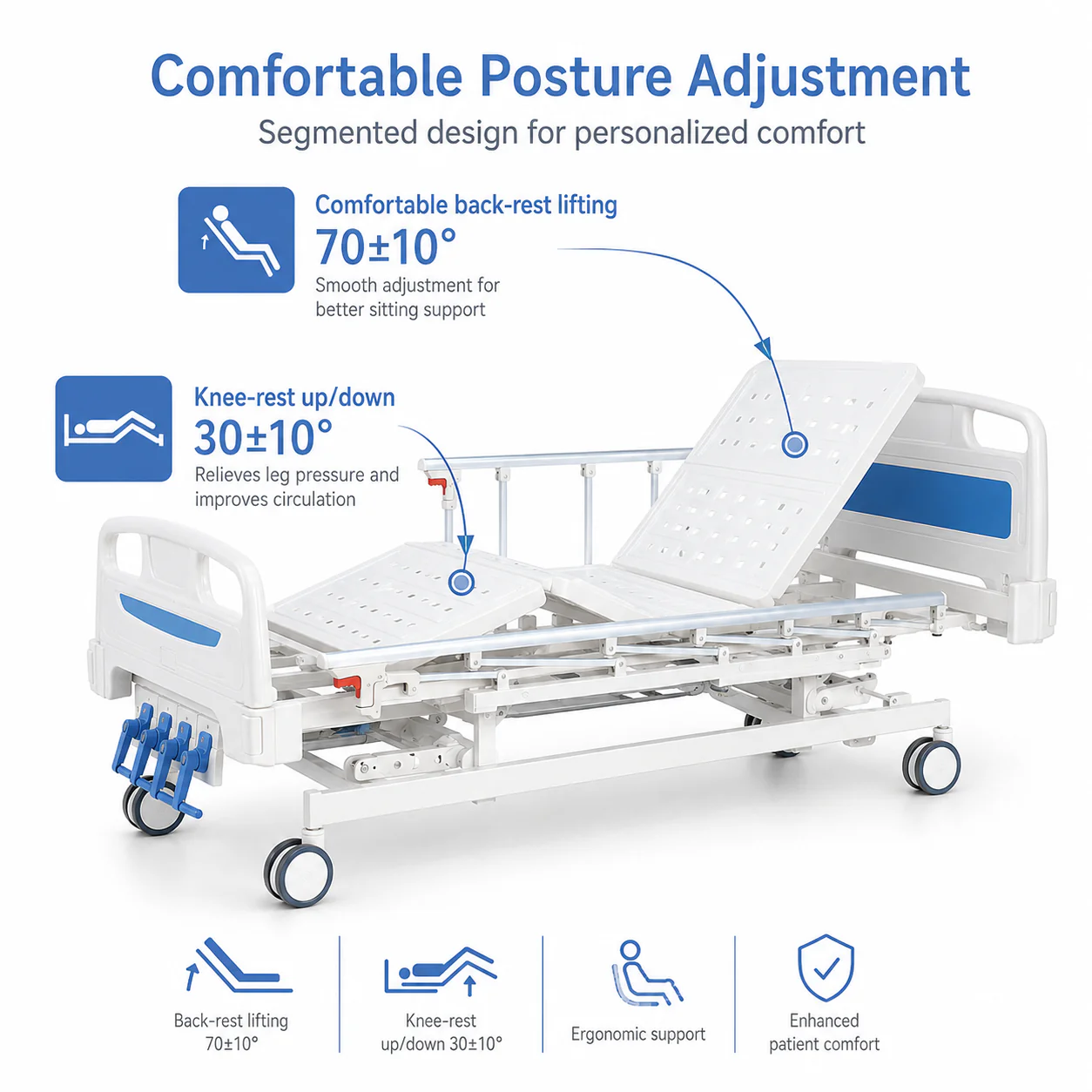

- Backrest to 70±10° — full manual adjustment from flat to near-upright.
- Knee-rest to 30±10° — independent elevation reduces sliding and lumbar-sacral pressure.

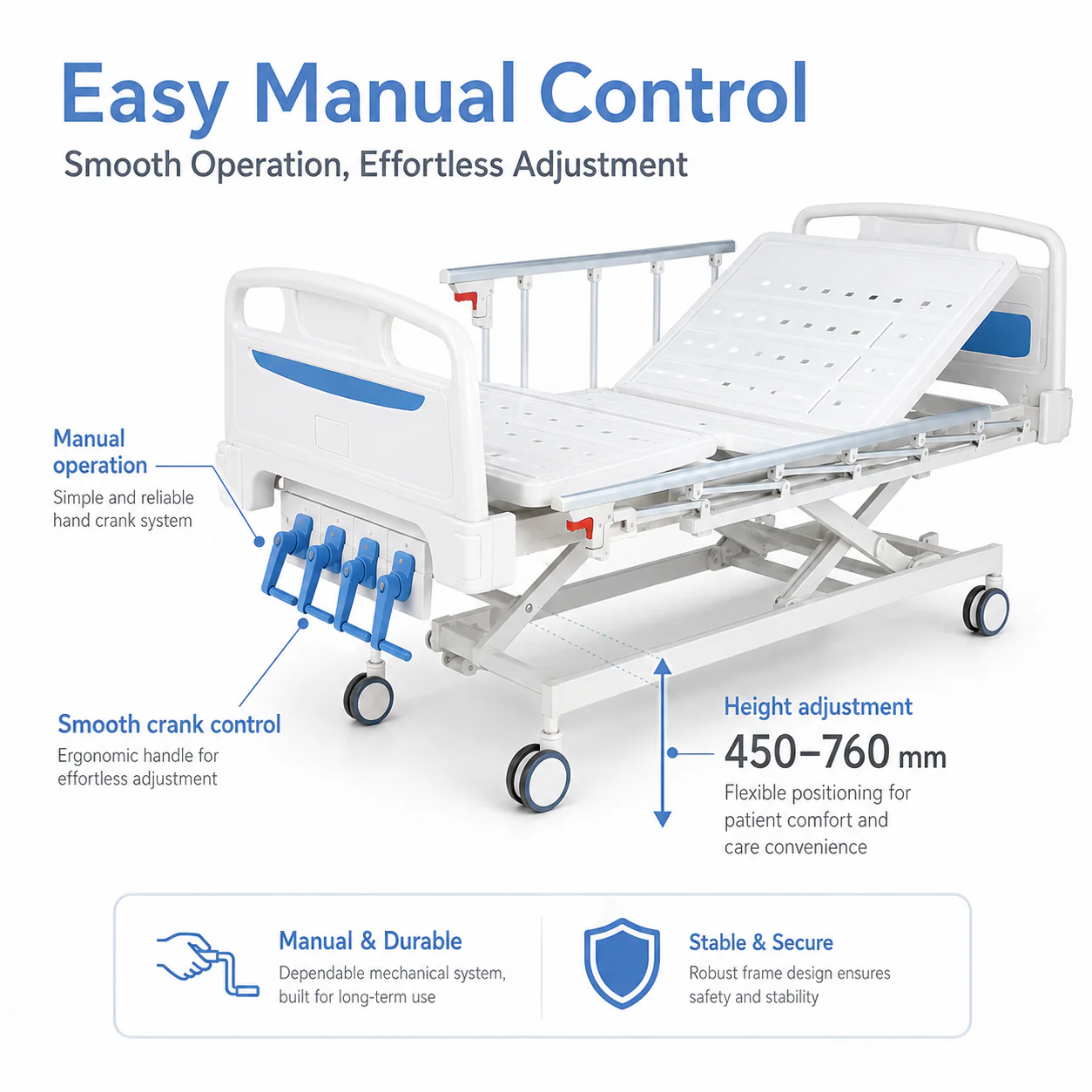

- Height adjustment 450–760 mm — 310 mm manual travel for transfer safety and nursing ergonomics.
- Trendelenburg 12±5° — manual tilt for shock positioning and postural drainage.
- Reverse Trendelenburg 12±5° — manual head-up tilt for respiratory, reflux and neurological positioning.

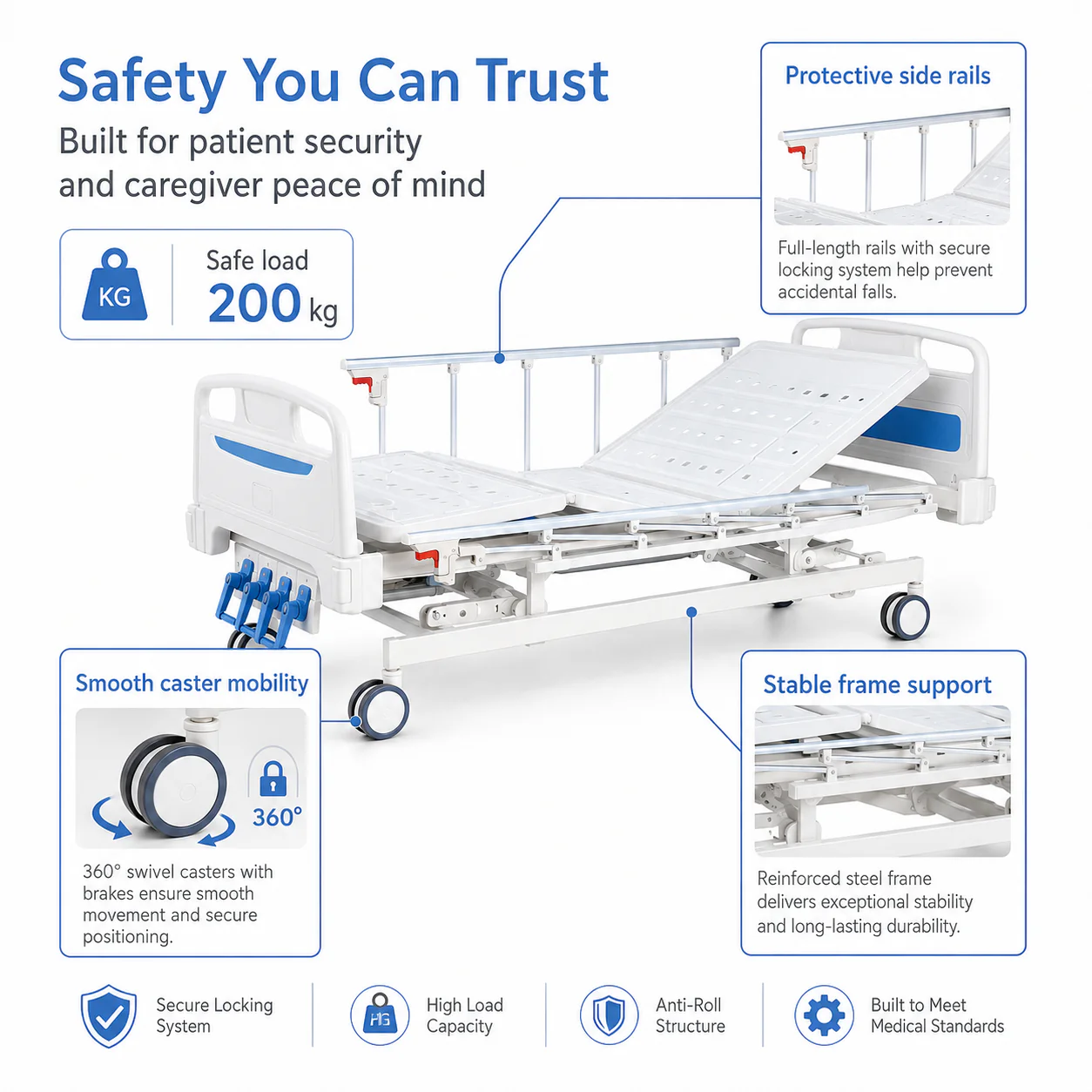

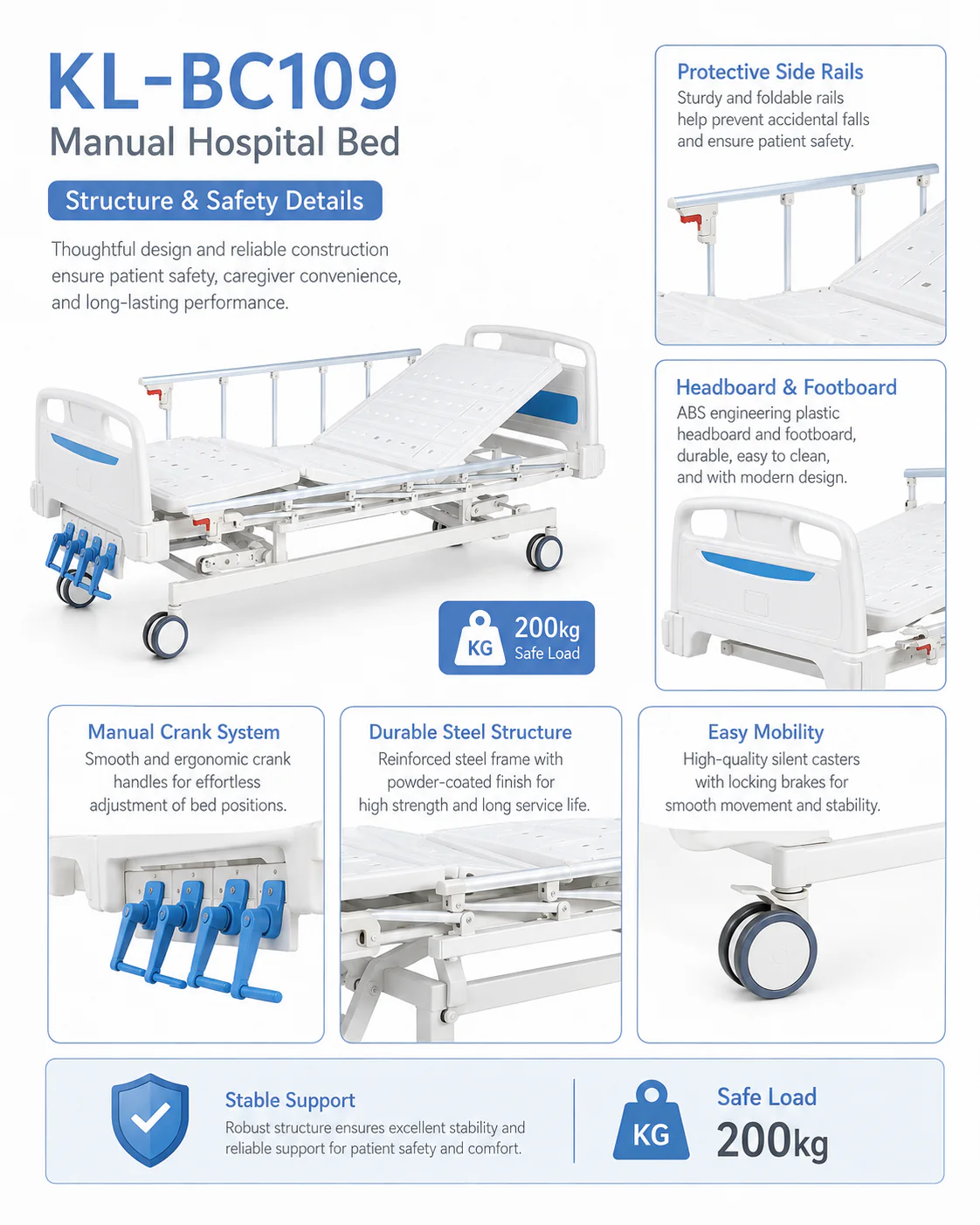

- 200 kg safe working load — rated for standard adult inpatient populations.
- Compact 980 mm external width — space-efficient footprint for standard ward bays.
- No electric dependency — suitable for facilities with limited electrical infrastructure.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC109 |
| Product type | Manual hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 200 kg |

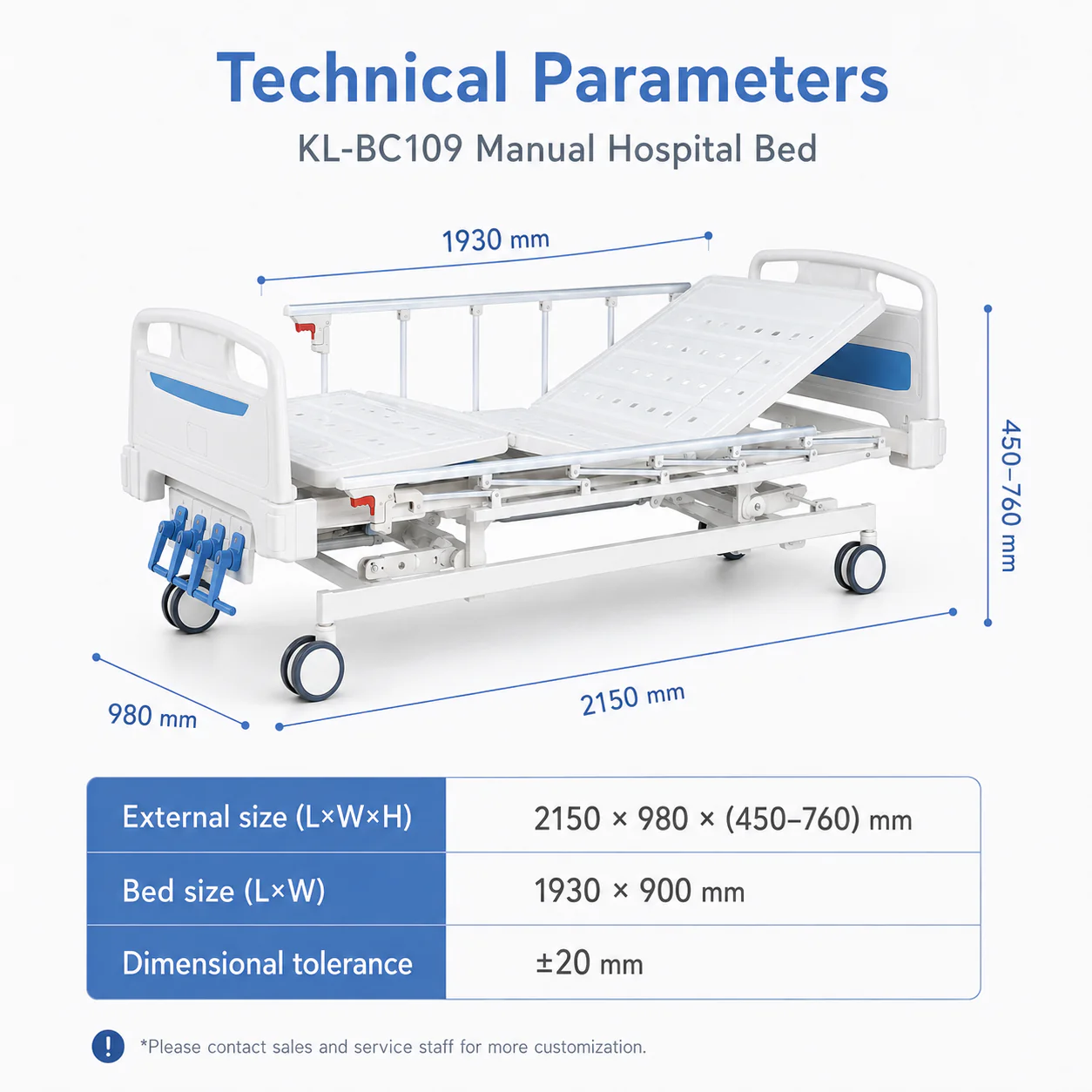

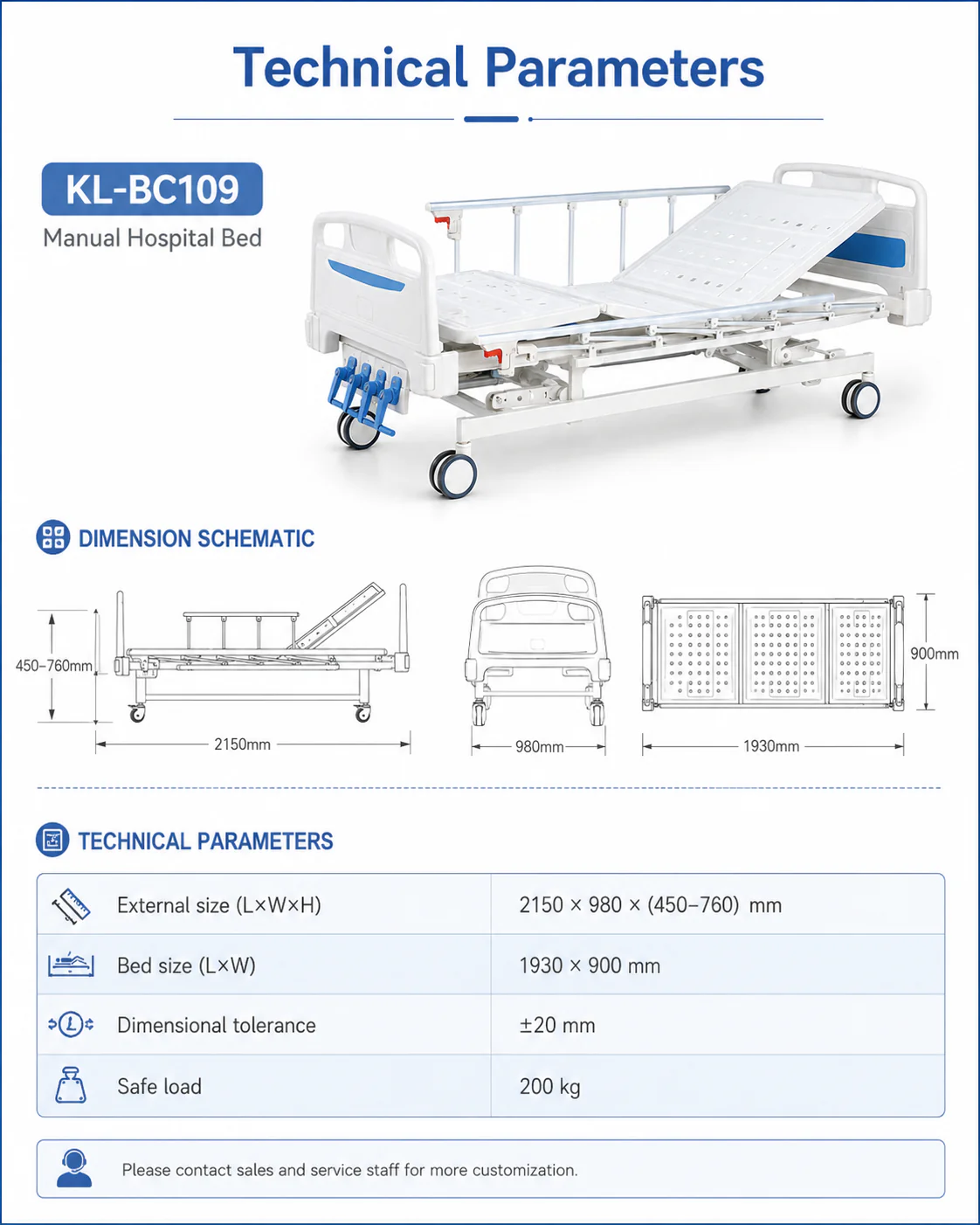

| External size (L × W × H) | 2150 × 980 × (450–760) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC109 is suited to general medical and surgical wards, ICU step-down units, post-operative recovery, rehabilitation wards and community hospitals where full 5-function positioning capability is required but electric drive systems are not preferred. It is particularly appropriate for facilities in markets where power supply reliability is a factor in equipment selection.
