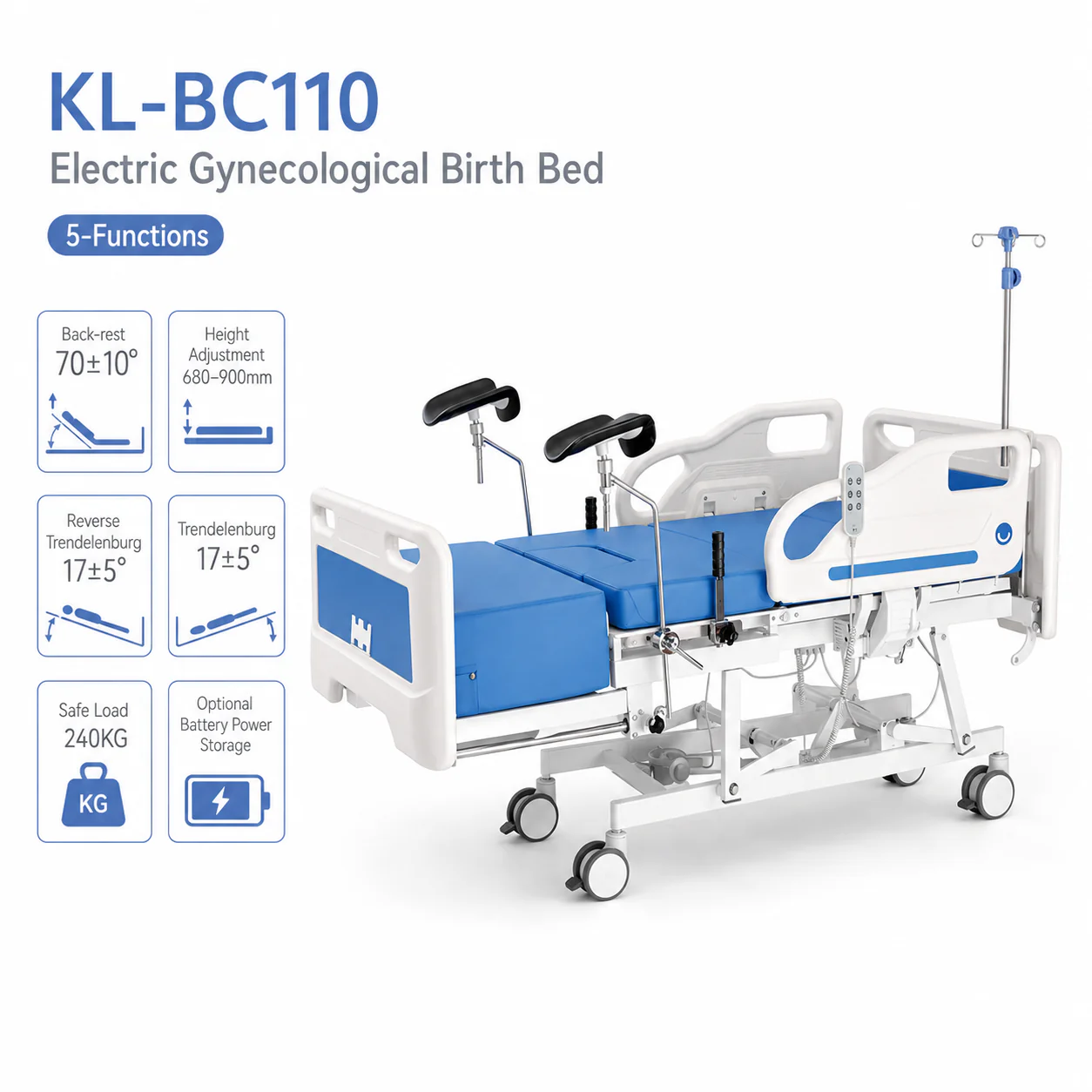

# KL-BC110 Electric Gynecological Birth Bed — 5-Function OB Delivery Bed with Leg Supports
Quick answer: The Keling KL-BC110 is a 5-function electric gynecological birth bed with backrest adjustment to 70±10°, height range 680–900 mm, Trendelenburg and reverse Trendelenburg tilt of 17±5°, leg support stirrups, 240 kg safe working load and an optional battery backup. External dimensions are 2050 × 980 × (680–900) mm; bed surface is 1930 × 900 mm. Manufactured by Keling Medical (Keling Medical) for maternity, obstetrics and gynecology departments.
Quick Facts
- The Keling KL-BC110 is a 5-function electric gynecological birth bed designed for obstetric and gynecological clinical use.
- Backrest adjusts electrically to 70±10° for delivery, post-partum and gynecological examination positions.
- Height adjustment spans 680–900 mm, a range optimized for obstetric clinical access and delivery positioning.
- Trendelenburg and reverse Trendelenburg each reach 17±5° — wider tilt angles than standard ward beds.
- Safe working load is 240 kg; optional battery power storage maintains all functions during power interruptions.
- External size is 2050 × 980 × (680–900) mm; bed surface is 1930 × 900 mm.
Overview

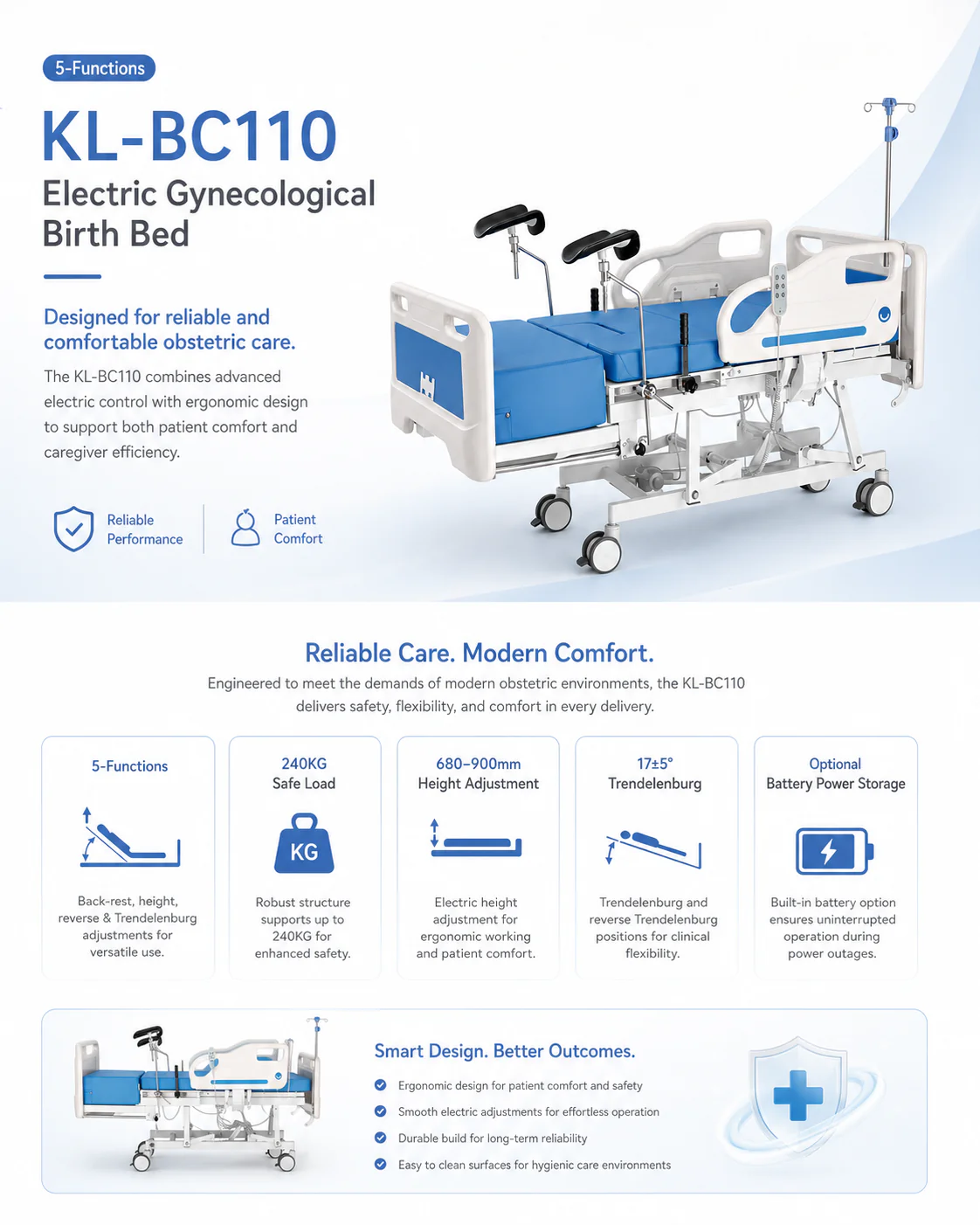

The KL-BC110 electric gynecological birth bed is purpose-built for obstetrics, labor and delivery, and gynecological examination departments. Unlike standard ward beds, the KL-BC110 features a height range (680–900 mm) optimized for standing delivery team access, a wider Trendelenburg tilt range of 17±5° for obstetric clinical positioning, and dedicated leg support stirrups visible in the design that facilitate examination and active delivery procedures.

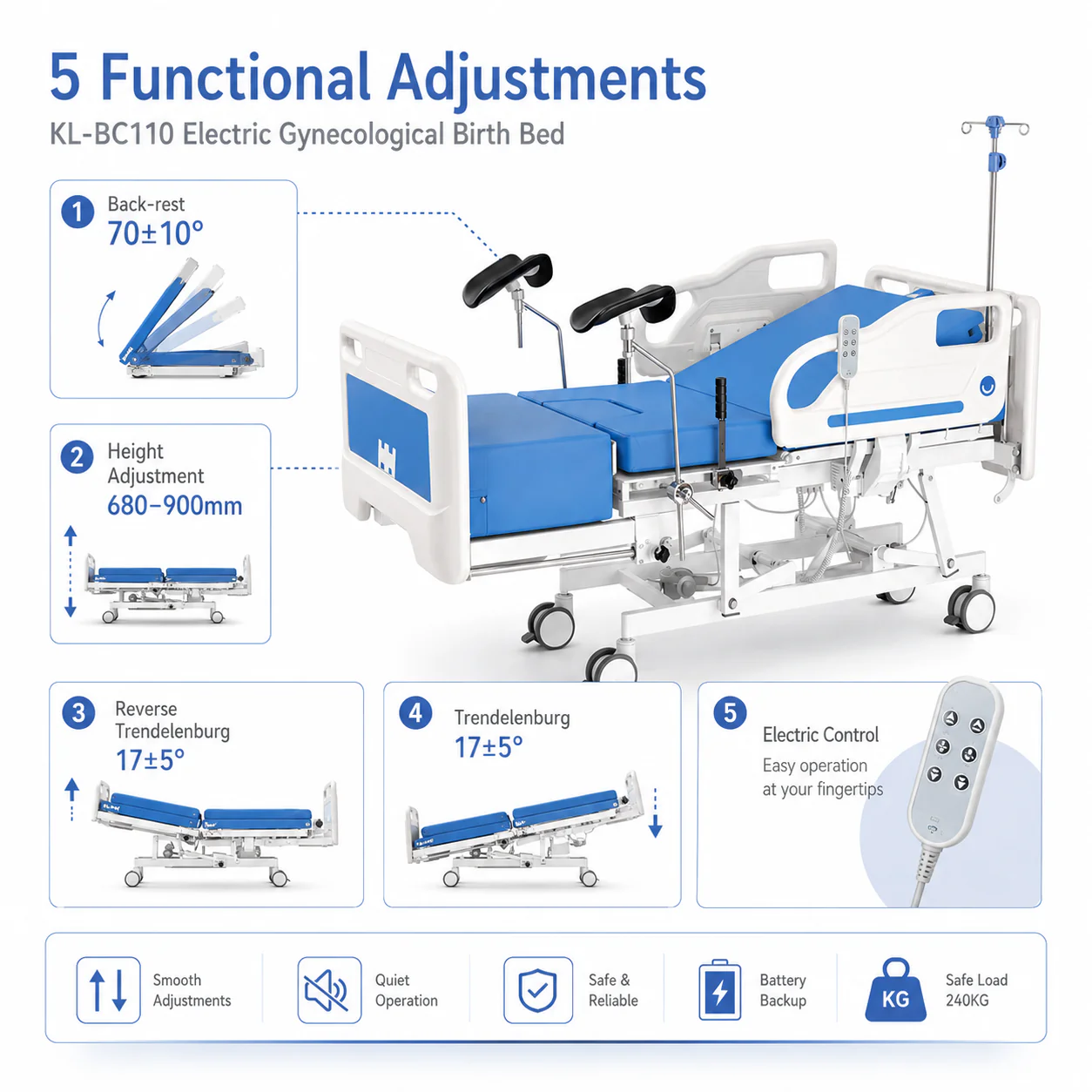

Five independently controlled electric functions — backrest elevation, height adjustment, Trendelenburg tilt, reverse Trendelenburg tilt, and associated position control — are operated via a dedicated handset or panel, allowing the delivering clinician to adjust the patient's position throughout the labor and delivery process without interrupting care. The 70±10° backrest supports the full range of positions used during labor — from semi-recumbent for monitoring to more upright positions for active pushing phases.
At 240 kg safe working load and with an optional battery backup module, the KL-BC110 is designed to remain fully functional through the full duration of a delivery without power interruption risk. The 2050 × 980 mm external footprint is suited to standard-sized obstetrics rooms, and the 1930 × 900 mm bed surface provides adequate space for obstetric and gynecological procedure setup. The KL-BC110 serves as a high-functionality delivery platform for maternity hospitals and gynecology departments seeking electric-drive delivery beds.

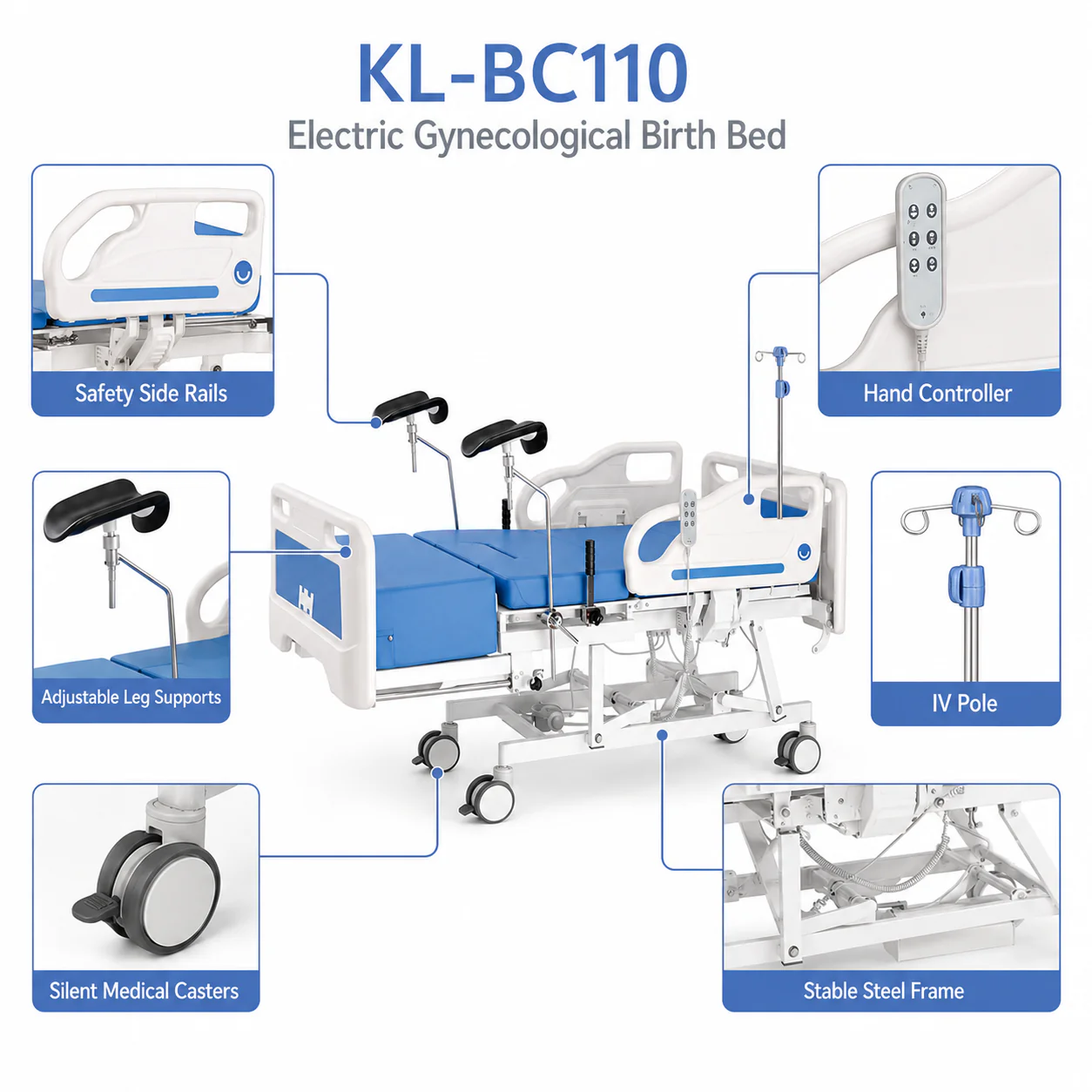

Key Features
- Purpose-built gynecological birth bed — design and function specification tailored for obstetrics, labor, delivery and gynecological procedures.
- 5-Function electric actuation — independent electric control of backrest, height, Trendelenburg, reverse Trendelenburg and associated positioning.

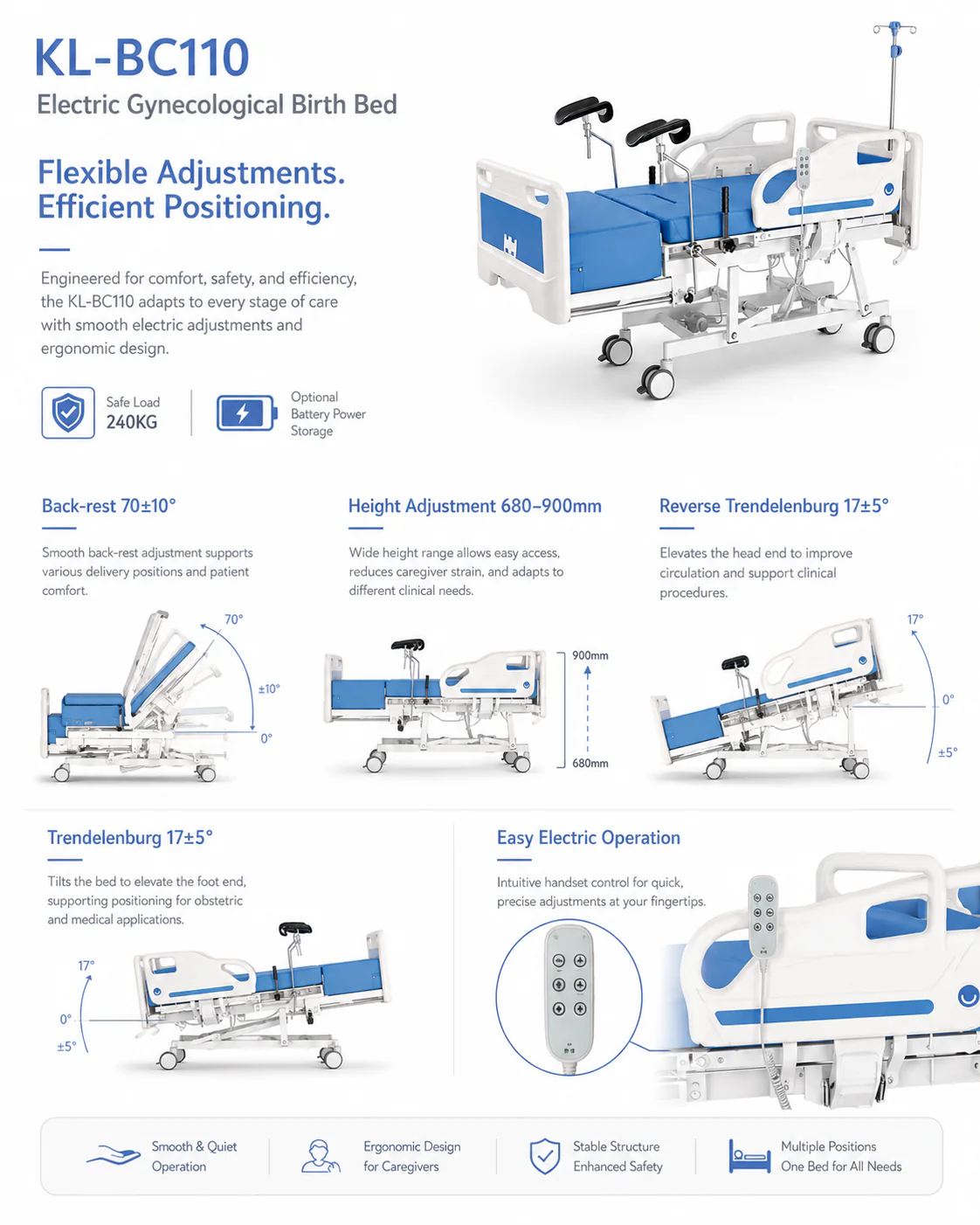

- Backrest to 70±10° — wide electric adjustment range for labor, delivery and post-partum positioning.
- Height range 680–900 mm — range optimized for delivery team standing access and obstetric clinical positioning.
- Trendelenburg / reverse Trendelenburg 17±5° — wider tilt than standard ward beds for obstetric and gynecological positioning needs.

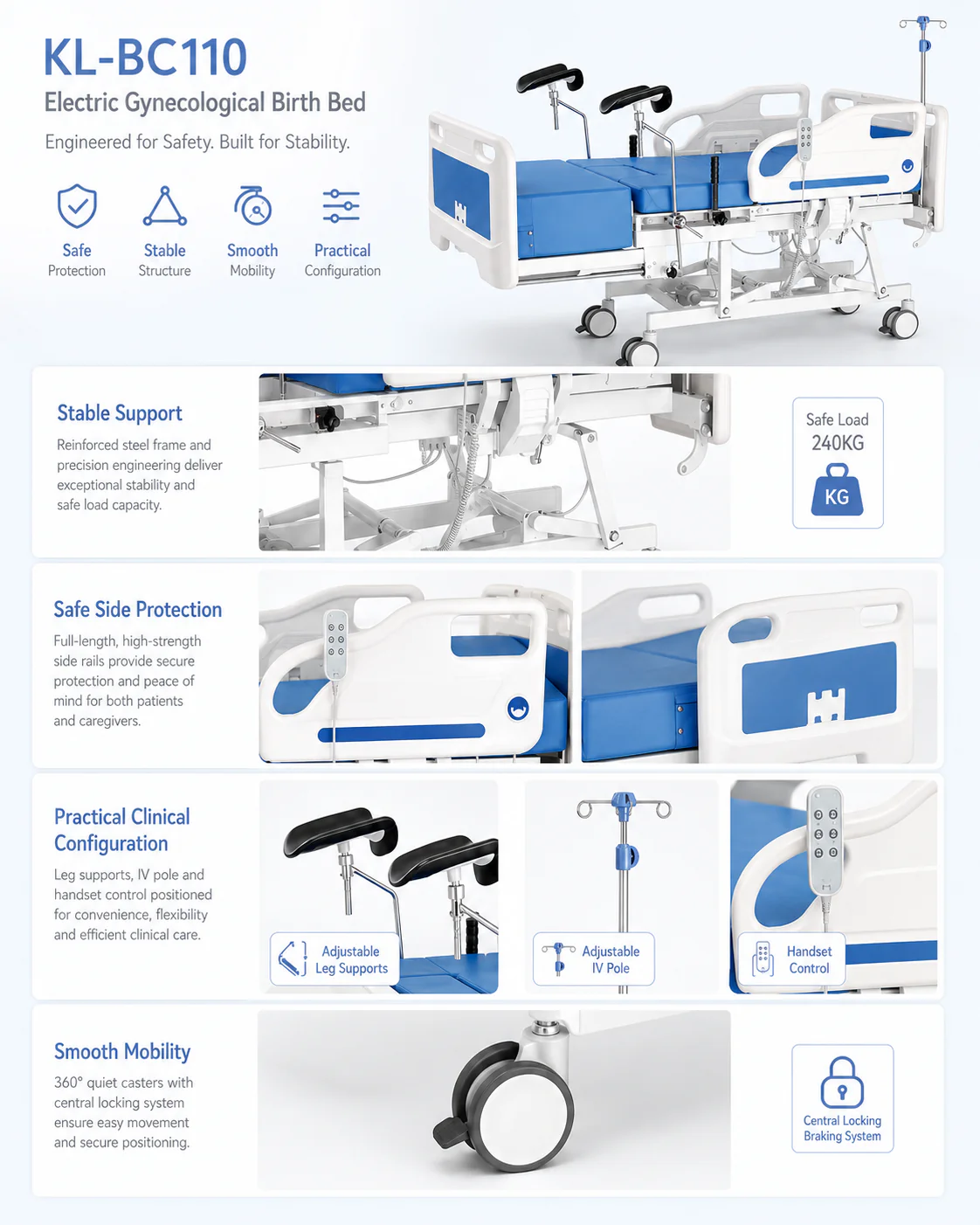

- Leg support stirrups — integrated leg support arms for examination, delivery and gynecological procedures.
- 240 kg safe working load — high load rating accommodating obstetric patient range.
- Optional battery power storage — maintains all electric functions during power interruptions for uninterrupted delivery care.

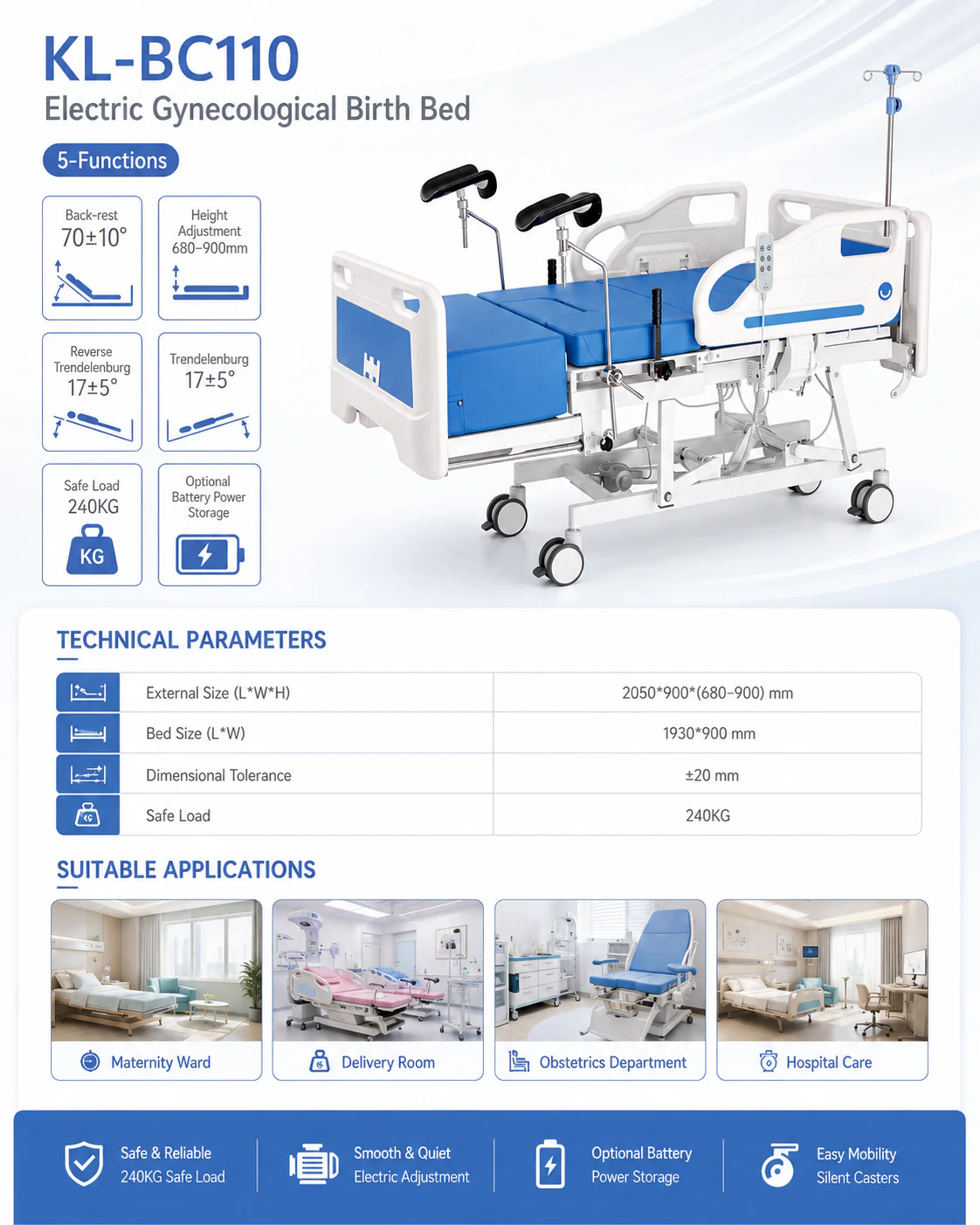

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC110 |
| Product type | Electric gynecological birth bed (5-function) |
| Backrest adjustment | 70±10° |
| Height adjustment | 680–900 mm |
| Reverse Trendelenburg | 17±5° |
| Trendelenburg | 17±5° |
| Safe working load | 240 kg |
| External size (L × W × H) | 2050 × 980 × (680–900) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |

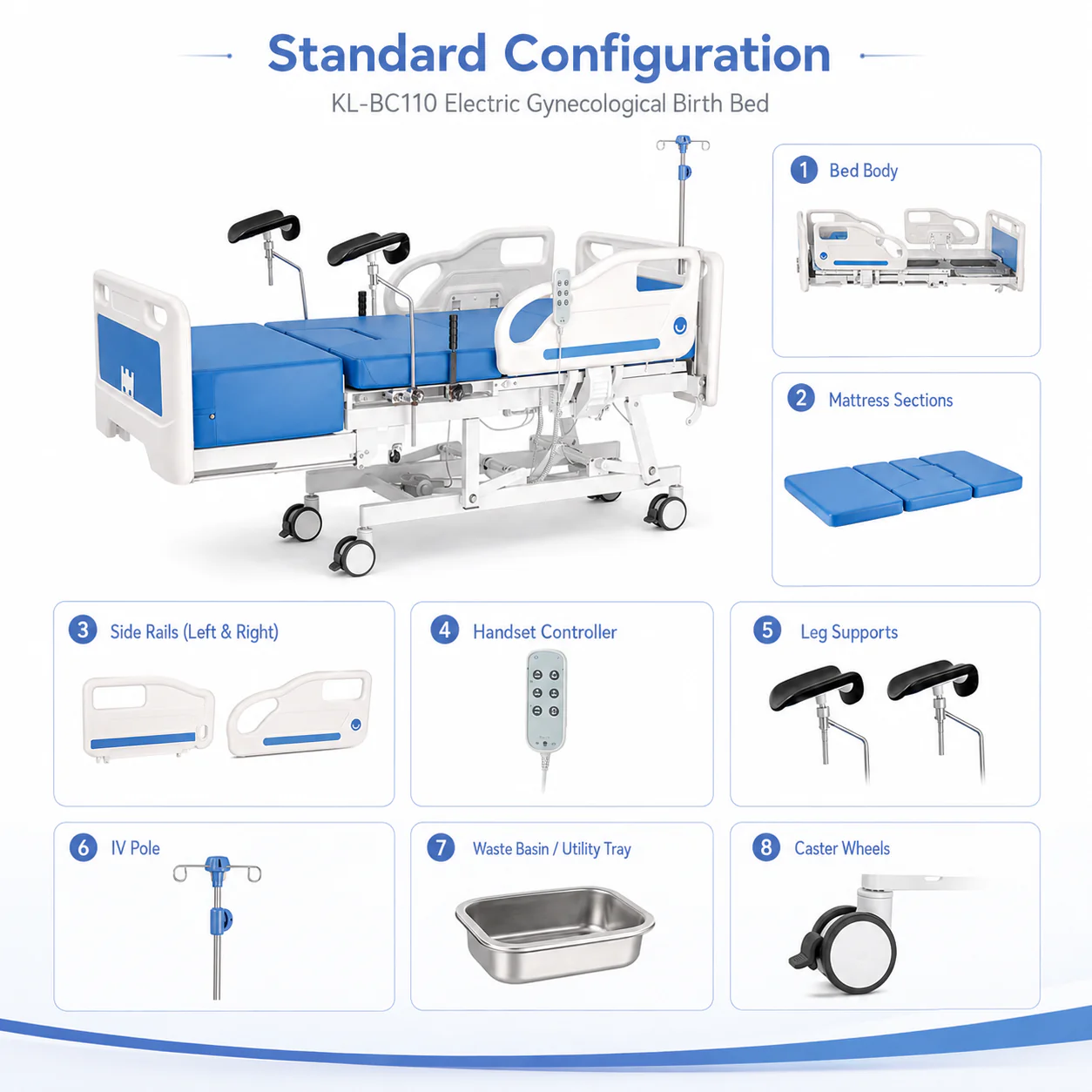

| Optional accessories | Battery power storage |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

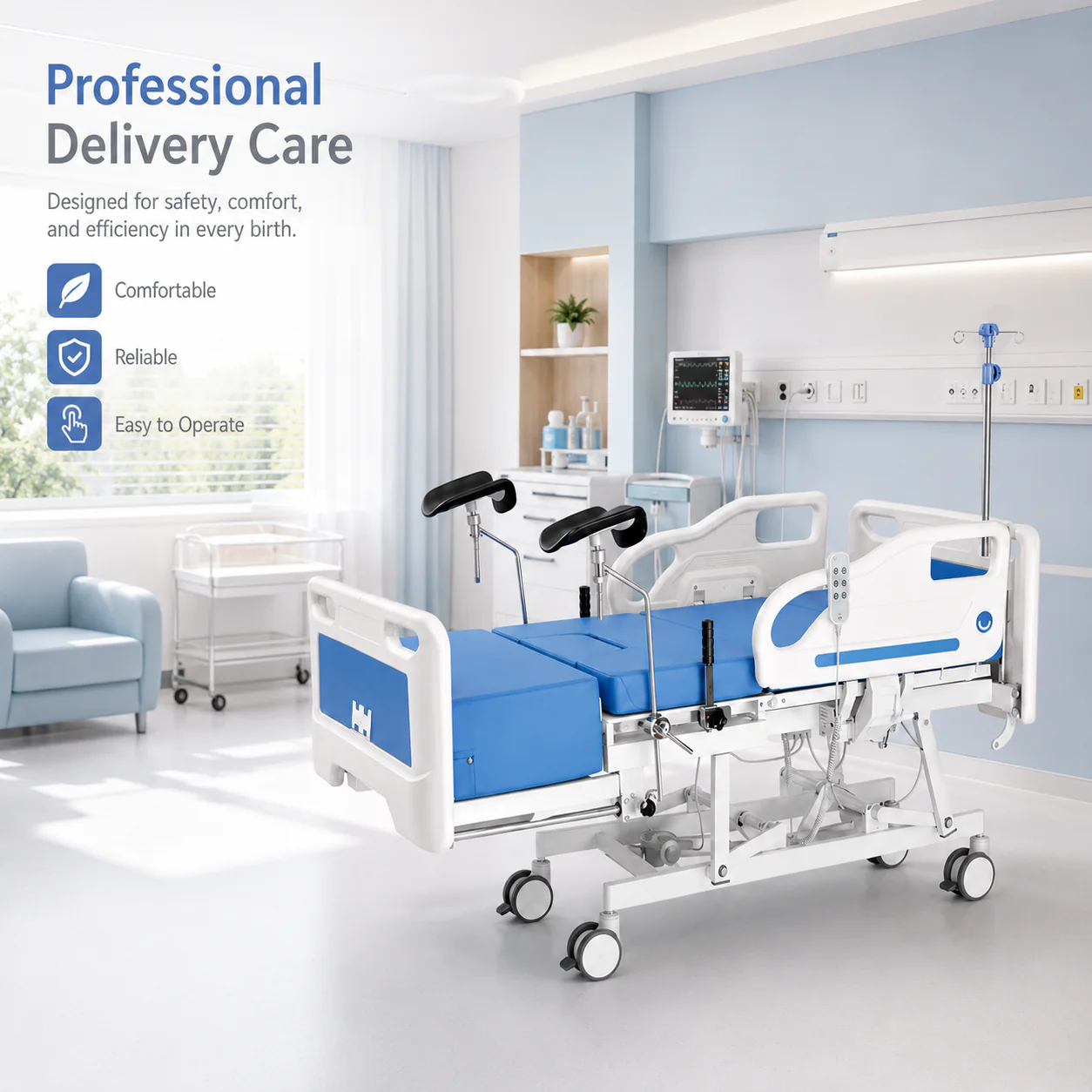

The KL-BC110 is designed for maternity wards, labor and delivery rooms, obstetrics departments and gynecological examination suites in hospitals, maternity centers and specialist women's health clinics. Its dedicated gynecological design, leg support stirrups and wide Trendelenburg tilt make it suitable for the full range of intrapartum and outpatient gynecological clinical procedures.
