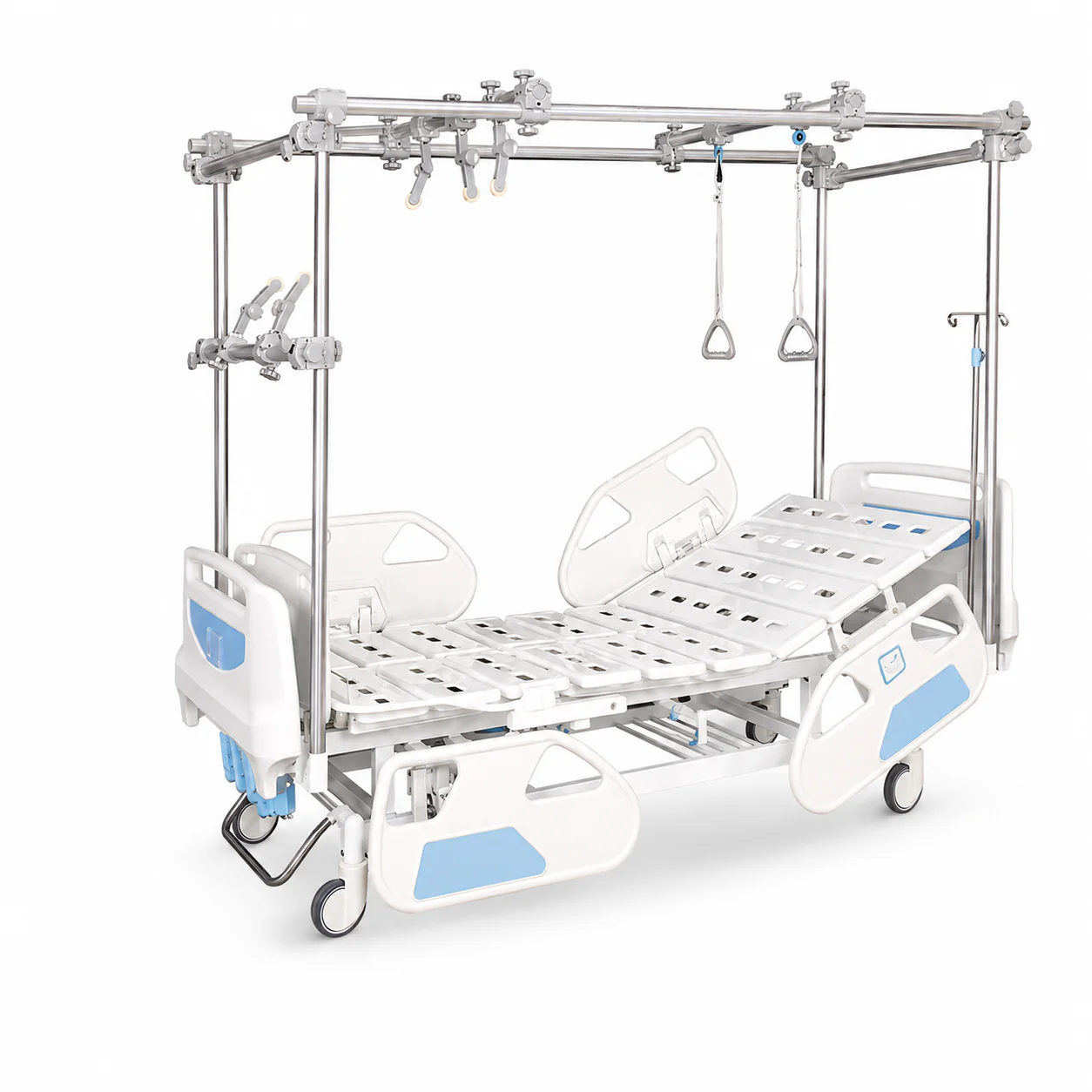

# KL-BC111 Manual Orthopedics Traction Bed — 5-Function Orthopaedic Bed with Overhead Traction Frame
Quick answer: The Keling KL-BC111 is a 5-function manual orthopedics traction bed with an integrated overhead traction frame, backrest adjustment to 70±10°, knee-rest to 30±10°, height range 460–720 mm, Trendelenburg and reverse Trendelenburg of 12±5°, and a 200 kg safe working load. External dimensions are 2160 × 1060 × (460–720) mm; bed surface is 1925 × 900 mm. Manufactured by Keling Medical (Keling Medical) for orthopaedic wards and trauma units.
Quick Facts
- The Keling KL-BC111 is a 5-function manual orthopedics traction bed with an integrated overhead traction frame.
- Backrest adjusts manually to 70±10° and knee-rest to 30±10° for orthopaedic positioning and mobilization.
- Height adjustment spans 460–720 mm; Trendelenburg and reverse Trendelenburg each reach 12±5°.
- The overhead traction frame provides attachment points for balanced suspension, skeletal traction and trapeze bar.
- Safe working load is 200 kg; external size is 2160 × 1060 × (460–720) mm; bed surface is 1925 × 900 mm.
- The KL-BC111 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.
Overview

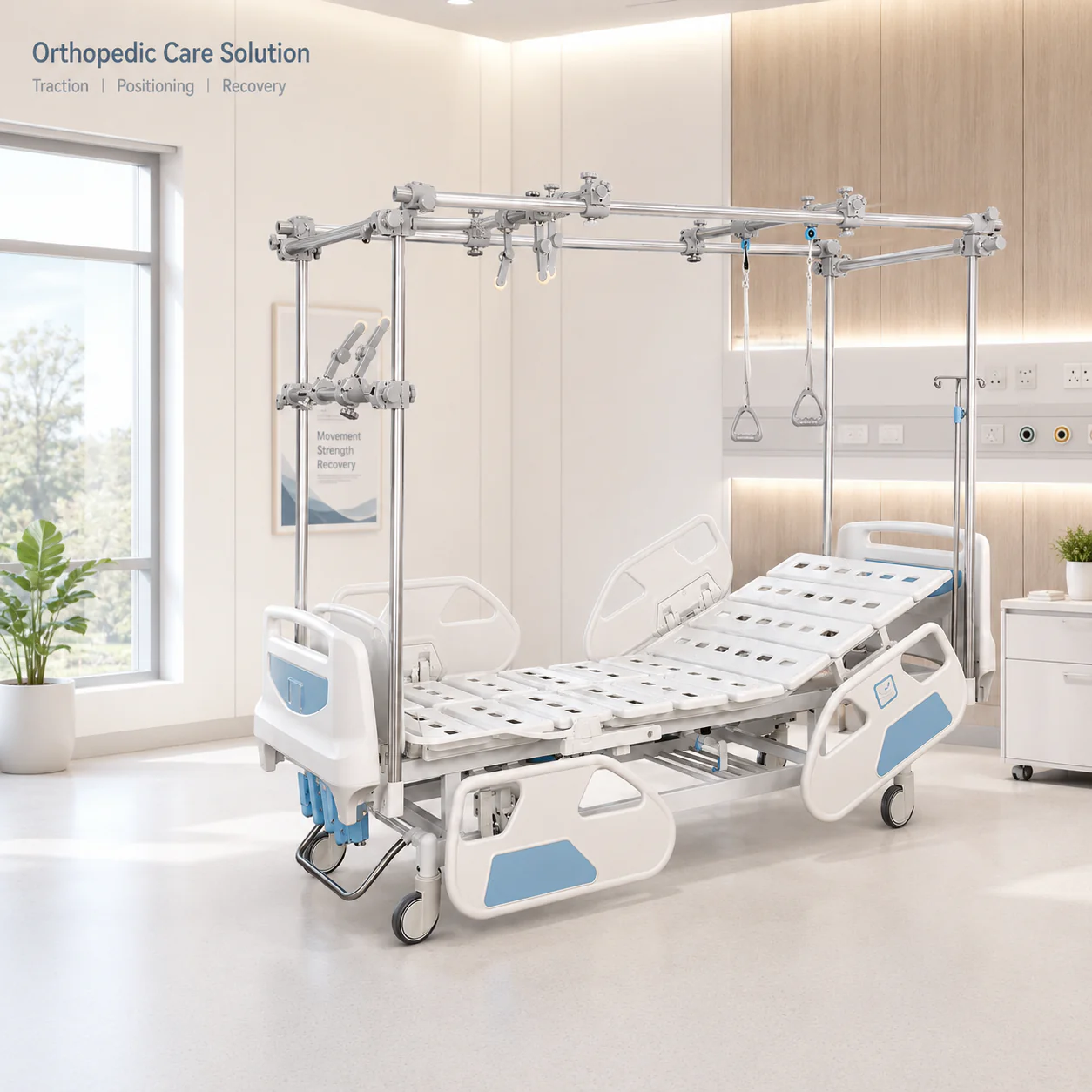

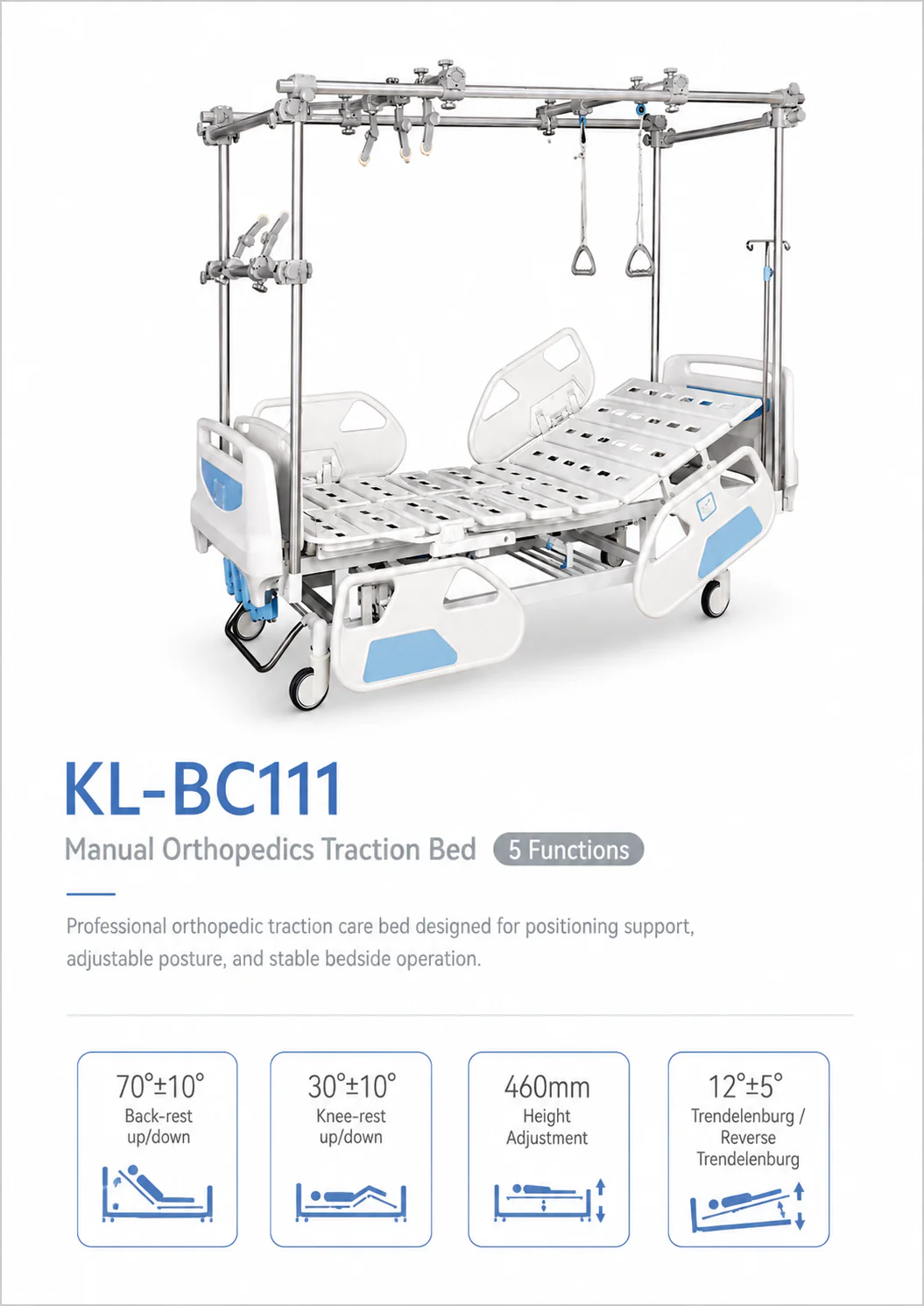

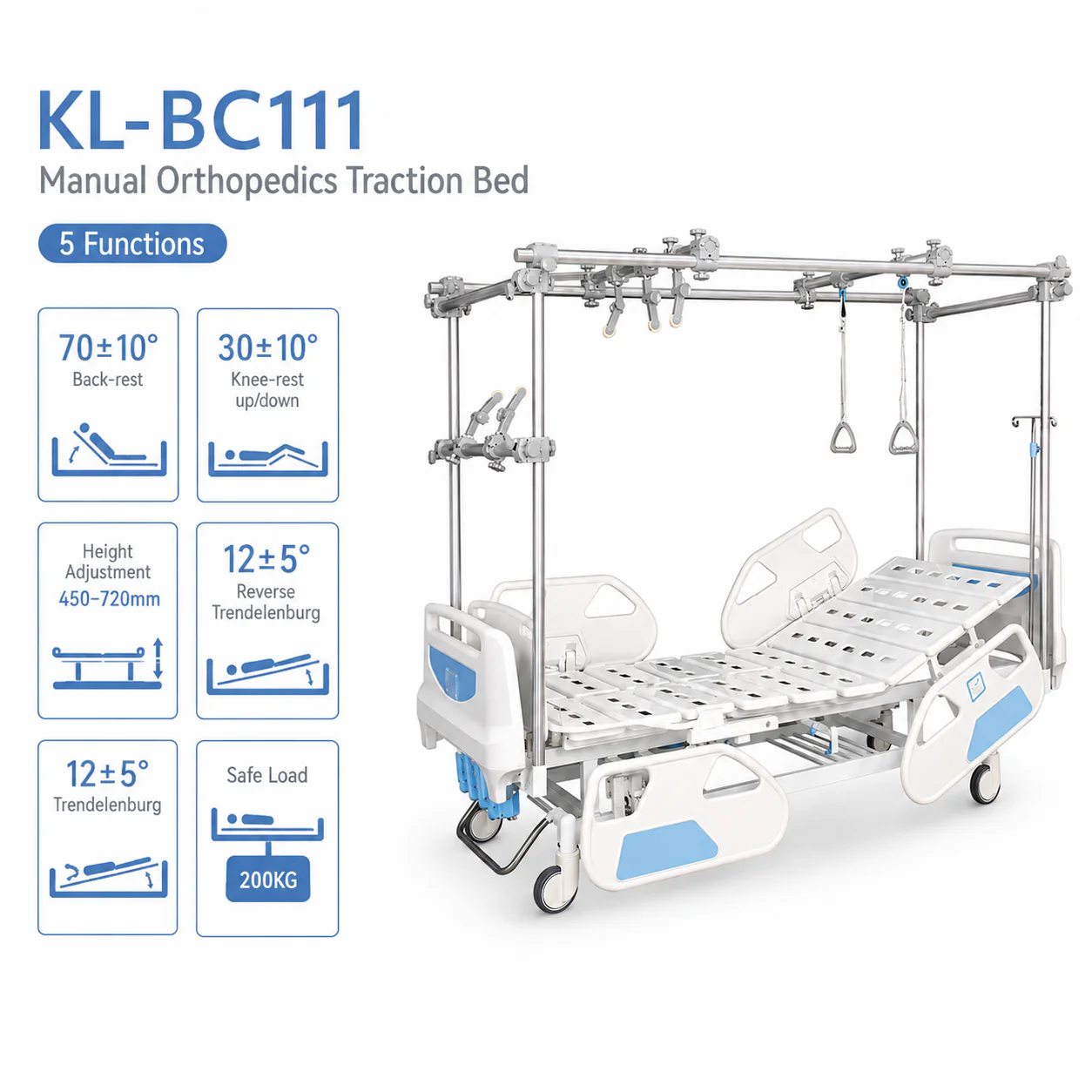

The KL-BC111 manual orthopedics traction bed is a specialist inpatient bed designed for the care of orthopaedic and trauma patients who require traction, balanced suspension or upper limb trapeze support as part of their clinical management. The integrated overhead traction frame — visible as a structural steel gantry above the bed — provides multiple attachment points for skeletal traction weights, slings, pulleys and a patient trapeze bar, enabling the nursing and physiotherapy team to maintain traction devices without a separate freestanding frame.
The five-function manual platform — backrest, knee-rest, height adjustment, Trendelenburg and reverse Trendelenburg — gives clinicians the positioning flexibility needed in orthopaedic post-operative and fracture management contexts. The 460–720 mm height range, while slightly higher in its lower bound than standard ward beds (450 mm), is appropriate for the orthopaedic care context where traction equipment clearance at the foot and sides of the bed is required. Trendelenburg tilt at 12±5° is compatible with anti-shock positioning and lower-limb vascular support protocols.
The 200 kg load rating and 1925 × 900 mm surface accommodate the full range of adult orthopaedic patients, including those with casts, external fixators and splints. The 1060 mm external width — the widest in the KL-BC manual series — reflects the additional clearance needed for traction attachments, side-mounted accessories and external fixation equipment alongside the patient.
Key Features

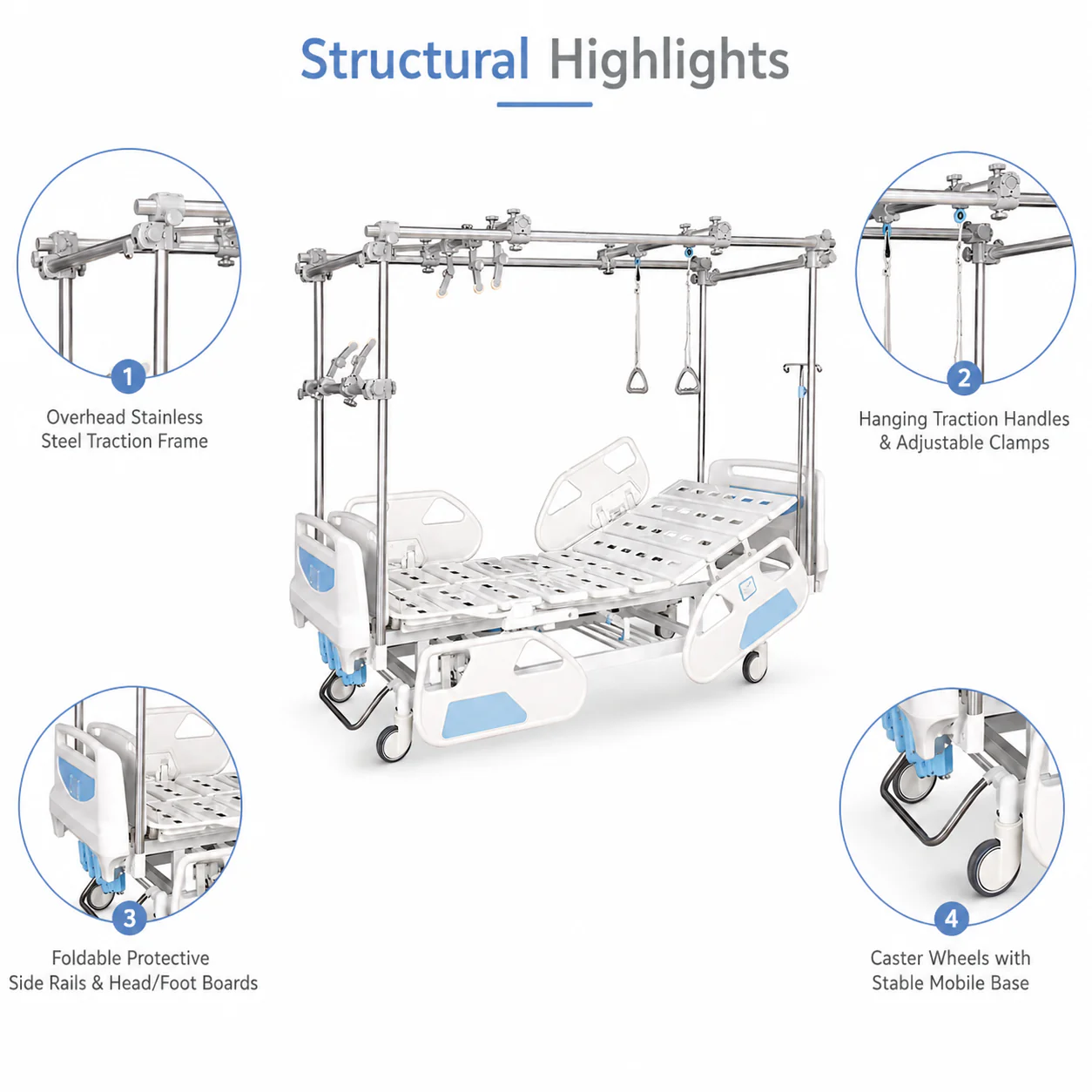

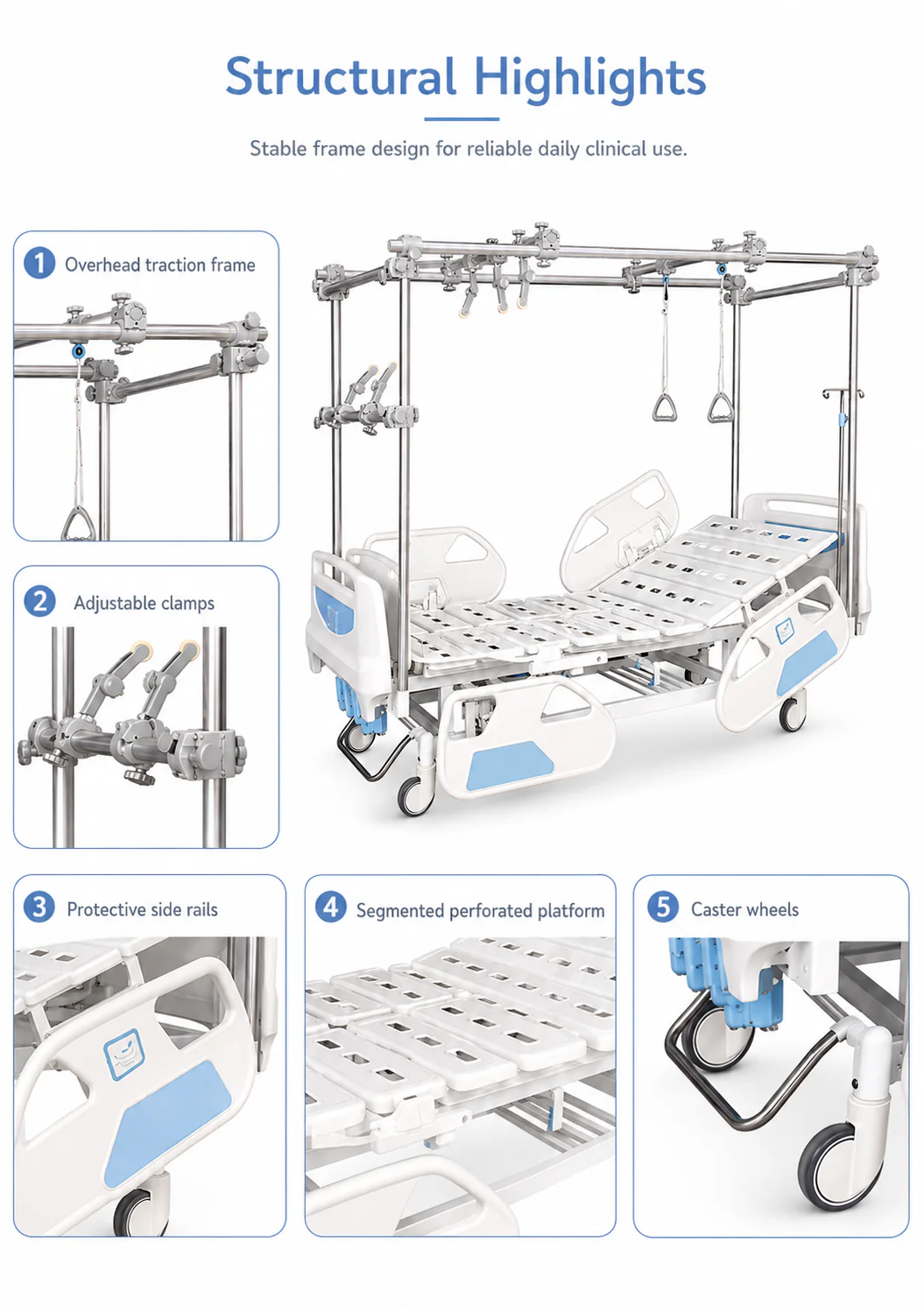

- Integrated overhead traction frame — structural steel gantry above the bed for balanced suspension, skeletal traction, slings, pulleys and trapeze bar attachment.

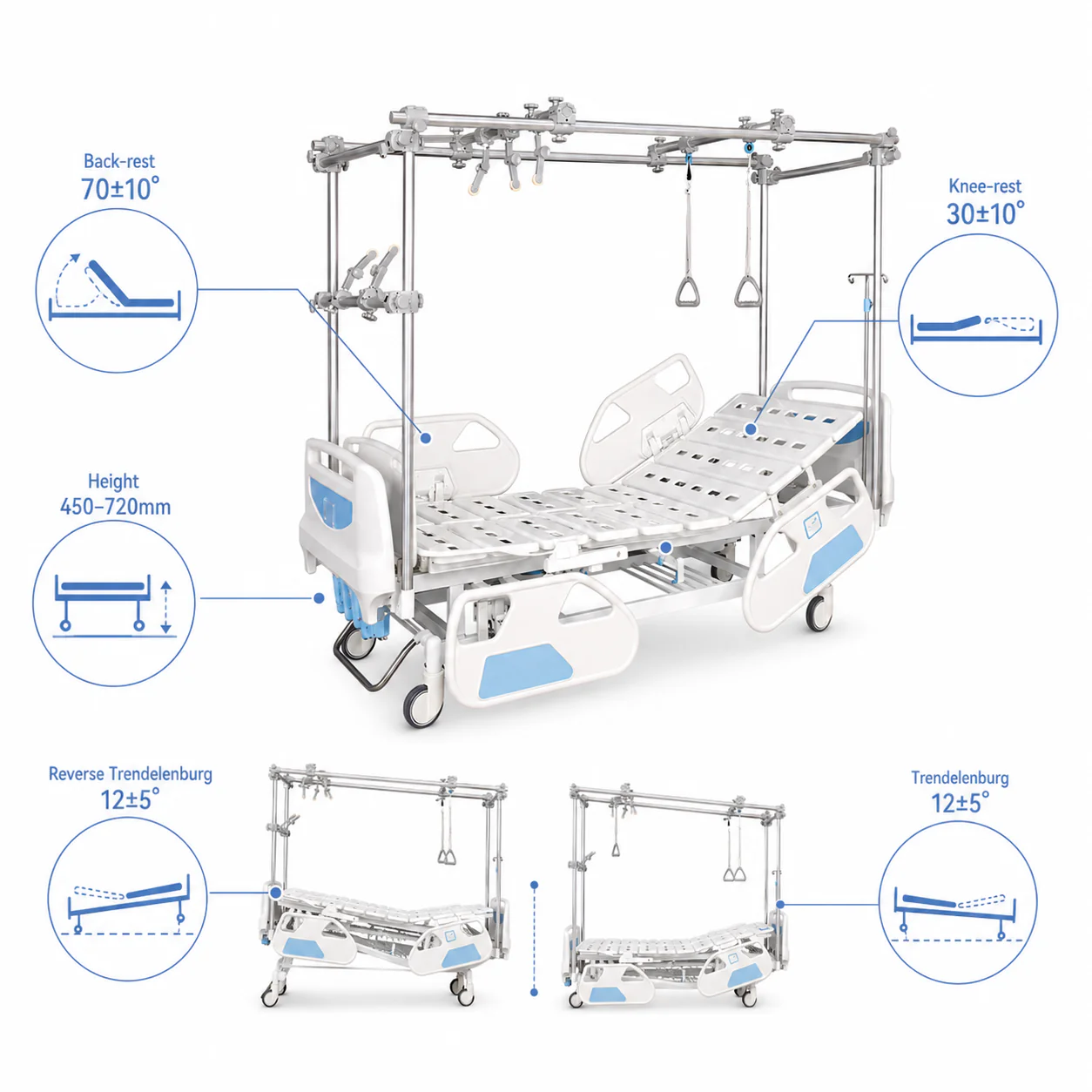

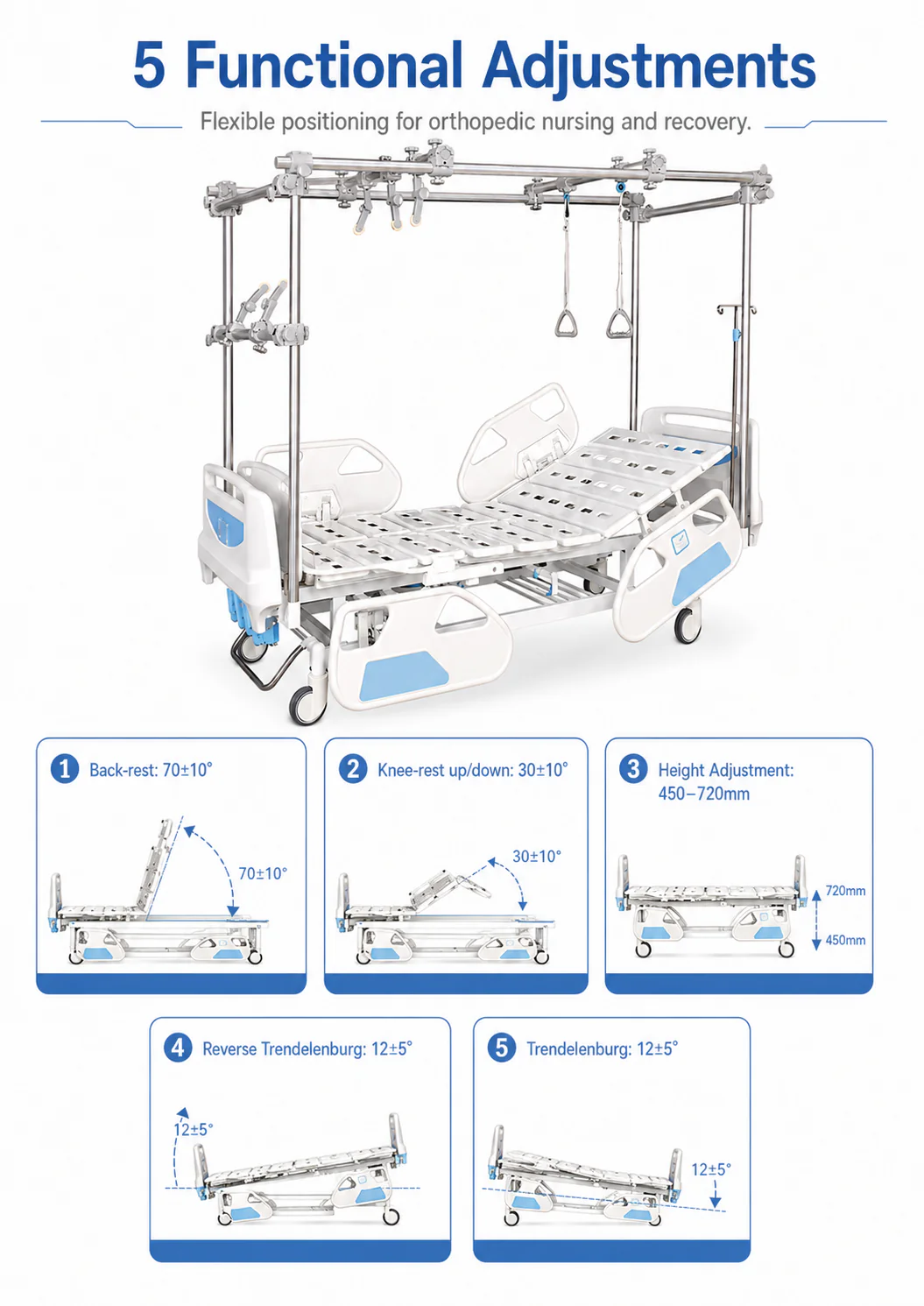

- 5-Function manual adjustment — independent crank-operated backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
- Backrest to 70±10° — manual adjustment for orthopaedic positioning, progressive mobilization and respiratory care.
- Knee-rest to 30±10° — independent elevation for lower-limb positioning and post-operative support.
- Height range 460–720 mm — 260 mm manual travel with clearance for traction equipment.
- Trendelenburg / reverse Trendelenburg 12±5° — postural tilt for anti-shock, vascular and drainage positioning.
- 200 kg safe working load — rated capacity for orthopaedic patients with implants, casts or external fixation.
- Wide 1060 mm external width — extra lateral clearance for traction attachments and side accessories.

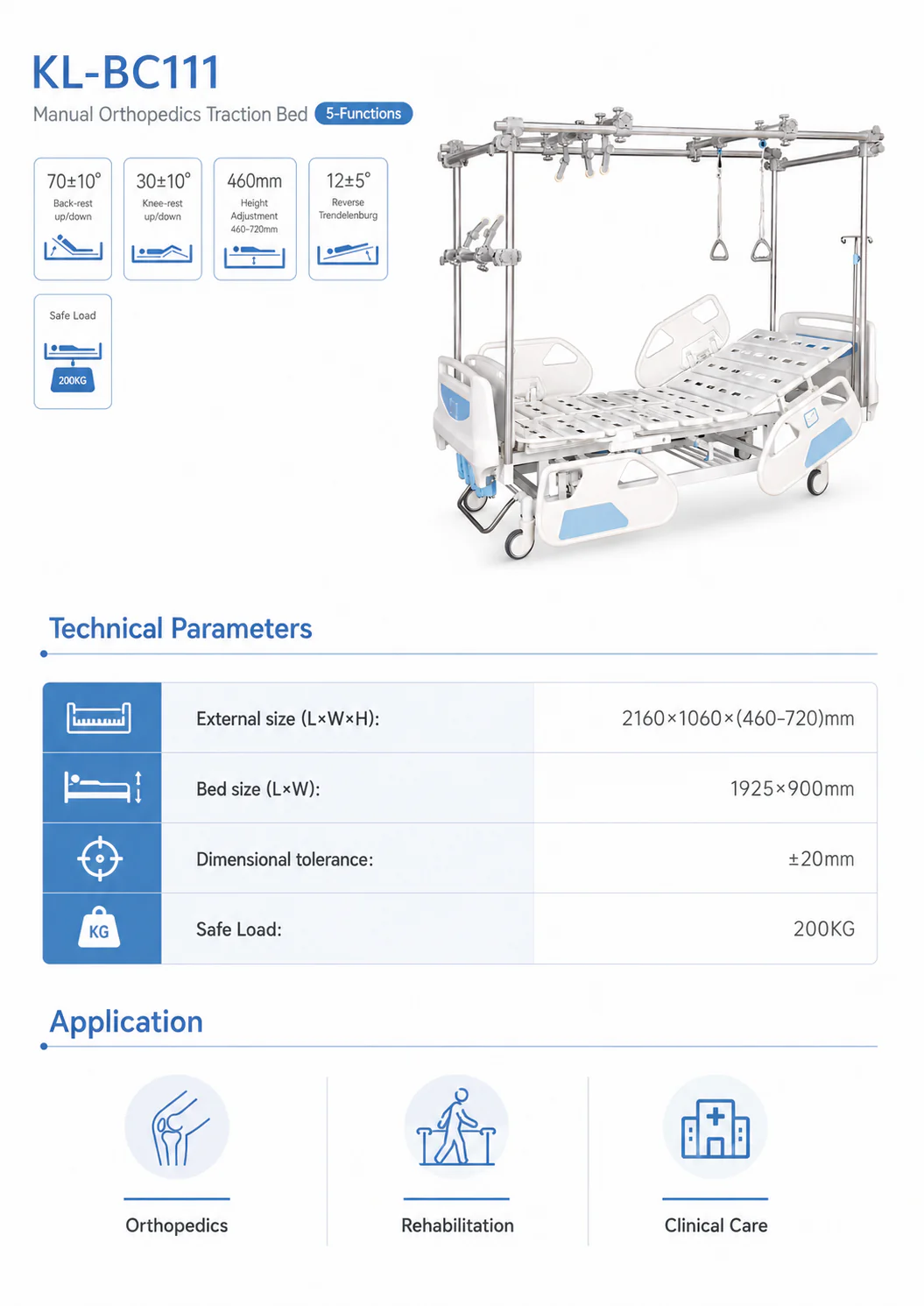

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-BC111 |
| Product type | Manual orthopedics traction bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 460–720 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 200 kg |

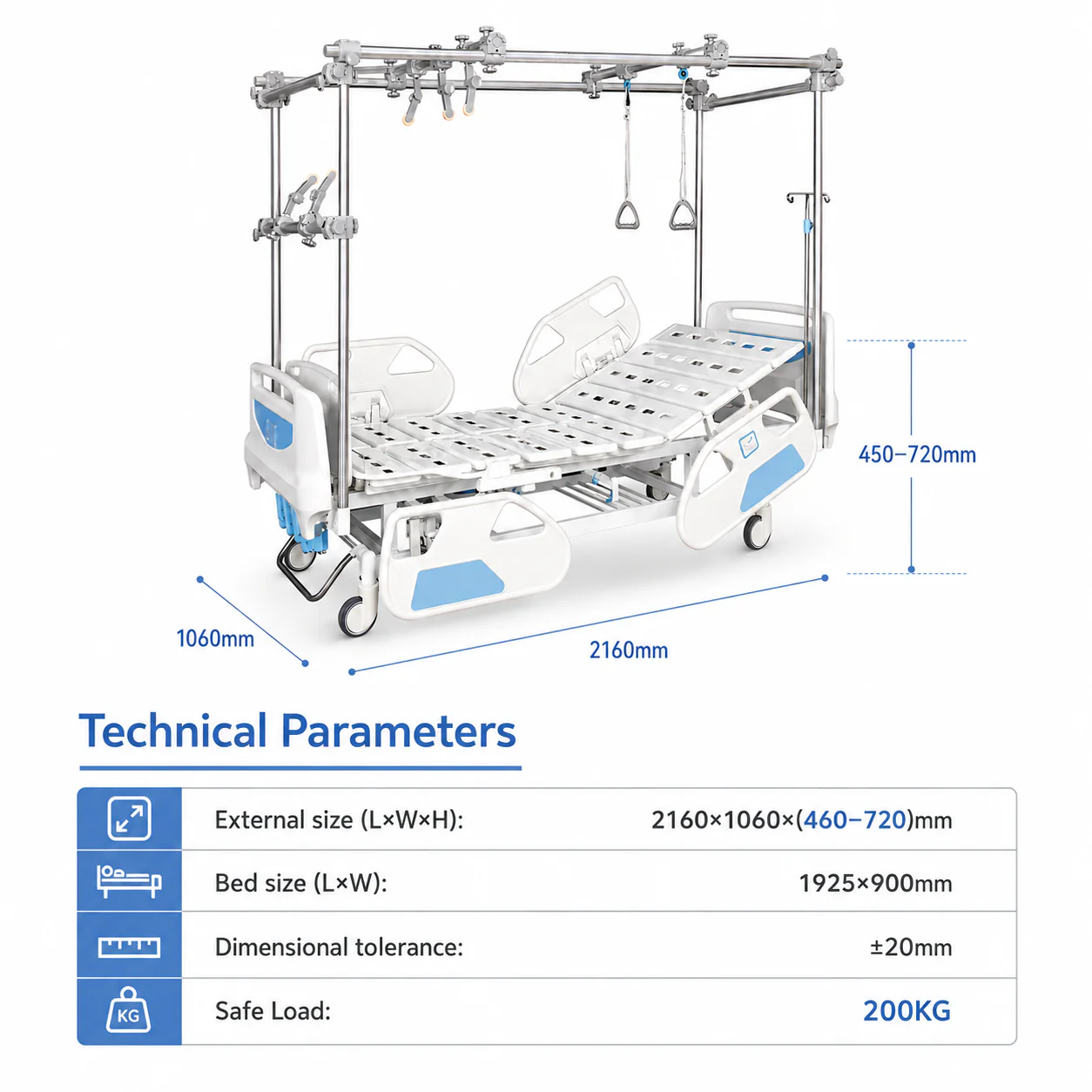

| External size (L × W × H) | 2160 × 1060 × (460–720) mm |
| Bed surface size (L × W) | 1925 × 900 mm |
| Dimensional tolerance | ±20 mm |
| Traction frame | Integrated overhead steel frame |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-BC111 is designed for orthopaedic inpatient wards, trauma units, fracture management bays and post-surgical orthopaedic recovery rooms. Its integrated traction frame makes it suitable for the management of femoral, tibial and upper-limb fractures requiring skeletal traction or balanced suspension, and for spinal and pelvic trauma patients requiring supported positioning.
