KL-T6100 Electric Medical Pendant — Motorized Ceiling Supply Unit for Clean and General Operating Rooms

Quick answer. The Keling KL-T6100 is an electric medical pendant (medical hanging tower, series code KL-T·IB) designed for modern clean operating rooms and general operating rooms. It features an imported-motor cantilever with electric up-and-down lift, precise positioning without drift, and German standard gas terminals rated for over 20,000 insertion cycles. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals and medical distributors worldwide.

Power outlets: 4
Data outlets: 1 internet outlet
Series code: KL-T·IB
Lift mechanism: Electric (imported motor), up and down

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

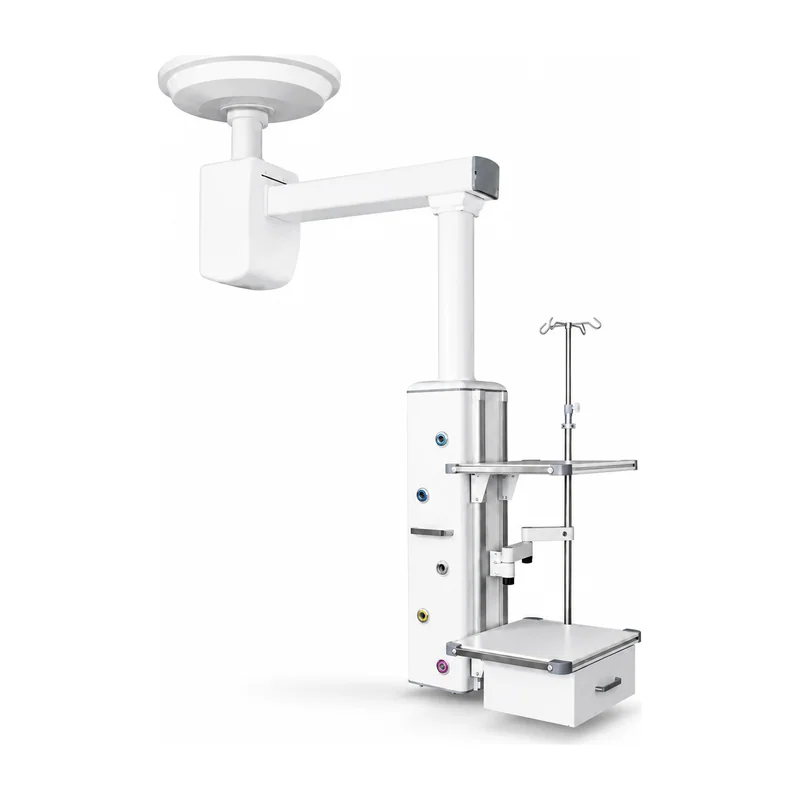

The KL-T6100 electric medical pendant is a ceiling-mounted utility tower designed to bring power, medical gases, network access and equipment support directly over the operating table in clean and general ORs. As an electric-lift model, it allows clinicians to adjust the working height of the pendant column with motorized precision — eliminating the physical effort of manual repositioning and enabling repeatable placement at every procedure. The pendant is classified under Keling's KL-T·IB series and suits hospitals seeking an automated supply solution for routine and high-acuity surgical suites.

Structurally, the KL-T6100 prioritizes rigidity and hygiene. The control cabinet is extruded from imported high-strength aluminium alloy in a single piece, then finished with primary oxidation treatment for corrosion resistance and ease of cleaning. The aluminum molding tray features a non-slip texture to keep instruments and small devices secure on the working surface. A mechanical friction damping brake holds the arm in position once placed, while the electric lift adds motorized up-and-down travel for precise height setting.

Utility management is clean and organized: gas pipeline, power supply and computer communication lines run in dedicated, separated channels so there is no signal interference or cross-contamination risk between circuits. Gas outlets conform to the German standard terminal, tested to over 20,000 insertion and pull-out cycles, giving staff confidence in connection reliability throughout the pendant's service life.

Quick facts

The Keling KL-T6100 is an electric medical pendant (hanging tower) built for clean and general operating rooms.
The KL-T6100 uses an imported motor to raise and lower the cantilever electrically, enabling smooth height adjustment without manual effort.
The control cabinet is formed from imported high-strength aluminium alloy using one-piece extrusion molding with primary oxidation surface treatment.
Gas pipelines, power supply and computer communication lines are routed independently on the KL-T6100 to prevent interference.
Standard utility configuration includes four power outlets, one internet outlet, one compressed air, one nitrous oxide, one suction gas and one anesthesia gas, all via German standard terminals (optional gases available).
The KL-T6100 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience and an ISO 13485-certified factory.

Key features

Electric lift with imported motor
cantilever raises and lowers electrically for effortless height adjustment and precise positioning; eliminates drift once set.
One-piece aluminium alloy cabinet
high-strength alloy formed by patent-technology extrusion molding; primary oxidation surface treatment resists corrosion and simplifies cleaning.
Aluminum non-slip tray
molded tray with textured surface keeps instruments and small equipment stable during procedures.
Mechanical friction damping brake
holds the arm at the selected angle and height without drift after manual or motorized positioning.
German standard gas terminals
rated for over 20,000 insertion and pull-out cycles; gas, power and data lines are routed without mutual interference.
Integrated utility configuration
four power outlets, one internet outlet, plus compressed air, nitrous oxide, suction gas and anesthesia gas (German style terminal; optional gases available).
Modular design
easy to maintain and reconfigure to match specific OR workflow requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-T6100

KL-T6100 technical specifications
Model	KL-T6100
Series code	KL-T·IB
Product type	Electric medical pendant (medical hanging tower)
Lift mechanism	Electric (imported motor), up and down
Rotation	Horizontal rotation with precise positioning
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Tray	Aluminum molding, non-slip texture
Brake	Mechanical friction damping brake
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	4
Data outlets	1 internet outlet
Gas outlets	1 compressed air, 1 nitrous oxide, 1 suction gas, 1 anesthesia gas (optional gases)

Applications

The KL-T6100 electric medical pendant is suited to any modern surgical environment where motorized height control improves workflow: clean operating rooms (laminar-flow ORs), general operating rooms, hybrid ORs and multi-purpose procedure suites. The electric lift is particularly valuable in rooms where the surgical team changes between procedures of different heights or where manual arm adjustment is impractical.

Questions buyers ask

What is the Keling KL-T6100 electric medical pendant used for?

The KL-T6100 is a ceiling-mounted electric pendant that delivers medical gases, electrical power and network connectivity directly to the surgical field in clean and general operating rooms. Its motorized lift allows staff to set the pendant height precisely for each procedure without manual effort.

How does the electric lift on the KL-T6100 work?

The cantilever uses an imported motor to travel up and down electrically. Once positioned, a mechanical friction damping brake holds the arm securely in place. Rotation is also available for horizontal repositioning, with precise positioning and no drift.

What gas and electrical outlets does the KL-T6100 provide?

The standard configuration includes four power outlets, one internet outlet, one compressed air terminal, one nitrous oxide terminal, one suction gas terminal and one anesthesia gas terminal — all using German standard connectors rated for over 20,000 insertion cycles. Additional gas types are available as options.

Can the KL-T6100 be ordered by overseas hospitals or distributors in bulk?

Yes. Keling Medical is an export-oriented manufacturer and supports project, wholesale and OEM orders through its Shanghai sales and export center. Contact Keling Medical via https://www.kelingmed.com for specifications, pricing and lead times.
