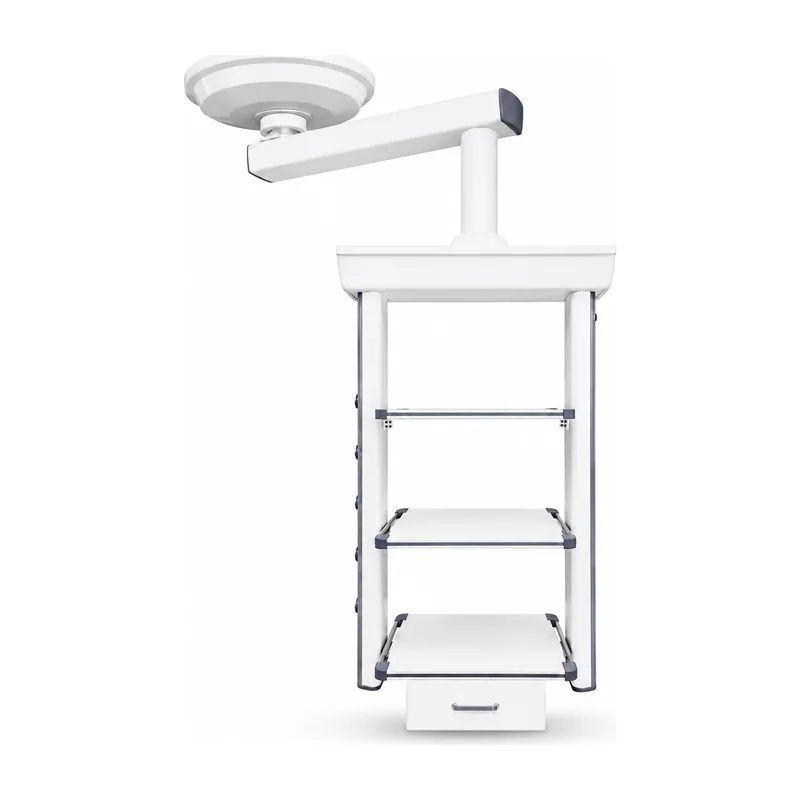

KL-T7200 Manual Medical Pendant — Multi-Platform Ceiling Supply Unit for ORs and ICUs

Quick answer. The Keling KL-T7200 is a manual medical pendant (medical hanging tower, series code KL-T·IIBJ) designed for modern clean operating rooms, general operating rooms and ICU rooms. It features a multi-layer platform structure with an integrated drawer, supports medical machines of appropriate weight on its platforms, and provides eight power outlets with a full complement of seven gas terminals (German standard). It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Power outlets: 8
Data/communication outlets: 1 telephone outlet, 1 internet outlet
Series code: KL-T·IIBJ
Application: Clean OR, general OR, ICU room

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T7200 manual medical pendant extends the KL-T7100 platform with a multi-layer workstation configuration, making it the most storage-capable manual pendant in the KL-T·IIBJ series. Designed for the full spectrum of surgical and critical care environments — clean ORs, general ORs and ICUs — the KL-T7200 accommodates monitoring equipment, infusion systems and small medical machines directly on its shelves, reducing reliance on floor-mounted trolleys and freeing clinical floor space for patient access and team movement.

The high-strength aluminium alloy cabinet is formed from imported alloy using one-piece extrusion molding and finished with primary oxidation treatment. This construction delivers the structural rigidity needed to support clinical equipment on multiple shelf levels simultaneously, while the smooth oxidized exterior withstands daily disinfection. Aluminum trays with non-slip surfaces keep devices in place during arm repositioning. An integrated bottom drawer rounds out the storage system, providing a lockable compartment for supplies used at the point of care.

Utility routing follows Keling's separated-channel design: power cables, gas pipelines and computer communication lines are run in independent conduits within the column, preventing electromagnetic interference with patient monitoring equipment. The German standard gas terminals accept all standard clinical gas plugs and are rated for over 20,000 insertion and pull-out cycles. Horizontal rotation uses a mechanical friction damping brake for smooth, stable positioning at any angle in the sweep arc.

Quick facts

The Keling KL-T7200 is a manual medical pendant with a multi-layer platform configuration for clean ORs, general ORs and ICU rooms.
The KL-T7200's platforms can carry medical machines of appropriate weight, providing elevated support for equipment such as monitors and infusion pumps.
An integrated drawer below the lower platform offers organized storage for consumables and clinical supplies.
Eight power outlets, one telephone outlet and one internet outlet provide comprehensive electrical connectivity.
Gas configuration includes compressed air, oxygen, carbon dioxide, suction gas and anesthesia gas, all in German standard terminals (optional gases available).
The KL-T7200 arm rotates horizontally with a mechanical friction damping brake for precise, drift-free positioning.

Key features

Multi-layer platform structure
multiple horizontal shelves capable of supporting monitors, infusion pumps and lightweight clinical equipment at working height.
Integrated drawer
built-in storage drawer below the lower platform for organized access to supplies and consumables.
Equipment load support
platforms engineered to carry clinical machines of appropriate weight, reducing floor equipment density.
One-piece aluminium alloy cabinet
high-strength alloy formed by patented extrusion molding; anodized finish resists corrosion and clinical disinfectants.
Non-slip aluminum tray surfaces
textured surface prevents devices from shifting during arm rotation or shelf adjustment.
Horizontal rotation with friction damping brake
arm locks at any angle with no drift after positioning.
Separated utility routing
independent channels for gas, power and data prevent signal interference.
Expanded utility configuration
8 power outlets, 1 telephone outlet, 1 internet outlet; compressed air, oxygen, CO₂, suction gas, anesthesia gas (German standard terminals).

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

13 parameters for KL-T7200

KL-T7200 technical specifications
Model	KL-T7200
Series code	KL-T·IIBJ
Product type	Manual medical pendant (medical hanging tower)
Application	Clean OR, general OR, ICU room
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Platform / Tray	Multi-layer aluminum platforms with non-slip texture
Storage	Integrated drawer
Brake	Mechanical friction damping brake
Rotation	Horizontal, precise positioning without drift
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	8
Data/communication outlets	1 telephone outlet, 1 internet outlet
Gas outlets	1 compressed air, 1 oxygen, 1 carbon dioxide, 1 suction gas, 1 anesthesia gas (optional gases)

Applications

The KL-T7200 is well suited to equipped ORs and ICU bays that require a ceiling-mounted solution capable of supporting monitoring systems and infusion devices alongside full gas and electrical supply. Its multi-platform design makes it equally practical for anesthesia management, post-operative recovery rooms and any procedural environment where a high-capacity ceiling supply column eliminates floor equipment crowding.

Questions buyers ask

What is the Keling KL-T7200 manual medical pendant used for?

The KL-T7200 is a ceiling pendant that delivers medical gases, electrical power and data connectivity while physically supporting medical equipment on multi-layer platforms in clean ORs, general ORs and ICU rooms. Its multi-shelf configuration reduces reliance on floor stands and trolleys.

How many power and gas outlets does the KL-T7200 have?

The KL-T7200 provides eight power outlets, one telephone outlet and one internet outlet, plus five gas terminals (compressed air, oxygen, carbon dioxide, suction gas and anesthesia gas) via German standard connectors. Additional optional gas types are available.

Can the KL-T7200 support heavier medical equipment on its shelves?

The KL-T7200's platforms are designed to carry medical machines of appropriate weight — such as patient monitors, infusion pumps and ventilator accessories. Specific load ratings should be confirmed with Keling Medical for each application.

Is the KL-T7200 available for OEM supply or large project orders?

Yes. Keling Medical supports bulk supply, project-based orders and OEM configurations for overseas hospitals and distributors. Contact Keling Medical via https://www.kelingmed.com for detailed project quotations and export terms.
