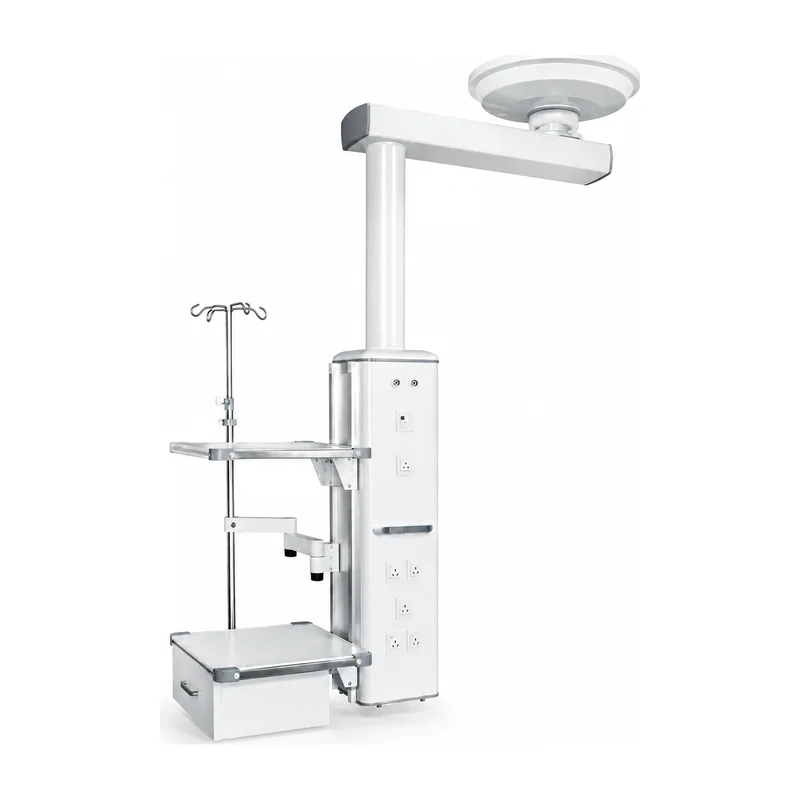

KL-T7100D Composite Manual Medical Pendant — Dual-Column System for ICU Rooms

Quick answer. The Keling KL-T7100D is a composite manual medical pendant (series code KL-T·IIB/T·IIB) comprising two synchronized pendant columns suspended from a shared ceiling mount — specifically designed for ICU rooms. It provides approximately 340° horizontal rotation, organized storage, and an integrated utility system covering power, gas and data. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals and medical distributors worldwide.

Power outlets: 4 (per configuration)
Column configuration: 2 columns on shared ceiling mount
Data outlets: 1 internet outlet
Series code: KL-T·IIB/T·IIB

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T7100D composite manual medical pendant is engineered specifically for the intensive care unit, where a single patient bay must support a high density of monitoring equipment, infusion pumps, ventilators and medical gas connections simultaneously. By combining two pendant columns on one ceiling mount — the KL-T·IIB/T·IIB dual configuration — the KL-T7100D doubles the available working surfaces and utility outlets at the bedside without requiring additional ceiling penetrations or floor-mounted support structures.

Both columns are built to the same structural standard as the KL-T7100: high-strength aluminium alloy cabinets formed by one-piece extrusion molding, with primary oxidation surface treatment for corrosion resistance and clinical hygiene. Aluminum non-slip trays on each column provide stable, horizontal work surfaces for monitors and IV pumps. The system's approximately 340° rotation arc gives ICU nurses unrestricted access around the patient bed without moving the pendant.

Utility management follows Keling's separated-channel design: gas pipelines, electrical supply and computer communication lines are routed in independent conduits so there is no electromagnetic interference between monitoring signals and gas delivery. German standard gas terminals are rated for over 20,000 insertion and pull-out cycles, meeting the demands of a high-turnover ICU environment. Hygienic design with smooth surfaces throughout makes routine disinfection straightforward.

Quick facts

The Keling KL-T7100D is a composite (dual-column) manual medical pendant purpose-built for ICU rooms.
Two independent pendant columns are supported from a single ceiling fixture, providing double the utility capacity at each patient bay.
The KL-T7100D features approximately 340° horizontal rotation, allowing the two arms to reach the full width of a bedside care zone without repositioning.
Power, gas and data interfaces are integrated into one system for organized and safe bedside connection.
Standard utility configuration includes four power outlets, one internet outlet, one oxygen outlet, one compressed air outlet and one suction gas outlet (German standard terminals; optional gases available).
The KL-T7100D is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Dual-column composite configuration
two pendant arms suspended from a single ceiling point; doubles utility and storage capacity at each ICU bay.
~340° horizontal rotation
wide rotation arc provides access to the full patient-care zone; smooth movement with friction damping brake prevents drift.
High-strength aluminium alloy cabinets
one-piece extrusion-molded alloy housing on each column; primary oxidation treatment for durability and easy decontamination.
Integrated utility system
power, gas and data connections organized in one system; lines routed in separate channels to prevent interference.
German standard gas terminals
rated for over 20,000 insertion and pull-out cycles on each column.
Organized storage on both columns
aluminum non-slip trays and storage drawer for flexible placement of ICU equipment.
Hygienic design
smooth, rounded surfaces on all panels for fast, effective wipe-down cleaning.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

13 parameters for KL-T7100D

KL-T7100D technical specifications
Model	KL-T7100D
Series code	KL-T·IIB/T·IIB
Product type	Composite manual medical pendant (dual-column)
Application	ICU room
Column configuration	2 columns on shared ceiling mount
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Tray	Aluminum molding, non-slip texture
Brake	Mechanical friction damping brake
Rotation	~340° horizontal, precise positioning without drift
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	4 (per configuration)
Data outlets	1 internet outlet
Gas outlets	1 oxygen, 1 compressed air, 1 suction gas (German style terminal; optional gases)

Applications

The KL-T7100D dual-column pendant is primarily installed in ICU rooms where a single ceiling mount must support utility supply for both patient-access sides of a bed simultaneously. It is also suitable for observation rooms, post-anesthesia care units (PACU) and multi-function critical care bays where high utility density is required from a compact ceiling footprint.

Questions buyers ask

What makes the KL-T7100D a composite pendant?

The KL-T7100D consists of two separate pendant columns mounted on a shared ceiling fixture under the series designation KL-T·IIB/T·IIB. Each column carries its own set of utility outlets, trays and storage, effectively providing the capacity of two individual pendants from one installation point — ideal for ICU bays with high equipment demands.

How far can the KL-T7100D arms rotate?

The KL-T7100D provides approximately 340° of horizontal rotation, allowing both arms to cover the full arc around a patient bed. Once positioned, the mechanical friction damping brake holds the arms in place without drift.

What utilities are available on the KL-T7100D?

The standard configuration includes four power outlets, one internet outlet, one oxygen outlet, one compressed air outlet and one suction gas outlet, all with German standard terminals. Customized gas configurations are available as optional upgrades.

Can the KL-T7100D be ordered in bulk for an ICU fit-out project?

Yes. Keling Medical supports large-scale hospital fit-out projects and bulk supply through its Shanghai export center. The dual-column design is particularly cost-effective for ICU bay standardization. Contact Keling Medical at https://www.kelingmed.com for project-specific pricing.
