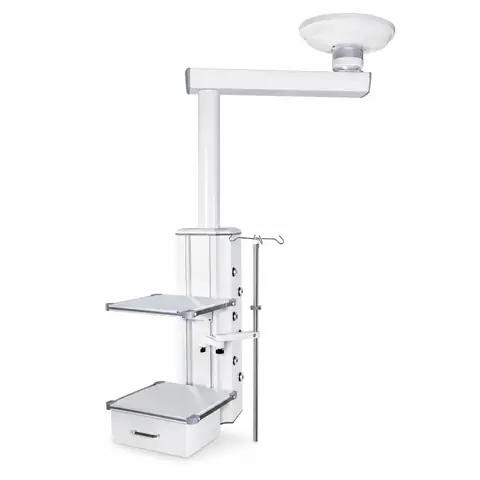

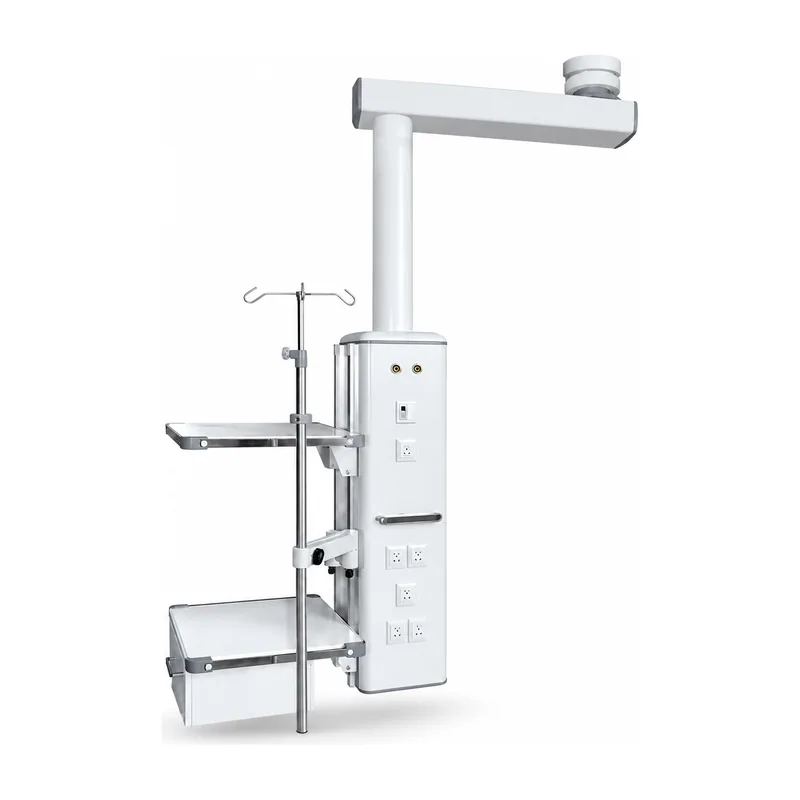

KL-T7300 Manual Medical Pendant — Anesthesia-Ready Ceiling Supply Unit for Operating Rooms

Quick answer. The Keling KL-T7300 is a manual medical pendant (medical hanging tower, series code KL-T·IIBM) designed for operating rooms requiring a full anesthesia gas supply at ceiling level. Its standard utility configuration covers four power outlets, one internet outlet, compressed air, oxygen, suction gas, nitrous oxide and anesthesia gas — all via German standard terminals. It features horizontal rotation with a mechanical friction damping brake. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Power outlets: 4
Data outlets: 1 internet outlet
Series code: KL-T·IIBM
Application: Operating room (clean OR, general OR)

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T7300 manual medical pendant is purpose-configured for operating rooms where the full range of anesthesia gases — including nitrous oxide and anesthesia gas alongside oxygen and compressed air — must be delivered from the ceiling. By positioning all gas outlets at pendant level, the KL-T7300 eliminates long floor-level gas hoses that cross the surgical field and reduces the risk of disconnection or contamination during procedures. This makes it the preferred ceiling supply column for general surgery, orthopedic, cardiac and dedicated anesthesia-intensive ORs.

The pendant's aluminium alloy cabinet is formed using Keling's patented one-piece extrusion process, which produces a structure with no welded joints — a key advantage for load distribution and long-term structural integrity. The primary oxidation surface treatment creates a hard, smooth exterior that resists hospital-grade disinfectants and is quick to wipe down between procedures. The non-slip molded aluminum tray on the pendant arm provides a stable platform for anesthesia monitoring equipment, infusion controls and accessory devices.

Horizontal rotation is controlled by a mechanical friction damping brake: the arm sweeps smoothly to any angle and locks precisely in place without settling or drift after release. Independent cable management channels route gas, power and data lines in separate conduits inside the column, protecting monitoring signal integrity and simplifying future service access. German standard gas connectors on all gas ports are rated for more than 20,000 insertion and pull-out cycles, meeting the demands of high-volume surgical scheduling.

Quick facts

The Keling KL-T7300 is a manual medical pendant engineered for operating rooms where anesthesia gas and nitrous oxide supply are required at the point of care.
Standard gas terminals on the KL-T7300 include compressed air, oxygen, suction gas, nitrous oxide and anesthesia gas, all in German style format.
The arm rotates horizontally with a mechanical friction damping brake for precise, drift-free positioning.
The control cabinet is formed from imported high-strength aluminium alloy using one-piece extrusion molding with primary oxidation surface treatment.
Gas pipelines, power supply and computer communication lines are arranged in independent routing channels to prevent interference.
The KL-T7300 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Full anesthesia gas configuration
nitrous oxide and anesthesia gas included in the standard terminal set, alongside compressed air, oxygen and suction gas.
German standard gas terminals
rated for over 20,000 insertion and pull-out cycles on all gas ports.
Independent utility routing
gas pipelines, power supply and data lines run in separate internal conduits; prevents electromagnetic interference.
One-piece aluminium alloy cabinet
imported high-strength alloy, patented extrusion molding, primary oxidation surface treatment.
Non-slip aluminum tray
molded tray surface keeps anesthesia monitors and small devices stable during arm repositioning.
Horizontal rotation with friction damping brake
smooth swing to any angle; locks precisely with no drift.
Stable and safe structure
high-strength aluminum alloy with one-piece construction for enhanced durability and long-term reliability.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-T7300

KL-T7300 technical specifications
Model	KL-T7300
Series code	KL-T·IIBM
Product type	Manual medical pendant (medical hanging tower)
Application	Operating room (clean OR, general OR)
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Tray	Aluminum molding, non-slip texture
Brake	Mechanical friction damping brake
Rotation	Horizontal, precise positioning without drift
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	4
Data outlets	1 internet outlet
Gas outlets	1 compressed air, 1 oxygen, 1 suction gas, 1 nitrous oxide, 1 anesthesia gas (optional gases)

Applications

The KL-T7300 is suited to operating rooms requiring ceiling-level delivery of all major anesthesia gases alongside standard electrical and data connectivity: general surgery ORs, cardiac surgery suites, dedicated anesthesia workstation environments, thoracic surgery rooms and any procedural space where nitrous oxide and anesthesia gas are routinely used at the surgical table.

Questions buyers ask

What is the Keling KL-T7300 medical pendant used for?

The KL-T7300 is an OR-focused ceiling pendant that provides a complete anesthesia gas supply — including nitrous oxide and anesthesia gas — along with oxygen, compressed air, suction, electrical power and data access at the point of surgical care. It keeps all gas and utility connections organized at ceiling level to reduce floor clutter and hose hazards.

What gas terminals are included on the KL-T7300?

The standard configuration includes five gas terminals: compressed air, oxygen, suction gas, nitrous oxide and anesthesia gas, all in German standard format rated for over 20,000 cycles. Additional gas types are available as options.

How does the KL-T7300 differ from the KL-T7100?

The primary difference is the gas configuration. Where the KL-T7100 provides oxygen, compressed air and suction gas, the KL-T7300 adds nitrous oxide and anesthesia gas terminals, making it the appropriate choice for anesthesia-intensive operating rooms. Both models share the same aluminium alloy construction and mechanical rotation system.

Is the KL-T7300 available for export and large-scale hospital procurement?

Yes. Keling Medical supports bulk hospital procurement and export orders through its Shanghai sales center. Project quotations, OEM specifications and lead time information are available at https://www.kelingmed.com.
