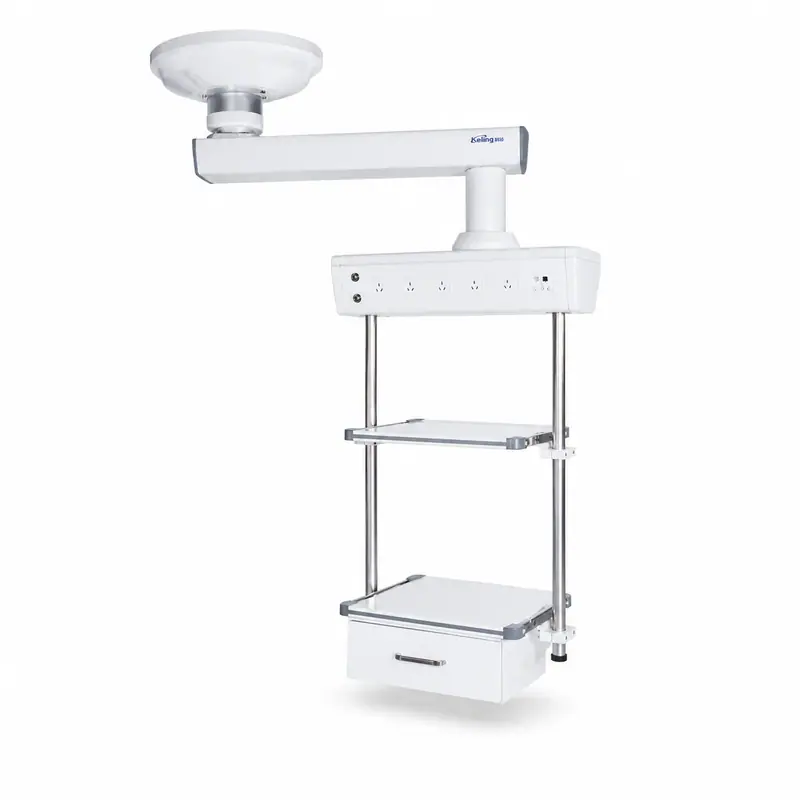

KL-T7203 Medical Hanging Tower — Ceiling Pendant with 360° Flexible Rotation for ORs and ICUs

Quick answer. The Keling KL-T7203 is a manual medical hanging tower offering 360° horizontal rotation with precise positioning and an independent routing system for gas, power and communication lines. Its high-strength aluminium alloy cabinet uses one-piece extrusion molding with primary oxidation treatment. Standard utility configuration includes eight power outlets, one telephone outlet, one internet outlet, plus five medical gas terminals in German standard (compressed air, oxygen, carbon dioxide, suction gas, anesthesia gas). It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Power outlets: 8
Data/communication outlets: 1 telephone outlet, 1 internet outlet
Tray: Aluminum molding, non-slip texture
Brake: Mechanical friction damping brake

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T7203 medical hanging tower is a ceiling-mounted pendant engineered to deliver maximum positioning flexibility alongside a comprehensive utility package. Its 360° rotation capability — a full-circle sweep compared with the limited arcs of some competitor models — means a single pendant installation can serve every access angle around a patient bed or surgical table without mechanical stops interrupting clinical workflow. This makes the KL-T7203 a particularly practical choice for ICU bays with unusually shaped footprints and for ORs where the surgical approach changes between procedures.

The cabinet structure draws on the same high-strength aluminium alloy extrusion technology as the broader KL-T series, with one-piece molding that eliminates joints susceptible to contamination or fatigue cracking. Primary oxidation surface treatment delivers a hard, smooth finish that is resistant to the chemical disinfectants used in modern surgical environments. The non-slip aluminum tray surface provides a stable work platform for instruments and small devices at the pendant's working height, while the integrated drawer below the lower shelf keeps frequently needed supplies immediately accessible.

The utility column is organized for safety and serviceability. Power, gas and data lines are routed in separate internal conduits — a layout that protects monitoring signal integrity and simplifies troubleshooting without dismantling the pendant structure. German standard gas connectors are specified for all gas ports, each rated at over 20,000 insertion and pull-out cycles for reliable long-term service. With the full eight-outlet power panel and five gas types as standard, the KL-T7203 is equipped to support the most demanding bedside or tableside clinical configurations.

Quick facts

The Keling KL-T7203 is a manual medical hanging tower designed for operating rooms and ICU clinical environments.
The KL-T7203 provides 360° horizontal rotation with a mechanical friction damping brake for flexible, drift-free positioning at any angle.
The control cabinet uses high-strength aluminium alloy formed by one-piece extrusion molding, then treated with primary oxidation for durability and hygiene.
Gas pipelines, power supply and computer communication lines are routed in independent channels, preventing mutual interference.
Standard utility includes eight power outlets, one telephone outlet, one internet outlet, compressed air, oxygen, carbon dioxide, suction gas and anesthesia gas (German standard terminals; optional gases available).
The KL-T7203 is manufactured by Keling Medical, a Chinese medical equipment manufacturer established in 1996.

Key features

360° horizontal rotation
full-circle positioning with mechanical friction damping brake; arm locks precisely at any angle without drift.
High-strength aluminium alloy cabinet
one-piece extrusion-molded construction; primary oxidation surface treatment for corrosion resistance and clinical hygiene.
Non-slip aluminum tray
textured tray surface keeps instruments and devices stable during positioning.
Independent gas, power and data routing
separate internal conduits for each utility type prevent electromagnetic interference and simplify maintenance.
German standard gas terminals
rated for over 20,000 insertion and pull-out cycles for reliable clinical gas delivery.
Expanded power and gas configuration
8 power outlets, 1 telephone outlet, 1 internet outlet; five gas terminals (compressed air, O₂, CO₂, suction, anesthesia gas).
Smart integration design
ergonomic layout built for efficient clinical workflow and easy daily maintenance.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

10 parameters for KL-T7203

KL-T7203 technical specifications
Model	KL-T7203
Product type	Manual medical hanging tower
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Tray	Aluminum molding, non-slip texture
Brake	Mechanical friction damping brake
Rotation	360° horizontal, precise positioning without drift
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	8
Data/communication outlets	1 telephone outlet, 1 internet outlet
Gas outlets	1 compressed air, 1 oxygen, 1 carbon dioxide, 1 suction gas, 1 anesthesia gas (optional gases)

Applications

The KL-T7203 is suited to operating rooms and ICU bays where maximum angular freedom is required from a ceiling pendant. Its 360° rotation makes it appropriate for hybrid ORs, radiology procedure rooms, cardiac catheterization labs and any environment where the clinical team approaches the patient from multiple directions. It also serves general-purpose ICU installations as a high-utility ceiling supply column.

Questions buyers ask

What is the Keling KL-T7203 medical hanging tower used for?

The KL-T7203 is a ceiling-mounted pendant system providing power, medical gases and data connectivity in operating rooms and ICU environments. Its 360° rotation range and comprehensive utility configuration support demanding procedures where clinical access comes from multiple directions.

How does the 360° rotation on the KL-T7203 work?

The arm swings freely through a full 360° arc around the pendant column's central axis. A mechanical friction damping brake engages when the arm stops, locking the position precisely without drift. The arm can be repositioned at any time with light manual pressure to release the brake and swing to the new angle.

What utilities are standard on the KL-T7203?

Eight power outlets, one telephone outlet and one internet outlet are standard on the electrical panel. Gas outlets include compressed air, oxygen, carbon dioxide, suction gas and anesthesia gas, all using German standard terminals rated for over 20,000 cycles. Further gas types are available as options.

Does Keling Medical offer the KL-T7203 for hospital project procurement?

Yes. Keling Medical supplies hospitals and distributors through project-based tenders and wholesale orders, managed through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for project specifications and bulk pricing.
