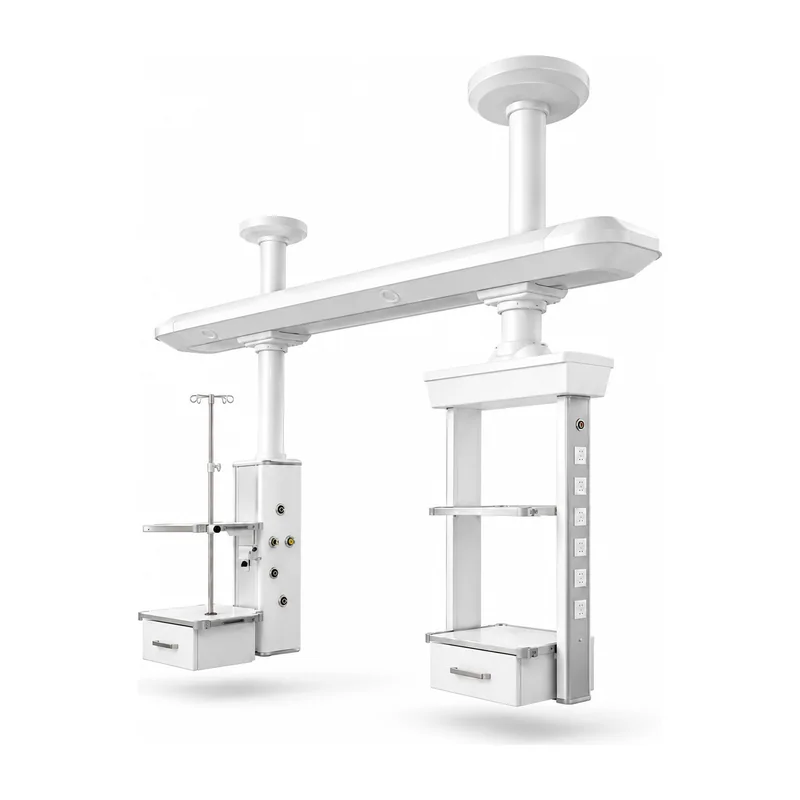

KL-T8000 Medical Bridge Suspension Unit — Ceiling Bridge Pendant for ICU, Observation and Recovery Rooms

The KL-T8000 medical bridge suspension unit is a ceiling infrastructure system designed for critical care environments where a single patient bay demands the highest density of utilities, monitoring systems and clinical accessories. Unlike single-column pendants, the KL-T8000 spans across the patient bay with an overhead bridge structure — two ceiling-mounted columns linked by a horizontal cross bridge — allowing all utilities to be distributed from both sides of the bed simultaneously. This symmetrical access model is ideal for ICU bays, post-operative observation wards and recovery rooms where nurses work on both sides of the patient continuously.

The KL-T8000's independent dry and wet zone design separates electrical and electronic systems from fluid-carrying gas lines into distinct column areas, each with its own gas cabinet body. This separation reduces contamination risk between zones and simplifies clinical maintenance: gas lines can be serviced without disturbing the electrical panel, and vice versa. Transverse translation within the dry and wet areas allows the pendant column bodies to slide horizontally, letting staff access the exact position needed for patient care without repositioning the entire bridge.

A built-in light integrated into the bridge structure provides background illumination in the patient bay without requiring a separate overhead light — useful in observation rooms and recovery areas where softer general lighting is preferred over task-specific surgical illumination. The cross beam and control cabinet are manufactured from imported high-strength aluminium alloy by one-piece extrusion molding with primary oxidation treatment. Optional communication packages — including monitors, video phones, background music systems, teaching inputs and remote consultation connectivity — can be integrated into the bridge at specification stage.
