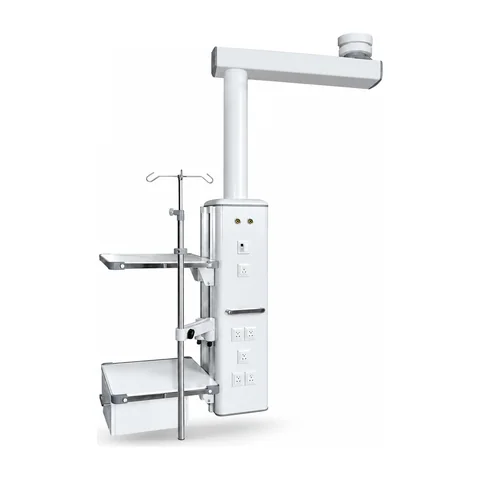

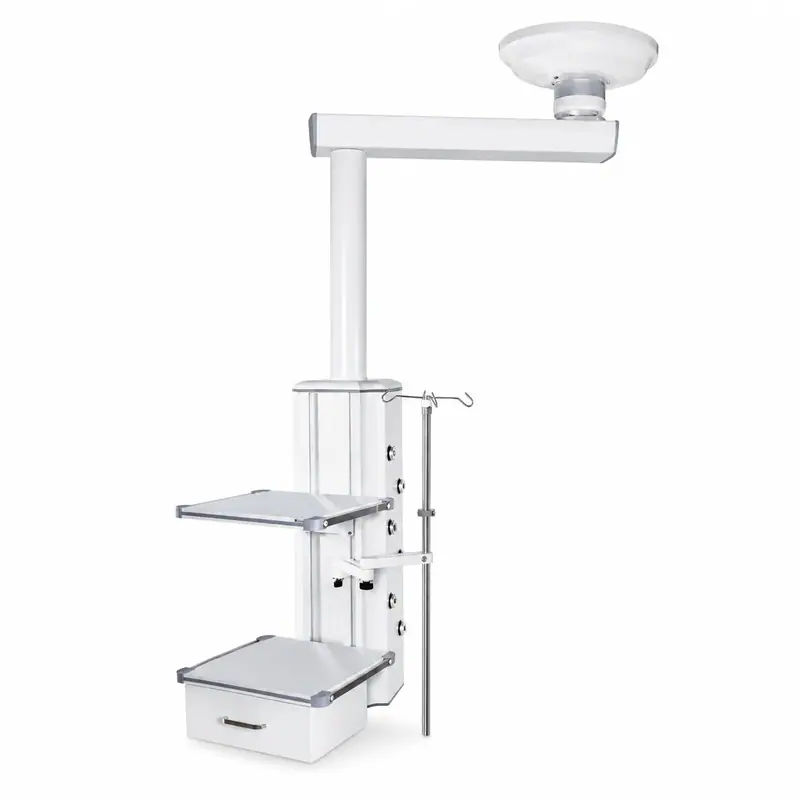

KL-T7303 Medical Hanging Tower — Full-Gas Ceiling Pendant for ORs and ICU Environments

Quick answer. The Keling KL-T7303 is a manual medical hanging tower providing a complete clinical gas supply — compressed air, oxygen, suction gas, nitrous oxide and anesthesia gas — alongside four power outlets and internet connectivity, all via German standard terminals. It features a modular ceiling-mounted design with precise horizontal rotation and an integrated gas and power system. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals and medical distributors worldwide.

Power outlets: 4
Data outlets: 1 internet outlet
Application: Operating room, ICU
Tray: Aluminum molding, non-slip texture

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T7303 medical hanging tower is a ceiling-mounted pendant delivering the full range of surgical and anesthetic gas services alongside electrical and data connectivity in one organized column. It is configured for operating rooms and ICU settings where a complete gas panel — including nitrous oxide and anesthesia gas in addition to the standard trio of oxygen, compressed air and suction — is required at the pendant level, removing the need for separate floor-mounted gas manifolds or long hose runs across the surgical field.

The pendant is built around a high-strength aluminium alloy structural cabinet formed by advanced extrusion molding and finished with oxidation treatment for superior durability and a smooth hygienic surface. All surfaces are rounded and free of crevices, making routine wipe-down with hospital disinfectants fast and thorough. A ceiling-mounted installation keeps the OR floor fully clear, maximizing the space available for surgical team movement and mobile equipment.

Precise horizontal rotation with over 20,000 tested gas terminal cycles underpins the KL-T7303's reliability in daily high-throughput use. The mechanical friction damping brake locks the arm precisely at any angle within its rotation arc; once positioned, it holds without drift until intentionally moved. The modular design accommodates varied numbers of shelves, outlet panels and optional accessories — such as IV pole supports and monitor arms — giving procurement teams the flexibility to specify the exact configuration needed for each room.

Quick facts

The Keling KL-T7303 is a manual medical hanging tower designed for operating rooms and ICU environments requiring a full anesthesia gas complement.
Gas terminals on the KL-T7303 cover compressed air, oxygen, suction gas, nitrous oxide and anesthesia gas — all using German standard connectors.
Precise horizontal rotation with no drift allows the arm to be locked at any required position in the operating room.
The modular design with multiple outlets for power, gas and equipment integration supports diverse clinical configurations.
The high-strength aluminium alloy cabinet features advanced extrusion molding and oxidation treatment for superior durability and hygiene.
The KL-T7303 is manufactured by Keling Medical, a Chinese medical equipment manufacturer established in 1996.

Key features

Full anesthesia gas panel
standard terminals for compressed air, oxygen, suction gas, nitrous oxide and anesthesia gas; all German standard format rated for over 20,000 cycles.
Ceiling-mounted modular design
space-saving structure for optimal OR floor utilization; modular for flexible configuration.
Precise horizontal rotation
drift-free positioning with mechanical friction damping brake; arm locks securely at any angle.
High-strength aluminium alloy construction
advanced extrusion molding and oxidation treatment for superior durability and hygiene.
Integrated gas and power system
multiple power outlets and gas terminals in one column with independent routing to prevent interference.
Non-slip aluminum tray
textured surface keeps instruments and monitoring devices stable.
Easy to maintain
ergonomic, modular layout designed for convenient access and quick maintenance.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-T7303

KL-T7303 technical specifications
Model	KL-T7303
Product type	Manual medical hanging tower
Application	Operating room, ICU
Cabinet material	High-strength aluminium alloy, advanced extrusion molding, oxidation treatment
Tray	Aluminum molding, non-slip texture
Brake	Mechanical friction damping brake
Rotation	Horizontal, precise positioning without drift
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	4
Data outlets	1 internet outlet
Gas outlets	1 compressed air, 1 oxygen, 1 suction gas, 1 nitrous oxide, 1 anesthesia gas (optional gases)

Applications

The KL-T7303 is designed for operating rooms and ICU bays that require ceiling-mounted delivery of both standard medical gases and anesthesia-specific gases from one organized pendant. It suits general surgery ORs, cardiac and thoracic suites, dedicated anesthesia rooms and ICU bays where high utility density is required without floor-level gas manifolds.

Questions buyers ask

What is the Keling KL-T7303 medical hanging tower used for?

The KL-T7303 is a ceiling pendant system delivering a complete gas supply — including nitrous oxide and anesthesia gas — plus electrical power and data connectivity to the point of care in operating rooms and ICUs. Its full-gas configuration eliminates the need for separate floor-level gas connections at the surgical table.

What makes the KL-T7303 different from the KL-T7303's nearest sibling, the KL-T7300?

Both the KL-T7300 and KL-T7303 share the same full anesthesia gas configuration (compressed air, oxygen, suction gas, nitrous oxide, anesthesia gas). The KL-T7303 is distinguished by its modular design emphasis, advanced extrusion molding, and emphasis on easy maintenance and flexible outlet configuration.

How reliable are the gas terminals on the KL-T7303?

All gas terminals follow the German standard and are rated for over 20,000 insertion and pull-out cycles. Gas pipelines, power supply and data lines are routed in separate channels within the column to prevent electromagnetic interference and facilitate maintenance.

Can hospitals order the KL-T7303 as part of a fit-out project?

Yes. Keling Medical supports hospital equipment project tenders, bulk procurement and OEM orders through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for project-level pricing and configuration options.
