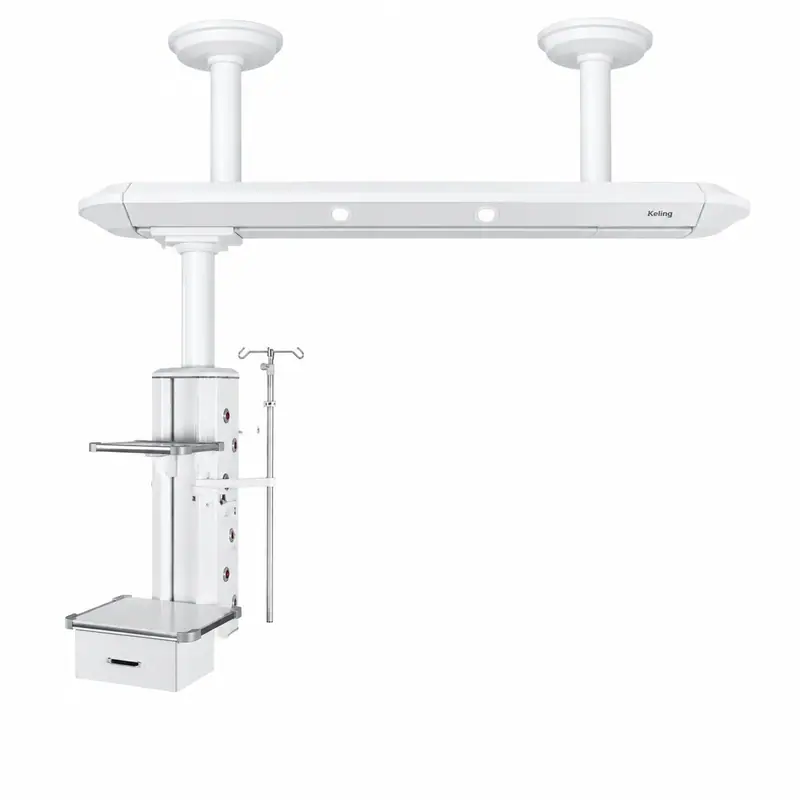

KL-T8003 Medical Bridge Suspension Unit — Lightweight Minimalist Bridge Pendant for ICU and Care Rooms

Quick answer. The Keling KL-T8003 is a lightweight medical bridge suspension unit adopting a minimalist aluminum alloy bridge design for ICU rooms, observation rooms and recovery rooms. It features an LED light built into the middle of the bridge, independent dry and wet zone column design with separate gas cabinet bodies, anti-slip aluminum trays, and transverse column translation. Standard utility includes ten power outlets, one telephone outlet, two internet outlets, one compressed air, two oxygen and one suction gas (German standard terminals). It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Power outlets: 10
Data/communication outlets: 1 telephone outlet, 2 internet outlets
Application: ICU room, observing room, recovering room
Translation: Transverse in dry and wet areas

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T8003 medical bridge suspension unit brings a lightweight, minimalist engineering philosophy to the ICU bridge pendant category. Where the KL-T8000 provides a robust, feature-rich bridge for high-dependency ICU bays, the KL-T8003 is optimized for observation rooms and recovery areas where a visually lighter, space-efficient structure is preferred without sacrificing utility capacity or infection-control standards. The minimalist aluminum alloy bridge spans two ceiling columns and houses a built-in LED light at its center — a detail that serves the ambient care environment of a recovery or observation ward while reducing the need for additional ceiling light fittings.

The dual-column structure maintains the dry/wet zone separation principle from the KL-T8000 series. Each column has an independent area for electrical and gas supply, each equipped with its own gas cabinet body. This separation keeps clinical workflows organized: nurses managing infusions and electrical monitoring work from the dry zone while gas connections and oxygen delivery are organized at the wet zone column, minimizing cross-access and simplifying routine checks. Transverse translation within each area allows the column bodies to slide horizontally, enabling staff to position utilities precisely where needed along the patient bay without relocating the entire bridge.

Construction uses high-strength aluminium alloy throughout, formed by one-piece extrusion molding with primary oxidation surface treatment. The smooth, hard exterior resists hospital disinfectants and is straightforward to wipe clean between patients. Anti-slip aluminum storage trays on each column keep instruments and clinical accessories secure. The German standard gas terminals on each wet-zone column are rated for over 20,000 insertion and pull-out cycles — a specification that holds up under the continuous, multi-patient cycling of a busy observation or recovery unit.

Quick facts

The Keling KL-T8003 is a lightweight minimalist bridge suspension unit designed for ICU, observation and recovery rooms.
The bridge structure uses aluminum alloy construction with a reduced visual footprint, delivering high strength without the bulk of heavier pendant frameworks.
An energy-efficient LED light built into the bridge's middle section provides clear visibility during bedside care and observation without a separate overhead fixture.
Independent dry and wet zone columns with separate gas cabinet bodies keep electrical and gas supply organized and separately maintained.
Standard utility includes ten power outlets, one telephone outlet and two internet outlets for electrical/data needs, plus compressed air, two oxygen outlets and suction gas via German standard terminals.
The KL-T8003 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Lightweight minimalist bridge structure
aluminum alloy bridge with reduced visual footprint; high strength with lower perceived bulk than traditional heavy bridge systems.
Built-in LED bridge light
energy-efficient LED lighting integrated into the bridge mid-span for bedside care and observation visibility.
Independent dry and wet zone columns
separate column areas with individual gas cabinet bodies; organized, safe and independently serviceable.
Transverse column translation
column bodies slide horizontally for precise bedside positioning within each zone.
Anti-slip aluminum storage trays
spacious trays with raised non-slip edges for safe placement of instruments and clinical supplies.
Integrated power, gas and data
centralized access to ten power outlets, telephone, two internet ports and medical gas terminals from the bridge structure.
German standard gas terminals
rated for over 20,000 insertion and pull-out cycles on all gas connections.
Modular design for easy integration
aluminum alloy construction with modular layout simplifies installation and future upgrades.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

13 parameters for KL-T8003

KL-T8003 technical specifications
Model	KL-T8003
Product type	Lightweight medical bridge suspension unit
Application	ICU room, observing room, recovering room
Structure	Minimalist aluminum alloy bridge connecting two ceiling columns
Zone design	Independent dry and wet areas with separate gas cabinet bodies
Translation	Transverse in dry and wet areas
Bridge light	Built-in LED, middle of bridge
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Tray	Aluminum, anti-slip edges
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	10
Data/communication outlets	1 telephone outlet, 2 internet outlets
Gas outlets	1 compressed air, 2 oxygen, 1 suction gas (optional gases)

Applications

The KL-T8003 is installed in ICU rooms, post-operative observation wards and recovery rooms where a ceiling bridge pendant system is required with a lighter, more refined visual presence than traditional heavy-frame models. Its built-in LED light makes it particularly well suited to observation and recovery environments. It is also appropriate for general ward modernization projects seeking a ceiling-mounted multi-utility solution with gas and electrical supply.

Questions buyers ask

What is the Keling KL-T8003 lightweight bridge suspension unit?

The KL-T8003 is a ceiling bridge pendant system with a minimalist aluminum alloy bridge spanning two columns, designed for ICU, observation and recovery rooms. It delivers power, gas and data from both sides of the patient bay and features a built-in LED bridge light, independent dry/wet zone column design and anti-slip trays.

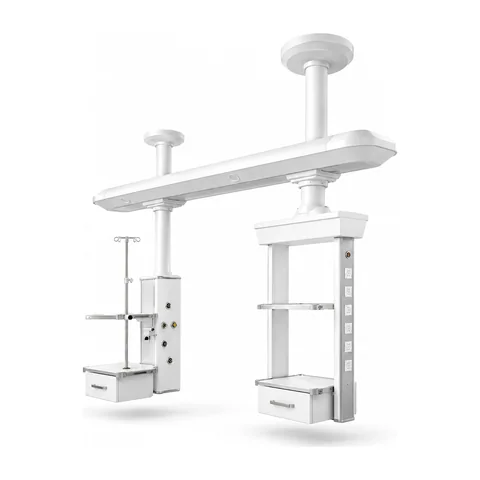

How does the KL-T8003 differ from the KL-T8000?

The KL-T8003 adopts a lightweight, minimalist bridge design compared to the more robust KL-T8000. It adds a built-in LED light at the bridge center — suited for observation and recovery room illumination — and is optimized for settings where a reduced visual footprint is preferred. Both models share dry/wet zone separation and the same utility capacity.

What utilities are provided on the KL-T8003?

Ten power outlets, one telephone outlet and two internet outlets provide electrical and data connectivity. Gas supply includes one compressed air terminal, two oxygen terminals and one suction gas terminal, all via German standard connectors rated for over 20,000 cycles. Additional optional gas types are available.

Can the KL-T8003 be ordered for an ICU or recovery room fit-out project?

Yes. Keling Medical regularly supplies medical bridge pendant systems to hospital projects worldwide through its Shanghai export center. The KL-T8003's lightweight design makes it cost-effective for multi-bay installations in observation and recovery wards. Contact Keling Medical at https://www.kelingmed.com for project quotations.
